LED AUXILIARY LAMPS
J052362013-06-13
GENERAL
Kit Number
73396-10A, 68000008A, 68000075
Models
These fog lamps fit all Harley-Davidson original equipment and Genuine Motor Accessory auxiliary lamps. They are direct replacements for the original bulbs found in the lamps.
Additional Parts Required
2004 and earlier Touring models: require the separate purchase of two Y-harnesses (68355-05).
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
This fog lamp kit requires up to 4.6 A current from the electrical system. This may be less than the OE (original equipment) electrical draw.
INSTALLATION
For ALL vehicles with main fuse:
WARNINGTo prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse before proceeding. (00251b)
NOTE
For vehicles equipped with security siren:
- Verify that the Hands-Free Fob is present.
- Turn the ignition key switch to IGNITION.
- Refer to the service manual and follow the instructions to remove the main fuse.
For ALL vehicles with main circuit breaker:
WARNINGTo prevent accidental vehicle start-up, which could cause death or serious injury, disconnect negative (-) battery cable before proceeding. (00048a)
- Refer to the service manual and follow the instructions to remove the seat and disconnect the negative (black) battery cable from the negative (-) battery terminal. Retain all seat mounting hardware.
| 1. | See Figure 4. Remove auxiliary lamp retaining screw (A) and nut (B) from auxiliary lamp retaining ring (C). Remove and retain retaining ring and hardware. | |
| 2. | Disconnect the wire harness plug from back of auxiliary lamp (1). | |
| 3. | Remove lamp (1) and nesting ring (D). Discard lamp but retain nesting ring. | |
| 4. | See Figure 1. Place the nesting ring at back of new lamp with concave side facing away from lamp. | |
| 5. | For 2004 and earlier Touring models: Connect a Y-harness (68355-05) to the auxiliary lamp connectors. NOTE If the ground wires will not mate when the connectors are connected, see the service manual and switch the wire terminal positions in the fog lamp connector. | |
| 6. | Verify that when connected, the fog lamp ground wire (black) will mate to the auxiliary light connector ground wire (black). | |
| 7. | Connect fog lamp connector to the motorcycle auxiliary light connector (E). Install lamp and nesting ring in housing and be sure to align index tab (1) on lamp with pockets in the nesting ring. Make sure that the nesting ring index tab (2) locates in the the slot of at the bottom of the housing. | |
| 8. | Install retaining ring over lamp. Rotate retaining ring so the screw is centered at bottom. Install nut and screw and tighten until snug. | |
| 9. | Repeat for the lamp on the opposite side. | |
| 10. | See the service manual and connect the battery negative cable (-) or install main fuse. | |
| WARNING After installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b) | ||
| 11. | If necessary, install the seat. | |
| 12. | Test the LED fog lamps for proper operation. | |
| 13. | Align the LED fog lamps. |
| 1 | Lamp index tab |
| 2 | Nesting ring index tab |
Figure 1. Lamp and Nesting Ring
ALIGNMENT PROCEDURE
| 1. | Verify that front and rear tire inflation pressures are correct and that the suspension is adjusted to the weight of the principal rider. Refer to the owner's manual. | |||||||
| 2. | Fill the fuel tank or add ballast to equal the weight of the fuel needed. | |||||||

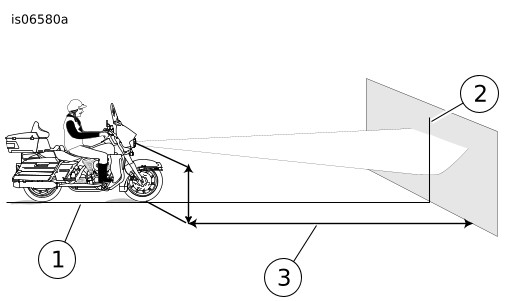

| 3. | See Figure 2. Position motorcycle so that front axle is 25 feet (7.6 meters) (3) from wall. | |||||||
| 4. | Draw a vertical line (2) off of the perpendicular line (1) on the wall, directly opposite of the motorcycle. NOTE As the weight of the rider will compress the suspension slightly, have a person whose weight is roughly the same as that of the principal rider sit on the motorcycle. |
Figure 2. Checking Headlamp Alignment | ||||||
| 5. | With the vehicle upright and a rider seated on the motorcycle, measure the distance from the floor to the horizontal centerline of each LED fog lamp. Record this measurement. | |||||||
| 6. | Measure the distance from the headlamp vertical centerline to the vertical centerline of each LED fog lamp. Record this measurement. | |||||||
| 7. | See Figure 3. Mark the LED fog lamp horizontal and vertical centerlines (2 and 3) on the wall according to the measurements taken in the previous steps. NOTE Follow the adjustment procedure in the service manual procedure for loosening and tightening the auxiliary lamp flare nut. Follow this procedure for positioning the beam area of the LED fog lights. | |||||||
| 8. | See the service manual and loosen the auxiliary lamp housing adjusting hardware. | |||||||
| 9. | Cover the headlamp and right side fog lamp. Adjust the left side fog lamp position so that: |
- The beam area (4) is horizontally centered on the left side fog lamp center lines (2).
- The top of the beam area is 10 cm (4 in) below the left side fog lamp center point.
- Cover the headlamp and left side fog lamp. Adjust the right side fog lamp position so that:
- The beam area (5) is horizontally centered on the right side fog lamp center lines (3).
- The top of the beam area is 10 cm (4 in) below the right side fog lamp center point.
- See the service manual and tighten the auxiliary lamp housing adjusting hardware and, if necessary, front turn signal hardware to torque specified.
| 1 | Headlamp vertical centerline |
| 2 | Left side LED fog lamp centerlines |
| 3 | Right side LED fog lamp centerlines |
| 4 | Left side LED fog lamp beam area |
| 5 | Right side LED fog lamp beam area |
| 6 | Distance - 4 in (10 cm) |
Figure 3. Properly Aim LED Fog Lamps
SERVICE PARTS
Figure 4. Service Parts: LED Auxiliary Lamps
Table 1. Service Parts
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | LED lamp bulb(chrome) (2) | 73397-10B |
1 | LED lamp bulb (black)(2) | 68000007A |
1 | LED lamp bulb (chrome)(2) | 68000075 |
Items mentioned in text, but not included in kit. | ||
A | Screw, retaining ring | |
B | Nut, retaining ring | |
C | Retaining ring | |
D | Nesting ring | |
E | Connector | |
