FLD SADDLEBAG DOCKING BUSHINGS

J053532011-04-01

GENERAL

Kit Number

90200576

Models

For model fitment information, See the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).

Additional Parts Required

Two kits are required for the replacement bushings on two saddlebags.

WARNING

Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)

Kit Contents

See Figure 2 and Table 1.

INSTALLATION

Using a pair of pliers or other suitable tool, squeeze the open ends of the bushings slightly closed to remove the old bushings from the brackets.

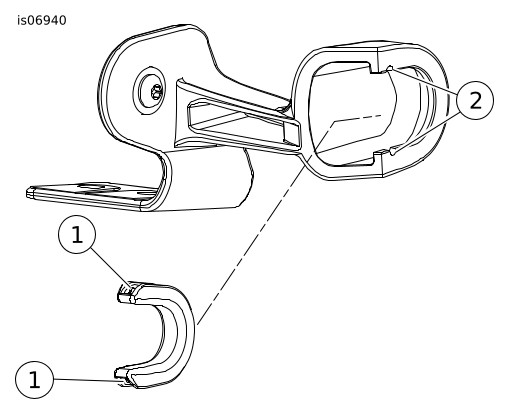

See Figure 1. Install the new bushings. Make sure the sides of the bushing are gripping the sides of the bracket and that the two bushing bumps seat in the bracket pockets. You should hear an audible click when the bushing is seated.

1	Bushing bumps
2	Bracket pockets

Figure 1. Install Bushing to Bracket

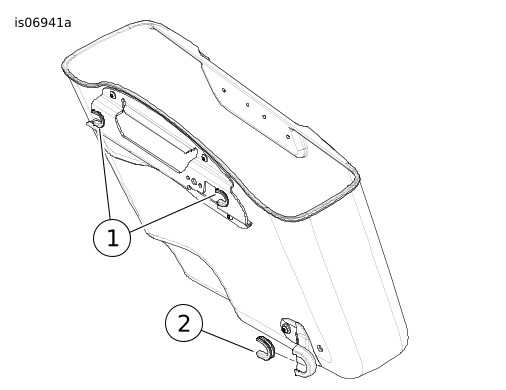

1	Small upper bushings (2)
2	Large lower bushing

Figure 2. Service Parts: Docking Bushings

Table 1. Service Parts Table

Kit	Item	Description	Part Number
Kit 90200576 Docking Bushings	1	Upper docking bushings (2)	90200480
Kit 90200576 Docking Bushings	2	Lower docking bushing	90200652
