POLICE EMERGENCY RESPONSE KIT
J057532013-06-20
GENERAL
Kit Number
69000057
Models
For model fitment information, see the Harley-Davidson Police and Fleet Motorcycle catalog or the Police and Fire/Rescue section of www.harley-davidson.com (English only).
NOTE
This accessory must be removed when the vehicle is sold for non-police use. Follow all applicable federal, state and local regulations when changing to a civilian vehicle.
Tools and Supplies Required
Loctite® 271 Threadlocker and Sealant - Red (H-D Part Number 99671-97) is required for the proper installation of this kit.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual and a Police Models Service Manual Supplement for this year and model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
Electrical Overload
NOTICE
It is possible to overload the vehicle's charging system by adding too many electrical accessories. If the combined electrical accessories operating at any one time consume more electrical current than the vehicle's charging system can produce, the electrical consumption can discharge the battery and cause damage to the vehicle's electrical system. (00211d)
WARNING
When installing any electrical accessory, be certain not to exceed the maximum amperage rating of the fuse or circuit breaker protecting the affected circuit being modified. Exceeding the maximum amperage can lead to electrical failures, which could result in death or serious injury. (00310a)
Police Emergency Response Kit 69000057 requires up to 8 amps additional current from the electrical system.
Kit Contents
See Figure 3 and Table 1.
INSTALLATION
Models with main fuse:
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse before proceeding. (00251b)
  1. Refer to the service manual and follow the instructions given to remove the main fuse.
Models with main circuit breaker:
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, disconnect negative (-) battery cable before proceeding. (00048a)
  1. Refer to the service manual and follow the instructions given to disconnect the negative (black) battery cable from the negative (-) battery terminal.
Install Siren/Speaker
1. See Figure 3. Position the speaker mounting bracket (8) onto the siren/speaker (2) horn, aligning the mounting holes.
2. Install first a flat washer (12), then a rubber washer (11) onto the threads of each 1/4-20 hex head bolt (13) from the siren/speaker mounting kit (6). From the outside, insert the bolt threads through the holes in the speaker mounting bracket and the speaker horn.
3. Assemble a second rubber washer, then another flat washer onto the threads of each bolt, and thread a 1/4-20 flanged locknut (10) onto each bolt. Tighten each bolt and nut uniformly and securely until the four rubber washers are slightly and equally deformed. DO NOT OVERTIGHTEN.
4. Position the speaker mounting bracket inside the upper corner of the right-side engine guard. Install the U-bolts (7) over the engine guard and through the holes in the bracket. Install the 5/16-18 flanged locknuts (9) onto the U-bolt threads, and tighten securely.
5. See Figure 1. A sticker (3) on the speaker magnet housing (2) identifies the location of the speaker drain hole. With the speaker mounted to the engine guard, verify that the drain hole sticker is positioned at the bottom of the speaker magnet housing. If the drain hole is NOT correctly positioned, proceed as follows:
a. Loosen the speaker cone (1) by turning the cone counterclockwise.
b. Rotate the speaker magnet housing so the drain hole sticker is positioned at the bottom.
c. Hold the magnet housing in position, and turn the cone clockwise to tighten.

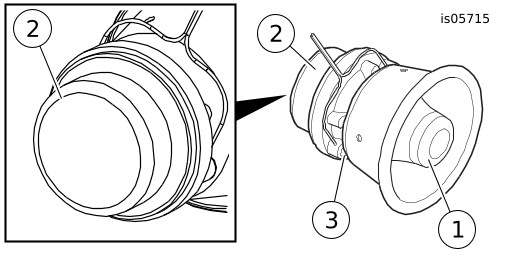

1Speaker cone
2Magnet housing
3Drain hole sticker
Figure 1. Speaker Cone, Magnet Housing and Drain Hole
6. See Figure 3. Refer to the service manual and follow the instructions given to crimp the Deutsch pin terminals (4) to the black siren wires.
7. Obtain the two-way Deutsch pin housing (3) and secondary lock (5) from the siren/speaker kit. See the instructions in the service manual to install the terminals from the speaker horn into the pin housing cavities.
NOTE
The siren branch of the siren amplifier and strobe harness can be accessed at the right side of the vehicle, forward of the fuel tank and above the engine guard.
8. Locate the two-way Deutsch socket housing [57B] on the siren amplifier and strobe harness. Both wires are gray/red.
9. Connect the speaker horn pin housing to socket housing [57B]. Secure the speaker wiring to the engine guard with cable straps (not supplied).
Install Siren Amplifier
1. See Figure 3. Position the top loop of the amplifier bracket (15) over the leading edge of the left-side upper saddlebag guard rail. Align the spacer (16) with the holes inside the loop. Place the washer (18) onto the threads of the hex head cap screw (19), insert the screw through the top hole in the amplifier bracket and the spacer (16). Thread the screw into the weld nut, but do not fully tighten.
2. With the loop rearward and the mounting hole up, install the P-clamp (25) onto the lower saddlebag guard rail. Align the clamp to the bottom hole in the amplifier bracket. Place the washer (24) onto the threads of the hex head cap screw (23), thread the screw into the weld nut, but do not fully tighten.
3. Align the siren amplifier (22) mounting slots with the four holes in the amplifier bracket. Assemble the amplifier to the bracket with four 1/4-24 button head screws (21) and flat washers (20). Insert two screws and washers through the top holes in the amplifier bracket and onto the threads of the hex nuts (17). Insert two screws and washers through the bottom holes in the amplifier bracket and thread the screws into the weld nuts. Tighten to 8 N·m (6 ft-lbs).
NOTE
To prevent scratching the paint, avoid contact with the vehicle side cover while tightening the amplifier bracket fasteners.
4. Align the amplifier bracket squarely on the saddlebag guard rails. Tighten the mounting screws securely.
NOTE
The amplifier branch of the siren amplifier and strobe harness can be accessed above the left side cover.
A light coat of liquid soap, window cleaner or all-purpose lubricant may be needed to slide the connector boot into place.
5. Connect the 18-way Packard socket housing [72B] on the siren amplifier and strobe harness to the pin housing on top of the amplifier. Slide the boot down securely over the connectors. Secure the amplifier wiring to the upper portion of the left-side saddlebag guard with cable straps (not supplied).
Install Microphone
  1. See Figure 3. Mount the microphone hanger (28) in a convenient location using the screws (31), washers (29) and locknuts (30) from the microphone mounting kit.
  2. Insert the microphone (27) plug into the jack located on the left side of the nacelle (FLHP models) or to the left of the glove box (FLHTP models).
Return to Service
  1. Verify that the ignition/key switch is turned to the OFF position. Models with main fuse: Refer to the service manual and follow the instructions given to install the main fuse. Models with main CIRCUIT BREAKER: Apply a light coat of Harley-Davidson electrical contact lubricant (part number 99861-02), petroleum jelly or corrosion retardant material to the negative battery terminal. Refer to the service manual and follow the instructions given to attach the negative battery cable.
  2. Turn the ignition/key switch to IGNITION, but do not start the motorcycle.
  3. NOTE
    Before using the WPA™ series water-proof amplifier, the Public Address system (PA) output volume must be adjusted to satisfactory operating levels.
    To adjust this level, a small, flat blade screwdriver is needed.
  4. To adjust the radio repeat levels (output volume):
    1. Locate the PA adjustment port (potentiometer) to the left of the twelve-position input port on the remote amplifier. The potentiometer is hidden behind a #10-32 Phillips head machine screw (see Figure 2 ). Remove this screw.
    2. Key the microphone, and place it near the speaker.
    3. Insert the screwdriver in the PA adjustment port and turn clockwise to increase the volume until no noticeable feedback distortion is heard.
    4. Return the Phillips head screw to its original position
  5. Test for proper operation of installed systems.

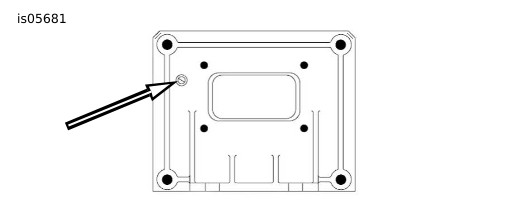

Figure 2. Amplifier (Rear View)
SERVICE PARTS

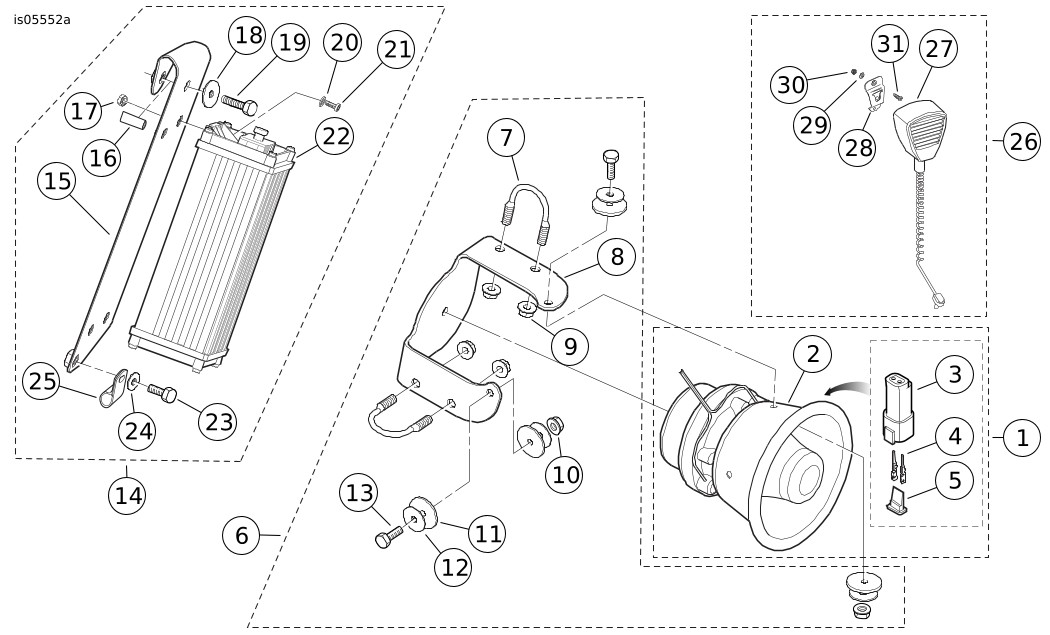

Figure 3. Service Parts, Police Emergency Response Kit
SERVICE PARTS
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
1
Siren/speaker kit (includes items 2-5)
91157-88A
2
  • Siren/speaker, 100W
Not sold separately
3
  • Pin terminal, Deutsch, #16-18 AWG (2)
72190-94
4
  • Pin housing, Deutsch, two-way, sealed
72102-94BK
5
  • Secondary lock, Deutsch two-way pin housing
72142-94
6
Siren/speaker mounting kit (includes items 7 through 13)
91154-87
7
  • U-bolt (2)
91159-82
8
  • Bracket, siren/speaker mounting
91127-85
9
  • Flanged locknut, 5/16-18 (4)
7531
10
  • Flanged locknut, 1/4-20 (2)
7716
11
  • Rubber washer (4)
6035A
12
  • Flat washer (4)
6036
13
  • Cap screw, hex head, 1/4-20 x 3/4 inch long (2)
3787
14
Amplifier mounting kit (includes items 15-25)
69200597
15
  • Bracket, amplifier mounting
Not sold separately
16
  • Spacer
Not sold separately
17
  • Hex nut (2)
7688
18
  • Flat washer
6237
19
  • Cap screw, hex head
2871W
20
  • Flat washer, 1/4 inch ID (4)
6036
21
  • Screw, button head, hex (4)
4365
22
  • Amplifier, siren/speaker, 100W
91156-93
23
  • Cap screw, hex head
3929
24
  • Washer
6702
25
  • P-clamp
28867-88
26
Microphone kit (includes items 27-31)
91448-00
27
  • Microphone, WS-320
76185-93
28
  • Hanger, microphone
76201-80A
29
  • Flat washer (2)
6716
30
  • Hex locknut (2)
7624
31
  • Machine screw, pan head (2)
2659
