HYDRAULIC SHOCK KIT
J056042013-01-16
GENERAL
Kit Number
54535-07B
Models
2007-2008 FXDSE and FXDSE2 SCREAMIN' EAGLE DYNA.
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
Kit Contents
FXDSE 2007: See Figure 1 and Table 1
FXDSE2 2008: See Figure 2 and Table 2
INSTALLATION
- This kit installs in the same way as the original equipment. Refer to the service manual for installation.
SERVICE PARTS

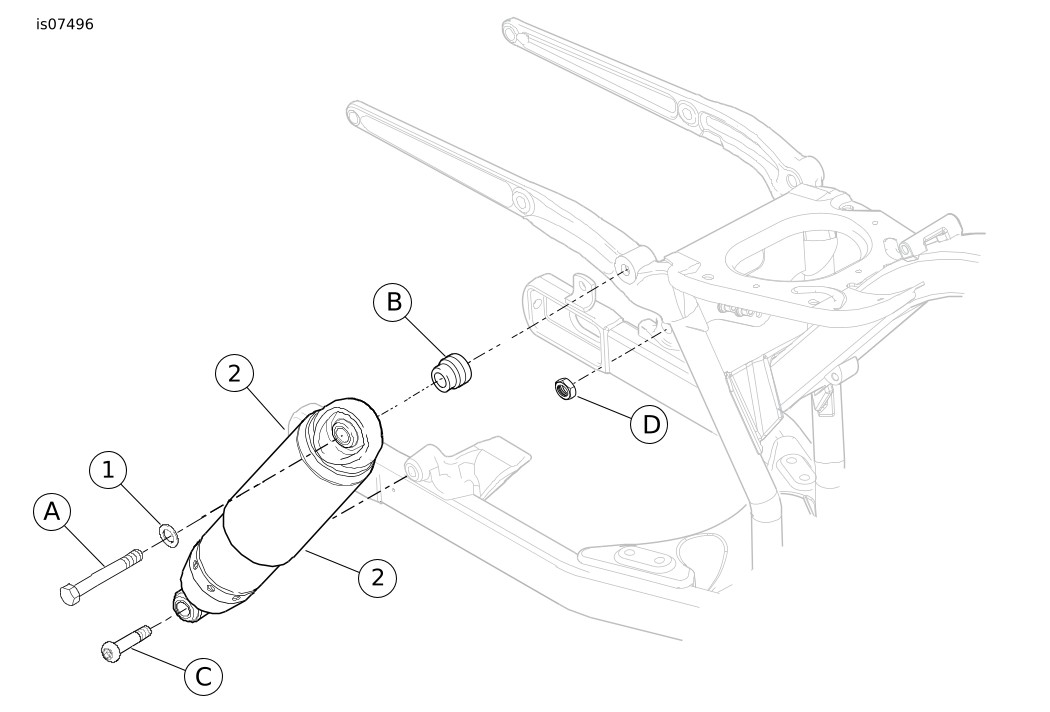

Figure 1. Hydraulic Shock Kit
Table 1. Service Parts Table
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Washer (2) | 6113 |
2 | Shock absorber (2) | 54537-08A |
Items mentioned in text, but not included in kit | ||
A | Screw, (2) upper shock | 54718-06A |
B | Spacer (2) | 54716-06 |
C | Screw (2) lower shock | 3378 |
D | Nut, shock,left side only | 7403 |

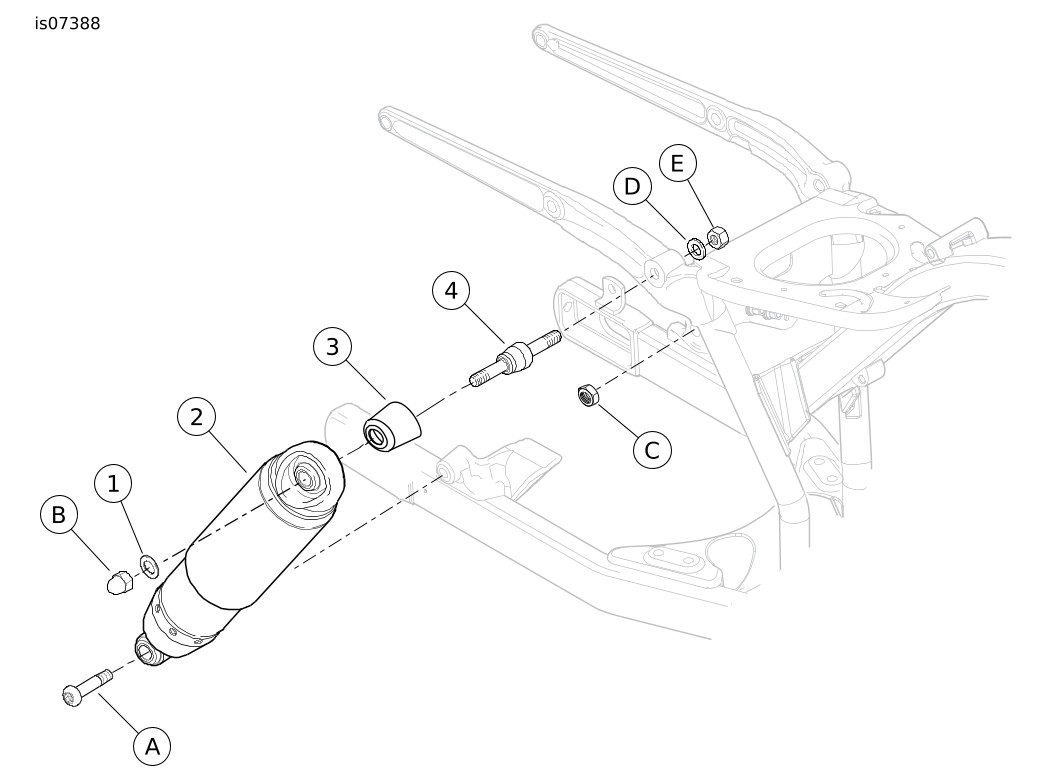

Figure 2. Hydraulic Shock Kit
Table 2. Service Parts Table
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Washer (2) | 6113 |
2 | Shock absorber (2) | 54537-08A |
3 | Upper shock stud cover (2) | 54516-09 |
4 | Shock upper stud (2) | 54666-08 |
Items mentioned in text, but not included in kit: | ||
A | Screw, lower shock (2) | 3378 |
B | Acorn nut, upper shock (2) | 8192 |
C | Nut shock, left side only | 7403 |
D | Washer (2) | 6792 |
E | Nut (2) | 7880 |
