BRAKE CALIPER KIT
J058902014-02-26
GENERAL
Kit Numbers
41300131, 41300142
Models
For model fitment information, see the P&A retail catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
This kit is a direct replacement for the original equipment (OE) components, and installs in the same manner.
Installation Requirements
Fresh, uncontaminated hydraulic brake fluid from a sealed container is needed. Refer to the service manual for this year/model motorcycle to determine the correct brake fluid.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet refers to service manual information. A service manual for this year/model motorcycle is required for this installation. One is available from a Harley-Davidson dealer.
WARNING
Brakes are a critical safety component. Contact a Harley-Davidson dealer for brake repair or replacement. Improperly serviced brakes can adversely affect brake performance, which could result in death or serious injury. (00054a)
Kit Contents
See Figure 1 and Table 1.
PREPARATION
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, remove main fuse before proceeding. (00251b)
NOTE
  • WITH security siren: With security fob present, turn ignition switch ON. See the service manual. After system is disarmed, turn ignition switch OFF. IMMEDIATELY remove the main fuse.
  • WITHOUT security siren: See the service manual. Remove the main fuse.
INSTALLATION
WARNING
Contact with DOT 4 brake fluid can have serious health effects. Failure to wear proper skin and eye protection could result in death or serious injury.
  • If inhaled: Keep calm, remove to fresh air, seek medical attention.
  • If on skin: Remove contaminated clothing. Rinse skin immediately with plenty of water for 15-20 minutes. If irritation develops, seek medical attention.
  • If in eyes: Wash affected eyes for at least 15 minutes under running water with eye lids held open. If irritation develops, seek medical attention.
  • If swallowed: Rinse mouth and then drink plenty of water. Do not induce vomiting. Contact Poison Control. Immediate medical attention required.
  • See Safety Data Sheet (SDS) for more details available at sds.harley-davidson.com
(00240e)
NOTICE
DOT 4 brake fluid will damage painted and body panel surfaces it comes in contact with. Always use caution and protect surfaces from spills whenever brake work is performed. Failure to comply can result in cosmetic damage. (00239c)
NOTE
If DOT 4 brake fluid contacts painted surfaces, IMMEDIATELY flush area with clear water.
Cover nearby motorcycle surfaces to protect against damage to the finish caused by spillage or splash of DOT 4 brake fluid.
WARNING
Replace brake line gaskets. Re-using original gaskets can cause brake failure and loss of vehicle control, which could result in death or serious injury. (00318a)
NOTICE
Remove brake line components carefully. Damage to seating surfaces can cause leakage. (00320a)
  1. See the service manual. Remove the OE front brake caliper.
  2. Install the new front brake caliper per service manual instructions.
  3. See the service manual. Remove the OE rear brake caliper.
  4. See the service manual. Install the new rear brake caliper.
COMPLETION
NOTE
Verify that the ignition key switch is in the OFF position before installing the main fuse.
  1. See the service manual. Install the main fuse.
WARNING
After servicing brakes and before moving motorcycle, pump brakes to build brake system pressure. Insufficient pressure can adversely affect brake performance, which could result in death or serious injury. (00279a)
WARNING
After repairing the brake system, test brakes at low speed. If brakes are not operating properly, testing at high speeds can cause loss of control, which could result in death or serious injury. (00289a)
SERVICE PARTS

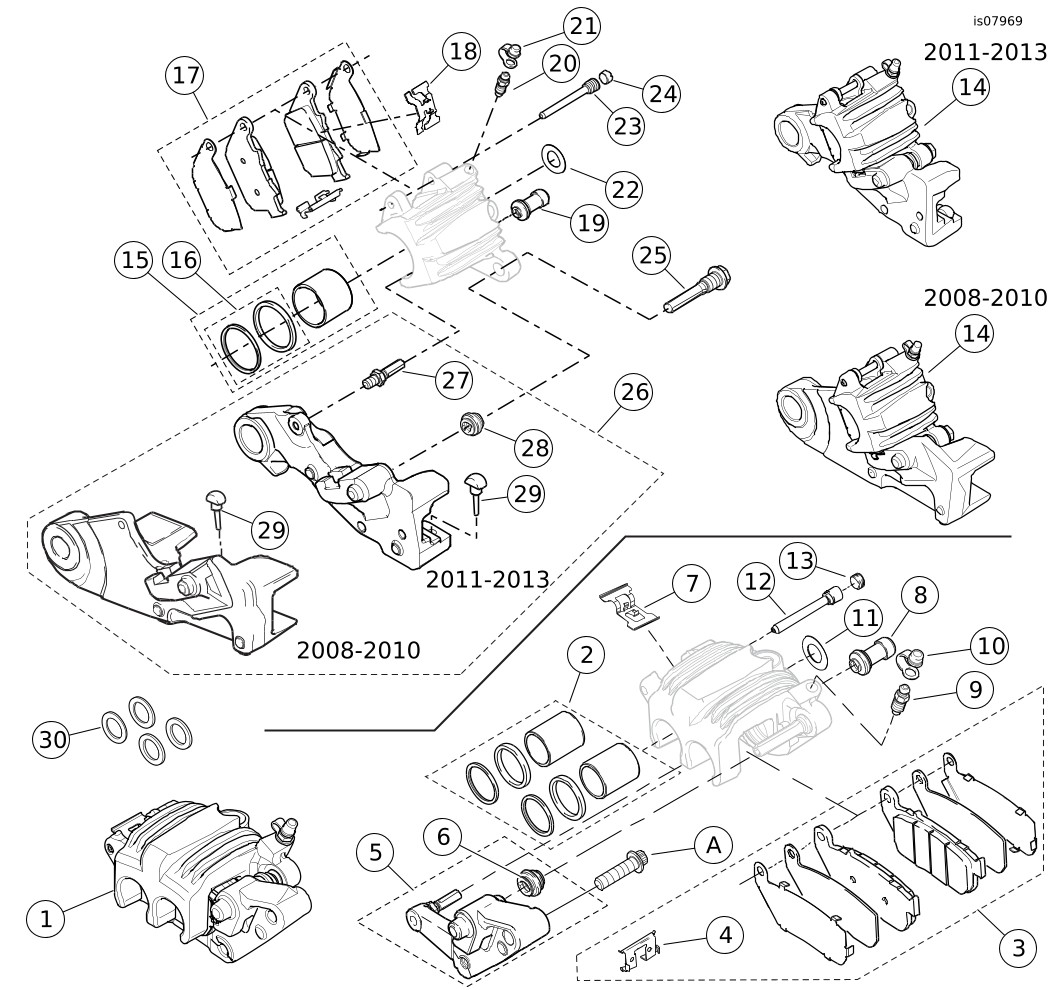

Figure 1. Service Parts, Brake Caliper Kit
Table 1. Service Parts
Item
Description (Quantity)
Part Number
1
Brake caliper assembly, front (Red) (includes Items 2-13)
41300132
2
  • Piston kit, front brake
42028-07
3
  • Pad kit, front brake (includes Item 4)
42831-04A
4
  • ... Clip, retainer
Not sold separately
5
  • Caliper bracket (Red) (includes Item 6)
41300141
6
  • ... Boot, caliper pin
42824-04
7
  • Spring, front brake pad retainer
42829-04
8
  • Boot, caliper bushing
42823-04
9
  • Bleeder screw, with O-ring
42875-07
10
  • Cap, bleeder screw
42893-07
11
  • Medallion, caliper (Harley-Davidson name)
44440-04
12
  • Pin, caliper pad
42832-04
13
  • Plug, caliper pad pin
42838-04
14
Brake caliper assembly, rear, 2008-2010 models (Red) (includes Items 15-29)
Brake caliper assembly, rear, 2011-2013 models (Red) (includes Items 15-29)
41300143
41300133
15
  • Piston kit, rear brake (includes item 16)
42834-04
16
  • ... Seal kit, rear brake piston
43528-04
17
  • Pad kit, rear brake (includes two pads, two shims and one retainer clip)
42029-07
18
  • Spring, rear brake pad
42839-04
19
  • Boot, caliper bushing
42823-04
20
  • Bleeder screw, with O-ring
42875-07
21
  • Cap, bleeder screw
42893-07
22
  • Medallion, caliper (Harley-Davidson name)
44440-04
23
  • Pin, caliper pad
42837-04
24
  • Plug, caliper pad pin
42838-04
25
  • Bolt, caliper mount pin
44184-04
26
  • Bracket assembly, rear brake caliper, 2008-2010 models (includes Items 27-29)
  • Bracket assembly, rear brake caliper, 2011-2013 models (includes Items 27-29)
42835-08
42835-11
27
  • ... Pin, rear brake bolt
44178-04
28
  • ... Boot, caliper pin
42824-04
29
  • ... Damper
42840-04
30
Sealing gasket (4)
41732-04
Item mentioned in text, but not included in kit:
A
Bolt, front caliper mount (2) (Part No. 44160-00)
