SCREAMIN' EAGLE 64MM RACE HEAVY BREATHER KIT
J055802017-08-23
GENERAL
Kit Numbers
29000065A
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
NOTE
This kit is intended for race applications only. Engine-related performance parts are intended FOR THE EXPERIENCED RIDER ONLY.
Running an engine with out an air cleaner can result in severe engine damage.
NOTE
This engine related performance part is not legal for use on pollution controlled motor vehicles. This kit may reduce or void the Limited Vehicle Warranty coverage. Engine related performance parts are intended for the experienced rider only.
Additional Parts Required
The Screamin' Eagle 64mm Pro High Flow EFI Throttle Body Kit (Part Number 27300033) is required for this installation.
LOCTITE® 243 (Blue) Threadlocker and Sealant is needed for proper installation of this kit.
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson dealer.
The following caution and note apply to EFI models only.
NOTICE
You must recalibrate the ECM when installing this kit. Failure to properly recalibrate the ECM can result in severe engine damage. (00399b)
NOTE
See a Harley-Davidson dealer for ECM (Electronic Control Module) calibration.
Kit Contents
See Figure 1 and Table 1.
INSTALLATION
WARNING
To prevent accidental vehicle start-up, which could cause death or serious injury, disconnect battery cables (negative (-) cable first) before proceeding. (00307a)
WARNING
Disconnect negative (-) battery cable first. If positive (+) cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion, which could result in death or serious injury. (00049a)
  1. Refer to the service manual and follow the instructions given to remove the seat and disconnect the battery cables, negative (-) cable first. Retain all seat mounting hardware.
WARNING
When servicing the fuel system, do not smoke or allow open flame or sparks in the vicinity. Gasoline is extremely flammable and highly explosive, which could result in death or serious injury. (00330a)
Original Equipment (OE) Air Cleaner Removal
For EFI (fuel-injected) models: Have a Harley-Davidson dealer recalibrate the ECM prior to air cleaner installation.
  1. Remove the air cleaner backplate following the instructions in the service manual. The remaining parts can be discarded.
  2. See Figure 1. Remove and discard induction module bracket (B).
Back Plate Installation
NOTE
When servicing the air cleaner, apply Loctite 243 (blue) to all threaded fasteners (both male and female threads).
1. Remove the backing from the adhesive side of the backplate gasket (11). Carefully align the holes, and install the gasket on the induction module side of the backplate.
2. Apply a small amount of Loctite to the backplate mounting screw (12) threads. Use the four screws (12) to fasten the throttle body to the backplate (9). Tighten the screws to 55-60 in-lbs (6.2-6.8 Nm).
3. Install the new O-rings (10) in the grooves around the breather screw holes on induction module side of the backplate (9).
4. Insert the breather screws (7) through the backplate. Apply a small amount of Loctite to the breather screw threads and the mating tapped holes in the cylinder head, then install the screws into the cylinder head.
5. Alternately tighten the two breather screws to:
Torque: 13.6–16.3 N·m (120–144 in-lbs) screw
6. Lubricate the O-rings (6) with clean engine oil or white lithium grease. Install the O-rings onto the breather plugs. Press the breather plugs (5) into the breather screw cavities.
Air Filter Element and Air Tube Installation
1. With the countersunk holes facing outward, slide the mounting ring (3) all the way onto the intake tube (4), up to the flange.
2. Place the gasket (8) against the opposite side of the flange.
3. Align the holes in the gasket with the mounting ring (3) holes and notches in the intake tube flange.
4. Apply a small amount of Loctite to the threads of the three flat head screws (2).
5. Secure the intake tube, mounting ring and gasket to the backplate, and tighten the screws to:
Torque: 6.2–6.8 N·m (50–60 in-lbs)
6. Remove the air filter element and band clamp from the package (1). Loosen the band clamp as needed to allow removal or repositioning.
NOTE
Riding a motorcycle equipped with an exposed oiled air filter under rainy conditions IS NOT RECOMMENDED.
7. Install the air filter element onto the intake tube approximately 5/8 inch (16 mm). Check that the filter element end cap logo is upright, and the band clamp screw mechanism is hidden from view, yet the screw slot is accessible for tightening. Tighten the clamp around the filter element flange to:
Torque: 3.4–4.5 N·m (30–40 in-lbs)
8. Install the rain sock (13) over the air filter element.
WARNING
Connect positive (+) battery cable first. If positive (+) cable should contact ground with negative (-) cable connected, the resulting sparks can cause a battery explosion, which could result in death or serious injury. (00068a)
9. Refer to the service manual and follow the instructions given to connect the battery cables, positive (+) cable first, and install the seat.
WARNING
After installing seat, pull upward on seat to be sure it is locked in position. While riding, a loose seat can shift causing loss of control, which could result in death or serious injury. (00070b)
Air Filter Element Maintenance
10. Inspect the air filter element every 5000 miles (8000 km), or more often under dusty conditions.
NOTE
The use of cleaning, drying or oiling methods or products other than those shown will damage the filter and void the manufacturer's warranty.
K&N® Air Filter Cleaner is available from a Harley-Davidson dealer, either alone (1 qt/0.95 L sprayer bottle, 99883-88T) or a 12 fl oz/0.35 L sprayer bottle as part of the Filter Care Service Kit (99850-92T).
K&N® Air Filter Oil is also available from a Harley-Davidson dealer, either alone (12.25 oz/347 gram aerosol can, 99882-88T) or a 6.5 oz/184 gram aerosol can as part of the Filter Care Service Kit.
DO NOT OVER-OIL THE AIR FILTER. Over-oiling may interfere with the proper performance of the engine and/or certain engine components. If oil is still draining or dripping from the filter media twenty minutes after oiling, clean and oil the filter element again.
11. To clean the element:
a. Loosen the hose clamp retaining the air filter element assembly to the air tube. Separate the element from the air tube. Tap the element to dislodge any loose dirt, then gently brush with a soft bristle brush.
b. Spray air filter cleaner liberally onto the cotton filter media and let soak for ten minutes, OR roll or soak the cotton filter media in a shallow pan of air filter cleaner. Remove immediately, and let soak for ten minutes.
c. Rinse off the filter media (flowing from the clean side to the dirty side), with low-pressure tap water.
d. After rinsing, shake off all excess water, and let the filter media air dry. DO NOT use compressed air or a heat gun to speed drying.
e. After the filter media is completely dry, EITHER spray air filter oil along each pleat, once only, holding the spray nozzle approximately 3 inches (76 mm) away from the media, OR carefully use a squeeze bottle to deposit oil along each pleat, once only. Let the oil absorb into the filter media for twenty minutes before proceeding. After twenty minutes, inspect the filter media, and carefully apply oil to any remaining visible white spots on the filter media, and allow to absorb.
12. Install the air filter element onto the intake tube approximately 5/8 inch (16 mm). Check that the filter element end cap logo is upright. Tighten the clamp around the filter element flange to:
Torque: 3.4–4.5 N·m (30–40 in-lbs)
SERVICE PARTS

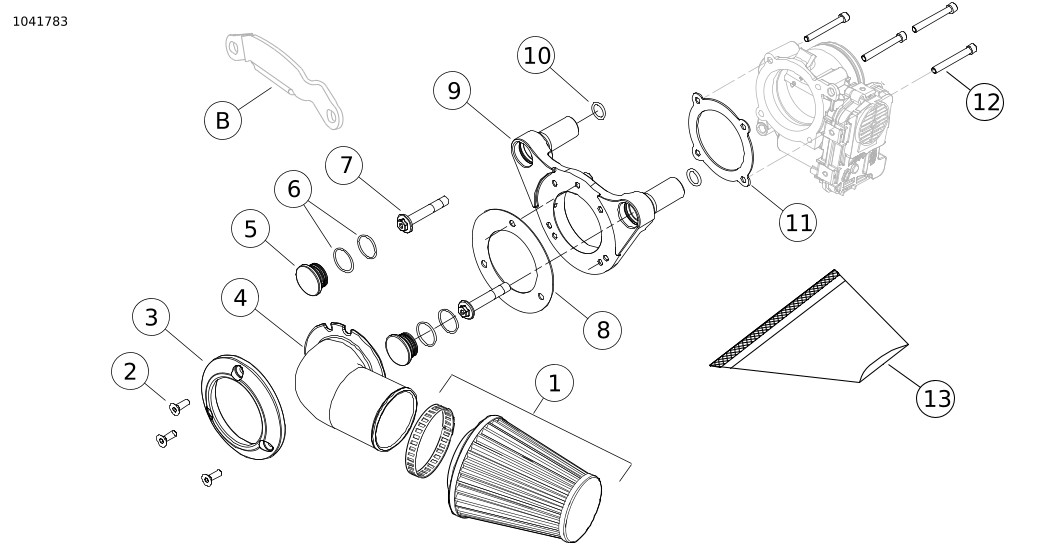

Figure 1. Service Parts: Screamin' Eagle 64mm Race Heavy Breather Kit
Table 1. Service Parts Table
Item
Description (Quantity)
Part Number
1
Air cleaner filter kit, includes filter element and band clamp
Air cleaner filter kit, compact (Kit 28716-10), includes items 14 through 16
29702-08B
28714-10
2
Socket flat head, hex screw
2986
3
Mounting ring
29826-08A
4
Intake tube, chrome
29739-08
5
Plug (2)
29830-05A
6
O-ring (4)
10925
7
Breather screw (2)
29400047
8
Gasket
25700028
9
Backplate, machined
29000038
10
O-ring, #2-113 (2)
11292
11
Gasket, throttle body
27200004
12
Screw, TORX® socket head 1/4-20 x 2 inch (4)
94576-98
13
Rain sock, air filter
Rain sock, compact air filter
29493-05A
28715-10
Items mentioned in text, but not included in kit:
A
Original equipment breather screw (2), purchase if necessary
B
Induction module bracket (remove and discard)
