LICENSE PLATE RELOCATION KIT - FLHC
J066392017-08-07
GENERAL
Kit Number
67900472
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Installation Requirements
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
WARNINGKeep tail lamp visible at all times. Do not place objects on license plate bracket blocking tail lamp visibility. Low visibility of rider can result in death or serious injury. (00123a)
NOTE
This instruction sheet references service manual information. A service manual for your model motorcycle is required for this installation and is available from a Harley-Davidson Dealer.
NOTE
When performing this installation, be careful not to scratch nearby painted or chrome surfaces.
PREPARE
| 1. | Remove main fuse. See service manual. | |
| 2. | See Figure 1. Remove two screws (1). | |
| 3. | Remove lens (2) from tail lamp assembly. |
| 1 | Screw (2) |
| 2 | Lens |
| 3 | Bulb |
| 4 | Socket |

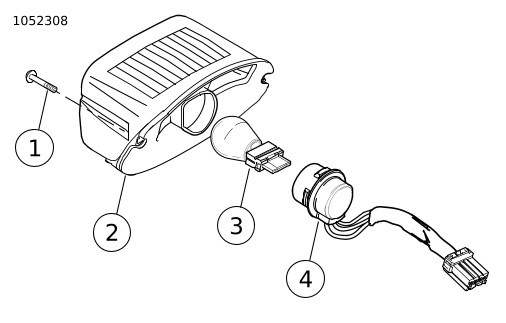

Figure 1. Tail Lamp Lens
REMOVE
| 1. | Remove license plate bracket assembly. See service manual. | |
| 2. | See Figure 2. Remove screws (1). | |
| 3. | Disconnect connectors (2). | |
| 4. | Remove light bar (3). |
| 1 | Screw (2) |
| 2 | Connector (2) |
| 3 | Light Bar |

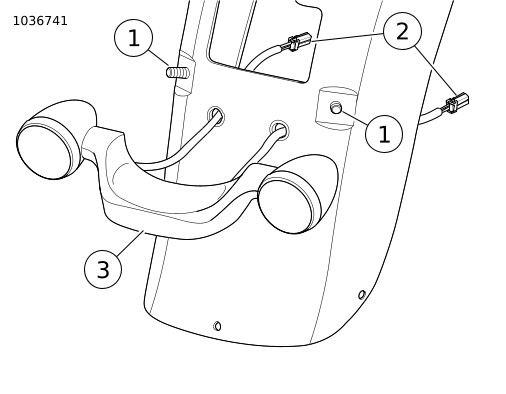

Figure 2. Incandescent Light Bar
INSTALLATION
| 1. | NOTE Install spacer with the hump pointing down. | |||||||||||||||||||||||||
| 2. | Install lockwashers (5) and socket head screws (4). Tighten. Torque: 6.8–9 N·m (60–80 in-lbs) License plate bracket screw | |||||||||||||||||||||||||
| 3. | Route (12) license plate light wires (3) over hump in spacer (7) and license plate brakcet (6). | |||||||||||||||||||||||||
| 4. | See Figure 3. Install license plate light (9). | |||||||||||||||||||||||||
| 5. | Install screws (8). Tighten. Torque: 1.7 N·m (15 in-lbs) License plate light screw |

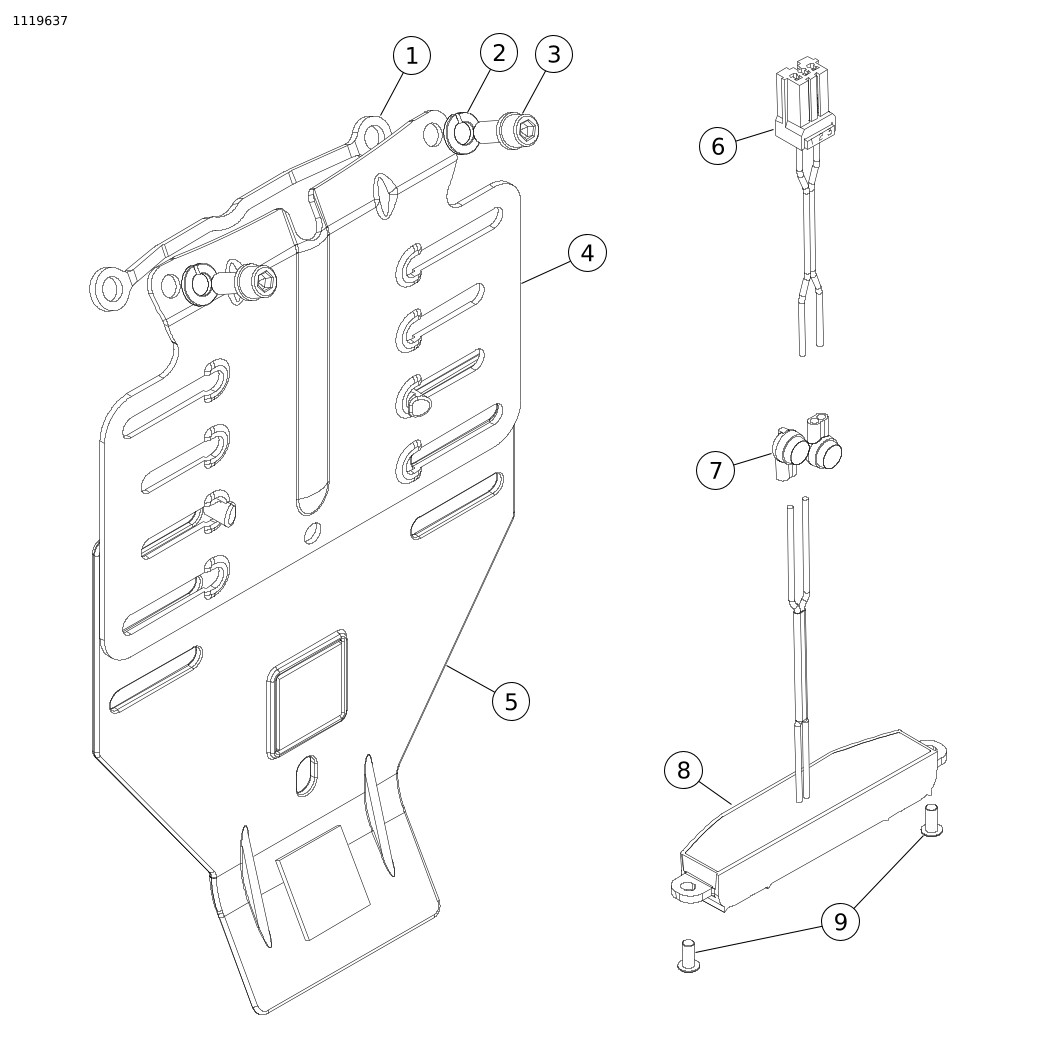

Figure 3. License Plate and Light | ||||||||||||||||||||||||
| 6. | See Figure 2. Position light bar (3) on fender. | |||||||||||||||||||||||||
| 7. | Route wires and harness. a. Route harness ends through fender and connect connectors (2). b. See Figure 3. Route license plate light wires (2). | |||||||||||||||||||||||||
| 8. | See Figure 2. Install screws (1). Tighten. Torque: 22–27 N·m (16–20 ft-lbs) Rear Turn Signal, Light Bar Mount, Screw | |||||||||||||||||||||||||

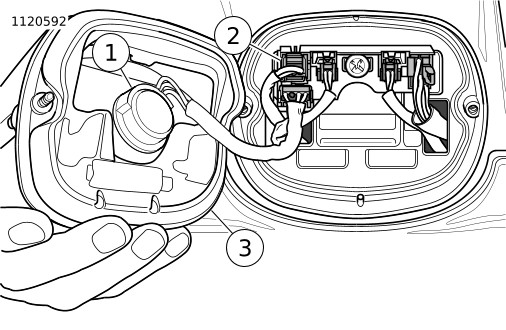

| 9. | See Figure 3. Route license plate wires behind fender and exit wires (1) through tail lamp. | |||||||||||||||||||||||||
| 10. | See Figure 4. Splice jumper harness. a. Pull license plate light wires (2) through brake light. b. Position jumper harness (4) with wires (1) extended. c. Splice wires (1, 2) using sealed splice connectors. See WIRE SPLICING. NOTE Wires are not polarity sensitive. |

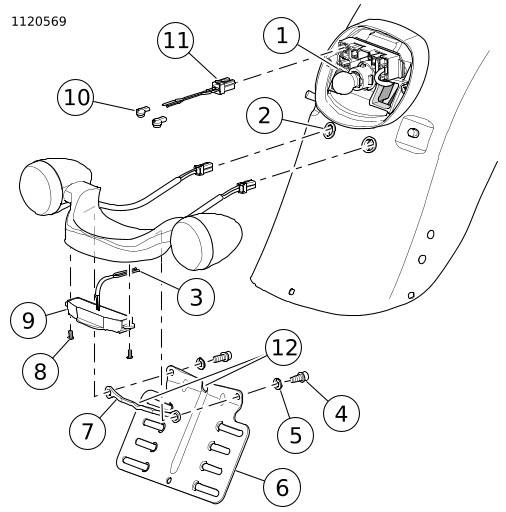

Figure 4. Splicing Wires | ||||||||||||||||||||||||
| 11. | See Figure 5. Connect jumper harness (2) into tail lamp. |

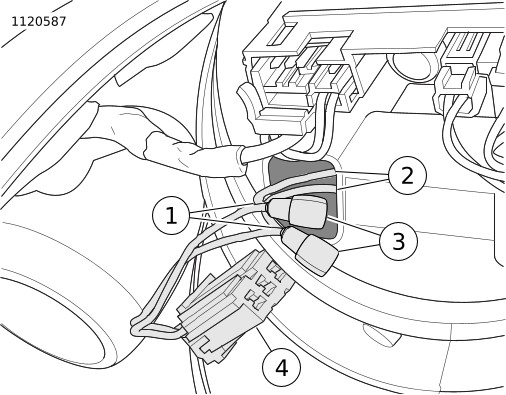

Figure 5. Jumper Harness Installed | ||||||||||||||||||||||||
| 12. | See Figure 1. Install lens (2) and two screws (1). Tighten. Torque: 2.3–2.7 N·m (20–24 in-lbs) Tail Lamp Lens Screw |
WIRE SPLICING
| 1. | Locate wires that require splicing. | |
| 2. | Cut wires close to terminal end. | |
| 3. | Insert wires (3) into splice connector and route past the internal splicing connector (1) | |
| 4. | Crimp button from the up position (2) to the down position (4). Make sure: a. Button (4) is flush with the rest of the splice connector. b. Internal splicing connector (1) cuts into wires (5). | |
| 5. | Repeat procedure to splice wires. |

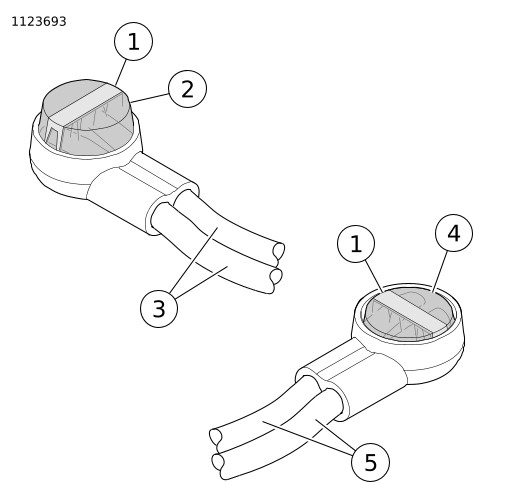

| 1 | Internal splicing connector |
| 2 | Button up position |
| 3 | Wires |
| 4 | Button down position |
| 5 | Wires |
Figure 6. Splicing Wires
COMPLETE
| 1. | Install main fuse. See service manual. | |
| WARNING Be sure that all lights and switches operate properly before operating motorcycle. Low visibility of rider can result in death or serious injury. (00316a) | ||
| 2. | Verify correct operation of license plate light. | |
| 3. | International models: Install Item 5 to extend license plate bracket. See Figure 7. |
SERVICE PARTS
Figure 7. License Plate Relocation Kit
Table 1. Service Parts: License Plate Relocation Kit
Item | Description (Quantity) | Part Number |
|---|---|---|
1 | Spacer | 12400100 |
2 | Lockwasher (2) | 7036 |
3 | Socket head screw (2) | 3061 |
4 | License plate bracket | 69380-09BHP |
5 | HDI Bracket mount | 67900445 |
6 | Jumper harness | 69201861 |
7 | Sealed splice connector (2) | 69201499 |
8 | License plate light | 67900170 |
9 | Screw (2) | 2482 |
