TRANSMISSION OIL DEFLECTOR KIT
J067032018-01-31
GENERAL
Kit Number
36300028
Vehicles Involved
Vehicles with Milwaukee-Eight® and hydraulic clutches. Table 1
Table 1. Vehicles Involved
Year
Platform
Models
2017
Touring
FLHR, FLHRC, FLHRXS, FLHTCU, FLHTK, FLHTK SHRINE, FLHTKL, FLHX, FLHXS, FLTRU, FLTRX, FLTRXS
Trike
FLHTCUTG, FLRT
CVO/Custom
FLHTKSE, FLHXSE
Police
FLHP, FLHTP
2018
Touring
FLHR, FLHRC, FLHRXS, FLHTCU, FLHTK, FLHTK ANV, FLHTK SHRINE, FLHTKL, FLHX, FLHX ANV, FLHXS, FLHXS ANX, FLTRU, FLTRX, FLTRXS
Trike
FLHTCUTG, FLHTCUTG ANV, FLRT
CVO/Custom
FLHTKSE, FLHTKSE ANV, FLHXSE, FLTRXSE
Police
FLHP, FLHTP
Installation Requirements
WARNING
Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for this year/model motorcycle is required for this installation. One is available from a Harley-Davidson dealer.
Kit Contents
See Figure 4 and Table 2.
INSTALLATION
1.
NOTE
Refer to the service manual for more information on the following steps.
Remove transmission inner side cover.
a. Remove seat.
b. Disconnect negative battery cable.
c. Loosen exhaust system and pull away from side covers.
d. Remove transmission outer side cover.
e. Remove secondary clutch actuator.
f. Remove transmission inner side cover.
2. Remove clutch pushrod by sliding it out of transmission mainshaft.
3. Install new transmission mainshaft oil deflector.
a. Figure 1 Insert the shank portion of the oil deflector squarely into the end of the transmission mainshaft.
b. Figure 2 Push firmly until the oil deflector is fully seated against the face of the mainshaft.

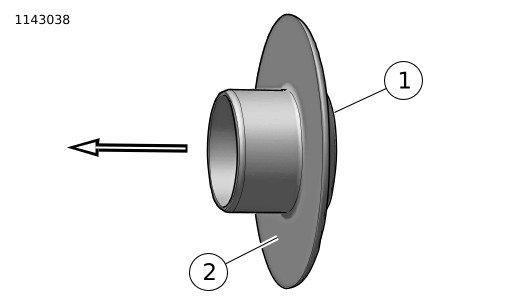

1Secondary clutch actuator side
2Transmission side
Figure 1. Direction of Oil Deflector
1Oil deflector
2Transmission mainshaft
Figure 2. Installation of Oil Deflector
4. Figure 3 Test-fit cover with new gasket.
a. Test-fit cover with new gasket to check clearance between oil deflector and inside surface of inner cover.
b. There should be clearance prior to compressing the gasket.
NOTE
If interference between the oil deflector and inner side cover is present, contact Technical Services at 800-664-7762 (U.S. only) or 1-414-343-4056.

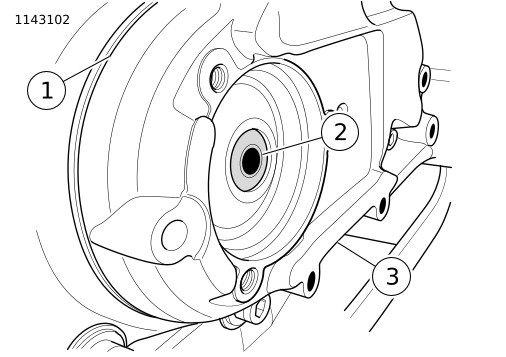

1New gasket
2New oil deflector
3Transmission inner side cover
Figure 3. Oil Deflector and Inner Side Cover Clearance
5. Install clutch pushrod through the bore of the oil deflector.
6.
NOTE
Refer to the service manual for more information on the following steps.
Install transmission inner side cover.
7. Install secondary clutch actuator.
8. Install transmission outer side cover.
9. Secure exhaust system.
10. Connect negative battery cable.
11. Install seat.
SERVICE PARTS

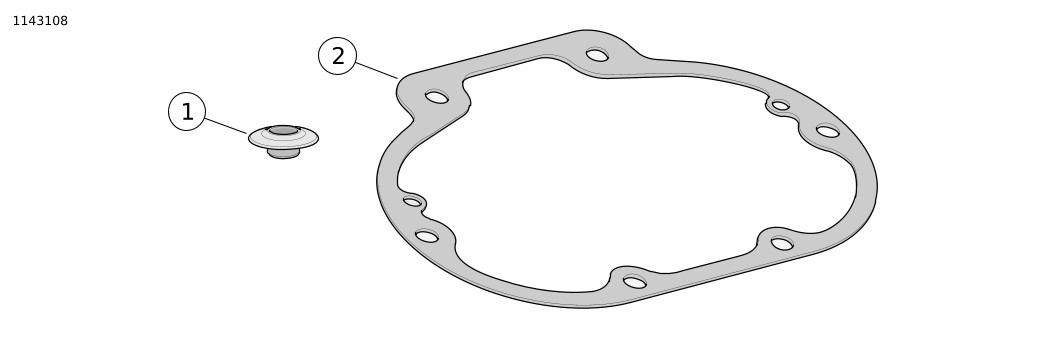

Figure 4. Service Parts: Transmission Oil Deflector Kit
Table 2. Service Parts
Item
Description
Part Number
1
Mainshaft transmission oil deflector
Not sold separately
2
Gasket cover
36805-06
