7 INCH DAYMAKER LED HEADLAMP HARNESS

941000352019-08-21

GENERAL

Kit Number

69202452

Models

For model fitment information, see the P&A retail catalog or the Parts and Accessories section of www.harley-davidson.com (English only).

Installation Requirements

WARNING

Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)

Standard Current Draw

WARNING

When installing any electrical accessory, be certain not to exceed the maximum amperage rating of the fuse or circuit breaker protecting the affected circuit being modified. Exceeding the maximum amperage can lead to electrical failures, which could result in death or serious injury. (00310a)

NOTICE

It is possible to overload the vehicle's charging system by adding too many electrical accessories. If the combined electrical accessories operating at any one time consume more electrical current than the vehicle's charging system can produce, the electrical consumption can discharge the battery and cause damage to the vehicle's electrical system. (00211d)

PREPARE

Remove main fuse. See service manual.

INSTALL

NOTE

The harness feeds the position lamp circuit within the head lamp from the low beam circuit. The head lamp position pin and head lamp low beam pin are tied together. Therefore, the position lamp cannot be illuminated independently of the low beam in the bike's accessory mode.

If wire polarity have been switched:

The BCM may have a fault
No light will emit from the headlamp

If wire connectors have been switched:

High and low beam operation will be reversed

1.	Connect harness 4-pin connector (2) to headlamp (1). a. Make sure the connector clicks. b. Make sure that connector is locked in position.
2.	Connect labeled low beam connector (3) to OE [C38LO] for FLHR or [C1B] for FLRT low beam connector (6). a. Locate OE harness connector with yellow or blue/yellow stripe wire. b. Locate jumper harness connector with yellow/blue wires. c. Connect the connectors. Check for positive engagement on each side. d. Make sure that connector is locked in position.
3.	Connect labeled high beam connector (4) to OE [C38HI] for FLHR or [C2B] for FLRT high beam connector (5). a. Locate OE harness connector with white or blue/white stripe wire. b. Locate jumper harness connector with white wire. c. Connect the connectors. Check for positive engagement on each side. d. Make sure that connector is locked in position.

COMPLETE

1.	Visually inspect that the wire polarity is correct. a. Matching the yellow and white wire colors at the low and high beam connectors.
2.	Install main fuse. See service manual.
3.	Ensure dynamic movement of harnesses and other parts behind the headlamp will not be restricted by moving handlebars from fork lock left to fork lock right.

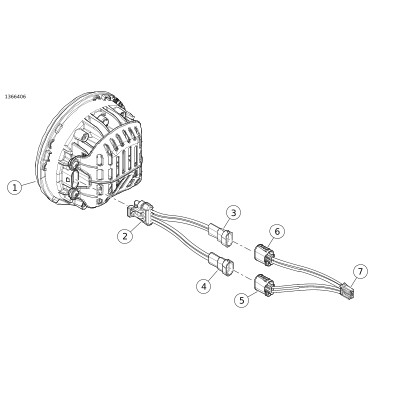

1	Daymaker LED headlamp
2	Harness 4-pin connector
3	Low beam connector (yellow wire typical)
4	High beam connector (white wire typical)
5	OE High beam connector (blue/white stripe wire typical)
6	OE Low beam connector (blue/yellow stripe wire typical)
7	OE Harness connector

Figure 1. Harness Connection
