REAR AXLE KIT
941000832019-05-31
GENERAL INFORMATION
Table 1. General Information
Kits | Suggested Tools | Skill Level(1) | Time |
|---|---|---|---|
43000213 (2014-2019 Touring) | Safety Glasses, Torque Wrench, Axle Nut Torque Adapter, |  | 1 hour |
(1) Tightening to torque value or other moderate tools and techniques required
KIT CONTENTS

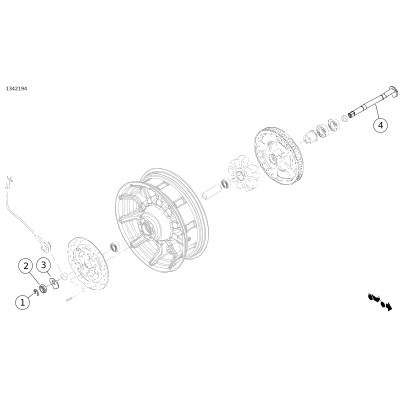

Figure 1. Kit Contents: Rear Axle Kit Components
Table 2. Kit Contents: Rear Axle Kit Components
 | Item | Qty | Description | Part No. | Notes |
|---|---|---|---|---|---|
 | 1 | 1 | E-clip | 41229-08 | |
| 2 | 1 | Cone nut | 8020 | |
| 3 | 1 | Axle cam | 43000203 | |
| 4 | 1 | Axle, rear | 43000207 |
NOTE
Verify all contents are present in the kit before installing or removing items from vehicle.
GENERAL
Models
For model fitment information, see the P&A Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
Verify that the most current version of the instruction sheet is used. It is available at: www.harley-davidson.com/isheets
Contact Harley-Davidson Customer Support Center at 1-800-258-2464 (U.S. only) or 1-414-343-4056.
Installation Requirements
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet refers to service manual information. A service manual for your year/model motorcycle is required for this installation. One is available from a Harley-Davidson dealer.
REMOVE
| 1. | Remove rear axle. See service manual. | |
| 2. | Figure 1 Discard E-clip (1), rear axle (4), axle cam (3) and cone nut (2). | |
| 3. | Thoroughly clean swing arm and spacers interfacing with swing arm, keeping them and axle cam faces free from anti-seize contamination. |
INSTALL
| 1. | Figure 1 Install new rear axle (4), axle cam (3), cone nut (2) and E-clip (1). See service manual. | |
| 2. | Adjust drive belt. See service manual. | |
| 3. | See Figure 2 and Figure 3. Torque cone nut, while preventing rotation of axle cam assembly. Tighten. a. First torque. Torque: 20–27 N·m (15–20 ft-lbs) b. Final torque. Torque: 183.03–196.6 N·m (135–145 ft-lbs) | |
| 4. | Check rear wheel end play. See service manual. | |
| 5. | Install E-clip. |

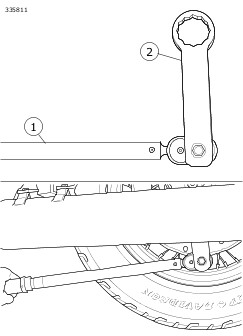

| 1 | Torque wrench |
| 2 | Axle nut torque adapter (HD-47925) |
Figure 2. Install Tool Perpendicular to Torque Wrench

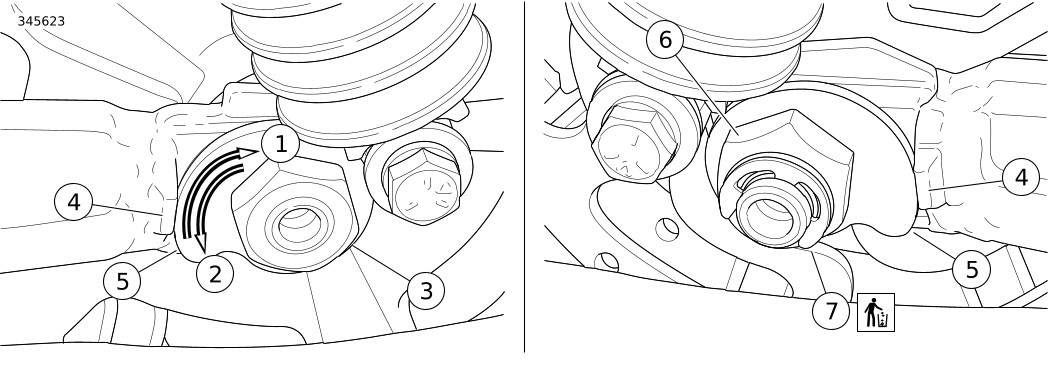

| 1 | Increase belt tension |
| 2 | Decrease belt tension |
| 3 | Rear axle |
| 4 | Boss |
| 5 | Axle cam |
| 6 | Cone nut |
| 7 | E-clip |
Figure 3. Rear Wheel Adjuster Cams
