CENTER STAND
941002242021-03-09
GENERAL INFORMATION
Table 1. General Information
Kits | Suggested Tools | Skill Level(1) | Time |
|---|---|---|---|
92900066 | Safety Glasses, Torque Wrench |  | 1 hour |
(1) Tightening to torque value or other moderate tools and techniques required
KIT CONTENTS

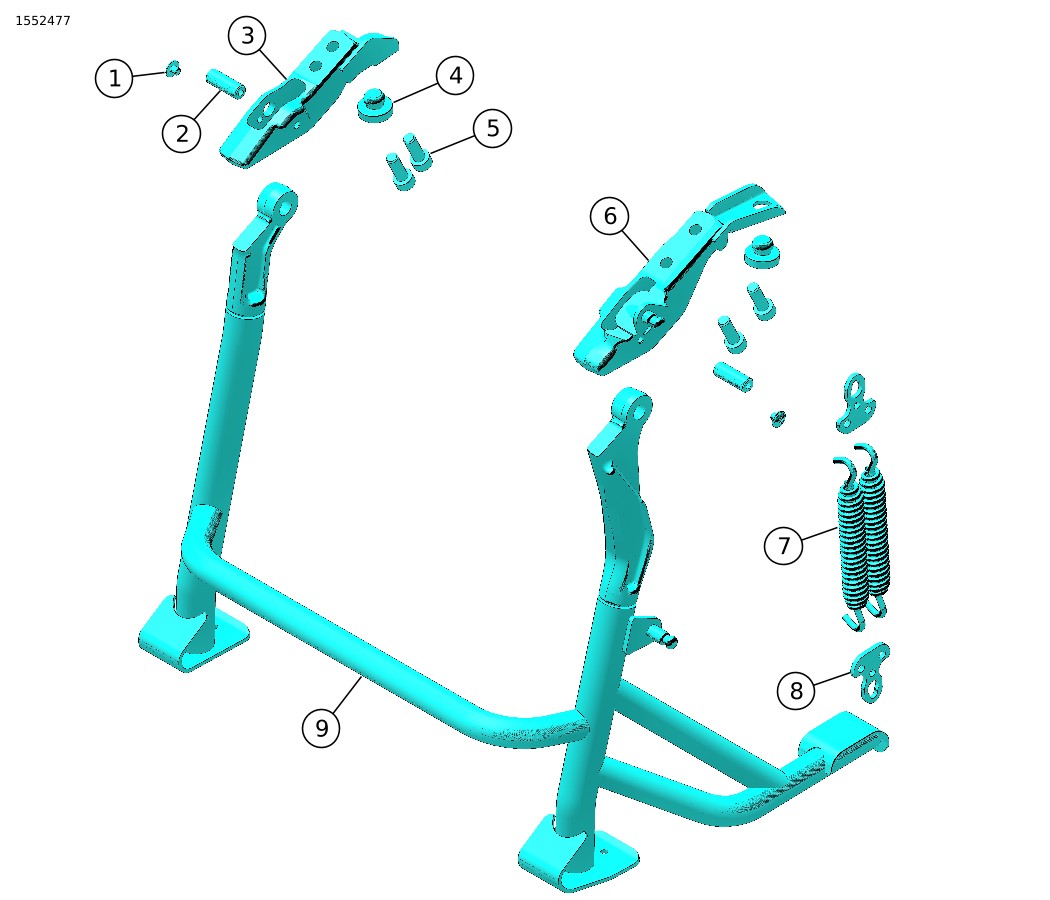

Figure 1. Kit Contents: Center Stand
Table 2. Kit Contents: Center Stand
 | Verify that all contents are present in the kit before installing or removing items from vehicle. | ||||
|---|---|---|---|---|---|
Item | Qty | Description | Part No. | Notes | |
 | 1 | 2 | Screw | 10201298 | |
| 2 | 2 | Pin | 50000262 | |
| 3 | 1 | Right bracket | 50000236 | |
| 4 | 2 | Bumper | 50245-07 | |
| 5 | 4 | Screw, shoulder | 10201317 | |
| 6 | 1 | Left bracket | 50000237 | |
| 7 | 2 | Spring | 49725-07A | |
| 8 | 2 | Spring bracket | 50000203 | |
| 9 | 1 | Center stand | Not sold separately | |
GENERAL
Models
For model fitment information, see the Parts and Accessories (P&A) Retail Catalog or the Parts and Accessories section of www.harley-davidson.com.
Verify that the most current version of the instruction sheet is used. It is available at: h-d.com/isheets
Contact Harley-Davidson Customer Support Center at 1-800-258-2464 (U.S. only) or 1-414-343-4056.
Installation Requirements
WARNINGRider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)
NOTE
This instruction sheet references service manual information. A service manual for the year and model motorcycle is required for this installation and is available from:
- A Harley-Davidson dealer.
- H-D Service Information Portal, a subscription-based access available for most 2001 and newer models. For more information see Frequently ask questions about subscriptions.
PREPARE
| 1. | Remove main fuse. See service manual. | |
| 2. | Raise rear wheel six inches to gain access. |
INSTALL
| 1. | Install center stand (1). a. Figure 2 Position left and right brackets to the vehicle's foot support. b. Install screws (2). Tighten. Torque: 34.5–38.5 N·m (25–28 ft-lbs) Bracket-to-foot support screw |
| 1 | Centerstand |
| 2 | Shoulder screw (4) |
Figure 2. Install Center Stand (left side shown)
COMPLETE
| 1. | Install main fuse. See service manual. |
