DOUBLE STUD SERVICE KIT

941006362024-09-03

GENERAL INFORMATION

Table 1. General Information

Kits	Suggested Tools	Skill Level⁽¹⁾
29900147	Safety Glasses, Torque Wrench

(1) Tightening to torque value or other moderate tools and techniques required

KIT CONTENTS

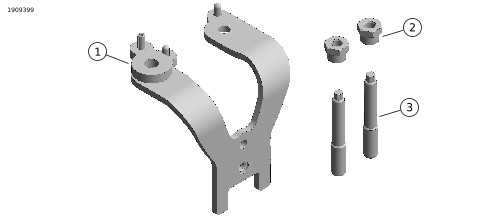

Figure 1. Kit Contents: Double Stud Service Kit

Table 2. Kit Contents: Double Stud Service Kit

Verify that all contents are present in the kit before installing or removing items from vehicle.
Item	Qty	Description	Part No.	Notes
1	1	Coil mounting bracket front	16400109
2	2	Nut, knock sensor	10100186
3	2	Stud, double thread	10900069

GENERAL

Instruction sheet is also available electronically. To verify you are using the most current version available, do one of the following:

Go to Refer to: h-d.com/isheets
Scan QR code in upper left corner of the instruction sheet

NOTE

This instruction sheet may have a Supplemental Video to assist installer in clarifying a certain part of the assembly. A linked video would be located at the end of this instruction sheet.

Models

For model fitment information, see the Parts and Accessories (P&A) Retail Catalog or the Parts and Accessories section of www.harley-davidson.com.

Verify that the most current version of the instruction sheet is used. It is available at: h-d.com/isheets

Contact Harley-Davidson Customer Support Center at 1-800-258-2464 (U.S. only) or 1-414-343-4056.

Installation Requirements

WARNING

Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)

NOTE

This instruction sheet references service manual information. A service manual for the year and model motorcycle is required for this installation and is available from:

A Harley-Davidson dealer.
H-D Service Information Portal, a subscription-based access available for most 2001 and newer models. For more information see Frequently ask questions about subscriptions.

PREPARE

1.	Remove main fuse. See service manual.
2.	Remove passenger and rider seats. See service manual.
3.	Remove fuel tank. See service manual.

REMOVE

1.	Remove knock sensors. See service manual.
2.	Remove ignition coil. See service manual.
3.	Remove and discard ignition coil mounting bracket. See service manual.

INSTALL

NOTE

In the circumstance that only one cylinder head is being replaced, only install one double stud in replacement head.

1.	Figure 2 Apply threadlocker (3) to larger diameter of threads.LOCTITE 262 HIGH STRENGTH THREADLOCKER AND SEALANT (RED) (94759-99)
2.	Install double stud (4) into cylinder head(s) (1, 2).
3.	Figure 3 Set double stud height (1): a. Front Cylinder Head: 35.5 mm (1.4 in) b. Rear Cylinder Head: 33 mm (1.3 in)
4.	Figure 4 Install new coil mounting bracket (4) over double studs.
5.	Install knock sensors (2). a. Make sure knock sensor is positioned to left side of rotation stop.
6.	Install knock sensor nuts (1). Tighten. Torque: 22–24 N·m (16–18 ft-lbs)

1	Rear cylinder head
2	Front cylinder head
3	Apply threadlocker
4	Install double stud

Figure 2. Threadlocker

1	Set front cylinder height: 1.4-in (35.5 mm)
2	Set rear cylinder height: 1.3-in (33 mm)

Figure 3. Stud Height

1	Nut, knock sensor (2)
2	Knock sensor (2)
3	Spacer, knock sensor (front only)
4	Coil mounting bracket

Figure 4. Install Components

COMPLETE

1.	Install ignition coil. See service manual.
2.	Install fuel tank. See service manual.
3.	Install rider and passenger seats. See service manual.
4.	Install main fuse. See service manual.
