HELMET WITH INTEGRATED BOOM! AUDIO BLUETOOTH HEADSET
J066882020-03-04
GENERAL
Kit Number
98316-18VX
Models
For model fitment information, see the Parts and Accessories (P&A) Retail Catalog or the Parts and Accessories section of www.harley-davidson.com (English only).
The internal lithium battery is NOT replaceable. Consumers are responsible for recycling used electronics. Dispose in accordance with methods that meet or exceed all state and federal environmental laws. Visit https://serviceinfo.harley-davidson.com for the latest instruction sheet.
INSTALLATION REQUIREMENTS
NOTE
The headset will function differently based on whether it is:
- Paired to the phone.
- Paired to the WHIM.
Headset will ONLY pair to Harley-Davidson Boom!™ Box 6.5GT radio via a WHIM.
Headset WILL NOT pair directly to a Harley-Davidson radio via the radio's Bluetooth menu. There is no need to pair a headset to the phone with a WHIM.
If the vehicle has a WHIM installed, use the following instructions.
Pair with Phone (without WHIM)
Disregard this instruction sheet for all steps related to pairing and radio interaction. See the Sena User’s Guide for mobile phone pairing or additional information pertaining to the wireless headset.
Pair with Boom! Box 6.5 GT Radio
The following items are available at your Harley-Davidson dealership.
- 2014 and later Touring and Trike models: Separate purchase of WHIM) (Part No. 76000768) is required.
- 2014-2018 Touring and Trike models: Boom! Box 6.5 GT equipped vehicles require separate purchase of WHIM Harness (Part No. 69201726).
- 2014 and later FLHTCU(L), FLHTK(L,SE) and FLHX(S,SE) models: Satellite radio requires relocation of antenna. New bracket is included in kit.
- Software flash by DIGITAL TECHNICIAN II (Part Number:HD-48650). Performed by Harley-Davidson dealer.
- Radio software updated to most recent version. See www.H-D.com/infotainment-support.
How do I know that I have a WHIM?
If the Wireless Headset selection in Step 3 ( Figure 2 ) cannot be found in the menu as directed in the Wireless Headset Setup, the WHIM is not installed on the vehicle.
WIRELESS HEADSET
Read the Quick Start Guide for additional information pertaining to the wireless headset operation. Also see Harley-Davidson.com for the latest version of User's Guide and related information to Boom! Audio Bluetooth products or visit your local Harley-Davidson dealership.
Getting Started
Charge the wireless headset by connecting the supplied Universal Serial Bus (USB) power and data cable into a computer USB port or USB wall charger. Use any standard micro-USB cable to charge the headset. The Light Emitting Diode (LED) turns red while the headset is charging and turns blue when it is fully charged. It takes about 2.5 hours to charged completely.
Headset Software Version
The HELMET WITH INTEGRATED BOOM! AUDIO BLUETOOTH HEADSET supports firmware upgrade function. Visit www.H-D.com/infotainment-support to check for the latest software downloads.
Powering On and Off
- Powering On: Press and hold the Center Button and the (+) Button at the same time for 1 second to power on. The blue status LED turns on and you will hear ascending beeps and Hello.
- Powering Off: Press the Center Button and the (+) Button simultaneously (you do not need to press and hold in order for the system to power off). The red status LED turns on for about 2 seconds until it turns off completely and you will hear Goodbye and descending beeps.

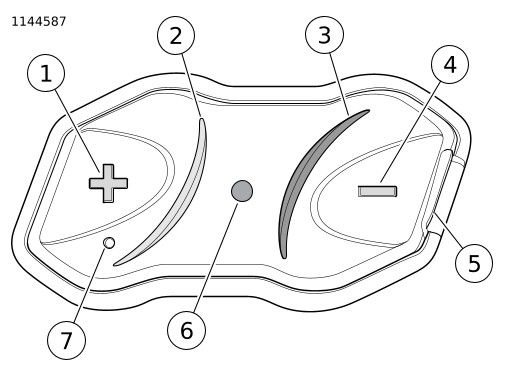

Figure 1.
Table 1. Half-Helmet Button Function
Item | Description | Function |
|---|---|---|
1 | (+) Button | Increase volume |
Track forward | ||
Scan radio stations | ||
Speed dial | ||
2 | Blue LED Light | Visual confirmation |
3 | Red LED Light | Visual confirmation |
4 | (-) Button | Decrease volume |
Track back | ||
FM Tuner On/Off | ||
5 | Charging and Firmware Port | Plugged into a computer’s USB port |
USB-equipped Alternating Current (AC) adapter via a wall-outlet charger | ||
6 | Center Button | Answer/End Phone Call |
Reject an Incoming Phone Call | ||
Start/End Intercom Conversation | ||
Play/Pause Music | ||
Enter Intercom Pairing Mode | ||
Enter Voice Configuration Settings | ||
7 | Fault Reset Button | When the helmet’s Bluetooth Module is not working properly. |
WIRELESS HEADSET SETUP
Before using the wireless headset with any Bluetooth devices for the first time, you will need to pair them together. For example, it can be paired with Bluetooth mobile phones, Bluetooth stereo devices such as MP3 players, or motorcycle-specific Bluetooth Global Positioning System (GPS) navigation, and with other Boom! Audio Bluetooth headsets. This pairing operation is only required once for any Bluetooth device. The headset remains paired with the devices and automatically reconnects to them when they are within range. You will hear a high tone single beep and a voice prompt when the headset connects to the paired device automatically:
When a headset is paired to the motorcycle, it will say Your Headset is Paired, Boom! Audio Connected. After this initial pairing, every time the headset connects to the motorcycle you will hear Boom! Audio Connected.
When a headset is paired to a phone, it will confirm the pairing by saying Your Headset is Paired. After this initial pairing, every time the headset reconnects to the phone it will say Phone Connected.
Pair Wireless Headset to WHIM
NOTE
Wireless Headset selection MUST be used to pair any wireless headset. DO NOT use Bluetooth Setup for any wireless headset. Use Bluetooth Setup for pairing Bluetooth equipped phones or media devices.
| 1. | Turn on wireless headset. | |
| 2. | Navigate: Home > Setup. | |
| 3. | NOTE Boom! Box GTS radio is shown. Radio screen for 6.5 GT will vary but instruction content is the same. |  Figure 2. Select Wireless Headset |
| 4. | NOTE It does not matter if headset or Wireless Headset Interface Module (WHIM) (vehicle) is placed into pairing mode first. |  Figure 3. Pair Rider Headset |
| 5. | Place headset into pairing mode. a. Press: Center Button for 10 seconds until you hear Configuration Menu. NOTE Continue holding Center Button beyond the 5 second mark when headset audibles Intercom Pairing. b. Press: (+) Button on helmet control. c. Audible Confirmation: Phone Pairing. | |
| 6. | NOTE Harley-Davidson headsets will show up as Boom Audio followed by product description. See owner's manual of non-Harley-Davidson products for communications display. | |

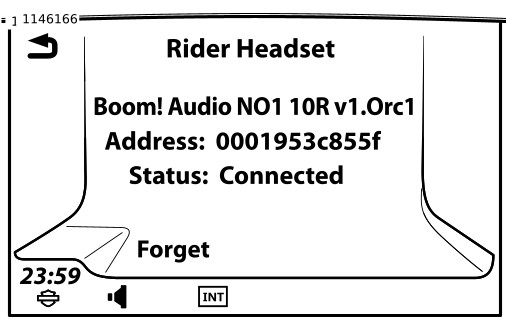

| 7. | See Figure 4. When properly paired the screen will display the following: a. Model with software version b. Bluetooth address c. Status of connectivity |  Figure 4. |
| 8. | Repeat procedure for passenger headset. |
Pair Secondary Mobile Phone While Primary Mobile Phone is Connected to WHIM
| 1. | Place Headset into the pairing mode. a. Press: Center Button for 10 seconds until you hear Configuration Menu. NOTE Continue holding Center Button beyond the 5 second mark when headset audibles Intercom Pairing. b. Press: (+) Button twice on helmet control. c. Audible Confirmation: Second Mobile Phone Pairing. d. Blue flashing LED indicates device is ready. | |
| 2. | With mobile phone in Bluetooth pairing mode, select Boom Audio N01 10R. | |
| 3. | If mobile phone asks for Personal Identification Number (PIN), enter 0000. |
Unpair Wireless Headset
| 1. | Navigate: Home > Setup > Wireless Headset. | |
| 2. | Select: Manage Rider or Passenger headset. | |
| 3. | Select: Forget. This will delete wireless headset from Boom! System. |
