TOP CASE MOUNTING HARDWARE KIT
941006562024-11-13
GENERAL INFORMATION
Table 1. General Information
Kits | Suggested Tools | Skill Level(1) |
|---|---|---|
53001163 | Safety Glasses, Torque Wrench, Loctite 243 |  |
(1) Tightening to torque value or other moderate tools and techniques required
KIT CONTENTS

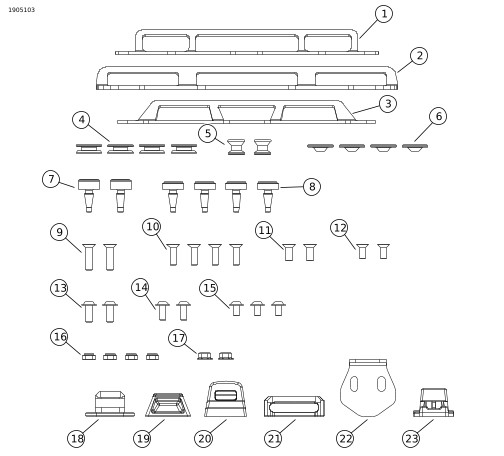

Figure 1. Kit Contents: Top Case Mounting Hardware Kit
Table 2. Kit Contents: Top Case Mounting Hardware Kit
 | Verify that all contents are present in the kit before installing or removing items from vehicle. | ||||
|---|---|---|---|---|---|
Item | Qty | Description | Part No. | Notes | |
 | 1 | 1 | Mounting Plate | Not sold separately | |
| 2 | 1 | Mounting Plate | Not sold separately | |
| 3 | 1 | Mounting Plate | Not sold separately | |
| 4 | 4 | Mount Bushing | Not sold separately | |
| 5 | 2 | Mount Bushing | Not sold separately | |
| 6 | 4 | Mount Bushing Cover | Not sold separately | |
| 7 | 2 | Rubber Isolator, Tall | Not sold separately | |
| 8 | 4 | Rubber Isolator, Standard | Not sold separately | |
| 9 | 2 | Screw, FHCS, M6X25, Black | Not sold separately | |
| 10 | 4 | Screw, FHCS, M6X20, Black | Not sold separately | |
| 11 | 2 | Screw, FHCS, M6X16, Black | Not sold separately | |
| 12 | 2 | Screw, FHCS, M6X14, Black | Not sold separately | |
| 13 | 2 | Screw, Flanged BHCS, M6X16, Black | Not sold separately | |
| 14 | 2 | Screw, Flanged BHCS, M6X14, Black | Not sold separately | |
| 15 | 3 | Screw, Flanged BHCS, M6X10, Black | Not sold separately | |
| 16 | 4 | Nut, Lock, M6 | Not sold separately | |
| 17 | 2 | Nut, Flanged, M6, Black | Not sold separately | |
| 18 | 1 | Striker, Latch | Not sold separately | |
| 19 | 1 | Striker, Latch | Not sold separately | |
| 20 | 1 | Striker, Latch | Not sold separately | |
| 21 | 1 | Striker, Latch | Not sold separately | |
| 22 | 1 | Striker, Latch | Not sold separately | |
| 23 | 1 | Striker, Latch | Not sold separately | |
Items mentioned in text, but not included in kit | |||||
| A | 1 | Detachable Adapter Mounting Plate (not shown) | 50300318 | |
GENERAL
For model fitment information and to verify the most current version of the instruction sheet is used, do one of the following:
- For model fitment information and to verify the most current version of the instruction sheet is used, see the product listing in the Accessories & Upgrades section of www.LiveWire.com..
- Scan QR code in upper left corner of the instruction sheet.
- Contact LiveWire Customer Support Center at 1-414-343-4122 or toll free at 1-855-EVRider (1-855-387-4337). Visit www.LiveWire.com. for additional information.
Models
Confirm all contents are present in the kit before installing or removing items from the vehicle.
Installation Requirements
WARNINGRider and passenger safety depend upon the correct installation of this kit. If the procedure is not within your capabilities or you do not have the correct tools, have a LiveWire dealer perform the installation. Improper installation of this kit could result in death or serious injury. (16004a)
WARNINGSee ACCESSORIES AND CARGO section within the SAFETY FIRST section in your owner's manual. Improper cargo loading or accessory installation can cause component failure and adversely affect stability, handling and performance, which could result in death or serious injury. (00021c)
WARNINGDo not exceed luggage rack weight capacity. Too much weight can cause loss of control, which could result in death or serious injury. (00373a)
- Verify that the adaptor plate, top case and cargo are secure. Check load periodically.
- Items with a large surface area mounted on the luggage rack can adversely affect vehicle handling.
These items are available at a LiveWire dealership.
Separate purchase and prior installation of a S2DM Luggage Rack Kit (Part No. 50300298) is required for installation.
Separate purchase of a Detachable Adapter Mounting Plate (Part No. 50300318) is required for installation.
Separate purchase of threadlocker is required.
PREPARE
Installation of this kit will enable a variety of top cases to be mounted to this vehicle.
| 1. | Verify style of top case to be mounted. a. Follow appropriate instructions compatible with that style of top case. |
ASSEMBLE FOR GIVI® MONOKEY® COMPATIBLE TOP CASES.
| 1. | See Figure 1 and Figure 2. Install standard rubber isolator (8) into detachable luggage mounting plate (A) in four locations as shown. a. Pull tip through adequately to fully engage. | |
| 2. | Install mount bushing (5) to detachable luggage mounting plate (A) using screw (9) and lock nut (16) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) | |
| 3. | Install latch striker (20) to detachable luggage mounting plate (A) using screws (14) in two locations as shown. | |
| 4. | Apply threadlocker to screws (14). Tighten.LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97) a. Torque: 4.5 N·m (40 in-lbs) |
| 5 | Mount bushing (2) |
| 8 | Rubber isolator, standard (4) |
| 9 | Screw, FHCS, M6X25, black (2) |
| 14 | Screw, flanged BHCS, M6X14, black (2) |
| 16 | Nut, lock, M6 (2) |
| 20 | Striker, latch |

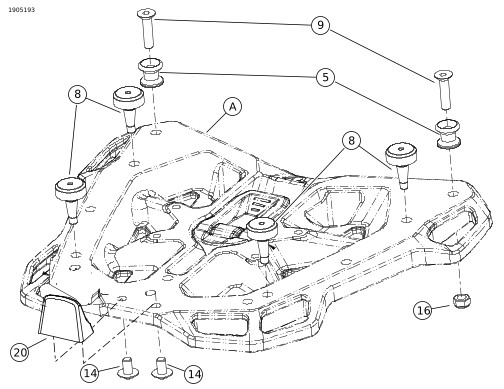

Figure 2. Luggage Rack Assembly - MONOKEY® Compatible
ASSEMBLE FOR GIVI® MONOLOCK® COMPATIBLE TOP CASES.
| 1. | See Figure 1 and Figure 3. Install standard rubber isolator (8) into detachable luggage mounting plate (A) in four locations as shown. a. Pull tip through adequately to fully engage. | |
| 2. | Install mount plate (3) to detachable luggage mounting plate (A) using screw (12) and nut (16) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) | |
| 3. | Install latch striker (23) to detachable luggage mounting plate (A) using screws (15) in three locations as shown. | |
| 4. | Apply threadlocker to screws (15). Tighten.LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97) a. Torque: 4.5 N·m (40 in-lbs) |
| 3 | Mount plate |
| 8 | Rubber isolator, standard (4) |
| 12 | Screw, FHCS, M6X14, black (2) |
| 15 | Screw, flanged BHCS, M6X10, black (3) |
| 16 | Nut, lock, M6 (2) |
| 23 | Striker, latch |

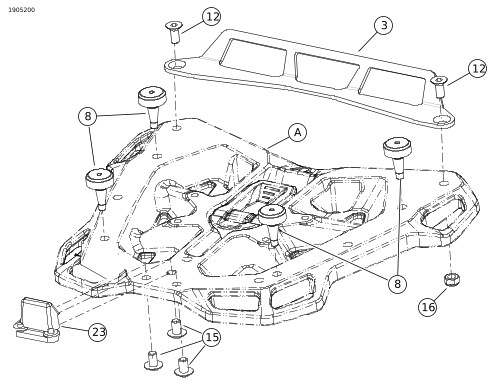

Figure 3. Luggage Rack Assembly - MONOLOCK® Compatible
ASSEMBLE FOR SHAD® SMALL or MEDIUM COMPATIBLE TOP CASES. (Typical 47L or less)
| 1. | See Figure 1 and Figure 4. Install standard rubber isolator (8) into detachable luggage mounting plate (A) in two locations as shown. a. Pull tip through adequately to fully engage. | |
| 2. | Install tall rubber isolator (7) into detachable luggage mounting plate (A) in two locations as shown. a. Pull tip through adequately to fully engage. | |
| 3. | Install mount plate (1) to detachable luggage mounting plate (A) using screw (14) and nut (16) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) | |
| 4. | Install latch striker (18) to detachable luggage mounting plate (A) using screws (11) and nuts (17) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) |
| 1 | Mount plate |
| 7 | Rubber isolator, Tall (2) |
| 8 | Rubber isolator, standard (2) |
| 11 | Screw, FHCS, M6X16, black (2) |
| 14 | Screw, flanged BHCS, M6X14, black (2) |
| 16 | Nut, lock, M6 (2) |
| 17 | Nut, flanged, M6, black (2) |
| 18 | Striker, latch |

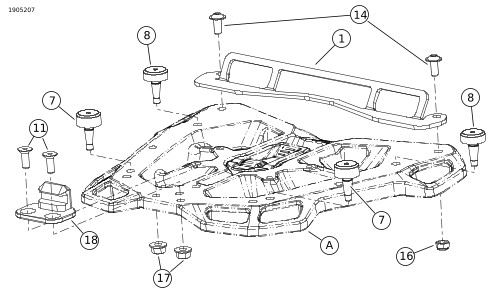

Figure 4. Luggage Rack Assembly - SHAD® Compatible (Small/Medium)
ASSEMBLE FOR SHAD® LARGE COMPATIBLE TOP CASES. (Typical 48L or greater)
| 1. | See Figure 1 and Figure 5. Install standard rubber isolator (8) into detachable luggage mounting plate (A) in four locations as shown. a. Pull tip through adequately to fully engage. | |
| 2. | Install mount plate (2) to detachable luggage mounting plate (A) using screw (12) and nut (16) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) | |
| 3. | Install latch striker (21) to detachable luggage mounting plate (A) using screws (13) in two locations as shown. | |
| 4. | Apply threadlocker to screws (13). Tighten.LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97) a. Torque: 7 N·m (62 in-lbs) |
| 2 | Mount plate |
| 8 | Rubber isolator, standard (4) |
| 12 | Screw, FHCS, M6X14, black (2) |
| 13 | Screw, flanged BHCS, M6X16, black (2) |
| 16 | Nut, lock, M6 (2) |
| 21 | Striker, latch |
Figure 5. Luggage Rack Assembly - SHAD® Compatible (Lg)
ASSEMBLE FOR SW-MOTECH® DUSC® COMPATIBLE TOP CASES.
| 1. | See Figure 1 and Figure 6. Install standard rubber isolator (8) into detachable luggage mounting plate (A) in four locations as shown. a. Pull tip through adequately to fully engage. | |
| 2. | Install mount bushing (5) to detachable luggage mounting plate (A) using screw (9) and lock nut (16) in two locations as shown. Tighten. Torque: 9 N·m (80 in-lbs) | |
| 3. | Install latch striker (19) to detachable luggage mounting plate (A) using screws (14) in two locations as shown. | |
| 4. | Apply threadlocker to screws (14). Tighten.LOCTITE 243 MEDIUM STRENGTH THREADLOCKER AND SEALANT (BLUE) (99642-97) a. Torque: 9 N·m (80 in-lbs) |
| 5 | Mount bushing (2) |
| 8 | Rubber isolator, standard (4) |
| 9 | Screw, FHCS, M6X25, black (2) |
| 14 | Screw, Flanged BHCS, M6X14, black (2) |
| 16 | Nut, lock, M6 (2) |
| 19 | Striker, latch |

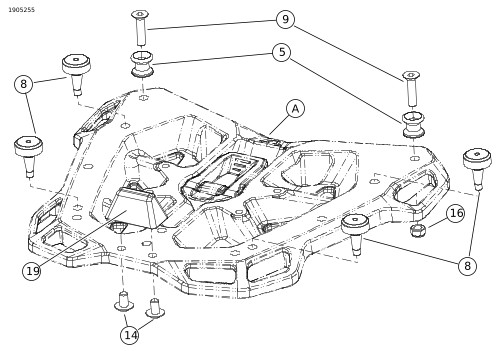

Figure 6. Luggage Rack Assembly - SW-MOTECH® DUSC® Compatible
ASSEMBLE FOR SW-MOTECH® TRAX® COMPATIBLE TOP CASES.
| 1. | See Figure 1 and Figure 7. Install mount bushing (4) to detachable luggage mounting plate (A) using screw (10), bushing cover (6) and lock nut (16) in four locations as shown. Tighten. Torque: 7 N·m (62 in-lbs) | |
| 2. | Install latch striker (22) to detachable luggage mounting plate (A) using screws (13) and nuts (17) in two locations as shown. a. Adjust latch striker (22) to properly engage top case. Tighten. Torque: 9 N·m (80 in-lbs) |
| 4 | Mount bushing (4) |
| 6 | Mount bushing cover (4) |
| 10 | Screw, FHCS, M6X20, black (4) |
| 13 | Screw, flanged BHCS, M6X16, black (2) |
| 16 | Nut, lock, M6 (4) |
| 17 | Nut, flanged, M6, black (2) |
| 22 | Striker, latch |

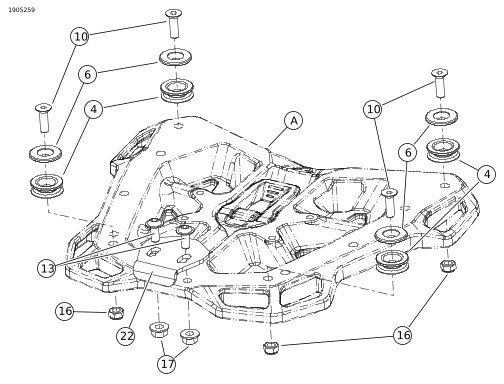

Figure 7. Luggage Rack Assembly - SW-MOTECH® TRAX® Compatible
INSTALL
| 1. | Install assembled luggage mounting plate (A) to luggage carrier following instructions provided with luggage mounting plate. |
COMPLETE
| 1. | Verify that installation is complete, all fasteners are properly tightened, and mounting plate secures properly to luggage carrier. | |
| 2. | Verify that top case secures properly to mounting plate. |
MAINTENANCE
| 1. | Check all connections and fasteners after a short ride, and at regular intervals thereafter. |
IN USE
WARNINGSee ACCESSORIES AND CARGO section within the SAFETY FIRST section in your owner's manual. Improper cargo loading or accessory installation can cause component failure and adversely affect stability, handling and performance, which could result in death or serious injury. (00021c)
WARNINGDo not exceed luggage rack weight capacity. Too much weight can cause loss of control, which could result in death or serious injury. (00373a)
WARNINGImproper loading of cargo or installation of accessories can affect motorcycle stability and handling, which could result in death or serious injury.
- Keep cargo weight concentrated close to the motorcycle and as low as possible to minimize the change in the motorcycle's center of gravity.
- Distribute weight evenly on both sides of the vehicle.
- Do not load bulky items too far behind the rider or add weight to the handlebars or front forks.
- Do not exceed maximum load capacity stated on the label for bags, luggage, and racks, if equipped. Combined load of luggage rack, luggage, and cargo must not exceed load capacity.
- Check that cargo is secure. The cargo cannot shift while riding. Periodically recheck load.
- Close and lock luggage before riding or leaving the vehicle unattended.
- Accessories that change the operator's riding position may increase reaction time and affect handling of the motorcycle.
- Items with large surface areas, such as windshields, backrests and luggage racks (if equipped) can adversely affect stability and handling.
NOTE
Maximum luggage rack weight capacity is 13.6 kg (30 lb)
NOTE
Combined load of luggage and top case must not exceed 13.6 kg (30 lb).
