SCREAMIN' EAGLE EXHAUST SHIELDS
J065392024-12-20
GENERAL INFORMATION
Table 1. General Information
Kits | Suggested Tools | Skill Level(1) |
|---|---|---|
65400458, 65400459, 65400460 | Safety Glasses, Torque Wrench |  |
(1) Tightening to torque value or other moderate tools and techniques required
KIT CONTENTS
Figure 1. Kit Contents: Screamin' Eagle Exhaust Shields
Table 2. Kit Contents: Screamin' Eagle Exhaust Shields Kit
 | Verify that all contents are present in the kit before installing or removing items from vehicle. | ||||
|---|---|---|---|---|---|
Item | Qty | Description | Part No. | Notes | |
 | 1 | 1 | Shield, exhaust, rear, stain black | 65400450 | Kit 65400458 |
| 65400455 | Kit 65400459 | |||
| 65400453 | Kit 65400460 | |||
| 2 | 4 | Shield, exhaust, front, stain black | 65400449 | Kit 65400458 |
| 65400454 | Kit 65400459 | |||
| 65400452 | Kit 65400460 | |||
| 3 | 1 | Shield, exhaust, mid, stain black | 65400456 | Kit 65400459 |
GENERAL
Instruction sheet is also available electronically. To verify you are using the most current version available, do one of the following:
- Go to h-d.com/isheets
- Scan QR code in upper left corner of the instruction sheet
NOTE
This instruction sheet may have a Supplemental Video to assist installer in clarifying a certain part of the assembly. A linked video would be located at the end of this instruction sheet.
Models
For model fitment information, see the Parts and Accessories (P&A) Retail Catalog or the Parts and Accessories section of www.harley-davidson.com.
Contact Harley-Davidson Customer Support Center at 1-800-258-2464 (U.S. only) or 1-414-343-4056.
Installation Requirements
WARNINGRider and passenger safety depend upon the correct installation of this kit. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00308b)
REMOVE
| 1. | Allow the vehicle to cool. | |
| 2. | Remove Original Equipment (OE) exhaust shields. a. Note position of OE clamp screws securing exhaust shields to exhaust pipes. b. See Figure 1. Open band clamps (1) and spread bands to remove exhaust shields (2) from exhaust. c. Remove clamps from exhaust shields and save for installation. |
INSTALL
| 1. | Install OE clamps to new exhaust shields. | |
| 2. | See Figure 2. Spread band around exhaust pipes and push end of bands to engage clamp screws. Tighten to hold the exhaust shields in place. | |
| 3. | Adjust shields and band clamps to access clamp screws and to avoid contact with other components. |
NOTICE
Wipe all fingerprints off of exhaust system components after installation and before starting engine. Oil from hands can leave permanent marks on exhaust system finish. (00346a)
| 4. | Position clamp screws. Tighten. Torque: 2.3–4.6 N·m (20–41 in-lbs) |
| 1 | Exhaust shield clamp |
| 2 | Exhaust shield |

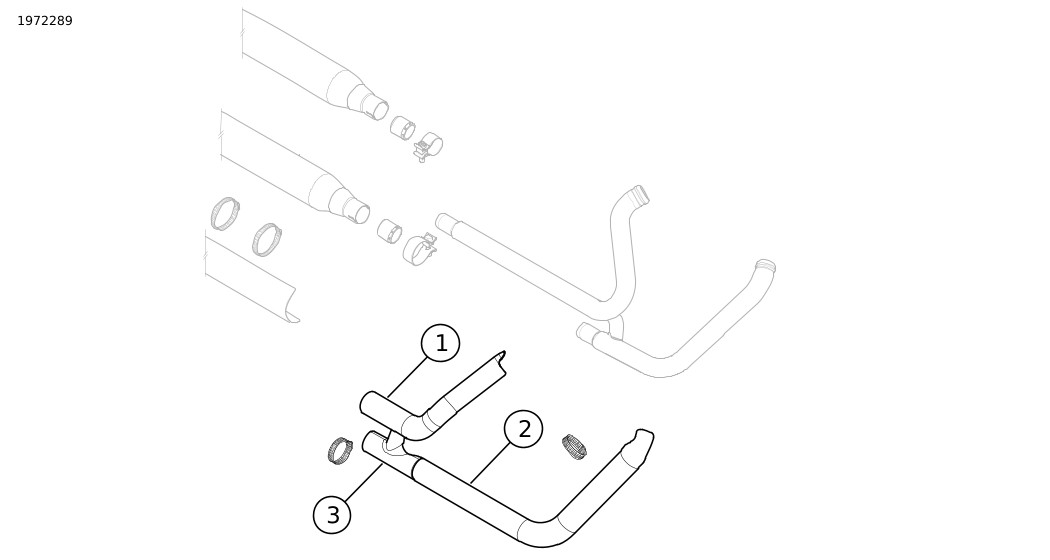

Figure 2. Exhaust Shield Clamp and Exhaust Shield
