GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2025 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 4. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 2.
The full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2025 TOURING MODELS
VIN Model Codes

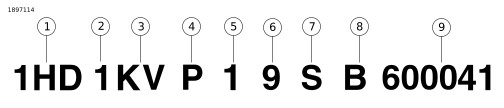

Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown: Touring Models
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States or Thailand for sale outside of the United States 932=Originally manufactured in Brazil MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | P=Milwaukee-Eight™ 114 Engine, 1868 cm3 | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=ENG/EN2/HDI/HD4 5=Japan (JPN/JP2) 6=Australia (AUS/AU2) 7=Brazil (BRZ) 0=ASEAN (AZN) A=China (CHN) | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | S=2025 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes: Touring Models
CODE | MODEL |
|---|---|
KV | Road King® Special (FLHRXS) |
Table 4. 2025 FLHRXS Color Options
OPTION CODE | COLOR | COLOR SUFFIX | MODEL |
|---|---|---|---|
M02 | Billiard Gray | EXU | FLHRXS |
M04 | Vivid Black | DH | FLHRXS |
M12 | Whiskey Fire | EYS | FLHRXS |
NOTES
ENGINE ASSEMBLY - Milwaukee-eight™ 114
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200662 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-eight™ 114) (black) | FLHRXS |
| 2 | 16200582 | ENGINE ASSEMBLY, shortblock, with 91800064, crankcase, flywheel assembly, camshaft support plate assembly, balancer and cylinder studs (See Note) | FLHRXS |
| 3 | 91800064 | KIT, shortblock installation, with top end gasket kit, inner primary gasket kit, camshaft sprocket, camshaft drive chain and camshaft tensioner | FLHRXS |
| Note: Cylinders, cylinder heads, camshaft, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil pump, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99B | DOWEL PIN (4) | FLHRXS |
| 2 | 10200303 | FLANGE NUT (dull silver) (8) | FLHRXS |
| 3 | 10900015A | STUD, exhaust port (4) | FLHRXS |
| 4 | 16500305 | GASKET, cylinder head (4.016 in) (2) | FLHRXS |
| 5 | 16500332 | GASKET, cylinder base (2) | FLHRXS |
| 6 | 16500393 | CYLINDER HEAD, front, with 3, 9, 10, 11, 12, 13, 14, 15, 65324-83B (Air-Cooled) (black) | FLHRXS |
| 6 | 16500388 | CYLINDER HEAD, rear, with 3, 9, 10, 11, 12, 13, 14, 15, 65324-83B (Air-Cooled) (black) | FLHRXS |
| 7 | 16800063 | STUD, cylinder (8) | FLHRXS |
| 8 | 16800075 | CYLINDER, front, with 16589-99B (4.016 in) (black) | FLHRXS |
| 8 | 16800080 | CYLINDER, rear, with 16589-99B (4.016 in) (black) | FLHRXS |
| 9 | 18000016 | INTAKE VALVE (4) | FLHRXS |
| 10 | 18000034A | EXHAUST VALVE (4) | FLHRXS |
| 11 | 18100140 | VALVE SPRING (8) | FLHRXS |
| 12 | 18100044 | SEAL, valve (8) | FLHRXS |
| 13 | 18100045 | COLLAR, valve spring (8) | FLHRXS |
| 14 | 18100060 | KEEPER, valve (16) | FLHRXS |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLHRXS |
| 16 | 25700729 | GASKET KIT, top end | FLHRXS |
| 16 | 25700730 | GASKET KIT, engine overhaul | FLHRXS |
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | FLHRXS |
| 2 | 4741A | SCREW (8) | FLHRXS |
| 3 | 11132A | O-RING, pushrod cover (4) | FLHRXS |
| 4 | 11145A | O-RING, pushrod cover (4) | FLHRXS |
| 5 | 11293 | O-RING (4) | FLHRXS |
| 6 | 17945-36B | CAP, cover spring (4) | FLHRXS |
| 7 | 17947-36 | SPRING, pushrod cover (4) | FLHRXS |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | FLHRXS |
| 9 | 17968-99 | RETAINER, spring cap (4) | FLHRXS |
| 10 | 18538-99C | HYDRAULIC LIFTER (4) | FLHRXS |
| 11 | 10200258 | SCREW (2) | FLHRXS |
| 12 | 10200308 | SCREW (20) | FLHRXS |
| 13 | 10200446 | SCREW (8) | FLHRXS |
| 14 | 10200503 | SCREW (8) | FLHRXS |
| 15 | 10500069 | SPACER, rocker cover (2) | FLHRXS |
| 16 | 11900116 | O-RING (2) | FLHRXS |
| 17 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | FLHRXS |
| 18 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | FLHRXS |
| 19 | 17300059B | SHAFT, rocker arm (4) | FLHRXS |
| 20 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | FLHRXS |
| 21 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | FLHRXS |
| 22 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | FLHRXS |
| 22 | 17900035 | ANTI-ROTATION DEVICE, front cylinder | FLHRXS |
| 23 | 25700362A | GASKET, lifter cover (2) | FLHRXS |
| 24 | 25700372B | GASKET, rocker arm cover (2) | FLHRXS |
| 25 | 25700520 | ROCKER COVER, upper (black) (2) | FLHRXS |
| 26 | 25700410 | LIFTER COVER, front (chrome) | FLHRXS |
| 26 | 25700411 | LIFTER COVER, rear (chrome) | FLHRXS |
| 27 | 25700425A | GASKET, rocker housing, lower (2) | FLHRXS |
| 28 | 25701000 | COVER, pushrod (lower) (4) | FLHRXS |
| 29 | 25701495 | ROCKER COVER, lower, with 25700425A (chrome) (2) | FLHRXS |
| 30 | 25700731 | GASKET KIT, camshaft service | FLHRXS |
| 31 | 29400183 | BREATHER ASSEMBLY, rear, with 11900116 | FLHRXS |
| 31 | 29400210 | BREATHER ASSEMBLY, front, with 11900116 | FLHRXS |
COOLING SYSTEM, ENGINE, AIR-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLHRXS |
| 2 | 10200446 | SCREW (4) | FLHRXS |
| 3 | 10800052 | CLAMP (2) | FLHRXS |
| 3 | 10800109 | CLAMP (Thailand) (3) | FLHRXS |
| 4 | 11900090 | O-RING, coolant manifold (4) | FLHRXS |
| 5 | 11900092 | O-RING, transmission oil return | FLHRXS |
| 6 | 26900117 | BRACKET, coolant tube (2) | FLHRXS |
| 7 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 | FLHRXS |
| 8 | 26900259A | COOLANT LINE ASSEMBLY, oil, with 4, 6, 9, 10, 11, 13 | FLHRXS |
| 9 | 26900144 | HOSE | FLHRXS |
| 10 | 62700376 | HOSE | FLHRXS |
| 11 | 10800109 | CLAMP | FLHRXS |
| 12 | 10800111 | SLEEVE | FLHRXS |
| 13 | 10800108 | CLAMP (Thailand) (8) | FLHRXS |
| 14 | 10142 | CLAMP | FLHRXS |
COOLANT DISTRIBUTION - AIR-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHRXS |
| 2 | 10080 | CLAMP (zinc) (2) | FLHRXS |
| 3 | 69201286A | COVER, electrical connector, with 12600016 | FLHRXS |
| 4 | 10344 | CLAMP (black) (2) | FLHRXS |
| 5 | 11692 | GROMMET (2) | FLHRXS |
| 6 | 70681-09 | CLIP, wire retention | FLHRXS |
| 7 | 10200414 | SCREW (2) | FLHRXS |
| 8 | 10200422 | SCREW (2) | FLHRXS |
| 9 | 10142 | CLAMP | FLHRXS |
| 10 | 12100113 | GROMMET | FLHRXS |
| 11 | 12600016 | CLIP, push-in (2) | FLHRXS |
| 12 | 12700090A | BRACKET, voltage regulator | FLHRXS |
| 13 | 26800092 | COVER, oil cooler | FLHRXS |
| 14 | 62700143 | HOSE, inlet, oil cooler | FLHRXS |
| 15 | 62700144 | HOSE, outlet, oil cooler | FLHRXS |
| 16 | 62700196 | OIL COOLER, with 12100113 (CAL, CAN, DOM, AUS, BRZ, HDI, JPN, ENG) | FLHRXS |
| 17 | 62700227 | OIL COOLER, with 12100113 (AU2, HD4, JP2, ASEAN, China, EN2) | FLHRXS |
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™ 114
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHRXS |
| 2 | 22097-99 | LOCK RING, piston pin (4) | FLHRXS |
| 3 | 21900048 | PISTON AND RINGS ASSEMBLY, with 22097-99, 22000061 and 22100006 (4.016 in) (2) | FLHRXS |
| 4 | 22000061 | PISTON RING SET (4.016 in) (2) | FLHRXS |
| 5 | 22100006 | PISTON PIN (2) | FLHRXS |
| 6 | 24100182 | FLYWHEEL ASSEMBLY KIT, with 11177A, 61300204A | FLHRXS |
| 7 | 35200150 | BALANCER ASSEMBLY | FLHRXS |
| 8 | 61300204A | BEARING, main, inner, right hand | ALL |

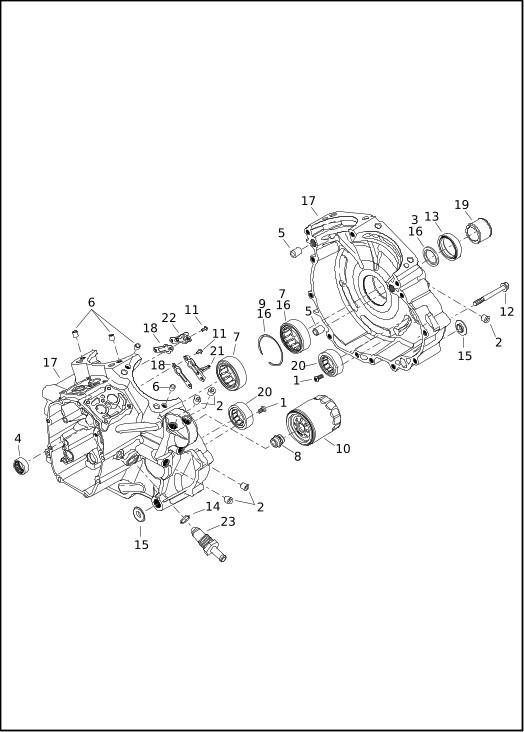

CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHRXS |
| 2 | 765 | PLUG (5) | FLHRXS |
| 3 | 8973 | WASHER | FLHRXS |
| 4 | 9298B | NEEDLE BEARING, left side, camshaft | FLHRXS |
| 5 | 16574-99A | DOWEL PIN (2) | FLHRXS |
| 6 | 16589-99B | DOWEL PIN (4) | FLHRXS |
| 7 | 24605-07 | BEARING, main (2) | FLHRXS |
| 8 | 26352-95A | ADAPTER | FLHRXS |
| 9 | 35114-02 | RING, retaining, internal | FLHRXS |
| 10 | 62700296A | OIL FILTER (black) | FLHRXS |
| 11 | 68042-99 | SCREW (4) | FLHRXS |
| 12 | 10200343 | SCREW (12) | FLHRXS |
| 13 | 11000134 | SEAL, oil | FLHRXS |
| 14 | 11900010 | O-RING | FLHRXS |
| 15 | 12400099 | SPACER, front mount (2) | FLHRXS |
| 16 | 24100080 | BEARING KIT, with 8973, 24605-07, 35114-02 and inner race | FLHRXS |
| 17 | 24400120 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 15, 18, 20, 21 and 22 (black) | FLHRXS |
| 18 | 25700433A | GASKET, piston jet (2) | FLHRXS |
| 19 | 29900041 | SPACER, sprocket shaft | FLHRXS |
| 20 | 35200021 | BEARING, balancer (2) | FLHRXS |
| 21 | 62700089A | PISTON JET ASSEMBLY, front, with 25700433A | FLHRXS |
| 22 | 62700117A | PISTON JET ASSEMBLY, rear, with 25700433A | FLHRXS |
| 23 | 62700141A | CHECK VALVE, oil pressure, with 11900010 (Air-Cooled) | FLHRXS |
CAMSHAFTS AND CAMSHAFT COVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHRXS |
| 2 | 942 | SCREW (2) | FLHRXS |
| 3 | 4740A | SCREW (15) | FLHRXS |
| 4 | 4822A | SCREW (4) | FLHRXS |
| 6 | 8873 | BALL (7) | FLHRXS |
| 7 | 9215 | NEEDLE BEARING, camshaft | FLHRXS |
| 8 | 11293 | O-RING | FLHRXS |
| 9 | 16589-99B | DOWEL PIN | FLHRXS |
| 10 | 91800088 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with screws and washers | FLHRXS |
| 11 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLHRXS |
| 12 | 25675-06 | CHAIN, primary camshaft drive | FLHRXS |
| 13 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLHRXS |
| 13 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLHRXS |
| 13 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLHRXS |
| 13 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLHRXS |
| 13 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLHRXS |
| 13 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLHRXS |
| 14 | 26210-99 | SPRING, relief valve | FLHRXS |
| 15 | 26400-82B | RELIEF VALVE, oil pump bypass | FLHRXS |
| 16 | 68120-00 | SCREW (2) | FLHRXS |
| 17 | 11900103 | O-RING | FLHRXS |
| 18 | 25400103 | SPROCKET, camshaft drive, 34 teeth | FLHRXS |
| 19 | 25400452 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99B | FLHRXS |
| 20 | 25400190 | CAMSHAFT | FLHRXS |
| 21 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 91800088, 25673-06, 25675-06 and 25400103 | FLHRXS |
| 22 | 25500013 | CHAIN TENSIONER, camshaft drive chain | FLHRXS |
| 23 | 25600078 | COVER, timer (black) | FLHRXS |
| 24 | 25700467 | CAMSHAFT COVER (gloss black) | FLHRXS |
| 25 | 25700370A | GASKET, camshaft cover | FLHRXS |
| 26 | 25700731 | GASKET KIT, camshaft service | FLHRXS |
| 27 | 62400233 | GEROTOR ASSEMBLY | FLHRXS |
| 28 | 62400245 | COVER, oil pump assembly, with 62400205 | FLHRXS |
| 29 | 62400126 | GEROTOR ASSEMBLY, feed (Air-Cooled) | FLHRXS |
| 30 | 62400238 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (Air-Cooled) Also order 62400126 | FLHRXS |
| 31 | 62400205 | OIL SEAL | FLHRXS |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | FLHRXS |
| 2 | 6139 | WASHER | FLHRXS |
| 3 | 16219-09 | STABLIZER LINK | FLHRXS |
| 4 | 10100062 | LOCKNUT | FLHRXS |
| 5 | 10200393 | SCREW | FLHRXS |
| 6 | 10200408A | SCREW (2) | FLHRXS |
| 7 | 10200463 | SCREW (2) | FLHRXS |
| 8 | 16300005 | ENGINE MOUNT, front (2) | FLHRXS |
| 9 | 16400041 | BRACKET, tie link | FLHRXS |
| 10 | 16400042 | END CAP, front mount | FLHRXS |

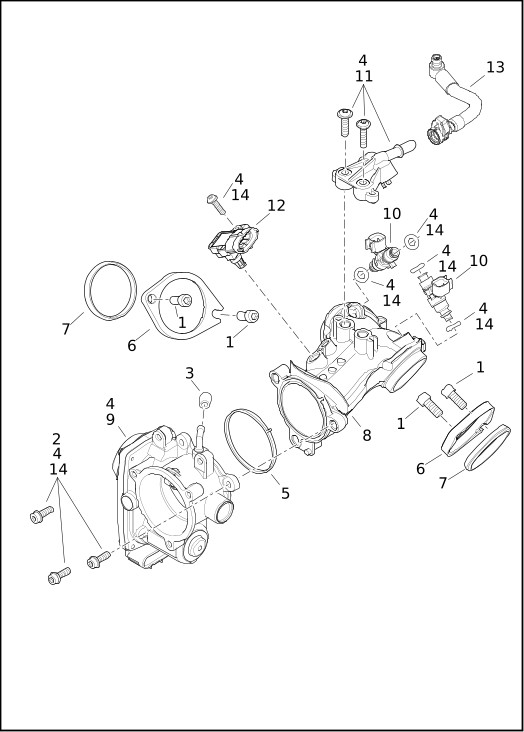

INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHRXS |
| 2 | 10200373 | SCREW (3) | FLHRXS |
| 3 | 12100069 | PLUG, purge tube cap | FLHRXS |
| 4 | 27200025 | MANIFOLD THROTTLE BODY INTAKE KIT, with 27300122, 27400019 and 91800058 | FLHRXS |
| 5 | 27300082 | GASKET, throttle body to manifold | FLHRXS |
| 6 | 27300086 | FLANGE, intake (2) | FLHRXS |
| 7 | 27300087 | SEAL, intake (2) | FLHRXS |
| 8 | 27300121 | INTAKE MANIFOLD ASSEMBLY, with 27300082 | FLHRXS |
| 9 | 27300122 | THROTTLE BODY ASSEMBLY, with 12100069 | FLHRXS |
| 10 | 27400015 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLHRXS |
| 11 | 27400019 | FUEL RAIL KIT | FLHRXS |
| 12 | 32700200 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHRXS |
| 13 | 61200022A | FUEL LINE | FLHRXS |
| 14 | 91800058 | HARDWARE KIT, induction module | FLHRXS |
AIR CLEANER - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 869 | SCREW (3) | FLHRXS |
| 2 | 923 | SCREW (2) | FLHRXS |
| 3 | 3048 | SCREW (2) | FLHRXS |
| 4 | 29465-08B | BOLT, breather (2) | FLHRXS |
| 5 | 14101306 | INSERT, air cleaner cover | FLHRXS |
| 6 | 29000148 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHRXS |
| 7 | 29000149 | GASKET | FLHRXS |
| 8 | 29400267 | ELEMENT, air filter | FLHRXS |
| 9 | 29400336 | HOSE, front | FLHRXS |
| 10 | 29400337 | HOSE, rear | FLHRXS |
| 11 | 61300751 | COVER, with 14000377 (black) | FLHRXS |
| 11 | 29000290 | COVER, with 14001798A (black) (China only) | FLHRXS |
| 11 | 14000377 | LABEL, (California, Domestic) (not shown) | FLHRXS |
| 11 | 14001798A | LABEL (China) (not shown) | FLHRXS |
| 12 | 61300927 | RAINSOCK | FLHRXS |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | FLHRXS |
| 2 | 10039 | CABLE STRAP (3) | FLHRXS |
| 3 | 10177 | CABLE STRAP, anchored | FLHRXS |
| 4 | 10200422 | SCREW (4) | FLHRXS |
| 5 | 29900038A | ROTOR ASSEMBLY | FLHRXS |
| 6 | 29900041 | SPACER, sprocket shaft | FLHRXS |
| 7 | 29900145 | STATOR ASSEMBLY, 3-phase, 48 A | FLHRXS |
| 8 | 69201423 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | FLHRXS |
| 9 | 74700025B | VOLTAGE REGULATOR ASSEMBLY, with 74700038 and 74700039 | FLHRXS |
| 9 | 74700038 | LATCH, AC WIRE LEAD, on voltage regulator (not shown) | FLHRXS |
| 9 | 74700039 | LATCH, DC WIRE LEAD, on voltage regulator (not shown) | FLHRXS |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (2) | FLHRXS |
| 2 | 4705 | SCREW (2) | FLHRXS |
| 3 | 4813A | SCREW (2) | FLHRXS |
| 4 | 10177 | CABLE STRAP, anchored (6) | FLHRXS |
| 5 | 70681-09 | RETAINER, wire harness | FLHRXS |
| 6 | 12200170 | CLIP, retaining, anchored | FLHRXS |
| 7 | 31600012 | SPARK PLUG, M10 (4) | FLHRXS |
| 8 | 31600017 | IGNITION COIL | FLHRXS |
| 9 | 31600018B | SPARK PLUG CABLE, right front cylinder, with 10177 | FLHRXS |
| 10 | 31600023A | SPARK PLUG CABLE, right rear cylinder, with 10177 | FLHRXS |
| 11 | 31600078B | SPARK PLUG CABLE, left front cylinder, with 10177 and 12200170 | FLHRXS |
| 12 | 31600079 | SPARK PLUG CABLE, left rear cylinder, with 10177 | FLHRXS |
| 13 | 41001165A | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHRXS |
| 14 | 69202307 | CADDY, electronic control module (ECM) | FLHRXS |
| 15 | 69201178 | BRACKET, battery hold down | FLHRXS |

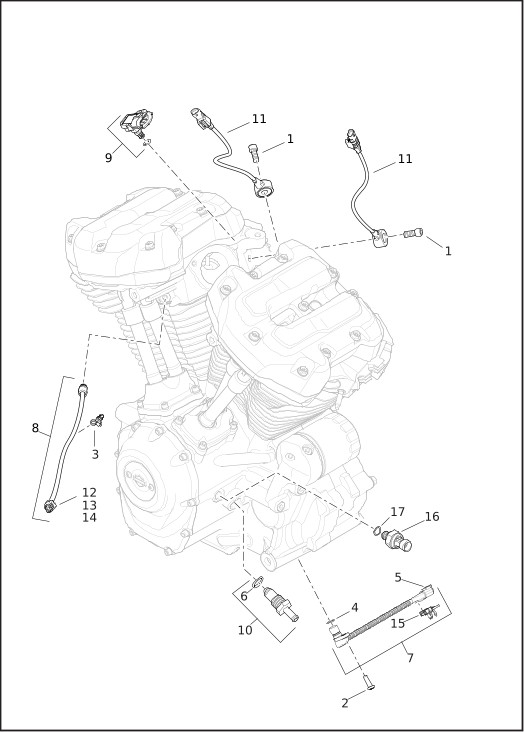

SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (2) | FLHRXS |
| 2 | 4705 | SCREW | FLHRXS |
| 3 | 10177 | CABLE STRAP, anchored | FLHRXS |
| 4 | 11900180 | O-RING, crankshaft position sensor | FLHRXS |
| 5 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLHRXS |
| 6 | 11900010 | O-RING | FLHRXS |
| 7 | 32700144 | SENSOR, crankshaft position, with 74194-98, 11900180 and 69201302 | FLHRXS |
| 8 | 32700054A | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLHRXS |
| 9 | 32700200 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHRXS |
| 10 | 62700141A | CHECK VALVE, oil pressure, with 11900010 (Air-Cooled) | FLHRXS |
| 11 | 69200840 | SENSOR, knock (2) | FLHRXS |
| 12 | 69201299 | HOUSING, two-way socket | FLHRXS |
| 13 | 69201300 | TERMINAL, socket, 20 AWG (2) | FLHRXS |
| 14 | 69201301 | WIRE SEAL, 20-22 AWG (green) (2) | FLHRXS |
| 15 | 69201302 | CONNECTOR ANCHOR | FLHRXS |
| 16 | 71400112A | OIL PRESSURE SWITCH, with 11900172 | FLHRXS |
| 17 | 11900172 | O-RING | FLHRXS |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLHRXS |
| 2 | 27444-00Y | O-RING, starter-to-case | FLHRXS |
| 3 | 31694-90 | NUT | FLHRXS |
| 4 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | FLHRXS |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHRXS |
| 2 | 856A | SCREW | FLHRXS |
| 3 | 33600304 | SPACER | FLHRXS |
| 4 | 6497HW | WASHER | FLHRXS |
| 5 | 6702 | WASHER | FLHRXS |
| 6 | 7330 | ACORN NUT | FLHRXS |
| 7 | 7686 | LOCKNUT | FLHRXS |
| 8 | 11150 | RETAINING RING | FLHRXS |
| 9 | 11389 | RING, shift camshaft retaining | FLHRXS |
| 10 | 11575 | RING, shift camshaft retaining | FLHRXS |
| 11 | 33389-07 | SPRING, detent | FLHRXS |
| 12 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLHRXS |
| 13 | 33719-79B | SHIFTER ROD | FLHRXS |
| 14 | 33600243 | SHIFT LEVER KIT, with 7686, 10200350 and shifter lever (gloss black) | FLHRXS |
| 15 | 34064-00C | SPRING, shift lever centering | FLHRXS |
| 16 | 34611-65A | TOE SHIFTER PEG KIT | FLHRXS |
| 17 | 34987-06 | SPRING, ratchet lever | FLHRXS |
| 18 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | FLHRXS |
| 19 | 35082-07 | CENTERING SCREW, shift lever | FLHRXS |
| 20 | 35186-06A | SLEEVE | FLHRXS |
| 21 | 35187-06 | FORK, shift 1 - 2 | FLHRXS |
| 22 | 35210-06 | FORK, shift 3 - 4 | FLHRXS |
| 23 | 35217-06 | FORK, shift 5 - 6 | FLHRXS |
| 24 | 35222-06A | SHAFT, 5 - 6 shift fork | FLHRXS |
| 25 | 35223-06A | SHAFT, 1 - 2 and 3 - 4 shift fork | FLHRXS |
| 26 | 35243-06A | SLEEVE | FLHRXS |
| 27 | 35244-06 | SCREW | FLHRXS |
| 28 | 35249-06A | LOCK PLATE, shift camshaft | FLHRXS |
| 29 | 35259-06 | SCREW (2) | FLHRXS |
| 30 | 10200350 | SCREW | FLHRXS |
| 31 | 11000101 | OIL SEAL | FLHRXS |
| 32 | 33600188 | LEVER, gear shifter (gloss black) | FLHRXS |
| 33 | 33600091 | SHAFT | FLHRXS |
| 34 | 33900265 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHRXS |
| 35 | 33900175 | LEVER, shifter rod | FLHRXS |

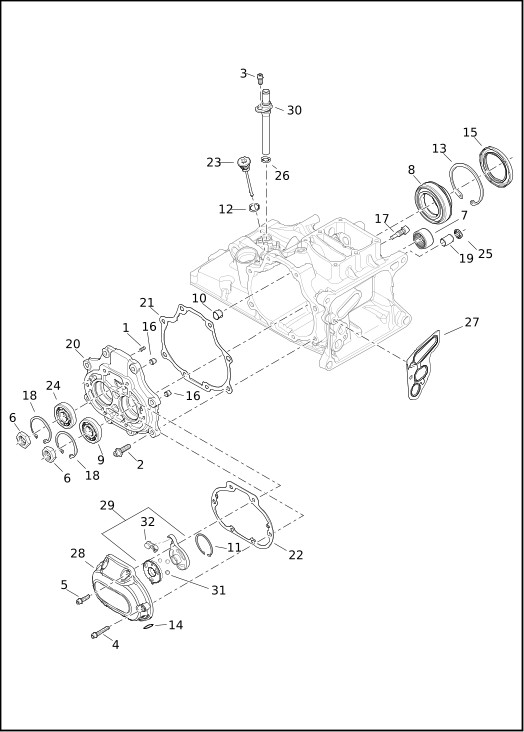

TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHRXS |
| 2 | 3249 | SCREW (8) | FLHRXS |
| 3 | 4705 | SCREW | FLHRXS |
| 4 | 4718A | SCREW (4) | FLHRXS |
| 5 | 4741A | SCREW (2) | FLHRXS |
| 6 | 7340 | NUT, mainshaft and countershaft (2) | FLHRXS |
| 7 | 8963 | BEARING, needle | FLHRXS |
| 8 | 8967A | BEARING | FLHRXS |
| 9 | 8970A | BEARING | FLHRXS |
| 10 | 9701A | BUSHING | FLHRXS |
| 11 | 10998 | RETAINING RING | FLHRXS |
| 12 | 11132A | O-RING, dipstick (chrome) | FLHRXS |
| 12 | 11900179 | O-RING, dipstick (plastic) | FLHRXS |
| 13 | 11161 | RETAINING RING | FLHRXS |
| 14 | 11179 | O-RING | FLHRXS |
| 15 | 12074A | SEAL | FLHRXS |
| 16 | 16583-00B | BUSHING, dowel (2) | FLHRXS |
| 17 | 35082-07 | CENTERING SCREW, shift lever | FLHRXS |
| 18 | 35087-99A | RETAINING RING (2) | FLHRXS |
| 19 | 35186-06A | SLEEVE | FLHRXS |
| 20 | 35260-06C | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black) | FLHRXS |
| 21 | 35654-06A | GASKET, bearing housing | FLHRXS |
| 22 | 36805-06 | GASKET, cover | FLHRXS |
| 23 | 62700291 | DIPSTICK (plastic) | FLHRXS |
| 24 | 11000010 | BEARING | FLHRXS |
| 25 | 11000101 | OIL SEAL | FLHRXS |
| 26 | 11900092 | O-RING | FLHRXS |
| 27 | 24400215A | GASKET | FLHRXS |
| 28 | 25800098 | SIDE COVER (gloss black) | FLHRXS |
| 29 | 37000376 | RAMP KIT, with bearings | FLHRXS |
| 30 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 (Air-Cooled) | FLHRXS |
| 31 | 8873 | BALL (3) | FLHRXS |
| 32 | 34920-86A | COUPLING | FLHRXS |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHRXS |
| 2 | 3983 | SCREW (2) | FLHRXS |
| 3 | 4741A | SCREW (18) | FLHRXS |
| 4 | 7792 | NUT | FLHRXS |
| 5 | 11105 | O-RING (2) | FLHRXS |
| 6 | 11120 | O-RING | FLHRXS |
| 7 | 16574-99B | DOWEL PIN (2) | FLHRXS |
| 8 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHRXS |
| 9 | 60328-98B | PLUG, magnetic, with 11105 (2) | FLHRXS |
| 10 | 34800043 | VENT HOSE, transmission | FLHRXS |
| 11 | 66290-06 | STUD, ground | FLHRXS |
| 12 | 24400180A | OIL PAN ASSEMBLY, with 60328-98B (black) | FLHRXS |
| 13 | 25700452 | GASKET, oil pan | FLHRXS |
| 14 | 34800044 | GASKET, upper cover | FLHRXS |
| 15 | 34700372 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967A, 9701A, 11161, 16574-99A, 35082-07, 35122-06A, 35186-06A, 35241-06, 35242-06, 66290-06, 11000101 and 35000152 (black) | FLHRXS |
| 16 | 34800046 | TRANSMISSION COVER, top, with 34800043, 34800044 (black) | FLHRXS |
| 17 | 62700136 | DIPSTICK ASSEMBLY, with 11120 (black cap) | FLHRXS |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837B | SPACER | FLHRXS |
| 2 | 7340 | NUT (2) | FLHRXS |
| 3 | 8026K | BEARING, needle (4) | FLHRXS |
| 4 | 8041 | BEARING, needle | FLHRXS |
| 5 | 8042A | BEARING, needle (2) | FLHRXS |
| 6 | 10991A | RETAINING RING (2) | FLHRXS |
| 7 | 11081A | RING, lock (3) | FLHRXS |
| 8 | 11082A | SECURING SEGMENT (6) | FLHRXS |
| 9 | 11201 | O-RING | FLHRXS |
| 10 | 11207A | WASHER, internal spline | FLHRXS |
| 11 | 11599A | SPACER, bearing | FLHRXS |
| 12 | 12077 | OIL SEAL | FLHRXS |
| 13 | 34091-08 | BEARING, inner race | FLHRXS |
| 14 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042A, 10991A, 11201, 11599A and 12077 | FLHRXS |
| 15 | 35124-06 | GUIDE HUB, dog ring | FLHRXS |
| 16 | 35126-06 | DOG RING, lugged (2) | FLHRXS |
| 17 | 35202-06 | GUIDE HUB, dog ring | FLHRXS |
| 18 | 35204-06 | DOG RING, pocketed | FLHRXS |
| 19 | 35467-06C | INPUT SHAFT KIT, with 34091-08, 12200144 and 35000178 | FLHRXS |
| 20 | 35807-06 | GEAR, countershaft-second | FLHRXS |
| 21 | 35811-06 | GEAR, countershaft-third | FLHRXS |
| 22 | 35814-06 | GEAR, countershaft-fourth | FLHRXS |
| 23 | 12200144 | RETAINING RING | FLHRXS |
| 24 | 35000178 | GUIDE HUB, dog ring | FLHRXS |
| 25 | 35000179 | GEAR, fifth input | FLHRXS |
| 26 | 35000238A | GEAR PACK, SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 10, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 35260-06C (black) | FLHRXS |
| 27 | 35600094 | COUNTERSHAFT ASSEMBLY | FLHRXS |
| 28 | 35600103 | GEAR ASSEMBLY, countershaft-first | FLHRXS |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 7848W | JAMNUT | FLHRXS |
| 2 | 11096 | RETAINING RING | FLHRXS |
| 3 | 36706-01K | BOLT (3) | FLHRXS |
| 4 | 37069-90A | OIL SLINGER | FLHRXS |
| 5 | 37090-98A | SCREW, adjuster | FLHRXS |
| 6 | 37092-06 | PUSHROD, clutch release | FLHRXS |
| 7 | 37312-75 | BEARING, thrust | FLHRXS |
| 8 | 37313-80 | BEARING, thrust race (2) | FLHRXS |
| 9 | 37496-90A | NUT, mainshaft | FLHRXS |
| 10 | 37903-90 | RELEASE PLATE | FLHRXS |
| 11 | 37904-90 | RETAINING RING, external | FLHRXS |
| 12 | 37909-90 | RING, retaining, internal | FLHRXS |
| 13 | 37000032A | PRESSURE PLATE, clutch | FLHRXS |
| 14 | 37000033 | STOPPER PLATE | FLHRXS |
| 15 | 37000034 | SPRING, damper | FLHRXS |
| 16 | 37000295 | SEAT, damper-spring | FLHRXS |
| 17 | 37000083 | HUB ASSEMBLY | FLHRXS |
| 18 | 37000168 | BEARING, ball, double-row | FLHRXS |
| 19 | 37000169 | RETAINING RING, internal | FLHRXS |
| 20 | 37000219 | SEAT (3) | FLHRXS |
| 21 | 37000377 | CLUTCH ASSEMBLY, complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23 | FLHRXS |
| 22 | 37000382 | CLUTCH DISC KIT | FLHRXS |
| 23 | 37000270A | COIL SPRING (3) | FLHRXS |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHRXS |
| 2 | 791A | SCREW (2) | FLHRXS |
| 3 | 1062 | SCREW (5) | FLHRXS |
| 4 | 1775 | SCREW (4) | FLHRXS |
| 5 | 4813A | SCREW (9) | FLHRXS |
| 6 | 4820A | SCREW | FLHRXS |
| 7 | 9231 | BEARING | FLHRXS |
| 8 | 11105 | O-RING | FLHRXS |
| 9 | 12052A | SEAL | FLHRXS |
| 10 | 16583-00B | BUSHING, dowel (2) | FLHRXS |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | FLHRXS |
| 12 | 24754-75A | DOWEL BUSHING (4) | FLHRXS |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | FLHRXS |
| 14 | 60678-85 | RETAINING RING | FLHRXS |
| 15 | 11000139 | BUSHING | FLHRXS |
| 16 | 25700378 | GASKET, primary cover | FLHRXS |
| 17 | 25700491 | COVER, primary (gloss black) | FLHRXS |
| 18 | 25700455 | GASKET, primary housing to case (chrome) | FLHRXS |
| 19 | 25700650 | SLEEVE, damper | FLHRXS |
| 20 | 25700746 | GASKET KIT, inner primary, with 1, 8, 9, 11, 16 and 18 | FLHRXS |
| 21 | 25700904 | COVER, clutch (gloss black) | FLHRXS |
| 22 | 26500026 | HOSE | FLHRXS |
| 23 | 36500052A | INNER PRIMARY HOUSING, with 7, 9, 10, 13, 14, 15 and 22 (black) | FLHRXS |
| 24 | 36500075A | CHAIN TENSIONER ASSEMBLY | FLHRXS |
| 25 | 26500027 | KIT, VENT, primary, with 11105, 25700378A, 26500026 and clutch cover seal | FLHRXS |
BELT, CHAIN AND SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLHRXS |
| 2 | 3892 | SCREW (3) | FLHRXS |
| 3 | 9276B | BALL BEARING (2) | FLHRXS |
| 4 | 11843 | SPACER, compensator | FLHRXS |
| 5 | 35241-06 | NUT | FLHRXS |
| 6 | 35242-06 | LOCKPLATE | FLHRXS |
| 7 | 40024-09A | REAR BELT, 140 teeth, 24 mm | FLHRXS |
| 8 | 40037-07 | PRIMARY CHAIN | FLHRXS |
| 9 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLHRXS |
| 10 | 40278-09 | ISOLATOR, rubber | FLHRXS |
| 11 | 60386-09 | DEBRIS DEFLECTOR | FLHRXS |
| 12 | 83936-09A | SPRING PACK | FLHRXS |
| 13 | 10500031 | SCREW, compensator | FLHRXS |
| 14 | 35000152A | SPROCKET, transmission, 32 teeth | FLHRXS |
| 15 | 40100041 | RETAINER, sprocket | FLHRXS |
| 16 | 40100064 | THRUST WASHER | FLHRXS |
| 17 | 40100076A | ENGINE SPROCKET KIT, compensator assembly | FLHRXS |

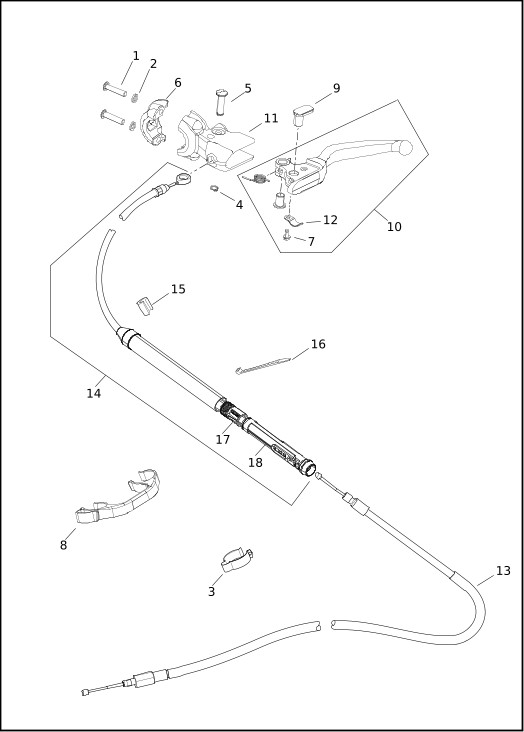

CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FLHRXS |
| 2 | 6101 | WASHER (2) | FLHRXS |
| 3 | 10264 | CLIP, clutch cable | FLHRXS |
| 4 | 11615 | RETAINING RING | FLHRXS |
| 5 | 42860-06B | PIVOT PIN, hand lever, with 11615 | FLHRXS |
| 6 | 45138-08A | CLAMP, lever bracket (black) | FLHRXS |
| 7 | 90770-79 | SCREW | FLHRXS |
| 8 | 12200226 | CLIP | FLHRXS |
| 9 | 12600309 | PIN | FLHRXS |
| 10 | 36700250 | HAND LEVER, clutch (black) with 90770-79 and 36700257 | FLHRXS |
| 11 | 36700254 | BRACKET, hand lever (black satin) | FLHRXS |
| 12 | 36700257 | SPRING, anti-rattle | FLHRXS |
| 13 | 37200437 | CABLE, clutch control, lower | FLHRXS |
| 14 | 37200561 | CABLE, clutch control, upper | FLHRXS |
| 15 | 37200545 | CLIP | FLHRXS |
| 16 | 10039 | CABLE STRAP (2) | FLHRXS |
| 17 | 37200395A | BUTTON, cable adjuster | FLHRXS |
| 18 | 37200396 | CONNECTOR BODY, clutch cable | FLHRXS |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | FLHRXS |
| 2 | 6101 | WASHER (2) | FLHRXS |
| 3 | 41750-06B | BOLT, BANJO, brake line | FLHRXS |
| 4 | 41751-06A | GASKET (2) | FLHRXS |
| 5 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHRXS |
| 6 | 42855-06D | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42858-06A (black) | FLHRXS |
| 7 | 42856-06 | DECAL, reservoir cover | FLHRXS |
| 8 | 42857-06B | GASKET, reservoir cover | FLHRXS |
| 9 | 42858-06A | SCREW KIT, cover (set of 2) | FLHRXS |
| 10 | 42276-06A | BRAKE LEVER ASSEMBLY, front, with 42860-06B (black) | FLHRXS |
| 11 | 42860-06B | PIVOT PIN KIT, with retaining ring | FLHRXS |
| 12 | 42861-06B | PUSHROD, master cylinder | FLHRXS |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHRXS |
| 14 | 44985-10D | MASTER CYLINDER ASSEMBLY, front, with 5, 6, 7, 8, 9, 10, 11, 12, 13 and 17 (black with black lever) | FLHRXS |
| 15 | 45138-08A | CLAMP, master cylinder and clutch (black) | FLHRXS |
| 16 | 41700367 | BUTTON, anti-bubble | FLHRXS |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | FLHRXS |
| 2 | 7352 | ACORN NUT (black) (2) | FLHRXS |
| 3 | 92614-10 | MIRROR KIT, short, convex, with 7155 and 7352 (right) (black) (not shown) | FLHRXS |
| 3 | 92615-10 | MIRROR KIT, short, convex, with 7155 and 7352 (left) (black) | FLHRXS |
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHRXS |
| 2 | 10200686 | SCREW, brake line bracket closure | FLHRXS |
| 3 | 41750-06B | BOLT, BANJO, brake line | FLHRXS |
| 4 | 41751-06A | GASKET (10) | FLHRXS |
| 5 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLHRXS |
| 6 | 42853-06 | CAP, bleeder screw (2) | FLHRXS |
| 7 | 10200223 | SCREW (2) | FLHRXS |
| 8 | 10600007 | GASKET (2) | FLHRXS |
| 9 | 11600001 | BOLT, BANJO, brake line (2) | FLHRXS |
| 10 | 11600009 | BOLT, BANJO, brake line | FLHRXS |
| 11 | 41600409 | BRACKET, brakeline, front | FLHRXS |
| 12 | 41600382 | BRACKET, brake line | FLHRXS |
| 13 | 41600383 | BRACKET, brake line | FLHRXS |
| 14 | 41800998 | BRAKE LINE, front, (ABS) (upper) | FLHRXS |
| 15 | 41801001 | BRAKE LINE, front, (ABS) (right) | FLHRXS |
| 16 | 41801004 | BRAKE LINE, front, (ABS) (left) | FLHRXS |

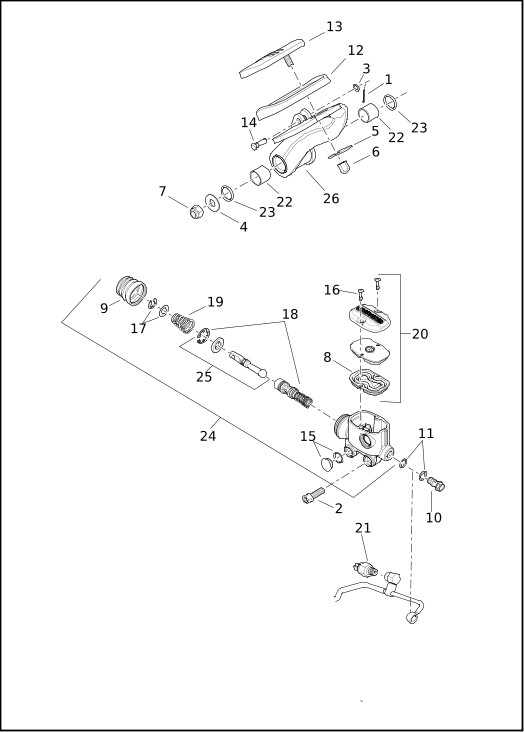

BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHRXS |
| 2 | 2479 | SCREW (2) | FLHRXS |
| 3 | 6220W | WASHER | FLHRXS |
| 4 | 6416 | WASHER | FLHRXS |
| 5 | 6421 | WASHER | FLHRXS |
| 6 | 7549A | ACORN NUT | FLHRXS |
| 7 | 7825 | LOCKNUT | FLHRXS |
| 8 | 11902 | GASKET, master cylinder reservoir cover | FLHRXS |
| 9 | 12102 | DUST BOOT | FLHRXS |
| 10 | 41750-06B | BOLT, BANJO, brake line (ABS) | FLHRXS |
| 11 | 41751-06A | GASKET (ABS) (2) | FLHRXS |
| 12 | 50600245 | COVER, brake pedal (black) | FLHRXS |
| 13 | 42444-04 | PAD, brake pedal | FLHRXS |
| 14 | 42460-80B | CLEVIS PIN | FLHRXS |
| 15 | 42854-06 | KIT, SIGHT GLASS | FLHRXS |
| 16 | 42858-06A | SCREW KIT, cover (set of 2) | FLHRXS |
| 17 | 42889-06 | SPRING RETENTION KIT, master cylinder pushrod | FLHRXS |
| 18 | 42932-08A | REBUILD KIT, master cylinder | FLHRXS |
| 19 | 42934-08 | SPRING, pedal return | FLHRXS |
| 20 | 42937-08C | MASTER CYLINDER COVER KIT, rear, with 11902 and 42858-06A | FLHRXS |
| 21 | 72023-51E | KIT SWITCH, rear stop lamp | FLHRXS |
| 22 | 11000050 | BUSHING, brake lever (2) | FLHRXS |
| 23 | 11900021 | O-RING (2) | FLHRXS |
| 24 | 41700028A | MASTER CYLINDER ASSEMBLY, complete | FLHRXS |
| 25 | 41700195 | PUSHROD KIT, master cylinder | FLHRXS |
| 26 | 50600244 | LEVER ASSEMBLY, foot-brake, with 11000050 (black) | FLHRXS |
BRAKE LINES AND MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (2) | FLHRXS |
| 2 | 1062 | SCREW | FLHRXS |
| 3 | 3563 | SCREW | FLHRXS |
| 4 | 10065 | CABLE STRAP (2) | FLHRXS |
| 5 | 10800227 | CLAMP | FLHRXS |
| 6 | 10340B | CLAMP, brake hose (2) | FLHRXS |
| 7 | 41750-06B | BOLT, BANJO, brake line (ABS) (2) | FLHRXS |
| 8 | 41751-06A | GASKET (6) | FLHRXS |
| 9 | 70631-08 | CLIP, conduit | FLHRXS |
| 10 | 10600007 | GASKET (2) | FLHRXS |
| 11 | 41600385 | TUBE CLIP (lower) | FLHRXS |
| 12 | 11600001 | BOLT, BANJO, brake line | FLHRXS |
| 13 | 11600009 | BOLT, BANJO, brake line | FLHRXS |
| 14 | 12100007 | GROMMET, mounting (ABS) | FLHRXS |
| 15 | 32700101 | SENSOR, IMU | FLHRXS |
| 16 | 41100104C | ABS MODULE (EHCU) | FLHRXS |
| 17 | 41600386 | BRACKET, ABS brake line alignment | FLHRXS |
| 18 | 41600384 | TUBE CLIP (upper) | FLHRXS |
| 19 | 41800890 | BRAKE LINE, ABS module to master cylinder, with 10065, 41600384, 41600385 | FLHRXS |
| 20 | 41800891 | BRAKE LINE, ABS module to caliper | FLHRXS |
| 21 | 69201924 | CADDY, ABS module | FLHRXS |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD AND PIN KIT, with 42849-08 (2) | FLHRXS |
| 2 | 42849-08 | PAD PIN KIT (2) | FLHRXS |
| 3 | 42851-06 | COVER, caliper (2) | FLHRXS |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHRXS |
| 5 | 43027-08 | CALIPER ASSEMBLY (left) (black) | FLHRXS |
| 5 | 44023-08 | CALIPER ASSEMBLY (right) (black) | FLHRXS |
| 6 | 44160-00 | BOLT, caliper mounting (lower) (4) | FLHRXS |
| 7 | 44341-08 | MEDALLION, brake caliper (2) | FLHRXS |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW (2) | FLHRXS |
| 2 | 4890 | BLEEDER SCREW | FLHRXS |
| 3 | 41852-08B | PAD AND PIN KIT | FLHRXS |
| 4 | 42853-06 | CAP, bleeder screw | FLHRXS |
| 5 | 42863-06 | BUMPER | FLHRXS |
| 6 | 42865-06B | PAD PIN KIT | FLHRXS |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHRXS |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, with 4890, 41852-08B, 42853-06, 42865-06B and 42867-06A (black) | FLHRXS |
| 9 | 44089-08 | BRACKET, reaction, rear brake, with 42863-06 | FLHRXS |

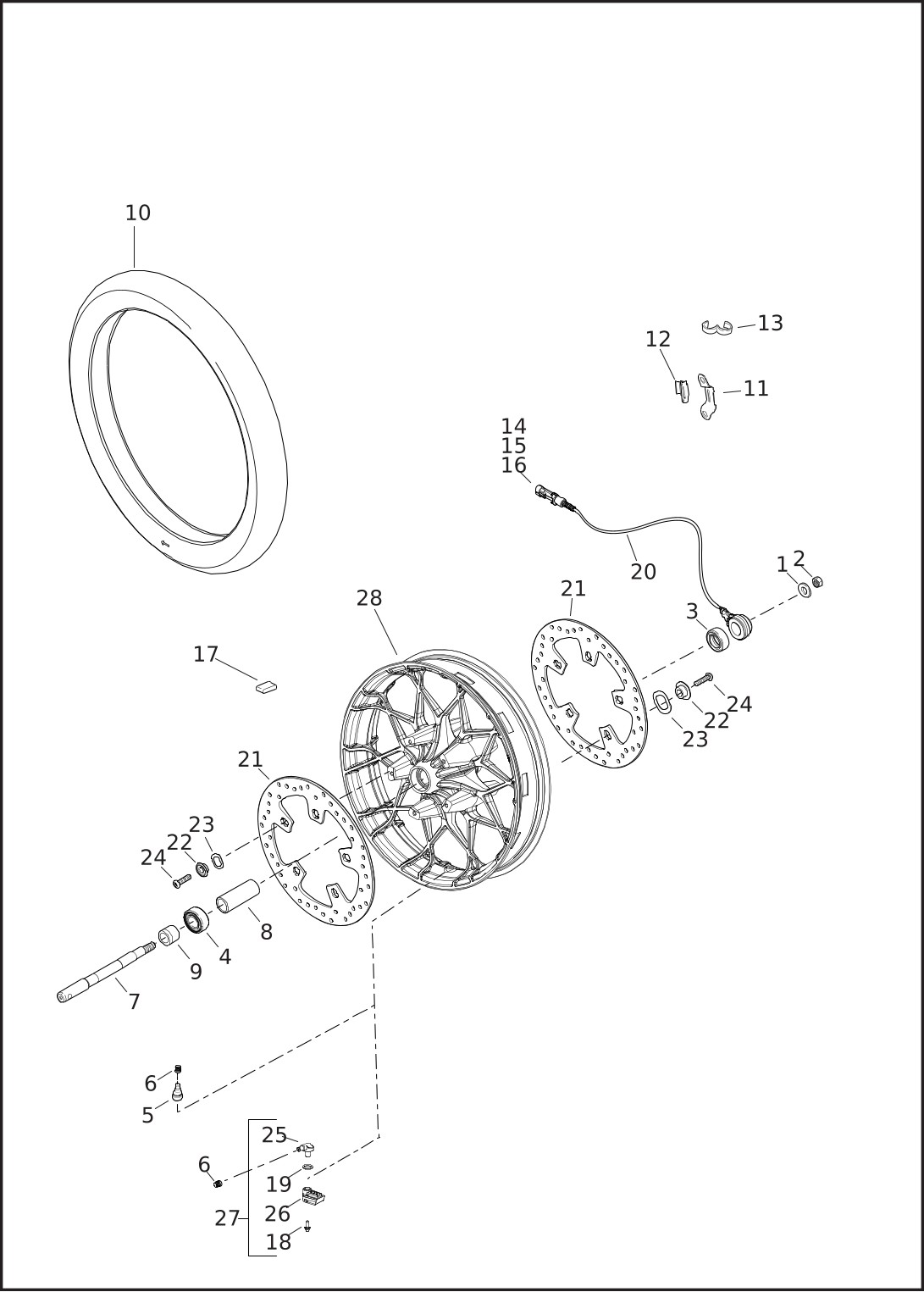

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6594 | WASHER | FLHRXS |
| 2 | 7813A | NUT | FLHRXS |
| 3 | 9252A | BALL BEARING, with encoder (ABS) | FLHRXS |
| 4 | 9276B | BALL BEARING (ABS) | FLHRXS |
| 5 | 40999-87 | VALVE STEM, for cast wheels (without TPMS) | FLHRXS |
| 6 | 41123-79 | VALVE CAP | FLHRXS |
| 7 | 41547-07A | AXLE | FLHRXS |
| 8 | 41900-08 | SLEEVE, bearing spacer | FLHRXS |
| 9 | 41901-08 | SPACER (ABS) | FLHRXS |
| 10 | 43100045 | TIRE, black wall, 19 in | FLHRXS |
| 11 | 70493-08 | BRACKET, wheel speed sensor (ABS) | FLHRXS |
| 12 | 70494-08 | CLIP, wheel speed sensor (ABS) | FLHRXS |
| 13 | 70631-08 | CLIP, conduit (ABS) (3) | FLHRXS |
| 14 | 72607-08 | HOUSING, two-way pin (black) | FLHRXS |
| 15 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHRXS |
| 16 | 72639-10 | SECONDARY LOCK, two-way socket | FLHRXS |
| 17 | 42300001A | WEIGHT, 1/2 oz (black) (3) | FLHRXS |
| 18 | 10201167 | SCREW | FLHRXS |
| 19 | 11900155 | O-RING | FLHRXS |
| 20 | 32700017 | SENSOR, wheel speed, with 74190-08 (ABS) | FLHRXS |
| 21 | 41500017 | BRAKE ROTOR, front (2) | FLHRXS |
| 22 | 41500018 | BUSHING, front rotor (10) | FLHRXS |
| 23 | 41500019 | SPRING, front rotor (10) | FLHRXS |
| 24 | 41500020 | SCREW (10) | FLHRXS |
| 25 | 42300141 | VALVE STEM, for cast wheels (with TPMS) | FLHRXS |
| 26 | 42300139 | MONITOR, sensor | FLHRXS |
| 27 | 42300142 | SENSOR, tire pressure, with 10201167, 11900155, 42300139, 42300141 | FLHRXS |
| 28 | 43300673 | WHEEL, cast, without bearings and sleeve, 10X spoke, 19 inch (black) | FLHRXS |

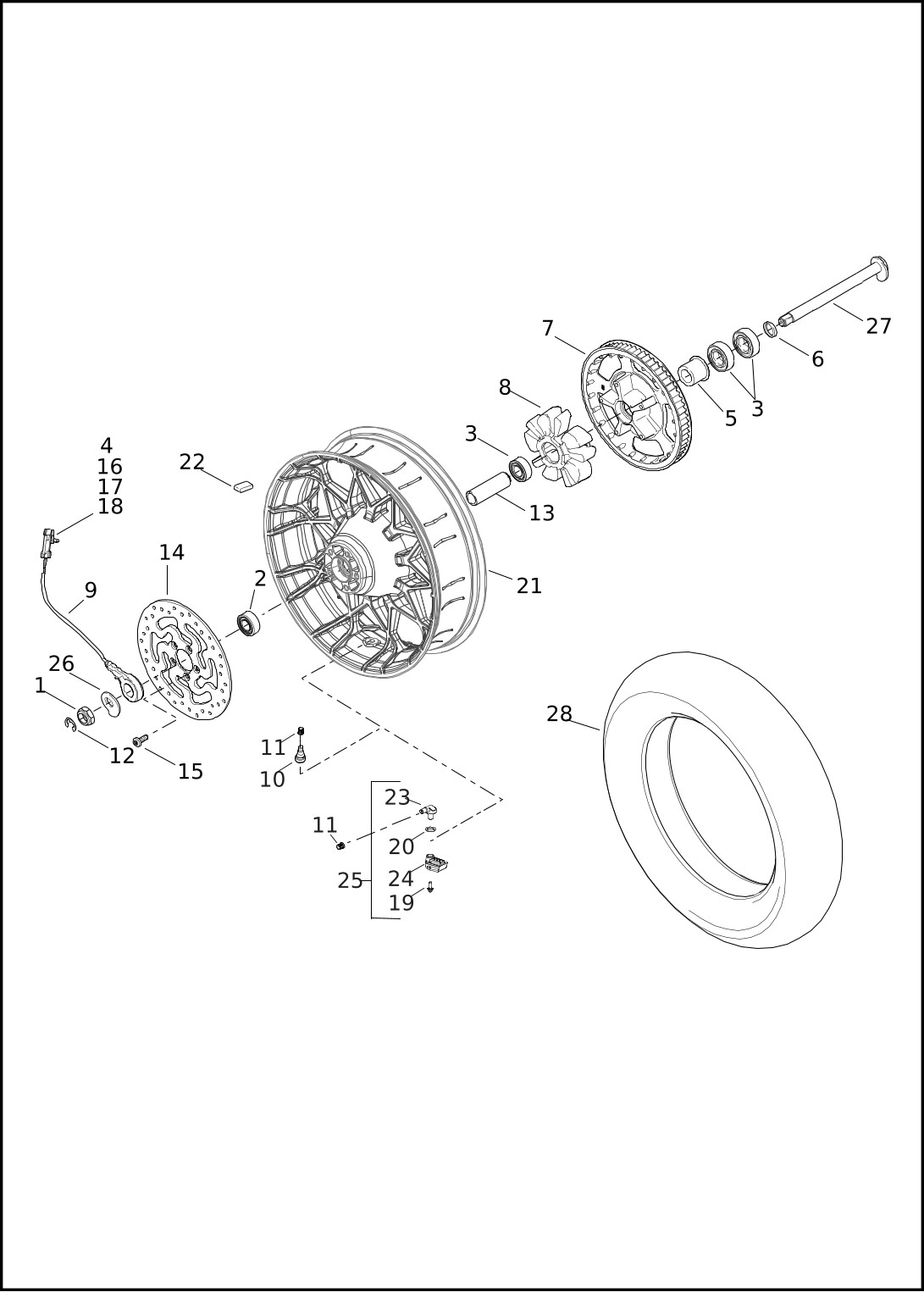

WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHRXS |
| 2 | 9252A | BALL BEARING, with encoder (ABS) | FLHRXS |
| 3 | 9276B | BALL BEARING (ABS) (3) | FLHRXS |
| 4 | 10147 | CLIP, connector | FLHRXS |
| 5 | 11843 | SPACER, compensator | FLHRXS |
| 6 | 11848 | SPACER | FLHRXS |
| 7 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLHRXS |
| 8 | 40278-09 | ISOLATOR, rubber | FLHRXS |
| 9 | 40615-08 | SENSOR, wheel speed, with 10147, 72607-08, 72608-08 and 72639-10 (ABS) | FLHRXS |
| 10 | 40999-87 | VALVE STEM, for cast wheels (without TPMS) | FLHRXS |
| 11 | 41123-79 | VALVE CAP | FLHRXS |
| 12 | 41229-08 | E-CLIP | FLHRXS |
| 13 | 41349-07 | SLEEVE, bearing spacer | FLHRXS |
| 14 | 41810-08B | BRAKE DISC | FLHRXS |
| 15 | 43567-92 | SCREW (5) | FLHRXS |
| 16 | 72607-08 | HOUSING, two-way pin (black) | FLHRXS |
| 17 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHRXS |
| 18 | 72639-10 | SECONDARY LOCK, two-way socket | FLHRXS |
| 19 | 10201167 | SCREW | FLHRXS |
| 20 | 11900155 | O-RING | FLHRXS |
| 21 | 40900661 | WHEEL, cast, without bearings and sleeve, 10X spoke, 18 in (gloss black) | FLHRXS |
| 22 | 42300001A | WEIGHT, 1/2 oz (black) (3) | FLHRXS |
| 23 | 42300141 | VALVE STEM, for cast wheels (with TPMS) | FLHRXS |
| 24 | 42300139 | MONITOR, sensor | FLHRXS |
| 25 | 42300142 | SENSOR, tire pressure, with 10201167, 11900155, 42300139, 42300141 | FLHRXS |
| 26 | 43000203 | AXLE CAM | FLHRXS |
| 27 | 43000207 | REAR AXLE | FLHRXS |
| 28 | 43200045 | TIRE, 18 in black wall | FLHRXS |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHRXS |
| 2 | 44854-05 | RUBBER PAD (HDI) (2) | FLHRXS |
| 3 | 10200042 | SCREW (4) | FLHRXS |
| 4 | 10200223 | SCREW (2) | FLHRXS |
| 5 | 10500022 | SCREW (6) | FLHRXS |
| 6 | 10500036 | SCREW | FLHRXS |
| 7 | 41600409 | BRACKET, brake line | FLHRXS |
| 8 | 45600054 | COVER ASSEMBLY, fork tube (left) (black) | FLHRXS |
| 9 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHRXS |
| 10 | 45700020A | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | FLHRXS |
| 11 | 45600055 | COVER ASSEMBLY, fork tube (right) (black) | FLHRXS |
| 12 | 45900024 | BRACKET, upper fork stem | FLHRXS |
| 13 | 45900091A | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHRXS |
| 14 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHRXS |
| 15 | 10200686 | SCREW, brake line bracket closure | FLHRXS |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 46508-01 | O-RING (2) | FLHRXS |
| 2 | 46509-01 | WASHER (2) | FLHRXS |
| 3 | 46513-01 | RING, stopper (2) | FLHRXS |
| 4 | 46514-01A | OIL SEAL (2) | FLHRXS |
| 5 | 46515-01 | SPACER, seal (2) | FLHRXS |
| 6 | 46615-06 | PACKING SEAL (2) | FLHRXS |
| 7 | 69861-07 | REFLECTOR, with black base (right) (amber) | FLHRXS |
| 8 | 69862-07 | REFLECTOR, with black base (left) (amber) | FLHRXS |
| 9 | 22000031 | PISTON RING (2) | FLHRXS |
| 10 | 45400197 | FORK ASSEMBLY, complete (left) (black) | FLHRXS |
| 11 | 45400198 | FORK ASSEMBLY, complete (right) (black) | FLHRXS |
| 12 | 45500176B | SLIDER, fork (left) (black) | FLHRXS |
| 13 | 45500175B | SLIDER, fork (right) (black) | FLHRXS |
| 14 | 45500117 | BOLT, fork (2) | FLHRXS |
| 15 | 45500118 | SCREW (2) | FLHRXS |
| 16 | 45500132 | SCREW (right) | FLHRXS |
| 17 | 45500456 | SPRING, fork (2) | FLHRXS |
| 18 | 45500339 | DAMPER TUBE, with 22000031 (2) | FLHRXS |
| 19 | 45500341 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLHRXS |
| 20 | 45500396 | SPRING, rebound (2) | FLHRXS |
| 21 | 45500397 | OIL LOCK PIECE (2) | FLHRXS |
| 22 | 45500398 | COLLAR, spring (2) | FLHRXS |
| 23 | 45500421 | BUSHING GUIDE (2) | FLHRXS |
| 24 | 45500424 | BUSHING, slider (2) | FLHRXS |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 3, 4, 5, 6, 9, 15, 23 and 24 (2) | FLHRXS |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHRXS |
| 2 | 6590HW | WASHER (4) | FLHRXS |
| 3 | 90820-93D | LABEL, saddlebag load limits, inside right saddlebag | FLHRXS |
| 4 | 54000114 | REAR SHOCK ABSORBER (right) | FLHRXS |
| 5 | 54000096 | REAR SHOCK ABSORBER, with 54000141 (left) | FLHRXS |
| 6 | 54000141 | KNOB SERVICE KIT | FLHRXS |
FRAME AND JIFFY STAND - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHRXS |
| 2 | 3594 | SCREW (EN2,HDI, HD4) | FLHRXS |
| 3 | 3445 | BOLT | FLHRXS |
| 4 | 4688 | SCREW (2) | FLHRXS |
| 5 | 4924 | SCREW (2) | FLHRXS |
| 6 | 6116 | WASHER (2) | FLHRXS |
| 7 | 50000149 | LEG, jiffy stand (black) | FLHRXS |
| 8 | 7495 | NUT (2) | FLHRXS |
| 9 | 10039 | CABLE STRAP (6) | FLHRXS |
| 10 | 10177 | CABLE STRAP, anchored, jiffy stand | FLHRXS |
| 11 | 10264 | CLIP, clutch line | FLHRXS |
| 12 | 49725-07A | SPRING, jiffy stand | FLHRXS |
| 13 | 50015-74A | LEG STOP | FLHRXS |
| 14 | 50126-08B | SENSOR, jiffy stand, with 72169-07, 72511-07BK and 73213-07 (EN2,HDI, HD4) | FLHRXS |
| 15 | 50245-07 | BUMPER, jiffy stand | FLHRXS |
| 16 | 72169-07 | TERMINAL, pin, 16-20 AWG (EN2,HDI, HD4) (3) | FLHRXS |
| 17 | 72511-07BK | HOUSING, three-way pin (black) (EN2,HDI, HD4) | FLHRXS |
| 18 | 73213-07 | RETAINER, anchored (EN2,HDI, HD4) | FLHRXS |
| 19 | 90520-07 | HOLE PLUG, jiffy stand (except EN2,HDI, HD4) | FLHRXS |
| 20 | 10200546 | SCREW | FLHRXS |
| 21 | 10800025A | CLIP, conduit, rosebud (2) | FLHRXS |
| 22 | 12200221 | CLIP, retaining | FLHRXS |
| 23 | 12600067 | FASTENER, plastic (2) | FLHRXS |
| 24 | 12600197 | FASTENER, plastic (2) | FLHRXS |
| 25 | 14000827 | CLEAR OVERLAY, VIN label | FLHRXS |
| 26 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHRXS |
| 27 | 47000344 | FRAME, main, with bearing cups (Also order 45700009) | FLHRXS |
| 28 | 49000114A | ENGINE GUARD (black) | FLHRXS |
| 29 | 50000097 | BRACKET, jiffy stand leg | FLHRXS |
| 30 | 12200226 | CLIP | FLHRXS |
| IMPORTANT NOTE:Replacement frames do not include the VIN/emissions label. Please see your local dealer to request a new VIN/emissions label, which are only available in specific, limited circumstances. | |||

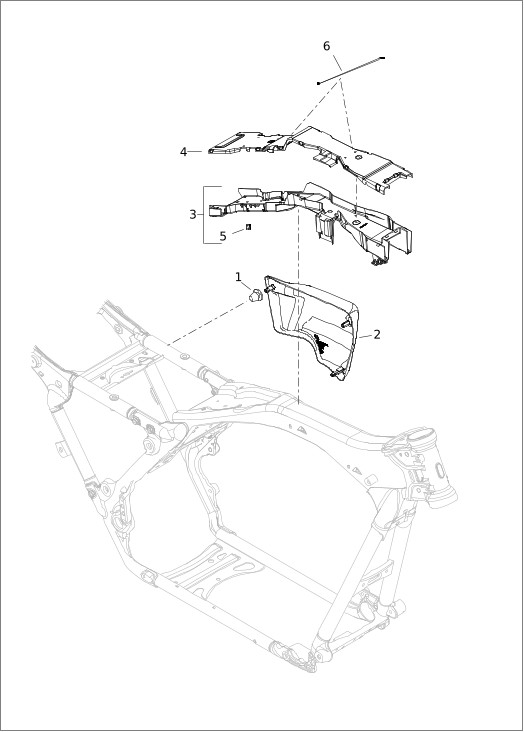

COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 11650 | GROMMET, side cover (6) | ALL |
| 2 | 66048-09A | SIDE COVER (right) (unpainted) | FLHRXS |
| 2 | 66250-09 | SIDE COVER (left) (unpainted) | FLHRXS |
| 3 | 69202720A | WIRE TROUGH, with 69202637 (main harness) | FLHRXS |
| 4 | 69202636A | COVER, wire trough (main harness) | FLHRXS |
| 5 | 69202637 | CLIP (ABS) (2) | FLHRXS |
| 6 | 10039 | TIE WRAP (brake lines to harness trough/cover) (2) | FLHRXS |

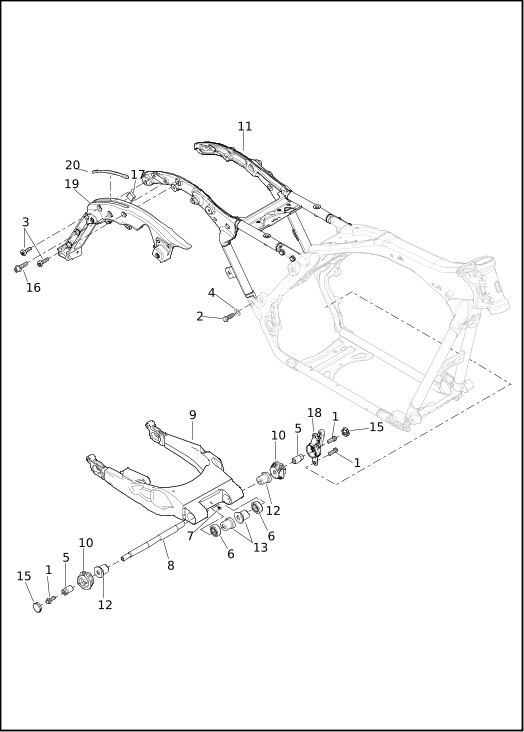

FRAME AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (4) | FLHRXS |
| 2 | 3536 | BOLT (6) | FLHRXS |
| 3 | 3684 | SCREW (4) | FLHRXS |
| 4 | 6532 | WASHER (6) | FLHRXS |
| 5 | 6982 | WASHER, hex cup (2) | FLHRXS |
| 6 | 9208 | BEARING (2) | FLHRXS |
| 7 | 11779 | FASTENER, push-in (black) | FLHRXS |
| 8 | 47540-11 | SHAFT, rear fork | FLHRXS |
| 9 | 47549-09A | REAR FORK, with 9208, 11779 and 48489-02 | FLHRXS |
| 10 | 47584-09 | RUBBER MOUNT (2) | FLHRXS |
| 11 | 48079-09BHP | FRAME, rear | FLHRXS |
| 12 | 48487-02 | SPACER, outer (2) | FLHRXS |
| 13 | 48489-02 | SPACER, inner (2) | FLHRXS |
| 15 | 67875-11 | CAP (2) | FLHRXS |
| 16 | 10200217 | SCREW (2) | FLHRXS |
| 17 | 11100068 | CUSHION (2) | FLHRXS |
| 18 | 16400005 | BRACKET, rear fork (left) | FLHRXS |
| 19 | 90201319 | SUPPORT, saddlebag, with 11100068 (right) (black) | FLHRXS |
| 19 | 90201320 | SUPPORT, saddlebag, with 11100068 (left) (black) | FLHRXS |
| 20 | 90202108 | INSERT ASSEMBLY, saddlebag support (2) | FLHRXS |

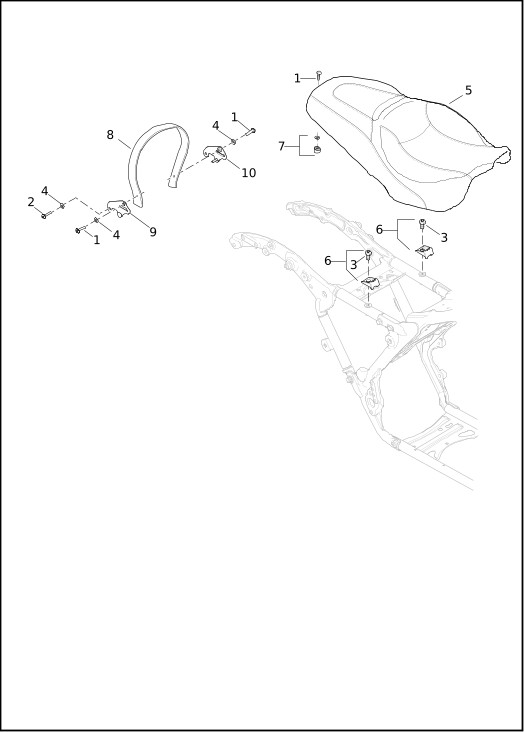

SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2952A | SCREW (3) | FLHRXS |
| 2 | 3901 | SCREW (2) | FLHRXS |
| 3 | 4924 | SCREW (2) | FLHRXS |
| 4 | 6703 | WASHER (4) | FLHRXS |
| 5 | 52000142 | SEAT | FLHRXS |
| 6 | 54395-10 | SEAT BUMPER KIT, with 4924 | FLHRXS |
| 7 | 59768-97 | SEAT NUT KIT, with nut and retention washer | FLHRXS |
| 8 | 52400017 | PASSENGER STRAP | FLHRXS |
| 9 | 52400016 | BRACKET, passenger strap (right) | FLHRXS |
| 10 | 52400021 | BRACKET, passenger strap, (left) | FLHRXS |

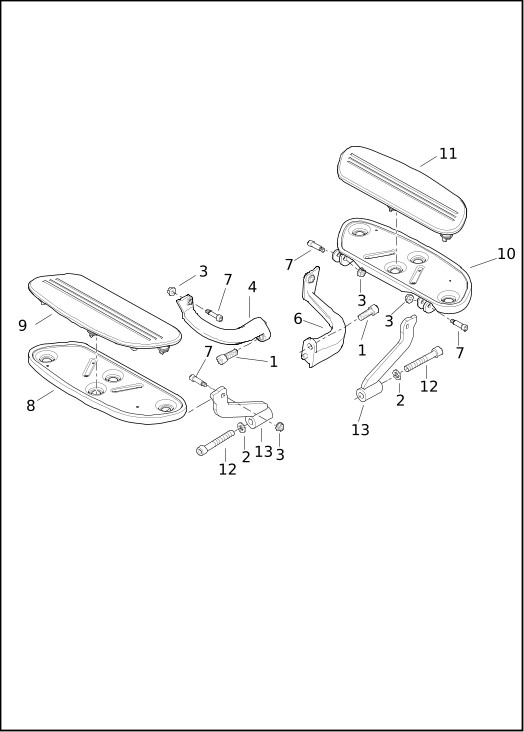

FOOTBOARDS, OPERATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (2) | FLHRXS |
| 2 | 7038 | LOCKWASHER (2) | FLHRXS |
| 3 | 7716 | LOCKNUT (4) | FLHRXS |
| 4 | 50518-09 | BRACKET, right rear | FLHRXS |
| 6 | 50622-09A | BRACKET, left rear | FLHRXS |
| 7 | 50674-05 | SHOULDER BOLT, footboard (4) | FLHRXS |
| 8 | 51068-08 | FOOTBOARD BOTTOM ASSEMBLY (right) (black) | FLHRXS |
| 9 | 50684-11 | RUBBER PAD, footboard (right) | FLHRXS |
| 10 | 51070-08 | FOOTBOARD BOTTOM ASSEMBLY (left) (black) | FLHRXS |
| 11 | 50689-11 | RUBBER PAD, footboard (left) | FLHRXS |
| 12 | 10200429 | SCREW (2) | FLHRXS |
| 13 | 47200302A | BRACKET, front footboard (2) | FLHRXS |

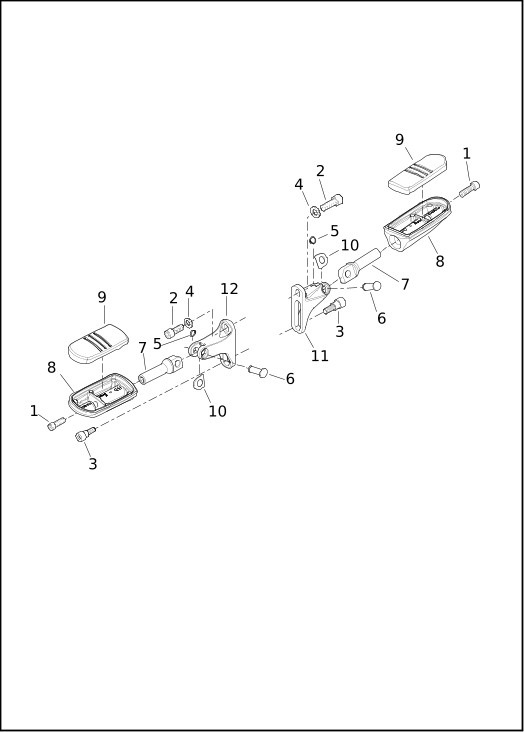

FOOTPEGS, PASSENGER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLHRXS |
| 2 | 3143 | SCREW (2) | FLHRXS |
| 3 | 4916 | SCREW (2) | FLHRXS |
| 4 | 7038 | LOCKWASHER (2) | FLHRXS |
| 5 | 11304 | RING, retaining, passenger footpeg support (2) | FLHRXS |
| 6 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHRXS |
| 7 | 50208-04 | MOUNT, passenger footpeg (2) | FLHRXS |
| 8 | 50500876 | FOOTPEG, passenger (gloss black) (2) | FLHRXS |
| 9 | 50350-04 | PAD, passenger footpeg (2) | FLHRXS |
| 10 | 50912-72 | SPRING WASHER, passenger footpeg (2) | FLHRXS |
| 11 | 50500334A | SUPPORT, left passenger footpeg (black) | FLHRXS |
| 12 | 50500332A | SUPPORT, right passenger footpeg (black) | FLHRXS |

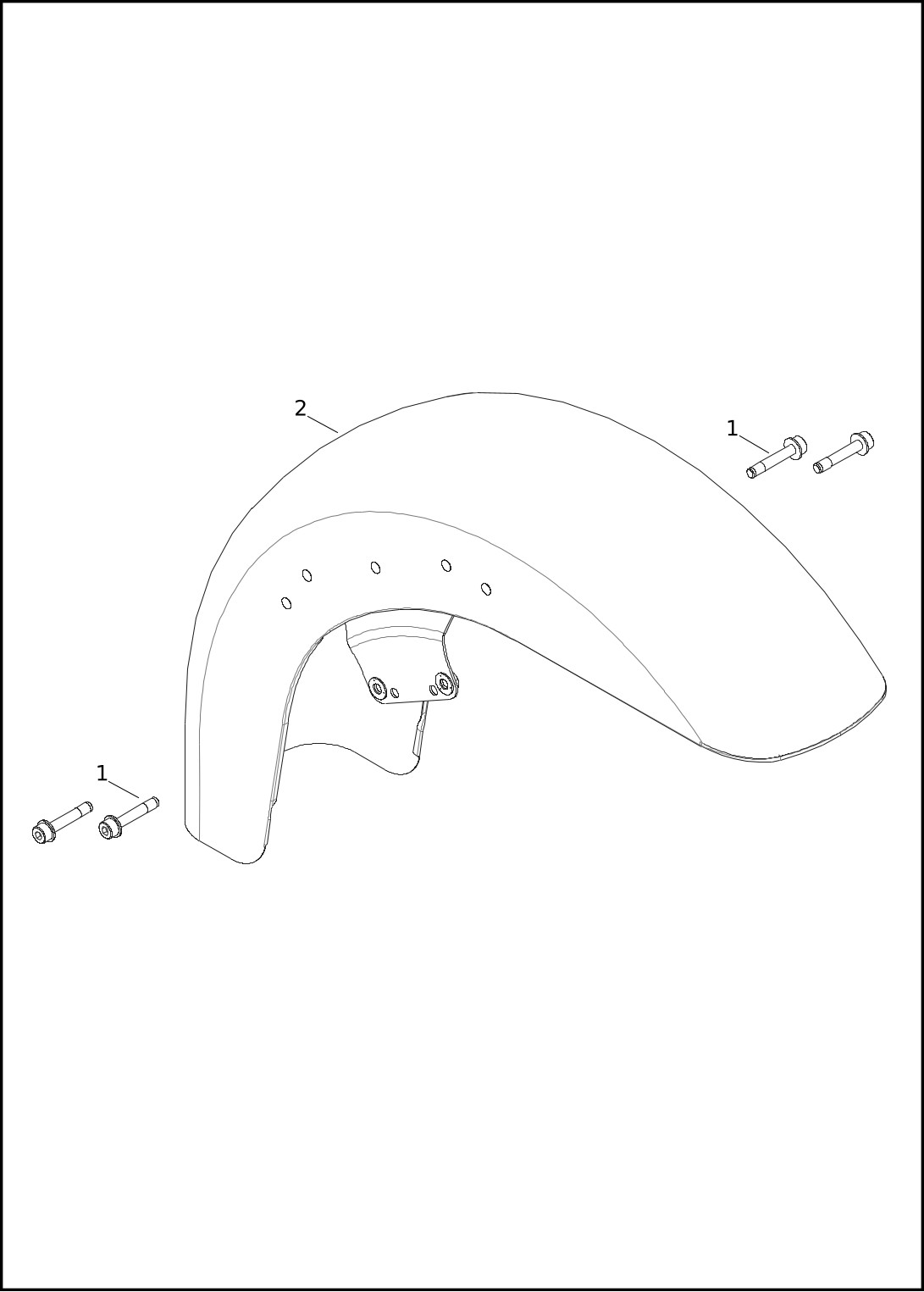

FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 10500015 | SCREW (4) | FLHRXS |
| 2 | 58900009 | FENDER (prime) | FLHRXS |

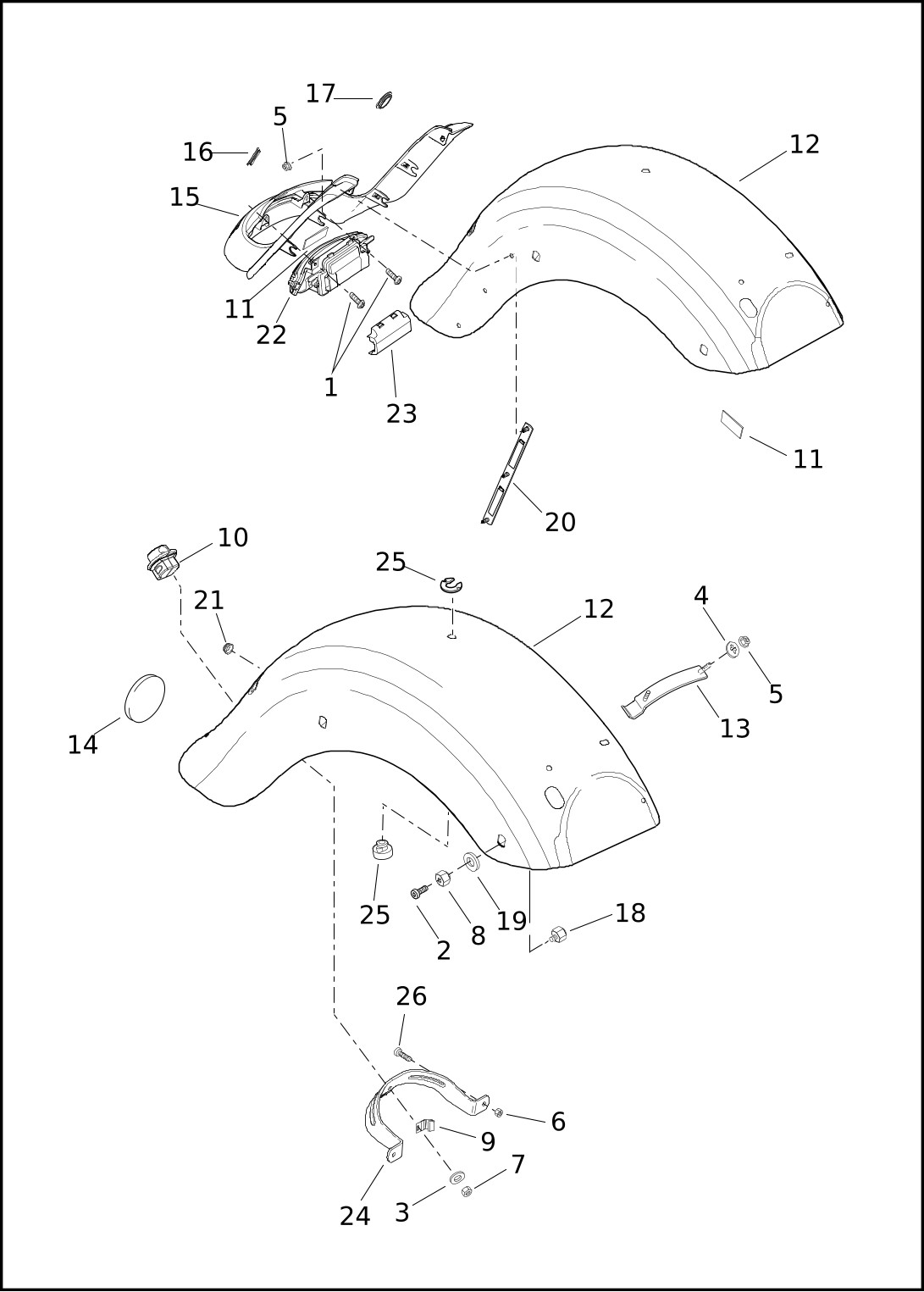

FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2995 | SCREW (2) | FLHRXS |
| 2 | 3684 | SCREW (4) | FLHRXS |
| 3 | 6703 | WASHER | FLHRXS |
| 4 | 7434 | WASHER, nylon retaining (2) | FLHRXS |
| 5 | 7499 | NUT (8) | FLHRXS |
| 6 | 7531 | LOCKNUT (2) | FLHRXS |
| 7 | 7686 | LOCKNUT | FLHRXS |
| 8 | 7880 | NUT (4) | FLHRXS |
| 9 | 10053 | CLAMP | FLHRXS |
| 10 | 11687 | GROMMET, right angle (except Canada) | FLHRXS |
| 11 | 11891 | SPACER (3) | FLHRXS |
| 12 | 59731-09A | FENDER, rear (prime) (Canada) | FLHRXS |
| 12 | 60575-10A | FENDER, rear (prime) (Except Canada) | FLHRXS |
| 13 | 59500519 | STUD PLATE | FLHRXS |
| 14 | 59581-05 | BUMPER, rear fender | FLHRXS |
| 15 | 59739-09 | FASCIA, rear fender (unpainted) | FLHRXS |
| 16 | 59749-06 | PLUG | FLHRXS |
| 17 | 59778-06 | GROMMET | FLHRXS |
| 18 | 59786-01 | FENDER MOUNTING BOSS, inner (4) | FLHRXS |
| 19 | 59788-01 | FENDER MOUNTING WASHER (4) | FLHRXS |
| 20 | 59818-09 | STUD PLATE (2) | FLHRXS |
| 21 | 67266-94 | BUSHING, nylon, turn signal (Canada) (2) | FLHRXS |
| 22 | 69377-10 | REAR FENDER LIGHT ASSEMBLY (Canada, HDI) | FLHRXS |
| 22 | 59600008 | REAR FENDER LIGHT ASSEMBLY (Domestic, California) | FLHRXS |
| 23 | 69615-10 | SPLASH GUARD, fender tip lamp | FLHRXS |
| 24 | 91140-09 | BRACKET, saddlebag to fender support | FLHRXS |
| 25 | 59768-97 | FENDER SEAT NUT KIT | FLHRXS |
| 26 | 10201188 | SCREW (2) | FLHRXS |

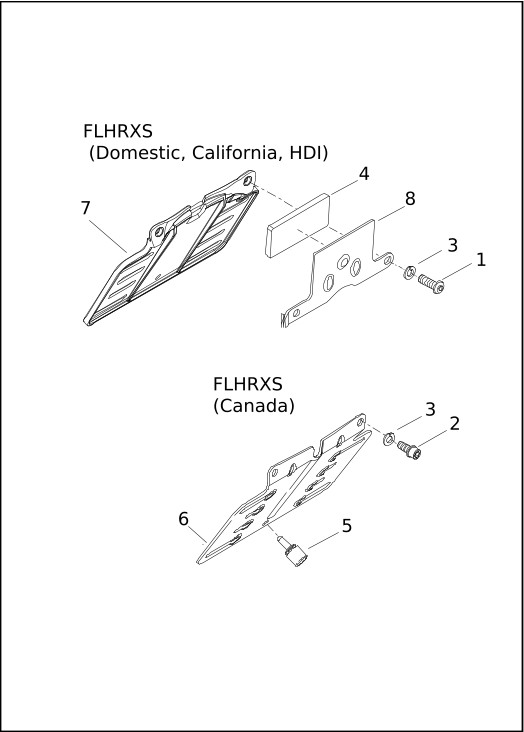

LICENSE PLATE BRACKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2446 | SCREW (2) | FLHRXS |
| 2 | 3061 | SCREW (2) | FLHRXS |
| 3 | 7036 | WASHER (2) | FLHRXS |
| 4 | 59259-90 | REFLECTOR (red) | FLHRXS |
| 5 | 67900009 | BUMPER, license plate bracket | FLHRXS |
| 6 | 69380-09BHP | BRACKET, license plate | FLHRXS |
| 7 | 73255-10 | BRACKET, license plate | FLHRXS |
| 8 | 67900213A | BRACKET, reflector | FLHRXS |

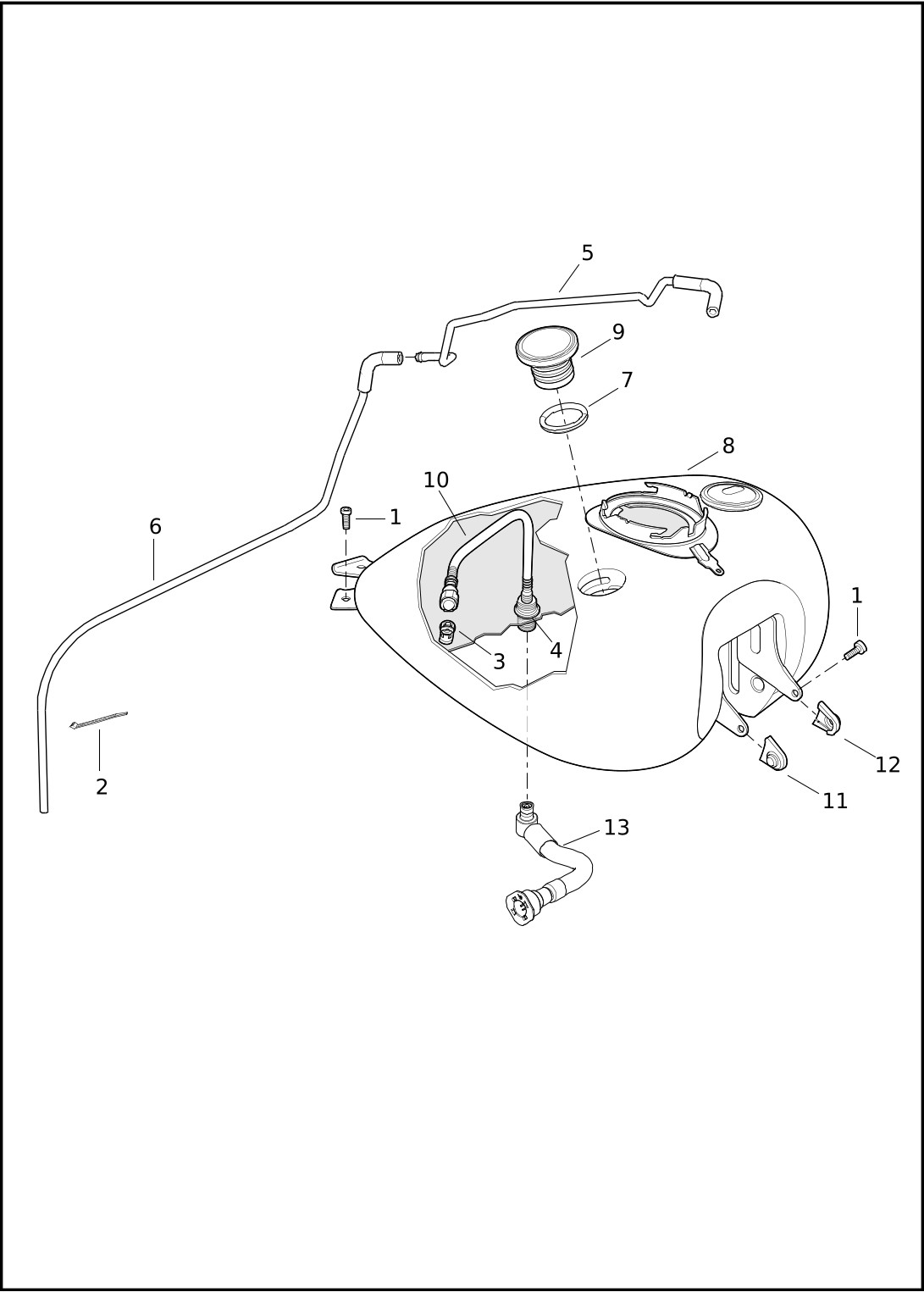

FUEL TANK - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 10201381 | SCREW (4) | FLHRXS |
| 2 | 10039 | CABLE STRAP (2) | FLHRXS |
| 3 | 10396 | RETAINER, fuel line, 3/8 in (natural) | FLHRXS |
| 4 | 11323A | O-RING, check valve to tank | FLHRXS |
| 5 | 27291-09A | LINE, evaporative (EVAP), tank | FLHRXS |
| 6 | 27440-09A | LINE, evaporative (EVAP) (Domestic, Canada, Australia) | FLHRXS |
| 7 | 61100194 | GASKET, filler cap | FLHRXS |
| 8 | 61000691 | FUEL TANK (prime) | FLHRXS |
| 9 | 61272-92F | FILLER CAP, with 61100194 (chrome) | FLHRXS |
| 10 | 62228-08C | CHECK VALVE, assembly, with 10396 and 11323A | FLHRXS |
| 11 | 70901-09 | BOOT, tank bracket (right) | FLHRXS |
| 12 | 70999-09 | BOOT, tank bracket (left) | FLHRXS |
| 13 | 61200022A | FUEL LINE, tank to intake | FLHRXS |
INSTRUMENTS, FUEL TANK - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3622 | SCREW (4) | FLHRXS |
| 2 | 10200032 | SCREW | FLHRXS |
| 3 | 4194 | SCREW (2) | FLHRXS |
| 4 | 4856 | SCREW | FLHRXS |
| 5 | 8142 | NUT, speed | FLHRXS |
| 6 | 10065 | CABLE STRAP (2) | FLHRXS |
| 7 | 10103 | CLIP, under instrument panel (2) | FLHRXS |
| 8 | 61081-92 | COVER, key-head (set of 2) | FLHRXS |
| 9 | 61192-96A | GASKET, fuel gauge | FLHRXS |
| 10 | 62519-03 | HOSE, shield 1/4 in ID, 5.00 in long, fuel gauge wires | FLHRXS |
| 11 | 67208-08 | SEAL, speedometer | FLHRXS |
| 12 | 67341-04B | BACK CLAMP, 5 in speedo (red) | FLHRXS |
| 13 | 67493-08 | BRACKET, console mount | FLHRXS |
| 14 | 68253-08A | INDICATOR BEZEL | FLHRXS |
| 15 | 71294-08 | MOLDING (2) | FLHRXS |
| 16 | 71517-11A | IGNITION SWITCH (keyed-to-match) | FLHRXS |
| 17 | 72904-01BK | HOUSING, pin, four-way | FLHRXS |
| 18 | 72990-01 | PIN TERMINAL (3) | FLHRXS |
| 19 | 75241-08 | FUEL GAUGE, without LED, with 72990-01 | FLHRXS |
| 20 | 14101271 | INSERT, console (gloss black) | FLHRXS |
| 21 | 69200124 | WIRE HARNESS, console | FLHRXS |
| 22 | 70900744 | INSTRUMENT PANEL (gloss black) | FLHRXS |
| 23 | 70900379D | INSTRUMENT MODULE, mph (DOM, CAL) | FLHRXS |
| 23 | 70900421C | INSTRUMENT MODULE, km/h (CAN, HDI) | FLHRXS |
| 23 | 70900616B | INSTRUMENT MODULE, dual, mph/km/h, (EN2) | FLHRXS |
| 24 | 71400010A | LOCKSET, complete with keys, ignition switch, cover, fork lock and saddle bag lock | FLHRXS |
| 25 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHRXS |
FUEL PUMP - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 in (black) | FLHRXS |
| 2 | 11686 | O-RING | FLHRXS |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLHRXS |
| 4 | 61012-04A | CLIP, filter retainer | FLHRXS |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings, spacer and screen | FLHRXS |
| 6 | 61213-04A | CLIP, regulator retainer | FLHRXS |
| 7 | 61402-08 | GASKET, top plate | FLHRXS |
| 8 | 62229-08B | FILTER SHELL | FLHRXS |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLHRXS |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, with 2, 3, 4, 5, 6, 8, 16 and 17 | FLHRXS |
| 11 | 75089-08 | RING, fuel tank, cam | FLHRXS |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLHRXS |
| 13 | 75229-08 | HARNESS, fuel pump module | FLHRXS |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLHRXS |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump | FLHRXS |
| 16 | 75291-08A | TOP PLATE | FLHRXS |
| 17 | 75322-09 | GROUND HARNESS | FLHRXS |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHRXS |
| 2 | 27291-09A | LINE, evaporative (EVAP), tank to canister | FLHRXS |
| 3 | 27297-09A | LINE, evaporative (EVAP), canister | FLHRXS |
| 4 | 60800062 | LINE, evaporative (EVAP), purge to canister | FLHRXS |
| 5 | 31400137 | SOLENOID, purge valve | FLHRXS |
| 6 | 70681-09 | RETAINER (2) | FLHRXS |
| 7 | 60800116 | CARBON CANISTER | FLHRXS |
| 8 | 60800063 | TUBE, solenoid to induction module | FLHRXS |
| NOTE: These parts are required for motorcycles sold in California, ASEAN, Asia-Pacific, BRZ, China, EN2, England, HDI, HD4, JP2 and Japan markets. | |||
FUEL TANK TRIM
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 14101244 | MEDALLION (right) | FLHRXS |
| 1 | 14101245 | MEDALLION (left) | FLHRXS |
NACELLE AND HEADLAMP - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 787 | SCREW (8) | FLHRXS |
| 2 | 2647B | SCREW (2) | FLHRXS |
| 3 | 2933 | SCREW (2) | FLHRXS |
| 4 | 3088 | SCREW (3) | FLHRXS |
| 5 | 3225 | BOLT | FLHRXS |
| 6 | 3676 | SCREW (4) | FLHRXS |
| 7 | 5210 | WELL NUT (8) | FLHRXS |
| 8 | 6150W | WASHER (2) | FLHRXS |
| 9 | 6333 | WASHER (4) | FLHRXS |
| 10 | 6789 | WASHER | FLHRXS |
| 11 | 7888A | NUT | FLHRXS |
| 12 | 7889 | NUT | FLHRXS |
| 13 | 61081-92 | COVER, key-head (set of 2) | FLHRXS |
| 14 | 46555-03B | TRIM RING, headlamp (black) | FLHRXS |
| 15 | 67716-60C | GASKET, headlamp door | FLHRXS |
| 16 | 67721-48 | SCREW (3) | FLHRXS |
| 17 | 67700068 | RETAINING RING | FLHRXS |
| 18 | 67778-60A | SPRING, trim ring, headlamp, top | FLHRXS |
| 19 | 67780-60A | SPRING, trim ring, headlamp, bottom (2) | FLHRXS |
| 20 | 71310-94 | TRIM ASSEMBLY, fork lock | FLHRXS |
| 21 | 71455-11 | HOLE PLUG (black) (2) | FLHRXS |
| 22 | 71540-94B | FORK LOCK (specify key number) | FLHRXS |
| 23 | 10200156 | SCREW | FLHRXS |
| 24 | 55800761 | COVER, handlebar (black) | FLHRXS |
| 25 | 61300097 | NACELLE (left) (black) | FLHRXS |
| 26 | 61300098 | NACELLE (right) (black) | FLHRXS |
| 27 | 61400498 | TRIM, nacelle (gloss black) | FLHRXS |
| 28 | 61400159 | INSERT, handlebar cover | FLHRXS |
| 29 | 67700105 | TRIM (2) | FLHRXS |
| 30 | 67700204 | MOUNTING RING ASSEMBLY, with 3088 and 67700205 | FLHRXS |
| 31 | 67700205 | MOUNTING RING, headlamp | FLHRXS |
| 32 | 71400010A | LOCKSET, complete, with keys, ignition switch, fork lock and saddle bag lock | FLHRXS |
| 33 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHRXS |
| 34 | 67700329 | HEADLAMP ASSEMBLY, LED, with 67721-48, 67700068, 67700204, 67700249 (Domestic) | FLHRXS |
| 34 | 67700457 | HEADLAMP ASSEMBLY, LED, with 67721-48, 67700068, 67700204, 67700269 (HDI) | FLHRXS |
| 35 | 67700249 | HEADLAMP (Domestic) | FLHRXS |
| 35 | 67700269 | HEADLAMP (HDI) | FLHRXS |
TURN SIGNALS, FRONT - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN (Domestic) (2) | FLHRXS |
| 1 | 5118 | SEAL PIN (HDI) (4) | FLHRXS |
| 2 | 7744 | JAMNUT (2) | FLHRXS |
| 3 | 67015-02 | SET SCREW (2) | FLHRXS |
| 4 | 68776-06 | HOUSING, turn signal (black) (2) | FLHRXS |
| 5 | 67822-88A | BALL STUD (2) | FLHRXS |
| 6 | 68904-00 | SOCKET ASSEMBLY, front (Domestic) (2) | FLHRXS |
| 7 | 69325-02 | LENS, turn signal (Domestic) (smoked) (2) | FLHRXS |
| 7 | 68973-00 | LENS, turn signal (HDI) (amber) (2) | FLHRXS |
| 8 | 69331-02 | BULB, turn signal (Domestic) (2) | FLHRXS |
| 8 | 68163-84 | BULB, turn signal (HDI) (2) | FLHRXS |
| 9 | 69587-07 | TURN SIGNAL ASSEMBLY, front, w/ 69325-02, 69331-02, 68904-00 (Domestic) (2) | FLHRXS |
| 9 | 68838-06 | TURN SIGNAL ASSEMBLY, front, w/ 68163-84, 68973-00 (HDI) (2) | FLHRXS |
| 10 | 72907-11 | HOUSING, 4-way, pin (2) | FLHRXS |
| 11 | 72909-11 | TERMINAL, pin, 20-22 AWG (Domestic) (6) | FLHRXS |
| 11 | 72909-11 | TERMINAL, pin, 20-22 AWG (HDI) (4) | FLHRXS |
| 12 | 12100043 | GROMMET (2) | FLHRXS |
| 13 | 67801193 | BRACKET, mounting (right) (black) | FLHRXS |
| 13 | 67801194 | BRACKET, mounting (left) (black) | FLHRXS |
SWITCHES, HANDLEBAR, LEFT - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN | FLHRXS |
| 2 | 72560-07 | TERMINAL, socket, 22 AWG (3) | FLHRXS |
| 3 | 72908-11 | HOUSING, four-way socket (black) (2) | FLHRXS |
| 4 | 73154-96BK | HOUSING, four-way socket | FLHRXS |
| 5 | 69200306 | HOUSING, four-way socket | FLHRXS |
| 6 | 69200307 | TERMINAL, socket, 22 AWG (4) | FLHRXS |
| 7 | 69200308 | TERMINAL, socket, 22 AWG (7) | FLHRXS |
| 8 | 69202616 | WIRE HARNESS, left hand control jumper, with 5118, 72560-07, 72908-11, 73154-96BK, 69200306, 69200307 and 69200308 | FLHRXS |
| 9 | 71500044 | SWITCH CAP, cruise | FLHRXS |
| 10 | 71500047 | SWITCH CAP, horn | FLHRXS |
| 10 | 71500488 | SWITCH CAP, horn and traction control | FLHRXS |
| 11 | 71500048 | SWITCH CAP, lights, high beam, low beam and flash to pass | FLHRXS |
| 12 | 71500053 | SWITCH CAP, left turn signal | FLHRXS |
| 13 | 71500094 | SWITCH CAP, trigger switch | FLHRXS |
| 14 | 71500338 | COVER, front, left hand control | FLHRXS |
| 15 | 71500564 | SWITCH PACK, left hand control, with 9, 10, 11 and 12 (without traction control) | FLHRXS |
| 15 | 71500568 | SWITCH PACK, left hand control, with 9, 10, 11 and 12 (with traction control) | FLHRXS |
| 16 | 71500473 | COVER, rear, left hand control, with 10500008 | FLHRXS |
| 17 | 10500008 | SCREW (2) | FLHRXS |
SWITCHES, HANDLEBAR, RIGHT - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN (2) | FLHRXS |
| 2 | 72560-07 | TERMINAL, socket, 22 AWG (3) | FLHRXS |
| 3 | 72906-11 | HOUSING, two-way socket (black) | FLHRXS |
| 4 | 72908-11 | HOUSING, four-way socket (black) | FLHRXS |
| 5 | 73156-96BK | HOUSING, six-way socket (black) | FLHRXS |
| 6 | 69200305 | HOUSING, two-way socket (white) | FLHRXS |
| 7 | 69200306 | HOUSING, four-way socket (white) | FLHRXS |
| 8 | 69200307 | TERMINAL, socket, 22 AWG (5) | FLHRXS |
| 9 | 69200308 | TERMINAL, socket, 22 AWG (8) | FLHRXS |
| 10 | 69201724 | WIRE HARNESS, right hand control jumper, with 5118, 72560-07, 72906-11, 72908-11, 73156-96BK, 69200305, 69200306, 69200307 and 69200308 | FLHRXS |
| 11 | 71500049 | SWITCH CAP, start/hazard | FLHRXS |
| 12 | 71500050 | SWITCH CAP, stop and run | FLHRXS |
| 13 | 71500057 | SWITCH CAP, right turn signal | FLHRXS |
| 14 | 71500127C | SWITCH PACK, right hand control, with 71500049, 71500050 and 71500057 | FLHRXS |
| 15 | 71500340 | COVER, front, right hand control | FLHRXS |
| 16 | 71500475 | COVER, rear, right hand control, with 10500008 | FLHRXS |
| 17 | 10500008 | SCREW (2) | FLHRXS |

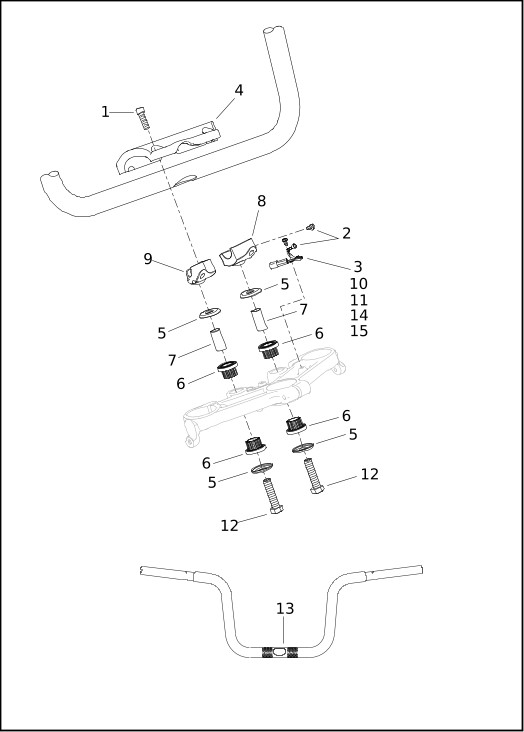

HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FLHRXS |
| 2 | 4240 | SCREW (2) | FLHRXS |
| 3 | 9853 | TAB, fastening | FLHRXS |
| 4 | 55900050 | CLAMP (upper) | FLHRXS |
| 5 | 56159-73 | CUP WASHER (4) | FLHRXS |
| 6 | 56161-83A | BUSHING, rubber (4) | FLHRXS |
| 7 | 56163-93 | SPACER (2) | FLHRXS |
| 8 | 55900051 | RISER (lower) (left) | FLHRXS |
| 9 | 55900052 | RISER (lower) (right) | FLHRXS |
| 10 | 72053-92 | HOUSING, one-way pin | FLHRXS |
| 11 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHRXS |
| 12 | 12600032 | SCREW (2) | FLHRXS |
| 13 | 55800734 | HANDLEBAR (black) | FLHRXS |
| 14 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200536 | FLHRXS |
| 15 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHRXS |

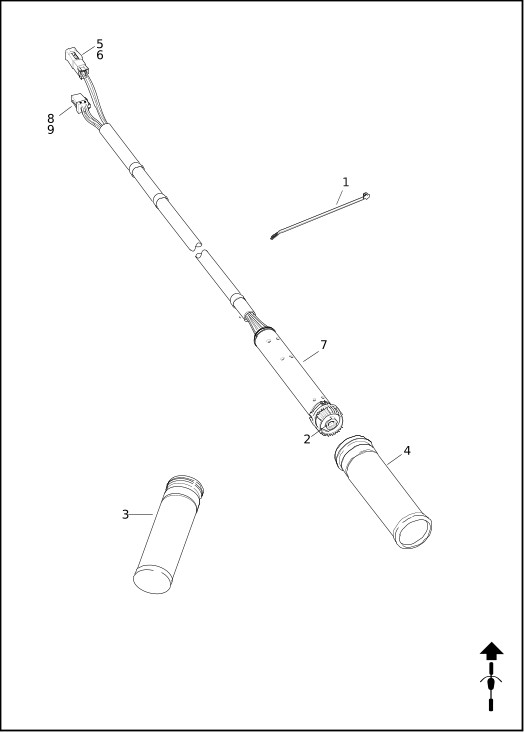

THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | FLHRXS |
| 2 | 32306-08 | SEAL CAP, throttle sensor | FLHRXS |
| 3 | 56248-08 | GRIP (left) | FLHRXS |
| 4 | 56304-08 | GRIP AND SLEEVE, throttle (right) | FLHRXS |
| 5 | 72902-01BK | HOUSING, two-way pin (black) | FLHRXS |
| 6 | 72990-01 | PIN TERMINAL (2) | FLHRXS |
| 7 | 32700050A | SENSOR, twist grip, with 32306-08, 72902-01BK, 72990-01, 69200307 and 69201162 | FLHRXS |
| 8 | 69200307 | TERMINAL, socket, 22 AWG (6) | FLHRXS |
| 9 | 69201162 | HOUSING, six-way socket (black) | FLHRXS |
TAIL LAMP AND TURN SIGNALS, REAR - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (2) | FLHRXS |
| 2 | 3576 | SCREW (2) | FLHRXS |
| 3 | 52441-95 | BULB, backlite (2) | FLHRXS |
| 4 | 67266-94 | BUSHING, nylon (2) | FLHRXS |
| 5 | 68168-89A | BULB (2) | FLHRXS |
| 6 | 68497-07 | SOCKET ASSEMBLY, with mount (2) | FLHRXS |
| 7 | 68559-07 | LENS (red) (2) | FLHRXS |
| 8 | 68572-64B | BULB (2) | FLHRXS |
| 9 | 67800900 | LIGHTBAR, turn signal (black) | FLHRXS |
| 10 | 68905-00 | SOCKET ASSEMBLY (2) | FLHRXS |
| 11 | 68973-00 | LENS (2) | FLHRXS |
| 12 | 69353-05 | LAMP ASSEMBLY, with 52441-95 and 73191-96 | FLHRXS |
| 13 | 72130-04 | HOUSING, 12-way socket (black) (except Canada) (2) | FLHRXS |
| 13 | 72130-04 | HOUSING, 12-way socket (black) (Canada) | FLHRXS |
| 14 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHRXS |
| 15 | 72189-04 | SEAL PIN (except Canada) (9) | FLHRXS |
| 15 | 72189-04 | SEAL PIN (Canada) (5) | FLHRXS |
| 16 | 72414-07BK | HOUSING, six-way socket (black) | FLHRXS |
| 17 | 73152-96BK | HOUSING, two-way socket (black) (2) | FLHRXS |
| 18 | 73153-96BK | HOUSING, three-way socket (black) | FLHRXS |
| 19 | 73156-96BK | HOUSING, six-way socket (black) | FLHRXS |
| 20 | 73191-96 | TERMINAL, socket, 16-20 AWG (10) | FLHRXS |
| 21 | 73254-10 | LIGHT ASSEMBLY, with 74196-04 and lens | FLHRXS |
| 22 | 67800485 | BRACKET (black) | FLHRXS |
| 23 | 74196-04 | TERMINAL, socket, 20 AWG (except Canada) (15) | FLHRXS |
| 23 | 74196-04 | TERMINAL, socket, 20 AWG (Canada) (7) | FLHRXS |
| 24 | 74197-04 | SECONDARY LOCK, 12-way socket (except Canada) (2) | FLHRXS |
| 24 | 74197-04 | SECONDARY LOCK, 12-way socket (Canada) | FLHRXS |
| 25 | 67800483 | DIRECTIONAL LAMP ASSEMBLY, rear, with 1, 5, 13, 15, 21, 22, 23 and 24 (black) | FLHRXS |
| 26 | 67800484 | DIRECTIONAL LAMP ASSEMBLY, rear, with 1, 13, 15, 21, 23 and 24 (black) (HDI) | FLHRXS |
| 27 | 69200129 | HARNESS, rear lighting jumper, with 13, 14, 15, 16, 23 and 24 (except Canada) | FLHRXS |
| 28 | 69200130 | HARNESS, rear lighting, jumper, with 13, 15, 19, 20, 23 and 24 (Canada) | FLHRXS |

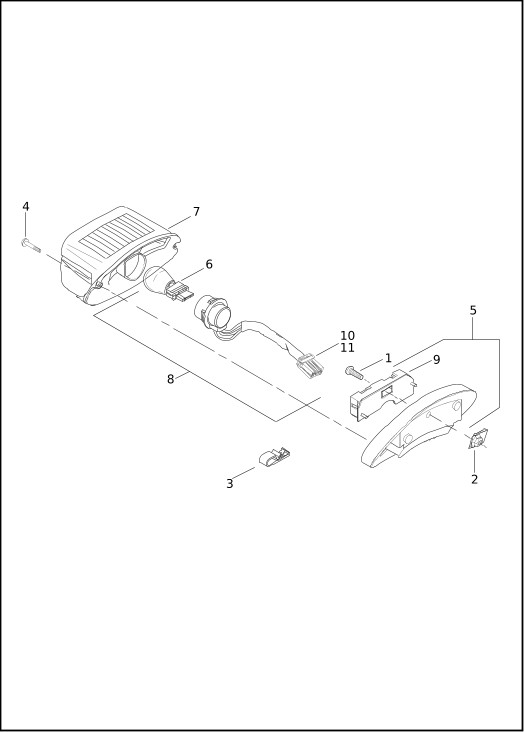

TAIL LAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 3022A | SCREW (Canada only) | FLHRXS |
| 2 | 7964 | J-NUT (Canada only) | FLHRXS |
| 3 | 10183 | CLIP, T-stud (2) | FLHRXS |
| 4 | 68026-99 | SCREW (Canada only) (2) | FLHRXS |
| 5 | 67800847 | TAIL LIGHT BASE (black) (Canada only) | FLHRXS |
| 6 | 68167-04 | BULB, tail lamp, wedge mount (Canada only) | FLHRXS |
| 7 | 68245-03 | LENS, tail lamp (red), with 68026-99 (Canada only) | FLHRXS |
| 8 | 68370-03A | SOCKET ASSEMBLY, tail lamp, with 68167-04, 73154-96BK and 73191-96 (Canada only) | FLHRXS |
| 9 | 68830-99A | CIRCUIT BOARD AND COVER (Canada only) | FLHRXS |
| 10 | 73154-96BK | SOCKET HOUSING, four-way | FLHRXS |
| 11 | 73191-96 | TERMINAL, socket, 16-20 AWG (3) | FLHRXS |
EXHAUST SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3929 | SCREW (4) | FLHRXS |
| 2 | 4705 | SCREW (2) | FLHRXS |
| 3 | 7041 | LOCKWASHER (4) | FLHRXS |
| 4 | 7593 | NUT (5) | FLHRXS |
| 5 | 9955 | CLAMP, worm drive #24 (6) | FLHRXS |
| 6 | 9956 | CLAMP, worm drive #40 (2) | FLHRXS |
| 7 | 10039 | CABLE STRAP | FLHRXS |
| 8 | 10177 | CABLE STRAP, anchored | FLHRXS |
| 9 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHRXS |
| 10 | 32700116 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLHRXS |
| 11 | 65324-83B | GASKET, exhaust port (2) | FLHRXS |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHRXS |
| 13 | 65328-83A | CLAMP, exhaust manifold (2) | FLHRXS |
| 14 | 65723-85 | MOUNTING BRACKET (2) | FLHRXS |
| 15 | 65724-85A | MOUNT, rubber (2) | FLHRXS |
| 16 | 66861-09B | CLAMP, exhaust pipe, hinged | FLHRXS |
| 17 | 66881-09 | BRACKET, exhaust pipe hanger | FLHRXS |
| 18 | 72177-07BK | HOUSING, four-way socket (black) | FLHRXS |
| 19 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLHRXS |
| 20 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHRXS |
| 21 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHRXS |
| 22 | 10200569 | SCREW | FLHRXS |
| 23 | 10900015A | STUD, exhaust | FLHRXS |
| 24 | 32700130 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | FLHRXS |
| 25 | 64900765B | MUFFLER (left) (black) (Domestic, Canada, California) | FLHRXS |
| 25 | 64900769A | MUFFLER (left) (black) (AU2, ASEAN) | FLHRXS |
| 25 | 64900955 | MUFFLER (left) (black) (EN2, HDI, HD4) | FLHRXS |
| 26 | 64900766A | MUFFLER (right) (black) (Domestic, Canada, California) | FLHRXS |
| 26 | 64900770 | MUFFLER (right) (black) (AU2, ASEAN) | FLHRXS |
| 26 | 64900954 | MUFFLER (right) (black) EN2, HDI, HD4) | FLHRXS |
EXHAUST SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 27 | 65400483A | SHIELD, exhaust pipe, front (black) | FLHRXS |
| 28 | 65400484 | EXHAUST SHIELD ASSEMBLY, rear header pipe (black) | FLHRXS |
| 29 | 65400485 | EXHAUST SHIELD ASSEMBLY, catalytic converter (black) | FLHRXS |
| 30 | 65400486 | SHIELD, left exhaust pipe, rear (black) | FLHRXS |
| 31 | 65500042 | BRACKET, muffler strap, male | FLHRXS |
| 32 | 65500043B | BRACKET, muffler strap, female | FLHRXS |
| 33 | 65600451 | HEADER ASSEMBLY, catalytic (Domestic, Canada, California) (chrome) | FLHRXS |
| 33 | 65600177 | HEADER ASSEMBLY, catalytic (AU2, ASEAN) (chrome) | FLHRXS |
| 33 | 65600377 | HEADER ASSEMBLY, catalytic (HDI, EN2, HD4) (chrome) | FLHRXS |
| 34 | 65600178A | CROSSOVER PIPE ASSEMBLY (chrome) (CAL, CAN, Domestic, AU2, ASEAN) | FLHRXS |
| 34 | 65600379 | CROSSOVER PIPE ASSEMBLY (chrome) (HDI, EN2, HD4) | FLHRXS |
| 35 | 65296-95B | CLAMP, muffler (2) | FLHRXS |
| 36 | 65900015 | CLAMP, muffler | FLHRXS |
| 37 | 32700124 | SENSOR, oxygen (O2), with 9, 18, 19, 21 (HDI, EN2, HD4) | FLHRXS |
| 38 | 65900017A | GASKET, left (HDI, EN2, HD4) (2) | FLHRXS |
| 39 | 65900056A | GASKET, right (HDI, EN2, HD4) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (1 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHRXS |
| 2 | 70291-89 | HOUSING, four-way pin | FLHRXS |
| 3 | 72039-71A | TERMINAL, pin (3) | FLHRXS |
| 4 | 72290-94 | TERMINAL, insulated | FLHRXS |
| 5 | 72907-11 | HOUSING, four-way pin (black) | FLHRXS |
| 6 | 72909-11 | TERMINAL, pin, 20-20 AWG (4) | FLHRXS |
| 7 | 72914-01BK | HOUSING, four-way socket (black) | FLHRXS |
| 8 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FLHRXS |
| 9 | 73104-96BK | HOUSING, four-way pin (black) | FLHRXS |
| 10 | 73106-96BK | HOUSING, six-way pin (black) | FLHRXS |
| 11 | 73190-96 | TERMINAL, pin, 16-20 AWG (8) | FLHRXS |
| 12 | 69200284A | CADDY, left steer head | FLHRXS |
| 13 | 69201163 | HOUSING, six-way pin (black) | FLHRXS |
| 14 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHRXS |
| 15 | 69202720A | WIRE TROUGH, with 69202637 | FLHRXS |
| 16 | 69202636A | COVER, wire trough | FLHRXS |
| 17 | 69202637 | CLIP (2) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (2 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHRXS |
| 2 | 10065 | CABLE STRAP (3) | FLHRXS |
| 3 | 70291-89 | HOUSING, four-way pin | FLHRXS |
| 4 | 70292-89 | HOUSING, four-way socket | FLHRXS |
| 5 | 72039-71A | TERMINAL, pin, terminal location 1 | FLHRXS |
| 6 | 69200254 | HOUSING, four-way socket | FLHRXS |
| 7 | 69200256 | SECONDARY LOCK, two-way socket | FLHRXS |
| 8 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHRXS |
| 9 | 72610-08 | WIRE SEAL, 18-20 AWG (white) | FLHRXS |
| 10 | 72905-11 | HOUSING, two-way pin (black) | FLHRXS |
| 11 | 72907-11 | HOUSING, four-way pin (black) | FLHRXS |
| 12 | 72909-11 | TERMINAL, pin, 20-22 AWG (5) | FLHRXS |
| 13 | 74112-98BK | HOUSING, two-way socket (black) | FLHRXS |
| 14 | 74152-98 | SECONDARY LOCK, two-way socket | FLHRXS |
| 15 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHRXS |
| 16 | 72214-94 | WIRE SEAL (3) | FLHRXS |
| 17 | 69202787 | TERMINAL, pin, terminal location 4 | FLHRXS |
| 18 | 69200285 | CADDY, right steer head | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (3 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (4) | FLHRXS |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLHRXS |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLHRXS |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLHRXS |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHRXS |
| 6 | 72098-06 | HOUSING, two-way socket (gray) | FLHRXS |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) terminal location A (2) | FLHRXS |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG, terminal location A (2) | FLHRXS |
| 9 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLHRXS |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHRXS |
| 11 | 72499-07 | WIRE SEAL, 20-22 AWG (green) terminal location B (2) | FLHRXS |
| 12 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location B (2) | FLHRXS |
| 13 | 69201287A | BRACKET, mounting | FLHRXS |
| 14 | 69201301 | WIRE SEAL, 20-22 AWG (green) (6) | FLHRXS |
| 15 | 69201390 | HOUSING, two-way socket (black) (2) | FLHRXS |
| 16 | 69201391 | TERMINAL, socket, 20 AWG (4) | FLHRXS |
| 17 | 69201392 | WIRE SEAL, 20 AWG (yellow) (4) | FLHRXS |
| 18 | 69201393 | HOUSING, two-way socket (black) | FLHRXS |
| 19 | 69201394 | HOUSING, six-way socket (black) | FLHRXS |
| 20 | 69201395 | SECONDARY LOCK, six-way socket | FLHRXS |
| 21 | 69201396 | TERMINAL, socket, 20 AWG, terminal location B, C, D, E (4) | FLHRXS |
| 22 | 69201397 | HOUSING, two-way pin (gray) | FLHRXS |
| 23 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHRXS |
| 24 | 69201416 | SECONDARY LOCK, 6-way socket | FLHRXS |
| 25 | 69201441 | HOUSING, four-way socket | FLHRXS |
| 26 | 69201442 | TERMINAL, socket, 18 AWG, terminal location 2, 4 (2) | FLHRXS |
| 27 | 69201407 | TERMINAL, socket, 20 AWG, terminal location 1, 3 (2) | FLHRXS |
| 28 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location A, F (2) | FLHRXS |
| 29 | 72499-07 | WIRE SEAL, 20-22 AWG (green) terminal location A, B, C, D, E, F (6) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (4 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHRXS |
| 2 | 10147 | CLIP, connector | FLHRXS |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHRXS |
| 4 | 72518-01 | HOUSING, two-way socket (red) | FLHRXS |
| 5 | 72533-06 | DUST CAP, two-way connector | FLHRXS |
| 6 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHRXS |
| 7 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHRXS |
| 8 | 72720-07 | HOUSING, two-way socket (black) | FLHRXS |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHRXS |
| 10 | 69202322 | HOUSING, 81-way socket | FLHRXS |
| 11 | 69202032 | SECONDARY LOCK | FLHRXS |
| 12 | 69201890 | TERMINAL, socket, terminal location 1, 2, 3, 5 (4) | FLHRXS |
| 13 | 69202453 | TERMINAL, socket, terminal location 6, 7, 8, 11, 14, 16, 20, 21, 23, 24, 25, 26, 27, 29, 30, 32, 34, 36, 37, 38, 39, 41, 42, 43, 44, 45, 46, 47, 48, 52, 53, 55, 65, 66, 67, 70, 72, 74, 79, 80 (40) | FLHRXS |
| 14 | 69202028 | CAVITY PLUG (red) (36) | FLHRXS |
| 15 | 69202031 | WIRE SEAL, terminal location 1, 2, 3, 5 (4) | FLHRXS |
| 16 | 69202323 | COVER | FLHRXS |
| 17 | 69202029 | TERMINAL, cavity plug (dark red) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (5 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, 1/4 in ring, 12 AWG | FLHRXS |
| 2 | 9825 | TERMINAL, ring, 14-18 AWG | FLHRXS |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FLHRXS |
| 4 | 72478-07BK | HOUSING, eight-way pin (black) | FLHRXS |
| 5 | 73213-07 | RETAINER, anchored | FLHRXS |
| 6 | 69201596 | TERMINAL, ring, 8-10 AWG | FLHRXS |
| 7 | 69202219 | HEAT SHRINK TUBE, .415 x 1 (black) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (6 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (2) | FLHRXS |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 2 | 10006 | CABLE STRAP (3) | FLHRXS |
| 3 | 10065 | CABLE STRAP (5) | FLHRXS |
| 4 | 11779 | FASTENER, push-in (black) (2) | FLHRXS |
| 5 | 72291-94 | TERMINAL, socket, 14-16 AWG | FLHRXS |
| 6 | 72295-94 | CONNECTOR, starter housing | FLHRXS |
| 7 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLHRXS |
| 8 | 69200175 | CADDY, fuse block, electrical panel | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (7 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10147 | CLIP | FLHRXS |
| 2 | 10177 | CABLE STRAP, anchored | FLHRXS |
| 3 | 10065 | CABLE STRAP (2) | FLHRXS |
| 4 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLHRXS |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2 (4) | FLHRXS |
| 6 | 72175-07BK | HOUSING, four-way pin (black) | FLHRXS |
| 7 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHRXS |
| 8 | 72343-10 | TERMINAL, pin, 16-20 AWG, terminal location 3, 4 (4) | FLHRXS |
| 9 | 72415-07GY | HOUSING, four-way pin (gray) | FLHRXS |
| 10 | 72473-07 | SEAL PIN, natural | FLHRXS |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHRXS |
| 12 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHRXS |
| 13 | 72512-07BK | HOUSING, three-way socket (black) | FLHRXS |
| 14 | 72519-09BK | DUST CAP, three-way socket (black) | FLHRXS |
| 15 | 72533-06 | PLUG, weather, two-way pin | FLHRXS |
| 16 | 72544-07 | SECONDARY LOCK, three-way socket | FLHRXS |
| 17 | 72589-09 | HOUSING, three-way socket (black) | FLHRXS |
| 18 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHRXS |
| 19 | 72609-08 | SECONDARY LOCK, two-way socket (2) | FLHRXS |
| 20 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHRXS |
| 21 | 73213-07 | RETAINER, anchored (3) | FLHRXS |
| 22 | 69200183 | HOUSING, 26-way socket | FLHRXS |
| 23 | 69200184 | COVER, 26-way socket | FLHRXS |
| 24 | 69200185 | TERMINAL, socket, 20 AWG, terminal location 10, 14, 15, 18, 23, 24 (6) | FLHRXS |
| 25 | 69200186 | TERMINAL, socket, 14-16 AWG, terminal location 17, 26 (2) | FLHRXS |
| 26 | 69200187 | TERMINAL, socket, 12 AWG, terminal location 1, 9 (2) | FLHRXS |
| 27 | 69200188 | WIRE SEAL, 20 AWG (gray) terminal location 10, 14, 15, 18, 23, 24 (6) | FLHRXS |
| 28 | 69200189 | WIRE SEAL, 14-16 AWG (brown) terminal location 17, 26 (2) | FLHRXS |
| 29 | 69200190 | WIRE SEAL, 12 AWG (blue) terminal location 1, 9 (2) | FLHRXS |
| 30 | 69200191 | SEAL PIN (16) | FLHRXS |
| 31 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHRXS |
| 32 | 69201814 | TERMINAL, socket (4) | FLHRXS |
| 33 | 69201779 | HOUSING, four-way (black) | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (8 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHRXS |
| 2 | 10147 | CLIP, connector | FLHRXS |
| 3 | 10177 | CABLE STRAP, anchored (2) | FLHRXS |
| 4 | 72065-06A | HOUSING, three-way socket (black) | FLHRXS |
| 5 | 72127-06 | SECONDARY LOCK, three-way socket | FLHRXS |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FLHRXS |
| 7 | 72232-96 | SEAL PIN (red) (2) | FLHRXS |
| 8 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHRXS |
| 9 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHRXS |
| 10 | 72512-07BK | HOUSING, three-way socket (black) | FLHRXS |
| 11 | 72519-09BK | DUST CAP, three-way socket (black) | FLHRXS |
| 12 | 72606-08 | HOUSING, two-way socket (black) | FLHRXS |
| 13 | 72607-08 | HOUSING, two-way pin (black) | FLHRXS |
| 14 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHRXS |
| 15 | 72609-08 | SECONDARY LOCK, two-way socket | FLHRXS |
| 16 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHRXS |
| 17 | 73213-07 | RETAINER, anchored | FLHRXS |
| 18 | 74112-98BK | HOUSING, two-way socket (black) | FLHRXS |
| 19 | 74152-98 | SECONDARY LOCK, two-way socket | FLHRXS |
| 20 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLHRXS |
| 21 | 12500014 | CABLE STRAP | FLHRXS |
| 22 | 12500018 | CABLE STRAP | FLHRXS |
| 23 | 69200238 | TERMINAL, insulated (2) | FLHRXS |
| 24 | 69201423 | DC LEAD ASSEMBLY | FLHRXS |
| 25 | 72175-07BK | HOUSING, four-way pin (black) | FLHRXS |
| 26 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2 (2) | FLHRXS |
| 27 | 72343-10 | TERMINAL, pin, 16-20 AWG, terminal location 3, 4 (2) | FLHRXS |
| 28 | 72632-10 | PLUG, weather, four-way pin | FLHRXS |
| 29 | 69203520 | CLIP | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (9 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHRXS |
| 2 | 10065 | CABLE STRAP | FLHRXS |
| 3 | 31586-07 | RELAY (2) | FLHRXS |
| 4 | 72081-11 | HOUSING, 48-way socket (black) | FLHRXS |
| 5 | 72209-11 | COVER, wire dress | FLHRXS |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location A2, A4, B2, B3, C3, C4, D2, D3, E2, E4, F3, F4, G4, H2, J2, J3, J4, K2, K3, K4 (20) | FLHRXS |
| 7 | 72226-11 | TERMINAL, socket, 14-16 AWG, terminal location L2, M3, M4 (3) | FLHRXS |
| 8 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location L3, L4, M2 (3) | FLHRXS |
| 9 | 72256-11 | SEAL PIN (10) | FLHRXS |
| 10 | 72296-95 | TERMINAL, socket, 14-16 AWG, terminal location 12, 17 (2) | FLHRXS |
| 11 | 72298-95 | PLUG, cavity, terminal location 12, 17 (2) | FLHRXS |
| 12 | 72299-95 | SEAL PIN (green) (4) | FLHRXS |
| 13 | 72308-97 | TERMINAL, socket, 12-14 AWG, terminal location 1, 9, 11 (3) | FLHRXS |
| 14 | 72330-95 | FUSE, 15 A (blue) | FLHRXS |
| 15 | 72331-95 | FUSE, 5 A (tan) (2) | FLHRXS |
| 16 | 72345-02 | FUSE, 20 A (yellow) (2) | FLHRXS |
| 17 | 72356-95 | TERMINAL, socket, 18-20 AWG, terminal location 2, 3, 4, 7, 10, 13, 14, 15, 16, 18, 20, 21, 22, 23, 24 (15) | FLHRXS |
| 18 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) terminal location 1, 9, 11 (3) | FLHRXS |
| 19 | 73301-04 | HOUSING, two-way pin (black) | FLHRXS |
| 20 | 73303-04 | SECONDARY LOCK, two-way socket (black) | FLHRXS |
| 21 | 73304-04 | TERMINAL, socket, 10 AWG (3) | FLHRXS |
| 22 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FLHRXS |
| 23 | 11100115 | CLOTH, harness wrap, 50 m (not shown) | FLHRXS |
| 24 | 69200194 | HOUSING, 24-way socket | FLHRXS |
| 25 | 69200199 | WIRE SEAL, 18-20 AWG, terminal location 2, 3, 4, 7, 10, 13, 14, 15, 16, 18, 20, 21, 22, 23, 24 (15) | FLHRXS |
| 26 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHRXS |
| 27 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLHRXS |
| 28 | 69200336A | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness. | FLHRXS |
| 29 | 69201411 | COVER, fuse block | FLHRXS |
WIRING HARNESS, MAIN, ABS - FLHRXS (10 OF 10)
| Index No. | Part No. | Description | Model(s) |
| 69202225A | MAIN WIRING HARNESS | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHRXS |
| 2 | 72064-06 | HOUSING, three-way socket (black) | FLHRXS |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHRXS |
| 4 | 72188-07BK | HOUSING, six-way pin (black) | FLHRXS |
| 5 | 72350-11 | HOUSING, one-way socket (black) | FLHRXS |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHRXS |
| 7 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHRXS |
| 8 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLHRXS |
| 9 | 72575-11 | SECONDARY LOCK, one-way socket (black) | FLHRXS |
| 10 | 73213-07 | RETAINER, anchored | FLHRXS |
| 11 | 73304-04 | TERMINAL, socket, 10 AWG (2) | FLHRXS |
| 12 | 73305-04 | SEAL WIRE, 10 AWG (blue) (2) | FLHRXS |
| 13 | 69200212 | HARNESS, battery tender | FLHRXS |
| 14 | 69201130 | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201307 | FLHRXS |
| 15 | 69201307 | BOOT, battery positive | FLHRXS |
| 16 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLHRXS |
| 17 | 69201400 | HOUSING, two-way socket (black) | FLHRXS |
| 18 | 69201401 | SECONDARY LOCK, two-way socket | FLHRXS |
| 19 | 69201404 | CONNECTOR, anchored | FLHRXS |
| 20 | 69201405 | RESISTOR PACK | FLHRXS |
| 21 | 69202098 | HOUSING, six-way socket (red) | FLHRXS |
| 22 | 69202109 | SECONDARY LOCK, six-way | FLHRXS |
| 23 | 69202107 | SEAL PIN (Lt. Gray) (2) | FLHRXS |
| 24 | 69202104 | TERMINAL, socket 22AWG (4) | FLHRXS |
| 25 | 69202106 | WIRE SEAL (4) | FLHRXS |
| 26 | 69202108 | CAP | FLHRXS |
WIRING HARNESS, CONSOLE - FLHRXS
| Index No. | Part No. | Description | Model(s) |
| 69200124 | WIRE HARNESS, console | FLHRXS | |
| NOTE: Includes the following parts. | |||
| 1 | 72062-06 | HOUSING, two-way socket (gray) | FLHRXS |
| 2 | 72130-04 | HOUSING, 12-way socket (black) | FLHRXS |
| 3 | 72168-07 | TERMINAL, socket 18-20 AWG (8) | FLHRXS |
| 4 | 72189-04 | SEAL PIN (2) | FLHRXS |
| 5 | 72479-07BK | HOUSING, eight-way socket (black) | FLHRXS |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHRXS |
| 7 | 72485-07 | HOUSING, four-way socket (black) | FLHRXS |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHRXS |
| 9 | 72493-07 | TERMINAL, socket, 16-18 AWG (4) | FLHRXS |
| 10 | 72494-07 | WIRE SEAL, 16-18 AWG (yellow) (4) | FLHRXS |
| 11 | 72557-07 | SECONDARY LOCK, four-way socket | FLHRXS |
| 12 | 72662-11 | TERMINAL, socket, 22 AWG (5) | FLHRXS |
| 13 | 74196-04 | TERMINAL, socket, 20 AWG (5) | FLHRXS |
| 14 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHRXS |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (6) | FLHRXS |
| 2 | 4312C | SCREW (2) | FLHRXS |
| 3 | 4705 | SCREW (2) | FLHRXS |
| 4 | 7792 | NUT | FLHRXS |
| 5 | 15368-01A | LABEL, battery warning | FLHRXS |
| 6 | 69201307 | BOOT, battery positive | FLHRXS |
| 7 | 31694-90 | NUT | FLHRXS |
| 8 | 66010-97E | BATTERY, with 4312C (Domestic) | FLHRXS |
| 8 | 66000212B | BATTERY KIT, with terminal bolts (all except Domestic) | FLHRXS |
| 9 | 66051-08 | STRAP, battery removal | FLHRXS |
| 10 | 9819 | TERMINAL, ring, 12 AWG | FLHRXS |
| 11 | 73304-04 | TERMINAL, socket, 10 AWG | FLHRXS |
| 12 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHRXS |
| 13 | 66000010A | BATTERY TRAY | FLHRXS |
| 14 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | FLHRXS |
| 15 | 69202307 | CADDY, electronic control module (ECM) | FLHRXS |
| 16 | 69201130 | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201307 | FLHRXS |
| 17 | 69201178 | BRACKET, battery hold down | FLHRXS |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHRXS |
| 2 | 4775 | SCREW (2) | FLHRXS |
| 3 | 6019 | WASHER (2) | FLHRXS |
| 4 | 6109 | WASHER | FLHRXS |
| 5 | 7495 | NUT | FLHRXS |
| 6 | 7549A | ACORN NUT | FLHRXS |
| 7 | 8108 | SPEEDNUT (2) | FLHRXS |
| 8 | 69060-90H | HORN ASSEMBLY | FLHRXS |
| 9 | 69062-91A | CLAMP | FLHRXS |
| 10 | 69120-91 | BRACKET, horn | FLHRXS |
| 11 | 69123-92A | MOUNT, horn, rubber | FLHRXS |
| 12 | 14100764 | INSERT, horn | FLHRXS |
| 13 | 61300626A | COVER, horn (gloss black) | FLHRXS |
| 14 | 69000083 | BRACKET ASSEMBLY, horn mount | FLHRXS |

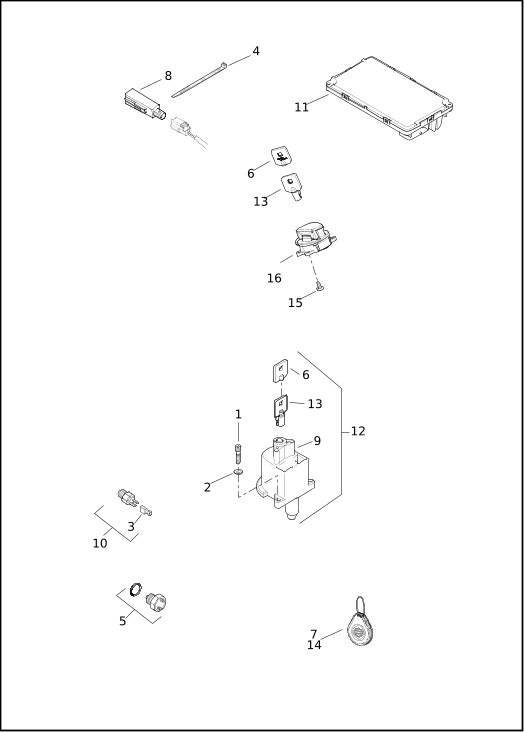

SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHRXS |
| 2 | 6150W | WASHER (2) | FLHRXS |
| 3 | 9907 | WIRE TERMINAL (2) | FLHRXS |
| 4 | 10065 | CABLE STRAP (2) | FLHRXS |
| 5 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHRXS |
| 6 | 61081-92 | COVER, key head (set of 2) | FLHRXS |
| 7 | 66000107 | BATTERY, 3V, CR2032 (2) | FLHRXS |
| 8 | 68956-07 | ANTENNA MODULE, security system | FLHRXS |
| 9 | 71540-94B | FORK LOCK (specify key number) | FLHRXS |
| 10 | 72023-51E | KIT, SWITCH, rear brakelite, with 9907 | FLHRXS |
| 11 | 41000341G | BODY CONTROL MODULE (BCM) with security | FLHRXS |
| 12 | 71400010A | LOCKSET, complete, with keys, ignition switch, fork lock and saddle bag lock | FLHRXS |
| 13 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHRXS |
| 14 | 90300111 | REMOTE CONTROL FOB (except AU2, CAL, DOM) | FLHRXS |
| 14 | 90300236 | REMOTE CONTROL FOB (AU2, CAL, DOM) | FLHRXS |
| 15 | 3622 | SCREW (4) | FLHRXS |
| 16 | 71517-11A | IGNITION SWITCH (specify key number) | FLHRXS |
| NOTE: For additional fuse and relay part number information see wiring harness pages. | |||

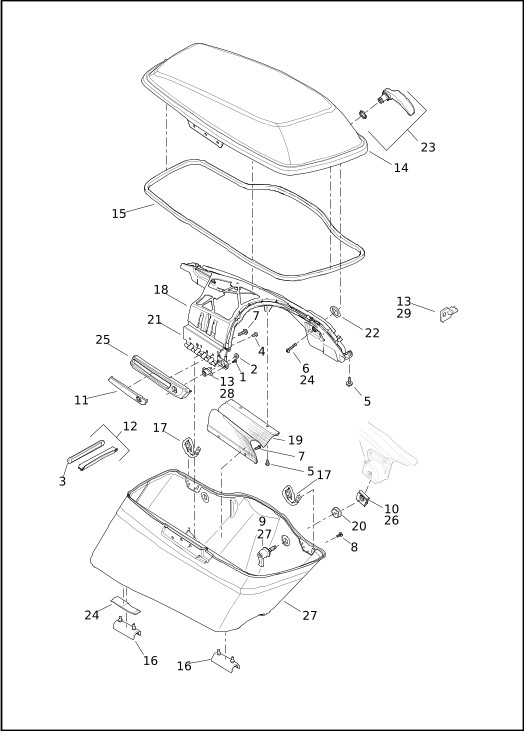

SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3656 | SCREW (4) | FLHRXS |
| 2 | 7586 | JAMNUT (2) | FLHRXS |
| 3 | 69490-07 | REFLECTOR (red) (Canada) (2) | FLHRXS |
| 4 | 10200062 | SCREW (6) | FLHRXS |
| 5 | 10200063 | SCREW (12) | FLHRXS |
| 6 | 10200064 | SCREW (2) | FLHRXS |
| 7 | 10200065 | SCREW (8) | FLHRXS |
| 8 | 10200103 | SCREW (16) | FLHRXS |
| 9 | 10200533 | SCREW, single sided lever (4) | FLHRXS |
| 10 | 10400034 | NUT, clip (4) | FLHRXS |
| 11 | 67900065 | REFLECTOR (left) (red) (Domestic) | FLHRXS |
| 11 | 67900066 | REFLECTOR (left) (amber) (HDI) | FLHRXS |
| 11 | 67900067 | REFLECTOR (right) (red) (Domestic) | FLHRXS |
| 11 | 67900068 | REFLECTOR (right) (amber) (HDI) | FLHRXS |
| 12 | 67900256 | REFLECTOR ASSEMBLY, with 69490-07 (red) (Canada) (2) | FLHRXS |
| 13 | 71400010A | LOCKSET, complete, with keys, ignition knob, fork lock and saddlebag locks (chrome) | FLHRXS |
| 14 | 90200411 | SADDLEBAG COVER (right) (unpainted) | FLHRXS |
| 14 | 90200413 | SADDLEBAG COVER (left) (unpainted) | FLHRXS |
| 15 | 90200415 | GASKET, cover (2) | FLHRXS |
| 16 | 90200467 | CUSHION, saddlebag support (4) | FLHRXS |
| 17 | 90200519 | STRIKE, saddlebag (4) | FLHRXS |
| 18 | 90200520 | LATCH ASSEMBLY, with 90200899 and 90200901 (right) | FLHRXS |
| 18 | 90200521 | LATCH ASSEMBLY, with 90200900 and 90200901 (left) | FLHRXS |
| 19 | 90200522 | TETHER, saddlebag (2) | FLHRXS |
| 20 | 90200611 | ISOLATOR, saddlebag (4) | FLHRXS |
| 21 | 90200899 | HINGE ASSEMBLY (right) | FLHRXS |
| 21 | 90200900 | HINGE ASSEMBLY (left) | FLHRXS |
| 22 | 90200901 | SEAL (2) | FLHRXS |
| 23 | 90200902 | HANDLE KIT, saddlebag, with 10200064 and grommet (right) | FLHRXS |
| 23 | 90200903 | HANDLE KIT, saddlebag, with 10200064 and grommet (left) | FLHRXS |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 24 | 90200963 | WEAR STRIP (left) | FLHRXS |
| 24 | 90200964 | WEAR STRIP (right) | FLHRXS |
| 25 | 90200983DH | FACEPLATE (left) (vivid black) | FLHRXS |
| 25 | 90200984DH | FACEPLATE (right) (vivid black) | FLHRXS |
| 26 | 90201540 | KIT, SADDLEBAG MOUNT, with 10200533 and 10400034 (set of 4) | FLHRXS |
| 27 | 90201743 | SADDLEBAG BOTTOM, with 90820-93D, 90200467 and 90200964 (right) (prime) | FLHRXS |
| 27 | 90201742 | SADDLEBAG BOTTOM, with 90820-93D, 90200467 and 90200963 (left) (prime) | FLHRXS |
| 28 | 90300024 | LOCK, with 7586 (specify key number) (2) | FLHRXS |
| 29 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHRXS |

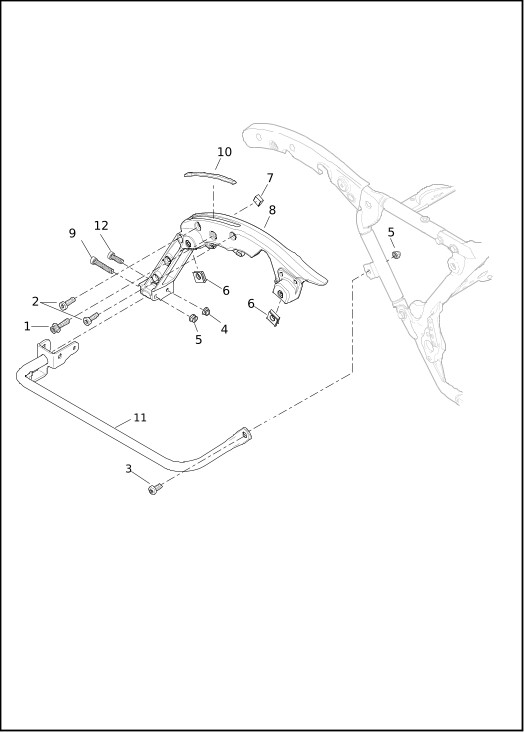

GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200217 | SCREW (2) | FLHRXS |
| 2 | 3684 | SCREW (4) | FLHRXS |
| 3 | 4924 | SCREW (2) | FLHRXS |
| 4 | 7531 | LOCKNUT (2) | FLHRXS |
| 5 | 7601 | LOCKNUT (4) | FLHRXS |
| 6 | 10400034 | NUT, clip (4) | FLHRXS |
| 7 | 11100068 | CUSHION (2) | FLHRXS |
| 8 | 90201319 | SUPPORT, saddlebag, with 11100068 (right) (black) | FLHRXS |
| 8 | 90201320 | SUPPORT, saddlebag, with 11100068 (left) (black) | FLHRXS |
| 9 | 10201187 | SCREW (2) | FLHRXS |
| 10 | 90202108 | INSERT ASSEMBLY, saddlebag support (2) | FLHRXS |
| 11 | 90200549 | SUPPORT (left) (black) | FLHRXS |
| 11 | 90200550 | SUPPORT (right) (black) | FLHRXS |
| 12 | 10201188 | SCREW (2) | FLHRXS |

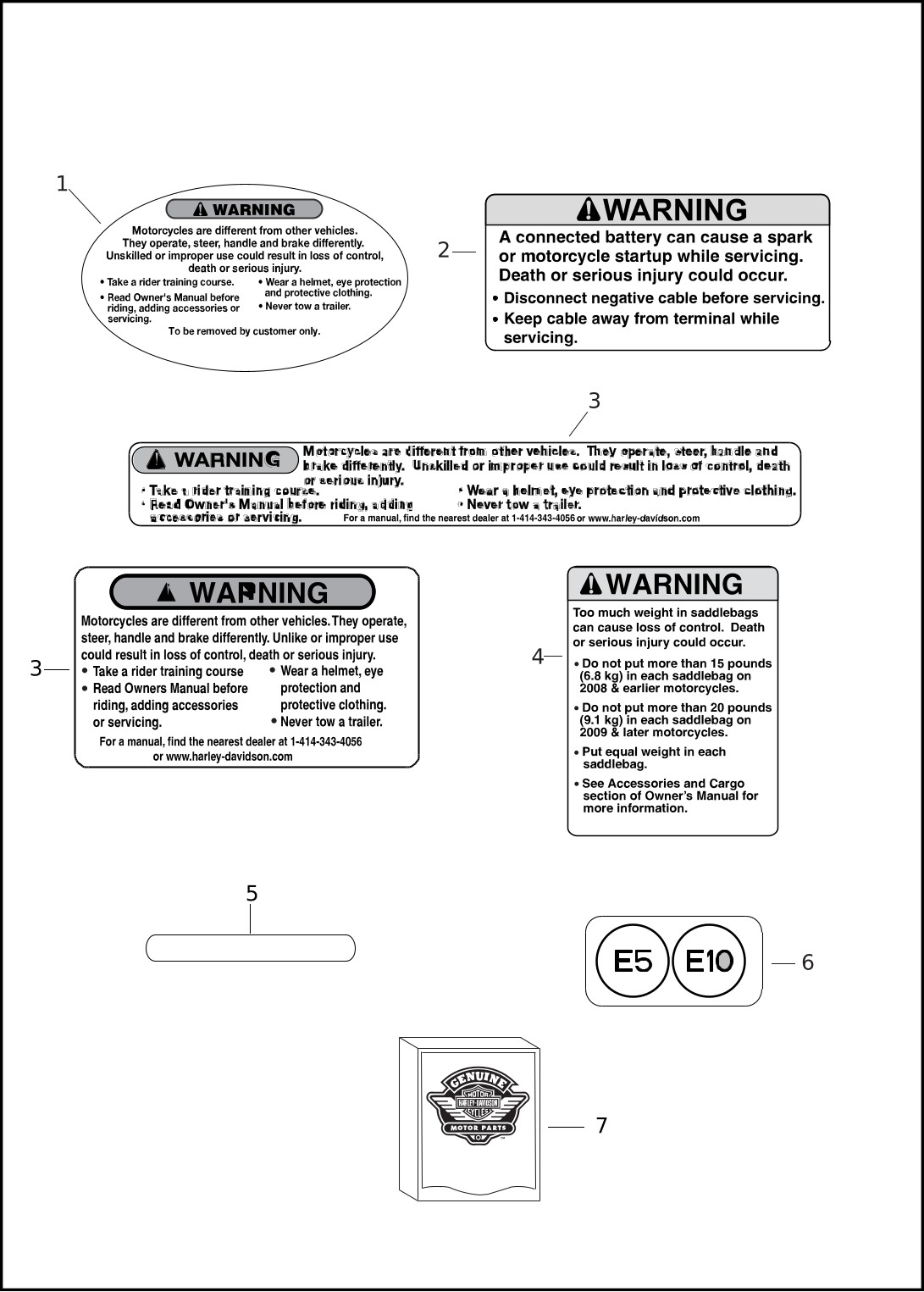

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 15370-01A | LABEL, mirror warning | FLHRXS |
| 2 | 15368-01A | LABEL, battery warning | FLHRXS |
| 3 | 14002211 | LABEL, air cleaner warning (used on black cover) (Domestic) (not shown) | FLHRXS |
| 4 | 90820-93D | LABEL, saddlebag load limits (2) | FLHRXS |
| 5 | 14000827 | CLEAR OVERLAY, VIN label | FLHRXS |
| 6 | 14001773 | LABEL, fuel (EN2, HDI, HD4) | FLHRXS |
| 7 | 14001800 | LABEL, fuel tank (ASEAN) (not shown) | FLHRXS |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 66250-09 | SIDE COVER (left) (unpainted) (See NOTE 1) | FLHRXS |
| 1 | 94001245 | OWNER'S MANUAL (Domestic) | FLHRXS |
| 1 | 69200336A | MAIN FUSE, 50 A (red) | FLHRXS |
| 1 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHRXS |
| 1 | 90300111 | REMOTE CONTROL FOB (except AU2, CAL, DOM) | FLHRXS |
| 1 | 90300236 | REMOTE CONTROL FOB (AU2, CAL, DOM) | FLHRXS |
| 1 | 94000326 | OWNER'S KIT CONTENT (Domestic) | FLHRXS |
| 1 | 12500024 | CABLE STRAP, attaches keys to brake lever | FLHRXS |
| 1 | 61400159 | INSERT, handlebar cover | FLHRXS |
| 1 | 61300927 | RAINSOCK | FLHRXS |
| FLHRXSNOTE 1: Left side cover is shipped loose. Refer to the Service Section of h-dnet.com for painted part numbers. | |||
| Part No. | Description |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10200032 | SCREW 1/4-20 X 1/2 TORX, button hd with lockpatch, (Grade 8) (bright zinc) |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200064 | SCREW No. 8-32 X 1 TORX pan head (zinc) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200350 | SCREW 1/4-20 X 1-1/8 SEMS hex socket head (Grade 8) (zinc) |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200414 | SCREW 5/16-18 X 5/8 button head SEMS TORX T-40, with lockpatch (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10200686 | SCREW 10-24 X 1/2 button head with lockpatch, T-25 (Grade 5) |
| 10201187 | SCREW .375-16 X 2.750 TORX button head T-45 |
| 10201188 | SCREW .312-18 X 1.30 TORX pan head T-40 |
| 10201381 | SCREW 5/16-18 X 1.0 self tapping TORX T-40 |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch (Grade 5) |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2446 | SCREW 1/4-20 X 5/8 TORX socket button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2952A | SCREW 1/4-20 X 1/2 SEMS truss head |
| 2995 | SCREW No. 10-16 X 3/4 pan head |
| 3022A | SCREW 1/4-20 X 5/8 socket fillister head, with lockpatch |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3225 | BOLT No. 6 X 5/8 long phillips pan head (zinc) |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3576 | SCREW 5/16-18 X 1/2 hex head, with washer. |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3676 | SCREW 5/16-18 X 5/8 TORX pan head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6333 | WASHER 5/16 X 7/8 X 5/64 |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 6789 | WASHER No. 6 X 7/8 X .05 |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7036 | WASHER 1/4 X 31/64 X 1/16 |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7744 | JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7813A | NUT 5/8-18 X 9/16 X 15/16 (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7888A | NUT No. 6-32 flange head |
| 7889 | NUT No. 6-32 keps |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8108 | SPEEDNUT 1/4-20 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 869 | SCREW 1/4-20 X 1-1/4 socket button head (Grade 8) |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 8973 | WASHER 1-1/4 X 1-53/64 X 9/64 |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 923 | SCREW 1/4-20 X 3/4 socket pan head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 11 | 18100140 | VALVE SPRING (8) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 23 | 25700362A | GASKET, lifter cover (2) | FLHRXS |
| 27 | 25700425A | GASKET, rocker housing, lower (2) | FLHRXS |
| 29 | 25701495 | ROCKER COVER, lower, with 25700425A (chrome) (2) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 8 | 26900259A | COOLANT LINE ASSEMBLY, oil, with 4, 6, 9, 10, 11, 13 | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 8 | 61300204A | BEARING, main, inner, right hand | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 62700296A | OIL FILTER (black) | FLHRXS |
| 23 | 62700141A | CHECK VALVE, oil pressure, with 11900010 (Air-Cooled) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 10 | 91800088 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with screws and washers | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 12 | 32700200 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 7 | 29900145 | STATOR ASSEMBLY, 3-phase, 48 A | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 13 | 41001165A | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 8 | 32700054A | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLHRXS |
| 9 | 32700200 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHRXS |
| 10 | 62700141A | CHECK VALVE, oil pressure, with 11900010 (Air-Cooled) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 34 | 33900265 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 20 | 35260-06C | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black) | FLHRXS |
| 27 | 24400215A | GASKET | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 11 | 41600409 | BRACKET, brakeline, front | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 7 | 41600409 | BRACKET, brake line | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 5 | 67822-88A | BALL STUD (2) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 8 | 66000212B | BATTERY KIT, with terminal bolts (all except Domestic) | FLHRXS |
| Index No. | Part No. | Description | Model(s) |
| 1 | 94001245 | OWNER'S MANUAL (Domestic) | FLHRXS |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10053 | |
| 10065 | |
| 10080 | |
| 1009M | |
| 10100062 | |
| 10103 | |
| 10142 | |
| 10147 | |
| 10177 | |
| 10183 | |
| 10200032 | |
| 10200042 | |
| 10200062 | |
| 10200063 | |
| 10200064 | |
| 10200065 | |
| 10200103 | |
| 10200156 | |
| 10200217 | |
| 10200223 | |
| 10200258 | |
| 10200303 | |
| 10200308 | |
| 10200343 | |
| 10200350 | |
| 10200373 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200533 | |
| 10200546 | |
| 10200569 | |
| 10200686 | |
| 10201167 | |
| 10201187 | |
| 10201188 | |
| 10201381 | |
| 10264 | |
| 10340B | |
| 10344 | |
| 10395 | |
| 10396 | |
| 10400034 | |
| 10500008 | |
| 10500015 | |
| 10500022 | |
| 10500031 | |
| 10500036 | |
| 10500069 | |
| 10600007 | |
| 1062 | |
| 10800025A | |
| 10800052 | |
| 10800108 | |
| 10800109 | |
| 10800111 | |
| 10800227 | |
| 10900015A | |
| 10991A | |
| 10998 | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11081A | |
| 11082A | |
| 11096 | |
| 11100068 | |
| 11100115 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11293 | |
| 11304 | |
| 11323A | |
| 11389 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11615 | |
| 11650 | |
| 11686 | |
| 11687 | |
| 11692 | |
| 11779 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900010 | |
| 11900021 | |
| 11900090 | |
| 11900092 | |
| 11900103 | |
| 11900116 | |
| 11900155 | |
| 11900172 | |
| 11900179 | |
| 11900180 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074A | |
| 12077 | |
| 12100007 | |
| 12100043 | |
| 12100069 | |
| 12100113 | |
| 12102 | |
| 12200144 | |
| 12200170 | |
| 12200221 | |
| 12200226 | |
| 12400099 | |
| 12500014 | |
| 12500018 | |
| 12500024 | |
| 12600016 | |
| 12600032 | |
| 12600067 | |
| 12600197 | |
| 12600309 | |
| 12700090A | |
| 14000377 | |
| 14000827 | |
| 14001773 | |
| 14001798A | |
| 14001800 | |
| 14002211 | |
| 14100764 | |
| 14101244 | |
| 14101245 | |
| 14101271 | |
| 14101306 | |
| 15368-01A | |
| 15370-01A | |
| 16200582 | |
| 16200662 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400041 | |
| 16400042 | |
| 16500305 | |
| 16500332 | |
| 16500388 | |
| 16500393 | |
| 16574-99A | |
| 16574-99B | |
| 16583-00B | |
| 16589-99B | |
| 16800063 | |
| 16800075 | |
| 16800080 | |
| 17300053 | |
| 17300055 | |
| 17300059B | |
| 17369-06 | |
| 1775 | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99A | |
| 17968-99 | |
| 18000016 | |
| 18000034A | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18100140 | |
| 18400073B | |
| 18538-99C | |
| 21900048 | |
| 22000031 | |
| 22000061 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100080 | |
| 24100182 | |
| 24400120 | |
| 24400180A | |
| 24400215A | |
| 2446 | |
| 24605-07 | |
| 24754-75A | |
| 2479 | |
| 2482 | |
| 25400103 | |
| 25400190 | |
| 25400257 | |
| 25400452 | |
| 25500013 | |
| 25600078 | |
| 25673-06 | |
| 25675-06 | |
| 25700362A | |
| 25700370A | |
| 25700372B | |
| 25700378 | |
| 25700410 | |
| 25700411 | |
| 25700425A | |
| 25700433A | |
| 25700452 | |
| 25700455 | |
| 25700467 | |
| 25700491 | |
| 25700520 | |
| 25700650 | |
| 25700729 | |
| 25700730 | |
| 25700731 | |
| 25700746 | |
| 25700904 | |
| 25701000 | |
| 25701495 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800098 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500026 | |
| 26500027 | |
| 26800092 | |
| 26900117 | |
| 26900144 | |
| 26900259A | |
| 2708A | |
| 27200025 | |
| 27291-09A | |
| 27297-09A | |
| 27300082 | |
| 27300086 | |
| 27300087 | |
| 27300121 | |
| 27300122 | |
| 27400015 | |
| 27400019 | |
| 27440-09A | |
| 27444-00Y | |
| 29000148 | |
| 29000149 | |
| 29000290 | |
| 2933 | |
| 29400183 | |
| 29400210 | |
| 29400267 | |
| 29400336 | |
| 29400337 | |
| 29465-08B | |
| 2952A | |
| 29900038A | |
| 29900041 | |
| 29900145 | |
| 2995 | |
| 3022A | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3088 | |
| 31400053 | |
| 31400137 | |
| 3143 | |
| 31586-07 | |
| 31600012 | |
| 31600017 | |
| 31600018B | |
| 31600023A | |
| 31600078B | |
| 31600079 | |
| 31694-90 | |
| 3225 | |
| 32306-08 | |
| 3249 | |
| 32700017 | |
| 32700050A | |
| 32700054A | |
| 32700101 | |
| 32700116 | |
| 32700124 | |
| 32700130 | |
| 32700144 | |
| 32700200 | |
| 3275 | |
| 33389-07 | |
| 33409-06B | |
| 33600091 | |
| 33600188 | |
| 33600243 | |
| 33600304 | |
| 33719-79B | |
| 33900175 | |
| 33900265 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34611-65A | |
| 34700372 | |
| 34800043 | |
| 34800044 | |
| 34800046 | |
| 34920-86A | |
| 34987-06 | |
| 35000152A | |
| 35000178 | |
| 35000179 | |
| 35000238A | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 35186-06A | |
| 35187-06 | |
| 35200021 | |
| 35200150 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06A | |
| 35223-06A | |
| 35241-06 | |
| 35242-06 | |
| 35243-06A | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 35260-06C | |
| 3536 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3563 | |
| 35654-06A | |
| 3576 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3594 | |
| 3607 | |
| 3622 | |
| 36500052A | |
| 36500075A | |
| 3656 | |
| 36700250 | |
| 36700254 | |
| 36700257 | |
| 36706-01K | |
| 3676 | |
| 36805-06 | |
| 3684 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000219 | |
| 37000270A | |
| 37000295 | |
| 37000376 | |
| 37000377 | |
| 37000382 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37200395A | |
| 37200396 | |
| 37200437 | |
| 37200545 | |
| 37200561 | |
| 37312-75 | |
| 37313-80 | |
| 37496-90A | |
| 37903-90 | |
| 37904-90 | |
| 37909-90 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 40024-09A | |
| 40037-07 | |
| 40100041 | |
| 40100064 | |
| 40100076A | |
| 40217-09 | |
| 40278-09 | |
| 40615-08 | |
| 40900661 | |
| 40999-87 | |
| 41000341G | |
| 41001165A | |
| 41100104C | |
| 41123-79 | |
| 41229-08 | |
| 4132 | |
| 41349-07 | |
| 41500017 | |
| 41500018 | |
| 41500019 | |
| 41500020 | |
| 41547-07A | |
| 41600382 | |
| 41600383 | |
| 41600384 | |
| 41600385 | |
| 41600386 | |
| 41600409 | |
| 41700028A | |
| 41700195 | |
| 41700367 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800890 | |
| 41800891 | |
| 41800998 | |
| 41801001 | |
| 41801004 | |
| 41810-08B | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 41901-08 | |
| 4194 | |
| 42276-06A | |
| 42300001A | |
| 42300139 | |
| 42300141 | |
| 42300142 | |
| 4240 | |
| 42444-04 | |
| 42460-80B | |
| 42849-08 | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06D | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42889-06 | |
| 42932-08A | |
| 42934-08 | |
| 42937-08C | |
| 43000203 | |
| 43000207 | |
| 43027-08 | |
| 43100045 | |
| 4312C | |
| 43200045 | |
| 43300673 | |
| 43567-92 | |
| 44023-08 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44341-08 | |
| 44854-05 | |
| 44985-10D | |
| 45041-01A | |
| 45138-08A | |
| 45400197 | |
| 45400198 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500175B | |
| 45500176B | |
| 45500339 | |
| 45500341 | |
| 45500396 | |
| 45500397 | |
| 45500398 | |
| 45500421 | |
| 45500424 | |
| 45500456 | |
| 45600054 | |
| 45600055 | |
| 45700009 | |
| 45700020A | |
| 45900024 | |
| 45900091A | |
| 4597M | |
| 4612 | |
| 46508-01 | |
| 46509-01 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46555-03B | |
| 46615-06 | |
| 4688 | |
| 47000344 | |
| 4705 | |
| 4718A | |
| 47200302A | |
| 4740A | |
| 4741A | |
| 47540-11 | |
| 47549-09A | |
| 47584-09 | |
| 4775 | |
| 48079-09BHP | |
| 4813A | |
| 4820A | |
| 4822A | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4890 | |
| 49000114A | |
| 4916 | |
| 4924 | |
| 49725-07A | |
| 50000097 | |
| 50000149 | |
| 50015-74A | |
| 50126-08B | |
| 50208-04 | |
| 50245-07 | |
| 50350-04 | |
| 50500332A | |
| 50500334A | |
| 50500876 | |
| 50518-09 | |
| 50600244 | |
| 50600245 | |
| 50622-09A | |
| 50674-05 | |
| 50684-11 | |
| 50689-11 | |
| 50912-72 | |
| 51068-08 | |
| 51070-08 | |
| 5118 | |
| 515 | |
| 52000142 | |
| 5210 | |
| 52400016 | |
| 52400017 | |
| 52400021 | |
| 52441-95 | |
| 54000096 | |
| 54000114 | |
| 54000141 | |
| 54395-10 | |
| 55800734 | |
| 55800761 | |
| 55900050 | |
| 55900051 | |
| 55900052 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56248-08 | |
| 56304-08 | |
| 5837B | |
| 58900009 | |
| 59259-90 | |
| 59500519 | |
| 59581-05 | |
| 59600008 | |
| 59731-09A | |
| 59739-09 | |
| 59749-06 | |
| 59768-97 | |
| 59778-06 | |
| 59786-01 | |
| 59788-01 | |
| 59818-09 | |
| 601 | |
| 6019 | |
| 60328-98B | |
| 60386-09 | |
| 60575-10A | |
| 60678-85 | |
| 60800062 | |
| 60800063 | |
| 60800116 | |
| 61000691 | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61081-92 | |
| 6109 | |
| 61100194 | |
| 6116 | |
| 61192-96A | |
| 61200022A | |
| 61213-04A | |
| 61272-92F | |
| 61300097 | |
| 61300098 | |
| 61300204A | |
| 61300626A | |
| 61300751 | |
| 61300927 | |
| 6139 | |
| 61400159 | |
| 61400498 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08C | |
| 62229-08B | |
| 62400126 | |
| 62400205 | |
| 62400233 | |
| 62400238 | |
| 62400245 | |
| 62519-03 | |
| 62700089A | |
| 62700117A | |
| 62700136 | |
| 62700141A | |
| 62700143 | |
| 62700144 | |
| 62700146 | |
| 62700196 | |
| 62700227 | |
| 62700291 | |
| 62700296A | |
| 62700376 | |
| 62908-08 | |
| 6333 | |
| 6416 | |
| 6421 | |
| 64900765B | |
| 64900766A | |
| 64900769A | |
| 64900770 | |
| 64900954 | |
| 64900955 | |
| 6497HW | |
| 65296-95B | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400483A | |
| 65400484 | |
| 65400485 | |
| 65400486 | |
| 65500042 | |
| 65500043B | |
| 65600177 | |
| 65600178A | |
| 65600377 | |
| 65600379 | |
| 65600451 | |
| 65723-85 | |
| 65724-85A | |
| 65900015 | |
| 65900017A | |
| 65900056A | |
| 6590HW | |
| 6594 | |
| 66000010A | |
| 66000107 | |
| 66000116 | |
| 66000212B | |
| 66010-97E | |
| 66048-09A | |
| 66051-08 | |
| 66250-09 | |
| 66290-06 | |
| 66861-09B | |
| 66881-09 | |
| 67015-02 | |
| 6702 | |
| 6703 | |
| 67208-08 | |
| 67266-94 | |
| 67341-04B | |
| 67493-08 | |
| 67700068 | |
| 67700105 | |
| 67700204 | |
| 67700205 | |
| 67700249 | |
| 67700269 | |
| 67700329 | |
| 67700457 | |
| 67716-60C | |
| 67721-48 | |
| 67778-60A | |
| 67780-60A | |
| 67800483 | |
| 67800484 | |
| 67800485 | |
| 67800847 | |
| 67800900 | |
| 67801193 | |
| 67801194 | |
| 67822-88A | |
| 67875-11 | |
| 6789 | |
| 67900009 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 67900213A | |
| 67900256 | |
| 68026-99 | |
| 68042-99 | |
| 68120-00 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 68245-03 | |
| 68253-08A | |
| 68370-03A | |
| 68497-07 | |
| 68559-07 | |
| 68572-64B | |
| 68776-06 | |
| 68830-99A | |
| 68838-06 | |
| 68904-00 | |
| 68905-00 | |
| 68956-07 | |
| 68973-00 | |
| 69000083 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200124 | |
| 69200129 | |
| 69200130 | |
| 69200175 | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200194 | |
| 69200199 | |
| 69200212 | |
| 69200224 | |
| 69200238 | |
| 69200254 | |
| 69200256 | |
| 69200284A | |
| 69200285 | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200312 | |
| 69200336A | |
| 69200536 | |
| 69200840 | |
| 69201130 | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201178 | |
| 69201286A | |
| 69201287A | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201390 | |
| 69201391 | |
| 69201392 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201400 | |
| 69201401 | |
| 69201404 | |
| 69201405 | |
| 69201407 | |
| 69201411 | |
| 69201416 | |
| 69201423 | |
| 69201441 | |
| 69201442 | |
| 69201596 | |
| 69201724 | |
| 69201779 | |
| 69201814 | |
| 69201890 | |
| 69201924 | |
| 69202028 | |
| 69202029 | |
| 69202031 | |
| 69202032 | |
| 69202098 | |
| 69202104 | |
| 69202106 | |
| 69202107 | |
| 69202108 | |
| 69202109 | |
| 69202219 | |
| 69202225A | |
| 69202307 | |
| 69202322 | |
| 69202323 | |
| 69202453 | |
| 69202616 | |
| 69202636A | |
| 69202637 | |
| 69202720A | |
| 69202787 | |
| 69203520 | |
| 69325-02 | |
| 69331-02 | |
| 69353-05 | |
| 69377-10 | |
| 69380-09BHP | |
| 69490-07 | |
| 69587-07 | |
| 69615-10 | |
| 6982 | |
| 69861-07 | |
| 69862-07 | |
| 70291-89 | |
| 70292-89 | |
| 7036 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70493-08 | |
| 70494-08 | |
| 70631-08 | |
| 70681-09 | |
| 70900379D | |
| 70900421C | |
| 70900616B | |
| 70900744 | |
| 70901-09 | |
| 70999-09 | |
| 71294-08 | |
| 71310-94 | |
| 71400010A | |
| 71400112A | |
| 71455-11 | |
| 71500044 | |
| 71500047 | |
| 71500048 | |
| 71500049 | |
| 71500050 | |
| 71500053 | |
| 71500057 | |
| 71500094 | |
| 71500127C | |
| 71500338 | |
| 71500340 | |
| 71500473 | |
| 71500475 | |
| 71500488 | |
| 71500564 | |
| 71500568 | |
| 71517-11A | |
| 71540-94B | |
| 7155 | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72039-71A | |
| 72053-92 | |
| 72062-06 | |
| 72064-06 | |
| 72065-06A | |
| 72081-11 | |
| 72098-06 | |
| 72099-06 | |
| 72110-06 | |
| 72127-06 | |
| 72130-04 | |
| 72145-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72209-11 | |
| 72213-94 | |
| 72214-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72232-96 | |
| 72241-94A | |
| 72256-11 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72330-95 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72405-98BK | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72493-07 | |
| 72494-07 | |
| 72499-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72544-07 | |
| 72557-07 | |
| 72560-07 | |
| 72569-08 | |
| 72575-11 | |
| 72589-09 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72662-11 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72904-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73104-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73254-10 | |
| 73255-10 | |
| 7330 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7340 | |
| 7352 | |
| 74112-98BK | |
| 74152-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 7434 | |
| 74700025B | |
| 74700038 | |
| 74700039 | |
| 7495 | |
| 7499 | |
| 75076-08B | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75241-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7586 | |
| 7593 | |
| 7601 | |
| 765 | |
| 7686 | |
| 7716 | |
| 7744 | |
| 7792 | |
| 780 | |
| 7813A | |
| 7825 | |
| 7848W | |
| 786A | |
| 787 | |
| 7880 | |
| 7888A | |
| 7889 | |
| 791A | |
| 7964 | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8108 | |
| 8142 | |
| 83936-09A | |
| 856A | |
| 869 | |
| 882 | |
| 8873 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8973 | |
| 90200411 | |
| 90200413 | |
| 90200415 | |
| 90200467 | |
| 90200519 | |
| 90200520 | |
| 90200521 | |
| 90200522 | |
| 90200549 | |
| 90200550 | |
| 90200611 | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90200902 | |
| 90200903 | |
| 90200963 | |
| 90200964 | |
| 90200983DH | |
| 90200984DH | |
| 90201319 | |
| 90201320 | |
| 90201540 | |
| 90201742 | |
| 90201743 | |
| 90202108 | |
| 90300024 | |
| 90300043 | |
| 90300111 | |
| 90300236 | |
| 90520-07 | |
| 90770-79 | |
| 90820-93D | |
| 91140-09 | |
| 91700025A | |
| 91800058 | |
| 91800064 | |
| 91800088 | |
| 9208 | |
| 9215 | |
| 923 | |
| 9231 | |
| 9252A | |
| 92614-10 | |
| 92615-10 | |
| 9276B | |
| 9298B | |
| 94000326 | |
| 94001245 | |
| 942 | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9853 | |
| 9907 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7330 | Unknown |
| 7340 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 7549A | Unknown |
| 7586 | Unknown |
| 7593 | 1991 |
| 7601 | 1990 |
| 7744 | 1943 |
| 7792 | 2012 |
| 7813A | 2007 |
| 7825 | Unknown |
| 7880 | Unknown |
| 7888A | Unknown |
| 7889 | Unknown |
| 7964 | Unknown |
| 8020 | 2002 |
| 8108 | Unknown |
| 8142 | Unknown |
| 10100062 | 2017 |
| 31694-90 | 1990 |
| 5210 | 1991 |
| 102A1 - Generic Screws | |
| 1009M | Unknown |
| 10200032 | 2012 |
| 10200042 | 2014 |
| 10200062 | 2014 |
| 10200063 | 2014 |
| 10200064 | 2014 |
| 10200065 | 2014 |
| 10200103 | 2014 |
| 10200156 | 2014 |
| 10200217 | 2014 |
| 10200223 | 2014 |
| 10200258 | 2014 |
| 10200303 | 2017 |
| 10200308 | 2017 |
| 10200343 | 2017 |
| 10200350 | 2015 |
| 10200373 | 2017 |
| 10200393 | 2017 |
| 10200408A | 2018 |
| 10200414 | 2017 |
| 10200422 | 2017 |
| 10200429 | 2017 |
| 10200446 | 2017 |
| 10200463 | 2017 |
| 10200503 | 2017 |
| 10200533 | 2016 |
| 10200546 | 2017 |
| 10200569 | 2017 |
| 10200686 | 2019 |
| 10201167 | 2021 |
| 10201187 | 2021 |
| 10201188 | 2021 |
| 10201381 | 2021 |
| 1062 | Unknown |
| 1775 | Unknown |
| 2446 | Unknown |
| 2479 | Unknown |
| 2482 | Unknown |
| 2647B | Unknown |
| 2708A | Unknown |
| 2933 | Unknown |
| 2952A | 2003 |
| 2995 | 2018 |
| 3022A | Unknown |
| 3048 | 2016 |
| 3050 | Unknown |
| 3057 | Unknown |
| 3061 | Unknown |
| 3088 | Unknown |
| 3143 | Unknown |
| 3225 | Unknown |
| 3249 | Unknown |
| 3275 | 2002 |
| 3445 | Unknown |
| 35244-06 | 2014 |
| 35259-06 | 2006 |
| 3536 | Unknown |
| 3563 | 1999 |
| 3576 | 2013 |
| 3594 | 1992 |
| 3607 | 2009 |
| 3622 | Unknown |
| 3656 | Unknown |
| 3676 | Unknown |
| 3684 | Unknown |
| 3699D | 2006 |
| 3892 | Unknown |
| 3901 | Unknown |
| 3929 | 2009 |
| 3976 | 2004 |
| 3983 | 2005 |
| 4132 | Unknown |
| 4194 | Unknown |
| 4240 | Unknown |
| 42858-06A | 2006 |
| 4312C | Unknown |
| 43567-92 | 1992 |
| 4419 | Unknown |
| 4597M | Unknown |
| 4612 | Unknown |
| 4688 | Unknown |
| 4705 | 2005 |
| 4718A | 1994 |
| 4740A | 1994 |
| 4741A | 1994 |
| 4775 | 2000 |
| 4813A | 1990 |
| 4820A | Unknown |
| 4822A | 1994 |
| 4856 | Unknown |
| 4890 | Unknown |
| 4916 | Unknown |
| 4924 | Unknown |
| 67721-48 | 1948 |
| 68026-99 | 1999 |
| 68042-99 | 1999 |
| 68120-00 | 2000 |
| 703B | Unknown |
| 780 | Unknown |
| 786A | Unknown |
| 787 | Unknown |
| 791A | 2007 |
| 856A | 1990 |
| 869 | Unknown |
| 882 | 2000 |
| 90770-79 | 1979 |
| 923 | Unknown |
| 942 | 1992 |
| 103A1 - Generic Washers | |
| 7434 | 1999 |
| 8973 | 2001 |
| 11891 | Unknown |
| 46509-01 | 2001 |
| 56159-73 | 1973 |
| 59788-01 | 2001 |
| 6019 | Unknown |
| 6101 | 2011 |
| 6109 | 1980 |
| 6116 | Unknown |
| 6139 | Unknown |
| 6150W | Unknown |
| 6220W | Unknown |
| 6333 | Unknown |
| 6416 | Unknown |
| 6421 | 1996 |
| 6497HW | 2010 |
| 6532 | 2000 |
| 6590HW | Unknown |
| 6594 | Unknown |
| 6702 | Unknown |
| 6703 | 1970 |
| 6789 | Unknown |
| 7036 | Unknown |
| 7038 | 1998 |
| 7041 | 1958 |
| 104A1 - Custom Nuts | |
| 10400034 | 2016 |
| 7352 | 2010 |
| 105A1 - Custom Screws | |
| 10500008 | 2014 |
| 10500015 | 2014 |
| 10500022 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 10500069 | 2017 |
| 37090-98A | 1998 |
| 106A1 - Custom Washers | |
| 10600007 | 2014 |
| 108A1 - Hose Clamps | |
| 10053 | 2010 |
| 10080 | Unknown |
| 10340B | 2015 |
| 10344 | Unknown |
| 10800025A | 2017 |
| 10800052 | 2014 |
| 10800108 | 2017 |
| 10800109 | 2017 |
| 10800111 | 2017 |
| 9955 | Unknown |
| 9956 | 1972 |
| 108B1 - P Clamps | |
| 10142 | Unknown |
| 10800227 | 2023 |
| 109A1 - Studs | |
| 10900015A | 2018 |
| 59818-09 | 2009 |
| 66290-06 | 2006 |
| 110B1 - Plain Bushings | |
| 11000050 | 2014 |
| 11000139 | 2017 |
| 12077 | Unknown |
| 67266-94 | 1994 |
| 8967A | 2017 |
| 9208 | Unknown |
| 9701A | 2011 |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 11000134 | 2017 |
| 12052A | 2003 |
| 12074A | 2023 |
| 110D1 - Rolling Element Bearings | |
| 11000010 | 2011 |
| 24605-07 | 2007 |
| 61300204A | 2023 |
| 8042A | 2018 |
| 8963 | Unknown |
| 8970A | 2012 |
| 9215 | Unknown |
| 9231 | Unknown |
| 9252A | 2017 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 72990-01 | 2001 |
| 73304-04 | 2004 |
| 74196-04 | 2004 |
| 9819 | Unknown |
| 9825 | Unknown |
| 9907 | Unknown |
| 72008-05 | 2005 |
| 72110-06 | 2006 |
| 72560-07 | 2007 |
| 111C1 - Insulating Tape | |
| 11100115 | 2014 |
| 44854-05 | 2005 |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 116A1 - Banjo Bolts | |
| 11600001 | 2012 |
| 11600009 | 2014 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 50674-05 | 2005 |
| 119A1 - O-Rings | |
| 11105 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11145A | 2007 |
| 11179 | 1986 |
| 11201 | Unknown |
| 11293 | 1996 |
| 11323A | 2016 |
| 11686 | Unknown |
| 11900010 | 2013 |
| 11900021 | 2014 |
| 11900090 | 2017 |
| 11900092 | 2017 |
| 11900103 | 2017 |
| 11900116 | 2017 |
| 11900155 | 2020 |
| 11900172 | 2020 |
| 11900179 | 2021 |
| 11900180 | 2020 |
| 27444-00Y | 2000 |
| 46508-01 | 2001 |
| 120A1 - Pins | |
| 16574-99A | 1999 |
| 16574-99B | 2020 |
| 16583-00B | 2021 |
| 16589-99B | 2020 |
| 221 | 2026 |
| 24754-75A | 1975 |
| 42460-80B | 1980 |
| 45041-01A | 2001 |
| 515 | Unknown |
| 601 | Unknown |
| 121A1 - Grommets | |
| 11650 | 2010 |
| 11692 | Unknown |
| 12100007 | 2014 |
| 12100043 | 2014 |
| 12100113 | 2017 |
| 59778-06 | 2006 |
| 121B1 - Press-Fit Plugs | |
| 12100069 | 2017 |
| 59749-06 | 2006 |
| 70292-89 | 1989 |
| 765 | 1997 |
| 90520-07 | 2007 |
| 122A1 - Retaining Rings | |
| 9853 | Unknown |
| 10103 | Unknown |
| 10147 | 2018 |
| 10183 | 1996 |
| 10264 | Unknown |
| 10395 | Unknown |
| 10396 | Unknown |
| 10991A | Unknown |
| 10998 | 1985 |
| 11081A | 2008 |
| 11082A | 2016 |
| 11096 | 2010 |
| 11150 | 1984 |
| 11161 | 1984 |
| 11177A | 1996 |
| 11304 | Unknown |
| 11389 | Unknown |
| 11575 | Unknown |
| 11615 | Unknown |
| 12200144 | 2018 |
| 17945-36B | 1936 |
| 35087-99A | 1999 |
| 35114-02 | 2002 |
| 41229-08 | 2008 |
| 60678-85 | 1985 |
| 61012-04A | 2004 |
| 61213-04A | 2004 |
| 65325-83A | 1983 |
| 122A2 - Retaining Clips | |
| 12200170 | 2018 |
| 12200221 | 2021 |
| 12200226 | 2021 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 11599A | 2012 |
| 11848 | Unknown |
| 12400099 | 2017 |
| 41900-08 | 2008 |
| 46515-01 | 2001 |
| 5837B | 2020 |
| 125A1 - Tie Straps | |
| 10006 | 1960 |
| 10039 | 1981 |
| 10065 | 1985 |
| 10177 | 1996 |
| 12500014 | 2017 |
| 12500018 | 2017 |
| 12500024 | 2018 |
| 126A1 - Miscellaneous Hardware | |
| 12600032 | 2014 |
| 12600309 | 2021 |
| 56161-83A | 1983 |
| 8041 | Unknown |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 11779 | 2008 |
| 12600016 | 2011 |
| 12600067 | 2014 |
| 70291-89 | 1989 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 127B1 - Generic Mounting Bracket | |
| 12700090A | 2023 |
| 70493-08 | 2008 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14000377 | 2012 |
| 14001773 | 2019 |
| 14001798A | 2021 |
| 14002211 | 2020 |
| 140A3 - Other Special Warning Label | |
| 14001800 | 2019 |
| 15370-01A | 2001 |
| 90820-93D | 1993 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14100764 | 2017 |
| 14101244 | 2021 |
| 14101245 | 2021 |
| 14101271 | 2021 |
| 14101306 | 2021 |
| 42856-06 | 2006 |
| 44341-08 | 2008 |
| 162D1 - Engine Assembly | |
| 16200662 | 2020 |
| 162D3 - Engine Assembly Short Block | |
| 16200582 | 2019 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 164B1 - Engine Mount Bracket sub-component | |
| 16219-09 | 2009 |
| 7531 | 1980 |
| 7686 | Unknown |
| 7716 | 1990 |
| 7848W | Unknown |
| 164D1 - Tiebar Mount | |
| 16400041 | 2017 |
| 165A1 - Cylinder Head | |
| 16500388 | 2017 |
| 16500393 | 2017 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500305 | 2017 |
| 16500332 | 2017 |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 16800075 | 2017 |
| 16800080 | 2017 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300053 | 2017 |
| 17300055 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059B | 2020 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17900030 | 2017 |
| 17900031 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900034 | 2017 |
| 17900035 | 2017 |
| 180A1 - Valves | |
| 18000016 | 2017 |
| 18000034A | 2022 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18100045 | 2017 |
| 18100060 | 2017 |
| 181C3 - Valve Springs | |
| 18100140 | 2023 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 9298B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900048 | 2017 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 220Z1 - Kit,Piston Ring | |
| 22000061 | 2017 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100182 | 2024 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400120 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215A | 2022 |
| 244E1 - Transmission Access Door | |
| 35000238A | 2023 |
| 35260-06C | 2023 |
| 244F1 - Oil Pan | |
| 24400180A | 2023 |
| 254B1 - Camshaft | |
| 25400190 | 2017 |
| 25673-06 | 2006 |
| 25675-06 | 2006 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400452 | 2023 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 256A1 - Timer Cover | |
| 25600078 | 2018 |
| 257A1 - Cam Cover | |
| 25700467 | 2017 |
| 257B1 - Clutch Cover | |
| 25700904 | 2019 |
| 257E1 - Cover Gaskets | |
| 11902 | Unknown |
| 11936 | Unknown |
| 25700362A | 2022 |
| 25700370A | 2022 |
| 25700372B | 2018 |
| 25700378 | 2017 |
| 25700425A | 2023 |
| 25700433A | 2022 |
| 25700452 | 2017 |
| 25700455 | 2017 |
| 35654-06A | 2023 |
| 36805-06 | 2006 |
| 42857-06B | 2013 |
| 61192-96A | 1996 |
| 61402-08 | 2008 |
| 65324-83B | 2009 |
| 67208-08 | 2008 |
| 71294-08 | 2008 |
| 257L1 - Primary Cover | |
| 25700491 | 2017 |
| 25700650 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700520 | 2017 |
| 25701495 | 2023 |
| 257P1 - Tappet Cover | |
| 25700410 | 2017 |
| 25700411 | 2017 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700729 | 2017 |
| 25700730 | 2017 |
| 25700731 | 2017 |
| 25700746 | 2017 |
| 25701000 | 2018 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800098 | 2018 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 268H1 - Radiator System Cover | |
| 26800092 | 2017 |
| 269A1 - Cooling Line Fitting | |
| 26900117 | 2017 |
| 269A2 - Coolant Line | |
| 26900259A | 2022 |
| 269B1 - Radiator Hose | |
| 26900144 | 2017 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200025 | 2017 |
| 273A1 - Intake Manifold | |
| 27300121 | 2017 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300087 | 2017 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300086 | 2017 |
| 273G1 - Throttle Body | |
| 27300122 | 2017 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300082 | 2017 |
| 274B1 - Fuel Rail | |
| 27400019 | 2017 |
| 274C1 - Fuel Injector | |
| 27400015 | 2017 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29000148 | 2017 |
| 290D1 - Airbox Seal | |
| 29000149 | 2017 |
| 290Z1 - Kit,Airbox | |
| 29000290 | 2019 |
| 294A1 - Air Filter Element | |
| 29400267 | 2017 |
| 294B1 - Breather Bolt | |
| 29465-08B | 2017 |
| 294C1 - Breather Hose | |
| 29400336 | 2017 |
| 29400337 | 2017 |
| 294F1 - Engine Breather Valve | |
| 29400183 | 2017 |
| 29400210 | 2017 |
| 299B1 - Charging Rotor Assembly | |
| 29900038A | 2020 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900145 | 2025 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 31400137 | 2021 |
| 316A1 - Ignition Coil | |
| 31600017 | 2017 |
| 316B1 - Spark Plug Cable | |
| 31600018B | 2018 |
| 31600023A | 2017 |
| 31600078B | 2022 |
| 31600079 | 2017 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 32700050A | 2018 |
| 32700101 | 2019 |
| 32700144 | 2020 |
| 50126-08B | 2018 |
| 327B1 - Chemical / Gas Sensor | |
| 32700116 | 2021 |
| 32700124 | 2021 |
| 32700130 | 2021 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700017 | 2014 |
| 327E1 - Temperature Sensor | |
| 32700054A | 2024 |
| 32700200 | 2026 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600091 | 2017 |
| 33600188 | 2017 |
| 33600304 | 2019 |
| 336C1 - Shift Linkage Rod End | |
| 33719-79B | 1979 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 336Z1 - Kit,Shift Lever | |
| 33600243 | 2017 |
| 339A1 - Shift Lever | |
| 33900175 | 2017 |
| 339C1 - Shifter Drum | |
| 33900265 | 2023 |
| 339D1 - Shifter Fork | |
| 35187-06 | 2006 |
| 35210-06 | 2006 |
| 35217-06 | 2006 |
| 35222-06A | 2020 |
| 35223-06A | 2020 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33389-07 | 2014 |
| 33409-06B | 2006 |
| 34064-00C | 2000 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35081-06 | 2006 |
| 35082-07 | 2007 |
| 35186-06A | 2020 |
| 35243-06A | 2020 |
| 35249-06A | 2006 |
| 347B1 - Transmission Case | |
| 34700372 | 2021 |
| 348C1 - Transmission Top Cover | |
| 34800043 | 2018 |
| 34800044 | 2018 |
| 34800046 | 2018 |
| 350A1 - Transmission Output Sprocket | |
| 35000152A | 2023 |
| 350E1 - Transmission Gear | |
| 35000179 | 2018 |
| 35122-06A | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 11207A | 2009 |
| 25729-06 | 2006 |
| 25731-06 | 2006 |
| 25734-06 | 2006 |
| 25736-06 | 2006 |
| 25737-06 | 2006 |
| 25738-06 | 2006 |
| 352A1 - Engine Balancer | |
| 35200150 | 2023 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35600094 | 2018 |
| 35600103 | 2017 |
| 35807-06 | 2006 |
| 35811-06 | 2006 |
| 35814-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35126-06 | 2006 |
| 35204-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35124-06 | 2006 |
| 35202-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075A | 2021 |
| 365E1 - Inner Primary Housing | |
| 36500052A | 2020 |
| 367A1 - Clutch Lever | |
| 36700250 | 2021 |
| 367F1 - Clutch Lever Perch | |
| 36700254 | 2021 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 34920-86A | 1986 |
| 36700257 | 2021 |
| 37312-75 | 1975 |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000377 | 2023 |
| 37496-90A | 1990 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000219 | 2017 |
| 37000295 | 2019 |
| 37000382 | 2023 |
| 370Z1 - Kit,Clutch | |
| 37000376 | 2021 |
| 372D1 - Clutch Cable | |
| 37200395A | 2018 |
| 37200396 | 2018 |
| 37200437 | 2021 |
| 37200545 | 2021 |
| 37200561 | 2021 |
| 400A1 - Drive-Belt | |
| 40024-09A | 2015 |
| 401A1 - Engine Sprocket | |
| 40100041 | 2014 |
| 40100064 | 2017 |
| 83936-09A | 2013 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076A | 2024 |
| 409Z1 - Kit,Rear Wheel | |
| 40900661 | 2020 |
| 410D1 - Electronic Control Module (ECM) | |
| 41001165A | 2025 |
| 410G1 - Security System Control Module | |
| 41000341G | 2022 |
| 411A1 - ABS Control Unit | |
| 41100104C | 2022 |
| 413A1 - Brake Caliper | |
| 43027-08 | 2008 |
| 44023-08 | 2008 |
| 44080-08C | 2012 |
| 44160-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 42851-06 | 2006 |
| 413D1 - Brake Pad | |
| 41852-08B | 2012 |
| 41854-08 | 2008 |
| 42867-06A | 2006 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 42865-06B | 2006 |
| 415B1 - Brake Rotor | |
| 41500017 | 2014 |
| 41500018 | 2014 |
| 41500019 | 2014 |
| 41500020 | 2014 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42852-06A | 2006 |
| 42860-06B | 2006 |
| 42863-06 | 2006 |
| 42934-08 | 2008 |
| 44089-08 | 2008 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600382 | 2023 |
| 41600383 | 2023 |
| 41600384 | 2023 |
| 41600385 | 2023 |
| 41600386 | 2023 |
| 416Z1 - Kit,Brake Miscellaneous Component | |
| 41600409 | 2025 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700028A | 2018 |
| 44985-10D | 2018 |
| 417B1 - Brake Master Cylinder | |
| 42855-06D | 2018 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700367 | 2015 |
| 42862-06B | 2010 |
| 42937-08C | 2018 |
| 417G1 - Front Brake Lever | |
| 42276-06A | 2006 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 418B1 - Brake Line | |
| 41800890 | 2023 |
| 41800891 | 2023 |
| 41800998 | 2024 |
| 41801001 | 2024 |
| 41801004 | 2024 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423F1 - Tire Pressure Monitor | |
| 42300139 | 2021 |
| 42300142 | 2021 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 42300141 | 2021 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 42300001A | 2021 |
| 430D1 - Front Axle | |
| 41547-07A | 2007 |
| 430E1 - Rear Axle | |
| 43000203 | 2020 |
| 43000207 | 2020 |
| 431A1 - Front Tire | |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200045 | 2020 |
| 433B1 - Front Wheel Bearing Spacer | |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 41901-08 | 2008 |
| 48489-02 | 2002 |
| 56163-93 | 1993 |
| 433Z1 - Kit,Front Wheel | |
| 43300673 | 2020 |
| 454A1 - Front Telescopic Fork | |
| 45400197 | 2017 |
| 45400198 | 2017 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500175B | 2015 |
| 45500176B | 2015 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500396 | 2017 |
| 45500456 | 2017 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500117 | 2014 |
| 45500118 | 2014 |
| 45500132 | 2014 |
| 45500339 | 2017 |
| 45500341 | 2017 |
| 45500397 | 2017 |
| 45500398 | 2017 |
| 45500421 | 2001 |
| 45500424 | 2017 |
| 46513-01 | 2001 |
| 46514-01A | 2010 |
| 71310-94 | 1994 |
| 456A1 - Fork Protector | |
| 45600054 | 2017 |
| 45600055 | 2017 |
| 456C1 - Fork Lock | |
| 71540-94B | 2016 |
| 457D1 - Steering Stem | |
| 45700020A | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46615-06 | 2006 |
| 459B1 - Lower Triple Clamp | |
| 45900024 | 2014 |
| 45900091A | 2014 |
| 470A1 - Frame | |
| 47000344 | 2023 |
| 48079-09BHP | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 472D2 - Chassis Structure Mounting Bracket | |
| 47200302A | 2017 |
| 91140-09 | 2009 |
| 474C1 - Swingarm | |
| 47549-09A | 2017 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49000114A | 2018 |
| 500B1 - Sidestand Bracket | |
| 50000097 | 2017 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50000149 | 2018 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50684-11 | 2011 |
| 50689-11 | 2011 |
| 51068-08 | 2008 |
| 51070-08 | 2008 |
| 505B1 - Footpeg Mount Bracket | |
| 50208-04 | 2004 |
| 50500332A | 2016 |
| 50500334A | 2016 |
| 50518-09 | 2009 |
| 50622-09A | 2015 |
| 505D1 - Passenger Footpeg | |
| 50500876 | 2017 |
| 505K1 - Footpeg Wear Peg | |
| 50350-04 | 2004 |
| 506A1 - Brake Pedal | |
| 42444-04 | 2004 |
| 50600244 | 2017 |
| 50600245 | 2017 |
| 50912-72 | 1972 |
| 507A1 - Rider Interface Miscellaneous Component | |
| 54395-10 | 2010 |
| 520A1 - Rider Seat or Full Seat | |
| 52000142 | 2015 |
| 524A1 - Passenger Grab Handle | |
| 52400016 | 2014 |
| 52400017 | 2014 |
| 52400021 | 2014 |
| 540B1 - Rear Shock | |
| 54000096 | 2017 |
| 54000114 | 2017 |
| 540E1 - Rear Shock sub-component | |
| 54000141 | 2017 |
| 558A1 - Handlebar | |
| 55800734 | 2017 |
| 55800761 | 2017 |
| 559D1 - Lower Handlebar Clamp | |
| 55900051 | 2014 |
| 55900052 | 2014 |
| 559E1 - Upper Handlebar Clamp | |
| 55900050 | 2014 |
| 560A1 - Mirror | |
| 92614-10 | 2010 |
| 92615-10 | 2010 |
| 561E1 - Throttle Grip | |
| 56248-08 | 2008 |
| 56304-08 | 2008 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 66048-09A | 2012 |
| 66250-09 | 2009 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 589A1 - Front Fender | |
| 58900009 | 2014 |
| 595B1 - Tailsection Center | |
| 59739-09 | 2009 |
| 595D1 - Rear Fender | |
| 59500519 | 2018 |
| 59768-97 | 1997 |
| 595S2 - Sub-Assembly,Rear Fender | |
| 59731-09A | 2017 |
| 60575-10A | 2017 |
| 596B1 - Fender Tip | |
| 59581-05 | 2005 |
| 59600008 | 2014 |
| 69615-10 | 2010 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800116 | 2022 |
| 608B1 - Carbon Canister Hose | |
| 27291-09A | 2014 |
| 27297-09A | 2014 |
| 60800062 | 2021 |
| 60800063 | 2021 |
| 609A1 - Fuel Miscellaneous Component | |
| 62229-08B | 2011 |
| 70999-09 | 2009 |
| 75076-08B | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 75291-08A | 2011 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000691 | 2020 |
| 611B1 - Fuel Cap | |
| 61100194 | 2021 |
| 61272-92F | 2021 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08C | 2016 |
| 612C1 - Fuel Line | |
| 61200022A | 2021 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613B1 - Horn Cover | |
| 61300626A | 2017 |
| 613K1 - Airbox Cover | |
| 61300751 | 2017 |
| 61300927 | 2018 |
| 613M1 - Headlight Cover | |
| 61300097 | 2014 |
| 61300098 | 2014 |
| 614C1 - Trim | |
| 61400159 | 2014 |
| 61400498 | 2017 |
| 624A1 - Oil Pump Assembly | |
| 62400238 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 62400126 | 2017 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 627A1 - Oil Cooler | |
| 62700196 | 2017 |
| 62700227 | 2020 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62700136 | 2017 |
| 62700291 | 2021 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296A | 2024 |
| 627G1 - Oil Jet | |
| 62700089A | 2022 |
| 62700117A | 2022 |
| 627H1 - Oil Line | |
| 62700143 | 2017 |
| 62700144 | 2017 |
| 62700376 | 2025 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 62700146 | 2017 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62700141A | 2023 |
| 649A1 - Muffler | |
| 64900765B | 2021 |
| 64900766A | 2019 |
| 64900769A | 2021 |
| 64900770 | 2018 |
| 64900954 | 2021 |
| 64900955 | 2021 |
| 654A1 - Exhaust Shield | |
| 62519-03 | 2003 |
| 65400483A | 2020 |
| 65400484 | 2018 |
| 65400485 | 2018 |
| 65400486 | 2018 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85A | 2016 |
| 66861-09B | 2019 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65296-95B | 2021 |
| 65500042 | 2017 |
| 65500043B | 2021 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600177 | 2017 |
| 65600178A | 2021 |
| 65600377 | 2021 |
| 65600379 | 2021 |
| 65600451 | 2023 |
| 659A1 - Exhaust Clamp | |
| 65900015 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 65900017A | 2022 |
| 65900056A | 2024 |
| 660A1 - Battery | |
| 66000107 | 2015 |
| 66010-97E | 2021 |
| 660C1 - Battery Pan | |
| 66000010A | 2018 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 660Z1 - Kit,Battery | |
| 66000212B | 2024 |
| 677A1 - Headlight | |
| 67700105 | 2014 |
| 67700249 | 2014 |
| 67700269 | 2016 |
| 67700329 | 2017 |
| 67700457 | 2018 |
| 67716-60C | 2014 |
| 67778-60A | 1960 |
| 67780-60A | 1960 |
| 69325-02 | 2002 |
| 69331-02 | 2002 |
| 677B1 - Headlight sub-component | |
| 46555-03B | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700068 | 2011 |
| 67700204 | 2014 |
| 67700205 | 2014 |
| 678A1 - Taillight | |
| 67800847 | 2017 |
| 68245-03 | 2003 |
| 68370-03A | 2003 |
| 68830-99A | 1999 |
| 678D1 - Turnsignal | |
| 67015-02 | 2002 |
| 67800483 | 2015 |
| 67800484 | 2015 |
| 67800485 | 2015 |
| 67800900 | 2017 |
| 67801193 | 2021 |
| 67801194 | 2021 |
| 67822-88A | 2025 |
| 68497-07 | 2007 |
| 68776-06 | 2006 |
| 68838-06 | 2006 |
| 69587-07 | 2007 |
| 678E1 - Turnsignal Lens | |
| 68559-07 | 2007 |
| 68973-00 | 2000 |
| 679B1 - Reflector | |
| 59259-90 | 1990 |
| 67900065 | 2014 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 67900256 | 2014 |
| 69490-07 | 2007 |
| 69861-07 | 2018 |
| 69862-07 | 2018 |
| 679D1 - License Plate Bracket | |
| 11687 | Unknown |
| 67900009 | 2012 |
| 67900213A | 2015 |
| 69380-09BHP | 2009 |
| 73254-10 | 2010 |
| 73255-10 | 2010 |
| 680A1 - Decorative Light | |
| 69353-05 | 2005 |
| 69377-10 | 2010 |
| 680C1 - Incandescent Bulb | |
| 52441-95 | 1995 |
| 68163-84 | 1984 |
| 68167-04 | 2004 |
| 68168-89A | 1989 |
| 68572-64B | 1964 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000083 | 2017 |
| 692C1 - Electrical Miscellaneous Component | |
| 68253-08A | 2012 |
| 69200175 | 2014 |
| 69200285 | 2014 |
| 69200840 | 2017 |
| 72062-06 | 2006 |
| 72189-04 | 2004 |
| 72232-96 | 1996 |
| 72299-95 | 1995 |
| 692C2 - Electrical Mounting Bracket | |
| 67341-04B | 2004 |
| 69062-91A | 1991 |
| 69120-91 | 1991 |
| 69123-92A | 1992 |
| 69200284A | 2016 |
| 69201178 | 2017 |
| 69201287A | 2023 |
| 69201924 | 2020 |
| 69202307 | 2021 |
| 69202636A | 2023 |
| 69202637 | 2021 |
| 69202720A | 2022 |
| 69203520 | 2024 |
| 71455-11 | 2011 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 69200336A | 2020 |
| 72330-95 | 1995 |
| 72331-95 | 1995 |
| 72345-02 | 2002 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69201411 | 2017 |
| 692F1 - Wire Harness | |
| 69200124 | 2014 |
| 69200129 | 2014 |
| 69200130 | 2014 |
| 69200224 | 2014 |
| 69201130 | 2017 |
| 69201724 | 2017 |
| 69202225A | 2023 |
| 69202616 | 2021 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 692G2 - Wire Guide | |
| 72298-95 | 1995 |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 69200183 | 2014 |
| 69200184 | 2014 |
| 69200212 | 2014 |
| 69200254 | 2014 |
| 69200256 | 2014 |
| 69200305 | 2014 |
| 69200306 | 2014 |
| 69201299 | 2017 |
| 69201302 | 2017 |
| 69201390 | 2017 |
| 69201393 | 2017 |
| 69201394 | 2017 |
| 69201395 | 2017 |
| 69201397 | 2017 |
| 69201400 | 2017 |
| 69201401 | 2017 |
| 69201405 | 2017 |
| 69201441 | 2017 |
| 69201779 | 2019 |
| 69202028 | 2021 |
| 69202029 | 2021 |
| 69202032 | 2021 |
| 69202098 | 2019 |
| 69202108 | 2019 |
| 69202109 | 2019 |
| 69202322 | 2021 |
| 69202323 | 2021 |
| 72009-05 | 2005 |
| 72064-06 | 2006 |
| 72081-11 | 2011 |
| 72098-06 | 2006 |
| 72127-06 | 2006 |
| 72130-04 | 2004 |
| 72444-07GY | 2007 |
| 72518-01 | 2001 |
| 72519-09BK | 2009 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72632-10 | 2010 |
| 72639-10 | 2010 |
| 72905-11 | 2011 |
| 72906-11 | 2011 |
| 72907-11 | 2011 |
| 72908-11 | 2011 |
| 73152-96BK | 1996 |
| 73301-04 | 2004 |
| 692H2 - Terminal | |
| 72662-11 | 2012 |
| 72721-07 | 2007 |
| 72909-11 | 2011 |
| 72991-01 | 2001 |
| 73307-10 | 2010 |
| 74194-98 | 1998 |
| 5118 | 2011 |
| 69200185 | 2014 |
| 69200186 | 2014 |
| 69200187 | 2014 |
| 69200238 | 2011 |
| 69200307 | 2014 |
| 69200308 | 2014 |
| 69200536 | 2014 |
| 69201300 | 2017 |
| 69201596 | 2017 |
| 69201814 | 2019 |
| 69201890 | 2021 |
| 69202104 | 2019 |
| 69202453 | 2021 |
| 69202787 | 2021 |
| 72168-07 | 2007 |
| 72169-07 | 2007 |
| 72213-94 | 1994 |
| 72222-11 | 2011 |
| 72226-11 | 2011 |
| 72227-11 | 2011 |
| 72241-94A | 1994 |
| 72256-11 | 2011 |
| 72283-09 | 2009 |
| 72290-94 | 1994 |
| 72291-94 | 1994 |
| 72296-95 | 1995 |
| 72308-97 | 1997 |
| 72343-10 | 2010 |
| 72344-10 | 2010 |
| 72356-95 | 1995 |
| 72484-08 | 2008 |
| 72493-07 | 2007 |
| 72569-08 | 2008 |
| 72608-08 | 2008 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 68905-00 | 2000 |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 69201301 | 2017 |
| 69201391 | 2017 |
| 69201392 | 2017 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 69201404 | 2017 |
| 69201407 | 2017 |
| 69201416 | 2017 |
| 69201442 | 2017 |
| 69202031 | 2021 |
| 69202106 | 2019 |
| 69202107 | 2019 |
| 72039-71A | 1971 |
| 73303-04 | 2004 |
| 74197-04 | 2004 |
| 692L1 - Wire Harness sub-component | |
| 72720-07 | 2007 |
| 72902-01BK | 2001 |
| 72904-01BK | 2001 |
| 72914-01BK | 2001 |
| 73104-96BK | 1996 |
| 73106-96BK | 1996 |
| 73153-96BK | 1996 |
| 73154-96BK | 1996 |
| 73156-96BK | 1996 |
| 73190-96 | 1996 |
| 73191-96 | 1996 |
| 73213-07 | 2007 |
| 73305-04 | 2004 |
| 74112-98BK | 1998 |
| 74152-98 | 1998 |
| 74191-98 | 1998 |
| 75229-08 | 2008 |
| 69200188 | 2014 |
| 69200189 | 2014 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 69201307 | 2017 |
| 69201423 | 2017 |
| 70494-08 | 2008 |
| 70631-08 | 2008 |
| 70681-09 | 2009 |
| 72010-05 | 2005 |
| 72053-92 | 1992 |
| 72065-06A | 2006 |
| 72099-06 | 2006 |
| 72145-06 | 2006 |
| 72175-07BK | 2007 |
| 72177-07BK | 2007 |
| 72188-07BK | 2007 |
| 72209-11 | 2011 |
| 72214-94 | 1994 |
| 72295-94 | 1994 |
| 72405-98BK | 1998 |
| 72414-07BK | 2007 |
| 72415-07GY | 2007 |
| 72473-07 | 2007 |
| 72478-07BK | 2007 |
| 72479-07BK | 2007 |
| 72485-07 | 2007 |
| 72486-08 | 2008 |
| 72494-07 | 2007 |
| 72499-07 | 2007 |
| 72511-07BK | 2007 |
| 72512-07BK | 2007 |
| 72544-07 | 2007 |
| 72557-07 | 2007 |
| 72589-09 | 2009 |
| 72606-08 | 2008 |
| 72607-08 | 2008 |
| 72609-08 | 2008 |
| 72610-08 | 2008 |
| 692M1 - Electrical Component / Wire Cover | |
| 69201286A | 2018 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900379D | 2022 |
| 70900421C | 2020 |
| 70900616B | 2020 |
| 709B2 - Fuel Gauge | |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 70900744 | 2017 |
| 714A1 - Ignition Switch | |
| 71400010A | 2016 |
| 71517-11A | 2017 |
| 714B1 - Mechanical Switch | |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 71400112A | 2021 |
| 715A1 - Hand Control | |
| 67493-08 | 2008 |
| 71500044 | 2014 |
| 71500047 | 2014 |
| 71500048 | 2014 |
| 71500049 | 2014 |
| 71500050 | 2014 |
| 71500053 | 2014 |
| 71500057 | 2014 |
| 71500094 | 2014 |
| 71500127C | 2018 |
| 71500338 | 2016 |
| 71500340 | 2016 |
| 71500473 | 2017 |
| 71500475 | 2017 |
| 71500488 | 2019 |
| 71500564 | 2021 |
| 71500568 | 2021 |
| 747A1 - Voltage Regulator | |
| 72350-11 | 2011 |
| 74700025B | 2022 |
| 74700038 | 2017 |
| 74700039 | 2017 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 902B1 - Saddlebag Cover | |
| 90200411 | 2014 |
| 90200413 | 2014 |
| 902E1 - Saddlebag Bottom | |
| 75089-08 | 2008 |
| 90200415 | 2014 |
| 90200467 | 2014 |
| 90200519 | 2014 |
| 90200520 | 2014 |
| 90200521 | 2014 |
| 90200522 | 2014 |
| 90200549 | 2014 |
| 90200550 | 2014 |
| 90200611 | 2014 |
| 90200899 | 2014 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 90200902 | 2014 |
| 90200903 | 2014 |
| 90200963 | 2014 |
| 90200964 | 2014 |
| 90200983DH | 2014 |
| 90200984DH | 2014 |
| 90201319 | 2015 |
| 90201320 | 2015 |
| 90202108 | 2020 |
| 902Z1 - Kit,Saddlebag | |
| 90201540 | 2017 |
| 90201742 | 2017 |
| 90201743 | 2017 |
| 903A1 - Lockset | |
| 90300024 | 2014 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 90300111 | 2017 |
| 90300236 | 2023 |
| 917B1 - Service Program Kit | |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800058 | 2017 |
| 91800064 | 2017 |
| 91800088 | 2025 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 940A2 - Owner's Manual | |
| 94001245 | 2025 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10080 | CLAMP | COOLANT DISTRIBUTION - AIR-COOLED: |
| 1062 | SCREW | PRIMARY HOUSING: BRAKE LINES AND MODULE, REAR - ABS: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: TRANSMISSION BEARINGS AND COVERS: |
| 11105 | O-RING | TRANSMISSION HOUSING, COVER AND OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: TRANSMISSION BEARINGS AND COVERS: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11150 | RETAINING RING | SHIFTER, GEAR: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFTS AND CAMSHAFT COVER: |
| 11304 | RING | FOOTPEGS, PASSENGER: |
| 11900103 | O-RING | CAMSHAFTS AND CAMSHAFT COVER: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 2446 | SCREW | LICENSE PLATE BRACKETS: |
| 25700378 | GASKET | PRIMARY HOUSING: |
| 25700455 | GASKET | PRIMARY HOUSING: |
| 25700731 | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFTS AND CAMSHAFT COVER: |
| 25700746 | GASKET KIT | PRIMARY HOUSING: |
| 27300087 | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 2952A | SCREW | SEAT: |
| 2995 | SCREW | FENDERS, REAR: |
| 3050 | SCREW | ALTERNATOR AND REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SENSORS AND SWITCHES, ENGINE: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 36805-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 4132 | SCREW | CLUTCH CONTROL: BRAKE CONTROL, FRONT: |
| 41751-06A | GASKET | BRAKE CONTROL, FRONT: BRAKE LINES, FRONT - ABS: BRAKE CONTROL, REAR: BRAKE LINES AND MODULE, REAR - ABS: |
| 43567-92 | SCREW | WHEELS, REAR: |
| 4740A | SCREW | CAMSHAFTS AND CAMSHAFT COVER: |
| 5210 | WELL NUT | NACELLE AND HEADLAMP - FLHRXS: |
| 59768-97 | SEAT NUT KIT | SEAT: FENDERS, REAR: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 65324-83B | GASKET | EXHAUST SYSTEM (1 OF 2): |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM (1 OF 2): |
| 6702 | WASHER | SHIFTER, GEAR: |
| 7041 | LOCKWASHER | EXHAUST SYSTEM (1 OF 2): |
| 7586 | JAMNUT | SADDLEBAGS (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM (1 OF 2): |
| 7716 | LOCKNUT | FOOTBOARDS, OPERATOR: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9955 | CLAMP | EXHAUST SYSTEM (1 OF 2): |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD AND PIN KIT | BRAKE CALIPER, REAR: |
| 41854-08 | PAD AND PIN KIT | BRAKE CALIPER, FRONT: |
| 46514-01A | OIL SEAL | FORK, FRONT: |
| 46615-06 | PACKING SEAL | FORK, FRONT: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME AND JIFFY STAND - FLHRXS: |
| 50245-07 | BUMPER | FRAME AND JIFFY STAND - FLHRXS: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN, ABS - FLHRXS (9 OF 10): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400183 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400210 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 33600091 | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH: |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | TOE SHIFTER PEG KIT | SHIFTER, GEAR: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP - FLHRXS: |
| 65900015 | CLAMP | EXHAUST SYSTEM (2 OF 2): |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TAIL LAMP AND TURN SIGNALS, REAR - FLHRXS: |
| 68572-64B | BULB | TAIL LAMP AND TURN SIGNALS, REAR - FLHRXS: |
| 68973-00 | LENS | TURN SIGNALS, FRONT - FLHRXS: TAIL LAMP AND TURN SIGNALS, REAR - FLHRXS: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90300111 | REMOTE CONTROL FOB | SWITCHES: LOOSE PARTS: |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | WHEELS, FRONT: WHEELS, REAR: |
