STAGE I, II, III SPEAKER KIT-FRAME MOUNTED FAIRING (PN 76001297, 76001298 and 76001457)

941003652025-01-26

GENERAL INFORMATION

Table 1. General Information

Kits	Suggested Tools	Skill Level⁽¹⁾
76001297, 76001298, 76001457	Safety Glasses, Torque Wrench

(1) Tightening to torque value or other moderate tools and techniques required

KIT CONTENTS

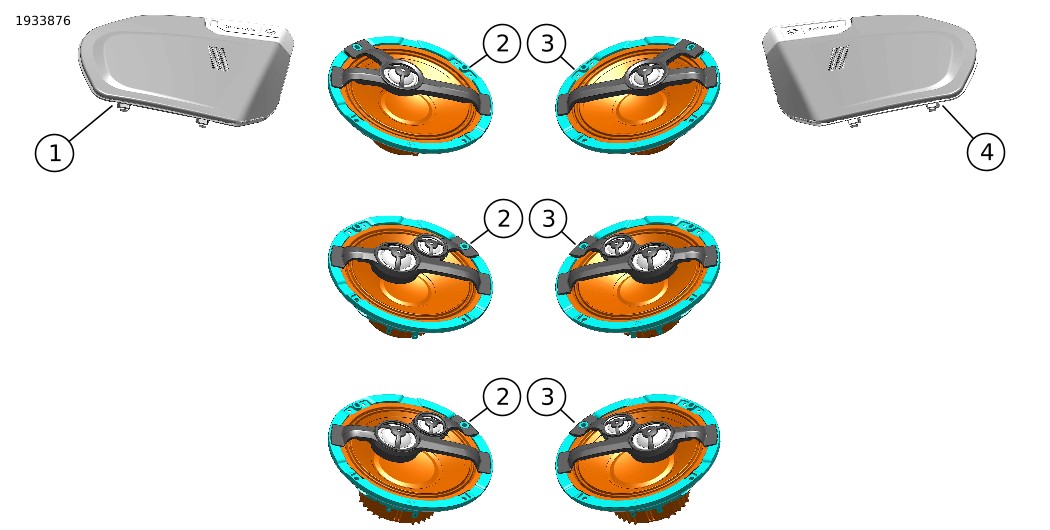

Figure 1. Kit Contents: Stage I, II, III Speaker Kit-Frame Mounted Fairing

Table 2. Kit Contents: Stage I, II, III Speaker Kit-Frame Mounted Fairing

Verify that all contents are present in the kit before installing or removing items from vehicle.
Item	Qty	Description	Part No.	Notes
1	1	Grille assembly, left, Stage 1 Speaker	76001148
		Grille assembly, left, Stage 2 Speaker	76001146
		Grille assembly, left, Stage 3 Speaker	76001464
2	1	Stage 1 speaker, left, 6.5 inch	76000998
		Stage 2 speaker, left, 6.5 inch	76000999
		Stage 3 speaker, left, 6.5 inch	76001467
3	1	Stage 1 speaker, right, 6.5 inch	76001010
		Stage 2 speaker, right, 6.5 inch	76001011
		Stage 3 speaker, right, 6.5 inch	76001466
4	1	Grille assembly, right, Stage 1 Speaker	76001149
		Grille assembly, right, Stage 2 Speaker	76001147
		Grille assembly, right, Stage 3 Speaker	76001465

GENERAL

Instruction sheet is also available electronically. To verify you are using the most current version available, do one of the following:

Go to h-d.com/isheets
Scan QR code in upper left corner of the instruction sheet

NOTE

This instruction sheet may have a Supplemental Video to assist installer in clarifying a certain part of the assembly. A linked video would be located at the end of this instruction sheet.

Models

For model fitment information, see the Parts and Accessories (P&A) Retail Catalog or the Parts and Accessories section of www.harley-davidson.com.

Contact Harley-Davidson Customer Support Center at 1-800-258-2464 (U.S. only) or 1-414-343-4056.

Installation Requirements

WARNING

Rider and passenger safety depend upon the correct installation of this kit. Use the appropriate service manual procedures. If the procedure is not within your capabilities or you do not have the correct tools, have a Harley-Davidson dealer perform the installation. Improper installation of this kit could result in death or serious injury. (00333b)

NOTE

This instruction sheet references service manual information. A service manual for the year and model motorcycle is required for this installation and is available from:

A Harley-Davidson dealer.
H-D Service Information Portal, a subscription-based access available for most 2001 and newer models. For more information see Frequently ask questions about subscriptions.

This item is available at a Harley-Davidson dealership.

2024-later FLTRX: Separate purchase of Amplifier Kit (Part No. 76001294) is required for this installation.

Installation by a technician at a Harley-Davidson dealership is recommended.

To ensure proper audio performance, speaker set up in the Infotainment Control Unit (IFCU) OR Digital Technician II (DT II) is required for audio configuration and amplifier firmware update.

NOTE

Ensure to select the proper stage speaker during set up for proper audio functionality and speaker performance. If the wrong stage is selected, this may lead to poor speaker performance and damage.

Electrical Overload

NOTICE

It is possible to overload the vehicle's charging system by adding too many electrical accessories. If the combined electrical accessories operating at any one time consume more electrical current than the vehicle's charging system can produce, the electrical consumption can discharge the battery and cause damage to the vehicle's electrical system. (00211d)

WARNING

When installing any electrical accessory, be certain not to exceed the maximum amperage rating of the fuse or circuit breaker protecting the affected circuit being modified. Exceeding the maximum amperage can lead to electrical failures, which could result in death or serious injury. (00310a)

PREPARE

NOTE

Models with security: Disable security system.

1.	Remove left saddlebag. See service manual.
2.	Remove left side cover. See service manual.
3.	Remove main fuse. See service manual.

REMOVE

NOTE

New speaker components are shown in graphic, Original Equipment Manufacturer (OEM) is similar.

1.	Figure 2 Remove Original Equipment (OE) speaker grille (8). a. Using a non-marring tool, pry clips (5) from clip openings (3, 4).
2.	Remove speaker screws (1).
3.	Figure 3 Remove OE speaker. a. Remove speaker (1) from fairing far enough to gain access to connectors (4). b. Disconnect connectors (4) from speaker terminals (2).
4.	Repeat procedure for opposite side.

1	Screw (4)
2	Speaker
3	Outer clip opening
4	Inner clip opening
5	Outer upper clip
6	Inner upper clip
7	Tab (2)
8	Grille

Figure 2. Speaker and Grille (Stage 2 shown, OE similar)

1	Speaker
2	Terminal (2)
3	Alignment hole
4	Connector (2)
5	Pin

Figure 3. Fairing Speaker Connection

INSTALL

1.	Figure 4 Orient Stage I (2, 5) or II (3, 4) speaker as shown.
2.	Figure 3 Install Stage I or II speaker. a. Connect connectors (4) to speaker terminals (2). b. Install speaker (1) into enclosure.
3.	Figure 2 Install speaker screws. a. Alternately secure screws (1). b. Tighten. Torque: 1–1.5 N·m (9–13 in-lbs)
4.	Install grille. a. Figure 5 Verify clips (1) and gasket (2) are in place on grille. b. Figure 2 Install lower tabs (7) onto fairing. c. Rotate grille (8) toward fairing. d. Press grille outer upper clip (5) into outer clip opening (3). e. Press grille inner upper clip (6) into inner clip opening (4).

1	Left OE Speaker
2	Left Stage 1 speaker
3	Left Stage 2 or 3 speaker
4	Right Stage 2 or 3 speaker
5	Right Stage 1 speaker
6	Right OE Speaker

Figure 4. Speaker Orientation (Typical)

1	Clip (2)
2	Gasket

Figure 5. Grille Gasket

COMPLETE

NOTE

To prevent possible damage to the sound system, verify that the ignition is OFF before installing the main fuse.

1.	Install main fuse. See service manual.
2.	Install left side cover. See service manual.
3.	Install left saddlebag. See service manual.
4.	Turn the ignition ON, but do not start the vehicle.
5.	Make sure that all speakers are working properly. Check that front and rear fader function is operating correctly. If not, check speaker wiring.
