HD-50120-E: CRIMP TOOL KIT
HD-50120-E2025-01-30
General

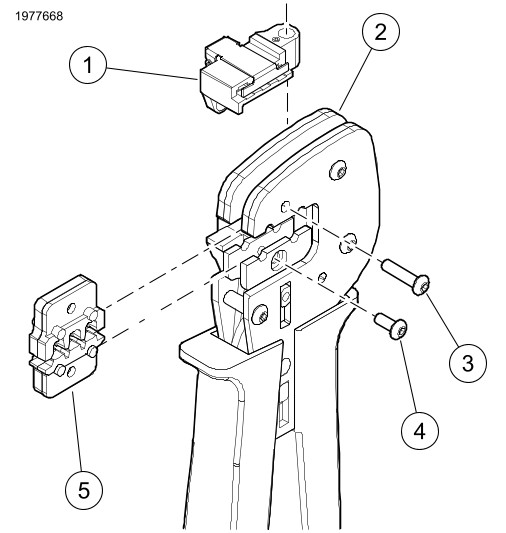

See Figure 1. The UNIVERSAL CRIMPER SET (Part Number:HD-50120) is used to install pin and socket terminals by using interchangeable dies.
| 1 | Locator |
| 2 | Hand crimp frame (HD-50120-2) |
| 3 | M4 X 9 mm (short screw) |
| 4 | M4 X 18 mm (long screw) |
| 5 | Die set (HD-50120-#) |
Figure 1. Crimp Tool Kit - HD-50120
Die Replacement
- See Figure 1. Determine terminal type based on connector or wire being repaired.
- To replace the dies, open the HAND CRIMP FRAME (Part Number:HD-50120-2) jaws.
- Remove the M4 X 9 mm (short screw) on the moving jaw and the M4 X 18 mm (long screw) on the fixed jaw.
- Remove the die set.
- Swing open the locator and remove the locator from the locator mounting post.
- Snap the appropriate locator onto the locator mounting post on the left side of the hand crimp frame. Align the nest designator letters A and B on both dies and install the dies with the letters being visible (opposite side from locator).
- Install the M4 X 9 mm (short screw) on the moving jaw and the M4 X 18 mm (long screw) on the fixed jaw.
Terminal Replacement
- See Figure 2. Rotate the terminal locator away from the crimp tool.

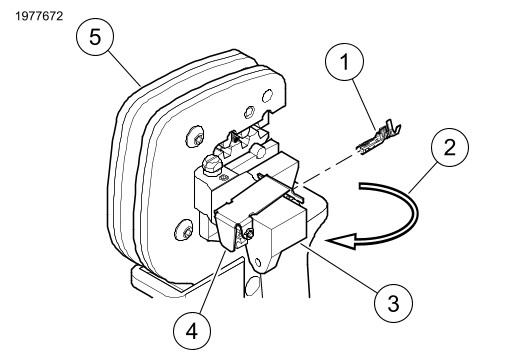

1 Terminal 2 Rotate to open locator 3 Locator 4 Wire stop 5 Hand crimp frame (HD-50120-2) Figure 2. Prepare terminal for crimping - Load the terminal into the locator pocket that is aligned with the appropriate crimping nest profile for the wire being used.
- With the HAND CRIMP FRAME (Part Number:HD-50120-2) jaws in the open position, return the locator to its original position.
- Refer to Table 1. For correct strip length. Insert the stripped wire over the terminal with the tip up against the wire stop.
- Compress the terminal by squeezing the tool handles until the ratchet mechanism cycle has been completed. Then release the handles to open the jaws.
- Remove and visually inspect the crimped terminal for proper crimp quality and location.
NOTE
Some larger terminals may not swing past the lower die into position. If this is the case, load the terminal from the front, with the locator in the closed position. Sliding the locator slightly up its mounting post will ease insertion.
Table 1. Terminal and Wire Specifications
Terminal Series | Terminal Part No | Wire Size AWG | Crimp Die/ Locator and Nest | Insulation Diameter | Strip Length |
|---|---|---|---|---|---|
Molex CMC Sealed Series | 72226-11 | 16 | HD-50120-3 Nest B | 2.18–2.34 mm (0.086–0.092 in) | 4.5 mm (0.177 in) |
72227-11 | 18 | HD-50120-3 Nest A | 1.91–2.06 mm (0.075–0.081 in) | ||
72222-11 | 18 | HD-50120-4 Nest B | 1.6–1.9 mm (0.063–0.075 in) | 3.5 mm (0.138 in) | |
20 | HD-50120-4 Nest A | 1.5–1.8 mm (0.059–0.071 in) | |||
JAE MX19 Sealed Series | 72909-11 | 20 | HD-50120-6 Nest A | 1.7–1.9 mm (0.067–0.075 in) | 2–2.5 mm (0.079–0.098 in) |
72910-11 | HD-50120-6 Nest B | ||||
Tyco GET64 Sealed Series | 72666-12 | 18 - 20 | HD-50120-7 Nest C | 1.6–1.9 mm (0.063–0.075 in) | 4.4 mm (0.173 in) |
Delphi 100W Sealed Series | 72076-00 | 18 | HD-50120-7 Nest A | 2 mm (0.079 in) MAX | 5.1 mm (0.201 in) |
72568-08 | 20 - 22 | HD-50120-7 Nest B | 1.92 mm (0.076 in) MAX | ||
Tyco MCP Sealed Series | 72579-12 | 14 | HD-50120-8 Nest A | 2.2–3 mm (0.087–0.118 in) | 4.2–4.8 mm (0.165–0.189 in) |
16 | HD-50120-8 Nest B | ||||
72580-12 | 20 | HD-50120-8 Nest C | 1.4–1.6 mm (0.055–0.063 in) | 3.3–3.9 mm (0.130–0.154 in) | |
Bosch BTC Sealed Series | 69200187 | 12 | HD-50120-9 Nest A | 3.4–3.7 mm (0.134–0.146 in) | 5.4–6 mm (0.213–0.236 in) |
69200185 | 20 | HD-50120-9 Nest B | 1.6–1.9 mm (0.063–0.075 in) | 3.5–4.1 mm (0.138–0.161 in) | |
69200186 | 14 | HD-50120-10 Nest A | 2.7–3 mm (0.106–0.118 in) | 4–4.6 mm (0.157–0.181 in) | |
16 | HD-50120-10 Nest B | 2–2.7 mm (0.079–0.106 in) | 5.4–6 mm (0.213–0.236 in) | ||
JST JWPF Sealed Series | 69201164 | 22 | HD-50120-11 Nest A | 1.4–1.7 mm (0.055–0.067 in) | 3.8 mm (0.150 in) |
69200307 | |||||
Molex BPT Sealed Series | 72413-07 | 18 | HD-50120-11 Nest B | 2.06 mm (0.081 in) | 2.7–3.5 mm (0.106–0.138 in) |
Molex MX64 Sealed Series | 72721-07 | 20 | HD-50120-11 Nest C | 1.85 mm (0.073 in) | |
MCON 1.2 Sealed Series | 69201398 | 20 | HD-50120-12 Nest A | 1.9 mm (0.075 in) | 3.6 mm (0.142 in) |
69201407 | HD-50120-12 Nest B | ||||
69201442 | 18 | HD-50120-12 Nest C | 2.4 mm (0.094 in) | 3.6 mm (0.142 in) | |
16 | HD-50120-12 Nest D |
