2021 HARLEY-DAVIDSON® PARTS CATALOG: TRIKE MODELS
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 94000858 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2020 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2021 TRIKE MODELS
VIN Model Codes
Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | F=Twin-Cooled™ Milwaukee-Eight™ 114 Engine, 1868 cm3 P=Milwaukee-Eight™ 114 Engine, 1868 cm3 | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=ENG/EN2/HDI/HD2/HD4 5=Japan (JPN) 6=Australia (AUS) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=IND/IN2 0=ASEAN (AZN) A=China (CHN) G=HD3 | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | M=2021 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes: Trike Models
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
MA | FLHTCUTG Tri Glide® Ultra | MC | FLRT Freewheeler |
ENGINE ASSEMBLY - Milwaukee-Eight® 114 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200660 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 114 engine) (black) | FLRT |
| 1 | 16200661 | ENGINE ASSEMBLY, complete (Twin-Cooled) (Milwaukee-Eight® 114 engine) (black) | FLHTCUTG |
| 2 | 16200582 | ENGINE ASSEMBLY, shortblock, with 91800064, crankcase, flywheel assembly, camshaft support plate assembly, balancer and cylinder studs (See Note) | FLHTCUTG, FLRT |
| 3 | 91800064 | KIT, shortblock installation, with 25700729 upper end gasket kit, 25700746 inner primary gasket kit, camshaft sprocket, camshaft drive chain and camshaft tensioner | FLHTCUTG, FLRT |
| Note: Cylinders, cylinder heads, camshaft, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil pump, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99A | DOWEL PIN (4) | ALL |
| 2 | 10200303 | FLANGE NUT (dull silver) (8) | ALL |
| 3 | 10900015A | STUD, exhaust port (4) | ALL |
| 4 | 16500305 | GASKET, cylinder head (4.016 in) (2) | ALL |
| 5 | 16500332 | GASKET, cylinder base (2) | ALL |
| 6 | 16500388 | CYLINDER HEAD, rear, with 65324-83B, 10900015, 18000016, 18000034, 18100043, 18100044, 18100045,18100060 and 18400073B (Air-Cooled) (black) | FLRT |
| 6 | 16500498 | CYLINDER HEAD, rear, with 65324-83B, 10900015, 18000016, 18000034, 18100043, 18100044, 18100045,18100060 and 18400073B (Twin-Cooled) (black) | FLHTCUTG |
| 6 | 16500393 | CYLINDER HEAD, front, with 65324-83B, 10900015, 18000016, 18000034, 18100043, 18100044, 18100045,18100060 and 18400073B (Air-Cooled) (black) | FLRT |
| 6 | 16500508 | CYLINDER HEAD, front, with 65324-83B, 10900015, 18000016, 18000034, 18100043, 18100044, 18100045,18100060 and 18400073B (Twin-Cooled) (black) | FLHTCUTG |
| 7 | 16800063 | STUD, cylinder (8) | ALL |
| 8 | 16800075 | CYLINDER, front, with 16589-99A (4.016 in) (black) | ALL |
| 8 | 16800080 | CYLINDER, rear, with 16589-99A (4.016 in) (black) | ALL |
| 9 | 18000016 | INTAKE VALVE (4) | ALL |
| 10 | 18000034 | EXHAUST VALVE (4) | ALL |
| 11 | 18100043 | VALVE SPRING (8) | ALL |
| 12 | 18100044 | SEAL, valve (8) | ALL |
| 13 | 18100045 | COLLAR, valve spring (8) | ALL |
| 14 | 18100060 | KEEPER, valve (16) | ALL |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | ALL |
| 16 | 25700729 | GASKET KIT, top end | ALL |
| 16 | 25700730 | GASKET KIT, engine overhaul | ALL |
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | ALL |
| 2 | 4741A | SCREW (8) | ALL |
| 3 | 11132A | O-RING, pushrod cover (4) | ALL |
| 4 | 11145A | O-RING, pushrod cover (4) | ALL |
| 5 | 11293 | O-RING (4) | ALL |
| 6 | 17945-36B | CAP, cover spring (4) | ALL |
| 7 | 17947-36 | SPRING, pushrod cover (4) | ALL |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | ALL |
| 9 | 17968-99 | RETAINER, spring cap (4) | ALL |
| 10 | 18538-99C | HYDRAULIC LIFTER (4) | ALL |
| 11 | 10200258 | SCREW (2) | ALL |
| 12 | 10200308 | SCREW (20) | ALL |
| 13 | 10200446 | SCREW (8) | ALL |
| 14 | 10200503 | SCREW (8) | ALL |
| 15 | 10500069 | SPACER, rocker cover (2) | ALL |
| 16 | 11900116 | O-RING (2) | ALL |
| 17 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | ALL |
| 18 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | ALL |
| 19 | 17300059B | SHAFT, rocker arm (4) | ALL |
| 20 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | ALL |
| 21 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | ALL |
| 22 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | ALL |
| 22 | 17900035 | ANTI-ROTATION DEVICE, front cylinder | ALL |
| 23 | 25700362 | GASKET, lifter cover (2) | ALL |
| 24 | 25700372B | GASKET, rocker arm cover (2) | ALL |
| 25 | 25700409 | ROCKER COVER, upper (chrome) (2) | ALL |
| 26 | 25700410 | LIFTER COVER, front (chrome) | ALL |
| 26 | 25700411 | LIFTER COVER, rear (chrome) | ALL |
| 27 | 25700425 | GASKET, rocker housing, lower (2) | ALL |
| 28 | 25701000 | COVER KIT, pushrod (lower) (4) | ALL |
| 29 | 25700637 | ROCKER COVER ASSEMBLY, lower, with 25700425 (chrome) (2) | ALL |
| 30 | 25700731 | GASKET KIT, camshaft service | ALL |
| 31 | 29400183 | BREATHER ASSEMBLY, rear, with 11900116 | ALL |
| 31 | 29400210 | BREATHER ASSEMBLY, front, with 11900116 | ALL |
COOLING SYSTEM, ENGINE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200446 | SCREW (2) | FLHTCUTG |
| 2 | 10800052 | CLAMP (2) | FLHTCUTG |
| 3 | 11900090 | O-RING, coolant manifold (4) | FLHTCUTG |
| 4 | 26900117 | BRACKET, coolant tube (2) | FLHTCUTG |
| 5 | 26900133 | COOLANT LINE ASSEMBLY, water, with 3, 4, 8 and 9 | FLHTCUTG |
| 6 | 26900144 | HOSE | FLHTCUTG |
| 7 | 26900145 | HOSE | FLHTCUTG |
| 8 | 10800109 | CLAMP (2) | FLHTCUTG |
| 9 | 10800111 | SLEEVE (2) | FLHTCUTG |
COOLING SYSTEM, ENGINE, AIR-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 4705 | SCREW | FLRT |
| 2 | 10200446 | SCREW (4) | FLRT |
| 3 | 10800052 | CLAMP (3) | FLRT |
| 4 | 11900090 | O-RING, coolant manifold (4) | FLRT |
| 5 | 11900092 | O-RING, transmission oil return | FLRT |
| 6 | 26900117 | BRACKET, coolant tube (2) | FLRT |
| 7 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 | FLRT |
| 8 | 62800028 | COOLANT LINE ASSEMBLY, oil, with 3, 4, 6, 9, 10, 11, 12 | FLRT |
| 9 | 26900144 | HOSE | FLRT |
| 10 | 62700161 | HOSE | FLRT |
| 11 | 10800109 | CLAMP | FLRT |
| 12 | 10800111 | SLEEVE | FLRT |
COOLANT DISTRIBUTION, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHTCUTG |
| 2 | 10344 | CLAMP | FLHTCUTG |
| 3 | 11692 | GROMMET (2) | FLHTCUTG |
| 4 | 70681-09 | CLIP, wire retention | FLHTCUTG |
| 5 | 10200414 | SCREW (2) | FLHTCUTG |
| 6 | 10800052 | CLAMP (3) | FLHTCUTG |
| 7 | 12700091A | BRACKET, voltage regulator | FLHTCUTG |
| 8 | 26600048 | PUMP, coolant | FLHTCUTG |
| 9 | 26800077A | COVER, coolant pump | FLHTCUTG |
| 10 | 26900088 | HOSE, outlet, water pump | FLHTCUTG |
COOLANT DISTRIBUTION, AIR-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLRT |
| 2 | 10080 | CLAMP (black) (2) | FLRT |
| 3 | 10344 | CLAMP (black) (2) | FLRT |
| 4 | 11692 | GROMMET (2) | FLRT |
| 5 | 70681-09 | RETAINER, wire harness | FLRT |
| 6 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLRT |
| 7 | 72606-08 | HOUSING, two-way socket (black) | FLRT |
| 8 | 72609-08 | SECONDARY LOCK, two-way socket | FLRT |
| 9 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLRT |
| 10 | 10200414 | SCREW (2) | FLRT |
| 11 | 10200422 | SCREW (2) | FLRT |
| 12 | 10800052 | CLAMP | FLRT |
| 13 | 12600016 | CLIP, push-in (2) | FLRT |
| 14 | 12700090 | BRACKET, voltage regulator | FLRT |
| 15 | 26800092 | COVER, oil cooler | FLRT |
| 16 | 26800095 | COOLING FAN, with 72213-94, 72606-08, 72609-08 and 72610-08 | FLRT |
| 17 | 62700133 | OIL COOLER | FLRT |
| 18 | 62700143 | HOSE, inlet, oil cooler | FLRT |
| 19 | 62700144 | HOSE, outlet, oil cooler | FLRT |
| 20 | 69201286A | COVER, electrical connector, with 12600016 | FLRT |
RADIATOR, COOLANT HOSES AND BOTTLE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTCUTG |
| 2 | 10006 | CABLE STRAP (6) | FLHTCUTG |
| 3 | 10147 | CLIP, connector (2) | FLHTCUTG |
| 4 | 10344 | CLAMP (4) | FLHTCUTG |
| 5 | 26780-05A | CAP ASSEMBLY, coolant bottle | FLHTCUTG |
| 6 | 72063-06 | HOUSING, two-way socket (black) | FLHTCUTG |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 9 | 72177-07BK | HOUSING, four-way socket (black) | FLHTCUTG |
| 10 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUTG |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 12 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTG |
| 13 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHTCUTG |
| 14 | 72607-08 | HOUSING, two-way pin (black) (2) | FLHTCUTG |
| 15 | 72608-08 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 16 | 72609-08 | SECONDARY LOCK, two-way (4) | FLHTCUTG |
| 17 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (8) | FLHTCUTG |
| 18 | 10800023 | CLAMP (2) | FLHTCUTG |
| 19 | 10800052 | CLAMP (4) | FLHTCUTG |
| 20 | 10800078 | CLAMP (3) | FLHTCUTG |
| 21 | 26800005 | CORE, radiator (right) | FLHTCUTG |
| 22 | 26800006 | CORE, radiator (left) | FLHTCUTG |
| 23 | 26800007A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (left) | FLHTCUTG |
| 24 | 26800019A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (right) | FLHTCUTG |
| 25 | 26800020A | FILL NECK, coolant | FLHTCUTG |
| 26 | 26800021 | CAP, pressure (except China) | FLHTCUTG |
| 26 | 26800194 | CAP, pressure (China) | FLHTCUTG |
| 27 | 26900008 | HOSE, coolant, left cross tube | FLHTCUTG |
| 28 | 26900009 | LINE, coolant, right to left | FLHTCUTG |
| 29 | 26900010 | HOSE, coolant, right cross tube | FLHTCUTG |
| 30 | 26900014 | BOTTLE ASSEMBLY, coolant, with 26780-05A | FLHTCUTG |
| 31 | 26900016 | HOSE, coolant vent | FLHTCUTG |
| 32 | 26900017 | HOSE, coolant overflow | FLHTCUTG |
| 33 | 26900018 | HOSE, coolant fill | FLHTCUTG |
| 34 | 26900114 | HOSE, radiator to engine outlet | FLHTCUTG |
| 35 | 26900115 | HOSE, radiator to pump inlet | FLHTCUTG |
| 36 | 32700066 | SENSOR, coolant temperature | FLHTCUTG |
| 37 | 62800004 | CLIP, coolant line to frame (2) | FLHTCUTG |
| 38 | 69200271 | HOUSING, two-way socket (black) | FLHTCUTG |
| 39 | 69200311 | WIRE HARNESS, twin cooling jumper, with 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 and 69200271 (right) | FLHTCUTG |
| 40 | 69201548 | WIRE HARNESS, twin cooling jumper, with 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 and 72610-08 (left) | FLHTCUTG |
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-Eight® 114 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | ALL |
| 2 | 22097-99 | LOCK RING, piston pin (4) | ALL |
| 3 | 21900048 | PISTON AND RINGS ASSEMBLY, with 22097-99, 22000061 and 22100006 (4.016 in) (2) | ALL |
| 4 | 22000061 | PISTON RING SET (4.016 in) (2) | ALL |
| 5 | 22100006 | PISTON PIN (2) | ALL |
| 6 | 24100045A | FLYWHEEL ASSEMBLY KIT, with 11177A | ALL |
| 7 | 35200057 | BALANCER ASSEMBLY | ALL |
CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | ALL |
| 2 | 765 | PLUG (5) | ALL |
| 3 | 8972 | WASHER | ALL |
| 4 | 9215 | NEEDLE BEARING, left side, camshaft | ALL |
| 5 | 16574-99A | DOWEL PIN (2) | ALL |
| 6 | 16589-99A | DOWEL PIN (4) | ALL |
| 7 | 24605-07 | BEARING, main (2) | ALL |
| 8 | 26352-95A | ADAPTER | ALL |
| 9 | 35114-02 | RING, retaining, internal | ALL |
| 10 | 62700296 | OIL FILTER (black) | ALL |
| 11 | 68042-99 | SCREW (4) | ALL |
| 12 | 10200343 | SCREW (12) | ALL |
| 13 | 11000134 | SEAL, oil | ALL |
| 14 | 11900010 | O-RING (Twin-Cooled) | FLHTCUTG |
| 15 | 12400099 | SPACER, front mount (2) | ALL |
| 16 | 24100080 | BEARING KIT, with 8972, 24605-07, 35114-02 and inner race | ALL |
| 17 | 24400120 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 15, 18, 20, 21 and 22 (black) | ALL |
| 18 | 25700433 | GASKET, piston jet (2) | ALL |
| 19 | 29900041 | SPACER, sprocket shaft | ALL |
| 20 | 35200021 | BEARING, balancer (2) | ALL |
| 21 | 62700089 | PISTON JET ASSEMBLY, front, with 25700433 | ALL |
| 22 | 62700117 | PISTON JET ASSEMBLY, rear, with 25700433 | ALL |
| 23 | 62800013 | PLUG, with 11900010 (Twin-Cooled) | FLHTCUTG |
CAMSHAFT AND CAMSHAFT COVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | ALL |
| 2 | 942 | SCREW (2) | ALL |
| 3 | 4740A | SCREW (15) | ALL |
| 4 | 4822A | SCREW (4) | ALL |
| 5 | 6294 | WASHER | ALL |
| 6 | 8873 | BALL (7) | ALL |
| 7 | 9215 | NEEDLE BEARING, camshaft | ALL |
| 8 | 11293 | O-RING | ALL |
| 9 | 16589-99A | DOWEL PIN | ALL |
| 10 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with 6294, screws and washer | ALL |
| 11 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | ALL |
| 12 | 25675-06 | CHAIN, primary camshaft drive | ALL |
| 13 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | ALL |
| 13 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | ALL |
| 13 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | ALL |
| 13 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | ALL |
| 13 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | ALL |
| 13 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | ALL |
| 14 | 26210-99 | SPRING, relief valve | ALL |
| 15 | 26400-82B | RELIEF VALVE, oil pump bypass | ALL |
| 16 | 68120-00 | SCREW (2) | ALL |
| 17 | 11900103 | O-RING | ALL |
| 18 | 25400103 | SPROCKET, camshaft drive, 34 teeth | ALL |
| 19 | 25400133 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99A | ALL |
| 20 | 25400190 | CAMSHAFT | ALL |
| 21 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25400103 | ALL |
| 22 | 25500013 | CHAIN TENSIONER, camshaft drive chain | ALL |
| 23 | 25600078 | COVER, timer cover | FLRT |
| 23 | 25600110 | COVER, timer cover | FLHTCUTG |
| 24 | 25700367 | CAMSHAFT COVER (chrome) | ALL |
| 25 | 25700370 | GASKET, camshaft cover | ALL |
| 26 | 25700731 | GASKET KIT, camshaft service | ALL |
| 27 | 62400233 | GEROTOR ASSEMBLY | ALL |
| 28 | 62400245 | COVER, oil pump assembly, with 62400205 | ALL |
| 29 | 62400055 | GEROTOR ASSEMBLY, feed (Twin-Cooled) | FLHTCUTG |
| 29 | 62400126 | GEROTOR ASSEMBLY, feed (Air-Cooled) | FLRT |
| 30 | 62400238 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (Air-Cooled) Also order 62400126 | FLRT |
| 30 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (Twin-Cooled) Also order 62400055 | FLHTCUTG |
| 31 | 62400205 | OIL SEAL | ALL |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | ALL |
| 2 | 6127 | WASHER (2) | ALL |
| 3 | 16219-09 | STABLIZER LINK | ALL |
| 4 | 10100062 | LOCKNUT | ALL |
| 5 | 10200393 | SCREW | ALL |
| 6 | 10200408A | SCREW (2) | ALL |
| 7 | 10200463 | SCREW (2) | ALL |
| 8 | 16300005 | ENGINE MOUNT, front (2) | ALL |
| 9 | 16400042 | END CAP, front mount | ALL |
| 10 | 16400046 | BRACKET, tie link | ALL |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | ALL |
| 2 | 29465-08B | BREATHER BOLT (2) | ALL |
| 3 | 10200373 | SCREW (5) | ALL |
| 4 | 12100069 | PLUG, purge tube cap | ALL |
| 5 | 16400049 | BRACKET, induction module | ALL |
| 6 | 27200025 | MANIFOLD THROTTLE BODY INTAKE KIT, with 27300122, 27400019 and 91800058 | ALL |
| 7 | 27300082 | GASKET, throttle body to manifold | ALL |
| 8 | 27300086 | FLANGE, intake (2) | ALL |
| 9 | 27300087 | SEAL, intake (2) | ALL |
| 10 | 27300121 | INTAKE MANIFOLD ASSEMBLY, with 27300082 | ALL |
| 11 | 27300122 | THROTTLE BODY ASSEMBLY, with 12100069 | ALL |
| 12 | 27400015 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | ALL |
| 13 | 27400019 | FUEL RAIL KIT | ALL |
| 14 | 32700065 | SENSOR, temperature manifold absolute pressure, with O-ring | ALL |
| 15 | 61200022A | FUEL LINE | ALL |
| 16 | 91800058 | HARDWARE KIT, induction module | ALL |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 946 | SCREW (3) | ALL |
| 2 | 29269-83A | SCREW | ALL |
| 3 | 29465-08B | BREATHER BOLT (2) | ALL |
| 4 | 61300934 | INSERT, air cleaner cover | FLRT |
| 4 | 61300935 | INSERT, air cleaner cover | FLHTCUTG |
| 5 | 29000106 | SEAL, air cleaner cover | ALL |
| 6 | 29000108 | GASKET, induction module to backplate | ALL |
| 7 | 29000120 | BACKPLATE ASSEMBLY (Domestic) | ALL |
| 7 | 29000121 | BACKPLATE ASSEMBLY (HDI) | ALL |
| 8 | 29400211 | BREATHER HOSE | ALL |
| 9 | 29400212 | FILTER ELEMENT | ALL |
| 10 | 29000217 | COVER, air cleaner, with label (except China) | ALL |
| 10 | 29000216 | COVER, air cleaner (China) | ALL |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | ALL |
| 2 | 10039 | CABLE STRAP (3) | ALL |
| 3 | 10177 | CABLE STRAP, anchored | ALL |
| 4 | 10200422 | SCREW (4) | ALL |
| 5 | 29900038A | ROTOR ASSEMBLY | ALL |
| 6 | 29900041 | SPACER, sprocket shaft | ALL |
| 7 | 29900042A | STATOR ASSEMBLY, 3-phase, 48 A | ALL |
| 8 | 69201423 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | ALL |
| 9 | 74700025 | VOLTAGE REGULATOR ASSEMBLY, with 74700038 and 74700039 | ALL |
| 10 | 74700038 | LATCH, voltage regulator, AC | ALL |
| 11 | 74700039 | LATCH, voltage regulator, DC | ALL |

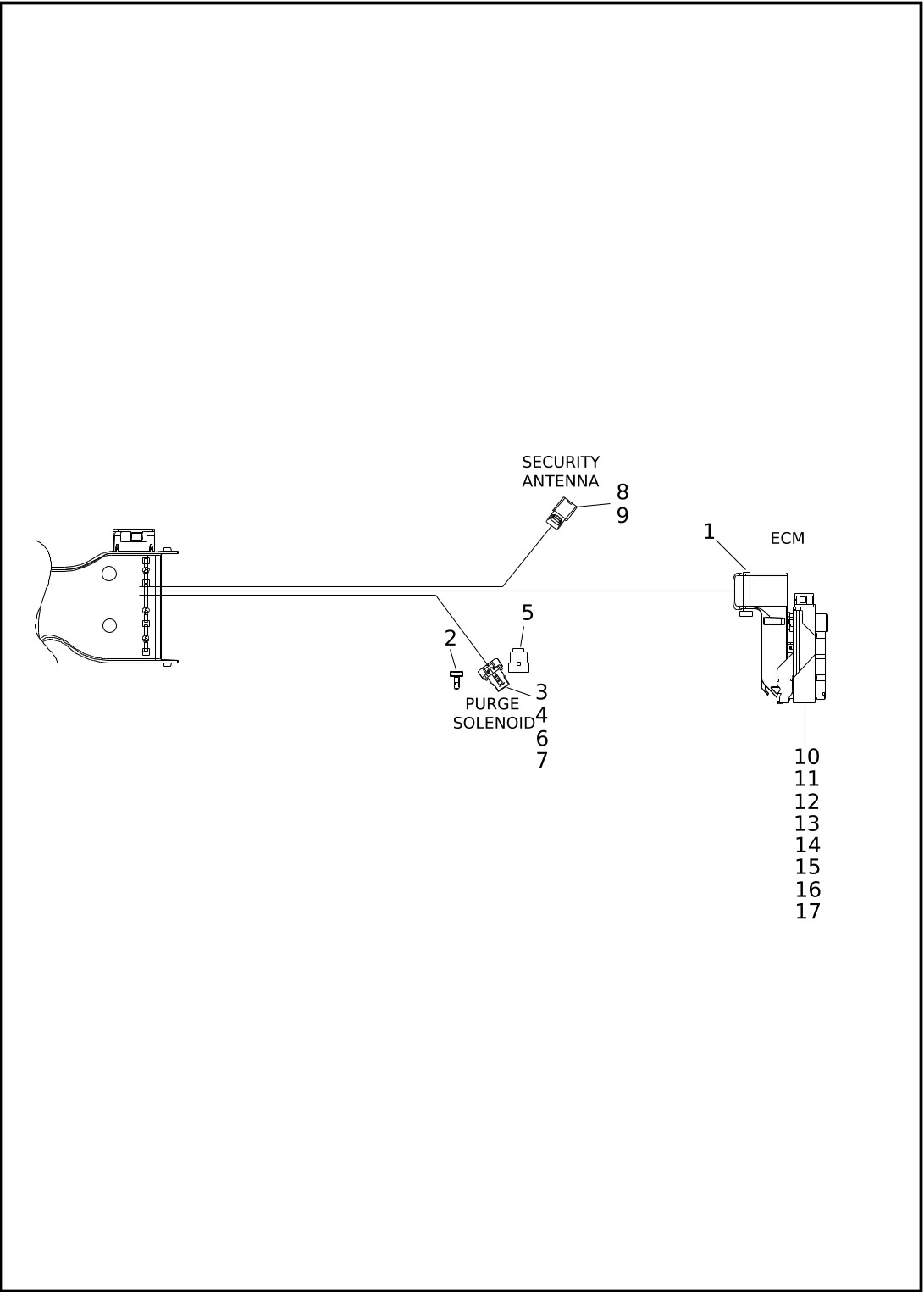

ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | ALL |
| 2 | 4705 | SCREW (2) | ALL |
| 3 | 4813A | SCREW (2) | ALL |
| 4 | 10177 | CABLE STRAP, anchored (6) | ALL |
| 5 | 70681-09 | RETAINER, wire harness | ALL |
| 6 | 12200170 | CLIP, retaining, anchored | ALL |
| 7 | 31600012 | SPARK PLUG, M10 (4) | ALL |
| 8 | 31600017 | IGNITION COIL | ALL |
| 9 | 31600018B | SPARK PLUG CABLE, right front cylinder, with 10177 | ALL |
| 10 | 31600023A | SPARK PLUG CABLE, right rear cylinder, with 10177 | ALL |
| 11 | 31600078A | SPARK PLUG CABLE, left front cylinder, with 10177 and 12200170 | ALL |
| 12 | 31600079 | SPARK PLUG CABLE, left rear cylinder, with 10177 | ALL |
| 13 | 41000677 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | ALL |
| 14 | 69202307 | CADDY, electronic control module (ECM) | ALL |
| 15 | 69201178 | BRACKET, battery hold down | ALL |
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (2) | ALL |
| 2 | 4705 | SCREW | ALL |
| 3 | 10177 | CABLE STRAP, anchored | ALL |
| 4 | 11900180 | O-RING, crankshaft position sensor | ALL |
| 5 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | ALL |
| 6 | 11900010 | O-RING | ALL |
| 7 | 32700144 | SENSOR, crankshaft position, with 74194-98, 11900180 and 69201302 | ALL |
| 8 | 32700054 | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | ALL |
| 9 | 32700065 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | ALL |
| 10 | 62700141 | CHECK VALVE, oil pressure, with 11900010 (Air-Cooled) | FLRT |
| 11 | 62800013 | PLUG ASSEMBLY, with 11900010 (Twin-Cooled) | FLHTCUTG |
| 12 | 69200840 | SENSOR, knock (2) | ALL |
| 13 | 69201299 | HOUSING, two-way socket | ALL |
| 14 | 69201300 | TERMINAL, socket, 20 AWG (2) | ALL |
| 15 | 69201301 | WIRE SEAL, 20-22 AWG (green) (2) | ALL |
| 16 | 69201302 | CONNECTOR ANCHOR | ALL |
| 17 | 71400112A | OIL PRESSURE SWITCH, with 11900172 | ALL |
| 18 | 11900172 | O-RING | ALL |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | ALL |
| 2 | 27444-00Y | O-RING, starter-to-case | ALL |
| 3 | 31694-90 | NUT | ALL |
| 4 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | ALL |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | ALL |
| 2 | 856A | SCREW | ALL |
| 3 | 33600304 | SPACER | ALL |
| 4 | 6497HW | WASHER | ALL |
| 5 | 6702 | WASHER | ALL |
| 6 | 7330 | ACORN NUT | ALL |
| 7 | 7686 | LOCKNUT | ALL |
| 8 | 11150 | RETAINING RING | ALL |
| 9 | 11389 | RING, shift camshaft retaining | ALL |
| 10 | 11575 | RING, shift camshaft retaining | ALL |
| 11 | 33389-07 | SPRING, detent | ALL |
| 12 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | ALL |
| 13 | 33719-79B | SHIFTER ROD | ALL |
| 14 | 33895-82E | SHIFT LEVER KIT, with 7686, 10200350 and shifter lever | ALL |
| 15 | 34064-00C | SPRING, shift lever centering | ALL |
| 16 | 34611-65A | TOE SHIFTER PEG KIT | ALL |
| 17 | 34987-06 | SPRING, ratchet lever | ALL |
| 18 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | ALL |
| 19 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 20 | 35186-06A | SLEEVE | ALL |
| 21 | 35187-06 | FORK, shift 1 - 2 | ALL |
| 22 | 35210-06 | FORK, shift 3 - 4 | ALL |
| 23 | 35217-06 | FORK, shift 5 - 6 | ALL |
| 24 | 35222-06A | SHAFT, 5 - 6 shift fork | ALL |
| 25 | 35223-06A | SHAFT, 1 - 2 and 3 - 4 shift fork | ALL |
| 26 | 35243-06A | SLEEVE | ALL |
| 27 | 35244-06 | SCREW | ALL |
| 28 | 35249-06A | LOCK PLATE, shift camshaft | ALL |
| 29 | 35259-06 | SCREW (2) | ALL |
| 30 | 10200350 | SCREW | ALL |
| 31 | 11000101 | OIL SEAL | ALL |
| 32 | 33600088 | LEVER, gear shifter | ALL |
| 33 | 33600091 | SHAFT | ALL |
| 34 | 33900172 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | ALL |
| 35 | 33900175 | LEVER, shifter rod | ALL |
| 36 | 35000198A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 9, 10, 11, 12, 21, 22, 23, 24, 25, 26, 27, 28, 29, 34, 7340, 35260-06B, input shaft, countershaft and gears (black) | ALL |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (8) | ALL |
| 3 | 4705 | SCREW | ALL |
| 4 | 4718A | SCREW (4) | ALL |
| 5 | 4741A | SCREW (2) | ALL |
| 6 | 7340 | NUT, mainshaft and countershaft (2) | ALL |
| 7 | 8963 | BEARING, needle | ALL |
| 8 | 8967A | BEARING | ALL |
| 9 | 8970A | BEARING | ALL |
| 10 | 9701A | BUSHING | ALL |
| 11 | 10998 | RETAINING RING | ALL |
| 12 | 11132A | O-RING, dipstick | ALL |
| 13 | 11161 | RETAINING RING | ALL |
| 14 | 11179 | O-RING | ALL |
| 15 | 12074 | SEAL | ALL |
| 16 | 16583-00B | BUSHING, dowel (2) | ALL |
| 17 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 18 | 35087-99A | RETAINING RING (2) | ALL |
| 19 | 35186-06A | SLEEVE | ALL |
| 20 | 35260-06B | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black) | ALL |
| 21 | 35654-06 | GASKET, bearing housing | ALL |
| 22 | 36805-06 | GASKET, cover | ALL |
| 23 | 37065-06A | DIPSTICK (chrome) | ALL |
| 24 | 11000010 | BEARING | ALL |
| 25 | 11000101 | OIL SEAL | ALL |
| 26 | 11900092 | O-RING | ALL |
| 27 | 24400215 | GASKET | ALL |
| 28 | 25800048 | INSERT, side cover | ALL |
| 29 | 25800080 | SIDE COVER (chrome) | ALL |
| 30 | 25800141 | SIDE COVER ASSEMBLY, with 25800048 and 25800080 (chrome) | ALL |
| 31 | 37000376 | RAMP KIT, with bearings | ALL |
| 32 | 62700146 | FITTING ASSEMBLY, transmission oil return, with 11900092 (Air-Cooled) | FLRT |
| 33 | 62700150 | PLUG, transmission, with 11900092 (Twin-Cooled) | FLHTCUTG |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | ALL |
| 2 | 3983 | SCREW (2) | ALL |
| 3 | 4741A | SCREW (18) | ALL |
| 4 | 7792 | NUT | ALL |
| 5 | 11105 | O-RING (2) | ALL |
| 6 | 11120 | O-RING | ALL |
| 7 | 16574-99A | DOWEL PIN (2) | ALL |
| 8 | 33926-06B | SWITCH, neutral indicator, with O-ring | ALL |
| 9 | 60328-98B | PLUG, magnetic, with 11105 (2) | ALL |
| 10 | 34800043 | VENT HOSE, transmission | ALL |
| 11 | 66290-06 | STUD, ground | ALL |
| 12 | 24400180 | OIL PAN ASSEMBLY, with 60328-98B (black) | ALL |
| 13 | 25700452 | GASKET, oil pan | ALL |
| 14 | 34800044 | GASKET, upper cover | ALL |
| 15 | 34700373 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967A, 9701A, 11161, 16574-99A, 35082-07, 35122-06A, 35186-06A, 35241-06, 35242-06, 66290-06, 83595-11 and 11000101 (black) | ALL |
| 16 | 34800046 | TRANSMISSION COVER, top, with 34800043 and 34800044 (chrome) | ALL |
| 17 | 62700136 | DIPSTICK ASSEMBLY, with 11120 (black cap) | ALL |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837B | SPACER | ALL |
| 2 | 7340 | NUT (2) | ALL |
| 3 | 8026K | BEARING, needle (4) | ALL |
| 4 | 8041 | BEARING, needle | ALL |
| 5 | 8042A | BEARING, needle (2) | ALL |
| 6 | 10991A | RETAINING RING (2) | ALL |
| 7 | 11081A | RING, lock (3) | ALL |
| 8 | 11082A | SECURING SEGMENT (6) | ALL |
| 9 | 11201 | O-RING | ALL |
| 10 | 11207A | WASHER, internal spline | ALL |
| 11 | 11599A | SPACER, bearing | ALL |
| 12 | 12077 | OIL SEAL | ALL |
| 13 | 34091-08 | BEARING, inner race | ALL |
| 14 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042, 10991A, 11201, 11599A and 12077 | ALL |
| 15 | 35124-06 | GUIDE HUB, dog ring | ALL |
| 16 | 35126-06 | DOG RING, lugged (2) | ALL |
| 17 | 35202-06 | GUIDE HUB, dog ring | ALL |
| 18 | 35204-06 | DOG RING, pocketed | ALL |
| 19 | 35467-06C | INPUT SHAFT KIT, with 34091-08, 12200144 and 35000178 | ALL |
| 20 | 35807-06 | GEAR, countershaft-second | ALL |
| 21 | 35811-06 | GEAR, countershaft-third | ALL |
| 22 | 35814-06 | GEAR, countershaft-fourth | ALL |
| 23 | 12200144 | RETAINING RING | ALL |
| 24 | 35000178 | GUIDE HUB, dog ring | ALL |
| 25 | 35000179 | GEAR, fifth input | ALL |
| 26 | 35000198A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 10, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 35260-06B, shifter camshaft and forks (black) | ALL |
| 27 | 35600094 | COUNTERSHAFT ASSEMBLY | ALL |
| 28 | 35600103 | GEAR ASSEMBLY, countershaft-first | ALL |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 7848W | JAMNUT | ALL |
| 2 | 11096 | RETAINING RING | ALL |
| 3 | 36706-01K | BOLT (3) | ALL |
| 4 | 37069-90A | OIL SLINGER | ALL |
| 5 | 37090-98A | SCREW, adjuster | ALL |
| 6 | 37092-06 | PUSHROD, clutch release | ALL |
| 7 | 37312-75 | BEARING, thrust | ALL |
| 8 | 37313-80 | BEARING, thrust race (2) | ALL |
| 9 | 37496-90A | NUT, mainshaft | ALL |
| 10 | 37903-90 | RELEASE PLATE | ALL |
| 11 | 37904-90 | RETAINING RING, external | ALL |
| 12 | 37909-90 | RING, retaining, internal | ALL |
| 13 | 37000032A | PRESSURE PLATE, clutch | ALL |
| 14 | 37000033 | STOPPER PLATE | ALL |
| 15 | 37000034 | SPRING, damper | ALL |
| 16 | 37000295 | SEAT, damper-spring | ALL |
| 17 | 37000083 | HUB ASSEMBLY | ALL |
| 18 | 37000168 | BEARING, ball, double-row | ALL |
| 19 | 37000169 | RETAINING RING, internal | ALL |
| 20 | 37000219 | SEAT (3) | ALL |
| 21 | 37000254A | CLUTCH ASSEMBLY, complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23 | ALL |
| 22 | 37000258 | CLUTCH DISKS KIT | ALL |
| 23 | 37000270A | COIL SPRING (3) | ALL |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | ALL |
| 2 | 791A | SCREW (2) | ALL |
| 3 | 1062 | SCREW (5) | ALL |
| 4 | 1775 | SCREW (4) | ALL |
| 5 | 4813A | SCREW (9) | ALL |
| 6 | 4820A | SCREW | ALL |
| 7 | 9231 | BEARING | ALL |
| 8 | 11105 | O-RING | ALL |
| 9 | 12052A | SEAL | ALL |
| 10 | 16583-00B | BUSHING, dowel (2) | ALL |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | ALL |
| 12 | 24754-75A | DOWEL BUSHING (4) | ALL |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | ALL |
| 14 | 60678-85 | RETAINING RING | ALL |
| 15 | 11000139 | BUSHING | ALL |
| 16 | 25700378 | GASKET, primary cover | ALL |
| 17 | 25700902 | COVER, clutch (chrome) | ALL |
| 18 | 25700418 | COVER, primary (chrome) | ALL |
| 19 | 25700455 | GASKET, primary housing to case | ALL |
| 20 | 25700650 | SLEEVE, damper | ALL |
| 21 | 25700746 | GASKET KIT, inner primary | ALL |
| 22 | 26500026 | HOSE | ALL |
| 23 | 36500052A | INNER PRIMARY HOUSING, with 7, 9, 10, 13, 14, 15, 22 (black) | ALL |
| 24 | 36500075 | CHAIN TENSIONER ASSEMBLY | ALL |
| 25 | 26500027 | KIT, VENT, primary, with 11105, 25700378, 26500026 and clutch cover seal | ALL |
BELT, CHAIN AND SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | ALL |
| 2 | 35241-06 | NUT | ALL |
| 3 | 35242-06 | LOCKPLATE | ALL |
| 4 | 40037-07 | PRIMARY CHAIN | ALL |
| 5 | 40040-05 | REAR BELT, 139 teeth, 1-1/8 in | ALL |
| 6 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 7 | 83424-09 | SPROCKET ASSEMBLY, rear, 70 teeth, with bearing (chrome) | ALL |
| 8 | 83595-11 | SPROCKET, transmission, 30 teeth | ALL |
| 9 | 83936-09A | SPRING PACK | ALL |
| 10 | 10500031 | SCREW, compensator | ALL |
| 11 | 40100041 | RETAINER, sprocket | ALL |
| 12 | 40100064 | THRUST WASHER | ALL |
| 13 | 40100076 | ENGINE SPROCKET KIT, compensator assembly | ALL |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 10289A | CLIP, clutch cable | ALL |
| 4 | 11615 | RETAINING RING | ALL |
| 5 | 42860-06B | PIVOT PIN, hand lever, with 11615 | ALL |
| 6 | 45138-08A | CLAMP, lever bracket (gloss black) | ALL |
| 7 | 90770-79 | SCREW | ALL |
| 8 | 12200226 | CLIP | ALL |
| 9 | 12600309 | PIN | ALL |
| 10 | 37200440 | CABLE, clutch control | FLRT |
| 10 | 37200441 | CABLE, clutch control | FLHTCUTG |
| 11 | 36700249 | HAND LEVER, clutch (polished) | ALL |
| 12 | 36700254 | BRACKET, hand lever (black satin) | ALL |
| 13 | 36700257 | SPRING, anti-rattle | ALL |
| 14 | 37200395A | BUTTON, cable adjuster | ALL |
| 15 | 37200396 | CONNECTOR BODY, clutch cable | ALL |
| 16 | 37200437 | CABLE, clutch control | ALL |
| 17 | 37200545 | CLIP | ALL |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (2) | ALL |
| 2 | 6101 | WASHER (2) | ALL |
| 3 | 41750-06B | BOLT, BANJO, brake line | ALL |
| 4 | 41751-06A | GASKET (2) | ALL |
| 5 | 42854-06 | KIT, SIGHT GLASS, reservoir | ALL |
| 6 | 42855-06D | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42858-06A (black) | ALL |
| 7 | 42856-06 | DECAL, reservoir cover | ALL |
| 8 | 42857-06B | GASKET, reservoir cover | ALL |
| 9 | 42858-06A | SCREW KIT, cover (set of 2) | ALL |
| 10 | 42859-06B | BRAKE LEVER ASSEMBLY, front, with 42860-06B (polished) | ALL |
| 11 | 42860-06B | PIVOT PIN KIT, with retaining ring | ALL |
| 12 | 42861-06B | PUSHROD, master cylinder | ALL |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | ALL |
| 14 | 44551-08F | MASTER CYLINDER ASSEMBLY, front, with 5, 6, 7, 8, 9, 10, 11, 12, 13 and 16 (black) | ALL |
| 15 | 45138-08A | CLAMP, master cylinder and clutch (black) | ALL |
| 16 | 41700367 | BUTTON, anti-bubble | ALL |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | ALL |
| 2 | 7331 | ACORN NUT (2) | ALL |
| 3 | 91840-03B | MIRROR KIT, short, convex, with 7155 and 7331 (right) | ALL |
| 3 | 91845-03B | MIRROR KIT, short, convex, with 7155 and 7331 (left) | ALL |
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | ALL |
| 2 | 10039 | CABLE STRAP | FLRT |
| 3 | 41750-06B | BOLT, BANJO, brake line (2) | ALL |
| 4 | 41751-06A | GASKET (10) | ALL |
| 5 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | ALL |
| 6 | 42853-06 | CAP, bleeder screw (2) | ALL |
| 7 | 41600032 | BRACKET, brake line | ALL |
| 8 | 41800687 | BRAKE LINE, front, ABS (upper) | FLHTCUTG |
| 8 | 41800688 | BRAKE LINE, front, ABS (upper) | FLRT |
| 9 | 41800686 | BRAKE LINE, front, ABS (right) | ALL |
| 10 | 41800685 | BRAKE LINE, front, ABS (left) | ALL |
| 11 | 70631-08 | CONDUIT CLIP | ALL |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | ALL |
| 2 | 2479 | SCREW (2) | ALL |
| 3 | 6220W | WASHER | ALL |
| 4 | 6416 | WASHER | ALL |
| 5 | 7825 | NUT | ALL |
| 6 | 11445 | GROMMET | ALL |
| 7 | 11608 | CLIP (2) | ALL |
| 8 | 11902 | GASKET | ALL |
| 9 | 12102 | DUST BOOT | ALL |
| 10 | 42416-06 | PAD | ALL |
| 11 | 42460-80B | CLEVIS PIN | ALL |
| 12 | 42889-06 | SPRING RETENTION KIT | ALL |
| 13 | 42932-08A | REBUILD KIT | ALL |
| 14 | 42934-08 | SPRING | ALL |
| 15 | 7492 | NUT | ALL |
| 16 | 10500114 | SCREW | ALL |
| 17 | 11000050 | BUSHING (2) | ALL |
| 18 | 11900021 | O-RING (2) | ALL |
| 19 | 12100124 | GROMMET | ALL |
| 20 | 41600321 | BRACKET | FLHTCUTG |
| 20 | 41600322 | BRACKET | FLRT |
| 21 | 41700195 | PUSHROD KIT | ALL |
| 22 | 41700561 | MASTER CYLINDER, rear, with 9, 12, 13, 14, 21, 23 and 25 | ALL |
| 23 | 41700562 | RESERVOIR, with/ 11608 and 41700581 (smoked) | ALL |
| 24 | 41700581 | COVER, with 11902 and screws | ALL |
| 25 | 41700582 | SPIGOT | ALL |
| 26 | 50600067 | LEVER ASSEMBLY, with 11000050 | ALL |
BRAKE LINES AND MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (2) | ALL |
| 2 | 3563 | SCREW | ALL |
| 3 | 4890 | BLEEDER SCREW (2) | ALL |
| 4 | 7686 | NUT | ALL |
| 5 | 10065 | CABLE STRAP | ALL |
| 6 | 10076 | CLAMP | ALL |
| 7 | 10108 | CLIP (4) | ALL |
| 9 | 41750-06B | BOLT, BANJO, brake line, ABS (2) | ALL |
| 10 | 41751-06A | GASKET (8) | ALL |
| 11 | 41783-08 | BOLT, banjo, bleeder assembly, with 4890 (2) | ALL |
| 12 | 42853-06 | CAP, bleeder screw (2) | ALL |
| 13 | 10800028 | TUBE CLIP (lower) | ALL |
| 14 | 32700100 | SENSOR | ALL |
| 15 | 41100093B | ABS MODULE (EHCU) | ALL |
| 16 | 41600091 | TUBE CLIP (upper) | ALL |
| 17 | 41600257 | BRACKET | ALL |
| 18 | 41600267 | GROMMET | ALL |
| 19 | 41600352 | BRACKET, kit, guide bracket | ALL |
| 20 | 41800682 | BRAKE LINE, ABS module to master cylinder | ALL |
| 21 | 41800683 | BRAKE LINE, EHCU, to right rear caliper | ALL |
| 22 | 41800684 | BRAKE LINE, EHCU, to left rear caliper | ALL |
PARKING BRAKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 509 | COTTER PIN, parking brake | ALL |
| 2 | 4688 | SCREW (6) | ALL |
| 3 | 6334 | WASHER | ALL |
| 4 | 7716 | LOCKNUT | ALL |
| 5 | 7825 | LOCKNUT | ALL |
| 6 | 8351 | SPACER, pawl (2) | ALL |
| 7 | 8353 | BUSHING, pawl | ALL |
| 8 | 8357 | SPRING, pawl return | ALL |
| 9 | 8368 | CLEVIS PIN | ALL |
| 10 | 10039 | CABLE STRAP (3) | ALL |
| 11 | 10177 | CABLE STRAP | ALL |
| 12 | 11012 | RETAINING RING (4) | ALL |
| 13 | 11321 | CABLE STRAP (4) | FLHTCUTG |
| 13 | 11321 | CABLE STRAP (3) | FLRT |
| 14 | 11364 | O-RING (2) | ALL |
| 15 | 57217-02A | BUSHING, brake lever (2) | ALL |
| 16 | 42532-06 | PAD, brake pedal | ALL |
| 17 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | ALL |
| 18 | 72473-07 | SEAL PIN | ALL |
| 19 | 72512-07BK | HOUSING, three-way socket (black) | ALL |
| 20 | 10100006 | NUT | ALL |
| 21 | 10200001 | SCREW | ALL |
| 22 | 10300003 | WASHER (2) | ALL |
| 23 | 12200177 | RETAINING RING (2) | ALL |
| 24 | 12700032 | MAGNET, sensor | ALL |
| 25 | 32700011 | SENSOR ASSEMBLY, proximity, with 72168-07, 72473-07 and 72512-07BK | ALL |
| 26 | 41700469 | KIT, PARKING BRAKE BRACKET, with 10200429 (black) | ALL |
| 27 | 83000014 | PEDAL ASSEMBLY, parking brake, with 57217-02A and 12700032 (black) | ALL |
| 28 | 83000018A | PAWL, parking brake | ALL |
| 29 | 83000026 | BRACKET, parking brake | ALL |
| 30 | 83000030A | SPRING, brake pedal return | ALL |
| 31 | 83000136 | EQUALIZER ASSEMBLY, parking brake, with 11012, 83000026, 83000137, 83000138 and 83000139 | ALL |
| 32 | 83000137 | CABLE ASSEMBLY, parking brake | ALL |
| 33 | 83000138 | CABLE ASSEMBLY, parking brake, right rear | ALL |
| 34 | 83000139 | CABLE ASSEMBLY, parking brake, left rear | ALL |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | BRAKE PAD KIT, with 42849-08 and brake pads (2) | ALL |
| 2 | 42849-08 | PAD PIN KIT, with pad pin and retaining clip (2) | ALL |
| 3 | 42851-06 | COVER (2) | ALL |
| 4 | 42852-06A | SPRING, anti-rattle (2) | ALL |
| 5 | 43027-08 | CALIPER ASSEMBLY, left, with 1, 2, 3, 4 and 7 (black) | ALL |
| 5 | 44023-08 | CALIPER ASSEMBLY, right, with 1, 2, 3, 4 and 7 (black) | ALL |
| 6 | 44160-00 | BOLT, mounting (4) | ALL |
| 7 | 44341-08 | MEDALLION (2) | ALL |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8314 | SCREW (4) | ALL |
| 2 | 41751-06A | GASKET (4) | ALL |
| 3 | 41783-08 | BLEEDER BOLT ASSEMBLY, BANJO (2) | ALL |
| 4 | 42853-06 | CAP (2) | ALL |
| 5 | 41300212 | CALIPER ASSEMBLY, rear, with pads (left) | ALL |
| 5 | 41300215 | CALIPER ASSEMBLY, rear, with pads (right) | ALL |
| 6 | 41300214 | KIT, brake pads, with pins and springs (set of 4) | ALL |
| 7 | 41500151 | BRAKE ROTOR, rear (2) | ALL |

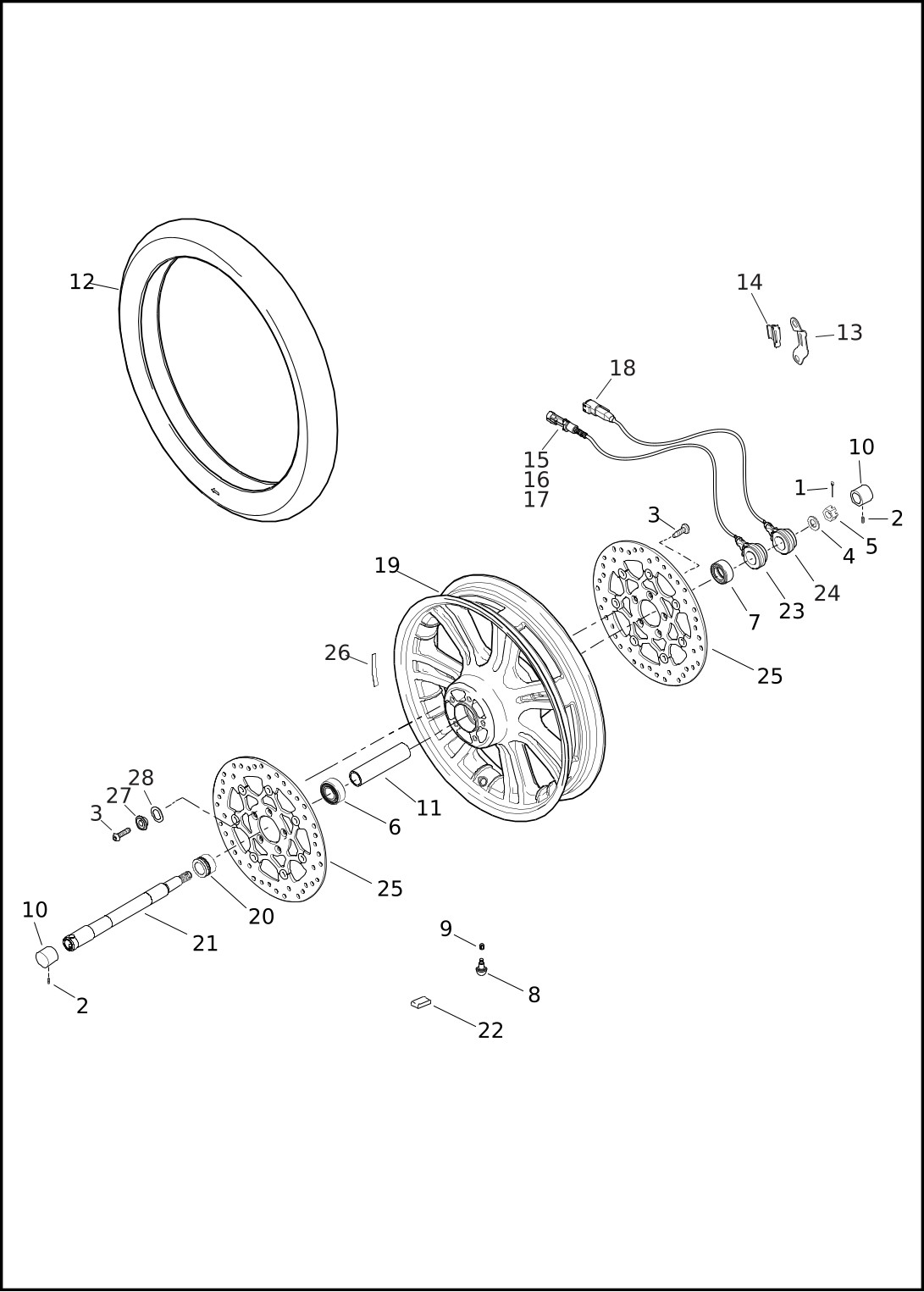

WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 520W | COTTER PIN | ALL |
| 2 | 3267 | SCREW, set (Australia, England, HDI, Japan) (2) | ALL |
| 3 | 3655A | SCREW (except China) (10) | ALL |
| 3 | 41500020 | SCREW (China) (10) | FLHTCUTG |
| 4 | 6594 | WASHER | ALL |
| 5 | 7823 | NUT | ALL |
| 6 | 9252A | BALL BEARING | ALL |
| 7 | 9276B | BALL BEARING | ALL |
| 8 | 40999-87 | VALVE STEM, for cast wheels | ALL |
| 9 | 41123-79 | VALVE CAP | ALL |
| 10 | 43475-08 | COVER, axle nut, with 3267 (chrome) (Australia, England, HDI, Japan) (2) | ALL |
| 11 | 41900-08 | SLEEVE, bearing spacer | ALL |
| 12 | 43022-91A | TIRE, 16 inch (except China) | FLHTCUTG |
| 12 | 43100045 | TIRE, 19 inch (China) | FLHTCUTG |
| 12 | 43100045 | TIRE, 19 inch (not shown) | FLRT |
| 13 | 70493-08 | BRACKET, wheel speed sensor, ABS | ALL |
| 14 | 70494-08 | CLIP, wheel speed sensor, ABS | ALL |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLHTCUTG |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTG |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 18 | 74190-98 | TERMINAL, pin, 16-20 AWG (2) | FLRT |
| 19 | 83326-09 | WHEEL, cast, 16 inch, 7 spoke (black) (except China) | FLHTCUTG |
| 19 | 43300703 | WHEEL, cast, 19 inch, 5 spoke, with 14101128 (China) | FLHTCUTG |
| 19 | 43300283 | WHEEL, Enforcer cast aluminum, 19 inch, 5 spoke (black) (not shown) | FLRT |
| 20 | 83888-09 | SPACER (right only) | ALL |
| 21 | 83889-09 | AXLE | ALL |
| 22 | 95594-84C | WEIGHT, 5 g, cast wheels (black) (5) | FLRT |
| 22 | 95595-84C | WEIGHT, 5 g, cast wheels (silver) (except China) (5) | FLHTCUTG |
| 22 | 42300001 | WEIGHT, 1/2 oz (black) (China) (3) | FLHTCUTG |
| 23 | 32700015 | SENSOR, with 72607-08, 72608-08, 72639-10 | FLHTCUTG |
| 24 | 32700017 | SENSOR, wheel speed, ABS, with 74190-08 | FLRT |
| 25 | 41500068 | BRAKE DISC (except China) (2) | ALL |
| 25 | 41500017 | BRAKE DISC (China) (2) | FLHTCUTG |
| 26 | 14101128 | MEDALLION (China) (2) | FLHTCUTG |
| 27 | 41500018 | BUSHING (China) (10) | FLHTCUTG |
| 28 | 41500019 | SPRING (China) (10) | FLHTCUTG |
WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4751 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 40999-87 | VALVE STEM, cast wheels (2) | ALL |
| 4 | 41123-79 | VALVE CAP (2) | ALL |
| 5 | 83324-09B | TIRE (except China) (2) | ALL |
| 5 | 43200046 | TIRE (China) (2) | FLHTCUTG |
| 6 | 83327-09 | WHEEL, rear, 7 spoke, 15 in (black) (except China) (2) | FLHTCUTG |
| 6 | 40900663 | WHEEL, rear, 5 spoke, 18 in (China) (2) | FLHTCUTG |
| 7 | 83383-09 | CENTER CAP ASSEMBLY, rear wheel (2) | FLHTCUTG |
| 8 | 83385-09 | CLAMP, center cap (2) | FLHTCUTG |
| 9 | 95594-84C | WEIGHT, 5 g, cast wheels (black) (12) | FLRT |
| 9 | 95595-84C | WEIGHT, 5 g, cast wheels (silver) (except China) (12) | FLHTCUTG |
| 9 | 42300001 | WEIGHT, 1/2 oz (black) (China) (12) | FLHTCUTG |
| 10 | 10100071 | LUG NUT, rear wheel (8) | ALL |
| 11 | 40900292 | WHEEL, rear, 5 spoke, Enforcer cast aluminum, 15 in (black) (2) | FLRT |
| 12 | 42500007 | HUB CAP ASSEMBLY, rear wheel (2) | FLRT |
| 13 | 14101125 | MEDALLION (China) (2) | FLHTCUTG |
AXLE ASSEMBLY, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW (2) | ALL |
| 2 | 4795 | SCREW (8) | ALL |
| 3 | 6701 | WASHER (8) | ALL |
| 4 | 8308 | SCREW (8) | ALL |
| 5 | 8313 | SCREW (10) | ALL |
| 6 | 8319 | SCREW (4) | ALL |
| 7 | 40278-08 | ISOLATOR, rubber (6) | ALL |
| 8 | 83311-09 | STUD, wheel (8) | ALL |
| 9 | 83312-09 | NUT (8) | ALL |
| 10 | 83313-09 | RETAINER, bearing (2) | ALL |
| 11 | 83314-09 | BEARING, wheel (2) | ALL |
| 12 | 83316-09 | RETAINER, snap ring (2) | ALL |
| 13 | 83317-09 | BEARING, case (2) | ALL |
| 14 | 83323-09 | BOLT (4) | ALL |
| 15 | 83331-09A | SNAP RING, sprocket bearing | ALL |
| 16 | 83424-09 | SPROCKET ASSEMBLY, 70 teeth | ALL |
| 17 | 83429-09 | BRACKET, caliper reaction (2) | ALL |
| 18 | 83450-09 | DIFFERENTIAL ASSEMBLY, rear, with 21 and 22 | ALL |
| 19 | 83456-09 | DOWEL PIN (2) | ALL |
| 20 | 83459-09 | FITTING, grease | ALL |
| 21 | 83460-09 | PLUG, grease | ALL |
| 22 | 83848-09 | BEARING SEAL (2) | ALL |
| 23 | 83849-09A | RING GEAR, reverse | ALL |
| 24 | 83850-09 | KIT, COMPENSATOR BOWL, with 8313 | ALL |
| 25 | 32700102 | SENSOR, wheel speed, rear | ALL |
| 26 | 12200173 | TONE RING, axle shaft (2) | ALL |
| 27 | 12600212 | STUD (8) | ALL |
| 28 | 43000153 | HOUSING, axle, rear | ALL |
| 29 | 43000154 | AXLE ASSEMBLY, rear, with reverse, with 4, 5, 6, 7, 13, 14, 15, 16, 17, 18, 19, 23, 24, 28, 30, 31 | ALL |
| 30 | 43000155 | SHAFT ASSEMBLY, axle, with 8, 10, 11, 12 and 26 (right) | ALL |
| 31 | 43000156 | SHAFT ASSEMBLY, axle, with 8, 10, 11, 12 and 26 (left) | ALL |
STEERING DAMPER - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FLHTCUTG |
| 2 | 7531 | LOCKNUT | FLHTCUTG |
| 3 | 7992 | ACORN NUT | FLHTCUTG |
| 4 | 8324 | WASHER | FLHTCUTG |
| 5 | 83808-09A | STEERING DAMPER | FLHTCUTG |
| 6 | 83864-09 | SPACER, damper rod side bracket | FLHTCUTG |
| 7 | 83865-09 | BRACKET, steering damper | FLHTCUTG |
| 8 | 50000031 | BRACKET, damper mount | FLHTCUTG |
STEERING DAMPER - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FLRT |
| 2 | 3647 | SCREW (2) | FLRT |
| 3 | 4134 | SCREW | FLRT |
| 4 | 7531 | LOCKNUT | FLRT |
| 5 | 7992 | ACORN NUT | FLRT |
| 6 | 8324 | WASHER | FLRT |
| 7 | 10031 | CLAMP | FLRT |
| 8 | 83441-10A | BRACKET, steering damper | FLRT |
| 9 | 83808-09A | STEERING DAMPER | FLRT |
| 10 | 83864-09 | SPACER, damper rod side bracket | FLRT |
| 11 | 45700021 | BRACKET, mount, frame | FLRT |
| 12 | 50000066 | BRACKET, damper mount | FLRT |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | ALL |
| 2 | 10200042 | SCREW (4) | ALL |
| 3 | 10500022 | SCREW (6) | ALL |
| 4 | 10500036 | SCREW | ALL |
| 5 | 45600003 | COVER ASSEMBLY, fork tube (left) | ALL |
| 6 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | ALL |
| 7 | 45700020A | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | ALL |
| 8 | 45800023 | COVER ASSEMBLY, fork tube (right) | ALL |
| 9 | 45900027 | BRACKET, upper fork stem | FLHTCUTG |
| 9 | 45900080 | BRACKET, upper fork stem | FLRT |
| 10 | 45900234 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHTCUTG |
| 10 | 45900235 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLRT |
| 11 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | ALL |
| 12 | 10200134 | SCREW (2) | ALL |
| 13 | 12200174 | CLIP (2) | ALL |
| 14 | 12200175A | CLIP | ALL |
| 15 | 41600261 | BRACKET | ALL |
| 16 | 61300926 | PANEL | ALL |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 45500424 | BUSHING, slider (2) | ALL |
| 2 | 46508-01 | O-RING (2) | ALL |
| 3 | 46509-01 | WASHER (2) | ALL |
| 4 | 45500398 | COLLAR, spring (2) | ALL |
| 5 | 46513-01 | RING, stopper (2) | ALL |
| 6 | 46514-01A | OIL SEAL (2) | ALL |
| 7 | 46515-01 | SPACER, seal (2) | ALL |
| 8 | 45500421 | BUSHING GUIDE (2) | ALL |
| 9 | 45500396 | SPRING, rebound (2) | ALL |
| 10 | 46615-06 | PACKING SEAL (2) | ALL |
| 11 | 59481-00 | REFLECTOR (amber) (right) | ALL |
| 12 | 59482-00 | REFLECTOR (amber) (left) | ALL |
| 13 | 22000031 | PISTON RING (2) | ALL |
| 14 | 45400215 | FORK ASSEMBLY, complete (right) | FLHTCUTG |
| 14 | 45400217 | FORK ASSEMBLY, complete (right) | FLRT |
| 15 | 45400214 | FORK ASSEMBLY, complete (left) | FLHTCUTG |
| 15 | 45400216 | FORK ASSEMBLY, complete (left) | FLRT |
| 16 | 45500339 | DAMPER TUBE, with 22000031 (2) | FLRT |
| 16 | 45500540 | DAMPER TUBE, with 22000031 (2) | FLHTCUTG |
| 17 | 45500117 | BOLT, fork (2) | ALL |
| 18 | 45500118 | SCREW (2) | ALL |
| 19 | 45500119 | SLIDER, fork (left) | ALL |
| 20 | 45500121 | SLIDER, fork (right) | ALL |
| 21 | 45500538 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLHTCUTG |
| 21 | 45500539 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLRT |
| 22 | 45500541 | SPRING, fork (2) | FLHTCUTG |
| 22 | 45500542 | SPRING, fork (2) | FLRT |
| 23 | 45500132 | SCREW (right) | ALL |
| 24 | 45500397 | OIL LOCK PIECE (2) | ALL |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 2, 5, 6, 7, 8, 10, 13 and 18 (2) | ALL |
FRAME, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | ALL |
| 2 | 4924 | SCREW (2) | FLHTCUTG |
| 3 | 6116 | WASHER | ALL |
| 4 | 7495 | NUT (2) | ALL |
| 5 | 10039 | CABLE STRAP (5) | ALL |
| 6 | 10039 | CABLE STRAP | FLRT |
| 7 | 10040 | CLIP, anchored (2) | FLRT |
| 8 | 10289A | CLIP, clutch line | ALL |
| 9 | 11650 | GROMMET, side cover (6) | ALL |
| 10 | 47000089BHP | FRAME, main, with bearing cups (also order 45700009) | ALL |
| 11 | 49184-09A | ENGINE GUARD, with 2708A and 6116 | FLHTCUTG |
| 12 | 83441-10A | BRACKET, steering damper | FLRT |
| 13 | 83865-09 | BRACKET, steering damper | FLHTCUTG |
| 14 | 10200546 | SCREW | ALL |
| 15 | 10800025A | CLIP, conduit, anchored (2) | ALL |
| 16 | 12600197 | FASTENER, plastic (2) | ALL |
| 17 | 12200221 | CLIP, retaining | ALL |
| 18 | 12600067 | FASTENER, plastic (2) | ALL |
| 19 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | ALL |
| 20 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | ALL |
| 21 | 45700021 | BRACKET, mount, frame | FLRT |
COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3787 | BOLT (4) | FLHTCUTG |
| 2 | 6036 | WASHER (4) | FLHTCUTG |
| 3 | 8194 | NUT, special (2) | FLHTCUTG |
| 4 | 58167-09A | DEFLECTOR, air (right) | FLHTCUTG |
| 4 | 58169-09 | DEFLECTOR, air (left) | FLHTCUTG |
| 5 | 69202720 | WIRE TROUGH, with 69202637 (main harness) | ALL |
| 6 | 69202636 | COVER, wire trough (main harness) | ALL |
| 7 | 69202637 | CLIP (2) | ALL |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4622 | SCREW (4) | ALL |
| 2 | 4795 | SCREW (6) | ALL |
| 3 | 6590HW | WASHER (2) | ALL |
| 4 | 6701 | WASHER (6) | ALL |
| 5 | 6771A | WASHER | ALL |
| 6 | 7686 | NUT (2) | ALL |
| 7 | 83860-09 | BRACKET ASSEMBLY, shock mounting (left) (lower) | ALL |
| 8 | 83861-09 | BRACKET ASSEMBLY, shock mounting (right) (lower) | ALL |
| 9 | 10500116 | SCREW | ALL |
| 10 | 11900132 | O-RING | ALL |
| 11 | 12100119 | GROMMET | ALL |
| 12 | 54000144 | SHOCK ABSORBER, complete (2 shocks) | FLHTCUTG |
| 12 | 54000146 | SHOCK ABSORBER, complete (2 shocks) | FLRT |
| 13 | 54000148 | BRACKET | ALL |
| 14 | 54000149 | CLIP (2) | ALL |
| 15 | 54000145 | KNOB SERVICE KIT | ALL |
FRAME, INTERMEDIATE AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (2) | ALL |
| 2 | 3536 | BOLT (6) | ALL |
| 3 | 4685 | SCREW (4) | ALL |
| 4 | 4686 | SCREW, hex (2) | ALL |
| 5 | 4687 | SCREW (6) | ALL |
| 6 | 4688 | SCREW (2) | ALL |
| 7 | 6532 | WASHER (6) | ALL |
| 8 | 7783 | NUT (2) | ALL |
| 9 | 9208 | BEARING (2) | ALL |
| 10 | 11779 | FASTENER, push-in (black) | ALL |
| 11 | 47505-02 | SHAFT, rear fork | ALL |
| 12 | 48487-02 | SPACER, outer (2) | ALL |
| 13 | 48489-02 | SPACER, inner (2) | ALL |
| 14 | 67875-11 | HOLE PLUG (black) (2) | ALL |
| 15 | 83366-09 | REAR FORK, with 9208 and 48489-02 | ALL |
| 16 | 83373-09A | ADAPTER PLATE, rear fork (2) | ALL |
| 17 | 83382-09 | RUBBER MOUNT (2) | ALL |
| 18 | 83407-09 | BRACE ASSEMBLY (2) | ALL |
| 19 | 83466-11BHP | FRAME, intermediate | ALL |
| 20 | 83496-09 | NUT, pivot, rear (2) | ALL |
| 21 | 83886-09 | WASHER (2) | ALL |
| 22 | 16400005 | BRACKET, rear fork (left) | ALL |
FRAME, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4678 | SCREW | ALL |
| 2 | 4685 | SCREW (8) | ALL |
| 3 | 6408HB | WASHER (8) | ALL |
| 4 | 6645 | WASHER (4) | ALL |
| 5 | 6718 | WASHER (2) | ALL |
| 6 | 7768W | LOCKNUT | ALL |
| 7 | 8369 | BOLT (4) | ALL |
| 8 | 76259-86 | NUT (2) | ALL |
| 9 | 83823-09 | PANHARD ROD ASSEMBLY, with 76259-86 | ALL |
| 10 | 47200001B | SUB-FRAME ASSEMBLY | ALL |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHTCUTG |
| 2 | 3075 | SCREW | ALL |
| 3 | 6026 | WASHER (3) | FLHTCUTG |
| 4 | 7531 | LOCKNUT (3) | FLHTCUTG |
| 5 | 10500113 | SCREW | FLHTCUTG |
| 6 | 11100094 | TAPE, protective | FLHTCUTG |
| 7 | 52000033 | SEAT | FLHTCUTG |
| 8 | 52000157 | SEAT | FLRT |
| 9 | 52300053 | BACKREST ASSEMBLY, with 6026, 7531, 52300121, 52300122, 52300123 and 52300127 (black) | FLHTCUTG |
| 10 | 52300121 | SUPPORT BRACKET (center) | FLHTCUTG |
| 11 | 52300122 | SUPPORT BRACKET (right) | FLHTCUTG |
| 12 | 52300123 | SUPPORT BRACKET (left) | FLHTCUTG |
| 13 | 52300127 | KIT, BACKREST ISOLATION, passenger backrest (3) | FLHTCUTG |
| 14 | 52400090 | HANDRAIL ASSEMBLY, passenger, with 11100094 (chrome) | FLHTCUTG |
FOOTBOARDS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | ALL |
| 2 | 4688 | SCREW (4) | ALL |
| 3 | 4916 | SCREW (2) | ALL |
| 4 | 7038 | LOCKWASHER (4) | ALL |
| 5 | 7716 | LOCKNUT (4) | ALL |
| 6 | 8860 | BALL (2) | ALL |
| 7 | 33085-74 | SPRING (2) | ALL |
| 8 | 50518-09 | BRACKET, right rear | ALL |
| 9 | 50606-06 | PAD, passenger footboard (2) | ALL |
| 10 | 50899-99A | FOOTREST, passenger (2) | ALL |
| 11 | 50614-06 | PAD, footboard (2) | ALL |
| 12 | 50621-06A | FOOTBOARD ASSEMBLY, operator, with 50614-06 (2) | ALL |
| 13 | 50674-05 | SHOULDER BOLT, footboard (4) | ALL |
| 14 | 50933-86A | PIVOT PIN (4) | ALL |
| 15 | 52719-10 | SUPPORT, footboard (2) | ALL |
| 16 | 10200429 | SCREW (2) | ALL |
| 17 | 41700469 | KIT, PARKING BRAKE BRACKET, with 10200429 (black) | ALL |
| 18 | 47200302A | BRACKET, front footboard (2) | ALL |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 755 | HOLE PLUG (except Australia) | FLHTCUTG |
| 2 | 2531 | SCREW (6) | FLHTCUTG |
| 3 | 3560WA | BOLT (2) | FLHTCUTG |
| 4 | 3561WC | BOLT (2) | FLHTCUTG |
| 5 | 3612 | SCREW (except Australia) (2) | FLHTCUTG |
| 6 | 7600 | NUT (6) | FLHTCUTG |
| 7 | 7624 | LOCKNUT (4) | FLHTCUTG |
| 8 | 7629 | NUT (Australia) (2) | FLHTCUTG |
| 9 | 10065 | CABLE STRAP (Domestic, California, Canada) (3) | FLHTCUTG |
| 10 | 11437 | GROMMET, wiring harness (Australia) | FLHTCUTG |
| 11 | 59211-74A | TRIM, front fender (2) | FLHTCUTG |
| 12 | 73191-96 | TERMINAL, socket, 16-20 AWG (Australia) (2) | FLHTCUTG |
| 13 | 73152-96BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 13 | 73152-96WE | HOUSING, two-way socket (without fender tip light) (white) | FLHTCUTG |
| 14 | 84027-11 | NAMEPLATE, Tri Glide (2) | FLHTCUTG |
| 15 | 10500015 | SCREW (4) | ALL |
| 16 | 12200092 | CLIP, retaining (6) | FLHTCUTG |
| 17 | 58900032 | FENDER (unpainted) | FLHTCUTG |
| 17 | 58900077EDR | FENDER (vivid black) | FLHTCUTG |
| 17 | 58900077ENY | FENDER (billiard red) | FLHTCUTG |
| 17 | 58900077ESY | FENDER (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 17 | 58900077ETD | FENDER (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 58900076ETF | FENDER (snake venom) | FLHTCUTG |
| 18 | 58900370 | FENDER (primed) | FLRT |
| 18 | 58900469DH | FENDER (vivid black) | FLRT |
| 18 | 58900469ESK | FENDER (billiard teal) | FLRT |
| 18 | 58900469ENT | FENDER (river rock gray) | FLRT |
| 18 | 58900469ETF | FENDER (snake venom) | FLRT |
| 19 | 59600006 | FENDER LIGHT ASSEMBLY, with 73191-96 (Australia) | FLHTCUTG |
| 20 | 59600011 | FRONT FENDER TIP (except Australia) | FLHTCUTG |
| 21 | 61400057 | TRIM SKIRT, front fender (lower) | FLHTCUTG |
FENDERS, REAR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 8360 | SCREW (12) | FLHTCUTG |
| 4 | 10102 | CLIP, small (4) | FLHTCUTG |
| 5 | 10103 | CLIP, large (2) | FLHTCUTG |
| 6 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (4) | FLHTCUTG |
| 7 | 83811-09 | FOAM TAPE (4) | FLHTCUTG |
| 8 | 67900196A | REFLECTOR (white) (Canada) (2) | FLHTCUTG |
| 9 | 67900205A | REFLECTOR (red) (California, Canada, Domestic) (2) | FLHTCUTG |
| 9 | 67900212A | REFLECTOR (amber) (Australia, England, HDI, Japan) (2) | FLHTCUTG |
| 10 | 67900205A | REFLECTOR (red) (Australia, Canada, England, HDI, Japan) (2) | FLHTCUTG |
| 11 | 67900265 | REFLECTOR ASSEMBLY, front, with 67900196A (white) (Canada) (2) | FLHTCUTG |
| 12 | 67900269 | REFLECTOR ASSEMBLY, rear, with 67900205A (red) (Australia, Canada, England, HDI, Japan) (2) | FLHTCUTG |
| 13 | 83000054EDR | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (vivid black) | FLHTCUTG |
| 13 | 83000054ENY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (billiard red) | FLHTCUTG |
| 13 | 83000054ESY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 13 | 83000054ETD | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 13 | 83000053ETF | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (snake venom) | FLHTCUTG |
| 14 | 83000056EDR | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (vivid black) | FLHTCUTG |
| 14 | 83000056ENY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (billiard red) | FLHTCUTG |
| 14 | 83000056ESY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 14 | 83000056ETD | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 14 | 83000055ETF | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (snake venom) | FLHTCUTG |
FENDERS, REAR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 8360 | SCREW (10) | FLRT |
| 2 | 10102 | CLIP, small (4) | FLRT |
| 3 | 69490-07 | REFLECTOR (red) (Australia, England, HDI, Japan) (2) | FLRT |
| 4 | 83811-09 | FOAM TAPE (4) | FLRT |
| 5 | 12600106 | SCREW (Australia, California, Domestic, England, HDI, Japan) (8) | FLRT |
| 5 | 12600106 | SCREW (Canada) (10) | FLRT |
| 6 | 59500176DH | FENDER ASSEMBLY, rear, with 10102 (right) (vivid black) | FLRT |
| 6 | 59500176ESK | FENDER ASSEMBLY, rear, with 10102 (right) (billiard teal) | FLRT |
| 6 | 59500176ENT | FENDER ASSEMBLY, rear, with 10102 (right) (river rock gray) | FLRT |
| 6 | 59500176ETF | FENDER ASSEMBLY, rear, with 10102 (right) (snake venom) | FLRT |
| 7 | 59500178DH | FENDER ASSEMBLY, rear, with 10102 (left) (vivid black) | FLRT |
| 7 | 59500178ESK | FENDER ASSEMBLY, rear, with 10102 (left) (billiard teal) | FLRT |
| 7 | 59500178ENT | FENDER ASSEMBLY, rear, with 10102 (left) (river rock gray) | FLRT |
| 7 | 59500178ETF | FENDER ASSEMBLY, rear, with 10102 (left) (snake venom) | FLRT |
| 8 | 67800332 | BRACKET, tail lamp (Domestic, California, Canada) | FLRT |
| 9 | 67900187 | BRACKET, tail lamp and license plate (Domestic, California, Canada) | FLRT |
| 10 | 67900196A | REFLECTOR (white) (Canada) (2) | FLRT |
| 11 | 67900199 | REFLECTOR ASSEMBLY, left, rear, with 67900205A (red) (Canada) (2) | FLRT |
| 12 | 67900200 | REFLECTOR ASSEMBLY, right, rear, with 67900205A (red) (Canada) (2) | FLRT |
| 13 | 67900205A | REFLECTOR (red) (Domestic, California) (2) | FLRT |
| 13 | 67900205A | REFLECTOR (red) (Canada) (4) | FLRT |
| 67900212 | REFLECTOR (amber) (Australia, England, HDI, Japan) (2) | FLRT | |
| 14 | 67900218 | REFLECTOR ASSEMBLY, right, front, with 67900196A (white) (Canada) | FLRT |
| 15 | 67900219 | REFLECTOR ASSEMBLY, left, front, with 67900196A (white) (Canada) | FLRT |
| 16 | 67900307 | BRACKET, tail lamp and reflector (Australia, England, HDI, Japan) | FLRT |
| 17 | 67900408 | REFLECTOR ASSEMBLY, with 67900205A (red) (Domestic, California, Canada) (2) | FLRT |
| 17 | 67900409 | REFLECTOR ASSEMBLY, with 67900212 (amber) (Australia, England, HDI, Japan) (2) | FLRT |
FUEL TANK - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTCUTG |
| 2 | 10039 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTCUTG |
| 4 | 11323A | O-RING, check valve to tank | FLHTCUTG |
| 5 | 27291-09A | TUBE, evaporative line, tank | FLHTCUTG |
| 6 | 27440-09A | TUBE, evaporative line (Domestic, California, Canada, Japan) | FLHTCUTG |
| 7 | 61356-08 | FUEL TANK (prime) | FLHTCUTG |
| 7 | 61000016EDR | FUEL TANK, with 14100073 and 14100074 (vivid black) | FLHTCUTG |
| 7 | 61000016ENY | FUEL TANK, with 14100073 and 14100074 (billiard red) | FLHTCUTG |
| 7 | 61000016ESY | FUEL TANK, with 14100073 and 14100074 (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 7 | 61000016ETD | FUEL TANK, with 14100073 and 14100074 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 7 | 61000832ETF | FUEL TANK (snake venom) | FLHTCUTG |
| 8 | 62228-08C | CHECK VALVE, assembly, with 10396 and 11323A | FLHTCUTG |
| 9 | 70901-09 | BOOT, tank bracket (right) | FLHTCUTG |
| 10 | 70999-09 | BOOT, tank bracket (left) | FLHTCUTG |
| 11 | 14100073 | MEDALLION (right) (for vivid black, billiard red, 2 tone gauntlet grey metallic/vivid black, 2 tone deadwood green/vivid black tanks) | FLHTCUTG |
| 11 | 14100074 | MEDALLION (left) (for vivid black, billiard red, 2 tone gauntlet grey metallic/vivid black, 2 tone deadwood green/vivid black tanks) | FLHTCUTG |
| 12 | 61200022A | FUEL LINE, tank to intake | FLHTCUTG |
FUEL TANK - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLRT |
| 2 | 10039 | CABLE STRAP (2) | FLRT |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLRT |
| 4 | 11323A | O-RING, check valve to tank | FLRT |
| 5 | 27291-09A | TUBE, evaporative line, tank | FLRT |
| 6 | 27440-09A | TUBE, evaporative line (Australia, California, Canada, Domestic, Japan) | FLRT |
| 7 | 61109-85D | GASKET, filler cap | FLRT |
| 8 | 61000691 | FUEL TANK (prime) | FLRT |
| 8 | 61000129DH | FUEL TANK, with 14100702 and 14100703 (vivid black) | FLRT |
| 8 | 61000129ESK | FUEL TANK, with 14100702 and 14100703 (billiard teal) | FLRT |
| 8 | 61000129ENT | FUEL TANK, with 14100702 and 14100703 (river rock grey) | FLRT |
| 8 | 61000831ETF | FUEL TANK (snake venom) | FLRT |
| 9 | 61272-92E | FILLER CAP ASSEMBLY, with 61109-85D | FLRT |
| 10 | 62228-08C | CHECK VALVE, assembly, with 10396 and 11323A | FLRT |
| 11 | 70901-09 | BOOT, tank bracket (right) | FLRT |
| 12 | 70999-09 | BOOT, tank bracket (left) | FLRT |
| 13 | 14100702 | MEDALLION (left) (for vivid black, billiard teal, river rock grey tanks) | FLRT |
| 13 | 14100703 | MEDALLION (right) (for vivid black, billiard teal, river rock grey tanks) | FLRT |
| 14 | 61200022A | FUEL LINE, tank to intake | FLRT |
CONSOLE, FUEL TANK - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLHTCUTG |
| 2 | 4194 | SCREW (2) | FLHTCUTG |
| 3 | 4856 | SCREW | FLHTCUTG |
| 4 | 8142 | NUT, speed | FLHTCUTG |
| 5 | 10065 | CABLE STRAP | FLHTCUTG |
| 6 | 10102 | CLIP, adhesive backed (2) | FLHTCUTG |
| 7 | 10334 | CLIP, hinge mounting | FLHTCUTG |
| 8 | 15341-08 | HOUSING, pod | FLHTCUTG |
| 9 | 53919-04B | PUSH BUTTON KIT, fuel tank, with 84850-92 (California, Canada, Domestic) | FLHTCUTG |
| 10 | 61029-92A | LOCK, fuel tank, with 84850-92 (Australia, England, HDI, Japan) | FLHTCUTG |
| 11 | 61081-92 | COVER, key-head (set of 2) (Australia, England, HDI, Japan) | FLHTCUTG |
| 12 | 61109-85D | GASKET, filler cap | FLHTCUTG |
| 13 | 61112-08 | BOOT | FLHTCUTG |
| 14 | 61270-08 | CONSOLE ASSEMBLY, with hinge pin | FLHTCUTG |
| 15 | 61274-92 | FUEL FILLER CAP, vacuum vented, with 61109-85D | FLHTCUTG |
| 16 | 61278-08A | DOOR KIT, console, with 10200442 | FLHTCUTG |
| 17 | 61313-88 | BUMPER, cover (2) | FLHTCUTG |
| 18 | 62775-08 | TRIM COVER, fuel tank | FLHTCUTG |
| 19 | 67493-08 | BRACKET, console mount | FLHTCUTG |
| 20 | 69241-08 | DRAIN HOSE, console | FLHTCUTG |
| 21 | 71294-08 | MOLDING, rubber (2) | FLHTCUTG |
| 22 | 72168-07 | TERMINAL, socket, 18-20 AWG (10) | FLHTCUTG |
| 23 | 72414-07BK | HOUSING, six-way socket (black) | FLHTCUTG |
| 24 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHTCUTG |
| 25 | 72485-07 | SOCKET HOUSING, four-way | FLHTCUTG |
| 26 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTG |
| 27 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTG |
| 28 | 72557-07 | SECONDARY LOCK, four-way socket | FLHTCUTG |
| 29 | 76266-98A | CAP ASSEMBLY, weather | FLHTCUTG |
| 30 | 84850-92 | NUT | FLHTCUTG |
| 31 | 10200442 | SCREW (2) | FLHTCUTG |
| 32 | 14100083 | INSERT, console pod | FLHTCUTG |
| 33 | 69200125 | WIRE HARNESS, console, with 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 and 72557-07 | FLHTCUTG |
| 34 | 69200127 | HARNESS, console audio, DIN, with 72168-07 and 72414-07BK | FLHTCUTG |
| 35 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Australia, England, HDI, Japan) | FLHTCUTG |
INSTRUMENTS, FUEL TANK - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3622 | SCREW (4) | FLRT |
| 2 | 3588 | SCREW | FLRT |
| 3 | 4194 | SCREW (2) | FLRT |
| 4 | 4856 | SCREW | FLRT |
| 5 | 8142 | NUT, speed | FLRT |
| 6 | 10065 | CABLE STRAP (2) | FLRT |
| 7 | 10102 | CLIP, under instrument panel | FLRT |
| 8 | 10103 | CLIP, under instrument panel | FLRT |
| 9 | 61081-92 | COVER, key-head (set of 2) | FLRT |
| 10 | 61192-96A | GASKET, fuel gauge | FLRT |
| 11 | 62519-03 | HOSE, shield 1/4 in ID, 5.00 in long, fuel gauge wires | FLRT |
| 12 | 62775-08 | TRIM COVER, fuel tank | FLRT |
| 13 | 67208-08 | SEAL, speedometer | FLRT |
| 14 | 67341-04B | BACK CLAMP, 5-speedo (red) | FLRT |
| 15 | 67493-08 | BRACKET, console mount | FLRT |
| 16 | 68893-00A | INDICATOR BEZEL | FLRT |
| 17 | 71294-08 | MOLDING (2) | FLRT |
| 18 | 71517-11A | IGNITION SWITCH (keyed-to-match) | FLRT |
| 19 | 72904-01BK | HOUSING, pin, four-way | FLRT |
| 20 | 72990-01 | PIN TERMINAL (3) | FLRT |
| 21 | 75241-08 | FUEL GAUGE, without LED, with 72990-01 | FLRT |
| 22 | 14100595 | INSERT, console | FLRT |
| 23 | 69200740 | WIRE HARNESS, console | FLRT |
| 24 | 70900298A | INSTRUMENT PANEL (chrome) | FLRT |
| 25 | 70900379C | INSTRUMENT MODULE, mph (California, Domestic) | FLRT |
| 25 | 70900421C | INSTRUMENT MODULE, km/h (Australia, Canada, HDI, Japan) | FLRT |
| 25 | 70900616B | INSTRUMENT MODULE, dual, mph/km/h (England) | FLRT |
| 26 | 71400098 | LOCKSET, complete with keys, ignition switch, key cover, fork lock and trunk lock | FLRT |
| 27 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) | FLRT |
INSTRUMENTS - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHTCUTG |
| 2 | 10200147 | SCREW (3) | FLHTCUTG |
| 3 | 12100020 | GROMMET, instrument cluster mount (3) | FLHTCUTG |
| 4 | 12400034 | INSERT, instrument cluster mount (3) | FLHTCUTG |
| 5 | 12600067 | FASTENER, plastic (2) | FLHTCUTG |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (2) | FLHTCUTG |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (2) | FLHTCUTG |
| 8 | 69202523 | WIRING HARNESS, fairing (used with single headlamp) (Domestic, Japan) | FLHTCUTG |
| 8 | 69202712 | WIRING HARNESS, fairing (used with single headlamp) (Australia) | FLHTCUTG |
| 8 | 69200265A | WIRING HARNESS, fairing (used with dual headlamp) (England, HDI) | FLHTCUTG |
| 9 | 69200257 | BACK CLAMP, gauge (right) | FLHTCUTG |
| 10 | 69200258 | BACK CLAMP, gauge (left) | FLHTCUTG |
| 11 | 70900121D | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (California, Domestic) (black) | FLHTCUTG |
| 11 | 70900122C | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (Australia, Canada, HDI, Japan) (black) | FLHTCUTG |
| 11 | 70900123C | INSTRUMENT MODULE, dual, mph/km/h, with 12100020 and 12400034 (England) (black) | FLHTCUTG |
| 12 | 70900162 | FUEL GAUGE (black) | FLHTCUTG |
| 13 | 70900165 | VOLTMETER (black) | FLHTCUTG |
FUEL PUMP - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHTCUTG |
| 2 | 11686 | O-RING | FLHTCUTG |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLHTCUTG |
| 4 | 61012-04A | CLIP, filter retainer | FLHTCUTG |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings, spacer and screen | FLHTCUTG |
| 6 | 61213-04A | CLIP, regulator retainer | FLHTCUTG |
| 7 | 61402-08 | GASKET, top plate | FLHTCUTG |
| 8 | 62229-08B | FILTER SHELL | FLHTCUTG |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLHTCUTG |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTG |
| 11 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHTCUTG |
| 12 | 72485-07 | SOCKET HOUSING, four-way | FLHTCUTG |
| 13 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTG |
| 14 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTG |
| 15 | 72557-07 | SECONDARY LOCK, four-way socket | FLHTCUTG |
| 16 | 75069-08D | TOP PLATE ASSEMBLY, with 3, 4, 5, 6, 8 and 18 | FLHTCUTG |
| 17 | 75089-08 | RING, fuel tank, cam | FLHTCUTG |
| 18 | 75205-08A | FUEL LEVEL SENDER | FLHTCUTG |
| 19 | 75229-08 | HARNESS, fuel pump module | FLHTCUTG |
| 20 | 75254-04A | STRAINER, fuel pump inlet | FLHTCUTG |
| 21 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTCUTG |
| 22 | 75322-09 | GROUND HARNESS | FLHTCUTG |
| 23 | 60900036 | TOP PLATE, with 75322-09 | FLHTCUTG |
| 24 | 69200125 | WIRE HARNESS, console, with 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 and 72557-07 | FLHTCUTG |
FUEL PUMP - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLRT |
| 2 | 11686 | O-RING | FLRT |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLRT |
| 4 | 61012-04A | CLIP, filter retainer | FLRT |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings, spacer and screen | FLRT |
| 6 | 61213-04A | CLIP, regulator retainer | FLRT |
| 7 | 61402-08 | GASKET, top plate | FLRT |
| 8 | 62229-08B | FILTER SHELL | FLRT |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLRT |
| 10 | 75076-08B | TOP PLATE ASSEMBLY, with 3, 4, 5, 6, 8, 16 and 17 | FLRT |
| 11 | 75089-08 | RING, fuel tank, cam | FLRT |
| 12 | 75205-08A | FUEL LEVEL SENDER | FLRT |
| 13 | 75229-08 | HARNESS, fuel pump module | FLRT |
| 14 | 75254-04A | STRAINER, fuel pump inlet | FLRT |
| 15 | 75269-08 | TRANSFER TUBE, fuel pump | FLRT |
| 16 | 75291-08A | TOP PLATE | FLRT |
| 17 | 75322-09 | GROUND HARNESS | FLRT |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | ALL |
| 2 | 27291-09A | LINE, evaporative (EVAP), tank to canister | ALL |
| 3 | 27297-09A | LINE, evaporative (EVAP), canister | ALL |
| 4 | 60800062 | LINE, evaporative (EVAP), purge to canister | ALL |
| 5 | 31400137 | SOLENOID, purge valve | ALL |
| 6 | 70681-09 | RETAINER (2) | ALL |
| 7 | 60800006 | CARBON CANISTER | ALL |
| 8 | 60800063 | TUBE, solenoid to induction module | ALL |
| NOTE: These parts are required for motorcycles sold in California, ASEAN, Asia-Pacific, Brazil, China, England, HDI, HD2, HD4 and Japan markets. | |||
TURN SIGNALS, FRONT AND HEADLAMP - FLRT (DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3615 | SCREW | FLRT |
| 2 | 4350A | SCREW | FLRT |
| 3 | 4411 | BOLT | FLRT |
| 4 | 4549 | SCREW (2) | FLRT |
| 5 | 6400HB | WASHER (2) | FLRT |
| 6 | 6771A | WASHER (2) | FLRT |
| 7 | 7038 | LOCKWASHER | FLRT |
| 8 | 7130W | LOCKWASHER | FLRT |
| 9 | 7800W | NUT | FLRT |
| 10 | 67717-01 | BULB, high beam halogen | FLRT |
| 11 | 67721-48 | SCREW (3) | FLRT |
| 12 | 68050-93A | RETAINING RING | FLRT |
| 13 | 68051-08 | TRIM RING | FLRT |
| 14 | 68168-89A | BULB, turn signal (2) | FLRT |
| 15 | 68737-00 | HOUSING, turn signal (2) | FLRT |
| 16 | 68881-01 | BULB, low beam halogen | FLRT |
| 17 | 68904-00 | SOCKET ASSEMBLY, turn signal (2) | FLRT |
| 18 | 68973-00 | LENS (2) | FLRT |
| 19 | 69292-06 | TURN SIGNAL ASSEMBLY, with 68168-89A, 68904-00 and 68973-00 (2) | FLRT |
| 20 | 69438-06 | STANDOFF, directional (2) | FLRT |
| 21 | 69969-08 | SLEEVE (2) | FLRT |
| 22 | 72449-01 | HOUSING, two-way socket (black) | FLRT |
| 23 | 72450-01 | HOUSING, two-way socket (gray) | FLRT |
| 24 | 72527-01 | TERMINAL, socket, 18-20 AWG | FLRT |
| 25 | 72528-01 | WIRE SEAL, 18-20 AWG (blue) | FLRT |
| 26 | 72633-02 | WIRE SEAL, 14-16 AWG (white) | FLRT |
| 27 | 73153-96BK | SOCKET HOUSING, three-way (black) | FLRT |
| 28 | 73154-96BK | HOUSING, four-way socket | FLRT |
| 29 | 73156-96BK | SOCKET HOUSING, six-way (black) | FLRT |
| 30 | 73191-96 | TERMINAL, socket, 16-20 AWG (9) | FLRT |
| 31 | 67700062 | HEADLAMP ASSEMBLY, dual halogen, with 67717-01 and 68881-01 | FLRT |
| 32 | 67700187 | MOUNTING BLOCK | FLRT |
| 33 | 67700576 | SHELL ASSEMBLY, with 22, 23, 24, 25, 26, 28, 30, 34 | FLRT |
| 34 | 69202486 | TERMINAL, socket, 16 AWG | FLRT |
TURN SIGNALS, FRONT AND HEADLAMPS - FLRT (HDI, ENGLAND)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW (2) | FLRT |
| 2 | 3615 | SCREW | FLRT |
| 3 | 4350A | SCREW | FLRT |
| 4 | 4411 | BOLT | FLRT |
| 5 | 6400HB | WASHER (2) | FLRT |
| 6 | 7038 | LOCKWASHER | FLRT |
| 7 | 7068 | LOCKWASHER (2) | FLRT |
| 8 | 7130W | LOCKWASHER | FLRT |
| 9 | 7606 | LOCKNUT (2) | FLRT |
| 10 | 7800W | NUT | FLRT |
| 11 | 7880 | NUT (2) | FLRT |
| 12 | 67815-59A | WASHER (2) | FLRT |
| 13 | 69969-08 | SLEEVE (2) | FLRT |
| 14 | 72113-94BK | HOUSING, socket, sealed (2) | FLRT |
| 15 | 72153-94 | SECONDARY LOCK, three-way (2) | FLRT |
| 16 | 72168-07 | TERMINAL, socket, 18-20 AWG (12) | FLRT |
| 17 | 72177-07BK | HOUSING, four-way socket (black) (2) | FLRT |
| 18 | 72193-98 | TERMINAL, socket, solid (6) | FLRT |
| 19 | 72473-07 | SEAL PIN (2) | FLRT |
| 20 | 72512-07BK | HOUSING, three-way socket (black) (2) | FLRT |
| 21 | 10200142 | SCREW (2) | FLRT |
| 22 | 10500022 | SCREW (4) | FLRT |
| 23 | 61300599 | COVER, headlamp | FLRT |
| 24 | 61400378 | TRIM, headlamp | FLRT |
| 25 | 67700070 | BEZEL, headlamp (2) | FLRT |
| 26 | 67700071 | RING NEST, headlamp (2) | FLRT |
| 27 | 67700077 | HEADLAMP (2) | FLRT |
| 28 | 67700187 | MOUNTING BLOCK | FLRT |
| 29 | 67700293 | BRACKET, headlamp (left) | FLRT |
| 30 | 67700294 | BRACKET, headlamp (right) | FLRT |
| 31 | 67700309 | BRACKET, headlamp support (2) | FLRT |
| 32 | 67700310 | SHELL ASSEMBLY, headlamp (remove harness prior to installation) | FLRT |
| 33 | 67700317 | HOUSING, headlamp (2) | FLRT |
| 34 | 67800705 | TURN SIGNAL ASSEMBLY, front, with 72168-07, 72177-07BK and 72473-07 (2) | FLRT |
| 35 | 69201509 | CLIP, harness (6) | FLRT |
TURN SIGNALS, FRONT AND HEADLAMP - FLRT (AUSTRALIA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3615 | SCREW | FLRT |
| 2 | 4350A | SCREW | FLRT |
| 3 | 4411 | BOLT | FLRT |
| 4 | 4549 | SCREW (2) | FLRT |
| 5 | 6400HB | WASHER (2) | FLRT |
| 6 | 6771A | WASHER (2) | FLRT |
| 7 | 7038 | LOCKWASHER | FLRT |
| 8 | 7130W | LOCKWASHER | FLRT |
| 9 | 7800W | NUT | FLRT |
| 10 | 9847 | WIRE TERMINAL, female spade, right hand | FLRT |
| 11 | 9848 | WIRE TERMINAL, female spade, left hand (2) | FLRT |
| 12 | 67721-48 | SCREW (3) | FLRT |
| 13 | 68050-93A | RETAINING RING | FLRT |
| 14 | 68051-08 | TRIM RING (chrome) | FLRT |
| 15 | 68163-84 | BULB, turn signal (2) | FLRT |
| 16 | 68168-89A | BULB, turn signal (2) | FLRT |
| 17 | 68737-00 | HOUSING, turn signal (2) | FLRT |
| 18 | 68973-00 | LENS (2) | FLRT |
| 19 | 69293-06 | TURN SIGNAL, with 68163-84 and 68973-00 (2) | FLRT |
| 20 | 69438-06 | STANDOFF, directional (2) | FLRT |
| 21 | 69969-08 | SLEEVE (2) | FLRT |
| 22 | 72056-92 | INSULATOR, spade terminal, three-way | FLRT |
| 23 | 73153-96BK | SOCKET HOUSING, three-way (black) | FLRT |
| 24 | 73154-96BK | HOUSING, four-way socket | FLRT |
| 25 | 73156-96BK | SOCKET HOUSING, six-way (black) | FLRT |
| 26 | 73191-96 | TERMINAL, socket, 16-20 AWG (8) | FLRT |
| 27 | 67700187 | MOUNTING BLOCK | FLRT |
| 28 | 67700188 | HEADLAMP, LED | FLRT |
| 29 | 67700450 | SHELL ASSEMBLY, 7.0 in, with 9847, 9848, 72056-92, 73154-96BK, 73191-96 and 69201852 | FLRT |
| 30 | 67800962 | TURN SIGNAL ASSEMBLY, with 69293-06 and 73191-96 (2) | FLRT |
| 31 | 69201852 | TERMINAL, flag, female, 14-16 AWG (2) | FLRT |
TURN SIGNALS, FRONT AND HEADLAMP - FLRT (JAPAN)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3615 | SCREW | FLRT |
| 2 | 4350A | SCREW | FLRT |
| 3 | 4411 | BOLT | FLRT |
| 4 | 6400HB | WASHER (2) | FLRT |
| 5 | 7038 | LOCKWASHER | FLRT |
| 6 | 7130W | LOCKWASHER | FLRT |
| 7 | 7800W | NUT | FLRT |
| 8 | 67721-48 | SCREW (3) | FLRT |
| 9 | 68050-93A | RETAINING RING | FLRT |
| 10 | 68051-08 | TRIM RING (chrome) | FLRT |
| 11 | 69969-08 | SLEEVE (2) | FLRT |
| 12 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLRT |
| 13 | 72177-07BK | HOUSING, four-way socket (black) (2) | FLRT |
| 14 | 72213-94 | TERMINAL, socket, 16-20 AWG (3) | FLRT |
| 15 | 72214-94 | WIRE SEAL, 14-16 AWG (dark red) (3) | FLRT |
| 16 | 72232-96 | SEAL PIN, red | FLRT |
| 17 | 72473-07 | SEAL PIN (2) | FLRT |
| 18 | 72512-07BK | HOUSING, three-way socket (black) | FLRT |
| 19 | 10200142 | SCREW (2) | FLRT |
| 20 | 10500022 | SCREW (4) | FLRT |
| 21 | 67700187 | MOUNTING BLOCK | FLRT |
| 22 | 67700060 | HEADLAMP KIT, LED (Japan) | FLRT |
| 23 | 67700291 | BRACKET, headlamp (left) | FLRT |
| 24 | 67700292 | BRACKET, headlamp (right) | FLRT |
| 25 | 67700309 | BRACKET, headlamp support (2) | FLRT |
| 26 | 67700310 | SHELL ASSEMBLY, headlamp | FLRT |
| 27 | 67800705 | TURN SIGNAL ASSEMBLY, front, with 72168-07, 72177-07BK and 72473-07 (2) | FLRT |
| 28 | 69200254 | HOUSING, four-way socket | FLRT |
| 29 | 69200256 | SECONDARY LOCK, four-way | FLRT |
| 30 | 69201509 | CLIP, harness (6) | FLRT |
TURN SIGNALS, FRONT AND AUXILIARY/FOG LAMPS - FLHTCUTG (DOMESTIC, AUSTRALIA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1332 | SCREW (2) | FLHTCUTG |
| 2 | 3514 | SCREW (2) | FLHTCUTG |
| 3 | 7041 | LOCKWASHER (2) | FLHTCUTG |
| 4 | 7130W | LOCKWASHER (2) | FLHTCUTG |
| 5 | 7606 | LOCKNUT (2) | FLHTCUTG |
| 6 | 7667 | NUT (2) | FLHTCUTG |
| 7 | 7992 | ACORN NUT (4) | FLHTCUTG |
| 8 | 40901-05 | ISOLATOR, rubber (2) | FLHTCUTG |
| 9 | 68168-89A | BULB, turn signal (Domestic) (2) | FLHTCUTG |
| 9 | 68163-84 | BULB, turn signal (Australia) (2) | FLHTCUTG |
| 10 | 68331-02 | RING, auxiliary lamps (2) | FLHTCUTG |
| 11 | 68725-62A | BEZEL RING, auxiliary/fog lamps (2) | FLHTCUTG |
| 12 | 68821-00 | TURN SIGNAL MOUNT, directional (2) | FLHTCUTG |
| 13 | 68904-00 | SOCKET ASSEMBLY, turn signal (Domestic) (2) | FLHTCUTG |
| 14 | 68973-00 | LENS (2) | FLHTCUTG |
| 15 | 69563-06 | CLAMP BLOCK, auxiliary/fog lamps (2) | FLHTCUTG |
| 16 | 72298-95 | CABLE SEAL (green) (2) | FLHTCUTG |
| 17 | 72356-95 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTG |
| 18 | 72908-11 | HOUSING, four-way socket (2) | FLHTCUTG |
| 19 | 72910-11 | TERMINAL, socket, 20-22 AWG (Domestic) (8) | FLHTCUTG |
| 19 | 72910-11 | TERMINAL, socket, 20-22 AWG (Australia) (6) | FLHTCUTG |
| 20 | 67800103 | TURN SIGNAL ASSEMBLY, with 68168-89A, 68904-00, 68973-00 and 67800109 ( Domestic) (2) | FLHTCUTG |
| 20 | 67800104 | TURN SIGNAL ASSEMBLY, with 68163-84, 68973-00 and 67800109 (Australia) (2) | FLHTCUTG |
| 21 | 67800109 | HOUSING, turn signal (chrome) (2) | FLHTCUTG |
| 22 | 67800254A | HOUSING, auxiliary/fog lamp, with 72298-95, 72356-95, 72910-11, 69200199 and 69200529 (2) | FLHTCUTG |
| 23 | 68000020 | AUXILIARY/FOG LAMP, LED (2) | FLHTCUTG |
| 24 | 68000021 | BRACKET, auxiliary/fog lamp (left) | FLHTCUTG |
| 25 | 68000022 | BRACKET, auxiliary/fog lamp (right) | FLHTCUTG |
| 26 | 69200199 | WIRE SEAL (purple) (2) | FLHTCUTG |
| 27 | 69200529 | SOCKET HOUSING, two-way (2) | FLHTCUTG |
TURN SIGNALS, FRONT AND HEADLAMPS - FLHTCUTG (HDI, ENGLAND, CHINA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW (2) | FLHTCUTG |
| 2 | 7068 | LOCKWASHER (2) | FLHTCUTG |
| 3 | 7606 | LOCKNUT (2) | FLHTCUTG |
| 4 | 7880 | NUT (2) | FLHTCUTG |
| 5 | 7992 | ACORN NUT (4) | FLHTCUTG |
| 6 | 67815-59A | WASHER (2) | FLHTCUTG |
| 7 | 72113-94BK | HOUSING, socket, sealed (2) | FLHTCUTG |
| 8 | 72153-94 | SECONDARY LOCK, three-way (2) | FLHTCUTG |
| 9 | 72191-94 | TERMINAL, socket, 16-18 AWG (6) | FLHTCUTG |
| 10 | 72906-11 | HOUSING, two-way socket (2) | FLHTCUTG |
| 11 | 72908-11 | HOUSING, four-way socket (2) | FLHTCUTG |
| 12 | 72910-11 | TERMINAL, socket, 20-22 AWG (12) | FLHTCUTG |
| 13 | 10200142 | SCREW (2) | FLHTCUTG |
| 14 | 67700056 | BRACKET, headlamp (left) | FLHTCUTG |
| 15 | 67700057 | BRACKET, headlamp (right) | FLHTCUTG |
| 16 | 67700058 | HEADLAMP ASSEMBLY, with 1, 7, 8, 9, 12, 17, 18, 19 ans 20 (2) | FLHTCUTG |
| 17 | 67700069 | HOUSING, headlamp (2) | FLHTCUTG |
| 18 | 67700070 | BEZEL, headlamp (2) | FLHTCUTG |
| 19 | 67700071 | RING NEST, headlamp (2) | FLHTCUTG |
| 20 | 67700077 | HEADLAMP (2) | FLHTCUTG |
| 21 | 67800131 | TURN SIGNAL ASSEMBLY, front, with 72910-11 (2) | FLHTCUTG |
TURN SIGNALS, FRONT - FLHTCUTG (JAPAN)
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN (2) | FLHTCUTG |
| 2 | 7992 | ACORN NUT (4) | FLHTCUTG |
| 3 | 72908-11 | HOUSING, four-way socket (2) | FLHTCUTG |
| 4 | 72910-11 | TERMINAL, socket, 20-22 AWG (6) | FLHTCUTG |
| 5 | 10200142 | SCREW (2) | FLHTCUTG |
| 6 | 67700239 | BRACKET, headlamp (right) | FLHTCUTG |
| 7 | 67700240 | BRACKET, headlamp (left) | FLHTCUTG |
| 8 | 67800131 | TURN SIGNAL ASSEMBLY, front, with 72910-11 (2) | FLHTCUTG |
NACELLE - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLRT |
| 2 | 2933 | SCREW (2) | FLRT |
| 3 | 3061 | SCREW (2) | FLRT |
| 4 | 3265A | STUD (4) | FLRT |
| 5 | 4134 | SCREW | FLRT |
| 6 | 6150W | WASHER (2) | FLRT |
| 7 | 7992 | ACORN NUT (4) | FLRT |
| 8 | 10031 | CLAMP | FLRT |
| 9 | 61081-92 | COVER, key-head (set of 2) | FLRT |
| 10 | 67621-94 | BUSHING (4) | FLRT |
| 11 | 71455-11 | HOLE PLUG (black) (2) | FLRT |
| 12 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 13 | 61300233 | COVER, nacelle, rear (right) (chrome) (Australia, California, Canada, Domestic) | FLRT |
| 13 | 61300600 | COVER, nacelle, rear (right) (chrome) (HDI, England, Japan) | FLRT |
| 14 | 61300234 | COVER, nacelle, rear (left) (chrome) (Australia, California, Canada, Domestic) | FLRT |
| 14 | 61300601 | COVER, nacelle, rear (left) (chrome) (HDI, England, Japan) | FLRT |
| 15 | 61300235 | COVER, nacelle, side (right) (chrome) (Australia, California, Canada, Domestic) | FLRT |
| 15 | 61300602 | COVER, nacelle, side (right) (chrome) (HDI, England, Japan) | FLRT |
| 16 | 61300236 | COVER, nacelle, side (left) (chrome) (Australia, California, Canada, Domestic) | FLRT |
| 16 | 61300603 | COVER, nacelle, side (left) (chrome) (HDI, England, Japan) | FLRT |
| 17 | 61300251 | FRONT COVER ASSEMBLY, nacelle, with 61400209 (chrome) | FLRT |
| 18 | 61301203 | TOP COVER, nacelle (chrome) | FLRT |
| 19 | 61300278 | RISER COVER, nacelle, with 61300279 (chrome) | FLRT |
| 20 | 61300279 | CLIP, riser cover, nacelle | FLRT |
| 21 | 61400209 | NAMEPLATE, cover, nacelle | FLRT |
| 22 | 61400213 | TRIM INSERT ASSEMBLY, nacelle | FLRT |
| 23 | 71400098 | LOCKSET, complete, with keys, ignition switch, fork lock and trunk lock | FLRT |
| 24 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) | FLRT |
WINDSHIELD, FAIRING AND HEADLAMP - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUTG |
| 2 | 3088 | SCREW (3) | FLHTCUTG |
| 3 | 4790 | SCREW (4) | FLHTCUTG |
| 4 | 7900 | CLIP NUT (4) | FLHTCUTG |
| 5 | 67712-83B | TRIM RING | FLHTCUTG |
| 6 | 67716-60C | GASKET, headlamp door | FLHTCUTG |
| 7 | 67721-48 | SCREW (3) | FLHTCUTG |
| 8 | 67726-08 | RETAINING RING, headlamp | FLHTCUTG |
| 9 | 67778-60A | SPRING, trim ring, headlamp, top (used with dual headlamp) (HDI, England) | FLHTCUTG |
| 10 | 67780-60A | SPRING, trim ring, headlamp, bottom (2) | FLHTCUTG |
| 11 | 10200059 | SCREW (2) | FLHTCUTG |
| 12 | 10200060 | SCREW (2) | FLHTCUTG |
| 13 | 10200112 | SCREW | FLHTCUTG |
| 14 | 10200156 | SCREW | FLHTCUTG |
| 15 | 29200007 | BEZEL, air duct, outer fairing | FLHTCUTG |
| 16 | 57000377 | KIT, HARDWARE, fairing, with 7900 and 29200007 | FLHTCUTG |
| 17 | 57000383 | FAIRING KIT, outer, with 57000377 (unpainted) | FLHTCUTG |
| 17 | 57000379EDR | FAIRING KIT, outer, with 57000377 (vivid black) | FLHTCUTG |
| 17 | 57000379ENY | FAIRING KIT, outer, with 57000377 (billiard red) | FLHTCUTG |
| 17 | 57000379ESY | FAIRING KIT, outer, with 57000377 (2 tone gauntlet grey metallic/vivid black) | FLHTCUTG |
| 17 | 57000379ETD | FAIRING KIT, outer, with 57000377 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 57001427ETF | FAIRING KIT, outer, with 57000377 (snake venom) | FLHTCUTG |
| 18 | 57400001 | WINDSHIELD (clear) (Domestic) | FLHTCUTG |
| 18 | 57400002 | WINDSHIELD (clear) (England, HDI, Japan, Australia) | FLHTCUTG |
| 19 | 61300089 | HEADLIGHT COVER, (used with dual headlamp) (HDI, England) | FLHTCUTG |
| 20 | 61400135 | TRIM, headlamp | FLHTCUTG |
| 21 | 61400192 | TRIM, headlight cover (used with dual headlamp) (HDI, England) | FLHTCUTG |
| 22 | 67700060 | HEADLAMP, LED, with 67721-48, 67726-08 and 67700204 (Domestic, Australia, Japan) | FLHTCUTG |
| 23 | 67700124 | BRACKET, headlight cover (used with dual headlamp) (HDI, England) | FLHTCUTG |
| 24 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, with 3088 and 67700205 | FLHTCUTG |
| 25 | 67700205 | MOUNTING RING, headlamp | FLHTCUTG |
FAIRING, INNER - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUTG |
| 2 | 2478 | SCREW (5) | FLHTCUTG |
| 3 | 2563 | SCREW (7) | FLHTCUTG |
| 4 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTCUTG |
| 5 | 10200141 | SCREW (4) | FLHTCUTG |
| 6 | 10900005 | STUD, double sided (Domestic, California, Canada, Australia) (4) | FLHTCUTG |
| 6 | 10900006 | STUD, double sided (England, HDI, Japan) (4) | FLHTCUTG |
| 7 | 11100038 | FOAM TAPE | FLHTCUTG |
| 8 | 11100050 | FOAM TAPE | FLHTCUTG |
| 9 | 11100051 | FOAM TAPE | FLHTCUTG |
| 10 | 11100057 | FOAM TAPE (2) | FLHTCUTG |
| 11 | 12200064 | CLIP, panel (10) | FLHTCUTG |
| 12 | 29200088A | AIR DUCT, inner fairing, with 11100038, 12200064, 29200087A | FLHTCUTG |
| 13 | 29200087A | BEZEL, air duct,inner fairing, with 12200064 | FLHTCUTG |
| 14 | 57000193BYM | INNER FAIRING ASSEMBLY, with 8, 9, 10, 19 and 20 (black denim) | FLHTCUTG |
| 15 | 57000186A | BRACKET, support, inner fairing | FLHTCUTG |
| 16 | 57000299 | FOAM INSERT, media compartment | FLHTCUTG |
| 17 | 57200012 | AIR DEFLECTOR, with 57638-08 (left) | FLHTCUTG |
| 18 | 57200017 | AIR DEFLECTOR, with 57638-08 (right) | FLHTCUTG |
| 19 | 61400063 | TRIM, inner fairing (left) | FLHTCUTG |
| 20 | 61400064 | TRIM, inner fairing (right) | FLHTCUTG |
| 21 | 69200031A | WIRE HARNESS, USB jumper | FLHTCUTG |
| 22 | 69200170 | POWER OUTLET, fairing, with 69200171 | FLHTCUTG |
| 23 | 69200171 | CAP, power outlet | FLHTCUTG |
| 24 | 76000107A | MEDIA COMPARTMENT ASSEMBLY, with 57000299, 69200031A and 76000127 | FLHTCUTG |
| 25 | 76000127 | LATCH (2) | FLHTCUTG |
| 26 | 76000234 | GASKET, media storage | FLHTCUTG |
| 27 | 76000409BYM | DOOR, media compartment, outer (black denim) | FLHTCUTG |
FAIRING, INNER - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200134 | SCREW (6) | FLHTCUTG |
| 2 | 10200141 | SCREW (2) | FLHTCUTG |
| 3 | 10200142 | SCREW (6) | FLHTCUTG |
| 4 | 10200205 | SCREW (12) | FLHTCUTG |
| 5 | 10900005 | STUD, double sided (Domestic, California, Canada, Australia) (4) | FLHTCUTG |
| 5 | 10900006 | STUD, double sided (England, HDI, Japan) (4) | FLHTCUTG |
| 6 | 57000182 | SKIRT, outer fairing | FLHTCUTG |
| 7 | 57000169A | BRACKET, fairing support (left) | FLHTCUTG |
| 8 | 57000170 | BRACKET, fairing support (right) | FLHTCUTG |
| 9 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY (left) | FLHTCUTG |
| 10 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY (right) | FLHTCUTG |
| 11 | 69200172 | SWITCH ASSEMBLY, auxiliary/fog lamps, with 69200173A, 71400031 and 71400044 (Domestic, California, Canada, Australia) | FLHTCUTG |
| 11 | 69202618 | SWITCH ASSEMBLY, fog lamps, with 69200173A, 71400031 and 71400156 (China) | FLHTCUTG |
| 12 | 69200173A | SWITCH | FLHTCUTG |
| 13 | 70900138 | HOLE PLUG, fairing cap (Domestic, California, Canada, Australia) | FLHTCUTG |
| 13 | 70900138 | HOLE PLUG, fairing cap (England, HDI, Japan) (2) | FLHTCUTG |
| 14 | 70901014BYM | DASH PANEL, fairing (black denim) | FLHTCUTG |
| 15 | 71400031 | SWITCH BUTTON, blank (2) | FLHTCUTG |
| 16 | 71400044 | SWITCH, auxiliary/fog lamps (Domestic, California, Canada, Australia) | FLHTCUTG |
| 16 | 71400156 | SWITCH, fog lamps (China) | FLHTCUTG |
FAIRING LOWERS - TWIN-COOLED™ - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (2) | FLHTCUTG |
| 2 | 6235 | WASHER (2) | FLHTCUTG |
| 3 | 7415A | WASHER (2) | FLHTCUTG |
| 4 | 7576 | NUT (2) | FLHTCUTG |
| 5 | 7716 | LOCKNUT (8) | FLHTCUTG |
| 6 | 8175 | BOLT, retainer (2) | FLHTCUTG |
| 7 | 11519 | MOUNT, rubber, right | FLHTCUTG |
| 8 | 10200052 | SCREW (4) | FLHTCUTG |
| 9 | 12200025 | CLIP (10) | FLHTCUTG |
| 10 | 12600049 | SCREW (8) | FLHTCUTG |
| 11 | 26800008 | DUCT, radiator (left) | FLHTCUTG |
| 12 | 26800009 | DUCT, radiator (right) | FLHTCUTG |
| 13 | 47200275 | CLAMP (2) | FLHTCUTG |
| 14 | 57100099 | PANEL ASSEMBLY, with 12200025 (2) | FLHTCUTG |
| 15 | 57100107 | GLOVE BOX ASSEMBLY, with 12600049, 57100148, 57100164, 57100165 and 57100225 (left) | FLHTCUTG |
| 16 | 57100109 | GLOVE BOX ASSEMBLY, with 12600049, 57100147, 57100164, 57100165 and 57100225 (right) | FLHTCUTG |
| 17 | 57100111 | CAP, fairing (lower) (left) (unpainted) | FLHTCUTG |
| 17 | 57100242DH | CAP, fairing (lower) (left) (vivid black) | FLHTCUTG |
| 17 | 57100242ENX | CAP, fairing (lower) (left) (billiard red) | FLHTCUTG |
| 17 | 57100242ESH | CAP, fairing (lower) (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 17 | 57100242ESU | CAP, fairing (lower) (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 57100242ETF | CAP, fairing (lower) (left) (snake venom) | FLHTCUTG |
| 18 | 57100112 | FAIRING (lower) (left) (unpainted) | FLHTCUTG |
| 18 | 57100168DH | FAIRING, with 57100170 (lower) (left) (vivid black) | FLHTCUTG |
| 18 | 57100168ENX | FAIRING, with 57100170 (lower) (left) (billiard red) | FLHTCUTG |
| 18 | 57100168ESH | FAIRING, with 57100170 (lower) (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 18 | 57100168ESU | FAIRING, with 57100170 (lower) (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 18 | 57100168ETF | FAIRING, with 57100170 (lower) (left) (snake venom) | FLHTCUTG |
FAIRING LOWERS - TWIN-COOLED™ - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 57100113 | CAP, fairing (lower) (right) (unpainted) | FLHTCUTG |
| 19 | 57100243DH | CAP, fairing (lower) (right) (vivid black) | FLHTCUTG |
| 19 | 57100243ENX | CAP, fairing (lower) (right) (billiard red) | FLHTCUTG |
| 19 | 57100243ESH | CAP, fairing (lower) (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 19 | 57100243ESU | CAP, fairing (lower) (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 19 | 57100243ETF | CAP, fairing (lower) (right) (snake venom) | FLHTCUTG |
| 20 | 57100114 | FAIRING (lower) (right) (unpainted) | FLHTCUTG |
| 20 | 57100169DH | FAIRING, with 57100171 (lower) (right) (vivid black) | FLHTCUTG |
| 20 | 57100169ENX | FAIRING, with 57100171 (lower) (right) (billiard red) | FLHTCUTG |
| 20 | 57100169ESH | FAIRING, with 57100171 (lower) (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 20 | 57100169ESU | FAIRING, with 57100171 (lower) (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 20 | 57100169ETF | FAIRING, with 57100171 (lower) (right) (snake venom) | FLHTCUTG |
| 21 | 57100147 | FRAME, glove box, with 12200025 (right) | FLHTCUTG |
| 22 | 57100148 | FRAME, glove box, with 12200025 (left) | FLHTCUTG |
| 23 | 57100151 | SCREEN, radiator (left) | FLHTCUTG |
| 24 | 57100152 | SCREEN, radiator (right) | FLHTCUTG |
| 25 | 57100153 | GASKET, radiator (2) | FLHTCUTG |
| 26 | 57100154 | HINGE (2) | FLHTCUTG |
| 27 | 57100155 | DOOR, vent (2) | FLHTCUTG |
| 28 | 57100164 | LINK, door vent (2) | FLHTCUTG |
| 29 | 57100165 | KNOB, door vent (2) | FLHTCUTG |
| 30 | 57100170 | FASCIA ASSEMBLY (lower) (left) | FLHTCUTG |
| 31 | 57100171 | FASCIA ASSEMBLY (lower) (right) | FLHTCUTG |
| 32 | 57100172 | CLAMP, lower fairing | FLHTCUTG |
| 33 | 57100187 | RETAINER, U-bolt (2) | FLHTCUTG |
| 34 | 57100200 | PIN, door, vent (2) | FLHTCUTG |
| 35 | 57100225 | SLIDER, door, vent (2) | FLHTCUTG |
| 36 | 57100256 | CLAMP, lower fairing | FLHTCUTG |
SWITCHES, HANDLEBAR, LEFT
| Index No. | Part No. | Description | Model(s) |
| 1 | 72908-11 | HOUSING, four-way socket | ALL |
| 2 | 69202614 | WIRE HARNESS, left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | ALL |
| 3 | 69200306 | SOCKET HOUSING, four-way | ALL |
| 4 | 69200307 | TERMINAL, socket, 22 AWG (4) | ALL |
| 5 | 69200308 | TERMINAL, socket, 22 AWG (4) | ALL |
| 6 | 71500044 | SWITCH CAP, cruise | ALL |
| 7 | 71500045 | SWITCH CAP, audio home | FLHTCUTG |
| 8 | 71500048 | SWITCH CAP, lights, high beam, low beam and flash to pass | ALL |
| 9 | 71500053 | SWITCH CAP, left turn signal | FLRT |
| 10 | 71500055 | SWITCH CAP, left turn signal and voice recognition | FLHTCUTG |
| 11 | 71500094 | SWITCH CAP, trigger switch | ALL |
| 12 | 71500566 | SWITCH PACK, left hand control, with 71500044, 71500045, 71500048, 71500055 and 71500488 | FLHTCUTG |
| 13 | 71500488 | SWITCH CAP, horn and traction control | ALL |
| 14 | 71500568 | SWITCH PACK, left hand control, with 71500044, 71500048, 71500053 and 71500488 | FLRT |
| 15 | 71500338 | COVER, front, left hand control | ALL |
| 16 | 71500342 | COVER, rear, left hand control, with 10500008 | ALL |
| 17 | 10500008 | SCREW (2) | ALL |
SWITCHES, HANDLEBAR, RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 5118 | SEAL PIN (2) | ALL |
| 2 | 72906-11 | HOUSING, two-way socket | ALL |
| 3 | 72908-11 | HOUSING, four-way socket | ALL |
| 4 | 69200179 | WIRE HARNESS, right hand control jumper, with 5118, 72906-11, 72908-11, 69200305, 69200306, 69200307 and 69200308 | ALL |
| 5 | 69200305 | SOCKET HOUSING, two-way | ALL |
| 6 | 69200306 | SOCKET HOUSING, four-way | ALL |
| 7 | 69200307 | TERMINAL, socket, 22 AWG (5) | ALL |
| 8 | 69200308 | TERMINAL, socket, 22 AWG (5) | ALL |
| 9 | 71500046 | SWITCH CAP, audio select | FLHTCUTG |
| 10 | 71500491 | SWITCH CAP, start/hazard/reverse | ALL |
| 11 | 71500050 | SWITCH CAP, stop and run | ALL |
| 12 | 71500057 | SWITCH CAP, right turn signal | FLRT |
| 13 | 71500478 | SWITCH CAP, right turn signal | FLHTCUTG |
| 14 | 71500506 | SWITCH PACK, right hand control, with 71500491, 71500050 and 71500057 | FLRT |
| 15 | 71500504 | SWITCH PACK, right hand control, with 71500046, 71500491, 71500050 and 71500063 | FLHTCUTG |
| 16 | 71500340 | COVER, front, right hand control | ALL |
| 17 | 71500348 | COVER, rear, right hand control, with 10500008 | ALL |
| 18 | 10500008 | SCREW (2) | ALL |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | ALL |
| 2 | 4240 | SCREW (2) | ALL |
| 3 | 9853 | TAB, fastening | ALL |
| 4 | 10006 | CABLE STRAP (6) | FLHTCUTG |
| 4 | 10006 | CABLE STRAP | FLRT |
| 5 | 55918-08 | CLAMP (upper) | ALL |
| 6 | 55924-14A | HANDLEBAR | FLHTCUTG |
| 7 | 56159-73 | CUP WASHER (4) | ALL |
| 8 | 56161-83A | BUSHING, rubber (4) | ALL |
| 9 | 56163-93 | SPACER (2) | ALL |
| 10 | 57450-14 | RISER (lower) (left) | ALL |
| 11 | 57451-14 | RISER (lower) (right) | ALL |
| 12 | 72053-92 | PIN HOUSING, one-way | ALL |
| 13 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | ALL |
| 14 | 12600032 | SCREW (2) | ALL |
| 15 | 55800247 | HANDLEBAR | FLRT |
| 16 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200356 | ALL |
| 17 | 69200536 | TERMINAL, ring, 12-14 AWG | ALL |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | ALL |
| 2 | 32306-08 | SEAL CAP, throttle sensor | ALL |
| 3 | 56248-08 | GRIP (left) | ALL |
| 4 | 56304-08 | GRIP AND SLEEVE, throttle (right) | ALL |
| 5 | 72902-01BK | HOUSING, two-way pin (black) | ALL |
| 6 | 72990-01 | TERMINAL, pin, 18-22 AWG (2) | ALL |
| 7 | 32700050A | SENSOR, twist grip, with 32306-08, 72902-01BK, 72990-01, 69200307 and 69201162 | ALL |
| 8 | 69200307 | TERMINAL, socket, 22 AWG (6) | ALL |
| 9 | 69201162 | HOUSING, six-way socket (black) | ALL |
TAIL LAMP AND TURN SIGNALS, REAR - FLHTCUTG (DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 68026-99 | SCREW (4) | FLHTCUTG |
| 4 | 68066-99A | TAIL LAMP BASE ASSEMBLY, with 68296-99A and 68830-99A (2) | FLHTCUTG |
| 5 | 68167-04 | BULB, tail lamp, wedge mount (2) | FLHTCUTG |
| 6 | 68245-03 | LENS, tail lamp, with 68026-99 (2) | FLHTCUTG |
| 7 | 68296-99A | TAIL LIGHT BASE (chrome) (2) | FLHTCUTG |
| 8 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, with 68167-04, 73154-96BK and 73191-96 (2) | FLHTCUTG |
| 9 | 68830-99A | CIRCUIT BOARD AND COVER (2) | FLHTCUTG |
| 10 | 73154-96BK | HOUSING, four-way socket (black) (2) | FLHTCUTG |
| 11 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTG |
TAIL LAMP AND TURN SIGNALS, REAR - FLHTCUTG (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTG |
| 2 | 6703 | WASHER (2) | FLHTCUTG |
| 3 | 68026-99 | SCREW (4) | FLHTCUTG |
| 4 | 67800086 | TAIL LAMP ASSEMBLY (left) | FLHTCUTG |
| 4 | 67800099 | TAIL LAMP ASSEMBLY (right) | FLHTCUTG |
| 5 | 67800165 | BRACKET, tail lamp (2) | FLHTCUTG |
TAIL LAMP AND TURN SIGNALS, REAR - FLRT (DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 68026-99 | SCREW (4) | FLRT |
| 2 | 68140-04 | TAIL LAMP ENVELOPE ASSEMBLY, with 68369-03 and 68370-03A (left) | FLRT |
| 3 | 68167-04 | BULB, tail lamp, wedge mount (2) | FLRT |
| 4 | 68245-03 | LENS, tail lamp, with 68026-99 (right) | FLRT |
| 4 | 68369-03 | LENS, tail lamp, with 68026-99 (left) | FLRT |
| 5 | 68370-03A | BULB SOCKET ASSEMBLY, tail lamp, with 68167-04, 73154-96BK and 73191-96 (2) | FLRT |
| 6 | 68830-99A | CIRCUIT BOARD AND COVER (2) | FLRT |
| 7 | 73154-96BK | HOUSING, four-way socket (black) (2) | FLRT |
| 8 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLRT |
TAIL LAMP AND TURN SIGNALS, REAR - FLRT (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 68026-99 | SCREW (4) | FLRT |
| 2 | 67800086 | TAIL LAMP ASSEMBLY (right) | FLRT |
| 2 | 67800099 | TAIL LAMP ASSEMBLY (left) | FLRT |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3929 | SCREW (4) | ALL |
| 2 | 4705 | SCREW (2) | ALL |
| 3 | 7041 | LOCKWASHER (4) | ALL |
| 4 | 7593 | NUT (5) | ALL |
| 5 | 9955 | CLAMP, worm drive #24 (6) | ALL |
| 6 | 9956 | CLAMP, worm drive #40 (2) | ALL |
| 7 | 10039 | CABLE STRAP | ALL |
| 8 | 10177 | CABLE STRAP, anchored | ALL |
| 9 | 11936 | GASKET, oxygen (O2) sensor (3) | ALL |
| 10 | 32700116 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | ALL |
| 11 | 65324-83B | GASKET, exhaust port (2) | ALL |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | ALL |
| 13 | 65328-83A | CLAMP, exhaust manifold (2) | ALL |
| 14 | 65723-85 | MOUNTING BRACKET (2) | ALL |
| 15 | 66861-09B | CLAMP, exhaust pipe, hinged | ALL |
| 16 | 66881-09 | BRACKET, exhaust pipe hanger | ALL |
| 17 | 72177-07BK | HOUSING, four-way socket (black) (2) | ALL |
| 18 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (6) | ALL |
| 19 | 72444-07GY | HOUSING, four-way, socket (gray) | ALL |
| 20 | 73307-10 | TERMINAL, socket, 22 AWG (6) | ALL |
| 21 | 84021-10 | MOUNT, rubber (2) | ALL |
| 22 | 10200569 | SCREW | ALL |
| 23 | 10900015A | STUD, exhaust | ALL |
| 24 | 32700130 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | ALL |
| 25 | 64900244B | MUFFLER (chrome) (California, Canada, Domestic) (2) | FLHTCUTG |
| 25 | 64900956 | MUFFLER (chrome) (Australia, England, HDI) (2) | FLHTCUTG |
| 25 | 64900957 | MUFFLER (chrome) (Japan, China) (2) | FLHTCUTG |
| 25 | 64900246B | MUFFLER (chrome) (California, Canada, Domestic) (2) | FLRT |
| 25 | 64900958 | MUFFLER (chrome) (Australia, England, HDI) (2) | FLRT |
| 25 | 64900959 | MUFFLER (chrome) (Japan) (2) | FLRT |
| 26 | 65296-95A | CLAMP, muffler (Domestic) (2) | ALL |
| 26 | 65900007 | CLAMP, muffler (HDI) (2) | ALL |
| 27 | 65400176A | SHIELD, exhaust pipe, front | ALL |
| 28 | 65400177 | EXHAUST SHIELD ASSEMBLY, rear header pipe | ALL |
| 29 | 65400178 | EXHAUST SHIELD ASSEMBLY, catalytic converter | ALL |
| 30 | 65400179 | SHIELD, left exhaust pipe, rear | ALL |
| 31 | 65500042 | BRACKET, muffler strap, male | ALL |
| 32 | 65500043B | BRACKET, muffler strap, female | ALL |
| 33 | 65600176 | HEADER ASSEMBLY, catalytic (Domestic) (chrome) | ALL |
| 33 | 65600405 | HEADER ASSEMBLY, catalytic (HDI) (chrome) | ALL |
| 34 | 65600179 | EXTENSION, header pipe | ALL |
| 35 | 65600190A | CROSSOVER PIPE ASSEMBLY (chrome) (Domestic) | ALL |
| 35 | 65600383 | CROSSOVER PIPE ASSEMBLY (chrome) (HDI) | ALL |
| 36 | 65296-95B | CLAMP, muffler | ALL |
| 37 | 65900015 | CLAMP, muffler | ALL |
| 38 | 65900017 | GASKET (HDI) | ALL |
| 39 | 65900040 | GASKET (HDI) (2) | ALL |
| 40 | 32700124 | SENSOR, oxygen (O2) with 11936, 72177-07BK, 72344-10 and 73307-10 (HDI, Japan, EN2, HD4, IN2) | ALL |
WIRING HARNESS, MAIN - FLHTCUTG (1 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (7) | FLHTCUTG |
| 2 | 10177 | CABLE STRAP, anchored | FLHTCUTG |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (19) | FLHTCUTG |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 5 | 72290-94 | TERMINAL, socket, 10-14 AWG | FLHTCUTG |
| 6 | 72414-07BK | HOUSING, six-way socket (black) | FLHTCUTG |
| 7 | 72473-07 | SEAL PIN (natural) (11) | FLHTCUTG |
| 8 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTCUTG |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 10 | 69200201 | HOUSING, two-way socket (black) | FLHTCUTG |
| 11 | 69202720 | WIRE TROUGH, with 69202637 | FLHTCUTG |
| 12 | 69202636 | COVER, wire trough, with 15368-01A and 69201459 | FLHTCUTG |
| 13 | 69200214 | CADDY, left steer head | FLHTCUTG |
| 14 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTG |
| 15 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTG |
| 16 | 69201287 | BRACKET, mounting, electrical connector | FLHTCUTG |
| 17 | 72166-07BK | HOUSING, 16-way socket (black) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (2 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202412 | PLUG, weather (Australia, HD2, Japan) | FLHTCUTG |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 2 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 10065 | CABLE STRAP (5) | FLHTCUTG |
| 4 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTG |
| 5 | 72062-06 | HOUSING, two-way socket (gray) | FLHTCUTG |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLHTCUTG |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (24) | FLHTCUTG |
| 8 | 72209-11 | COVER, wire | FLHTCUTG |
| 9 | 72213-94 | TERMINAL, socket,16-20 AWG (2) | FLHTCUTG |
| 10 | 72222-11 | TERMINAL, socket, 18-20 AWG (27) | FLHTCUTG |
| 11 | 72226-11 | TERMINAL, socket, 14-16 AWG (8) | FLHTCUTG |
| 12 | 72256-11 | SEAL PIN (white) 0.6 mm (13) | FLHTCUTG |
| 13 | 72414-07BK | HOUSING, six-way socket (black) (2) | FLHTCUTG |
| 14 | 72473-07 | SEAL PIN (natural) (3) | FLHTCUTG |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTG |
| 17 | 72488-07BK | HOUSING, 12-way pin (black) | FLHTCUTG |
| 18 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTG |
| 19 | 72606-08 | HOUSING, two-way socket (black) | FLHTCUTG |
| 20 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTG |
| 21 | 72609-08 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 22 | 73213-07 | RETAINER, anchored (2) | FLHTCUTG |
| 23 | 69200193 | HOUSING, 48-way socket (black) | FLHTCUTG |
| 24 | 69200205 | PLUG, weather, 12-way pin (2) | FLHTCUTG |
| 25 | 69200215 | CADDY, right steer hd | FLHTCUTG |
| 26 | 69201163 | HOUSING, six-way pin (black) | FLHTCUTG |
| 27 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (3 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTCUTG |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTG |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLHTCUTG |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLHTCUTG |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHTCUTG |
| 6 | 72098-06 | HOUSING, two-way socket (gray) | FLHTCUTG |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (2) | FLHTCUTG |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG (2) | FLHTCUTG |
| 9 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLHTCUTG |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHTCUTG |
| 11 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (8) | FLHTCUTG |
| 12 | 72569-08 | TERMINAL, socket, 20-22 AWG (4) | FLHTCUTG |
| 13 | 69201301 | WIRE SEAL, 20-22 AWG (green) (6) | FLHTCUTG |
| 14 | 69201390 | HOUSING, two-way socket (black) (2) | FLHTCUTG |
| 15 | 69201391 | TERMINAL, socket, 20 AWG (4) | FLHTCUTG |
| 16 | 69201392 | WIRE SEAL, 20 AWG (yellow) (2) | FLHTCUTG |
| 17 | 69201393 | HOUSING, two-way socket (black) | FLHTCUTG |
| 18 | 69201394 | HOUSING, six-way socket (black) | FLHTCUTG |
| 19 | 69201395 | SECONDARY LOCK, six-way socket | FLHTCUTG |
| 20 | 69201396 | TERMINAL, socket, 20 AWG (4) | FLHTCUTG |
| 21 | 69201397 | HOUSING, two-way pin (gray) | FLHTCUTG |
| 22 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHTCUTG |
| 23 | 69201416 | CPA, six-way socket | FLHTCUTG |
| 24 | 69201441 | HOUSING, four-way socket | FLHTCUTG |
| 25 | 69201442 | TERMINAL, socket, 18 AWG (2) | FLHTCUTG |
| 26 | 69201407 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (4 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHTCUTG |
| 2 | 10147 | CLIP, connector | FLHTCUTG |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTG |
| 4 | 72518-01 | HOUSING, two-way socket (red) | FLHTCUTG |
| 5 | 72533-06 | PLUG, weather, two-way pin | FLHTCUTG |
| 6 | 72609-08 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 7 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTG |
| 8 | 72720-07 | HOUSING, two-way socket (black) | FLHTCUTG |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 10 | 69202322 | HOUSING, 81-way, socket | FLHTCUTG |
| 11 | 69202032 | SECONDARY LOCK | FLHTCUTG |
| 12 | 69201890 | TERMINAL, socket (5) | FLHTCUTG |
| 13 | 69202028 | TERMINAL, pin (32) | FLHTCUTG |
| 14 | 69202543 | TERMINAL, socket (20) | FLHTCUTG |
| 15 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) (5) | FLHTCUTG |
| 16 | 69202323 | COVER | FLHTCUTG |
| 17 | 69202453 | TERMINAL, pin (24) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (5 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN (2) | FLHTCUTG |
| 2 | 9819 | TERMINAL, ring, 12 AWG (2) | FLHTCUTG |
| 3 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTCUTG |
| 4 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (30) | FLHTCUTG |
| 6 | 72188-07BK | HOUSING, six-way pin (black) | FLHTCUTG |
| 7 | 69202219 | HEAT SHRINK TUBE (black) (3) | FLHTCUTG |
| 8 | 72414-07BK | HOUSING, six-way socket (black) | FLHTCUTG |
| 9 | 72415-07GY | HOUSING, four-way pin (gray) | FLHTCUTG |
| 10 | 72447-07GY | HOUSING, eight-way pin (gray) | FLHTCUTG |
| 11 | 72473-07 | SEAL PIN (natural) (4) | FLHTCUTG |
| 12 | 72905-11 | HOUSING, two-way pin (black) | FLHTCUTG |
| 13 | 72906-11 | HOUSING, two-way socket (black) | FLHTCUTG |
| 14 | 72910-11 | TERMINAL, socket, 20-22 AWG (2) | FLHTCUTG |
| 15 | 73213-07 | RETAINER, anchored (2) | FLHTCUTG |
| 16 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTG |
| 17 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTG |
| 18 | 69201596 | TERMINAL, ring, 8-10 AWG | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (6 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (2) | FLHTCUTG |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 2 | 10006 | CABLE STRAP | FLHTCUTG |
| 3 | 10065 | CABLE STRAP (6) | FLHTCUTG |
| 4 | 11779 | FASTENER, push-in (black) (2) | FLHTCUTG |
| 5 | 72291-94 | TERMINAL, 14-16 AWG | FLHTCUTG |
| 6 | 72295-94 | HOUSING, one-way socket (white) | FLHTCUTG |
| 7 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLHTCUTG |
| 8 | 69200175 | CADDY, fuse block, electrical panel | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (7 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHTCUTG |
| 2 | 10147 | CLIP, connector | FLHTCUTG |
| 3 | 10177 | CABLE STRAP, anchored (3) | FLHTCUTG |
| 4 | 72065-06A | HOUSING, three-way socket | FLHTCUTG |
| 5 | 72127-06 | SECONDARY LOCK, three-way (gray) | FLHTCUTG |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (15) | FLHTCUTG |
| 8 | 72175-07BK | HOUSING, four-way pin (black) (2) | FLHTCUTG |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTG |
| 10 | 72343-10 | TERMINAL, pin, 16-20 AWG (gold) (6) | FLHTCUTG |
| 11 | 72415-07GY | HOUSING, four-way pin (gray) | FLHTCUTG |
| 12 | 72473-07 | SEAL PIN (2) | FLHTCUTG |
| 13 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTG |
| 14 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTG |
| 15 | 72511-07BK | HOUSING, three-way pin (black) | FLHTCUTG |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTG |
| 17 | 72519-09BK | PLUG, weather, three-way socket | FLHTCUTG |
| 18 | 72533-06 | PLUG, weather, two-way pin | FLHTCUTG |
| 19 | 72544-07 | SECONDARY LOCK, three-way socket | FLHTCUTG |
| 20 | 72589-09 | HOUSING, three-way socket | FLHTCUTG |
| 21 | 72606-08 | HOUSING, two-way socket (black) | FLHTCUTG |
| 22 | 72609-08 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 23 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTG |
| 24 | 73213-07 | RETAINER, anchored (6) | FLHTCUTG |
| 25 | 74112-98BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 26 | 74152-98 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 27 | 74191-98 | TERMINAL, socket (2) | FLHTCUTG |
| 28 | 12500014 | CABLE STRAP | FLHTCUTG |
| 29 | 12500018 | CABLE STRAP | FLHTCUTG |
| 30 | 69200187 | TERMINAL, socket, 12AWG (4) | FLHTCUTG |
| 31 | 69200190 | WIRE SEAL, 20 AWG (4) | FLHTCUTG |
| 32 | 69200221 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTG |
| 33 | 69200222 | WIRE SEAL, 20 AWG (4) | FLHTCUTG |
| 34 | 69200272 | HOUSING, two-way pin | FLHTCUTG |
| 35 | 69201301 | WIRE SEAL, 20-22 AWG (green) (3) | FLHTCUTG |
| 36 | 69201406 | HOUSING, three-way socket | FLHTCUTG |
| 37 | 69201407 | TERMINAL, socket, 20 AWG (3) | FLHTCUTG |
| 38 | 69201423 | DC LEAD ASSEMBLY, two-way socket | FLHTCUTG |
| 39 | 69201778 | HOUSING, 46-way socket (black) | FLHTCUTG |
| 40 | 69201789 | HOUSING, two-way socket (black) (2) | FLHTCUTG |
| 41 | 69201792 | HOUSING, five-way socket (black) | FLHTCUTG |
| 42 | 69201811 | TERMINAL, socket, 20-22 AWG (3) | FLHTCUTG |
| 43 | 69201812 | WIRE SEAL, 20-22 AWG (red) (15) | FLHTCUTG |
| 44 | 69201818 | TERMINAL, socket, 20-22 AWG (12) | FLHTCUTG |
| 45 | 69201821 | TERMINAL PIN (white) 1.2 mm (28) | FLHTCUTG |
| 46 | 69201822 | COVER, fuse block | FLHTCUTG |
| 47 | 72175-07BK | HOUSING, four-way pin (black) | FLHTCUTG |
| 48 | 72632-10 | PLUG | FLHTCUTG |
| 49 | 69201820 | TERMINAL, socket (4) | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (8 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 31586-07 | RELAY (2) | FLHTCUTG |
| 4 | 72064-06 | HOUSING, three-way socket | FLHTCUTG |
| 5 | 72081-11 | HOUSING, 48-way socket | FLHTCUTG |
| 6 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 7 | 72175-07BK | HOUSING, four-way pin (black) | FLHTCUTG |
| 8 | 72209-11 | COVER, wire | FLHTCUTG |
| 9 | 72222-11 | TERMINAL, socket, 18-20 AWG (22) | FLHTCUTG |
| 10 | 72226-11 | TERMINAL, socket, 14-16 AWG | FLHTCUTG |
| 11 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHTCUTG |
| 12 | 72256-11 | SEAL PIN (8) | FLHTCUTG |
| 13 | 72296-95 | TERMINAL, socket, sealed (3) | FLHTCUTG |
| 14 | 72298-95 | CABLE SEAL (3) | FLHTCUTG |
| 15 | 72299-95 | PLUG, cavity (2) | FLHTCUTG |
| 16 | 72308-97 | TERMINAL, socket, 12-14 AWG (5) | FLHTCUTG |
| 17 | 72330-95 | FUSE, 15 A (blue) | FLHTCUTG |
| 18 | 72331-95 | FUSE, 5 A (tan) (2) | FLHTCUTG |
| 19 | 72345-02 | FUSE, 20 A (yellow) (3) | FLHTCUTG |
| 20 | 72350-11 | HOUSING, one-way socket | FLHTCUTG |
| 21 | 72356-95 | TERMINAL, socket, 18-20 AWG (14) | FLHTCUTG |
| 22 | 72412-97 | SEAL, cable, 12-14 AWG (5) | FLHTCUTG |
| 23 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHTCUTG |
| 24 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHTCUTG |
| 25 | 72575-11 | SECONDARY LOCK | FLHTCUTG |
| 26 | 72632-10 | PLUG, weather, four-way pin | FLHTCUTG |
| 27 | 73301-04 | HOUSING, two-way pin | FLHTCUTG |
| 28 | 73303-04 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 29 | 73304-04 | TERMINAL, socket, 10 AWG (3) | FLHTCUTG |
| 30 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FLHTCUTG |
| 31 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLHTCUTG |
| 32 | 69200194 | HOUSING, 24-way fuse block | FLHTCUTG |
| 33 | 69200199 | WIRE SEAL (purple) (14) | FLHTCUTG |
| 34 | 69200212 | HARNESS, battery tender | FLHTCUTG |
| 35 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHTCUTG |
| 36 | 69200312 | SECONDARY LOCK, 24-way fuse block | FLHTCUTG |
| 37 | 69200336A | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness | FLHTCUTG |
| 38 | 69201134A | WIRE HARNESS, positive cable, with 73304-04, 73305-04 and 69201308 | FLHTCUTG |
| 39 | 69201308 | BOOT, battery positive | FLHTCUTG |
| 40 | 69201411 | COVER, fuse block | FLHTCUTG |
| 41 | 69202098 | HOUSING, six-way socket, (red) | FLHTCUTG |
| 42 | 69202109 | SECONDARY LOCK, six-way | FLHTCUTG |
| 43 | 69202107 | TERMINAL, socket, 22 AWG (2) | FLHTCUTG |
| 44 | 69202104 | TERMINAL, socket, 22 AWG (4) | FLHTCUTG |
| 45 | 69202106 | SEAL, 1.6-1.7 MM (4) | FLHTCUTG |
| 46 | 69202108 | CAP | FLHTCUTG |
WIRING HARNESS, MAIN - FLHTCUTG (9 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 8339 | SEAL PIN | FLHTCUTG |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTG |
| 3 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLHTCUTG |
| 4 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 5 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTG |
| 6 | 83944-09 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTG |
| 7 | 69200461 | HOUSING, eight-way socket | FLHTCUTG |
| 8 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHTCUTG |
| 9 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLHTCUTG |
| 10 | 69201400 | HOUSING, two-way socket (black) | FLHTCUTG |
| 11 | 69201401 | SECONDARY LOCK, two-way socket | FLHTCUTG |
| 12 | 69201404 | CONNECTOR, anchored | FLHTCUTG |
| 13 | 69201405 | RESISTOR PACK | FLHTCUTG |
| 14 | 69201779 | HOUSING, four-way socket (black) | FLHTCUTG |
| 15 | 69201814 | TERMINAL, socket (4) | FLHTCUTG |
WIRING HARNESS, MAIN - FLRT (1 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (6) | FLRT |
| 2 | 70291-89 | HOUSING, four-way pin | FLRT |
| 3 | 72039-71A | TERMINAL, pin (3) | FLRT |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (HDI, England, Japan) (7) | FLRT |
| 5 | 72175-07BK | HOUSING, four-way pin (black) (HDI, England, Japan) | FLRT |
| 6 | 72290-94 | TERMINAL, socket, 10-14 AWG | FLRT |
| 7 | 72511-07BK | HOUSING, three-way pin (black) (HDI, England, Japan) | FLRT |
| 8 | 72907-11 | HOUSING, four-way pin (black) | FLRT |
| 9 | 72909-11 | TERMINAL, pin, 20-22 AWG (4) | FLRT |
| 10 | 72914-01BK | HOUSING, four-way socket (black) | FLRT |
| 11 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FLRT |
| 12 | 74104-98BK | HOUSING, four-way pin (black) (Australia, California, Canada, Domestic) | FLRT |
| 13 | 73106-96BK | HOUSING, six-way pin (black) (Australia, California, Canada, Domestic) | FLRT |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (Australia, California, Canada, Domestic) (9) | FLRT |
| 15 | 69202720 | WIRE TROUGH, with 69202637 | FLRT |
| 16 | 69202636 | COVER, wire trough, with 15368-01A | FLRT |
| 17 | 69200284A | CADDY, left steer head | FLRT |
| 18 | 69201163 | HOUSING, six-way pin (black) | FLRT |
| 19 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLRT |
| 20 | 69201287 | BRACKET, mounting, electrical connector | FLRT |
| 21 | 69201500 | BRACKET, mounting, electrical connector (HDI, England, Japan) | FLRT |
WIRING HARNESS, MAIN - FLRT (2 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLRT |
| 2 | 10065 | CABLE STRAP (Australia, California, Canada, Domestic) (3) | FLRT |
| 2 | 10065 | CABLE STRAP (HDI, England, Japan) (4) | FLRT |
| 3 | 70291-89 | HOUSING, four-way pin | FLRT |
| 4 | 72039-71A | TERMINAL, pin (2) | FLRT |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (Japan) (4) | FLRT |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (HDI, England) (7) | FLRT |
| 6 | 72175-07BK | HOUSING, four-way pin (black) (HDI, England, Japan) | FLRT |
| 7 | 72511-07BK | HOUSING, three-way pin (black) (HDI, England) | FLRT |
| 8 | 72905-11 | HOUSING, two-way pin (black) | FLRT |
| 9 | 72907-11 | HOUSING, four-way pin (black) | FLRT |
| 10 | 72909-11 | TERMINAL, pin, 20-22 AWG (5) | FLRT |
| 11 | 73103-96BK | HOUSING, three-way pin (black) (Australia, California, Canada, Domestic) | FLRT |
| 12 | 73190-96 | TERMINAL, pin, 16-20 AWG (Australia, California, Canada, Domestic) (3) | FLRT |
| 13 | 74112-98BK | HOUSING, two-way socket (black) | FLRT |
| 14 | 74152-98 | SECONDARY LOCK, two-way socket | FLRT |
| 15 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLRT |
| 16 | 69200285 | CADDY, right steer head | FLRT |
| 17 | 69201887 | BRACKET, mounting, electrical connector (HDI, England, Japan) | FLRT |
WIRING HARNESS, MAIN - FLRT (3 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLRT |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLRT |
| 3 | 72008-05 | TERMINAL, 20-22 AWG (4) | FLRT |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLRT |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLRT |
| 6 | 72098-06 | HOUSING, two-way socket (gray) | FLRT |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (2) | FLRT |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG (2) | FLRT |
| 9 | 72145-06 | SECONDARY LOCK, two-way socket (blue) (2) | FLRT |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLRT |
| 11 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (8) | FLRT |
| 12 | 72569-08 | TERMINAL, socket, 20-22 AWG (silver) (4) | FLRT |
| 13 | 69201301 | WIRE SEAL, 20-22 AWG (green) (6) | FLRT |
| 14 | 69201390 | HOUSING, two-way socket (black) (2) | FLRT |
| 15 | 69201391 | TERMINAL, socket, 20 AWG (4) | FLRT |
| 16 | 69201392 | WIRE SEAL, 20 AWG (blue) (4) | FLRT |
| 17 | 69201393 | HOUSING, two-way socket (black) | FLRT |
| 18 | 69201394 | HOUSING, six-way socket (black) | FLRT |
| 19 | 69201395 | SECONDARY LOCK, six-way socket | FLRT |
| 20 | 69201396 | TERMINAL, socket, 20 AWG (4) | FLRT |
| 21 | 69201397 | HOUSING, two-way pin (gray) | FLRT |
| 22 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLRT |
| 23 | 69201416 | CPA, six-way socket | FLRT |
| 24 | 69201441 | HOUSING, four-way socket | FLRT |
| 25 | 69201442 | TERMINAL, socket, 18 AWG (2) | FLRT |
| 26 | 69201407 | TERMINAL, socket (2) | FLRT |
WIRING HARNESS, MAIN - FLRT (4 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLRT |
| 2 | 10147 | CLIP, connector | FLRT |
| 3 | 72213-94 | TERMINAL, socket,16-20 AWG (2) | FLRT |
| 4 | 72518-01 | HOUSING, two-way socket (red) | FLRT |
| 5 | 72533-06 | PLUG, weather, two-way pin | FLRT |
| 6 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLRT |
| 7 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLRT |
| 8 | 72720-07 | HOUSING, two-way socket (black) | FLRT |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLRT |
| 10 | 69202322 | HOUSING, 81-way, socket | FLRT |
| 11 | 69202032 | SECONDARY LOCK | FLRT |
| 12 | 69201890 | TERMINAL, socket (4) | FLRT |
| 13 | 69202028 | TERMINAL, pin (35) | FLRT |
| 14 | 69202453 | TERMINAL, socket (17) | FLRT |
| 15 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) (4) | FLRT |
| 16 | 69202323 | COVER | FLRT |
| 17 | 69202453 | TERMINAL, pin (24) | FLRT |
| 18 | 69202029 | TERMINAL, socket | FLRT |
WIRING HARNESS, MAIN - FLRT (5 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 9819 | TERMINAL, ring, 12 AWG | FLRT |
| 2 | 9825 | TERMINAL, ring, 12-14 AWG | FLRT |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (5) | FLRT |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (25) | FLRT |
| 5 | 69202219 | HEAT SHRINK TUBE, .415 x 1 (black) | FLRT |
| 6 | 72447-07GY | HOUSING, eight-way pin (gray) | FLRT |
| 7 | 72473-07 | SEAL PIN (natural) (10) | FLRT |
| 8 | 72478-07BK | HOUSING, eight-way pin (black) | FLRT |
| 9 | 72487-07BK | HOUSING, 12-way socket (black) | FLRT |
| 10 | 72488-07BK | HOUSING, 12-way pin (black) | FLRT |
| 11 | 12200188 | CLIP, connector | FLRT |
| 12 | 69201500 | BRACKET, electrical mount connector | FLRT |
| 13 | 69201596 | TERMINAL, ring, 8-10 AWG | FLRT |
WIRING HARNESS, MAIN - FLRT (6 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLRT |
| 2 | 10065 | CABLE STRAP (4) | FLRT |
| 3 | 11779 | FASTENER, push-in (black) (2) | FLRT |
| 4 | 72291-94 | TERMINAL, socket 14-16 AWG | FLRT |
| 5 | 72295-94 | CONNECTOR, starter housing | FLRT |
| 6 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLRT |
| 7 | 69200175 | CADDY, fuse block, electrical panel | FLRT |
| 8 | 3634 | SCREW, NOTE: Screw is sold separately and is not part of main harness (2) | FLRT |
WIRING HARNESS, MAIN - FLRT (7 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLRT |
| 2 | 10147 | CLIP, connector (2) | FLRT |
| 3 | 10177 | CABLE STRAP, anchored (3) | FLRT |
| 4 | 72065-06A | HOUSING, three-way socket (black) | FLRT |
| 5 | 72127-06 | SECONDARY LOCK, three-way socket | FLRT |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLRT |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FLRT |
| 8 | 72175-07BK | HOUSING, four-way pin (black) (2) | FLRT |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLRT |
| 10 | 72343-10 | TERMINAL, pin, 16-20 AWG (8) | FLRT |
| 11 | 72415-07GY | HOUSING, four-way pin (gray) | FLRT |
| 12 | 72473-07 | SEAL PIN (natural) (2) | FLRT |
| 13 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLRT |
| 14 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLRT |
| 15 | 72511-07BK | HOUSING, three-way pin (black) | FLRT |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLRT |
| 17 | 72519-09BK | PLUG, weather, three-way socket | FLRT |
| 18 | 72533-06 | PLUG, weather, two-way pin | FLRT |
| 19 | 72544-07 | SECONDARY LOCK, three-way socket | FLRT |
| 20 | 72589-09 | HOUSING, three-way socket (black) | FLRT |
| 21 | 72606-08 | HOUSING, two-way socket (black) | FLRT |
| 22 | 72607-08 | HOUSING, two-way pin (black) | FLRT |
| 23 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLRT |
| 24 | 72609-08 | SECONDARY LOCK, two-way socket (2) | FLRT |
| 25 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLRT |
| 26 | 73213-07 | RETAINER, anchored (4) | FLRT |
| 27 | 74112-98BK | HOUSING, two-way socket (black) | FLRT |
| 28 | 74152-98 | SECONDARY LOCK, two-way socket | FLRT |
| 29 | 74191-98 | TERMINAL, socket, 16-20 AWG (2) | FLRT |
| 30 | 12500014 | CABLE STRAP | FLRT |
| 31 | 12500018 | CABLE STRAP | FLRT |
| 32 | 69200187 | TERMINAL, socket, 12AWG (4) | FLRT |
| 33 | 69200190 | WIRE SEAL, 20 AWG (4) | FLRT |
| 34 | 69201423 | DC LEAD ASSEMBLY, two-way socket | FLRT |
| 35 | 69200221 | TERMINAL, socket, 18-20 AWG (4) | FLRT |
| 36 | 69200222 | WIRE SEAL, 20 AWG (4) | FLRT |
| 37 | 69201778 | HOUSING, 46-way socket (black) | FLRT |
| 38 | 69201789 | HOUSING, two-way socket (black) (2) | FLRT |
| 39 | 69201792 | HOUSING, five-way socket (black) | FLRT |
| 40 | 69201811 | TERMINAL, socket, 20-22 AWG (3) | FLRT |
| 41 | 69201812 | WIRE SEAL, 20-22 AWG (red) (14) | FLRT |
| 42 | 69201818 | TERMINAL, socket, 20-22 AWG (12) | FLRT |
| 43 | 69201821 | SEAL PIN, (white) 1.2mm (28) | FLRT |
| 44 | 69201822 | COVER, fuse block | FLRT |
| 45 | 72632-10 | PLUG | FLRT |
| 46 | 69201820 | SEAL PIN, (green) 2.8 mm (4) | FLRT |
WIRING HARNESS, MAIN - FLRT (8 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 2 | 10006 | CABLE STRAP (2) | FLRT |
| 3 | 10065 | CABLE STRAP (2) | FLRT |
| 4 | 31586-07 | RELAY (2) | FLRT |
| 5 | 72064-06 | HOUSING, three-way socket (black) | FLRT |
| 6 | 72081-11 | HOUSING, 48-way socket (black) | FLRT |
| 12 | 72209-11 | COVER, wire | FLRT |
| 13 | 72222-11 | TERMINAL, socket, 18-20 AWG (24) | FLRT |
| 14 | 72226-11 | TERMINAL, socket, 14-16 AWG (3) | FLRT |
| 15 | 72227-11 | TERMINAL, socket, 18-20 AWG (3) | FLRT |
| 16 | 72256-11 | SEAL PIN (white) 0.6 mm (9) | FLRT |
| 17 | 72296-95 | TERMINAL, socket, 14-16 AWG (2) | FLRT |
| 18 | 72298-95 | CABLE SEAL (2) | FLRT |
| 19 | 72299-95 | SEAL PIN (green) (4) | FLRT |
| 20 | 72308-97 | TERMINAL, socket, 12-14 AWG (3) | FLRT |
| 21 | 72330-95 | FUSE, 15 A (blue) | FLRT |
| 22 | 72331-95 | FUSE, 5 A (tan) (2) | FLRT |
| 23 | 72345-02 | FUSE, 20 A (yellow) (2) | FLRT |
| 24 | 72350-11 | HOUSING, one-way socket (black) | FLRT |
| 25 | 72356-95 | TERMINAL, socket, 18-20 AWG (15) | FLRT |
| 26 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) (3) | FLRT |
| 27 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLRT |
| 28 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLRT |
| 29 | 72575-11 | SECONDARY LOCK, one-way socket | FLRT |
| 30 | 73301-04 | HOUSING, two-way pin (black) | FLRT |
| 31 | 73303-04 | SECONDARY LOCK, two-way socket | FLRT |
| 32 | 73304-04 | TERMINAL, socket, 10 AWG (2) | FLRT |
| 33 | 73305-04 | WIRE SEAL, 10 AWG (blue) (2) | FLRT |
| 34 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLRT |
| 35 | 69200194 | HOUSING, 24-way socket | FLRT |
| 36 | 69200199 | WIRE SEAL (purple) (15) | FLRT |
| 37 | 69200212 | HARNESS, battery tender | FLRT |
| 38 | 69200293 | FUSE, 7.5 A (brown) (2) | FLRT |
| 39 | 69200312 | SECONDARY LOCK, fuse block (3) | FLRT |
| 40 | 69200336 | FUSE, main 50 A (red), NOTE: Fuse is sold separately and is not part of main harness | FLRT |
| 41 | 69201134A | WIRE HARNESS, positive cable, with 73304-04, 73305-04 and 69201308 | FLRT |
| 42 | 69201308 | BOOT, battery positive | FLRT |
| 43 | 69201411 | COVER, fuse block | FLRT |
| 41 | 69202098 | HOUSING, six-way socket, (red) | FLRT |
| 42 | 69202109 | SECONDARY LOCK, six-way | FLRT |
| 43 | 69202107 | TERMINAL, socket, 22 AWG (2) | FLRT |
| 44 | 69202104 | TERMINAL, socket, 22 AWG (4) | FLRT |
| 45 | 69202106 | SEAL, 1.6-1.7 MM (4) | FLRT |
| 46 | 69202108 | CAP | FLRT |
WIRING HARNESS, MAIN - FLRT (9 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored (2) | FLRT |
| 2 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLRT |
| 3 | 73102-96BK | HOUSING, two-way pin (black) | FLRT |
| 4 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLRT |
| 5 | 83944-09 | TERMINAL, socket, 18-20 AWG (7) | FLRT |
| 6 | 69200461 | HOUSING, eight-way socket | FLRT |
| 7 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLRT |
| 8 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLRT |
| 9 | 69201400 | HOUSING, two-way socket (black) | FLRT |
| 10 | 69201401 | SECONDARY LOCK, two-way socket | FLRT |
| 11 | 69201404 | CONNECTOR, anchored | FLRT |
| 12 | 69201405 | RESISTOR PACK | FLRT |
| 13 | 69201779 | HOUSING, four-way socket (black) | FLRT |
| 14 | 69201814 | TERMINAL, socket (4) | FLRT |
WIRING HARNESS, FAIRING - FLHTCUTG (DOMESTIC, JAPAN, AUSTRALIA)
| Index No. | Part No. | Description | Model(s) |
| 69202523 | WIRING HARNESS, fairing (Domestic, Japan) | FLHTCUTG | |
| 69202712 | WIRING HARNESS, fairing (Australia) (not shown) | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 69200256 | SECONDARY LOCK, four-way socket | FLHTCUTG |
| 2 | 69200271 | HOUSING, two-way socket (black) (2) | FLHTCUTG |
| 3 | 69200337 | HOUSING, two-way socket (gray) | FLHTCUTG |
| 4 | 69201240 | TERMINAL, socket,18 AWG (2) | FLHTCUTG |
| 5 | 5118 | SEAL PIN (Domestic, Japan) | FLHTCUTG |
| 5 | 5118 | SEAL PIN (Australia)) (2) | FLHTCUTG |
| 6 | 10065 | CABLE STRAP (8) | FLHTCUTG |
| 7 | 10177 | CABLE STRAP, anchored (5) | FLHTCUTG |
| 8 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHTCUTG |
| 9 | 72097-06 | SEAL PIN, orange (2) | FLHTCUTG |
| 10 | 72130-04 | HOUSING, 12-way socket (black) | FLHTCUTG |
| 11 | 72135-06 | SECONDARY LOCK, four-way socket (2) | FLHTCUTG |
| 12 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTCUTG |
| 13 | 72169-07 | TERMINAL, pin, 16-20 AWG (19) | FLHTCUTG |
| 14 | 72189-04 | SEAL PIN (5) | FLHTCUTG |
| 15 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUTG |
| 16 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 17 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 18 | 72473-07 | SEAL PIN, natural (9) | FLHTCUTG |
| 19 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTG |
| 20 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTG |
| 21 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTG |
| 22 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (4) | FLHTCUTG |
| 23 | 72902-01BK | DUST CAP, two-way pin (black) | FLHTCUTG |
| 24 | 72905-11 | HOUSING, two-way pin (black) (Domestic, Japan) | FLHTCUTG |
| 24 | 72905-11 | HOUSING, two-way pin (black) (Australia) (3) | FLHTCUTG |
| 25 | 72907-11 | HOUSING, four-way pin (black) (4) | FLHTCUTG |
| 26 | 72909-11 | TERMINAL, pin, 20-22 AWG (Domestic, Japan) (13) | FLHTCUTG |
| 26 | 72909-11 | TERMINAL, pin, 20-22 AWG (Australia) (19) | FLHTCUTG |
| 27 | 72912-01BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 28 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 29 | 73152-96BK | DUST CAP, two-way socket (black) | FLHTCUTG |
| 30 | 73190-96 | TERMINAL, pin, 16-20 AWG (Domestic, Japan) (2) | FLHTCUTG |
| 30 | 73190-96 | TERMINAL, pin, 16-20 AWG (Australia) (4) | FLHTCUTG |
| 31 | 74196-04 | TERMINAL, socket, 20 AWG (7) | FLHTCUTG |
| 32 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHTCUTG |
| 33 | 12500002 | CABLE STRAP (2) | FLHTCUTG |
| 34 | 69202485 | CADDY, fairing harness | FLHTCUTG |
| 35 | 69200254 | HOUSING, four-way socket | FLHTCUTG |
| 36 | 73101-96BK | HOUSING, two-way pin (black) (Australia) (not shown) | FLHTCUTG |
WIRING HARNESS, FAIRING - FLHTCUTG (HDI, ENGLAND)
| Index No. | Part No. | Description | Model(s) |
| 69202525 | WIRING HARNESS, fairing | FLHTCUTG | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (7) | FLHTCUTG |
| 3 | 10177 | CABLE STRAP, anchored (5) | FLHTCUTG |
| 4 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHTCUTG |
| 5 | 72097-06 | SEAL PIN, orange (2) | FLHTCUTG |
| 6 | 72130-04 | HOUSING, 12-way socket (black) | FLHTCUTG |
| 7 | 72135-06 | SECONDARY LOCK, four-way socket (2) | FLHTCUTG |
| 8 | 72167-07BK | HOUSING, 16-way pin (black) | FLHTCUTG |
| 9 | 72169-07 | TERMINAL, pin, 16-20 AWG (18) | FLHTCUTG |
| 10 | 72189-04 | SEAL PIN (5) | FLHTCUTG |
| 11 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTG |
| 12 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTG |
| 13 | 72473-07 | SEAL PIN, natural (10) | FLHTCUTG |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTG |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTG |
| 16 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTG |
| 17 | 72902-01BK | DUST CAP, two-way pin (black) | FLHTCUTG |
| 18 | 72905-11 | HOUSING, two-way pin (black) (3) | FLHTCUTG |
| 19 | 72907-11 | HOUSING, four-way pin (black) (4) | FLHTCUTG |
| 20 | 72909-11 | TERMINAL, pin, 20-22 AWG (21) | FLHTCUTG |
| 21 | 72912-01BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 22 | 73101-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 23 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 24 | 73152-96BK | DUST CAP, two-way socket (black) | FLHTCUTG |
| 25 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 26 | 74196-04 | TERMINAL, socket, 20 AWG (7) | FLHTCUTG |
| 27 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHTCUTG |
| 28 | 12500002 | CABLE STRAP (2) | FLHTCUTG |
| 29 | 69202485 | CADDY, fairing harness | FLHTCUTG |
| 30 | 69200271 | HOUSING, two-way socket (black) (2) | FLHTCUTG |
| 381 | 69200337 | HOUSING, two-way socket (gray) | FLHTCUTG |
| 32 | 69201240 | TERMINAL, socket,18 AWG (2) | FLHTCUTG |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLHTCUTG (DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10102 | CLIP, small (4) | FLHTCUTG |
| 3 | 10103 | CLIP, large (2) | FLHTCUTG |
| 4 | 10270 | CABLE STRAP | FLHTCUTG |
| 5 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTG |
| 6 | 72469-07GY | HOUSING, eight-way socket (gray) | FLHTCUTG |
| 7 | 72473-07 | SEAL PIN (2) | FLHTCUTG |
| 8 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 9 | 73103-96BK | HOUSING, three-way pin (black) | FLHTCUTG |
| 10 | 73152-96BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 11 | 73156-96BK | HOUSING, six-way socket (black) (2) | FLHTCUTG |
| 12 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 13 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTG |
| 14 | 83439-09 | GROMMET | FLHTCUTG |
| 15 | 69200140 | HARNESS, rear lights, with 72168-07, 72469-07GY, 72473-07, 73102-96BK, 73103-96BK, 73152-96BK, 73156-96BK, 73190-96 and 73191-96 | FLHTCUTG |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLHTCUTG (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTG |
| 2 | 10102 | CLIP, small (4) | FLHTCUTG |
| 3 | 10103 | CLIP, large (2) | FLHTCUTG |
| 4 | 10270 | CABLE STRAP | FLHTCUTG |
| 5 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHTCUTG |
| 6 | 72154-94 | SECONDARY LOCK, four-way socket (2) | FLHTCUTG |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTG |
| 8 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHTCUTG |
| 9 | 72469-07GY | HOUSING, eight-way socket (gray) | FLHTCUTG |
| 10 | 72473-07 | SEAL PIN | FLHTCUTG |
| 11 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 12 | 73103-96BK | HOUSING, three-way pin (black) | FLHTCUTG |
| 13 | 73152-96BK | HOUSING, two-way socket (black) | FLHTCUTG |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 15 | 74104-98BK | HOUSING, four-way pin (black) (2) | FLHTCUTG |
| 16 | 74114-98BK | HOUSING, four-way socket (black) (2) | FLHTCUTG |
| 17 | 74144-98 | SECONDARY LOCK, four-way pin (2) | FLHTCUTG |
| 18 | 74154-98 | SECONDARY LOCK, four-way socket (2) | FLHTCUTG |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG (8) | FLHTCUTG |
| 20 | 74191-98 | TERMINAL, socket, 16-20 AWG (8) | FLHTCUTG |
| 21 | 83439-09 | GROMMET | FLHTCUTG |
| 22 | 69200266 | HARNESS, rear lights, with 7, 9, 10, 11, 12, 13, 14, 15, 17 and 19 | FLHTCUTG |
| 23 | 69200410 | HARNESS, jumper, with 5, 6, 8, 16, 18 and 20 (2) | FLHTCUTG |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLRT (DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP | FLRT |
| 2 | 10102 | CLIP, small (7) | FLRT |
| 3 | 10103 | CLIP, large (4) | FLRT |
| 4 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLRT |
| 5 | 72469-07GY | HOUSING, eight-way socket (gray) | FLRT |
| 6 | 72473-07 | SEAL PIN (4) | FLRT |
| 7 | 73156-96BK | HOUSING, six-way socket (black) (2) | FLRT |
| 8 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLRT |
| 9 | 69200711A | HARNESS, rear lights, with 10065, 72168-07, 72469-07GY, 72473-07, 73156-96BK and 73191-96 | FLRT |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLRT (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (2) | FLRT |
| 2 | 10102 | CLIP, small (5) | FLRT |
| 3 | 10103 | CLIP, large (4) | FLRT |
| 4 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLRT |
| 5 | 72154-94 | SECONDARY LOCK, four-way socket (2) | FLRT |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (England, HDI, Japan) (6) | FLRT |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (Australia) (7) | FLRT |
| 7 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLRT |
| 8 | 72469-07GY | HOUSING, eight-way socket (gray) | FLRT |
| 9 | 72473-07 | SEAL PIN (England, HDI, Japan) (2) | FLRT |
| 9 | 72473-07 | SEAL PIN (Australia) | FLRT |
| 10 | 72902-01BK | HOUSING, two-way pin (black) (England, HDI, Japan) | FLRT |
| 10 | 72904-01BK | HOUSING, four-way pin (black) (Australia) | FLRT |
| 11 | 72990-01 | TERMINAL, pin, 18-22 AWG (England, HDI, Japan) (2) | FLRT |
| 11 | 72990-01 | TERMINAL, pin, 18-22 AWG (Australia) (3) | FLRT |
| 12 | 69201508A | HARNESS, rear lights, with 10065, 72114-94BK, 72154-94, 72168-07, 72191-94. 72469-07GY, 72473-07, 72902-01BK and 72990-01 (England, HDI, Japan) | FLRT |
| 12 | 69201742A | HARNESS, rear lights, with 10065, 72114-94BK, 72154-94, 72168-07, 72191-94. 72469-07GY, 72473-07, 72904-01BK and 72990-01 (Australia) | FLRT |
WIRING HARNESS, CONSOLE - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 72062-06 | HOUSING, two-way socket (gray) | FLRT |
| 2 | 72130-04 | HOUSING, 12-way socket (black) | FLRT |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (8) | FLRT |
| 4 | 72189-04 | SEAL PIN (2) | FLRT |
| 5 | 72479-07BK | HOUSING, eight-way socket (black) | FLRT |
| 6 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLRT |
| 7 | 72485-07 | HOUSING, four-way socket (black) | FLRT |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLRT |
| 9 | 72493-07 | TERMINAL, socket, 16-18 AWG (4) | FLRT |
| 10 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLRT |
| 11 | 72557-07 | SECONDARY LOCK, four-way socket | FLRT |
| 12 | 72662-11 | TERMINAL, socket, 22 AWG (5) | FLRT |
| 13 | 74196-04 | TERMINAL, socket, 20 AWG (5) | FLRT |
| 14 | 74197-04 | SECONDARY LOCK, 12-way socket | FLRT |
| 15 | 69200740 | WIRE HARNESS, console | FLRT |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (6) | ALL |
| 2 | 4312C | SCREW (2) | ALL |
| 3 | 4705 | SCREW (2) | ALL |
| 4 | 7792 | NUT | ALL |
| 5 | 69201178 | BRACKET, battery hold down | ALL |
| 6 | 69201308 | BOOT, battery positive | ALL |
| 7 | 31694-90 | NUT | ALL |
| 8 | 66010-97E | BATTERY, with 4312C (Domestic) | ALL |
| 8 | 66000212A | BATTERY KIT, with 66010-97E (all except Domestic) | ALL |
| 9 | 66051-08 | STRAP, battery removal | ALL |
| 10 | 9819 | TERMINAL, ring, 12 AWG | ALL |
| 11 | 73304-04 | TERMINAL, socket, 10 AWG | ALL |
| 12 | 73305-04 | SEAL WIRE, 10 AWG (blue) | ALL |
| 13 | 66000136 | BATTERY TRAY | ALL |
| 14 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | ALL |
| 15 | 69202307 | CADDY, electronic control module (ECM) | ALL |
| 16 | 69201134A | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201308 | ALL |
| 17 | 83898-09A | WIRING HARNESS, reverse motor ground | ALL |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | ALL |
| 2 | 4775 | SCREW (2) | ALL |
| 3 | 6019 | WASHER (2) | ALL |
| 4 | 6109 | WASHER | ALL |
| 5 | 7495 | NUT | ALL |
| 6 | 7549A | ACORN NUT | ALL |
| 7 | 8108 | SPEEDNUT (2) | ALL |
| 8 | 69060-90H | HORN ASSEMBLY | ALL |
| 9 | 69062-91A | CLAMP | ALL |
| 10 | 69120-91 | BRACKET, horn | ALL |
| 11 | 69123-92A | MOUNT, horn, rubber | ALL |
| 12 | 14100764 | INSERT, horn | ALL |
| 13 | 61300523A | COVER, horn (chrome) | ALL |
| 14 | 69000083 | BRACKET ASSEMBLY, horn mount | ALL |
REVERSE MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 7492 | NUT | ALL |
| 2 | 8313 | SCREW (5) | ALL |
| 3 | 8335 | LOCKWASHER | ALL |
| 4 | 83388-09C | REVERSE MOTOR ASSEMBLY, with 31400139, 31400143 and 41600327 | ALL |
| 5 | 83389-09B | BRACKET, adapter | ALL |
| 6 | 83898-09A | WIRING HARNESS, reverse motor ground | ALL |
| 7 | 31400139 | SOLENOID, with 41600327 | ALL |
| 8 | 31400143 | ELECTRICAL KIT, with 41600327 | ALL |
REVERSE CONTROL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 7358 | NUT (2) | ALL |
| 2 | 7683 | LOCKNUT (2) | ALL |
| 3 | 8339 | SEAL PIN | ALL |
| 4 | 8370 | TERMINAL, pin, 18-22 AWG (7) | ALL |
| 5 | 9825 | TERMINAL, ring, 14-18 AWG (4) | ALL |
| 6 | 1009M | SCREW (7) | ALL |
| 7 | 10006 | CABLE STRAP (3) | ALL |
| 8 | 10177 | CABLE STRAP, anchored | ALL |
| 9 | 70018-07 | BOOT, solenoid cover | ALL |
| 10 | 70578-89 | BOOT, rubber (3) | ALL |
| 11 | 71474-07 | SOLENOID, starter, reverse control module, with 73152-96BK and 73191-96 | ALL |
| 12 | 73152-96BK | HOUSING, two-way socket (black) | ALL |
| 13 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | ALL |
| 14 | 73213-07 | RETAINER, anchored | ALL |
| 15 | 83869-09 | CIRCUIT BREAKER, 150A | ALL |
| 16 | 32700101 | SENSOR, IMU | ALL |
| 17 | 41600258 | BRACKET | ALL |
| 18 | 69200421 | MODULE, reverse, with 8339, 8370 and 69200462 | ALL |
| 19 | 69200462 | HOUSING, eight-way pin (black) | ALL |
| 20 | 69201780 | HARNESS, starter-to-fuse, with 69201307 | ALL |
| 21 | 69201781A | HARNESS, fuse-to-motor, with 70578-89 | ALL |
| 22 | 69201782A | HARNESS, solenoid-to-motor, with 70578-89 and 9825 | ALL |
| 23 | 69201783 | HARNESS, jumper, 14 AWG, with 9825 | ALL |
| 24 | 69201786 | BRACKET | ALL |
| 25 | 69201307 | BOOT (2) | ALL |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | ALL |
| 2 | 6150W | WASHER (2) | ALL |
| 3 | 9907 | WIRE TERMINAL (2) | ALL |
| 4 | 10065 | CABLE STRAP (2) | ALL |
| 5 | 33926-06B | SWITCH, neutral indicator, with O-ring | ALL |
| 6 | 61081-92 | COVER, key head (set of 2) | ALL |
| 7 | 66373-06 | BATTERY, 3V, CR2032 | ALL |
| 8 | 68956-07 | ANTENNA MODULE, security system | ALL |
| 9 | 71660-03A | NUT, ignition switch | FLHTCUTG |
| 10 | 72023-51E | KIT, SWITCH, rear brakelite, with 9907 | ALL |
| 11 | 72594-11 | DUST CAP, two-way socket, without security | FLRT |
| 12 | 14100158 | DECAL, ignition switch knob | FLHTCUTG |
| 13 | 32700010 | SENSOR, ambient temperature | FLHTCUTG |
| 14 | 41000341F | BODY CONTROL MODULE (BCM) with security (except Japan) | ALL |
| 14 | 41000342F | BODY CONTROL MODULE (BCM) with security (Japan) | ALL |
| 15 | 45600037 | FORK LOCK (specify key number) | FLRT |
| 16 | 71400020B | HOUSING, ignition switch, with 71660-03 and 71400081 (Domestic) | FLHTCUTG |
| 16 | 71400021B | HOUSING, ignition switch, with 71660-03 and 71400081 (HDI) | FLHTCUTG |
| 17 | 71400022B | LOCKSET, complete, with keys, ignition knob, trunk and Tour-Pak locks | FLHTCUTG |
| 18 | 71400017B | KNOB, ignition switch, with 14100158 (specify key number) | FLHTCUTG |
| 19 | 71400073 | SPRING, ignition knob | FLHTCUTG |
| 20 | 71400081 | COLLAR, ignition switch, top | FLHTCUTG |
| 21 | 71400098 | LOCKSET, complete with keys, ignition switch, key cover, fork lock and trunk lock | FLRT |
| 22 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) | ALL |
| 23 | 90300111 | REMOTE CONTROL FOB, with 66373-06 (except Japan) | ALL |
| 23 | 90300112 | REMOTE CONTROL FOB, with 66373-06 (Japan) | ALL |
| NOTE: For additional fuse and relay part number information see wiring harness pages. | |||
SOUND SYSTEM - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | FLHTCUTG |
| 2 | 10065 | CABLE STRAP (2) | FLHTCUTG |
| 3 | 77117-10 | HEADSET ASSEMBLY, with 77126-10, 77148-10 and 76000243 | FLHTCUTG |
| 4 | 77126-10 | WIND SOCK, microphone (California, Canada, Domestic) | FLHTCUTG |
| 4 | 77126-10 | WIND SOCK, microphone (Australia, England, HDI, Japan) (2) | FLHTCUTG |
| 5 | 77148-10 | COILED CORD, headset (California, Canada, Domestic) | FLHTCUTG |
| 5 | 77148-10 | COILED CORD, headset (Australia, England, HDI, Japan) (2) | FLHTCUTG |
| 6 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 7 | 72290-94 | TERMINAL, socket 1/4 in (black) (2) | FLHTCUTG |
| 8 | 72294-94 | TERMINAL, socket 16-20 AWG (white) (2) | FLHTCUTG |
| 9 | 73213-07 | RETAINER, anchored (2) | FLHTCUTG |
| 10 | 10200205 | SCREW (8) | FLHTCUTG |
| 11 | 10500017 | SCREW (6) | FLHTCUTG |
| 12 | 12600070 | BOLT (4) | FLHTCUTG |
| 13 | 12600071 | RETAINER, bolt (4) | FLHTCUTG |
| 14 | 12600073 | SCREW, accessory module (2) | FLHTCUTG |
| 15 | 69200272 | HOUSING, two-way pin (2) | FLHTCUTG |
| 16 | 69200247 | WIRE HARNESS, speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 (2) | FLHTCUTG |
| 17 | 69200391 | CABLE, AM/FM antenna | FLHTCUTG |
| 18 | 76000055 | SPEAKER ADAPTOR AND GRILLE (2) | FLHTCUTG |
SOUND SYSTEM - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 76000783B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | FLHTCUTG |
| 19 | 76000784B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, England) (See NOTE 2) | FLHTCUTG |
| 19 | 76000785B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, Australia, Japan) (See NOTE 3) | FLHTCUTG |
| 20 | 76000819 | SPEAKER, 5-1/4 in (2) | FLHTCUTG |
| 21 | 76000789 | ANTENNA, GPS | FLHTCUTG |
| 22 | 76000243 | EAR PAD, foam (California, Canada, Domestic) (2) | FLHTCUTG |
| 22 | 76000243 | EAR PAD, foam (Australia, England, HDI, Japan) (4) | FLHTCUTG |
| 23 | 76000252 | PLATE, accessory module | FLHTCUTG |
| NOTE 1: 76000783A radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Cayman Islands, Mexico, Puerto Rico and United States.NOTE 2: 76000784A radio with the European mapset is used in these countries/regions: Albania, Andorra, Austria, Belarus, Belgium, Bosnia Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, Ukraine (Crimea), United Kingdom (Great Britain) and Vatican City.NOTE 3: 76000785A radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Azerbaijan, Bahrain, Botswana, Brazil, Brunei, Chile, China, Columbia, Costa Rica, Egypt, India, Indonesia, Jordan, Kazakhstan, Kenya, Kuwait, Lebanon, Lesotho, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Paraguay, Peru, Qatar, Reunion, Russia, Saudi Arabia, Singapore, South Africa, Swaziland, Thailand, United Arab Emirates, Uruguay, Venezuela, Vietnam and the Rest Of the World.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
BODY ASSEMBLY AND SIDE COVERS - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLHTCUTG |
| 2 | 3445 | BOLT | FLHTCUTG |
| 3 | 6116 | WASHER (2) | FLHTCUTG |
| 4 | 6645 | WASHER (6) | FLHTCUTG |
| 5 | 6702 | WASHER (3) | FLHTCUTG |
| 6 | 7739 | LOCKNUT (2) | FLHTCUTG |
| 7 | 8369 | BOLT (4) | FLHTCUTG |
| 8 | 10102 | CLIP, small (17) | FLHTCUTG |
| 9 | 10103 | CLIP, large (3) | FLHTCUTG |
| 10 | 11650 | GROMMET, side cover (6) | FLHTCUTG |
| 11 | 70186-82 | GROUND STRAP | FLHTCUTG |
| 12 | 83991-11 | SEAL, trunk door (cut to fit) | FLHTCUTG |
| 13 | 83777-11 | INSERT, fender mount, press-in, 5/16-18 (12) | FLHTCUTG |
| 14 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTG |
| 15 | 83782-11 | INSERT, press-in, 1/4-20 (4) | FLHTCUTG |
| 16 | 83798-11 | INSERT, TOP HAT, spacer (2) | FLHTCUTG |
| 17 | 83811-09 | FOAM TAPE (4) | FLHTCUTG |
| 18 | 83822-09 | STUD | FLHTCUTG |
| 19 | 12300002 | SEALING WASHER, trunk lock | FLHTCUTG |
| 20 | 57200081DH | SIDE COVER ASSEMBLY, with 83563-10 (right) (vivid black) | FLHTCUTG |
| 20 | 57200081ENX | SIDE COVER ASSEMBLY, with 83563-10 (right) (billiard red) | FLHTCUTG |
| 20 | 57200081ESH | SIDE COVER ASSEMBLY, with 83563-10 (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 20 | 57200081ESU | SIDE COVER ASSEMBLY, with 83563-10 (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 20 | 57200081ETF | SIDE COVER ASSEMBLY, with 83563-10 (right) (snake venom) | FLHTCUTG |
| 21 | 57200083DH | SIDE COVER ASSEMBLY (left) (vivid black) | FLHTCUTG |
| 21 | 57200083ENX | SIDE COVER ASSEMBLY (left) (billiard red) | FLHTCUTG |
| 21 | 57200083ESH | SIDE COVER ASSEMBLY (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 21 | 57200083ESU | SIDE COVER ASSEMBLY (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 21 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLHTCUTG |
| 22 | 83000051DH | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (vivid black) | FLHTCUTG |
| 22 | 83000051ENX | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (billiard red) | FLHTCUTG |
| 22 | 83000051ESH | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 22 | 83000051ESU | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 22 | 83000192ETF | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (snake venom) | FLHTCUTG |
BODY ASSEMBLY AND SIDE COVERS - FLRT (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLRT |
| 2 | 3445 | BOLT (2) | FLRT |
| 3 | 6116 | WASHER (2) | FLRT |
| 4 | 6645 | WASHER (6) | FLRT |
| 5 | 7624 | LOCKNUT | FLRT |
| 6 | 8369 | BOLT (4) | FLRT |
| 7 | 10102 | CLIP, small (Domestic) (7) | FLRT |
| 7 | 10102 | CLIP, small (HDI) (12) | FLRT |
| 8 | 10103 | CLIP, large (4) | FLRT |
| 9 | 11650 | GROMMET, side cover, left / right (6) | FLRT |
| 10 | 69490-07 | REFLECTOR (red) (California, Domestic) | FLRT |
| 11 | 83777-11 | INSERT, fender mount, press-in, 5/16-18 (10) | FLRT |
| 12 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (4) | FLRT |
| 13 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (HDI) (3) | FLRT |
| 14 | 83798-11 | INSERT, TOP HAT, spacer (2) | FLRT |
| 15 | 83811-09 | FOAM TAPE (4) | FLRT |
| 16 | 90844-80 | ACORN NUT (HDI) (2) | FLRT |
| 17 | 10200220 | SCREW (3) | FLRT |
| 18 | 10200338 | SCREW (2) | FLRT |
| 19 | 12200102 | RETAINING RING | FLRT |
| 20 | 12300031 | WASHER, sealing | FLRT |
| 21 | 12600105 | SCREW (4) | FLRT |
| 22 | 12600106 | SCREW (2) | FLRT |
| 23 | 12600106 | SCREW (Domestic) (2) | FLRT |
| 24 | 90300104 | WASHER, tabbed | FLRT |
| 25 | 14100596 | MEDALLION, body, rear (Domestic) | FLRT |
| 26 | 14100612 | DECAL, handle (2) | FLRT |
| 27 | 25700155 | GASKET, plug (Domestic) | FLRT |
| 28 | 52400092 | HANDLE ASSEMBLY, passenger grab, with 14100612 (2) | FLRT |
| 29 | 53000339 | LOCK ASSEMBLY, with 12300031, 90300103 and 90300104 (specify key number) | FLRT |
| 30 | 53000340 | COVER, lock | FLRT |
| 31 | 53000356 | CABLE LATCH ASSEMBLY, with 7624, 10200220, 12200102, 53000340 and 53000457 | FLRT |
| 32 | 53000391 | COVER, trunk bulkhead | FLRT |
| 33 | 53000457 | COVER, latch | FLRT |
| 34 | 57200083DH | SIDE COVER ASSEMBLY (left) (vivid black) | FLRT |
| 34 | 57200083ESK | SIDE COVER ASSEMBLY (left) (billiard teal) | FLRT |
| 34 | 57200083ENT | SIDE COVER ASSEMBLY (left) (river rock gray) | FLRT |
| 34 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLRT |
| 35 | 61300315 | COVER, trim (2) | FLRT |
| 36 | 61300331DH | SIDE COVER ASSEMBLY, with 14000781 (right) (vivid black) | FLRT |
| 36 | 61300331ESK | SIDE COVER ASSEMBLY, with 14000781 (right) (billiard teal) | FLRT |
| 36 | 61300331ENT | SIDE COVER ASSEMBLY, with 14000781 (right) (river rock gray) | FLRT |
| 36 | 61300331ETF | SIDE COVER ASSEMBLY, with 14000781 (right) (snake venom) | FLRT |
BODY ASSEMBLY AND SIDE COVERS - FLRT (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 37 | 67900198 | REFLECTOR ASSEMBLY, with 69490-07 (Domestic, California) | FLRT |
| 38 | 83000080DH | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (vivid black) (Domestic) | FLRT |
| 38 | 83000080ESK | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (billiard teal) (Domestic) | FLRT |
| 38 | 83000080ENT | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (river rock gray) (Domestic) | FLRT |
| 38 | 83000200ETF | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (snake venom) (Domestic) | FLRT |
| 38 | 83000110DH | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (vivid black) (HDI) | FLRT |
| 38 | 83000110ESK | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (billiard teal) (HDI) | FLRT |
| 38 | 83000110ENT | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (river rock gray) (HDI) | FLRT |
| 38 | 83000201ETF | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (snake venom) (HDI) | FLRT |
| 39 | 90300103 | NUT | FLRT |
TRUNK DOOR - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (2) | FLHTCUTG |
| 2 | 4365 | SCREW (2) | FLHTCUTG |
| 3 | 4697 | SCREW (6) | FLHTCUTG |
| 4 | 4699 | SCREW (3) | FLHTCUTG |
| 5 | 6703 | WASHER (6) | FLHTCUTG |
| 6 | 7686 | LOCKNUT (6) | FLHTCUTG |
| 7 | 7763W | JAMNUT | FLHTCUTG |
| 8 | 8359 | SCREW, SHOULDER (4) | FLHTCUTG |
| 9 | 10102 | CLIP, adhesive backed (2) | FLHTCUTG |
| 10 | 10968 | O-RING (Domestic) (2) | FLHTCUTG |
| 11 | 52441-95 | BULB (Domestic) (2) | FLHTCUTG |
| 12 | 59988-72A | REFLECTOR, reflex (red) (Domestic) | FLHTCUTG |
| 13 | 73153-96BK | SOCKET HOUSING, three-way (black) | FLHTCUTG |
| 14 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTG |
| 15 | 83337-09A | HINGE, trunk door (left) | FLHTCUTG |
| 16 | 83339-09A | HINGE, trunk door (right) | FLHTCUTG |
| 17 | 83344-11 | LANYARD ASSEMBLY (2) | FLHTCUTG |
| 18 | 83395-09A | BRACKET, license plate, top (Domestic) | FLHTCUTG |
| 19 | 83396-09A | BRACKET, license plate, bottom (Domestic) | FLHTCUTG |
| 20 | 83398-09 | COVER, light, license plate (Domestic) | FLHTCUTG |
| 21 | 83418-09 | INSERT, square (2) | FLHTCUTG |
| 22 | 83419-09 | RUBBER BUMPER (Domestic) | FLHTCUTG |
| 23 | 83420-09 | CONTACT PAD, rubber (Domestic) | FLHTCUTG |
| 24 | 83434-11 | COVER, trunk door, with label (except China) | FLHTCUTG |
| 24 | 83000211 | COVER, trunk door, with label (China) | FLHTCUTG |
| 25 | 67900325 | LIGHT, LED, license plate, with 73153-96BK and 73191-96 (HDI) | FLHTCUTG |
| 26 | 83538-11 | LATCH PIN ASSEMBLY, with 7763W and 83781-11 | FLHTCUTG |
| 27 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTG |
| 28 | 83781-11 | LATCH PIN | FLHTCUTG |
| 29 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (Domestic) (3) | FLHTCUTG |
| 29 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (HDI) (5) | FLHTCUTG |
| 30 | 83799-10 | LIGHT ASSEMBLY, with lens, 52441-95 and 73191-96 (Domestic) | FLHTCUTG |
| 31 | 10200004 | SCREW (7) | FLHTCUTG |
| 32 | 14100157 | NAMEPLATE, rear body (Domestic) | FLHTCUTG |
| 33 | 67900075A | COVER, license plate light (HDI) | FLHTCUTG |
| 34 | 67900289 | GASKET (HDI) (2) | FLHTCUTG |
| 35 | 67900290 | LIGHT ASSEMBLY, LED, license plate, with 2482, 67900075A, 67900289 and 67900325 (HDI) | FLHTCUTG |
| 36 | 67900306 | BRACKET, license plate, with 83418-09 (HDI) | FLHTCUTG |
TRUNK DOOR - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 37 | 83000042DH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (vivid black) (Domestic) | FLHTCUTG |
| 37 | 83000042ENX | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (billiard red) (Domestic) | FLHTCUTG |
| 37 | 83000042ESH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (Domestic) | FLHTCUTG |
| 37 | 83000042ESU | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone deadwood green/vivid black) (Domestic) | FLHTCUTG |
| 37 | 83000042ETF | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (snake venom) (Domestic) | FLHTCUTG |
| 37 | 83000105DH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (vivid black) (HDI) | FLHTCUTG |
| 37 | 83000105ENX | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (billiard red) (HDI) | FLHTCUTG |
| 37 | 83000105ESH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (HDI) | FLHTCUTG |
| 37 | 83000105ESU | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone deadwood green/vivid black) (HDI) | FLHTCUTG |
| 37 | 83000105ETF | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (snake venom) (HDI) | FLHTCUTG |
LICENSE PLATE LIGHT - FLRT (HDI, ENGLAND, JAPAN)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4365 | SCREW (2) | FLRT |
| 2 | 4699 | SCREW (3) | FLRT |
| 3 | 4991 | SCREW (4) | FLRT |
| 4 | 72912-01BK | HOUSING, two-way socket, (black) | FLRT |
| 5 | 72991-01 | TERMINAL, socket, 18-22 AWG (2) | FLRT |
| 6 | 83418-09 | INSERT, square (2) | FLRT |
| 7 | 67900170 | LIGHT, license plate (2) | FLRT |
| 8 | 67900308 | BRACKET, license plate | FLRT |
| 9 | 67900309 | GASKET, license plate bracket | FLRT |
| 10 | 67900311 | BRACKET ASSEMBLY, license plate and lamps, with 1, 3, 4, 5, 6, 7, 8, 9, 11 and 12 | FLRT |
| 11 | 67900312 | LIGHT ASSEMBLY, license plate, with 72912-01BK, 72991-01 and 67900170 | FLRT |
| 12 | 67900321 | BRACKET, license plate | FLRT |
LICENSE PLATE LIGHT - FLRT (AUSTRALIA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4365 | SCREW (2) | FLRT |
| 2 | 4699 | SCREW (3) | FLRT |
| 3 | 4991 | SCREW (6) | FLRT |
| 4 | 10102 | CLIP, adhesive backed (2) | FLRT |
| 5 | 72905-11 | HOUSING, two-way pin (black) | FLRT |
| 6 | 72906-11 | HOUSING, two-way socket | FLRT |
| 7 | 72909-11 | TERMINAL, pin, 20-22 AWG (2) | FLRT |
| 8 | 72910-11 | TERMINAL, socket, 20-22 AWG (2) | FLRT |
| 9 | 72914-01BK | HOUSING, four-way socket, (black) | FLRT |
| 10 | 72991-01 | TERMINAL, socket, 18-22 AWG (3) | FLRT |
| 11 | 83418-09 | INSERT, square (2) | FLRT |
| 12 | 67900170 | LIGHT, license plate (2) | FLRT |
| 13 | 67900429 | LIGHT, reverse, with 72905-11 and 72909-11 | FLRT |
| 14 | 67900450 | GASKET, license plate bracket | FLRT |
| 15 | 67900453 | LIGHT ASSEMBLY, license plate, with 72906-11, 72910-11, 72914-01BK, 72991-01 and 67900170 | FLRT |
| 16 | 67900454 | BRACKET, license plate | FLRT |
TRUNK DOOR - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 7601 | LOCKNUT | FLRT |
| 2 | 53000369 | STRIKER ASSEMBLY, latch, with 7601 and 53000337 | FLRT |
| 3 | 99461-89 | COVER, owner manual | FLRT |
| 4 | 10200061 | SCREW (4) | FLRT |
| 5 | 10200154 | SCREW (2) | FLRT |
| 6 | 10200375 | SCREW (2) | FLRT |
| 7 | 12600106 | SCREW (15) | FLRT |
| 8 | 53000333 | HINGE ASSEMBLY, trunk, with 10200061, 53000334 and 53000335 | FLRT |
| 9 | 53000334 | COVER, trunk hinge, front | FLRT |
| 10 | 53000335 | COVER, trunk hinge, rear | FLRT |
| 11 | 53000336A | TETHER, retractable | FLRT |
| 12 | 53000337 | STRIKER, latch | FLRT |
| 13 | 53000355 | SEAL, trunk door | FLRT |
| 14 | 83000062DH | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (vivid black) | FLRT |
| 14 | 83000062ESK | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (billiard teal) | FLRT |
| 14 | 83000062ENT | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (river rock gray) | FLRT |
| 14 | 83000062ETF | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (snake venom) | FLRT |
LATCH ASSEMBLY, TRUNK DOOR - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 4239 | SCREW (2) | FLHTCUTG |
| 2 | 8364 | NUT (2) | FLHTCUTG |
| 3 | 8365 | SCREW (3) | FLHTCUTG |
| 4 | 8366 | SCREW (2) | FLHTCUTG |
| 5 | 8367 | O-RING | FLHTCUTG |
| 6 | 10927 | O-RING | FLHTCUTG |
| 7 | 53868-06 | U-CLIP, lock | FLHTCUTG |
| 8 | 83296-11 | LATCH COVER | FLHTCUTG |
| 9 | 83346-11A | LATCH HOUSING ASSEMBLY, trunk door, with 2, 3, 4, 8, 10 and 14 | FLHTCUTG |
| 10 | 83352-11A | LOCK MECHANISM | FLHTCUTG |
| 11 | 83987-09 | LOCK BEZEL, with 10927 | FLHTCUTG |
| 12 | 10200004 | SCREW (4) | FLHTCUTG |
| 13 | 12300002 | WASHER, sealing | FLHTCUTG |
| 14 | 53000077 | LATCH LEVER KIT | FLHTCUTG |
| 15 | 90300051 | LOCKSET, trunk, with 53868-06 (specify key number) | FLHTCUTG |
TRUNK LINER - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 83457-11 | TRUNK LINER, vertical side | FLHTCUTG |
| 2 | 83458-11 | TRUNK LINER, bottom | FLHTCUTG |
TRUNK LINER - FLRT
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000360 | TRUNK LINER, wrap | FLRT |
| 2 | 53000361 | TRUNK LINER, bottom | FLRT |
| 3 | 53000362 | TRUNK LINER, vertical | FLRT |
TOUR-PAK (BOTTOM) - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW (2) | FLHTCUTG |
| 2 | 2968 | SCREW (4) | FLHTCUTG |
| 3 | 3910 | SCREW (6) | FLHTCUTG |
| 4 | 4991 | SCREW (Australia, China) (2) | FLHTCUTG |
| 5 | 6703 | WASHER (6) | FLHTCUTG |
| 6 | 7586 | JAMNUT | FLHTCUTG |
| 7 | 7716 | LOCKNUT (10) | FLHTCUTG |
| 8 | 10102 | CLIP, adhesive backed (Australia, China) | FLHTCUTG |
| 9 | 10287 | CABLE STRAP, anchored (Australia) (2) | FLHTCUTG |
| 10 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (HDI) | FLHTCUTG |
| 10 | 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (HDI) | FLHTCUTG |
| 11 | 53788-06 | LIGHT, right-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | FLHTCUTG |
| 11 | 53789-06 | LIGHT, left-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Domestic) | FLHTCUTG |
| 12 | 57978-00 | GROMMET (2) | FLHTCUTG |
| 13 | 61081-92 | COVER, key-head (set of 2) | FLHTCUTG |
| 14 | 72905-11 | HOUSING, two-way pin (black) (Australia, China) | FLHTCUTG |
| 15 | 72909-11 | TERMINAL, pin, 20-22 AWG (Australia, China) (2) | FLHTCUTG |
| 16 | 73152-96BK | SOCKET HOUSING, two-way (Domestic) (2) | FLHTCUTG |
| 17 | 73191-96 | TERMINAL, socket, 16-20 AWG (Domestic) (4) | FLHTCUTG |
| 18 | 90844-80 | ACORN NUT (2) | FLHTCUTG |
| 19 | 10200061 | SCREW (12) | FLHTCUTG |
| 20 | 10200062 | SCREW (2) | FLHTCUTG |
| 21 | 53000091 | PLATE, Tour-Pak reinforcing | FLHTCUTG |
| 22 | 53000123 | LINER, molded, with pouch | FLHTCUTG |
| 23 | 53000132 | GROMMET | FLHTCUTG |
TOUR-PAK (BOTTOM) - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 24 | 53000138 | HASP ASSEMBLY, bottom | FLHTCUTG |
| 25 | 53000139 | HINGE ASSEMBLY, rear | FLHTCUTG |
| 26 | 53000140 | HINGE ASSEMBLY, front | FLHTCUTG |
| 27 | 53000308 | COVER, TOUR-PAK wiring | FLHTCUTG |
| 28 | 53000346 | BOTTOM, Tour-Pak (unpainted) | FLHTCUTG |
| 28 | 53000891EDR | BOTTOM, Tour-Pak (vivid black) | FLHTCUTG |
| 28 | 53000891ENY | BOTTOM, Tour-Pak (billiard red) | FLHTCUTG |
| 28 | 53000891ESY | BOTTOM, Tour-Pak (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 28 | 53000891ETD | BOTTOM, Tour-Pak (2 tone deadwood green/vivid black) | FLHTCUTG |
| 28 | 53000790ETF | BOTTOM, Tour-Pak (snake venom) | FLHTCUTG |
| 28 | 53000879EDR | BOTTOM, Tour-Pak (vivid black) (China) | FLHTCUTG |
| 28 | 53000879ESY | BOTTOM, Tour-Pak (2 tone gauntlet gray metallic/vivid black) (China) | FLHTCUTG |
| 29 | 67900430 | LAMP, reverse, with 10287, 72905-11 and 72909-11 (Australia) | FLHTCUTG |
| 30 | 67900432 | BRACKET, reverse lamp (Australia, China) | FLHTCUTG |
| 31 | 67900433 | COVER, reverse lamp (Australia, China) | FLHTCUTG |
| 32 | 76000172 | MOUNTING BRACKET, speaker (left) | FLHTCUTG |
| 33 | 76000173 | MOUNTING BRACKET, speaker (right) | FLHTCUTG |
| 34 | 76000174 | GASKET, speaker pod (2) | FLHTCUTG |
| 35 | 90300030 | LOCK, with 7586 (specify key number) | FLHTCUTG |
| 36 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) | FLHTCUTG |
| 37 | 93300035A | MOUNTING BRACKET, Tour-Pak | FLHTCUTG |
| 38 | 67900603 | LAMP, fog, with 72905-11 and 72909-11 (China) | FLHTCUTG |
| 39 | 69202709 | HARNESS, fog lamp, with 40, 41, 42, 43, 44 (China) | FLHTCUTG |
| 40 | 72177-07BK | HOUSING, four-way socket (black) (China) | FLHTCUTG |
| 41 | 72168-07 | TERMINAL, socket, 18-20 AWG (China) (2) | FLHTCUTG |
| 42 | 72473-07 | SEAL PIN (natural) (China) (2) | FLHTCUTG |
| 43 | 72906-11 | HOUSING, two-way socket (black) (China) | FLHTCUTG |
| 44 | 72910-11 | TERMINAL, socket, 20-22 AWG (China) (2) | FLHTCUTG |
TOUR-PAK (COVER) - FLHTCUTG
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000347 | COVER, Tour-Pak (unpainted) | FLHTCUTG |
| 1 | 53000371EDR | COVER KIT, Tour-Pak, with 53000090 and label (vivid black) | FLHTCUTG |
| 1 | 53000371ENY | COVER KIT, Tour-Pak, with 53000090 and label (billiard red) | FLHTCUTG |
| 1 | 53000371ESY | COVER KIT, Tour-Pak, with 53000090 and label (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 1 | 53000371ETD | COVER KIT, Tour-Pak, with 53000090 and label (2 tone deadwood green/vivid black) | FLHTCUTG |
| 1 | 53000458ETF | COVER KIT, Tour-Pak, with 53000090 and label (snake venom) | FLHTCUTG |
| 2 | 10200061 | SCREW (4) | FLHTCUTG |
| 3 | 10200062 | SCREW (8) | FLHTCUTG |
| 4 | 10200154 | SCREW (5) | FLHTCUTG |
| 5 | 53000090 | GASKET, cover | FLHTCUTG |
| 6 | 53000137 | HASP, Tour-Pak lid | FLHTCUTG |
| 7 | 53000139 | HINGE ASSEMBLY, rear | FLHTCUTG |
| 8 | 53000140 | HINGE ASSEMBLY, front | FLHTCUTG |
| 9 | 53000141A | TETHER, retractable | FLHTCUTG |
LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (2) | FLHTCUTG |
| 2 | 5210 | WELL NUT (8) | FLHTCUTG |
| 3 | 5211 | CRIMP NUT (6) | FLHTCUTG |
| 4 | 6113 | WASHER | FLHTCUTG |
| 5 | 6220W | WASHER | FLHTCUTG |
| 6 | 7492 | NUT, with lockwasher | FLHTCUTG |
| 7 | 10006 | CABLE STRAP | FLHTCUTG |
| 8 | 10065 | CABLE STRAP (3) | FLHTCUTG |
| 9 | 72166-07BK | HOUSING, 16-way socket (black) | FLHTCUTG |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (16) | FLHTCUTG |
| 11 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHTCUTG |
| 12 | 72188-07BK | HOUSING, six-way pin (black) | FLHTCUTG |
| 13 | 72213-94 | TERMINAL, socket, 16-20 AWG (5) | FLHTCUTG |
| 14 | 72290-94 | TERMINAL, socket, 1/4 in | FLHTCUTG |
| 15 | 72473-07 | SEAL PIN (3) | FLHTCUTG |
| 16 | 72610-08 | SEAL, 18-20 AWG (white) (5) | FLHTCUTG |
| 17 | 73102-96BK | HOUSING, two-way pin (2) | FLHTCUTG |
| 18 | 73152-96WE | SOCKET HOUSING, two-way (white) | FLHTCUTG |
| 19 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTG |
| 20 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTG |
| 21 | 73213-07 | RETAINER, anchored | FLHTCUTG |
| 22 | 76353-00 | NUT | FLHTCUTG |
| 23 | 76000799 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTG |
| 24 | 10200105 | SCREW (8) | FLHTCUTG |
| 25 | 10200133 | SCREW (8) | FLHTCUTG |
| 26 | 12100017 | GROMMET, speaker (right) | FLHTCUTG |
| 27 | 12100018 | GROMMET, speaker (left) | FLHTCUTG |
| 28 | 12100023 | PLUG | FLHTCUTG |
| 29 | 67800093 | LAMP, Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTG |
| 29 | 67800432A | LAMP, Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (HDI) | FLHTCUTG |
| 30 | 69200131 | WIRING HARNESS, Tour-Pak, with 10065, 72169-07, 72188-07BK, 72213-94, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-96, 69200210, 69200211, 69200225 and 69200226 | FLHTCUTG |
| 31 | 69200135 | WIRING HARNESS, AM/FM ground jumper, with 72290-94 | FLHTCUTG |
| 32 | 69200138 | WIRING HARNESS, speaker, with 10065 and 72168-07 (left) | FLHTCUTG |
| 33 | 69200139 | WIRING HARNESS, speaker, with 10065, 72168-07 and 71400005 (right) | FLHTCUTG |
| 34 | 69200210 | CABLE EXTENSION, AM/FM antenna | FLHTCUTG |
| 35 | 69200211 | CABLE EXTENSION, CB antenna | FLHTCUTG |
LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 36 | 69200225 | SOCKET CONNECTOR, five-way (black) | FLHTCUTG |
| 37 | 69200226 | SECONDARY LOCK, five-way (black) | FLHTCUTG |
| 38 | 69200237 | WEATHER CAP ASSEMBLY | FLHTCUTG |
| 39 | 71400005 | SWITCH ASSEMBLY, rear speaker, with 72168-07, 71400006 and 71400007 | FLHTCUTG |
| 40 | 71400006 | KNOB, push to talk (ptt) vol-/vol+ rear control switch | FLHTCUTG |
| 41 | 71400007 | KNOB, mode select up/down rear control switch | FLHTCUTG |
| 42 | 76000092 | GRILLE, rear speaker (2) | FLHTCUTG |
| 43 | 76000819 | SPEAKER, 5.25 in (2) | FLHTCUTG |
| 44 | 76000160 | SPEAKER BOX ENCLOSURE, right rear | FLHTCUTG |
| 45 | 76000161 | SPEAKER BOX ENCLOSURE, left rear | FLHTCUTG |
| 46 | 76000164 | STUD, antenna | FLHTCUTG |
| 47 | 76000165 | SET SCREW, antenna, M5 X 43 mm | FLHTCUTG |
| 48 | 76000177 | BEZEL, speaker switch | FLHTCUTG |
| 49 | 76000186 | STUD, antenna | FLHTCUTG |
| 50 | 76000208 | PLUG ASSEMBLY, antenna | FLHTCUTG |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14272-06 | LABEL, shift pattern (Japan) | ALL |
| 2 | 15368-01A | LABEL, battery warning | ALL |
| 2 | 14002622 | LABEL, battery warning (China) | FLHTCUTG |
| 3 | 83446-09 | LABEL, trunk, load limit | FLRT |
| 3 | 14002636 | LABEL, warning, trunk door (China) | FLHTCUTG |
| 4 | 83563-10 | LABEL, tire warning | FLHTCUTG |
| 4 | 14000781 | LABEL, tire warning (not shown) | FLRT |
| 5 | 83890-09A | LABEL, mirror warning | ALL |
| 5 | 14002235 | LABEL, mirror warning (China) | FLHTCUTG |
| 6 | 90821-74C | LABEL, Tour-Pak, load limit warning | FLHTCUTG |
| 6 | 14002631 | LABEL, Tour-Pak, load limit warning (China) | FLHTCUTG |
| 7 | 14000396 | LABEL, air cleaner warning (Domestic, California) | ALL |
| 7 | 14002232 | LABEL, air cleaner warning (China) | FLHTCUTG |
| 8 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | ALL |
| 9 | 14001773 | LABEL, fuel type (England, HDI) | ALL |
| 10 | 14002624 | LABEL, front brake lever (China) (not shown) | FLHTCUTG |
| 10 | 14002625 | LABEL, rear brake reservoir (China) (not shown) | FLHTCUTG |
| 10 | 14002628 | LABEL, rear shock (China) (not shown) | FLHTCUTG |
| 10 | 14002637 | LABEL, luggage rack, load capacity (China) (not shown) | FLHTCUTG |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 58002-09A | MID-FRAME AIR DEFLECTOR KIT (See NOTE 1) | FLHTCUTG |
| 1 | 76000799 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTG |
| 1 | 77117-10 | HEADSET ASSEMBLY (Domestic. HDI) | FLHTCUTG |
| 1 | 52300053 | BACKREST ASSEMBLY, passenger (black) | FLHTCUTG |
| 1 | 57200083DH | SIDE COVER ASSEMBLY (left) (vivid black) | FLHTCUTG |
| 1 | 57200083ENX | SIDE COVER ASSEMBLY (left) (billiard red) | FLHTCUTG |
| 1 | 57200083ESH | SIDE COVER ASSEMBLY (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 1 | 57200083ESU | SIDE COVER ASSEMBLY (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 1 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLHTCUTG |
| 1 | 57200083DH | SIDE COVER ASSEMBLY (left) (vivid black) | FLRT |
| 1 | 57200083ESK | SIDE COVER ASSEMBLY (left) (billiard teal) | FLRT |
| 1 | 57200083ENT | SIDE COVER ASSEMBLY (left) (river rock gray) | FLRT |
| 1 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLRT |
| 1 | 57400001 | WINDSHIELD (clear) (Domestic) | FLHTCUTG |
| 1 | 57400002 | WINDSHIELD (clear) (HDI) | FLHTCUTG |
| 1 | 69200336A | MAIN FUSE, 50 A (red) | ALL |
| 1 | 90300043 | KEY (set of 2) (specify key number) | ALL |
| 1 | 90300111 | REMOTE CONTROL FOB, with 66373-06 (except Japan) | ALL |
| 1 | 90300112 | REMOTE CONTROL FOB, with 66373-06 (Japan) | ALL |
| 1 | 94000501 | TRIKE MOTORCYCLE LITERATURE PACK | ALL |
| 1 | 94000827 | OWNER'S MANUAL (Domestic, California, Australia, England) | ALL |
| 1 | 94000634 | BOOM!™ BOX GTS, quick start guide (English) | FLHTCUTG |
| 1 | 94000877 | BOOM!™ BOX GTS, owners manual (See NOTE 2) | FLHTCUTG |
| NOTE 1: Order 58002-09A only if missing complete kit. Otherwise order individual components as needed. Refer to the FRAME, FRONT section in this parts manual.NOTE 2: The BOOM!™ BOX GTS Owners Manual (94000877) is not included in the loose parts. Only available online or for separate order. | |||
| Part No. | Description |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10200004 | SCREW 1/4-20 X 1/2 TORX SEMS socket button head |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200052 | SCREW 1/4-20 X 39/64 TORX SEMS socket button head , with lockpatch |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200061 | SCREW No. 8-32 X 1/2 TORX SEMS pan head (zinc) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200105 | SCREW No. 6-32 X 3/4 TORX pan head (black zinc) |
| 10200112 | SCREW 1/4-20 X 2 TORX button head SEMS (Grade 5) (black) |
| 10200133 | SCREW No. 8-16 X 9/16 TORX pan head (zinc) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200154 | SCREW No. 8 X 3/4 TORX SEMS pan head (stainless) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200338 | SCREW 1/4-20 X 1 flat head hex drive, full thread (Grade 8) (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200350 | SCREW 1/4-20 X 1-1/8 SEMS hex socket head (Grade 8) (zinc) |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200375 | SCREW 1/4-20 X 1 hex socket, SEMS/Lock |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200414 | SCREW 5/16-18 X 5/8 button head SEMS TORX T-40, with lockpatch (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200442 | SCREW No. 8-32 X 5/16 tri-lobe thread forming (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500017 | SCREW No. 10 X 3/8 pan head, TORX, plastite, hardened (zinc) |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch (Grade 5) |
| 12600049 | SCREW No. 10-24 X 3/4 pan head torx, with lockpatch (Grade 8) (zinc) |
| 12600105 | SCREW 1/4-20 X 1 TORX button head, with washer & lock patch (Grade 8) (zinc) |
| 12600106 | SCREW 1/4-20 X 1/2 SEMS socket head, with lockpatch (Grade 5) (zinc) |
| 1332 | SCREW No. 5/16 X 2-1/4 socket button head with lock patch (Grade 8) |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2531 | SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2) |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 29269-83A | SCREW 15/16-18 X 5/8 hex button head, with lockpatch |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3075 | SCREW 1/4-20 X 11/32 pan head |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3560WA | BOLT No. 10-24 X 3/8 |
| 3561WC | BOLT No. 10-24 X 3/8 |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3615 | SCREW No. 8-32 X 1, pan head, thread-cutting |
| 3622 | SCREW No. 10-16 X 3/8 pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3647 | SCREW 5/16-18 X 5/8 socket head, with lockpatch (zinc plate) (Grade 8) |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3910 | SCREW 1/2-20 X 2-1/4 hex head full thread (Grade 5) (zinc) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4134 | SCREW No. 10-24 X 3/8 TORX pan head |
| 41500020 | SCREW M8 X 1.25 X 30mm TORX, with threadlocker, T40 (zinc) |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4239 | SCREW No. 10-24 X 1, socket flat countersink head (stainless) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4350A | SCREW 3/8-16 X 1-1/2 socket head |
| 4365 | SCREW 1/4-20 X 1/2 socket button head (Grade 8) |
| 4411 | BOLT 3/8-24 X 1-3/4 hex head (Grade 5) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4549 | SCREW 5/16-18 X 1-3/4 TORX button head (Grade 5) |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4622 | SCREW 1/2-13 X 2-1/4 hex flange with lockpatch |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4678 | SCREW 1/2-13 X 1-3/4 hex flange |
| 4685 | SCREW 3/8-16 X 1 hex flange |
| 4686 | SCREW 3/8-16 X 4 hex |
| 4687 | SCREW 3/8-16 X 1 hex socket, SEMS |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4696 | SCREW machine, pan lock |
| 4697 | SCREW machine, flat / lock |
| 4699 | SCREW button, TORX / lock |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4751 | SCREW 1/4-20 X 3/4 hex head, with lockpatch (Grade 8) (zinc) |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4795 | SCREW hex / lock |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4991 | SCREW M6 torx pan head, |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6026 | WASHER 3/8 X 7/8 X 7/64 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6400HB | WASHER 5/16 X 13/16 X 3/32 |
| 6408HB | WASHER 25/64 X 1.0 X 7/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6645 | WASHER 11/32 X 1-1/32 X 1/8 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7331 | ACORN NUT 5/16-24 |
| 7358 | NUT M6 X 1 flange |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7600 | NUT No. 4-40 keps |
| 7601 | LOCKNUT 3/8-16 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 7624 | LOCKNUT No. 10-24 X 1/4 X 3/8 |
| 76259-86 | NUT 1/2-20 hex jam |
| 7629 | NUT No. 10-32 X 3/8 keps |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7739 | LOCKNUT 5/16-18 X 11/32 X 1/2 |
| 7763W | JAMNUT 5/16-18 X 3/16 X 1/2 |
| 7768W | LOCKNUT 1/2-13 X 19/32 X 3/4 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7800W | NUT 3/8-24 X 5/16 X 9/16 (Grade 2) |
| 7823 | NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8308 | SCREW hex, SEMS / lock |
| 8313 | SCREW hex, SEMS / lock |
| 8314 | SCREW hex flange |
| 8319 | SCREW hex flange / lock |
| 83312-09 | NUT bearing retainer |
| 83323-09 | BOLT bearing cap |
| 8335 | LOCKWASHER ext. tooth |
| 8359 | SCREW, SHOULDER 1/4-20, stainless steel |
| 8360 | SCREW 5/16-18 X 7/8 TORX button head SEMS, with lockpatch |
| 8364 | NUT No. 6-32, with tooth washer (stainless) |
| 8365 | SCREW No. 6-32 X 1/4, socket head, with lockpatch (stainless) |
| 8366 | SCREW No. 6-32 X 1/2, socket flat countersink head (stainless) |
| 8369 | BOLT 5/16-18 X 1-1/2 hex head, with lockpatch (Grade 5) |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90300103 | NUT 1-12 UNF flat (zinc) (chrome) |
| 90770-79 | SCREW No. 8-32 X 3/8 Pozidriv head, self-tapping |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 946 | SCREW 1/4-20 X 2-1/4 socket button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200660 | ENGINE ASSEMBLY, complete (Air-Cooled) (Milwaukee-Eight® 114 engine) (black) | FLRT |
| 1 | 16200661 | ENGINE ASSEMBLY, complete (Twin-Cooled) (Milwaukee-Eight® 114 engine) (black) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 19 | 17300059B | SHAFT, rocker arm (4) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 7 | 12700091A | BRACKET, voltage regulator | FLHTCUTG |
| 9 | 26800077A | COVER, coolant pump | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 26 | 26800194 | CAP, pressure (China) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 10 | 62700296 | OIL FILTER (black) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 27 | 62400233 | GEROTOR ASSEMBLY | ALL |
| 28 | 62400245 | COVER, oil pump assembly, with 62400205 | ALL |
| 30 | 62400238 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (Air-Cooled) Also order 62400126 | FLRT |
| 30 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (Twin-Cooled) Also order 62400055 | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 15 | 61200022A | FUEL LINE | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 29900038A | ROTOR ASSEMBLY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 13 | 41000677 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | ALL |
| 14 | 69202307 | CADDY, electronic control module (ECM) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 17 | 71400112A | OIL PRESSURE SWITCH, with 11900172 | ALL |
| 18 | 11900172 | O-RING | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 33600304 | SPACER | ALL |
| 20 | 35186-06A | SLEEVE | ALL |
| Index No. | Part No. | Description | Model(s) |
| 11 | 10998 | RETAINING RING | ALL |
| 14 | 11179 | O-RING | ALL |
| 16 | 16583-00B | BUSHING, dowel (2) | ALL |
| 19 | 35186-06A | SLEEVE | ALL |
| 28 | 25800048 | INSERT, side cover | ALL |
| 29 | 25800080 | SIDE COVER (chrome) | ALL |
| 30 | 25800141 | SIDE COVER ASSEMBLY, with 25800048 and 25800080 (chrome) | ALL |
| 31 | 37000376 | RAMP KIT, with bearings | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837B | SPACER | ALL |
| 8 | 11082A | SECURING SEGMENT (6) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 1 | 7848W | JAMNUT | ALL |
| 2 | 11096 | RETAINING RING | ALL |
| 4 | 37069-90A | OIL SLINGER | ALL |
| 5 | 37090-98A | SCREW, adjuster | ALL |
| 6 | 37092-06 | PUSHROD, clutch release | ALL |
| 7 | 37312-75 | BEARING, thrust | ALL |
| 8 | 37313-80 | BEARING, thrust race (2) | ALL |
| 10 | 37903-90 | RELEASE PLATE | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 16583-00B | BUSHING, dowel (2) | ALL |
| 22 | 26500026 | HOSE | ALL |
| 23 | 36500052A | INNER PRIMARY HOUSING, with 7, 9, 10, 13, 14, 15, 22 (black) | ALL |
| 25 | 26500027 | KIT, VENT, primary, with 11105, 25700378, 26500026 and clutch cover seal | ALL |
| Index No. | Part No. | Description | Model(s) |
| 3 | 10289A | CLIP, clutch cable | ALL |
| 5 | 42860-06B | PIVOT PIN, hand lever, with 11615 | ALL |
| 6 | 45138-08A | CLAMP, lever bracket (gloss black) | ALL |
| 8 | 12200226 | CLIP | ALL |
| 9 | 12600309 | PIN | ALL |
| 10 | 37200440 | CABLE, clutch control | FLRT |
| 10 | 37200441 | CABLE, clutch control | FLHTCUTG |
| 11 | 36700249 | HAND LEVER, clutch (polished) | ALL |
| 12 | 36700254 | BRACKET, hand lever (black satin) | ALL |
| 13 | 36700257 | SPRING, anti-rattle | ALL |
| 16 | 37200437 | CABLE, clutch control | ALL |
| 17 | 37200545 | CLIP | ALL |
| Index No. | Part No. | Description | Model(s) |
| 15 | 7492 | NUT | ALL |
| 20 | 41600321 | BRACKET | FLHTCUTG |
| 20 | 41600322 | BRACKET | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 19 | 41600352 | BRACKET, kit, guide bracket | ALL |
| Index No. | Part No. | Description | Model(s) |
| 12 | 43100045 | TIRE, 19 inch (China) | FLHTCUTG |
| 12 | 43100045 | TIRE, 19 inch (not shown) | FLRT |
| 19 | 43300703 | WHEEL, cast, 19 inch, 5 spoke, with 14101128 (China) | FLHTCUTG |
| 25 | 41500017 | BRAKE DISC (China) (2) | FLHTCUTG |
| 26 | 14101128 | MEDALLION (China) (2) | FLHTCUTG |
| 27 | 41500018 | BUSHING (China) (10) | FLHTCUTG |
| 28 | 41500019 | SPRING (China) (10) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 5 | 43200046 | TIRE (China) (2) | FLHTCUTG |
| 6 | 40900663 | WHEEL, rear, 5 spoke, 18 in (China) (2) | FLHTCUTG |
| 9 | 42300001 | WEIGHT, 1/2 oz (black) (China) (12) | FLHTCUTG |
| 13 | 14101125 | MEDALLION (China) (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 11 | 59481-00 | REFLECTOR (amber) (right) | ALL |
| 12 | 59482-00 | REFLECTOR (amber) (left) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 16 | 12600197 | FASTENER, plastic (2) | ALL |
| 17 | 12200221 | CLIP, retaining | ALL |
| Index No. | Part No. | Description | Model(s) |
| 5 | 69202720 | WIRE TROUGH, with 69202637 (main harness) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 47200001B | SUB-FRAME ASSEMBLY | ALL |
| Index No. | Part No. | Description | Model(s) |
| 17 | 58900077ENY | FENDER (billiard red) | FLHTCUTG |
| 17 | 58900077ESY | FENDER (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 17 | 58900077ETD | FENDER (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 58900076ETF | FENDER (snake venom) | FLHTCUTG |
| 18 | 58900370 | FENDER (primed) | FLRT |
| 18 | 58900469DH | FENDER (vivid black) | FLRT |
| 18 | 58900469ESK | FENDER (billiard teal) | FLRT |
| 18 | 58900469ENT | FENDER (river rock gray) | FLRT |
| 18 | 58900469ETF | FENDER (snake venom) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 13 | 83000054ENY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (billiard red) | FLHTCUTG |
| 13 | 83000054ESY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 13 | 83000054ETD | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 13 | 83000053ETF | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (snake venom) | FLHTCUTG |
| 14 | 83000056ENY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (billiard red) | FLHTCUTG |
| 14 | 83000056ESY | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 14 | 83000056ETD | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 14 | 83000055ETF | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 6 | 59500176ESK | FENDER ASSEMBLY, rear, with 10102 (right) (billiard teal) | FLRT |
| 6 | 59500176ENT | FENDER ASSEMBLY, rear, with 10102 (right) (river rock gray) | FLRT |
| 6 | 59500176ETF | FENDER ASSEMBLY, rear, with 10102 (right) (snake venom) | FLRT |
| 7 | 59500178ESK | FENDER ASSEMBLY, rear, with 10102 (left) (billiard teal) | FLRT |
| 7 | 59500178ENT | FENDER ASSEMBLY, rear, with 10102 (left) (river rock gray) | FLRT |
| 7 | 59500178ETF | FENDER ASSEMBLY, rear, with 10102 (left) (snake venom) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 7 | 61000016ENY | FUEL TANK, with 14100073 and 14100074 (billiard red) | FLHTCUTG |
| 7 | 61000016ETD | FUEL TANK, with 14100073 and 14100074 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 7 | 61000832ETF | FUEL TANK (snake venom) | FLHTCUTG |
| 12 | 61200022A | FUEL LINE, tank to intake | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 8 | 61000691 | FUEL TANK (prime) | FLRT |
| 8 | 61000129ESK | FUEL TANK, with 14100702 and 14100703 (billiard teal) | FLRT |
| 8 | 61000129ENT | FUEL TANK, with 14100702 and 14100703 (river rock grey) | FLRT |
| 8 | 61000831ETF | FUEL TANK (snake venom) | FLRT |
| 9 | 61272-92E | FILLER CAP ASSEMBLY, with 61109-85D | FLRT |
| 14 | 61200022A | FUEL LINE, tank to intake | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 6 | 10102 | CLIP, adhesive backed (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 25 | 70900379C | INSTRUMENT MODULE, mph (California, Domestic) | FLRT |
| 25 | 70900421C | INSTRUMENT MODULE, km/h (Australia, Canada, HDI, Japan) | FLRT |
| 25 | 70900616B | INSTRUMENT MODULE, dual, mph/km/h (England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 8 | 69202523 | WIRING HARNESS, fairing (used with single headlamp) (Domestic, Japan) | FLHTCUTG |
| 8 | 69202712 | WIRING HARNESS, fairing (used with single headlamp) (Australia) | FLHTCUTG |
| 8 | 69200265A | WIRING HARNESS, fairing (used with dual headlamp) (England, HDI) | FLHTCUTG |
| 11 | 70900121D | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (California, Domestic) (black) | FLHTCUTG |
| 11 | 70900122C | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (Australia, Canada, HDI, Japan) (black) | FLHTCUTG |
| 11 | 70900123C | INSTRUMENT MODULE, dual, mph/km/h, with 12100020 and 12400034 (England) (black) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 4 | 60800062 | LINE, evaporative (EVAP), purge to canister | ALL |
| 5 | 31400137 | SOLENOID, purge valve | ALL |
| 8 | 60800063 | TUBE, solenoid to induction module | ALL |
| Index No. | Part No. | Description | Model(s) |
| 10 | 67717-01 | BULB, high beam halogen | FLRT |
| 16 | 68881-01 | BULB, low beam halogen | FLRT |
| 31 | 67700062 | HEADLAMP ASSEMBLY, dual halogen, with 67717-01 and 68881-01 | FLRT |
| 33 | 67700576 | SHELL ASSEMBLY, with 22, 23, 24, 25, 26, 28, 30, 34 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 22 | 67800254A | HOUSING, auxiliary/fog lamp, with 72298-95, 72356-95, 72910-11, 69200199 and 69200529 (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 18 | 61301203 | TOP COVER, nacelle (chrome) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 17 | 57000379ENY | FAIRING KIT, outer, with 57000377 (billiard red) | FLHTCUTG |
| 17 | 57000379ESY | FAIRING KIT, outer, with 57000377 (2 tone gauntlet grey metallic/vivid black) | FLHTCUTG |
| 17 | 57000379ETD | FAIRING KIT, outer, with 57000377 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 57001427ETF | FAIRING KIT, outer, with 57000377 (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 12 | 29200088A | AIR DUCT, inner fairing, with 11100038, 12200064, 29200087A | FLHTCUTG |
| 13 | 29200087A | BEZEL, air duct,inner fairing, with 12200064 | FLHTCUTG |
| 15 | 57000186A | BRACKET, support, inner fairing | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 11 | 69202618 | SWITCH ASSEMBLY, fog lamps, with 69200173A, 71400031 and 71400156 (China) | FLHTCUTG |
| 12 | 69200173A | SWITCH | FLHTCUTG |
| 14 | 70901014BYM | DASH PANEL, fairing (black denim) | FLHTCUTG |
| 16 | 71400156 | SWITCH, fog lamps (China) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 17 | 57100242ENX | CAP, fairing (lower) (left) (billiard red) | FLHTCUTG |
| 17 | 57100242ESH | CAP, fairing (lower) (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 17 | 57100242ESU | CAP, fairing (lower) (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 17 | 57100242ETF | CAP, fairing (lower) (left) (snake venom) | FLHTCUTG |
| 18 | 57100168ENX | FAIRING, with 57100170 (lower) (left) (billiard red) | FLHTCUTG |
| 18 | 57100168ESH | FAIRING, with 57100170 (lower) (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 18 | 57100168ESU | FAIRING, with 57100170 (lower) (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 18 | 57100168ETF | FAIRING, with 57100170 (lower) (left) (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 19 | 57100243ENX | CAP, fairing (lower) (right) (billiard red) | FLHTCUTG |
| 19 | 57100243ESH | CAP, fairing (lower) (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 19 | 57100243ESU | CAP, fairing (lower) (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 19 | 57100243ETF | CAP, fairing (lower) (right) (snake venom) | FLHTCUTG |
| 20 | 57100169ENX | FAIRING, with 57100171 (lower) (right) (billiard red) | FLHTCUTG |
| 20 | 57100169ESH | FAIRING, with 57100171 (lower) (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 20 | 57100169ESU | FAIRING, with 57100171 (lower) (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 20 | 57100169ETF | FAIRING, with 57100171 (lower) (right) (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 2 | 69202614 | WIRE HARNESS, left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | ALL |
| 12 | 71500566 | SWITCH PACK, left hand control, with 71500044, 71500045, 71500048, 71500055 and 71500488 | FLHTCUTG |
| 14 | 71500568 | SWITCH PACK, left hand control, with 71500044, 71500048, 71500053 and 71500488 | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 4 | 69200179 | WIRE HARNESS, right hand control jumper, with 5118, 72906-11, 72908-11, 69200305, 69200306, 69200307 and 69200308 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 6 | 55924-14A | HANDLEBAR | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 10 | 32700116 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | ALL |
| 24 | 32700130 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | ALL |
| 25 | 64900244B | MUFFLER (chrome) (California, Canada, Domestic) (2) | FLHTCUTG |
| 25 | 64900956 | MUFFLER (chrome) (Australia, England, HDI) (2) | FLHTCUTG |
| 25 | 64900957 | MUFFLER (chrome) (Japan, China) (2) | FLHTCUTG |
| 25 | 64900246B | MUFFLER (chrome) (California, Canada, Domestic) (2) | FLRT |
| 25 | 64900958 | MUFFLER (chrome) (Australia, England, HDI) (2) | FLRT |
| 25 | 64900959 | MUFFLER (chrome) (Japan) (2) | FLRT |
| 26 | 65296-95A | CLAMP, muffler (Domestic) (2) | ALL |
| 26 | 65900007 | CLAMP, muffler (HDI) (2) | ALL |
| 27 | 65400176A | SHIELD, exhaust pipe, front | ALL |
| 32 | 65500043B | BRACKET, muffler strap, female | ALL |
| 33 | 65600405 | HEADER ASSEMBLY, catalytic (HDI) (chrome) | ALL |
| 35 | 65600190A | CROSSOVER PIPE ASSEMBLY (chrome) (Domestic) | ALL |
| 35 | 65600383 | CROSSOVER PIPE ASSEMBLY (chrome) (HDI) | ALL |
| 36 | 65296-95B | CLAMP, muffler | ALL |
| 38 | 65900017 | GASKET (HDI) | ALL |
| 39 | 65900040 | GASKET (HDI) (2) | ALL |
| 40 | 32700124 | SENSOR, oxygen (O2) with 11936, 72177-07BK, 72344-10 and 73307-10 (HDI, Japan, EN2, HD4, IN2) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| 17 | 72166-07BK | HOUSING, 16-way socket (black) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202412 | PLUG, weather (Australia, HD2, Japan) | FLHTCUTG |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| 10 | 69202322 | HOUSING, 81-way, socket | FLHTCUTG |
| 11 | 69202032 | SECONDARY LOCK | FLHTCUTG |
| 12 | 69201890 | TERMINAL, socket (5) | FLHTCUTG |
| 13 | 69202028 | TERMINAL, pin (32) | FLHTCUTG |
| 14 | 69202543 | TERMINAL, socket (20) | FLHTCUTG |
| 15 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) (5) | FLHTCUTG |
| 16 | 69202323 | COVER | FLHTCUTG |
| 17 | 69202453 | TERMINAL, pin (24) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| 49 | 69201820 | TERMINAL, socket (4) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG | |
| 37 | 69200336A | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness | FLHTCUTG |
| 41 | 69202098 | HOUSING, six-way socket, (red) | FLHTCUTG |
| 42 | 69202109 | SECONDARY LOCK, six-way | FLHTCUTG |
| 43 | 69202107 | TERMINAL, socket, 22 AWG (2) | FLHTCUTG |
| 44 | 69202104 | TERMINAL, socket, 22 AWG (4) | FLHTCUTG |
| 45 | 69202106 | SEAL, 1.6-1.7 MM (4) | FLHTCUTG |
| 46 | 69202108 | CAP | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202258 | MAIN WIRING HARNESS | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| 10 | 69202322 | HOUSING, 81-way, socket | FLRT |
| 11 | 69202032 | SECONDARY LOCK | FLRT |
| 12 | 69201890 | TERMINAL, socket (4) | FLRT |
| 13 | 69202028 | TERMINAL, pin (35) | FLRT |
| 14 | 69202453 | TERMINAL, socket (17) | FLRT |
| 15 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) (4) | FLRT |
| 16 | 69202323 | COVER | FLRT |
| 17 | 69202453 | TERMINAL, pin (24) | FLRT |
| 18 | 69202029 | TERMINAL, socket | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT | |
| 41 | 69201134A | WIRE HARNESS, positive cable, with 73304-04, 73305-04 and 69201308 | FLRT |
| 41 | 69202098 | HOUSING, six-way socket, (red) | FLRT |
| 42 | 69202109 | SECONDARY LOCK, six-way | FLRT |
| 43 | 69202107 | TERMINAL, socket, 22 AWG (2) | FLRT |
| 44 | 69202104 | TERMINAL, socket, 22 AWG (4) | FLRT |
| 45 | 69202106 | SEAL, 1.6-1.7 MM (4) | FLRT |
| 46 | 69202108 | CAP | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202260 | MAIN WIRING HARNESS (Australia, California, Canada, Domestic) | FLRT | |
| 69202262 | MAIN WIRING HARNESS (Japan) | FLRT | |
| 69202261 | MAIN WIRING HARNESS (HDI, England) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 69202523 | WIRING HARNESS, fairing (Domestic, Japan) | FLHTCUTG | |
| 69202712 | WIRING HARNESS, fairing (Australia) (not shown) | FLHTCUTG | |
| 34 | 69202485 | CADDY, fairing harness | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 69202525 | WIRING HARNESS, fairing | FLHTCUTG | |
| 22 | 73101-96BK | HOUSING, two-way pin (black) | FLHTCUTG |
| 29 | 69202485 | CADDY, fairing harness | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 8 | 66010-97E | BATTERY, with 4312C (Domestic) | ALL |
| 15 | 69202307 | CADDY, electronic control module (ECM) | ALL |
| 16 | 69201134A | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201308 | ALL |
| 17 | 83898-09A | WIRING HARNESS, reverse motor ground | ALL |
| Index No. | Part No. | Description | Model(s) |
| 4 | 83388-09C | REVERSE MOTOR ASSEMBLY, with 31400139, 31400143 and 41600327 | ALL |
| 5 | 83389-09B | BRACKET, adapter | ALL |
| 6 | 83898-09A | WIRING HARNESS, reverse motor ground | ALL |
| 7 | 31400139 | SOLENOID, with 41600327 | ALL |
| 8 | 31400143 | ELECTRICAL KIT, with 41600327 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 21 | 69201781A | HARNESS, fuse-to-motor, with 70578-89 | ALL |
| 22 | 69201782A | HARNESS, solenoid-to-motor, with 70578-89 and 9825 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 14 | 41000341F | BODY CONTROL MODULE (BCM) with security (except Japan) | ALL |
| 14 | 41000342F | BODY CONTROL MODULE (BCM) with security (Japan) | ALL |
| Index No. | Part No. | Description | Model(s) |
| 19 | 76000783B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | FLHTCUTG |
| 19 | 76000784B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, England) (See NOTE 2) | FLHTCUTG |
| 19 | 76000785B | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, Australia, Japan) (See NOTE 3) | FLHTCUTG |
| 20 | 76000819 | SPEAKER, 5-1/4 in (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 20 | 57200081ENX | SIDE COVER ASSEMBLY, with 83563-10 (right) (billiard red) | FLHTCUTG |
| 20 | 57200081ESH | SIDE COVER ASSEMBLY, with 83563-10 (right) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 20 | 57200081ESU | SIDE COVER ASSEMBLY, with 83563-10 (right) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 20 | 57200081ETF | SIDE COVER ASSEMBLY, with 83563-10 (right) (snake venom) | FLHTCUTG |
| 21 | 57200083ENX | SIDE COVER ASSEMBLY (left) (billiard red) | FLHTCUTG |
| 21 | 57200083ESH | SIDE COVER ASSEMBLY (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 21 | 57200083ESU | SIDE COVER ASSEMBLY (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 21 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLHTCUTG |
| 22 | 83000051ENX | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (billiard red) | FLHTCUTG |
| 22 | 83000051ESH | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 22 | 83000051ESU | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (2 tone deadwood green/vivid black) | FLHTCUTG |
| 22 | 83000192ETF | MIDSECTION ASSEMBLY, with 8, 9, 12, 13, 14, 15, 16, 17 and 19 (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 34 | 57200083ESK | SIDE COVER ASSEMBLY (left) (billiard teal) | FLRT |
| 34 | 57200083ENT | SIDE COVER ASSEMBLY (left) (river rock gray) | FLRT |
| 34 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLRT |
| 36 | 61300331ESK | SIDE COVER ASSEMBLY, with 14000781 (right) (billiard teal) | FLRT |
| 36 | 61300331ENT | SIDE COVER ASSEMBLY, with 14000781 (right) (river rock gray) | FLRT |
| 36 | 61300331ETF | SIDE COVER ASSEMBLY, with 14000781 (right) (snake venom) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 38 | 83000080ESK | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (billiard teal) (Domestic) | FLRT |
| 38 | 83000080ENT | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (river rock gray) (Domestic) | FLRT |
| 38 | 83000200ETF | MIDSECTION ASSEMBLY, with 11, 12, 14, 15, 22, 25, 27, 32 and 35 (snake venom) (Domestic) | FLRT |
| 38 | 83000110ESK | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (billiard teal) (HDI) | FLRT |
| 38 | 83000110ENT | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (river rock gray) (HDI) | FLRT |
| 38 | 83000201ETF | MIDSECTION ASSEMBLY, with 11, 12, 13, 14, 15, 27 and 35 (snake venom) (HDI) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 24 | 83000211 | COVER, trunk door, with label (China) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 37 | 83000042ENX | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (billiard red) (Domestic) | FLHTCUTG |
| 37 | 83000042ESH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (Domestic) | FLHTCUTG |
| 37 | 83000042ESU | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone deadwood green/vivid black) (Domestic) | FLHTCUTG |
| 37 | 83000042ETF | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (snake venom) (Domestic) | FLHTCUTG |
| 37 | 83000105ENX | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (billiard red) (HDI) | FLHTCUTG |
| 37 | 83000105ESH | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone gauntlet gray metallic/vivid black) (HDI) | FLHTCUTG |
| 37 | 83000105ESU | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (2 tone deadwood green/vivid black) (HDI) | FLHTCUTG |
| 37 | 83000105ETF | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (snake venom) (HDI) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 14 | 83000062ESK | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (billiard teal) | FLRT |
| 14 | 83000062ENT | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (river rock gray) | FLRT |
| 14 | 83000062ETF | TRUNK DOOR, with 83446-09, 12600106, 53000355 and 53000369 (snake venom) | FLRT |
| Index No. | Part No. | Description | Model(s) |
| 28 | 53000891EDR | BOTTOM, Tour-Pak (vivid black) | FLHTCUTG |
| 28 | 53000891ENY | BOTTOM, Tour-Pak (billiard red) | FLHTCUTG |
| 28 | 53000891ESY | BOTTOM, Tour-Pak (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 28 | 53000891ETD | BOTTOM, Tour-Pak (2 tone deadwood green/vivid black) | FLHTCUTG |
| 28 | 53000790ETF | BOTTOM, Tour-Pak (snake venom) | FLHTCUTG |
| 28 | 53000879EDR | BOTTOM, Tour-Pak (vivid black) (China) | FLHTCUTG |
| 28 | 53000879ESY | BOTTOM, Tour-Pak (2 tone gauntlet gray metallic/vivid black) (China) | FLHTCUTG |
| 38 | 67900603 | LAMP, fog, with 72905-11 and 72909-11 (China) | FLHTCUTG |
| 39 | 69202709 | HARNESS, fog lamp, with 40, 41, 42, 43, 44 (China) | FLHTCUTG |
| 40 | 72177-07BK | HOUSING, four-way socket (black) (China) | FLHTCUTG |
| 41 | 72168-07 | TERMINAL, socket, 18-20 AWG (China) (2) | FLHTCUTG |
| 42 | 72473-07 | SEAL PIN (natural) (China) (2) | FLHTCUTG |
| 43 | 72906-11 | HOUSING, two-way socket (black) (China) | FLHTCUTG |
| 44 | 72910-11 | TERMINAL, socket, 20-22 AWG (China) (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000371ENY | COVER KIT, Tour-Pak, with 53000090 and label (billiard red) | FLHTCUTG |
| 1 | 53000371ESY | COVER KIT, Tour-Pak, with 53000090 and label (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 1 | 53000371ETD | COVER KIT, Tour-Pak, with 53000090 and label (2 tone deadwood green/vivid black) | FLHTCUTG |
| 1 | 53000458ETF | COVER KIT, Tour-Pak, with 53000090 and label (snake venom) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 43 | 76000819 | SPEAKER, 5.25 in (2) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 2 | 14002622 | LABEL, battery warning (China) | FLHTCUTG |
| 3 | 14002636 | LABEL, warning, trunk door (China) | FLHTCUTG |
| 5 | 14002235 | LABEL, mirror warning (China) | FLHTCUTG |
| 6 | 14002631 | LABEL, Tour-Pak, load limit warning (China) | FLHTCUTG |
| 7 | 14002232 | LABEL, air cleaner warning (China) | FLHTCUTG |
| 10 | 14002624 | LABEL, front brake lever (China) (not shown) | FLHTCUTG |
| 10 | 14002625 | LABEL, rear brake reservoir (China) (not shown) | FLHTCUTG |
| 10 | 14002628 | LABEL, rear shock (China) (not shown) | FLHTCUTG |
| 10 | 14002637 | LABEL, luggage rack, load capacity (China) (not shown) | FLHTCUTG |
| Index No. | Part No. | Description | Model(s) |
| 1 | 57200083ENX | SIDE COVER ASSEMBLY (left) (billiard red) | FLHTCUTG |
| 1 | 57200083ESH | SIDE COVER ASSEMBLY (left) (2 tone gauntlet gray metallic/vivid black) | FLHTCUTG |
| 1 | 57200083ESU | SIDE COVER ASSEMBLY (left) (2 tone deadwood green/vivid black) | FLHTCUTG |
| 1 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLHTCUTG |
| 1 | 57200083ESK | SIDE COVER ASSEMBLY (left) (billiard teal) | FLRT |
| 1 | 57200083ENT | SIDE COVER ASSEMBLY (left) (river rock gray) | FLRT |
| 1 | 57200083ETF | SIDE COVER ASSEMBLY (left) (snake venom) | FLRT |
| 1 | 94000827 | OWNER'S MANUAL (Domestic, California, Australia, England) | ALL |
| 1 | 94000877 | BOOM!™ BOX GTS, owners manual (See NOTE 2) | FLHTCUTG |
| Part No. | Description |
| 10006 | |
| 10031 | |
| 10039 | |
| 10040 | |
| 10065 | |
| 10076 | |
| 10080 | |
| 1009M | |
| 10100006 | |
| 10100062 | |
| 10100071 | |
| 10102 | |
| 10103 | |
| 10108 | |
| 10147 | |
| 10177 | |
| 10200001 | |
| 10200004 | |
| 10200042 | |
| 10200052 | |
| 10200059 | |
| 10200060 | |
| 10200061 | |
| 10200062 | |
| 10200105 | |
| 10200112 | |
| 10200133 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200154 | |
| 10200156 | |
| 10200205 | |
| 10200220 | |
| 10200258 | |
| 10200303 | |
| 10200308 | |
| 10200338 | |
| 10200343 | |
| 10200350 | |
| 10200373 | |
| 10200375 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200442 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200546 | |
| 10200569 | |
| 10270 | |
| 10287 | |
| 10289A | |
| 10300003 | |
| 10334 | |
| 10344 | |
| 10395 | |
| 10396 | |
| 10500008 | |
| 10500015 | |
| 10500017 | |
| 10500022 | |
| 10500031 | |
| 10500036 | |
| 10500069 | |
| 10500113 | |
| 10500114 | |
| 10500116 | |
| 1062 | |
| 10800023 | |
| 10800025A | |
| 10800028 | |
| 10800052 | |
| 10800078 | |
| 10800109 | |
| 10800111 | |
| 10900005 | |
| 10900006 | |
| 10900015A | |
| 10927 | |
| 10968 | |
| 10991A | |
| 10998 | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11012 | |
| 11081A | |
| 11082A | |
| 11096 | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100057 | |
| 11100094 | |
| 11100115 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11293 | |
| 11321 | |
| 11323A | |
| 11364 | |
| 11389 | |
| 11437 | |
| 11445 | |
| 11519 | |
| 11575 | |
| 11599A | |
| 11608 | |
| 11615 | |
| 11650 | |
| 11686 | |
| 11692 | |
| 11779 | |
| 11900010 | |
| 11900021 | |
| 11900090 | |
| 11900092 | |
| 11900103 | |
| 11900116 | |
| 11900132 | |
| 11900172 | |
| 11900180 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074 | |
| 12077 | |
| 12100017 | |
| 12100018 | |
| 12100020 | |
| 12100023 | |
| 12100069 | |
| 12100119 | |
| 12100124 | |
| 12102 | |
| 12200025 | |
| 12200064 | |
| 12200092 | |
| 12200102 | |
| 12200144 | |
| 12200170 | |
| 12200173 | |
| 12200174 | |
| 12200175A | |
| 12200177 | |
| 12200188 | |
| 12200221 | |
| 12200226 | |
| 12300002 | |
| 12300031 | |
| 12400034 | |
| 12400099 | |
| 12500002 | |
| 12500014 | |
| 12500018 | |
| 12600016 | |
| 12600032 | |
| 12600049 | |
| 12600067 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600105 | |
| 12600106 | |
| 12600197 | |
| 12600212 | |
| 12600309 | |
| 12700032 | |
| 12700090 | |
| 12700091A | |
| 1332 | |
| 14000396 | |
| 14000781 | |
| 14000827 | |
| 14001773 | |
| 14002232 | |
| 14002235 | |
| 14002622 | |
| 14002624 | |
| 14002625 | |
| 14002628 | |
| 14002631 | |
| 14002636 | |
| 14002637 | |
| 14100073 | |
| 14100074 | |
| 14100083 | |
| 14100157 | |
| 14100158 | |
| 14100595 | |
| 14100596 | |
| 14100612 | |
| 14100702 | |
| 14100703 | |
| 14100764 | |
| 14101125 | |
| 14101128 | |
| 14272-06 | |
| 15341-08 | |
| 15368-01A | |
| 16200582 | |
| 16200660 | |
| 16200661 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400042 | |
| 16400046 | |
| 16400049 | |
| 16500305 | |
| 16500332 | |
| 16500388 | |
| 16500393 | |
| 16500498 | |
| 16500508 | |
| 16574-99A | |
| 16583-00B | |
| 16589-99A | |
| 16800063 | |
| 16800075 | |
| 16800080 | |
| 17300053 | |
| 17300055 | |
| 17300059B | |
| 17369-06 | |
| 1775 | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99A | |
| 17968-99 | |
| 18000016 | |
| 18000034 | |
| 18100043 | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18400073B | |
| 18538-99C | |
| 21900048 | |
| 22000031 | |
| 22000061 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100045A | |
| 24100080 | |
| 24400120 | |
| 24400180 | |
| 24400215 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 2482 | |
| 2531 | |
| 25400103 | |
| 25400133 | |
| 25400190 | |
| 25400257 | |
| 25500013 | |
| 25566-06 | |
| 25600078 | |
| 25600110 | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25700155 | |
| 25700362 | |
| 25700367 | |
| 25700370 | |
| 25700372B | |
| 25700378 | |
| 25700409 | |
| 25700410 | |
| 25700411 | |
| 25700418 | |
| 25700425 | |
| 25700433 | |
| 25700452 | |
| 25700455 | |
| 25700637 | |
| 25700650 | |
| 25700729 | |
| 25700730 | |
| 25700731 | |
| 25700746 | |
| 25700902 | |
| 25701000 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800048 | |
| 25800080 | |
| 25800141 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500026 | |
| 26500027 | |
| 26600048 | |
| 26780-05A | |
| 26800005 | |
| 26800006 | |
| 26800007A | |
| 26800008 | |
| 26800009 | |
| 26800019A | |
| 26800020A | |
| 26800021 | |
| 26800077A | |
| 26800092 | |
| 26800095 | |
| 26800194 | |
| 26900008 | |
| 26900009 | |
| 26900010 | |
| 26900014 | |
| 26900016 | |
| 26900017 | |
| 26900018 | |
| 26900088 | |
| 26900114 | |
| 26900115 | |
| 26900117 | |
| 26900133 | |
| 26900144 | |
| 26900145 | |
| 2708A | |
| 27200025 | |
| 2724 | |
| 27291-09A | |
| 27297-09A | |
| 27300082 | |
| 27300086 | |
| 27300087 | |
| 27300121 | |
| 27300122 | |
| 27400015 | |
| 27400019 | |
| 27440-09A | |
| 27444-00Y | |
| 29000106 | |
| 29000108 | |
| 29000120 | |
| 29000121 | |
| 29000216 | |
| 29000217 | |
| 29200007 | |
| 29200087A | |
| 29200088A | |
| 29269-83A | |
| 2933 | |
| 29400183 | |
| 29400210 | |
| 29400211 | |
| 29400212 | |
| 29465-08B | |
| 2968 | |
| 29900038A | |
| 29900041 | |
| 29900042A | |
| 2998 | |
| 3050 | |
| 3057 | |
| 3061 | |
| 3075 | |
| 3088 | |
| 31400053 | |
| 31400137 | |
| 31400139 | |
| 31400143 | |
| 3143 | |
| 31586-07 | |
| 31600012 | |
| 31600017 | |
| 31600018B | |
| 31600023A | |
| 31600078A | |
| 31600079 | |
| 31694-90 | |
| 32306-08 | |
| 3249 | |
| 3265A | |
| 3267 | |
| 32700010 | |
| 32700011 | |
| 32700015 | |
| 32700017 | |
| 32700050A | |
| 32700054 | |
| 32700065 | |
| 32700066 | |
| 32700100 | |
| 32700101 | |
| 32700102 | |
| 32700116 | |
| 32700124 | |
| 32700130 | |
| 32700144 | |
| 3275 | |
| 33085-74 | |
| 33389-07 | |
| 33409-06B | |
| 33600088 | |
| 33600091 | |
| 33600304 | |
| 33719-79B | |
| 33895-82E | |
| 33900172 | |
| 33900175 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34611-65A | |
| 34700373 | |
| 34800043 | |
| 34800044 | |
| 34800046 | |
| 34987-06 | |
| 35000178 | |
| 35000179 | |
| 35000198A | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06A | |
| 35187-06 | |
| 35200021 | |
| 35200057 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06A | |
| 35223-06A | |
| 35241-06 | |
| 35242-06 | |
| 35243-06A | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 35260-06B | |
| 3536 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3560WA | |
| 3561WC | |
| 3563 | |
| 35654-06 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3612 | |
| 3615 | |
| 3622 | |
| 3634 | |
| 3647 | |
| 36500052A | |
| 36500075 | |
| 3655A | |
| 36700249 | |
| 36700254 | |
| 36700257 | |
| 36706-01K | |
| 36805-06 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000219 | |
| 37000254A | |
| 37000258 | |
| 37000270A | |
| 37000295 | |
| 37000376 | |
| 37065-06A | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37200395A | |
| 37200396 | |
| 37200437 | |
| 37200440 | |
| 37200441 | |
| 37200545 | |
| 37312-75 | |
| 37313-80 | |
| 37496-90A | |
| 3787 | |
| 37903-90 | |
| 37904-90 | |
| 37909-90 | |
| 3910 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 40037-07 | |
| 40040-05 | |
| 40100041 | |
| 40100064 | |
| 40100076 | |
| 40278-08 | |
| 40900292 | |
| 40900663 | |
| 40901-05 | |
| 40999-87 | |
| 41000341F | |
| 41000342F | |
| 41000677 | |
| 41100093B | |
| 41123-79 | |
| 41300212 | |
| 41300214 | |
| 41300215 | |
| 4132 | |
| 4134 | |
| 41500017 | |
| 41500018 | |
| 41500019 | |
| 41500020 | |
| 41500068 | |
| 41500151 | |
| 41600032 | |
| 41600091 | |
| 41600257 | |
| 41600258 | |
| 41600261 | |
| 41600267 | |
| 41600321 | |
| 41600322 | |
| 41600352 | |
| 41700195 | |
| 41700367 | |
| 41700469 | |
| 41700561 | |
| 41700562 | |
| 41700581 | |
| 41700582 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800682 | |
| 41800683 | |
| 41800684 | |
| 41800685 | |
| 41800686 | |
| 41800687 | |
| 41800688 | |
| 41854-08 | |
| 41900-08 | |
| 4194 | |
| 42300001 | |
| 4239 | |
| 4240 | |
| 42416-06 | |
| 42460-80B | |
| 42500007 | |
| 42532-06 | |
| 42849-08 | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42855-06D | |
| 42856-06 | |
| 42857-06B | |
| 42858-06A | |
| 42859-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42889-06 | |
| 42932-08A | |
| 42934-08 | |
| 43000153 | |
| 43000154 | |
| 43000155 | |
| 43000156 | |
| 43022-91A | |
| 43027-08 | |
| 43100045 | |
| 4312C | |
| 43200046 | |
| 43300283 | |
| 43300703 | |
| 43475-08 | |
| 4350A | |
| 4365 | |
| 44023-08 | |
| 4411 | |
| 44160-00 | |
| 4419 | |
| 44341-08 | |
| 44551-08F | |
| 45138-08A | |
| 45400214 | |
| 45400215 | |
| 45400216 | |
| 45400217 | |
| 4549 | |
| 45500117 | |
| 45500118 | |
| 45500119 | |
| 45500121 | |
| 45500132 | |
| 45500339 | |
| 45500396 | |
| 45500397 | |
| 45500398 | |
| 45500421 | |
| 45500424 | |
| 45500538 | |
| 45500539 | |
| 45500540 | |
| 45500541 | |
| 45500542 | |
| 45600003 | |
| 45600037 | |
| 45700009 | |
| 45700020A | |
| 45700021 | |
| 45800023 | |
| 45900027 | |
| 45900080 | |
| 45900234 | |
| 45900235 | |
| 4612 | |
| 4622 | |
| 46508-01 | |
| 46509-01 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46615-06 | |
| 4678 | |
| 4685 | |
| 4686 | |
| 4687 | |
| 4688 | |
| 4696 | |
| 4697 | |
| 4699 | |
| 47000089BHP | |
| 4705 | |
| 4718A | |
| 47200001B | |
| 47200275 | |
| 47200302A | |
| 4740A | |
| 4741A | |
| 47505-02 | |
| 4751 | |
| 4775 | |
| 4790 | |
| 4795 | |
| 4813A | |
| 4820A | |
| 4822A | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4890 | |
| 4916 | |
| 49184-09A | |
| 4924 | |
| 4991 | |
| 50000031 | |
| 50000066 | |
| 50518-09 | |
| 50600067 | |
| 50606-06 | |
| 50614-06 | |
| 50621-06A | |
| 50674-05 | |
| 50899-99A | |
| 509 | |
| 50933-86A | |
| 5118 | |
| 515 | |
| 52000033 | |
| 52000157 | |
| 520W | |
| 5210 | |
| 5211 | |
| 52300053 | |
| 52300121 | |
| 52300122 | |
| 52300123 | |
| 52300127 | |
| 52400090 | |
| 52400092 | |
| 52441-95 | |
| 52719-10 | |
| 53000077 | |
| 53000090 | |
| 53000091 | |
| 53000123 | |
| 53000132 | |
| 53000137 | |
| 53000138 | |
| 53000139 | |
| 53000140 | |
| 53000141A | |
| 53000308 | |
| 53000333 | |
| 53000334 | |
| 53000335 | |
| 53000336A | |
| 53000337 | |
| 53000339 | |
| 53000340 | |
| 53000346 | |
| 53000347 | |
| 53000355 | |
| 53000356 | |
| 53000360 | |
| 53000361 | |
| 53000362 | |
| 53000369 | |
| 53000371EDR | |
| 53000371ENY | |
| 53000371ESY | |
| 53000371ETD | |
| 53000391 | |
| 53000457 | |
| 53000458ETF | |
| 53000790ETF | |
| 53000879EDR | |
| 53000879ESY | |
| 53000891EDR | |
| 53000891ENY | |
| 53000891ESY | |
| 53000891ETD | |
| 53734-06 | |
| 53735-06 | |
| 53788-06 | |
| 53789-06 | |
| 53868-06 | |
| 53919-04B | |
| 54000144 | |
| 54000145 | |
| 54000146 | |
| 54000148 | |
| 54000149 | |
| 55800247 | |
| 55918-08 | |
| 55924-14A | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 56248-08 | |
| 56304-08 | |
| 57000169A | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000182 | |
| 57000186A | |
| 57000193BYM | |
| 57000299 | |
| 57000377 | |
| 57000379EDR | |
| 57000379ENY | |
| 57000379ESY | |
| 57000379ETD | |
| 57000383 | |
| 57001427ETF | |
| 57100099 | |
| 57100107 | |
| 57100109 | |
| 57100111 | |
| 57100112 | |
| 57100113 | |
| 57100114 | |
| 57100147 | |
| 57100148 | |
| 57100151 | |
| 57100152 | |
| 57100153 | |
| 57100154 | |
| 57100155 | |
| 57100164 | |
| 57100165 | |
| 57100168DH | |
| 57100168ENX | |
| 57100168ESH | |
| 57100168ESU | |
| 57100168ETF | |
| 57100169DH | |
| 57100169ENX | |
| 57100169ESH | |
| 57100169ESU | |
| 57100169ETF | |
| 57100170 | |
| 57100171 | |
| 57100172 | |
| 57100187 | |
| 57100200 | |
| 57100225 | |
| 57100242DH | |
| 57100242ENX | |
| 57100242ESH | |
| 57100242ESU | |
| 57100242ETF | |
| 57100243DH | |
| 57100243ENX | |
| 57100243ESH | |
| 57100243ESU | |
| 57100243ETF | |
| 57100256 | |
| 57200012 | |
| 57200017 | |
| 57200081DH | |
| 57200081ENX | |
| 57200081ESH | |
| 57200081ESU | |
| 57200081ETF | |
| 57200083DH | |
| 57200083ENT | |
| 57200083ENX | |
| 57200083ESH | |
| 57200083ESK | |
| 57200083ESU | |
| 57200083ETF | |
| 57217-02A | |
| 57400001 | |
| 57400002 | |
| 57450-14 | |
| 57451-14 | |
| 57638-08 | |
| 57978-00 | |
| 58002-09A | |
| 58167-09A | |
| 58169-09 | |
| 5837B | |
| 58900032 | |
| 58900076ETF | |
| 58900077EDR | |
| 58900077ENY | |
| 58900077ESY | |
| 58900077ETD | |
| 58900370 | |
| 58900469DH | |
| 58900469ENT | |
| 58900469ESK | |
| 58900469ETF | |
| 59211-74A | |
| 59481-00 | |
| 59482-00 | |
| 59500176DH | |
| 59500176ENT | |
| 59500176ESK | |
| 59500176ETF | |
| 59500178DH | |
| 59500178ENT | |
| 59500178ESK | |
| 59500178ETF | |
| 59600006 | |
| 59600011 | |
| 59988-72A | |
| 601 | |
| 6019 | |
| 6026 | |
| 60328-98B | |
| 6036 | |
| 60678-85 | |
| 60800006 | |
| 60800062 | |
| 60800063 | |
| 60900036 | |
| 61000016EDR | |
| 61000016ENY | |
| 61000016ESY | |
| 61000016ETD | |
| 61000129DH | |
| 61000129ENT | |
| 61000129ESK | |
| 61000691 | |
| 61000831ETF | |
| 61000832ETF | |
| 6101 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6113 | |
| 6116 | |
| 61192-96A | |
| 61200022A | |
| 61213-04A | |
| 6127 | |
| 61270-08 | |
| 61272-92E | |
| 61274-92 | |
| 61278-08A | |
| 61300089 | |
| 61300233 | |
| 61300234 | |
| 61300235 | |
| 61300236 | |
| 61300251 | |
| 61300278 | |
| 61300279 | |
| 61300315 | |
| 61300331DH | |
| 61300331ENT | |
| 61300331ESK | |
| 61300331ETF | |
| 61300523A | |
| 61300599 | |
| 61300600 | |
| 61300601 | |
| 61300602 | |
| 61300603 | |
| 61300926 | |
| 61300934 | |
| 61300935 | |
| 61301203 | |
| 61313-88 | |
| 61356-08 | |
| 61400057 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400135 | |
| 61400192 | |
| 61400209 | |
| 61400213 | |
| 61400378 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08C | |
| 62229-08B | |
| 6235 | |
| 62400055 | |
| 62400126 | |
| 62400205 | |
| 62400233 | |
| 62400238 | |
| 62400242 | |
| 62400245 | |
| 62519-03 | |
| 62700089 | |
| 62700117 | |
| 62700133 | |
| 62700136 | |
| 62700141 | |
| 62700143 | |
| 62700144 | |
| 62700146 | |
| 62700150 | |
| 62700161 | |
| 62700296 | |
| 62775-08 | |
| 62800004 | |
| 62800013 | |
| 62800028 | |
| 62908-08 | |
| 6294 | |
| 6334 | |
| 6400HB | |
| 6408HB | |
| 6416 | |
| 64900244B | |
| 64900246B | |
| 64900956 | |
| 64900957 | |
| 64900958 | |
| 64900959 | |
| 6497HW | |
| 65296-95A | |
| 65296-95B | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400176A | |
| 65400177 | |
| 65400178 | |
| 65400179 | |
| 65500042 | |
| 65500043B | |
| 65600176 | |
| 65600179 | |
| 65600190A | |
| 65600383 | |
| 65600405 | |
| 65723-85 | |
| 65900007 | |
| 65900015 | |
| 65900017 | |
| 65900040 | |
| 6590HW | |
| 6594 | |
| 66000116 | |
| 66000136 | |
| 66000212A | |
| 66010-97E | |
| 66051-08 | |
| 66290-06 | |
| 66373-06 | |
| 6645 | |
| 66861-09B | |
| 66881-09 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 6718 | |
| 67208-08 | |
| 67341-04B | |
| 67493-08 | |
| 67621-94 | |
| 67700056 | |
| 67700057 | |
| 67700058 | |
| 67700060 | |
| 67700062 | |
| 67700069 | |
| 67700070 | |
| 67700071 | |
| 67700077 | |
| 67700124 | |
| 67700187 | |
| 67700188 | |
| 67700204 | |
| 67700205 | |
| 67700239 | |
| 67700240 | |
| 67700291 | |
| 67700292 | |
| 67700293 | |
| 67700294 | |
| 67700309 | |
| 67700310 | |
| 67700317 | |
| 67700450 | |
| 67700576 | |
| 67712-83B | |
| 67716-60C | |
| 67717-01 | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800086 | |
| 67800093 | |
| 67800099 | |
| 67800103 | |
| 67800104 | |
| 67800109 | |
| 67800131 | |
| 67800165 | |
| 67800254A | |
| 67800332 | |
| 67800432A | |
| 67800705 | |
| 67800962 | |
| 67815-59A | |
| 67875-11 | |
| 67900075A | |
| 67900170 | |
| 67900187 | |
| 67900196A | |
| 67900198 | |
| 67900199 | |
| 67900200 | |
| 67900205A | |
| 67900212 | |
| 67900212A | |
| 67900218 | |
| 67900219 | |
| 67900265 | |
| 67900269 | |
| 67900289 | |
| 67900290 | |
| 67900306 | |
| 67900307 | |
| 67900308 | |
| 67900309 | |
| 67900311 | |
| 67900312 | |
| 67900321 | |
| 67900325 | |
| 67900408 | |
| 67900409 | |
| 67900429 | |
| 67900430 | |
| 67900432 | |
| 67900433 | |
| 67900450 | |
| 67900453 | |
| 67900454 | |
| 67900603 | |
| 68000020 | |
| 68000021 | |
| 68000022 | |
| 68026-99 | |
| 68042-99 | |
| 68050-93A | |
| 68051-08 | |
| 68066-99A | |
| 68120-00 | |
| 68140-04 | |
| 68163-84 | |
| 68167-04 | |
| 68168-89A | |
| 68245-03 | |
| 68296-99A | |
| 68331-02 | |
| 68369-03 | |
| 68370-03A | |
| 68725-62A | |
| 68737-00 | |
| 68821-00 | |
| 68830-99A | |
| 68881-01 | |
| 68893-00A | |
| 68904-00 | |
| 68956-07 | |
| 68973-00 | |
| 69000083 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200031A | |
| 69200125 | |
| 69200127 | |
| 69200131 | |
| 69200135 | |
| 69200138 | |
| 69200139 | |
| 69200140 | |
| 69200170 | |
| 69200171 | |
| 69200172 | |
| 69200173A | |
| 69200175 | |
| 69200179 | |
| 69200187 | |
| 69200190 | |
| 69200193 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200205 | |
| 69200210 | |
| 69200211 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200221 | |
| 69200222 | |
| 69200224 | |
| 69200225 | |
| 69200226 | |
| 69200237 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200265A | |
| 69200266 | |
| 69200271 | |
| 69200272 | |
| 69200284A | |
| 69200285 | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200311 | |
| 69200312 | |
| 69200336 | |
| 69200336A | |
| 69200337 | |
| 69200391 | |
| 69200394 | |
| 69200410 | |
| 69200421 | |
| 69200461 | |
| 69200462 | |
| 69200529 | |
| 69200536 | |
| 69200711A | |
| 69200740 | |
| 69200840 | |
| 69201134A | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201178 | |
| 69201240 | |
| 69201286A | |
| 69201287 | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201308 | |
| 69201390 | |
| 69201391 | |
| 69201392 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201400 | |
| 69201401 | |
| 69201404 | |
| 69201405 | |
| 69201406 | |
| 69201407 | |
| 69201411 | |
| 69201416 | |
| 69201423 | |
| 69201441 | |
| 69201442 | |
| 69201500 | |
| 69201508A | |
| 69201509 | |
| 69201548 | |
| 69201596 | |
| 69201742A | |
| 69201778 | |
| 69201779 | |
| 69201780 | |
| 69201781A | |
| 69201782A | |
| 69201783 | |
| 69201786 | |
| 69201789 | |
| 69201792 | |
| 69201811 | |
| 69201812 | |
| 69201814 | |
| 69201818 | |
| 69201820 | |
| 69201821 | |
| 69201822 | |
| 69201852 | |
| 69201887 | |
| 69201890 | |
| 69202028 | |
| 69202029 | |
| 69202031 | |
| 69202032 | |
| 69202098 | |
| 69202104 | |
| 69202106 | |
| 69202107 | |
| 69202108 | |
| 69202109 | |
| 69202219 | |
| 69202258 | |
| 69202260 | |
| 69202261 | |
| 69202262 | |
| 69202307 | |
| 69202322 | |
| 69202323 | |
| 69202412 | |
| 69202453 | |
| 69202485 | |
| 69202486 | |
| 69202523 | |
| 69202525 | |
| 69202543 | |
| 69202614 | |
| 69202618 | |
| 69202636 | |
| 69202637 | |
| 69202709 | |
| 69202712 | |
| 69202720 | |
| 69241-08 | |
| 69292-06 | |
| 69293-06 | |
| 69438-06 | |
| 69490-07 | |
| 69563-06 | |
| 69969-08 | |
| 70018-07 | |
| 70186-82 | |
| 70291-89 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70493-08 | |
| 70494-08 | |
| 70578-89 | |
| 70631-08 | |
| 7068 | |
| 70681-09 | |
| 70900121D | |
| 70900122C | |
| 70900123C | |
| 70900138 | |
| 70900162 | |
| 70900165 | |
| 70900298A | |
| 70900379C | |
| 70900421C | |
| 70900616B | |
| 70901-09 | |
| 70901014BYM | |
| 70999-09 | |
| 71294-08 | |
| 7130W | |
| 71400005 | |
| 71400006 | |
| 71400007 | |
| 71400017B | |
| 71400020B | |
| 71400021B | |
| 71400022B | |
| 71400031 | |
| 71400044 | |
| 71400073 | |
| 71400081 | |
| 71400098 | |
| 71400112A | |
| 71400156 | |
| 71455-11 | |
| 71474-07 | |
| 71500044 | |
| 71500045 | |
| 71500046 | |
| 71500048 | |
| 71500050 | |
| 71500053 | |
| 71500055 | |
| 71500057 | |
| 71500094 | |
| 71500338 | |
| 71500340 | |
| 71500342 | |
| 71500348 | |
| 71500478 | |
| 71500488 | |
| 71500491 | |
| 71500504 | |
| 71500506 | |
| 71500566 | |
| 71500568 | |
| 71517-11A | |
| 7155 | |
| 71660-03A | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72039-71A | |
| 72053-92 | |
| 72056-92 | |
| 72062-06 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72081-11 | |
| 72097-06 | |
| 72098-06 | |
| 72099-06 | |
| 72110-06 | |
| 72111-06 | |
| 72113-94BK | |
| 72114-94BK | |
| 72127-06 | |
| 72130-04 | |
| 72135-06 | |
| 72145-06 | |
| 72153-94 | |
| 72154-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72191-94 | |
| 72193-98 | |
| 72209-11 | |
| 72213-94 | |
| 72214-94 | |
| 72222-11 | |
| 72226-11 | |
| 72227-11 | |
| 72232-96 | |
| 72241-94A | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72330-95 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72405-98BK | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72444-07GY | |
| 72447-07GY | |
| 72449-01 | |
| 72450-01 | |
| 72469-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72479-07BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72499-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72527-01 | |
| 72528-01 | |
| 72533-06 | |
| 72544-07 | |
| 72557-07 | |
| 72569-08 | |
| 72575-11 | |
| 72589-09 | |
| 72594-11 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72633-02 | |
| 72639-10 | |
| 72662-11 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72904-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72914-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73101-96BK | |
| 73102-96BK | |
| 73103-96BK | |
| 73106-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 7330 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 7358 | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74196-04 | |
| 74197-04 | |
| 74700025 | |
| 74700038 | |
| 74700039 | |
| 7492 | |
| 7495 | |
| 75069-08D | |
| 75076-08B | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75241-08 | |
| 75254-04A | |
| 75269-08 | |
| 75291-08A | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 755 | |
| 7576 | |
| 7586 | |
| 7593 | |
| 7600 | |
| 76000055 | |
| 76000092 | |
| 76000107A | |
| 76000127 | |
| 76000160 | |
| 76000161 | |
| 76000164 | |
| 76000165 | |
| 76000172 | |
| 76000173 | |
| 76000174 | |
| 76000177 | |
| 76000186 | |
| 76000208 | |
| 76000234 | |
| 76000243 | |
| 76000252 | |
| 76000409BYM | |
| 76000783B | |
| 76000784B | |
| 76000785B | |
| 76000789 | |
| 76000799 | |
| 76000819 | |
| 7601 | |
| 7606 | |
| 7624 | |
| 76259-86 | |
| 76266-98A | |
| 7629 | |
| 76353-00 | |
| 765 | |
| 7667 | |
| 7683 | |
| 7686 | |
| 77117-10 | |
| 77126-10 | |
| 77148-10 | |
| 7716 | |
| 7739 | |
| 7763W | |
| 7768W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7800W | |
| 7823 | |
| 7825 | |
| 7848W | |
| 786A | |
| 7880 | |
| 7900 | |
| 791A | |
| 7992 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8108 | |
| 8142 | |
| 8175 | |
| 8194 | |
| 83000014 | |
| 83000018A | |
| 83000026 | |
| 83000030A | |
| 83000042DH | |
| 83000042ENX | |
| 83000042ESH | |
| 83000042ESU | |
| 83000042ETF | |
| 83000051DH | |
| 83000051ENX | |
| 83000051ESH | |
| 83000051ESU | |
| 83000053ETF | |
| 83000054EDR | |
| 83000054ENY | |
| 83000054ESY | |
| 83000054ETD | |
| 83000055ETF | |
| 83000056EDR | |
| 83000056ENY | |
| 83000056ESY | |
| 83000056ETD | |
| 83000062DH | |
| 83000062ENT | |
| 83000062ESK | |
| 83000062ETF | |
| 83000080DH | |
| 83000080ENT | |
| 83000080ESK | |
| 83000105DH | |
| 83000105ENX | |
| 83000105ESH | |
| 83000105ESU | |
| 83000105ETF | |
| 83000110DH | |
| 83000110ENT | |
| 83000110ESK | |
| 83000136 | |
| 83000137 | |
| 83000138 | |
| 83000139 | |
| 83000192ETF | |
| 83000200ETF | |
| 83000201ETF | |
| 83000211 | |
| 8308 | |
| 8313 | |
| 8314 | |
| 8319 | |
| 8324 | |
| 83296-11 | |
| 83311-09 | |
| 83312-09 | |
| 83313-09 | |
| 83314-09 | |
| 83316-09 | |
| 83317-09 | |
| 83323-09 | |
| 83324-09B | |
| 83326-09 | |
| 83327-09 | |
| 83331-09A | |
| 83337-09A | |
| 83339-09A | |
| 83344-11 | |
| 83346-11A | |
| 8335 | |
| 83352-11A | |
| 83366-09 | |
| 83373-09A | |
| 83382-09 | |
| 83383-09 | |
| 83385-09 | |
| 83388-09C | |
| 83389-09B | |
| 8339 | |
| 83395-09A | |
| 83396-09A | |
| 83398-09 | |
| 83407-09 | |
| 83418-09 | |
| 83419-09 | |
| 83420-09 | |
| 83424-09 | |
| 83429-09 | |
| 83434-11 | |
| 83439-09 | |
| 83441-10A | |
| 83446-09 | |
| 83450-09 | |
| 83456-09 | |
| 83457-11 | |
| 83458-11 | |
| 83459-09 | |
| 83460-09 | |
| 83466-11BHP | |
| 83496-09 | |
| 8351 | |
| 8353 | |
| 83538-11 | |
| 83563-10 | |
| 8357 | |
| 8359 | |
| 83595-11 | |
| 8360 | |
| 8364 | |
| 8365 | |
| 8366 | |
| 8367 | |
| 8368 | |
| 8369 | |
| 8370 | |
| 83777-11 | |
| 83778-11 | |
| 83781-11 | |
| 83782-11 | |
| 83783-11 | |
| 83798-11 | |
| 83799-10 | |
| 83808-09A | |
| 83811-09 | |
| 83822-09 | |
| 83823-09 | |
| 83848-09 | |
| 83849-09A | |
| 83850-09 | |
| 83860-09 | |
| 83861-09 | |
| 83864-09 | |
| 83865-09 | |
| 83869-09 | |
| 83886-09 | |
| 83888-09 | |
| 83889-09 | |
| 83890-09A | |
| 83898-09A | |
| 83936-09A | |
| 83944-09 | |
| 83987-09 | |
| 83991-11 | |
| 84021-10 | |
| 84027-11 | |
| 84850-92 | |
| 856A | |
| 882 | |
| 8860 | |
| 8873 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8972 | |
| 90300030 | |
| 90300043 | |
| 90300051 | |
| 90300103 | |
| 90300104 | |
| 90300111 | |
| 90300112 | |
| 90770-79 | |
| 90821-74C | |
| 90844-80 | |
| 91700025A | |
| 91800058 | |
| 91800064 | |
| 91840-03B | |
| 91845-03B | |
| 9208 | |
| 9215 | |
| 9231 | |
| 9252A | |
| 9276B | |
| 93300035A | |
| 94000501 | |
| 94000634 | |
| 94000827 | |
| 94000877 | |
| 942 | |
| 946 | |
| 95594-84C | |
| 95595-84C | |
| 965M | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9847 | |
| 9848 | |
| 9853 | |
| 9907 | |
| 99461-89 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 71660-03A | 2018 |
| 7330 | Unknown |
| 7331 | Unknown |
| 7340 | Unknown |
| 7492 | 1993 |
| 7495 | 1994 |
| 7549A | Unknown |
| 7576 | 1990 |
| 7586 | Unknown |
| 7593 | 1991 |
| 7601 | 1990 |
| 7624 | Unknown |
| 76259-86 | 1986 |
| 7629 | 1990 |
| 7683 | Unknown |
| 7739 | Unknown |
| 7763W | Unknown |
| 7768W | Unknown |
| 7792 | 2012 |
| 7823 | Unknown |
| 7825 | Unknown |
| 7880 | Unknown |
| 7900 | Unknown |
| 7992 | 2010 |
| 8108 | Unknown |
| 8142 | Unknown |
| 83312-09 | 2009 |
| 83496-09 | 2009 |
| 8364 | 2011 |
| 84850-92 | 1992 |
| 90844-80 | 1980 |
| 10100006 | 2014 |
| 10100062 | 2017 |
| 10100071 | 2016 |
| 31694-90 | 1990 |
| 5210 | 1991 |
| 5211 | Unknown |
| 102A1 - Generic Screws | |
| 1009M | Unknown |
| 10200001 | 2011 |
| 10200004 | 2011 |
| 10200042 | 2014 |
| 10200052 | 2014 |
| 10200059 | 2014 |
| 10200060 | 2014 |
| 10200061 | 2014 |
| 10200062 | 2014 |
| 10200105 | 2014 |
| 10200112 | 2014 |
| 10200133 | 2014 |
| 10200134 | 2014 |
| 10200141 | 2014 |
| 10200142 | 2014 |
| 10200147 | 2014 |
| 10200154 | 2014 |
| 10200156 | 2014 |
| 10200205 | 2014 |
| 10200220 | 2014 |
| 10200258 | 2014 |
| 10200303 | 2017 |
| 10200308 | 2017 |
| 10200338 | 2015 |
| 10200343 | 2017 |
| 10200350 | 2015 |
| 10200373 | 2017 |
| 10200375 | 2015 |
| 10200393 | 2017 |
| 10200408A | 2018 |
| 10200414 | 2017 |
| 10200422 | 2017 |
| 10200429 | 2017 |
| 10200442 | 2016 |
| 10200446 | 2017 |
| 10200463 | 2017 |
| 10200503 | 2017 |
| 10200546 | 2017 |
| 10200569 | 2017 |
| 1062 | Unknown |
| 1332 | 2010 |
| 1775 | Unknown |
| 2445 | Unknown |
| 2478 | 2007 |
| 2479 | Unknown |
| 2482 | Unknown |
| 2531 | Unknown |
| 2563 | 2009 |
| 2647B | Unknown |
| 2708A | Unknown |
| 2724 | Unknown |
| 29269-83A | 1983 |
| 2933 | Unknown |
| 2968 | Unknown |
| 2998 | Unknown |
| 3050 | Unknown |
| 3057 | Unknown |
| 3061 | Unknown |
| 3075 | Unknown |
| 3088 | Unknown |
| 3143 | Unknown |
| 3249 | Unknown |
| 3267 | 1999 |
| 3275 | 2002 |
| 3445 | Unknown |
| 3514 | Unknown |
| 35244-06 | 2014 |
| 35259-06 | 2006 |
| 3536 | Unknown |
| 3560WA | Unknown |
| 3561WC | Unknown |
| 3563 | 1999 |
| 3588 | 1990 |
| 3594 | 1992 |
| 3612 | 2012 |
| 3615 | Unknown |
| 3622 | Unknown |
| 3634 | Unknown |
| 3647 | 2003 |
| 3655A | Unknown |
| 3699D | 2006 |
| 3787 | Unknown |
| 3910 | 2014 |
| 3929 | 2009 |
| 3976 | 2004 |
| 3983 | 2005 |
| 4132 | Unknown |
| 4134 | 1994 |
| 4194 | Unknown |
| 4239 | 2006 |
| 4240 | Unknown |
| 42858-06A | 2006 |
| 4312C | Unknown |
| 4350A | Unknown |
| 4365 | Unknown |
| 4411 | 2009 |
| 4419 | Unknown |
| 4549 | Unknown |
| 4612 | Unknown |
| 4622 | Unknown |
| 4678 | Unknown |
| 4685 | 2007 |
| 4686 | 2006 |
| 4687 | 2006 |
| 4688 | Unknown |
| 4696 | Unknown |
| 4697 | Unknown |
| 4699 | Unknown |
| 4705 | 2005 |
| 4718A | 1994 |
| 4740A | 1994 |
| 4741A | 1994 |
| 4751 | Unknown |
| 4775 | 2000 |
| 4790 | Unknown |
| 4795 | 2006 |
| 4813A | 1990 |
| 4820A | Unknown |
| 4822A | 1994 |
| 4856 | Unknown |
| 4890 | Unknown |
| 4916 | Unknown |
| 4924 | Unknown |
| 4991 | 2009 |
| 67721-48 | 1948 |
| 68026-99 | 1999 |
| 68042-99 | 1999 |
| 68120-00 | 2000 |
| 703B | Unknown |
| 780 | Unknown |
| 786A | Unknown |
| 791A | 2007 |
| 8175 | 2004 |
| 8308 | 2009 |
| 8313 | 2009 |
| 8314 | 2009 |
| 8319 | 2009 |
| 83323-09 | 2009 |
| 8359 | 2011 |
| 8360 | 2011 |
| 8365 | 2011 |
| 8366 | 2011 |
| 8369 | 2011 |
| 856A | 1990 |
| 882 | 2000 |
| 90770-79 | 1979 |
| 942 | 1992 |
| 946 | Unknown |
| 965M | Unknown |
| 103A1 - Generic Washers | |
| 6294 | 2010 |
| 6334 | Unknown |
| 6400HB | Unknown |
| 6408HB | 1970 |
| 6416 | Unknown |
| 6497HW | 2010 |
| 6532 | 2000 |
| 6590HW | Unknown |
| 6594 | Unknown |
| 6645 | Unknown |
| 6701 | Unknown |
| 6702 | Unknown |
| 6703 | 1970 |
| 6718 | Unknown |
| 6771A | Unknown |
| 67815-59A | 1959 |
| 7038 | 1998 |
| 7041 | 1958 |
| 7068 | Unknown |
| 7130W | Unknown |
| 7415A | Unknown |
| 8335 | Unknown |
| 83886-09 | 2009 |
| 8972 | Unknown |
| 10300003 | 2014 |
| 46509-01 | 2001 |
| 56159-73 | 1973 |
| 6019 | Unknown |
| 6026 | Unknown |
| 6036 | Unknown |
| 6101 | 2011 |
| 6109 | 1980 |
| 6113 | Unknown |
| 6116 | Unknown |
| 6127 | Unknown |
| 6150W | Unknown |
| 6220W | Unknown |
| 6235 | Unknown |
| 104A1 - Custom Nuts | |
| 7606 | 1983 |
| 105A1 - Custom Screws | |
| 10500008 | 2014 |
| 10500015 | 2014 |
| 10500017 | 2014 |
| 10500022 | 2014 |
| 10500031 | 2014 |
| 10500036 | 2014 |
| 10500069 | 2017 |
| 10500113 | 2019 |
| 10500114 | 2019 |
| 10500116 | 2019 |
| 37090-98A | 1998 |
| 108A1 - Hose Clamps | |
| 10031 | 2010 |
| 10080 | Unknown |
| 10344 | Unknown |
| 10800023 | 2013 |
| 10800025A | 2017 |
| 10800052 | 2014 |
| 10800078 | 2014 |
| 10800109 | 2017 |
| 10800111 | 2017 |
| 11608 | Unknown |
| 55918-08 | 2008 |
| 69563-06 | 2006 |
| 9955 | Unknown |
| 9956 | 1972 |
| 108B1 - P Clamps | |
| 10076 | 2010 |
| 10800028 | 2014 |
| 109A1 - Studs | |
| 10900005 | 2014 |
| 10900006 | 2014 |
| 10900015A | 2018 |
| 3265A | Unknown |
| 66290-06 | 2006 |
| 83311-09 | 2009 |
| 83822-09 | 2009 |
| 110A1 - Bearing Dust Seals | |
| 83848-09 | 2009 |
| 110B1 - Plain Bushings | |
| 83314-09 | 2009 |
| 83317-09 | 2009 |
| 8967A | 2017 |
| 9208 | Unknown |
| 9701A | 2011 |
| 11000050 | 2014 |
| 11000139 | 2017 |
| 11519 | Unknown |
| 12077 | Unknown |
| 57217-02A | 2013 |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 11000134 | 2017 |
| 12052A | 2003 |
| 12074 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 11000010 | 2011 |
| 24605-07 | 2007 |
| 8042A | 2018 |
| 8860 | Unknown |
| 8963 | Unknown |
| 8970A | 2012 |
| 9215 | Unknown |
| 9231 | Unknown |
| 9252A | 2017 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 72008-05 | 2005 |
| 72110-06 | 2006 |
| 72264-94 | 1994 |
| 72527-01 | 2001 |
| 72990-01 | 2001 |
| 73304-04 | 2004 |
| 74196-04 | 2004 |
| 9819 | Unknown |
| 9825 | Unknown |
| 9907 | Unknown |
| 111B1 - Tape | |
| 11100094 | 2014 |
| 111C1 - Insulating Tape | |
| 11100115 | 2014 |
| 83811-09 | 2009 |
| 111D1 - Isolating Tape | |
| 11100038 | 2014 |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100057 | 2014 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 50674-05 | 2005 |
| 117A1 - Coil Springs | |
| 33085-74 | 1974 |
| 119A1 - O-Rings | |
| 10927 | Unknown |
| 10968 | Unknown |
| 11105 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11145A | 2007 |
| 11179 | 1986 |
| 11201 | Unknown |
| 11293 | 1996 |
| 11323A | 2016 |
| 11364 | 2002 |
| 11686 | Unknown |
| 11900010 | 2013 |
| 11900021 | 2014 |
| 11900090 | 2017 |
| 11900092 | 2017 |
| 11900103 | 2017 |
| 11900116 | 2017 |
| 11900132 | 2019 |
| 11900172 | 2020 |
| 11900180 | 2020 |
| 27444-00Y | 2000 |
| 46508-01 | 2001 |
| 8367 | 2011 |
| 120A1 - Pins | |
| 8368 | 2011 |
| 16574-99A | 1999 |
| 16583-00B | 2021 |
| 16589-99A | 1999 |
| 221 | 2026 |
| 24754-75A | 1975 |
| 42460-80B | 1980 |
| 509 | Unknown |
| 50933-86A | 1986 |
| 515 | Unknown |
| 520W | 2010 |
| 601 | Unknown |
| 121A1 - Grommets | |
| 11437 | Unknown |
| 11445 | Unknown |
| 11650 | 2010 |
| 11692 | Unknown |
| 12100017 | 2014 |
| 12100018 | 2014 |
| 12100020 | 2014 |
| 12100119 | 2019 |
| 12100124 | 2019 |
| 57978-00 | 2000 |
| 83439-09 | 2009 |
| 83460-09 | 2009 |
| 121B1 - Press-Fit Plugs | |
| 72097-06 | 2006 |
| 755 | 2018 |
| 765 | 1997 |
| 12100023 | 2014 |
| 12100069 | 2017 |
| 122A1 - Retaining Rings | |
| 10040 | 1982 |
| 10103 | Unknown |
| 10108 | Unknown |
| 10147 | 2018 |
| 10395 | Unknown |
| 10396 | Unknown |
| 10991A | Unknown |
| 10998 | 1985 |
| 11012 | 2011 |
| 11081A | 2008 |
| 11082A | 2016 |
| 11096 | 2010 |
| 11150 | 1984 |
| 11161 | 1984 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11575 | Unknown |
| 11615 | Unknown |
| 12200025 | 2014 |
| 12200064 | 2014 |
| 12200092 | 2014 |
| 12200102 | 2015 |
| 12200144 | 2018 |
| 12200173 | 2019 |
| 12200177 | 2019 |
| 17945-36B | 1936 |
| 35087-99A | 1999 |
| 35114-02 | 2002 |
| 53868-06 | 2006 |
| 60678-85 | 1985 |
| 61012-04A | 2004 |
| 61213-04A | 2004 |
| 65325-83A | 1983 |
| 83313-09 | 2009 |
| 83316-09 | 2009 |
| 83331-09A | 2016 |
| 9853 | Unknown |
| 122A2 - Retaining Clips | |
| 10334 | 2014 |
| 12200170 | 2018 |
| 12200174 | 2019 |
| 12200175A | 2019 |
| 12200188 | 2019 |
| 12200221 | 2021 |
| 12200226 | 2021 |
| 123A1 - Sealing Washers | |
| 12300002 | 2011 |
| 12300031 | 2015 |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 8324 | 2009 |
| 83864-09 | 2009 |
| 11599A | 2012 |
| 12400034 | 2014 |
| 12400099 | 2017 |
| 41900-08 | 2008 |
| 46515-01 | 2001 |
| 5837B | 2020 |
| 125A1 - Tie Straps | |
| 10006 | 1960 |
| 10039 | 1981 |
| 10065 | 1985 |
| 10177 | 1996 |
| 10270 | 2003 |
| 10287 | 2004 |
| 11321 | 2000 |
| 12500002 | 2012 |
| 12500014 | 2017 |
| 12500018 | 2017 |
| 126A1 - Miscellaneous Hardware | |
| 12600032 | 2014 |
| 12600049 | 2014 |
| 12600070 | 2014 |
| 12600071 | 2014 |
| 12600073 | 2014 |
| 12600105 | 2015 |
| 12600106 | 2015 |
| 12600212 | 2019 |
| 12600309 | 2021 |
| 56161-83A | 1983 |
| 57100187 | 2014 |
| 57638-08 | 2008 |
| 68331-02 | 2002 |
| 8041 | Unknown |
| 83337-09A | 2012 |
| 83339-09A | 2012 |
| 83459-09 | 2009 |
| 83987-09 | 2009 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 70291-89 | 1989 |
| 11779 | 2008 |
| 12600016 | 2011 |
| 12600067 | 2014 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 12700032 | 2014 |
| 127B1 - Generic Mounting Bracket | |
| 12700090 | 2017 |
| 12700091A | 2020 |
| 70493-08 | 2008 |
| 140A1 - Battery Warning Label | |
| 14002622 | 2021 |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14000396 | 2014 |
| 14000781 | 2015 |
| 14001773 | 2019 |
| 14002232 | 2021 |
| 14002235 | 2021 |
| 14002636 | 2021 |
| 83563-10 | 2010 |
| 83890-09A | 2010 |
| 90821-74C | 1974 |
| 140A3 - Other Special Warning Label | |
| 83446-09 | 2009 |
| 14002624 | 2021 |
| 14002625 | 2021 |
| 14002628 | 2021 |
| 14002631 | 2021 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 14002637 | 2021 |
| 141A1 - Medallion | |
| 14100073 | 2014 |
| 14100074 | 2014 |
| 14100083 | 2014 |
| 14100157 | 2014 |
| 14100158 | 2014 |
| 14100595 | 2015 |
| 14100596 | 2015 |
| 14100612 | 2015 |
| 14100702 | 2015 |
| 14100703 | 2015 |
| 14100764 | 2017 |
| 14101125 | 2019 |
| 14101128 | 2019 |
| 42856-06 | 2006 |
| 44341-08 | 2008 |
| 84027-11 | 2011 |
| 162D1 - Engine Assembly | |
| 16200660 | 2020 |
| 16200661 | 2020 |
| 162D3 - Engine Assembly Short Block | |
| 16200582 | 2019 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 163B1 - Engine Isolator Mount | |
| 83382-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 16400049 | 2017 |
| 164B1 - Engine Mount Bracket sub-component | |
| 16219-09 | 2009 |
| 7358 | Unknown |
| 7531 | 1980 |
| 7600 | Unknown |
| 7667 | Unknown |
| 7686 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 7800W | Unknown |
| 7848W | Unknown |
| 8194 | Unknown |
| 164D1 - Tiebar Mount | |
| 16400046 | 2017 |
| 165A1 - Cylinder Head | |
| 16500388 | 2017 |
| 16500393 | 2017 |
| 16500498 | 2017 |
| 16500508 | 2017 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500305 | 2017 |
| 16500332 | 2017 |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 16800075 | 2017 |
| 16800080 | 2017 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300053 | 2017 |
| 17300055 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059B | 2020 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17900030 | 2017 |
| 17900031 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900034 | 2017 |
| 17900035 | 2017 |
| 180A1 - Valves | |
| 18000016 | 2017 |
| 18000034 | 2017 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18100043 | 2017 |
| 18100045 | 2017 |
| 18100060 | 2017 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900048 | 2017 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 220Z1 - Kit,Piston Ring | |
| 22000061 | 2017 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100045A | 2019 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400120 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215 | 2017 |
| 244D1 - Crankcase sub-component | |
| 83456-09 | 2009 |
| 244F1 - Oil Pan | |
| 24400180 | 2017 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25400190 | 2017 |
| 25673-06 | 2006 |
| 25675-06 | 2006 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400133 | 2017 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 256A1 - Timer Cover | |
| 25600078 | 2018 |
| 25600110 | 2019 |
| 257A1 - Cam Cover | |
| 25700367 | 2017 |
| 257B1 - Clutch Cover | |
| 25700902 | 2019 |
| 257E1 - Cover Gaskets | |
| 11902 | Unknown |
| 11936 | Unknown |
| 25700155 | 2012 |
| 25700362 | 2017 |
| 25700370 | 2017 |
| 25700372B | 2018 |
| 25700378 | 2017 |
| 25700425 | 2017 |
| 25700433 | 2017 |
| 25700452 | 2017 |
| 25700455 | 2017 |
| 35654-06 | 2006 |
| 36805-06 | 2006 |
| 42857-06B | 2013 |
| 61109-85D | 1985 |
| 61192-96A | 1996 |
| 61402-08 | 2008 |
| 65324-83B | 2009 |
| 67208-08 | 2008 |
| 71294-08 | 2008 |
| 257L1 - Primary Cover | |
| 25700418 | 2017 |
| 25700650 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700409 | 2017 |
| 257P1 - Tappet Cover | |
| 25700410 | 2017 |
| 25700411 | 2017 |
| 257S2 - Sub-Assembly,Cover | |
| 25700637 | 2017 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700729 | 2017 |
| 25700730 | 2017 |
| 25700731 | 2017 |
| 25700746 | 2017 |
| 25701000 | 2018 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800048 | 2017 |
| 25800080 | 2018 |
| 25800141 | 2021 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 266B1 - Water Pump | |
| 26600048 | 2017 |
| 268B1 - Cooling Fan | |
| 26800007A | 2014 |
| 26800019A | 2014 |
| 26800095 | 2017 |
| 268B2 - Cooling Fan Guard | |
| 26800008 | 2014 |
| 268C1 - Radiator | |
| 26800005 | 2014 |
| 26800006 | 2014 |
| 268E1 - Radiator sub-component | |
| 26800020A | 2014 |
| 268F1 - Radiator Pressure Cap | |
| 26800021 | 2014 |
| 26800194 | 2021 |
| 268H1 - Radiator System Cover | |
| 26800009 | 2014 |
| 26800077A | 2020 |
| 26800092 | 2017 |
| 269A1 - Cooling Line Fitting | |
| 26900117 | 2017 |
| 269A2 - Coolant Line | |
| 26900133 | 2017 |
| 269B1 - Radiator Hose | |
| 26900008 | 2014 |
| 26900009 | 2014 |
| 26900010 | 2014 |
| 26900016 | 2013 |
| 26900017 | 2013 |
| 26900018 | 2014 |
| 26900088 | 2017 |
| 26900114 | 2017 |
| 26900115 | 2017 |
| 26900144 | 2017 |
| 26900145 | 2017 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26900014 | 2014 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200025 | 2017 |
| 273A1 - Intake Manifold | |
| 27300121 | 2017 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300087 | 2017 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300086 | 2017 |
| 273G1 - Throttle Body | |
| 27300122 | 2017 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300082 | 2017 |
| 274B1 - Fuel Rail | |
| 27400019 | 2017 |
| 274C1 - Fuel Injector | |
| 27400015 | 2017 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29000120 | 2017 |
| 29000121 | 2017 |
| 290D1 - Airbox Seal | |
| 29000106 | 2017 |
| 29000108 | 2017 |
| 290Z1 - Kit,Airbox | |
| 29000216 | 2017 |
| 29000217 | 2017 |
| 292A1 - Air Duct | |
| 29200088A | 2019 |
| 292B1 - Air Duct Bezel | |
| 29200007 | 2014 |
| 29200087A | 2019 |
| 294A1 - Air Filter Element | |
| 29400212 | 2017 |
| 294B1 - Breather Bolt | |
| 29465-08B | 2017 |
| 294C1 - Breather Hose | |
| 29400211 | 2017 |
| 294F1 - Engine Breather Valve | |
| 29400183 | 2017 |
| 29400210 | 2017 |
| 299B1 - Charging Rotor Assembly | |
| 29900038A | 2020 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900042A | 2017 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 31400137 | 2021 |
| 31400139 | 2020 |
| 71474-07 | 2007 |
| 314M1 - Reverse Motor | |
| 83388-09C | 2020 |
| 31400143 | 2020 |
| 316A1 - Ignition Coil | |
| 31600017 | 2017 |
| 316B1 - Spark Plug Cable | |
| 31600018B | 2018 |
| 31600023A | 2017 |
| 31600078A | 2017 |
| 31600079 | 2017 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 32700050A | 2018 |
| 32700101 | 2019 |
| 32700102 | 2019 |
| 32700144 | 2020 |
| 327B1 - Chemical / Gas Sensor | |
| 32700116 | 2021 |
| 32700124 | 2021 |
| 32700130 | 2021 |
| 327C1 - Pressure Sensor | |
| 32700100 | 2019 |
| 327D1 - Proximity Sensor | |
| 32700011 | 2014 |
| 32700015 | 2014 |
| 32700017 | 2014 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32700054 | 2017 |
| 32700065 | 2017 |
| 32700066 | 2015 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600088 | 2017 |
| 33600091 | 2017 |
| 33600304 | 2019 |
| 336C1 - Shift Linkage Rod End | |
| 33719-79B | 1979 |
| 336D1 - Shift Pedal | |
| 33895-82E | 2017 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 339A1 - Shift Lever | |
| 33900175 | 2017 |
| 339D1 - Shifter Fork | |
| 35187-06 | 2006 |
| 35210-06 | 2006 |
| 35217-06 | 2006 |
| 35222-06A | 2020 |
| 35223-06A | 2020 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33389-07 | 2014 |
| 33409-06B | 2006 |
| 33900172 | 2017 |
| 34064-00C | 2000 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35081-06 | 2006 |
| 35082-07 | 2007 |
| 35186-06A | 2020 |
| 35243-06A | 2020 |
| 35249-06A | 2006 |
| 347B1 - Transmission Case | |
| 34700373 | 2021 |
| 348C1 - Transmission Top Cover | |
| 34800043 | 2018 |
| 34800044 | 2018 |
| 34800046 | 2018 |
| 350A1 - Transmission Output Sprocket | |
| 83595-11 | 2011 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 83850-09 | 2009 |
| 350E1 - Transmission Gear | |
| 35000179 | 2018 |
| 35122-06A | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 11207A | 2009 |
| 25729-06 | 2006 |
| 25731-06 | 2006 |
| 25734-06 | 2006 |
| 25736-06 | 2006 |
| 25737-06 | 2006 |
| 25738-06 | 2006 |
| 350S2 - Sub-Assembly,Transmission Mainshaft | |
| 35000198A | 2018 |
| 352A1 - Engine Balancer | |
| 35200057 | 2018 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35600094 | 2018 |
| 35600103 | 2017 |
| 35807-06 | 2006 |
| 35811-06 | 2006 |
| 35814-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35126-06 | 2006 |
| 35204-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35124-06 | 2006 |
| 35202-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35260-06B | 2016 |
| 37069-90A | 2010 |
| 40901-05 | 2005 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075 | 2017 |
| 365E1 - Inner Primary Housing | |
| 36500052A | 2020 |
| 367A1 - Clutch Lever | |
| 36700249 | 2021 |
| 367F1 - Clutch Lever Perch | |
| 36700254 | 2021 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 36700257 | 2021 |
| 37312-75 | 1975 |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000254A | 2019 |
| 37496-90A | 1990 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000219 | 2017 |
| 37000258 | 2017 |
| 37000295 | 2019 |
| 370Z1 - Kit,Clutch | |
| 37000376 | 2021 |
| 372D1 - Clutch Cable | |
| 37200395A | 2018 |
| 37200396 | 2018 |
| 37200437 | 2021 |
| 37200440 | 2021 |
| 37200441 | 2021 |
| 37200545 | 2021 |
| 400A1 - Drive-Belt | |
| 40040-05 | 2005 |
| 401A1 - Engine Sprocket | |
| 40100041 | 2014 |
| 40100064 | 2017 |
| 83936-09A | 2013 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076 | 2017 |
| 409A1 - Rear Wheel | |
| 40900292 | 2015 |
| 83327-09 | 2009 |
| 409A2 - Rear Wheel Assembly | |
| 40900663 | 2020 |
| 410A1 - Body Control Module (BCM) | |
| 41000341F | 2020 |
| 41000342F | 2020 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000677 | 2021 |
| 411A3 - ABS Hydraulic Control Unit | |
| 41100093B | 2021 |
| 413A1 - Brake Caliper | |
| 41300212 | 2019 |
| 41300215 | 2019 |
| 43027-08 | 2008 |
| 44023-08 | 2008 |
| 44160-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 42851-06 | 2006 |
| 413D1 - Brake Pad | |
| 41300214 | 2019 |
| 41854-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41500017 | 2014 |
| 41500018 | 2014 |
| 41500019 | 2014 |
| 41500020 | 2014 |
| 41500068 | 2014 |
| 41500151 | 2019 |
| 416A1 - Brakes Miscellaneous Component | |
| 41600267 | 2019 |
| 42852-06A | 2006 |
| 42860-06B | 2006 |
| 42934-08 | 2008 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600032 | 2014 |
| 41600091 | 2014 |
| 41600257 | 2019 |
| 41600258 | 2019 |
| 41600261 | 2019 |
| 41600321 | 2021 |
| 41600322 | 2021 |
| 416Z1 - Kit,Brake Miscellaneous Component | |
| 41600352 | 2020 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700561 | 2019 |
| 44551-08F | 2018 |
| 417B1 - Brake Master Cylinder | |
| 42855-06D | 2018 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700367 | 2015 |
| 42862-06B | 2010 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41700562 | 2019 |
| 41700581 | 2019 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 41700469 | 2017 |
| 41700582 | 2019 |
| 42859-06B | 2006 |
| 418B1 - Brake Line | |
| 41800682 | 2019 |
| 41800683 | 2019 |
| 41800684 | 2019 |
| 41800685 | 2019 |
| 41800686 | 2019 |
| 41800687 | 2019 |
| 41800688 | 2019 |
| 422B1 - Wheel Sprocket | |
| 83424-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423G1 - Valve Stem | |
| 40999-87 | 1987 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 42300001 | 2011 |
| 95594-84C | 2017 |
| 95595-84C | 2017 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 83849-09A | 2011 |
| 425A1 - Wheel sub-component | |
| 42500007 | 2015 |
| 430C1 - Axle Nut | |
| 83889-09 | 2009 |
| 430E1 - Rear Axle | |
| 43000153 | 2019 |
| 43000154 | 2019 |
| 430F1 - Sidecar Axle | |
| 83450-09 | 2009 |
| 430Z1 - Kit,Axle | |
| 43000155 | 2019 |
| 43000156 | 2019 |
| 431A1 - Front Tire | |
| 43022-91A | 1991 |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200046 | 2020 |
| 83324-09B | 2019 |
| 433A1 - Front Wheel | |
| 83326-09 | 2009 |
| 43300283 | 2015 |
| 433A2 - Front Wheel Assembly | |
| 43300703 | 2020 |
| 433B1 - Front Wheel Bearing Spacer | |
| 48489-02 | 2002 |
| 56163-93 | 1993 |
| 83888-09 | 2009 |
| 454A1 - Front Telescopic Fork | |
| 45400214 | 2020 |
| 45400215 | 2020 |
| 45400216 | 2019 |
| 45400217 | 2019 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500119 | 2014 |
| 45500121 | 2014 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500396 | 2017 |
| 45500541 | 2019 |
| 45500542 | 2019 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500117 | 2014 |
| 45500118 | 2014 |
| 45500132 | 2014 |
| 45500339 | 2017 |
| 45500397 | 2017 |
| 45500398 | 2017 |
| 45500421 | 2001 |
| 45500424 | 2017 |
| 45500538 | 2019 |
| 45500539 | 2019 |
| 45500540 | 2019 |
| 46513-01 | 2001 |
| 46514-01A | 2010 |
| 456A1 - Fork Protector | |
| 45600003 | 2014 |
| 456C1 - Fork Lock | |
| 45600037 | 2015 |
| 457B1 - Steering Damper | |
| 83808-09A | 2010 |
| 457C1 - Steering Damper Mount | |
| 83441-10A | 2015 |
| 45700021 | 2015 |
| 457D1 - Steering Stem | |
| 45700020A | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45800023 | 2014 |
| 46615-06 | 2006 |
| 459A1 - Upper Triple Clamp | |
| 45900027 | 2014 |
| 45900080 | 2015 |
| 459B1 - Lower Triple Clamp | |
| 45900234 | 2019 |
| 45900235 | 2019 |
| 470A1 - Frame | |
| 47000089BHP | 2017 |
| 83466-11BHP | 2011 |
| 470Z1 - Kit,Frame | |
| 58002-09A | 2017 |
| 472A1 - Frame sub-component | |
| 47200001B | 2015 |
| 472C2 - Fairing Lower Support Bracket | |
| 47200275 | 2014 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 47200302A | 2017 |
| 83389-09B | 2020 |
| 83407-09 | 2009 |
| 83429-09 | 2009 |
| 83860-09 | 2009 |
| 83861-09 | 2009 |
| 474C1 - Swingarm | |
| 83366-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 67875-11 | 2011 |
| 83373-09A | 2010 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49184-09A | 2014 |
| 500B1 - Sidestand Bracket | |
| 50000031 | 2014 |
| 50000066 | 2015 |
| 505A1 - Footboard | |
| 50899-99A | 1999 |
| 52719-10 | 2010 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 505C1 - Heel Guard / Pad | |
| 50606-06 | 2006 |
| 50614-06 | 2006 |
| 505D1 - Passenger Footpeg | |
| 50621-06A | 2020 |
| 506A1 - Brake Pedal | |
| 42416-06 | 2006 |
| 42532-06 | 2006 |
| 50600067 | 2014 |
| 520A1 - Rider Seat or Full Seat | |
| 52000033 | 2014 |
| 52000157 | 2015 |
| 523B1 - Back Rest Pad | |
| 52300053 | 2014 |
| 523C1 - Back Rest Support Structure | |
| 52300121 | 2014 |
| 52300122 | 2014 |
| 52300123 | 2014 |
| 52300127 | 2014 |
| 524A1 - Passenger Grab Handle | |
| 52400090 | 2014 |
| 52400092 | 2015 |
| 530A1 - Tour Pak | |
| 53000123 | 2014 |
| 530B1 - Tour Pak sub-component | |
| 53000090 | 2014 |
| 53000091 | 2014 |
| 53000132 | 2014 |
| 53000141A | 2017 |
| 53000308 | 2014 |
| 53000346 | 2014 |
| 53000347 | 2014 |
| 53000790ETF | 2021 |
| 53000879EDR | 2021 |
| 53000879ESY | 2021 |
| 53000891EDR | 2021 |
| 53000891ENY | 2021 |
| 53000891ESY | 2021 |
| 53000891ETD | 2021 |
| 530C2 - Case Latch | |
| 53000137 | 2014 |
| 53000138 | 2014 |
| 53000139 | 2014 |
| 53000140 | 2014 |
| 53000337 | 2015 |
| 53000356 | 2015 |
| 53000369 | 2015 |
| 53000457 | 2015 |
| 83352-11A | 2014 |
| 530D1 - Trunk Pan sub-component | |
| 83296-11 | 2011 |
| 83346-11A | 2014 |
| 83434-11 | 2011 |
| 83457-11 | 2011 |
| 83458-11 | 2011 |
| 83538-11 | 2011 |
| 83777-11 | 2011 |
| 83778-11 | 2011 |
| 83781-11 | 2011 |
| 83782-11 | 2011 |
| 83783-11 | 2011 |
| 83798-11 | 2011 |
| 83991-11 | 2011 |
| 53000077 | 2011 |
| 53000333 | 2015 |
| 53000334 | 2015 |
| 53000335 | 2015 |
| 53000336A | 2017 |
| 53000339 | 2015 |
| 53000340 | 2015 |
| 53000355 | 2015 |
| 53000360 | 2015 |
| 53000361 | 2015 |
| 53000362 | 2015 |
| 53000391 | 2015 |
| 530Z1 - Kit,Tour Pak | |
| 53000371EDR | 2018 |
| 53000371ENY | 2021 |
| 53000371ESY | 2021 |
| 53000371ETD | 2021 |
| 53000458ETF | 2021 |
| 540B1 - Rear Shock | |
| 54000144 | 2019 |
| 54000146 | 2019 |
| 540E1 - Rear Shock sub-component | |
| 54000145 | 2019 |
| 540H1 - Rear Suspension Miscellaneous Component | |
| 54000149 | 2019 |
| 83823-09 | 2009 |
| 540L1 - Shock-Mount Bracket | |
| 83865-09 | 2009 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 54000148 | 2019 |
| 558A1 - Handlebar | |
| 55800247 | 2015 |
| 55924-14A | 2021 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 91840-03B | 2003 |
| 91845-03B | 2003 |
| 561E1 - Throttle Grip | |
| 56248-08 | 2008 |
| 56304-08 | 2008 |
| 570A1 - Front Fairing | |
| 57000182 | 2014 |
| 57000377 | 2015 |
| 57000379EDR | 2018 |
| 57000379ENY | 2021 |
| 57000379ESY | 2021 |
| 57000379ETD | 2021 |
| 57000383 | 2014 |
| 57001427ETF | 2021 |
| 570C1 - Inner Fairing | |
| 57000169A | 2018 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 57000175 | 2014 |
| 57000186A | 2020 |
| 57000193BYM | 2014 |
| 57000299 | 2014 |
| 571A1 - Fairing Lower | |
| 57100111 | 2014 |
| 57100112 | 2014 |
| 57100113 | 2014 |
| 57100114 | 2014 |
| 57100168ENX | 2020 |
| 57100168ESH | 2021 |
| 57100168ESU | 2021 |
| 57100168ETF | 2021 |
| 57100169ENX | 2020 |
| 57100169ESH | 2021 |
| 57100169ESU | 2021 |
| 57100169ETF | 2021 |
| 571B1 - Fairing Lower sub-component | |
| 57100099 | 2014 |
| 57100107 | 2014 |
| 57100109 | 2014 |
| 57100147 | 2014 |
| 57100148 | 2014 |
| 57100151 | 2014 |
| 57100152 | 2014 |
| 57100153 | 2014 |
| 57100154 | 2014 |
| 57100155 | 2014 |
| 57100164 | 2014 |
| 57100165 | 2014 |
| 57100168DH | 2014 |
| 57100169DH | 2014 |
| 57100170 | 2014 |
| 57100171 | 2014 |
| 57100172 | 2014 |
| 57100200 | 2014 |
| 57100225 | 2014 |
| 57100242DH | 2014 |
| 57100242ENX | 2020 |
| 57100242ESH | 2021 |
| 57100242ESU | 2021 |
| 57100242ETF | 2021 |
| 57100243DH | 2014 |
| 57100243ENX | 2020 |
| 57100243ESH | 2021 |
| 57100243ESU | 2021 |
| 57100243ETF | 2021 |
| 57100256 | 2014 |
| 572C1 - Chin Spoiler Side | |
| 57200012 | 2014 |
| 57200017 | 2014 |
| 572D1 - Engine Shroud | |
| 58167-09A | 2017 |
| 58169-09 | 2009 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 57200081DH | 2014 |
| 57200081ENX | 2021 |
| 57200081ESH | 2021 |
| 57200081ESU | 2021 |
| 57200081ETF | 2021 |
| 57200083DH | 2014 |
| 57200083ENT | 2020 |
| 57200083ENX | 2021 |
| 57200083ESH | 2021 |
| 57200083ESK | 2021 |
| 57200083ESU | 2021 |
| 57200083ETF | 2021 |
| 573A1 - Bodywork Miscellaneous Component | |
| 83344-11 | 2011 |
| 574B1 - Windscreen / Windshield | |
| 67621-94 | 1994 |
| 57400001 | 2014 |
| 57400002 | 2014 |
| 589A1 - Front Fender | |
| 58900032 | 2014 |
| 58900076ETF | 2021 |
| 58900077EDR | 2018 |
| 58900077ENY | 2021 |
| 58900077ESY | 2021 |
| 58900077ETD | 2021 |
| 58900370 | 2020 |
| 58900469DH | 2020 |
| 58900469ENT | 2021 |
| 58900469ESK | 2021 |
| 58900469ETF | 2021 |
| 595D1 - Rear Fender | |
| 59500176DH | 2015 |
| 59500176ENT | 2021 |
| 59500176ESK | 2021 |
| 59500176ETF | 2021 |
| 59500178DH | 2015 |
| 59500178ENT | 2021 |
| 59500178ESK | 2021 |
| 59500178ETF | 2021 |
| 596B1 - Fender Tip | |
| 59600006 | 2014 |
| 59600011 | 2014 |
| 83419-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27291-09A | 2014 |
| 27297-09A | 2014 |
| 60800062 | 2021 |
| 60800063 | 2021 |
| 609A1 - Fuel Miscellaneous Component | |
| 60900036 | 2018 |
| 61112-08 | 2008 |
| 62229-08B | 2011 |
| 70999-09 | 2009 |
| 75076-08B | 2011 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 75291-08A | 2011 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000016EDR | 2018 |
| 61000016ENY | 2021 |
| 61000016ESY | 2021 |
| 61000016ETD | 2021 |
| 61000129DH | 2015 |
| 61000129ENT | 2021 |
| 61000129ESK | 2021 |
| 61000691 | 2020 |
| 61000831ETF | 2021 |
| 61000832ETF | 2021 |
| 61356-08 | 2008 |
| 611A1 - Filler Neck Trim | |
| 75069-08D | 2018 |
| 611B1 - Fuel Cap | |
| 61272-92E | 2020 |
| 61274-92 | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 69241-08 | 2008 |
| 611Z1 - Kit,Fuel Filling | |
| 53919-04B | 2018 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08C | 2016 |
| 612C1 - Fuel Line | |
| 61200022A | 2021 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 62775-08 | 2008 |
| 61300315 | 2015 |
| 61300331DH | 2015 |
| 61300331ENT | 2021 |
| 61300331ESK | 2021 |
| 61300331ETF | 2021 |
| 61300926 | 2019 |
| 613B1 - Horn Cover | |
| 61300523A | 2017 |
| 613C1 - Intake / Fuel Tank Cover | |
| 61278-08A | 2016 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 613L1 - Airbox Cover sub-component | |
| 61300934 | 2019 |
| 61300935 | 2019 |
| 613M1 - Headlight Cover | |
| 61300089 | 2014 |
| 61300233 | 2015 |
| 61300234 | 2015 |
| 61300235 | 2015 |
| 61300236 | 2015 |
| 61300251 | 2015 |
| 61300278 | 2015 |
| 61300279 | 2015 |
| 61300599 | 2017 |
| 61300600 | 2017 |
| 61300601 | 2017 |
| 61300602 | 2017 |
| 61300603 | 2017 |
| 61301203 | 2021 |
| 614C1 - Trim | |
| 15341-08 | 2008 |
| 43475-08 | 2008 |
| 53734-06 | 2006 |
| 53735-06 | 2006 |
| 59211-74A | 1974 |
| 61400057 | 2014 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 61400080 | 2014 |
| 61400081 | 2014 |
| 61400135 | 2014 |
| 61400192 | 2014 |
| 61400209 | 2015 |
| 61400213 | 2015 |
| 61400378 | 2017 |
| 624A1 - Oil Pump Assembly | |
| 62400238 | 2020 |
| 62400242 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 62400055 | 2017 |
| 62400126 | 2017 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 627A1 - Oil Cooler | |
| 62700133 | 2017 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 62700150 | 2017 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06A | 2017 |
| 62700136 | 2017 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296 | 2020 |
| 627G1 - Oil Jet | |
| 62700089 | 2017 |
| 62700117 | 2017 |
| 627H1 - Oil Line | |
| 62700143 | 2017 |
| 62700144 | 2017 |
| 62700161 | 2017 |
| 627K1 - Oil Line Fitting | |
| 62700146 | 2017 |
| 26352-95A | 1995 |
| 627M1 - Oil Pressure Regulator Valve | |
| 62700141 | 2017 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800004 | 2014 |
| 62800013 | 2013 |
| 62800028 | 2017 |
| 649A1 - Muffler | |
| 64900244B | 2021 |
| 64900246B | 2021 |
| 64900956 | 2021 |
| 64900957 | 2021 |
| 64900958 | 2021 |
| 64900959 | 2021 |
| 84021-10 | 2010 |
| 654A1 - Exhaust Shield | |
| 65400176A | 2020 |
| 65400177 | 2017 |
| 65400178 | 2017 |
| 65400179 | 2017 |
| 62519-03 | 2003 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 66861-09B | 2019 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65296-95B | 2021 |
| 65500042 | 2017 |
| 65500043B | 2021 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600176 | 2017 |
| 65600179 | 2017 |
| 65600190A | 2021 |
| 65600383 | 2021 |
| 65600405 | 2021 |
| 659A1 - Exhaust Clamp | |
| 65296-95A | 1995 |
| 65900007 | 2015 |
| 65900015 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 65900017 | 2017 |
| 65900040 | 2018 |
| 660A1 - Battery | |
| 66010-97E | 2021 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000136 | 2019 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 70186-82 | 1982 |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 660H1 - Positive Battery Cable Boot | |
| 70018-07 | 2007 |
| 660Z1 - Kit,Battery | |
| 66000212A | 2021 |
| 677A1 - Headlight | |
| 67700058 | 2014 |
| 67700060 | 2014 |
| 67700062 | 2014 |
| 67700077 | 2014 |
| 67700187 | 2015 |
| 67700188 | 2014 |
| 67716-60C | 2014 |
| 67726-08 | 2008 |
| 67778-60A | 1960 |
| 67780-60A | 1960 |
| 68050-93A | 1993 |
| 68051-08 | 2008 |
| 68725-62A | 1962 |
| 69969-08 | 2008 |
| 677B1 - Headlight sub-component | |
| 67700069 | 2014 |
| 67700070 | 2014 |
| 67700071 | 2014 |
| 67700310 | 2017 |
| 67700317 | 2020 |
| 67700450 | 2018 |
| 67712-83B | 2014 |
| 67717-01 | 2001 |
| 677C1 - Headlight Support Bracket | |
| 67700056 | 2014 |
| 67700057 | 2014 |
| 67700124 | 2014 |
| 67700204 | 2014 |
| 67700205 | 2014 |
| 67700239 | 2014 |
| 67700240 | 2014 |
| 67700291 | 2017 |
| 67700292 | 2017 |
| 67700293 | 2017 |
| 67700294 | 2017 |
| 67700309 | 2017 |
| 67700576 | 2020 |
| 678A1 - Taillight | |
| 67800086 | 2014 |
| 67800093 | 2014 |
| 67800099 | 2014 |
| 67800165 | 2014 |
| 67800332 | 2015 |
| 67800432A | 2017 |
| 68066-99A | 2004 |
| 68140-04 | 2004 |
| 68245-03 | 2003 |
| 68296-99A | 2004 |
| 68369-03 | 2003 |
| 68370-03A | 2003 |
| 68830-99A | 1999 |
| 678B1 - Taillight Housing | |
| 67800109 | 2014 |
| 678D1 - Turnsignal | |
| 67800103 | 2014 |
| 67800104 | 2014 |
| 67800131 | 2014 |
| 67800254A | 2018 |
| 67800705 | 2017 |
| 67800962 | 2018 |
| 68737-00 | 2000 |
| 68821-00 | 2000 |
| 69292-06 | 2006 |
| 69293-06 | 2006 |
| 69438-06 | 2006 |
| 678E1 - Turnsignal Lens | |
| 68973-00 | 2000 |
| 679A1 - License Plate Tray / Holder | |
| 83398-09 | 2009 |
| 679B1 - Reflector | |
| 67900196A | 2019 |
| 67900198 | 2015 |
| 67900199 | 2017 |
| 67900200 | 2017 |
| 67900205A | 2019 |
| 67900212 | 2016 |
| 67900212A | 2019 |
| 67900218 | 2017 |
| 67900219 | 2017 |
| 67900265 | 2017 |
| 67900269 | 2017 |
| 69490-07 | 2007 |
| 59481-00 | 2018 |
| 59482-00 | 2018 |
| 59988-72A | 1972 |
| 679D1 - License Plate Bracket | |
| 67900187 | 2015 |
| 67900306 | 2017 |
| 67900307 | 2017 |
| 67900308 | 2017 |
| 67900309 | 2017 |
| 67900321 | 2017 |
| 67900432 | 2018 |
| 67900433 | 2018 |
| 67900450 | 2018 |
| 67900454 | 2018 |
| 83395-09A | 2011 |
| 83396-09A | 2011 |
| 83420-09 | 2009 |
| 679E1 - License Plate Light | |
| 67900075A | 2017 |
| 67900170 | 2014 |
| 67900289 | 2017 |
| 67900290 | 2017 |
| 67900311 | 2017 |
| 67900312 | 2017 |
| 67900325 | 2017 |
| 67900429 | 2018 |
| 67900430 | 2018 |
| 67900453 | 2018 |
| 67900603 | 2021 |
| 83799-10 | 2010 |
| 679S2 - Sub-Assembly,Reflector/License | |
| 67900408 | 2017 |
| 67900409 | 2017 |
| 680A1 - Decorative Light | |
| 53788-06 | 2006 |
| 53789-06 | 2006 |
| 680C1 - Incandescent Bulb | |
| 52441-95 | 1995 |
| 68163-84 | 1984 |
| 68167-04 | 2004 |
| 68168-89A | 1989 |
| 68881-01 | 2001 |
| 680D1 - Fog Light | |
| 68000020 | 2014 |
| 68000021 | 2014 |
| 68000022 | 2014 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000083 | 2017 |
| 692B1 - Auxiliary Power Outlet | |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200172 | 2014 |
| 69200173A | 2021 |
| 69200175 | 2014 |
| 69200285 | 2014 |
| 69200421 | 2014 |
| 69200840 | 2017 |
| 69202618 | 2021 |
| 72062-06 | 2006 |
| 72189-04 | 2004 |
| 72232-96 | 1996 |
| 72299-95 | 1995 |
| 83869-09 | 2009 |
| 10289A | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 67341-04B | 2004 |
| 69062-91A | 1991 |
| 69120-91 | 1991 |
| 69123-92A | 1992 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69200284A | 2016 |
| 69201178 | 2017 |
| 69201287 | 2017 |
| 69201500 | 2017 |
| 69201786 | 2019 |
| 69201887 | 2019 |
| 69202307 | 2021 |
| 69202485 | 2021 |
| 69202636 | 2021 |
| 69202637 | 2021 |
| 69202720 | 2021 |
| 71455-11 | 2011 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 69200336 | 2014 |
| 69200336A | 2020 |
| 72330-95 | 1995 |
| 72331-95 | 1995 |
| 72345-02 | 2002 |
| 692E1 - Fuse / Relay Block | |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 31586-07 | 2007 |
| 692E2 - Fuse / Relay Block Cover | |
| 69201411 | 2017 |
| 692F1 - Wire Harness | |
| 69200031A | 2019 |
| 69200125 | 2014 |
| 69200127 | 2014 |
| 69200131 | 2014 |
| 69200135 | 2014 |
| 69200138 | 2013 |
| 69200139 | 2013 |
| 69200140 | 2014 |
| 69200179 | 2014 |
| 69200211 | 2014 |
| 69200224 | 2014 |
| 69200247 | 2014 |
| 69200265A | 2020 |
| 69200266 | 2014 |
| 69200311 | 2014 |
| 69200391 | 2014 |
| 69200394 | 2014 |
| 69200410 | 2014 |
| 69200711A | 2019 |
| 69200740 | 2015 |
| 69201508A | 2019 |
| 69201548 | 2017 |
| 69201742A | 2019 |
| 69201780 | 2019 |
| 69201781A | 2020 |
| 69201782A | 2020 |
| 69201783 | 2019 |
| 69202258 | 2021 |
| 69202260 | 2021 |
| 69202261 | 2021 |
| 69202262 | 2021 |
| 69202523 | 2021 |
| 69202525 | 2021 |
| 69202614 | 2021 |
| 69202709 | 2021 |
| 69202712 | 2021 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 692G2 - Wire Guide | |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 69200193 | 2014 |
| 69200212 | 2014 |
| 69200225 | 2014 |
| 69200226 | 2014 |
| 69200254 | 2014 |
| 69200256 | 2014 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 69200305 | 2014 |
| 69200306 | 2014 |
| 69200337 | 2014 |
| 69200462 | 2014 |
| 69200529 | 2012 |
| 69201299 | 2017 |
| 69201302 | 2017 |
| 69201390 | 2017 |
| 69201393 | 2017 |
| 69201394 | 2017 |
| 69201395 | 2017 |
| 69201397 | 2017 |
| 69201400 | 2017 |
| 69201401 | 2017 |
| 69201405 | 2017 |
| 69201406 | 2017 |
| 69201441 | 2017 |
| 69201778 | 2019 |
| 69201779 | 2019 |
| 69201789 | 2019 |
| 69201792 | 2019 |
| 69202028 | 2021 |
| 69202029 | 2021 |
| 69202032 | 2021 |
| 69202098 | 2019 |
| 69202108 | 2019 |
| 69202109 | 2019 |
| 69202322 | 2021 |
| 69202323 | 2021 |
| 69202412 | 2020 |
| 72009-05 | 2005 |
| 72063-06 | 2006 |
| 72064-06 | 2006 |
| 72081-11 | 2011 |
| 72098-06 | 2006 |
| 72111-06 | 2006 |
| 72113-94BK | 1994 |
| 72114-94BK | 1994 |
| 72127-06 | 2006 |
| 72130-04 | 2004 |
| 72153-94 | 1994 |
| 72444-07GY | 2007 |
| 72518-01 | 2001 |
| 72519-09BK | 2009 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72594-11 | 2011 |
| 72632-10 | 2010 |
| 72639-10 | 2010 |
| 72905-11 | 2011 |
| 72906-11 | 2011 |
| 72907-11 | 2011 |
| 72908-11 | 2011 |
| 73152-96BK | 1996 |
| 73301-04 | 2004 |
| 74104-98BK | 1998 |
| 76266-98A | 2012 |
| 9847 | Unknown |
| 9848 | Unknown |
| 692H2 - Terminal | |
| 69200187 | 2014 |
| 69200221 | 2014 |
| 69200237 | 2014 |
| 69200307 | 2014 |
| 69200308 | 2014 |
| 69200536 | 2014 |
| 69201240 | 2014 |
| 69201300 | 2017 |
| 69201596 | 2017 |
| 69201811 | 2019 |
| 69201814 | 2019 |
| 69201818 | 2019 |
| 69201852 | 2018 |
| 69201890 | 2021 |
| 69202104 | 2019 |
| 69202453 | 2021 |
| 69202486 | 2020 |
| 72168-07 | 2007 |
| 72169-07 | 2007 |
| 72193-98 | 1998 |
| 72213-94 | 1994 |
| 72222-11 | 2011 |
| 72226-11 | 2011 |
| 72227-11 | 2011 |
| 72241-94A | 1994 |
| 72256-11 | 2011 |
| 72272-07 | 2007 |
| 72283-09 | 2009 |
| 72290-94 | 1994 |
| 72291-94 | 1994 |
| 72294-94 | 1994 |
| 72296-95 | 1995 |
| 72308-97 | 1997 |
| 72343-10 | 2010 |
| 72344-10 | 2010 |
| 72356-95 | 1995 |
| 72484-08 | 2008 |
| 72493-07 | 2007 |
| 72569-08 | 2008 |
| 72608-08 | 2008 |
| 72662-11 | 2012 |
| 72721-07 | 2007 |
| 72909-11 | 2011 |
| 72910-11 | 2011 |
| 72991-01 | 2001 |
| 73307-10 | 2010 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 8370 | 2011 |
| 83944-09 | 2009 |
| 5118 | 2011 |
| 692K1 - Connector / Terminal Seal | |
| 68904-00 | 2000 |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 69201301 | 2017 |
| 69201391 | 2017 |
| 69201392 | 2017 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 69201404 | 2017 |
| 69201407 | 2017 |
| 69201416 | 2017 |
| 69201442 | 2017 |
| 69202031 | 2021 |
| 69202106 | 2019 |
| 69202107 | 2019 |
| 72039-71A | 1971 |
| 72154-94 | 1994 |
| 72449-01 | 2001 |
| 72450-01 | 2001 |
| 72912-01BK | 2001 |
| 73303-04 | 2004 |
| 74144-98 | 1998 |
| 74197-04 | 2004 |
| 692L1 - Wire Harness sub-component | |
| 69200190 | 2014 |
| 69200199 | 2014 |
| 69200201 | 2014 |
| 69200205 | 2014 |
| 69200210 | 2014 |
| 69200214 | 2014 |
| 69200222 | 2014 |
| 69200461 | 2014 |
| 69201134A | 2019 |
| 69201307 | 2017 |
| 69201308 | 2017 |
| 69201423 | 2017 |
| 69201509 | 2017 |
| 69201812 | 2019 |
| 69201820 | 2019 |
| 69201821 | 2019 |
| 69201822 | 2019 |
| 70494-08 | 2008 |
| 70578-89 | 1989 |
| 70631-08 | 2008 |
| 70681-09 | 2009 |
| 72010-05 | 2005 |
| 72053-92 | 1992 |
| 72056-92 | 1992 |
| 72065-06A | 2006 |
| 72066-06A | 2006 |
| 72099-06 | 2006 |
| 72135-06 | 2006 |
| 72145-06 | 2006 |
| 72166-07BK | 2007 |
| 72167-07BK | 2007 |
| 72175-07BK | 2007 |
| 72177-07BK | 2007 |
| 72188-07BK | 2007 |
| 72191-94 | 1994 |
| 72209-11 | 2011 |
| 72214-94 | 1994 |
| 72295-94 | 1994 |
| 72405-98BK | 1998 |
| 72414-07BK | 2007 |
| 72415-07GY | 2007 |
| 72447-07GY | 2007 |
| 72469-07GY | 2007 |
| 72473-07 | 2007 |
| 72478-07BK | 2007 |
| 72479-07BK | 2007 |
| 72485-07 | 2007 |
| 72486-08 | 2008 |
| 72487-07BK | 2007 |
| 72488-07BK | 2007 |
| 72489-07GY | 2007 |
| 72490-07GY | 2007 |
| 72494-07 | 2007 |
| 72499-07 | 2007 |
| 72511-07BK | 2007 |
| 72512-07BK | 2007 |
| 72528-01 | 2001 |
| 72544-07 | 2007 |
| 72557-07 | 2007 |
| 72589-09 | 2009 |
| 72606-08 | 2008 |
| 72607-08 | 2008 |
| 72609-08 | 2008 |
| 72610-08 | 2008 |
| 72633-02 | 2002 |
| 72720-07 | 2007 |
| 72902-01BK | 2001 |
| 72904-01BK | 2001 |
| 72914-01BK | 2001 |
| 73101-96BK | 1996 |
| 73102-96BK | 1996 |
| 73103-96BK | 1996 |
| 73106-96BK | 1996 |
| 73152-96WE | 1996 |
| 73153-96BK | 1996 |
| 73154-96BK | 1996 |
| 73156-96BK | 1996 |
| 73190-96 | 1996 |
| 73191-96 | 1996 |
| 73213-07 | 2007 |
| 73305-04 | 2004 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 74152-98 | 1998 |
| 74154-98 | 1998 |
| 74191-98 | 1998 |
| 75229-08 | 2008 |
| 8339 | 2009 |
| 83898-09A | 2017 |
| 10102 | Unknown |
| 692M1 - Electrical Component / Wire Cover | |
| 69201286A | 2018 |
| 709A1 - Dash Panel | |
| 70900138 | 2014 |
| 70901014BYM | 2021 |
| 709B1 - Instrument Cluster or Speedometer | |
| 68893-00A | 2000 |
| 70900121D | 2020 |
| 70900122C | 2020 |
| 70900123C | 2020 |
| 70900379C | 2020 |
| 70900421C | 2020 |
| 70900616B | 2020 |
| 709B2 - Fuel Gauge | |
| 70900162 | 2014 |
| 70900165 | 2014 |
| 75241-08 | 2008 |
| 709E1 - Tank Console | |
| 70900298A | 2015 |
| 61270-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71400017B | 2018 |
| 71400020B | 2018 |
| 71400021B | 2018 |
| 71400022B | 2018 |
| 71400073 | 2012 |
| 71400081 | 2014 |
| 71400098 | 2015 |
| 71517-11A | 2017 |
| 714B1 - Mechanical Switch | |
| 71400005 | 2014 |
| 71400006 | 2014 |
| 71400007 | 2014 |
| 71400031 | 2014 |
| 71400044 | 2014 |
| 71400156 | 2021 |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 71400112A | 2021 |
| 715A1 - Hand Control | |
| 67493-08 | 2008 |
| 71500044 | 2014 |
| 71500045 | 2014 |
| 71500046 | 2014 |
| 71500048 | 2014 |
| 71500050 | 2014 |
| 71500053 | 2014 |
| 71500055 | 2014 |
| 71500057 | 2014 |
| 71500094 | 2014 |
| 71500338 | 2016 |
| 71500340 | 2016 |
| 71500342 | 2016 |
| 71500348 | 2016 |
| 71500478 | 2019 |
| 71500488 | 2019 |
| 71500491 | 2019 |
| 71500504 | 2019 |
| 71500506 | 2019 |
| 71500566 | 2021 |
| 71500568 | 2021 |
| 747A1 - Voltage Regulator | |
| 72350-11 | 2011 |
| 74700025 | 2017 |
| 74700038 | 2017 |
| 74700039 | 2017 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76000164 | 2014 |
| 76000165 | 2014 |
| 76000186 | 2014 |
| 76000208 | 2014 |
| 76000789 | 2019 |
| 76000799 | 2019 |
| 76353-00 | 2000 |
| 760C2 - Audio System Speaker | |
| 76000055 | 2014 |
| 76000092 | 2014 |
| 76000819 | 2020 |
| 760C3 - Radio Receiver | |
| 76000783B | 2021 |
| 76000784B | 2021 |
| 76000785B | 2021 |
| 760C4 - Rider-Passenger Communication System | |
| 76000243 | 2013 |
| 77117-10 | 2010 |
| 77126-10 | 2010 |
| 77148-10 | 2010 |
| 760C5 - Speaker Enclosure | |
| 76000160 | 2014 |
| 76000161 | 2014 |
| 760C6 - Media Storage Compartment | |
| 76000107A | 2019 |
| 76000127 | 2014 |
| 76000234 | 2014 |
| 76000409BYM | 2014 |
| 760C8 - Satellite Radio | |
| 76000252 | 2014 |
| 760D2 - Infotainment Mount sub-component | |
| 76000172 | 2014 |
| 76000173 | 2014 |
| 76000174 | 2014 |
| 76000177 | 2014 |
| 830A1 - Trike Body | |
| 83000042DH | 2014 |
| 83000042ENX | 2021 |
| 83000042ESH | 2021 |
| 83000042ESU | 2021 |
| 83000042ETF | 2021 |
| 83000051DH | 2014 |
| 83000051ENX | 2021 |
| 83000051ESH | 2021 |
| 83000051ESU | 2021 |
| 83000053ETF | 2021 |
| 83000054EDR | 2018 |
| 83000054ENY | 2021 |
| 83000054ESY | 2021 |
| 83000054ETD | 2021 |
| 83000055ETF | 2021 |
| 83000056EDR | 2018 |
| 83000056ENY | 2021 |
| 83000056ESY | 2021 |
| 83000056ETD | 2021 |
| 83000062DH | 2015 |
| 83000062ENT | 2021 |
| 83000062ESK | 2021 |
| 83000062ETF | 2021 |
| 83000080DH | 2015 |
| 83000080ENT | 2021 |
| 83000080ESK | 2021 |
| 83000105DH | 2017 |
| 83000105ENX | 2021 |
| 83000105ESH | 2021 |
| 83000105ESU | 2021 |
| 83000105ETF | 2021 |
| 83000110DH | 2017 |
| 83000110ENT | 2021 |
| 83000110ESK | 2021 |
| 83000192ETF | 2021 |
| 83000200ETF | 2021 |
| 83000201ETF | 2021 |
| 83000211 | 2021 |
| 830C1 - Parking Brake | |
| 83000014 | 2014 |
| 83000018A | 2018 |
| 83000026 | 2014 |
| 83000030A | 2017 |
| 83000136 | 2019 |
| 83000137 | 2019 |
| 83000138 | 2019 |
| 83000139 | 2019 |
| 8351 | 2011 |
| 8353 | 2011 |
| 8357 | 2011 |
| 902E1 - Saddlebag Bottom | |
| 75089-08 | 2008 |
| 903A1 - Lockset | |
| 90300030 | 2014 |
| 90300051 | 2014 |
| 90300103 | 2015 |
| 90300104 | 2015 |
| 61029-92A | 1992 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 90300111 | 2017 |
| 90300112 | 2017 |
| 917B1 - Service Program Kit | |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800058 | 2017 |
| 91800064 | 2017 |
| 931A1 - Protective / Storage Cover | |
| 83418-09 | 2009 |
| 933B1 - Hard Storage | |
| 83383-09 | 2009 |
| 83385-09 | 2009 |
| 93300035A | 2018 |
| 940A1 - Owner's Kit | |
| 94000501 | 2018 |
| 940A2 - Owner's Manual | |
| 94000634 | 2019 |
| 94000827 | 2021 |
| 94000877 | 2021 |
| 99461-89 | 1989 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10080 | CLAMP | COOLANT DISTRIBUTION, AIR-COOLED: |
| 10102 | CLIP | FENDERS, REAR - FLHTCUTG: FENDERS, REAR - FLRT: CONSOLE, FUEL TANK - FLHTCUTG: INSTRUMENTS, FUEL TANK - FLRT : WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLHTCUTG (DOMESTIC): WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLHTCUTG (HDI): WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLRT (DOMESTIC): WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - FLRT (HDI): BODY ASSEMBLY AND SIDE COVERS - FLHTCUTG: BODY ASSEMBLY AND SIDE COVERS - FLRT (1 OF 2): BODY ASSEMBLY AND SIDE COVERS - FLRT (1 OF 2): TRUNK DOOR - FLHTCUTG (1 OF 2): LICENSE PLATE LIGHT - FLRT (AUSTRALIA): TOUR-PAK (BOTTOM) - FLHTCUTG (1 OF 2): |
| 1062 | SCREW | |
| 11000101 | OIL SEAL | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11293 | O-RING | |
| 11900103 | O-RING | |
| 12052A | SEAL | |
| 12074 | SEAL | |
| 17369-06 | GASKET SERVICE KIT | |
| 2445 | SCREW | WINDSHIELD, FAIRING AND HEADLAMP - FLHTCUTG: FAIRING, INNER - FLHTCUTG (1 OF 2): |
| 2531 | SCREW | FENDERS, FRONT: |
| 2563 | SCREW | INSTRUMENTS - FLHTCUTG: FAIRING, INNER - FLHTCUTG (1 OF 2): |
| 25700362 | GASKET | |
| 25700370 | GASKET | |
| 25700378 | GASKET | |
| 25700425 | GASKET | |
| 25700455 | GASKET | |
| 25700731 | GASKET KIT | |
| 25700746 | GASKET KIT | |
| 27300087 | SEAL | |
| 27444-00Y | O-RING | |
| 3050 | SCREW | |
| 3275 | SCREW | |
| 34091-08 | BEARING | |
| 35654-06 | GASKET | |
| 3655A | SCREW | FAIRING LOWERS - TWIN-COOLED™ - FLHTCUTG (1 OF 2): |
| 36805-06 | GASKET | |
| 4132 | SCREW | |
| 41751-06A | GASKET | |
| 4740A | SCREW | |
| 5210 | WELL NUT | LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - FLHTCUTG (1 OF 2): |
| 60678-85 | RETAINING RING | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | BODY ASSEMBLY AND SIDE COVERS - FLHTCUTG: |
| 7041 | LOCKWASHER | TURN SIGNALS, FRONT AND AUXILIARY/FOG LAMPS - FLHTCUTG (DOMESTIC, AUSTRALIA): |
| 7586 | JAMNUT | TOUR-PAK (BOTTOM) - FLHTCUTG (1 OF 2): |
| 7593 | NUT | |
| 7600 | NUT | FENDERS, FRONT: |
| 7716 | LOCKNUT | RADIATOR, COOLANT HOSES AND BOTTLE, TWIN-COOLED™: FAIRING LOWERS - TWIN-COOLED™ - FLHTCUTG (1 OF 2): TOUR-PAK (BOTTOM) - FLHTCUTG (1 OF 2): |
| 786A | BOLT | |
| 856A | SCREW | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | BRAKE PAD KIT | |
| 46514-01A | OIL SEAL | |
| 46615-06 | PACKING SEAL |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | CONSOLE, FUEL TANK - FLHTCUTG: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | KIT, SWITCH | |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - FLHTCUTG (8 OF 9): WIRING HARNESS, MAIN - FLRT (8 OF 9): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | HYDRAULIC LIFTER | |
| 29400183 | BREATHER ASSEMBLY | |
| 29400210 | BREATHER ASSEMBLY | |
| 33600091 | SHAFT | |
| 37000258 | CLUTCH DISKS KIT | |
| 37909-90 | RING |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | TOE SHIFTER PEG KIT |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP - FLHTCUTG: FUEL PUMP - FLRT: |
| 65296-95A | CLAMP | |
| 65900015 | CLAMP |
LIGHTING
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 68168-89A | BULB | TURN SIGNALS, FRONT AND HEADLAMP - FLRT (DOMESTIC): TURN SIGNALS, FRONT AND HEADLAMP - FLRT (AUSTRALIA): TURN SIGNALS, FRONT AND AUXILIARY/FOG LAMPS - FLHTCUTG (DOMESTIC, AUSTRALIA): |
| 68973-00 | LENS | TURN SIGNALS, FRONT AND HEADLAMP - FLRT (DOMESTIC): TURN SIGNALS, FRONT AND HEADLAMP - FLRT (AUSTRALIA): TURN SIGNALS, FRONT AND AUXILIARY/FOG LAMPS - FLHTCUTG (DOMESTIC, AUSTRALIA): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 66373-06 | BATTERY |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90300111 | REMOTE CONTROL FOB |
TIRES
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 40999-87 | VALVE STEM | |
| 43022-91A | TIRE | WHEELS, FRONT: |
WINDSHIELDS & AIR DEFLECTORS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 67621-94 | BUSHING | NACELLE - FLRT: |
