GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2024 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 4. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
The full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2024 FLTRXSTSE MODEL
VIN Model Codes
Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown: 2024 CVO Road Glide ST (FLTRXSTSE)
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States or Thailand for sale outside of the United States 932=Originally manufactured in Brazil MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | TL=CVO™ Road Glide® ST (FLTRXSTSE) | |
4 | Engine type | 8=Milwaukee-Eight™ 121 engine, 1977 cm3 | |
5 | Calibration/configuration, introduction | Normal Introduction 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=ENG/EN2/HDI/HD2/HD4 5=Japan (JPN) 6=Australia (AUS) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=IND/IN2 0=ASEAN (AZN) A=China (CHN) G=HD3 | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | R=2024 | |
8 | Assembly plant | B=York, PA USA D=H-D Brazil-Manaus, Brazil (CKD) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
Table 3. 2024 CVO Color Options
THEME | CODE | COLOR SCHEME | SUFFIX |
|---|---|---|---|
Performance 1 | M25 | Raven Metallic | EWR |
Performance 2 | M26 | Golden White Pearl Vivid Black | EXZ DH |
NOTES
ENGINE ASSEMBLY - Milwaukee-Eight® 121 HO
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200900 | ENGINE ASSEMBLY, complete (Water-Cooled) (Milwaukee-Eight® 121 HO engine) (black granite/hot rod red) | FLTRXSTSE |
| 2 | 16200877 | ENGINE ASSEMBLY, shortblock, (black granite) with 91800075A, crankcase, flywheel assembly, camshaft support plate assembly, oil pump, engine balancer and cylinder studs | FLTRXSTSE |
| 3 | 91800075A | KIT, shortblock installation, with 25700983A top end gasket kit, 25700830 inner primary gasket kit, camshaft sprockets, camshaft drive chains and camshaft tensioners | FLTRXSTSE |
| Note: These Engine Assembly part numbers will update to include cylinder heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information.Note: Cylinders, cylinder heads, rocker arms, pushrods, pushrod covers, camshafts, piston assemblies, tappets, oil filter and cosmetic covers are not included with the short block assembly. These parts must be removed from the original engine and installed onto the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99A | DOWEL PIN (4) | FLTRXSTSE |
| 2 | 68120-00 | SCREW (4) | FLTRXSTSE |
| 3 | 10200303 | FLANGE NUT (dull silver) (8) | FLTRXSTSE |
| 4 | 10900015A | STUD, exhaust port (4) | FLTRXSTSE |
| 5 | 14101872 | MEDALLION (2) | FLTRXSTSE |
| 6 | 16501116A | GASKET, cylinder head (2) | FLTRXSTSE |
| 7 | 16500332 | GASKET, cylinder base (2) | FLTRXSTSE |
| 8 | 16500969 | CYLINDER HEAD, rear, with 2, 4, 5, 11, 12, 13, 14, 15, 16, 17 and 65324-83B (Water-Cooled) (black granite) | FLTRXSTSE |
| 8 | 16500975 | CYLINDER HEAD, front, with 2, 4, 5, 11, 12, 13, 14, 15, 16, 17 and 65324-83B (Water-Cooled) (black granite) | FLTRXSTSE |
| 9 | 16800063 | STUD, cylinder (8) | FLTRXSTSE |
| 10 | 16800373 | CYLINDER ASSEMBLY, front, with 16589-99A (black granite) | FLTRXSTSE |
| 10 | 16800377 | CYLINDER ASSEMBLY, rear, with 16589-99A (black granite) | FLTRXSTSE |
| 11 | 18000016 | INTAKE VALVE (4) | FLTRXSTSE |
| 12 | 18000034A | EXHAUST VALVE (4) | FLTRXSTSE |
| 13 | 18100140 | VALVE SPRING (8) | FLTRXSTSE |
| 14 | 18100044 | SEAL, valve (8) | FLTRXSTSE |
| 15 | 18100045 | COLLAR, valve spring (8) | FLTRXSTSE |
| 16 | 18100060 | KEEPER, valve (16) | FLTRXSTSE |
| 17 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLTRXSTSE |
| 18 | 62800067 | FITTING, includes o-ring (4) | FLTRXSTSE |
| 19 | 11900197 | O-RING (4) | FLTRXSTSE |
| 20 | 26900305 | HOSE, head to head (1) | FLTRXSTSE |
| 21 | 10800212 | CLAMP (2) | FLTRXSTSE |
| 22 | 25701945 | GASKET KIT, top end | FLTRXSTSE |
| 22 | 25701944 | GASKET KIT, engine overhaul | FLTRXSTSE |
| Note: These Cylinder Head Assembly part numbers will update to include cylinder heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information. | |||
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | FLTRXSTSE |
| 2 | 4741A | SCREW (8) | FLTRXSTSE |
| 3 | 11132A | O-RING, pushrod cover (4) | FLTRXSTSE |
| 4 | 11145A | O-RING, pushrod cover (4) | FLTRXSTSE |
| 5 | 11293 | O-RING (4) | FLTRXSTSE |
| 6 | 12200281 | CAP, cover spring (hot rod red) (4) | FLTRXSTSE |
| 7 | 17947-36 | SPRING, pushrod cover (4) | FLTRXSTSE |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | FLTRXSTSE |
| 9 | 18100135 | RETAINER, spring cap (black) (4) | FLTRXSTSE |
| 10 | 17900022A | HYDRAULIC LIFTER (4) | FLTRXSTSE |
| 11 | 10200308 | SCREW (20) | FLTRXSTSE |
| 12 | 10200446 | SCREW (8) | FLTRXSTSE |
| 13 | 10200503 | SCREW (8) | FLTRXSTSE |
| 14 | 10500069 | SPACER, rocker cover (2) | FLTRXSTSE |
| 15 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | FLTRXSTSE |
| 16 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | FLTRXSTSE |
| 17 | 17300059B | SHAFT, rocker arm (4) | FLTRXSTSE |
| 18 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | FLTRXSTSE |
| 19 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | FLTRXSTSE |
| 20 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | FLTRXSTSE |
| 20 | 17900035 | ANTI-ROTATION DEVICE, front cylinder | FLTRXSTSE |
| 21 | 25700362A | GASKET, lifter cover (2) | FLTRXSTSE |
| 22 | 25700372B | GASKET, rocker arm cover (2) | FLTRXSTSE |
| 23 | 25700520 | ROCKER COVER (black) (2) | FLTRXSTSE |
| 24 | 25700894 | LIFTER COVER, front (black) | FLTRXSTSE |
| 24 | 25700893 | LIFTER COVER, rear (black) | FLTRXSTSE |
| 25 | 25700425 | GASKET, rocker housing, lower (2) | FLTRXSTSE |
| 26 | 25701194 | COVER, pushrod (lower) (black) (4) | FLTRXSTSE |
| 27 | 25701609 | ROCKER COVER, lower, with 25700425 (hot rod red) (2) | FLTRXSTSE |
| 28 | 25700731 | GASKET KIT, camshaft service | FLTRXSTSE |
COOLING SYSTEM, ENGINE, CENTER-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 10800201 | CLAMP | FLTRXSTSE |
| 2 | 10800212 | CLAMP, oetiker (7 early, 5 late) | FLTRXSTSE |
| 3 | 26900326 | HOSE, pump outlet (early) | FLTRXSTSE |
| 4 | 62800073 | FITTING, barbed hose union (early) | FLTRXSTSE |
| 5 | 26900327 | HOSE, rear head inlet (early) | FLTRXSTSE |
| 5 | 26900301 | HOSE, rear head inlet (late) | FLTRXSTSE |
| 6 | 26900305 | HOSE, head to head | FLTRXSTSE |
| 7 | 26900303 | HOSE, front head to radiator | FLTRXSTSE |
| 8 | 12600362 | HOSE GUIDE | FLTRXSTSE |
| 9 | 12600360 | HOSE GUIDE | FLTRXSTSE |
| NOTE: starting on April 30, 2024, all Center-Cooled touring vehicles will be assembled with new components, (indicated as "LATE" in this manual) engineered to help improve a service bleed of the cooling system.Before March 12, 2024 all vehicles were built with the EARLY system design.From March 12, 2024 to April 30, 2024 vehicles were built with either EARLY or LATE system designs.After April 30, 2024 all vehicles were built with the LATE system design.See graphic for visual cues (if any) to determine which parts to order.See Service Bulletin M-1640 and CFITMENT COMMENTS for additional information. If early style parts become unavailable, replacement with later style parts may be required. | |||
COOLANT DISTRIBUTION, CENTER-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLTRXSTSE |
| 2 | 923 | SCREW (2) | FLTRXSTSE |
| 3 | 2478 | SCREW (2) | FLTRXSTSE |
| 4 | 10100178 | CLIP NUT (2) | FLTRXSTSE |
| 5 | 10200422 | SCREW | FLTRXSTSE |
| 6 | 12100212 | GROMMET, cover mount (4) | FLTRXSTSE |
| 7 | 10800212 | CLAMP (3) | FLTRXSTSE |
| 8 | 10800201 | CLAMP | FLTRXSTSE |
| 9 | 12200271 | CLIP, retaining, coolant reservoir | FLTRXSTSE |
| 10 | 10200414 | SCREW (2) | FLTRXSTSE |
| 11 | 12100208 | GROMMET, coolant reservoir mount | FLTRXSTSE |
| 12 | 12700182A | BRACKET, regulator, coolant system mount | FLTRXSTSE |
| 13 | 12700183 | BRACKET, coolant pump (early) | FLTRXSTSE |
| 13 | 12700198 | BRACKET, coolant pump (late) | FLTRXSTSE |
| 14 | 26600061 | PUMP, coolant | FLTRXSTSE |
| 15 | 26800227 | RADIATOR (early) | FLTRXSTSE |
| 15 | 26800266 | RADIATOR (late) | FLTRXSTSE |
| 16 | 26800228 | FAN, cooling | FLTRXSTSE |
| 17 | 26800232 | RESERVOIR, assembly, includes 7, 11, 20 | FLTRXSTSE |
| 18 | 26800086 | PRESSURE CAP, coolant, 20 psi (except China) | FLTRXSTSE |
| 18 | 26800212 | PRESSURE CAP, coolant, 1.4 Bar (China) | FLTRXSTSE |
| 19 | 26900304 | HOSE, coolant, radiator outlet (early) | FLTRXSTSE |
| 19 | 26900350 | HOSE, coolant, radiator outlet (late) | FLTRXSTSE |
| 20 | 26900302 | HOSE, coolant, reservoir to radiator | FLTRXSTSE |
| 21 | 26900308 | HOSE, coolant, reservoir vent | FLTRXSTSE |
| 22 | 32700066 | SENSOR, coolant temperature | FLTRXSTSE |
| 23 | 57100444 | DEFLECTOR, radiator screen | FLTRXSTSE |
| 24 | 57200405 | COVER, radiator shroud (black) (M26 paint scheme) | FLTRXSTSE |
| 24 | 57200428EWR | COVER, radiator shroud (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| NOTE: starting on April 30, 2024, all Center-Cooled touring vehicles will be assembled with new components, (indicated as "LATE" in this manual) engineered to help improve a service bleed of the cooling system.Before March 12, 2024 all vehicles were built with the EARLY system design.From March 12, 2024 to April 30, 2024 vehicles were built with either EARLY or LATE system designs.After April 30, 2024 all vehicles were built with the LATE system design.See graphic for visual cues (if any) to determine which parts to order.See Service Bulletin M1640 for additional information. | |||
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-Eight® 121 HO engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLTRXSTSE |
| 2 | 22097-99 | LOCK RING, piston pin (4) | FLTRXSTSE |
| 3 | 21900128 | PISTON AND RINGS ASSEMBLY (2) | FLTRXSTSE |
| 4 | 22000041 | PISTON RING SET, 4.075 (2) | FLTRXSTSE |
| 5 | 22100006 | PISTON PIN (2) | FLTRXSTSE |
| 6 | 24100152 | FLYWHEEL ASSEMBLY KIT, with 11177A | FLTRXSTSE |
| 7 | 35200150 | BALANCER ASSEMBLY | FLTRXSTSE |
CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLTRXSTSE |
| 2 | 765 | PLUG (5) | FLTRXSTSE |
| 3 | 8973 | WASHER | FLTRXSTSE |
| 4 | 9298B | NEEDLE BEARING, left side, camshaft | FLTRXSTSE |
| 5 | 16574-99A | DOWEL PIN (2) | FLTRXSTSE |
| 6 | 16589-99B | DOWEL PIN (4) | FLTRXSTSE |
| 7 | 24605-07 | BEARING, main (2) | FLTRXSTSE |
| 8 | 26352-95A | ADAPTER | FLTRXSTSE |
| 9 | 35114-02 | RING, retaining, internal | FLTRXSTSE |
| 10 | 62700296 | OIL FILTER (black) | FLTRXSTSE |
| 11 | 68042-99 | SCREW (4) | FLTRXSTSE |
| 12 | 10200343 | SCREW (12) | FLTRXSTSE |
| 13 | 11000134 | SEAL, oil | FLTRXSTSE |
| 14 | 12400099 | SPACER, front mount (2) | FLTRXSTSE |
| 15 | 24100080 | BEARING KIT, with 8973, 24605-07, 35114-02 and inner race | FLTRXSTSE |
| 16 | 24400187 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 14, 17, 19, 20, 21 and 1090015A (black granite) | FLTRXSTSE |
| 17 | 25700433A | GASKET, piston jet (2) | FLTRXSTSE |
| 18 | 29900041 | SPACER, sprocket shaft | FLTRXSTSE |
| 19 | 35200021 | BEARING, balancer (2) | FLTRXSTSE |
| 20 | 62700089A | PISTON JET ASSEMBLY, front, with 25700433 | FLTRXSTSE |
| 21 | 62700117 | PISTON JET ASSEMBLY, rear, with 25700433 | FLTRXSTSE |
| 22 | 62800013 | PLUG, with 11900010 | FLTRXSTSE |
| 23 | 11900010 | O-RING | FLTRXSTSE |

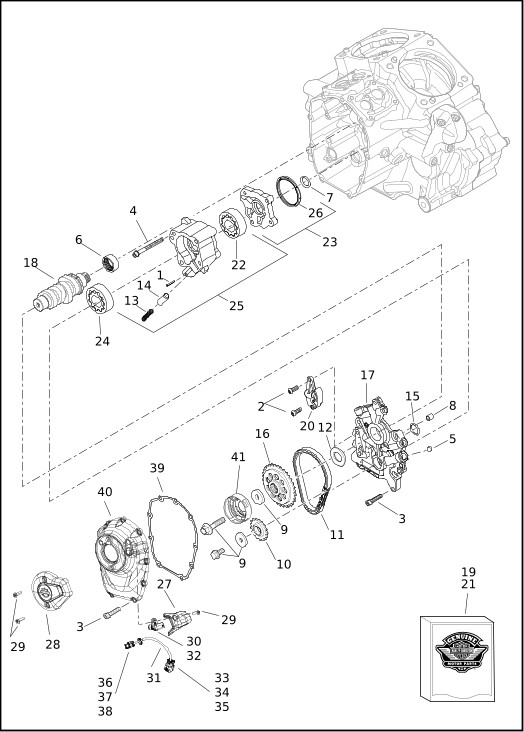

CAMSHAFT AND CAMSHAFT COVER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLTRXSTSE |
| 2 | 942 | SCREW (2) | FLTRXSTSE |
| 3 | 4740A | SCREW (15) | FLTRXSTSE |
| 4 | 4822A | SCREW (4) | FLTRXSTSE |
| 5 | 8873 | BALL (7) | FLTRXSTSE |
| 6 | 9298B | NEEDLE BEARING, camshaft | FLTRXSTSE |
| 7 | 11293 | O-RING | FLTRXSTSE |
| 8 | 16589-99B | DOWEL PIN | FLTRXSTSE |
| 9 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with screws and washers | FLTRXSTSE |
| 10 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLTRXSTSE |
| 11 | 25675-06 | CHAIN, primary camshaft drive | FLTRXSTSE |
| 12 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLTRXSTSE |
| 12 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLTRXSTSE |
| 12 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLTRXSTSE |
| 12 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLTRXSTSE |
| 12 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLTRXSTSE |
| 12 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLTRXSTSE |
| 13 | 26210-99 | SPRING, relief valve | FLTRXSTSE |
| 14 | 26400-82B | RELIEF VALVE, oil pump bypass | FLTRXSTSE |
| 15 | 11900103 | O-RING | FLTRXSTSE |
| 16 | 25400103 | SPROCKET, camshaft drive, 34 teeth | FLTRXSTSE |
| 17 | 25400452 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99B | FLTRXSTSE |
| 18 | 25400460 | CAMSHAFT | FLTRXSTSE |
| 19 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25400103 | FLTRXSTSE |
| 20 | 25500013 | CHAIN TENSIONER, camshaft drive chain | FLTRXSTSE |
CAMSHAFT AND CAMSHAFT COVER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 21 | 25700731 | GASKET KIT, camshaft service | FLTRXSTSE |
| 22 | 62400233 | GEROTOR ASSEMBLY | FLTRXSTSE |
| 23 | 62400245 | COVER, oil pump assembly, with 62400205 | FLTRXSTSE |
| 24 | 62400055 | GEROTOR ASSEMBLY, feed | FLTRXSTSE |
| 25 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body, also order 62400055 | FLTRXSTSE |
| 26 | 62400205 | OIL SEAL | FLTRXSTSE |
| 27 | 25701513 | COVER, cam sensor | FLTRXSTSE |
| 28 | 25701511 | COVER, cam timer (black) without insert | FLTRXSTSE |
| 28 | 14102001 | INSERT, cam timer cover (black/hot rod red) (not shown) | FLTRXSTSE |
| 29 | 4015 | SCREW (3) | FLTRXSTSE |
| 30 | 32700162 | SENSOR, camshaft proximity, includes 11289A | FLTRXSTSE |
| 31 | 69203403 | HARNESS, cam sensor, includes 33, 34, 35, 36, 37, 38 | FLTRXSTSE |
| 32 | 11289A | O-RING, camshaft proximity sensor (not shown) | FLTRXSTSE |
| 33 | 72414-07BK | HOUSING, 6 way socket | FLTRXSTSE |
| 34 | 72168-07 | TERMINAL, socket (3) | FLTRXSTSE |
| 35 | 69203106 | SEAL PIN (3) | FLTRXSTSE |
| 36 | 69201301 | WIRE SEAL (3) | FLTRXSTSE |
| 37 | 69201406 | HOUSING, 3 way socket | FLTRXSTSE |
| 38 | 69201407 | TERMINAL, socket (3) | FLTRXSTSE |
| 39 | 25700370A | GASKET, camshaft cover | FLTRXSTSE |
| 40 | 25701666 | CAMSHAFT COVER (gloss black) | FLTRXSTSE |
| 41 | 18400117 | ROTOR CUP, cam position | FLTRXSTSE |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | FLTRXSTSE |
| 2 | 6139 | WASHER | FLTRXSTSE |
| 3 | 16219-09 | STABLIZER LINK | FLTRXSTSE |
| 4 | 10100062 | LOCKNUT | FLTRXSTSE |
| 5 | 10200393 | SCREW | FLTRXSTSE |
| 6 | 10200408A | SCREW (2) | FLTRXSTSE |
| 7 | 10200463 | SCREW (2) | FLTRXSTSE |
| 8 | 16300005 | ENGINE MOUNT, front (2) | FLTRXSTSE |
| 9 | 16400041 | BRACKET, tie link | FLTRXSTSE |
| 10 | 16400042 | END CAP, front mount | FLTRXSTSE |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLTRXSTSE |
| 2 | 10200373 | SCREW (3) | FLTRXSTSE |
| 3 | 12100069 | PLUG, purge tube cap | FLTRXSTSE |
| 4 | 10500071 | SCREW, fuel rail (2) | FLTRXSTSE |
| 5 | 27300198 | GASKET, throttle body to manifold | FLTRXSTSE |
| 6 | 27300199 | FLANGE, intake (front) | FLTRXSTSE |
| 7 | 27300201 | FLANGE, intake (rear) | FLTRXSTSE |
| 8 | 27300200 | SEAL, intake (2) | FLTRXSTSE |
| 9 | 27300196 | INTAKE MANIFOLD ASSEMBLY, with 12100069 | FLTRXSTSE |
| 10 | 27300197 | THROTTLE BODY ASSEMBLY | FLTRXSTSE |
| 11 | 27200094 | THROTTLE BODY MANIFOLD KIT, with 27300197, 27400071 and 91800058 | FLTRXSTSE |
| 12 | 27400065 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLTRXSTSE |
| 13 | 27400071 | FUEL RAIL KIT | FLTRXSTSE |
| 14 | 32700065 | SENSOR, temperature manifold absolute pressure, with O-ring | FLTRXSTSE |
| 15 | 61200096 | FUEL LINE, with 11900130, 10200544 and 60900061 | FLTRXSTSE |
| 16 | 91800058 | HARDWARE KIT, induction module | FLTRXSTSE |
| 17 | 10200544 | SCREW, fuel line to fuel rail | FLTRXSTSE |
| 18 | 11900130 | O-RING, fuel line | FLTRXSTSE |
| 19 | 60900061 | CAP, fuel line | FLTRXSTSE |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 29400470 | FILTER, air intake | FLTRXSTSE |
| 2 | 29000364 | SEAL, airbox to throttlebody | FLTRXSTSE |
| 3 | 29000428 | SEAL, airbox to filter | FLTRXSTSE |
| 4 | 29400487 | SCREW, airbox to cylinder head | FLTRXSTSE |
| 5 | 10201404 | SCREW, hex flange, airbox to cylinder head | FLTRXSTSE |
| 6 | 10500216 | SCREW, black, throttle body (3) | FLTRXSTSE |
| 7 | 10201418 | SCREW (2) | FLTRXSTSE |
| 8 | 10201397 | SCREW (2) | FLTRXSTSE |
| 9 | 29000417 | BASEPLATE, AIRBOX ASSEMBLY, with 10201406, 10201418, 14003813, 61301409, 61400734 (all except China) | FLTRXSTSE |
| 9 | 29000433 | BASEPLATE, AIRBOX ASSEMBLY, with 14003814 (China) | FLTRXSTSE |
| 10 | 61301409 | COVER, throttle body, includes 57300433 | FLTRXSTSE |
| 11 | 57300433 | PAD, throttle body cover | FLTRXSTSE |
| 12 | 62700324 | TUBE, breather | FLTRXSTSE |
| 13 | 61400734 | BRACKET, trim insert | FLTRXSTSE |
| 14 | 61400732 | TRIM, insert | FLTRXSTSE |
| 15 | 14003813 | LABEL (California, Domestic) | FLTRXSTSE |
| 15 | 14003814 | LABEL (China) | FLTRXSTSE |
| 15 | 14003815 | LABEL (Brazil) | FLTRXSTSE |
| 16 | 10201406 | SCREW, throttle body cover (3) | FLTRXSTSE |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | FLTRXSTSE |
| 2 | 10006 | CABLE STRAP (2) | FLTRXSTSE |
| 3 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
| 4 | 10200422 | SCREW (4) | FLTRXSTSE |
| 5 | 29900118 | ROTOR ASSEMBLY | FLTRXSTSE |
| 6 | 29900041 | SPACER, sprocket shaft | FLTRXSTSE |
| 7 | 29900114 | STATOR ASSEMBLY, 3-phase, 56 A | FLTRXSTSE |
| 8 | 74700048 | VOLTAGE REGULATOR ASSEMBLY | FLTRXSTSE |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 945 | SCREW | FLTRXSTSE |
| 2 | 4816A | SCREW (2) | FLTRXSTSE |
| 3 | 32001-08A | SPARK PLUG CABLE, outer, front and rear cylinders (2) | FLTRXSTSE |
| 4 | 12200154 | RETENTION CLIP (2) | FLTRXSTSE |
| 5 | 16400087B | BRACKET, engine mount, mid | FLTRXSTSE |
| 6 | 31600081 | SPARK PLUG CABLE, inner, front cylinder, with 10177 | FLTRXSTSE |
| 7 | 31600194 | IGNITION COIL | FLTRXSTSE |
| 8 | 31600195 | SPARK PLUG CABLE, inner, rear cylinder, with 10177 | FLTRXSTSE |
| 9 | 41001351 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLTRXSTSE |
| 10 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
| 11 | 31600012 | SPARK PLUG, M10 (4) | FLTRXSTSE |
| 12 | 16400109 | BRACKET, engine mount, mid, includes sensor spacer (1) | FLTRXSTSE |
| 13 | 29900147 | KIT, double stud service kit, includes bracket, studs and nuts (1) | FLTRXSTSE |
| Note: The following parts are to be used when the engine or cylinder heads have been replaced with later style heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information. | |||
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4015 | SCREW | FLTRXSTSE |
| 2 | 4705 | SCREW | FLTRXSTSE |
| 3 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
| 4 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLTRXSTSE |
| 5 | 11900180 | O-RING, crankshaft position sensor | FLTRXSTSE |
| 6 | 32700144 | SENSOR, crankshaft position, with 74194-98, 11900180 and 69201302 | FLTRXSTSE |
| 7 | 32700054 | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLTRXSTSE |
| 8 | 32700065 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLTRXSTSE |
| 9 | 69201299 | HOUSING, socket, two-way, key B | FLTRXSTSE |
| 10 | 69201300 | TERMINAL, socket, 20 AWG (2) | FLTRXSTSE |
| 11 | 69201301 | WIRE SEAL, 22 AWG (green) (2) | FLTRXSTSE |
| 12 | 69201302 | CONNECTOR ANCHOR | FLTRXSTSE |
| 13 | 71400112A | OIL PRESSURE SWITCH, includes 11900172 | FLTRXSTSE |
| 14 | 11900172 | O-RING | FLTRXSTSE |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLTRXSTSE |
| 16 | 32700162 | SENSOR, cam position, includes 11289A | FLTRXSTSE |
| 17 | 11289A | O-RING, cam position sensor | FLTRXSTSE |
| 18 | 32700113 | SENSOR, knock (secured by coil mount bracket screws) (2) | FLTRXSTSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLTRXSTSE |
| 2 | 27444-00Y | O-RING, starter-to-case | FLTRXSTSE |
| 3 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | FLTRXSTSE |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLTRXSTSE |
| 2 | 856A | SCREW | FLTRXSTSE |
| 3 | 10200350 | SCREW | FLTRXSTSE |
| 4 | 4192 | SCREW (chrome) (2) | FLTRXSTSE |
| 5 | 10500107 | SCREW (black) | FLTRXSTSE |
| 6 | 33600304 | SPACER | FLTRXSTSE |
| 7 | 6497HW | WASHER | FLTRXSTSE |
| 8 | 7330 | ACORN NUT (chrome) | FLTRXSTSE |
| 9 | 11150 | RETAINING RING | FLTRXSTSE |
| 10 | 11389 | RING, shift camshaft retaining | FLTRXSTSE |
| 11 | 11575 | RING, shift camshaft retaining | FLTRXSTSE |
| 12 | 33389-07 | SPRING, detent | FLTRXSTSE |
| 13 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLTRXSTSE |
| 14 | 33600102 | SHIFTER LINKAGE ROD ASSEMBLY, with 7326, 33899-08 (black) | FLTRXSTSE |
| 15 | 33899-08 | ROD END, self-aligning (2) | FLTRXSTSE |
| 16 | 7326 | NUT, rod end (2) | FLTRXSTSE |
| 17 | 34064-00C | SPRING, shift lever centering | FLTRXSTSE |
| 18 | 34987-06 | SPRING, ratchet lever | FLTRXSTSE |
| 19 | 35081-06 | SHIFT MECHANISM, with 34064-00C, 34987-06 | FLTRXSTSE |
| 20 | 35082-07 | CENTERING SCREW, shift lever | FLTRXSTSE |
| 21 | 35186-06A | SLEEVE | FLTRXSTSE |
| 22 | 35187-06 | FORK, shift 1 - 2 | FLTRXSTSE |
| 23 | 35210-06 | FORK, shift 3 - 4 | FLTRXSTSE |
| 24 | 35217-06 | FORK, shift 5 - 6 | FLTRXSTSE |
| 25 | 35222-06A | SHAFT, 5 - 6 shift fork | FLTRXSTSE |
| 26 | 35223-06A | SHAFT, 1 - 2 and 3 - 4 shift fork | FLTRXSTSE |
| 27 | 35243-06A | SLEEVE | FLTRXSTSE |
| 28 | 35244-06 | SCREW | FLTRXSTSE |
| 29 | 35249-06A | LOCK PLATE, shift camshaft | FLTRXSTSE |
| 30 | 35259-06 | SCREW (2) | FLTRXSTSE |
| 31 | 11000101 | OIL SEAL | FLTRXSTSE |
| 32 | 33900180 | LEVER, shifter rod | FLTRXSTSE |
| 33 | 33600411 | SHIFTER PEG (black) includes 10500107 | FLTRXSTSE |
| 34 | 33600243 | LEVER, toe shifter (gloss black) | FLTRXSTSE |
| 35 | 7686 | LOCKNUT | FLTRXSTSE |
| 36 | 33600188 | LEVER, gear shifter (black) | FLTRXSTSE |
| 37 | 33600091 | SHAFT | FLTRXSTSE |
| 38 | 33900265 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLTRXSTSE |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLTRXSTSE |
| 2 | 3249 | SCREW (8) | FLTRXSTSE |
| 3 | 4705 | SCREW | FLTRXSTSE |
| 4 | 4718A | SCREW (6) | FLTRXSTSE |
| 5 | 11900192 | ORING, gear position sensor | FLTRXSTSE |
| 6 | 8873 | BALL | FLTRXSTSE |
| 7 | 7340 | NUT, mainshaft and countershaft (2) | FLTRXSTSE |
| 8 | 8963 | BEARING, needle | FLTRXSTSE |
| 9 | 8967A | BEARING | FLTRXSTSE |
| 10 | 8970A | BEARING | FLTRXSTSE |
| 11 | 9701A | BUSHING | FLTRXSTSE |
| 12 | 10998 | RETAINING RING | FLTRXSTSE |
| 13 | 11161 | RETAINING RING | FLTRXSTSE |
| 14 | 12074 | SEAL | FLTRXSTSE |
| 15 | 16583-00B | BUSHING, dowel (2) | FLTRXSTSE |
| 16 | 35082-07 | CENTERING SCREW, shift lever | FLTRXSTSE |
| 17 | 35087-99A | RETAINING RING (2) | FLTRXSTSE |
| 18 | 35186-06A | SLEEVE | FLTRXSTSE |
| 19 | 24400388 | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black granite) | FLTRXSTSE |
| 20 | 35654-06 | GASKET, bearing housing | FLTRXSTSE |
| 21 | 25701479 | GASKET, cover | FLTRXSTSE |
| 22 | 34920-86A | COUPLING | FLTRXSTSE |
| 23 | 11000010 | BEARING | FLTRXSTSE |
| 24 | 11000101 | OIL SEAL | FLTRXSTSE |
| 25 | 11900092 | O-RING | FLTRXSTSE |
| 26 | 24400215 | GASKET | FLTRXSTSE |
| 27 | 62700291 | DIPSTICK (black) | FLTRXSTSE |
| 28 | 32700166 | SENSOR, gear position, includes 11900192 | FLTRXSTSE |
| 29 | 37000376 | KIT, CLUTCH SERVICE, with 34920-86A, 8873 | FLTRXSTSE |
| 30 | 25800165 | COVER (black) does not include insert | FLTRXSTSE |
| 30 | 25800185 | INSERT, transmission cover (black/hot rod red) NOT SHOWN | FLTRXSTSE |
| 31 | 62700150 | PLUG, transmission, with 11900092 | FLTRXSTSE |
| 32 | 25800170 | COVER, gear position sensor | FLTRXSTSE |
| 33 | 11179 | O-RING | FLTRXSTSE |
| 34 | 11900179 | O-RING, composite dipstick | FLTRXSTSE |
| 35 | 4015 | SCREW (2) | FLTRXSTSE |
| 36 | 69203188 | HARNESS, gear position sensor | FLTRXSTSE |
| 37 | 69201441 | HOUSING, socket, 4 way | FLTRXSTSE |
| 38 | 69201407 | TERMINAL, socket (6) | FLTRXSTSE |
| 39 | 69201427 | SEAL PIN | FLTRXSTSE |
| 40 | 69201301 | WIRE SEAL | FLTRXSTSE |
| 41 | 69201406 | HOUSING, 3 way socket | FLTRXSTSE |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLTRXSTSE |
| 2 | 3983 | SCREW (2) | FLTRXSTSE |
| 3 | 62700219 | DIPSTICK ASSEMBLY, with 11120 (gloss black cap) | FLTRXSTSE |
| 4 | 4741A | SCREW (for use with 24400180) (16) | FLTRXSTSE |
| 4 | 12600369 | SCREW (for use with 24400180A) (16) | FLTRXSTSE |
| 5 | 7792 | NUT | FLTRXSTSE |
| 6 | 11900208 | O-RING (2) | FLTRXSTSE |
| 7 | 11120 | O-RING | FLTRXSTSE |
| 8 | 29400448 | TRANSMISSION COVER, top, with 34800071 and 34800043 (black) | FLTRXSTSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLTRXSTSE |
| 10 | 12100203 | PLUG | FLTRXSTSE |
| 11 | 62700327 | PLUG, quarter turn, includes 11900208 (2) | FLTRXSTSE |
| 12 | 34800043 | VENT HOSE, transmission | FLTRXSTSE |
| 13 | 66290-06 | STUD, ground | FLTRXSTSE |
| 14 | 34700552 | TRANSMISSION CASE SUBASSEMBLY, with 11000101, 11161, 16574-99A, 83595-11A, 35082-07, 35122-06A, 35186-06A, 35241-06, 35242-06, 3594, 66290-06, 8963, 8967A, 9701A (black granite) | FLTRXSTSE |
| 15 | 24400390 | OIL PAN ASSEMBLY, composite, includes gasket and drain plugs | FLTRXSTSE |
| 16 | 25701809 | GASKET, composite oil pan | FLTRXSTSE |
| 17 | 34800071 | GASKET, upper cover | FLTRXSTSE |
| 18 | 12600369 | SCREW (12) | FLTRXSTSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837B | SPACER | FLTRXSTSE |
| 2 | 7340 | NUT (2) | FLTRXSTSE |
| 3 | 8026K | BEARING, needle (4) | FLTRXSTSE |
| 4 | 8041 | BEARING, needle | FLTRXSTSE |
| 5 | 8042A | BEARING, needle (2) | FLTRXSTSE |
| 6 | 10991A | RETAINING RING (2) | FLTRXSTSE |
| 7 | 12200144 | RETAINING RING | FLTRXSTSE |
| 8 | 11081A | RING, lock (3) | FLTRXSTSE |
| 9 | 11082A | SECURING SEGMENT (6) | FLTRXSTSE |
| 10 | 11201 | O-RING | FLTRXSTSE |
| 11 | 11207A | WASHER, internal spline | FLTRXSTSE |
| 12 | 11599A | SPACER, bearing | FLTRXSTSE |
| 13 | 12077 | OIL SEAL | FLTRXSTSE |
| 14 | 34091-08 | BEARING, inner race | FLTRXSTSE |
| 15 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042A, 10991A, 11201, 11599A and 12077 | FLTRXSTSE |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLTRXSTSE |
| 17 | 35126-06 | DOG RING, lugged (2) | FLTRXSTSE |
| 18 | 35000178 | GUIDE HUB, dog ring | FLTRXSTSE |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLTRXSTSE |
| 20 | 35204-06 | DOG RING, pocketed | FLTRXSTSE |
| 21 | 35467-06C | INPUT SHAFT KIT, with 12200144, 34091-08 and 35000178 | FLTRXSTSE |
| 22 | 35600094 | COUNTERSHAFT ASSEMBLY | FLTRXSTSE |
| 23 | 35000179 | GEAR, fifth input | FLTRXSTSE |
| 24 | 35807-06 | GEAR, countershaft-second | FLTRXSTSE |
| 25 | 35811-06 | GEAR, countershaft-third | FLTRXSTSE |
| 26 | 35814-06 | GEAR, countershaft-fourth | FLTRXSTSE |
| 27 | 35600103 | GEAR ASSEMBLY, countershaft-first | FLTRXSTSE |
| 28 | 24400410 | GEAR PACK SUBASSEMBLY, with input shaft and gears, countershaft and gears (black granite) | FLTRXSTSE |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 7848W | JAMNUT | FLTRXSTSE |
| 2 | 11096 | RETAINING RING, external | FLTRXSTSE |
| 3 | 36706-01K | BOLT (3) | FLTRXSTSE |
| 4 | 37069-90A | OIL SLINGER | FLTRXSTSE |
| 5 | 37090-98A | SCREW, adjuster | FLTRXSTSE |
| 6 | 37092-06 | PUSHROD, clutch release | FLTRXSTSE |
| 7 | 37312-75 | BEARING, thrust | FLTRXSTSE |
| 8 | 37313-80 | BEARING, thrust race (2) | FLTRXSTSE |
| 9 | 37496-90A | NUT, mainshaft | FLTRXSTSE |
| 10 | 37903-90 | RELEASE PLATE | FLTRXSTSE |
| 11 | 37904-90 | RETAINING RING, external | FLTRXSTSE |
| 12 | 37909-90 | RING, retaining, internal | FLTRXSTSE |
| 13 | 37000032A | PRESSURE PLATE, clutch | FLTRXSTSE |
| 14 | 37000033 | STOPPER PLATE | FLTRXSTSE |
| 15 | 37000034 | SPRING, damper | FLTRXSTSE |
| 16 | 37000295 | SEAT, damper-spring | FLTRXSTSE |
| 17 | 37000083 | HUB ASSEMBLY | FLTRXSTSE |
| 18 | 37000168 | BEARING, ball, double-row | FLTRXSTSE |
| 19 | 37000169 | RETAINING RING, internal | FLTRXSTSE |
| 20 | 37000219 | SEAT (3) | FLTRXSTSE |
| 21 | 37000377 | CLUTCH ASSEMBLY, complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23 | FLTRXSTSE |
| 22 | 37000382 | CLUTCH DISC KIT | FLTRXSTSE |
| 23 | 37000270A | COIL SPRING (3) | FLTRXSTSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLTRXSTSE |
| 2 | 791A | SCREW (2) | FLTRXSTSE |
| 3 | 1062 | SCREW (5) | FLTRXSTSE |
| 4 | 1775 | SCREW (4) | FLTRXSTSE |
| 5 | 4813A | SCREW (9) | FLTRXSTSE |
| 6 | 4820A | SCREW | FLTRXSTSE |
| 7 | 9231 | BEARING | FLTRXSTSE |
| 8 | 11105 | O-RING | FLTRXSTSE |
| 9 | 12052A | SEAL | FLTRXSTSE |
| 10 | 16583-00B | BUSHING, dowel (2) | FLTRXSTSE |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | FLTRXSTSE |
| 12 | 24754-75A | DOWEL BUSHING (4) | FLTRXSTSE |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | FLTRXSTSE |
| 14 | 60678-85 | RETAINING RING | FLTRXSTSE |
| 15 | 11000139 | BUSHING | FLTRXSTSE |
| 16 | 25700830 | GASKET KIT, inner primary with 11105, 12052A, 25700378, 25700679, 37909-90, 786A and clutch cover gasket | FLTRXSTSE |
| 17 | 25700378 | GASKET, primary cover | FLTRXSTSE |
| 18 | 25701610 | COVER, clutch (black) | FLTRXSTSE |
| 19 | 25700491 | COVER, primary (gloss black) | FLTRXSTSE |
| 20 | 25700679 | GASKET, primary housing to case | FLTRXSTSE |
| 21 | 25700650 | SLEEVE, damper | FLTRXSTSE |
| 22 | 36500092A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black granite) | FLTRXSTSE |
| 23 | 36500075A | CHAIN TENSIONER ASSEMBLY | FLTRXSTSE |
| 24 | 26500026 | HOSE, vent | FLTRXSTSE |
| 25 | 26500027 | KIT, VENT, primary with 11105, 25700378, 26500026 and clutch cover seal | FLTRXSTSE |
BELT, CHAIN and SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLTRXSTSE |
| 2 | 3892 | SCREW (3) | FLTRXSTSE |
| 3 | 9276B | BALL BEARING (2) | FLTRXSTSE |
| 4 | 11843 | SPACER, compensator | FLTRXSTSE |
| 5 | 35241-06 | NUT | FLTRXSTSE |
| 6 | 35242-06 | LOCKPLATE | FLTRXSTSE |
| 7 | 40000036 | REAR BELT, 139 teeth, 24 mm | FLTRXSTSE |
| 8 | 40037-07 | PRIMARY CHAIN | FLTRXSTSE |
| 9 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLTRXSTSE |
| 10 | 40278-09 | ISOLATOR, rubber | FLTRXSTSE |
| 11 | 60386-09 | DEBRIS DEFLECTOR | FLTRXSTSE |
| 12 | 10500031 | SCREW, compensator | FLTRXSTSE |
| 13 | 83595-11A | SPROCKET, transmission, 30 teeth | FLTRXSTSE |
| 14 | 40100041 | RETAINER, sprocket | FLTRXSTSE |
| 15 | 40100064 | THRUST WASHER | FLTRXSTSE |
| 16 | 83936-09A | SPRING PACK | FLTRXSTSE |
| 17 | 40100076 | ENGINE SPROCKET KIT, compensator assembly | FLTRXSTSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLTRXSTSE |
| 2 | 6101 | WASHER (black) (2) | FLTRXSTSE |
| 3 | 10039 | CABLE STRAP (3) | FLTRXSTSE |
| 4 | 10264 | CLIP, clutch line | FLTRXSTSE |
| 5 | 11615 | RETAINING RING, clutch line | FLTRXSTSE |
| 6 | 42860-06B | PIVOT PIN, with retaining ring (black) | FLTRXSTSE |
| 7 | 10201173 | SCREW | FLTRXSTSE |
| 8 | 10201376 | SCREW | FLTRXSTSE |
| 9 | 12200271 | CLIP, clutch and radiator | FLTRXSTSE |
| 10 | 36700286 | CLUTCH LEVER ASSEMBLY, with 36700290 and 90770-79 (satin black) | FLTRXSTSE |
| 11 | 36700288 | BRACKET, hand lever (satin black) | FLTRXSTSE |
| 12 | 41600382 | BRACKET, mounting, clutch and brake lines | FLTRXSTSE |
| 13 | 36700291 | COVER, switch | FLTRXSTSE |
| 14 | 37200395A | ADJUSTER BUTTON, clutch cable | FLTRXSTSE |
| 15 | 37200396 | CONNECTOR BODY, clutch cable | FLTRXSTSE |
| 16 | 37200437 | CLUTCH CABLE, lower | FLTRXSTSE |
| 17 | 37200545 | CLIP | FLTRXSTSE |
| 18 | 37200609 | CABLE, clutch control, upper, with 37200395A and 37200396 (satin black) | FLTRXSTSE |
| 19 | 71400141 | SWITCH, clutch lever position sensor | FLTRXSTSE |
| 20 | 10201368 | SCREW | FLTRXSTSE |
| Note: For front clamp/switch cover refer to "SWITCHES, HANDLEBAR" section. | |||
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLTRXSTSE |
| 2 | 6101 | WASHER (black) (2) | FLTRXSTSE |
| 3 | 41700367 | BUTTON, anti-bubble | FLTRXSTSE |
| 4 | 41700625 | SCREW, brake master cylinder | FLTRXSTSE |
| 5 | 41701089 | MASTER CYLINDER ASSEMBLY, brake | FLTRXSTSE |
| 6 | 41701406 | LEVER KIT, front brake (black) | FLTRXSTSE |
| 7 | 41701125 | COVER KIT, master cylinder (black) | FLTRXSTSE |
| 8 | 41701131 | PIVOT PIN KIT, with retaining ring (black) | FLTRXSTSE |
| 9 | 71400196 | SWITCH, brake lever | FLTRXSTSE |
| Note: For front clamp/switch cover refer to "SWITCHES, HANDLEBAR" section. | |||
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER (2) | FLTRXSTSE |
| 2 | 7352 | ACORN NUT (black) (2) | FLTRXSTSE |
| 3 | 92082-03 | MIRROR (left) | FLTRXSTSE |
| 4 | 92078-03 | MIRROR (right) | FLTRXSTSE |
BRAKE LINES, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLTRXSTSE |
| 2 | 41750-06B | BOLT, BANJO (black) | FLTRXSTSE |
| 3 | 41751-06A | GASKET (10) | FLTRXSTSE |
| 4 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLTRXSTSE |
| 5 | 42853-06 | CAP (2) | FLTRXSTSE |
| 6 | 10200223 | SCREW (3) | FLTRXSTSE |
| 7 | 10600007 | GASKET (2) | FLTRXSTSE |
| 8 | 11600001 | BOLT, BANJO (2) | FLTRXSTSE |
| 9 | 11600009 | BOLT, BANJO | FLTRXSTSE |
| 10 | 41600390 | BRACKET, brake line | FLTRXSTSE |
| 11 | 41600320 | BRACKET, brake line | FLTRXSTSE |
| 12 | 41600383 | BRACKET, brake line | FLTRXSTSE |
| 13 | 41800915 | BRAKE LINE, ABS (right) (black) | FLTRXSTSE |
| 14 | 41800914 | BRAKE LINE, ABS (left) (black) | FLTRXSTSE |
| 15 | 41800931 | BRAKE LINE, front master cylinder to ABS (black) | FLTRXSTSE |
| 16 | 10800216 | CLAMP | FLTRXSTSE |
| 17 | 10201368 | SCREW | FLTRXSTSE |
| 18 | 41600386 | BRACKET, brake line alignment | FLTRXSTSE |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLTRXSTSE |
| 2 | 2479 | SCREW | FLTRXSTSE |
| 3 | 3340 | NUT, acorn | FLTRXSTSE |
| 4 | 3563 | SCREW | FLTRXSTSE |
| 5 | 6220W | WASHER | FLTRXSTSE |
| 6 | 6421 | WASHER | FLTRXSTSE |
| 7 | 6416 | WASHER | FLTRXSTSE |
| 8 | 7825 | LOCKNUT | FLTRXSTSE |
| 9 | 9907 | WIRE TERMINAL | FLTRXSTSE |
| 10 | 10065 | CABLE STRAP | FLTRXSTSE |
| 11 | 10076 | CLAMP | FLTRXSTSE |
| 12 | 11902 | GASKET, master cylinder reservoir cover | FLTRXSTSE |
| 13 | 12102 | DUST BOOT | FLTRXSTSE |
| 14 | 41750-06B | BOLT, BANJO (black) | FLTRXSTSE |
| 15 | 41751-06A | GASKET (2) | FLTRXSTSE |
| 16 | 42460-80B | CLEVIS PIN | FLTRXSTSE |
| 17 | 42854-06 | KIT, SIGHT GLASS | FLTRXSTSE |
| 18 | 42856-06 | DECAL, reservoir cover | FLTRXSTSE |
| 19 | 42858-06A | SCREW KIT | FLTRXSTSE |
| 20 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLTRXSTSE |
| 21 | 42932-08A | REBUILD KIT, master cylinder | FLTRXSTSE |
| 22 | 42934-08 | SPRING, pedal return | FLTRXSTSE |
| 23 | 42937-08C | MASTER CYLINDER COVER KIT, with 11902, 42858-06A (black) | FLTRXSTSE |
| 24 | 72023-51E | KIT SWITCH, stop lamp, with 9907 | FLTRXSTSE |
| 25 | 10600007 | GASKET, ABS (2) | FLTRXSTSE |
| 26 | 41600385 | BRACKET (lower) | FLTRXSTSE |
| 27 | 11000050 | BUSHING, brake lever (2) | FLTRXSTSE |
| 28 | 11600009 | BOLT, BANJO | FLTRXSTSE |
| 29 | 11900021 | O-RING (2) | FLTRXSTSE |
| 30 | 41600384 | TUBE CLIP (upper) | FLTRXSTSE |
| 31 | 41700028A | MASTER CYLINDER ASSEMBLY, with 12, 13, 17, 19, 20, 21, 22, 23 and 32 (black) | FLTRXSTSE |
| 32 | 41700195 | PUSHROD KIT, master cylinder | FLTRXSTSE |
| 33 | 41800890 | BRAKE LINE, master cylinder to ABS UNIT, ABS, with 10, 11, 26 and 30 | FLTRXSTSE |
| 34 | 50600546 | PEDAL, kit, brake, with washer and screw (black) | FLTRXSTSE |
| 35 | 50600244 | LEVER ASSEMBLY, foot-brake, with 11000050 (black) | FLTRXSTSE |
BRAKE LINES, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 1062 | SCREW | FLTRXSTSE |
| 2 | 3563 | SCREW | FLTRXSTSE |
| 3 | 10065 | CABLE STRAP | FLTRXSTSE |
| 4 | 10800227 | CLAMP | FLTRXSTSE |
| 5 | 10340B | CLIP, brake hose (2) | FLTRXSTSE |
| 6 | 41750-06B | BOLT, BANJO (black) (2) | FLTRXSTSE |
| 7 | 41751-06A | GASKET (6) | FLTRXSTSE |
| 8 | 70631-08 | CLIP, conduit | FLTRXSTSE |
| 9 | 10600007 | GASKET (2) | FLTRXSTSE |
| 10 | 41600385 | BRACKET (lower) | FLTRXSTSE |
| 11 | 11600001 | BOLT, BANJO | FLTRXSTSE |
| 12 | 11600009 | BOLT, BANJO | FLTRXSTSE |
| 13 | 12100007 | GROMMET, ABS mounting | FLTRXSTSE |
| 14 | 41100122 | ABS MODULE (EHCU) | FLTRXSTSE |
| 15 | 41600078 | BRACKET, ABS brake line alignment | FLTRXSTSE |
| 16 | 41600384 | BRACKET (upper) | FLTRXSTSE |
| 17 | 41800890 | BRAKE LINE, ABS module to master cylinder, with 4, 10 and 16 | FLTRXSTSE |
| 18 | 41800891 | BRAKE LINE, ABS module to caliper | FLTRXSTSE |
| 19 | 69201924 | CADDY, ABS module | FLTRXSTSE |
| 20 | 1009M | SCREW (2) | FLTRXSTSE |
| 21 | 32700101 | SENSOR, IMU (Inertia Measurement Unit) | FLTRXSTSE |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41300291 | CALIPER ASSEMBLY, with 41300225, 41300227 (left) (not shown) | FLTRXSTSE |
| 2 | 41300292 | CALIPER ASSEMBLY, with 41300225, 41300227 (right) | FLTRXSTSE |
| 3 | 41300225 | SPRING, brake pad (front) | FLTRXSTSE |
| 4 | 41300226 | PIN, brake pad (front) | FLTRXSTSE |
| 5 | 41300227 | PAD, brake, with 41300226 (front) | FLTRXSTSE |
| 6 | 10200802 | SCREW (4) | FLTRXSTSE |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW, rear caliper to reaction bracket (2) | FLTRXSTSE |
| 2 | 4890 | SCREW, bleeder | FLTRXSTSE |
| 3 | 41852-08B | PAD AND PIN KIT | FLTRXSTSE |
| 4 | 42853-06 | CAP | FLTRXSTSE |
| 5 | 42863-06 | BUMPER | FLTRXSTSE |
| 6 | 42865-06B | PAD PIN KIT | FLTRXSTSE |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLTRXSTSE |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, with 4890, 41852-08B, 42853-06, 42865-06B and 42867-06A (black) | FLTRXSTSE |
| 9 | 44089-08 | BRACKET, reaction, rear brake, with 42863-06 | FLTRXSTSE |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (10) | FLTRXSTSE |
| 2 | 9252A | BALL BEARING, with encoder, ABS | FLTRXSTSE |
| 3 | 9276B | BALL BEARING | FLTRXSTSE |
| 4 | 40984-10 | COVER, wheel speed sensor (black) | FLTRXSTSE |
| 5 | 41123-79 | CAP, tire valve (black) | FLTRXSTSE |
| 6 | 43000300A | AXLE | FLTRXSTSE |
| 7 | 41900-08 | SLEEVE, bearing spacer | FLTRXSTSE |
| 8 | 42400019 | SPACER (black) | FLTRXSTSE |
| 9 | 72607-08 | HOUSING, two-way pin (black) | FLTRXSTSE |
| 10 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLTRXSTSE |
| 11 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLTRXSTSE |
| 12 | 10201167 | SCREW | FLTRXSTSE |
| 13 | 11900155 | O-RING | FLTRXSTSE |
| 14 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300139, 42300141 (except Japan, JP2) | FLTRXSTSE |
| 14 | 42300143 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300140, 42300141 (Japan, JP2) | FLTRXSTSE |
| 15 | 32700015 | SENSOR, wheel speed, ABS, with 72607-08, 72608-08 and 72639-10 | FLTRXSTSE |
| 16 | 42300139 | MONITOR, TIRE PRESSURE (except Japan) | FLTRXSTSE |
| 16 | 42300140 | MONITOR, TIRE PRESSURE (Japan only) | FLTRXSTSE |
| 17 | 42300141 | VALVE STEM, 90 degree (black) | FLTRXSTSE |
| 18 | 41500210 | BRAKE DISC (2) | FLTRXSTSE |
| 19 | 70631-08 | CLIP, conduit (3) | FLTRXSTSE |
| 20 | 42300001A | WEIGHT, 1/2 oz. (black) | FLTRXSTSE |
| 21 | 43100045 | TIRE | FLTRXSTSE |
| 22 | 43300951 | WHEEL ASSEMBLY, 19 inch (gloss black) | FLTRXSTSE |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLTRXSTSE |
| 2 | 9252A | BALL BEARING, with encoder, ABS | FLTRXSTSE |
| 3 | 9276B | BALL BEARING (3) | FLTRXSTSE |
| 4 | 10147 | CLIP, connector | FLTRXSTSE |
| 5 | 11843 | SPACER, compensator | FLTRXSTSE |
| 6 | 11848 | SPACER | FLTRXSTSE |
| 7 | 40615-08 | SENSOR, wheel speed, ABS, with 10147, 72607-08, 72608-08, 72639-10 | FLTRXSTSE |
| 8 | 41123-79 | CAP, tire valve | FLTRXSTSE |
| 9 | 41229-08 | SPRING CLIP | FLTRXSTSE |
| 10 | 41349-07 | SLEEVE, bearing spacer | FLTRXSTSE |
| 11 | 41810-08C | BRAKE DISC | FLTRXSTSE |
| 12 | 43000203 | AXLE CAM | FLTRXSTSE |
| 13 | 43567-92 | SCREW (5) | FLTRXSTSE |
| 14 | 43200045 | TIRE | FLTRXSTSE |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLTRXSTSE |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLTRXSTSE |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket (black) | FLTRXSTSE |
| 18 | 11900155 | O-RING | FLTRXSTSE |
| 19 | 10201167 | SCREW | FLTRXSTSE |
| 20 | 42300139 | MONITOR, TIRE PRESSURE (All except Japan, JP2) | FLTRXSTSE |
| 20 | 42300140 | MONITOR, TIRE PRESSURE (Japan, JP2) | FLTRXSTSE |
| 21 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300139, 42300141 (all except Japan, JP2) | FLTRXSTSE |
| 21 | 42300143 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300140, 42300141 (Japan, JP2) | FLTRXSTSE |
| 22 | 42300141 | VALVE STEM, 90 degree angle (black) | FLTRXSTSE |
| 23 | 40900928 | WHEEL, seven spoke (gloss black) | FLTRXSTSE |
| 24 | 42300001A | WEIGHT, 1/2 oz. cast wheels (black) | FLTRXSTSE |
| 25 | 43000207 | AXLE, rear | FLTRXSTSE |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLTRXSTSE |
| 2 | 10200223 | SCREW (2) | FLTRXSTSE |
| 3 | 10201326 | SCREW (8) | FLTRXSTSE |
| 4 | 41600390 | BRACKET, brake line | FLTRXSTSE |
| 5 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLTRXSTSE |
| 6 | 45900330A | BRACKET, upper fork stem | FLTRXSTSE |
| 7 | 45900331 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLTRXSTSE |
| 8 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLTRXSTSE |
| 9 | 881A | SCREW | FLTRXSTSE |
| 10 | 45700070 | WASHER, stem | FLTRXSTSE |
| 11 | 69200536 | TERMINAL, ring, 12-14 AWG | FLTRXSTSE |
| 12 | 72053-92 | HOUSING, one-way pin (black) | FLTRXSTSE |
| 13 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLTRXSTSE |
| 14 | 11785 | FASTENER | FLTRXSTSE |
| 15 | 69203096A | BRACKET, electrical mount | FLTRXSTSE |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 45500576 | SEAL, slider (2) | FLTRXSTSE |
| 2 | 45500577 | STOPPER RING (2) | FLTRXSTSE |
| 3 | 45500578 | SEAL (2) | FLTRXSTSE |
| 4 | 45500579 | GUIDE BUSHING (2) | FLTRXSTSE |
| 5 | 45500580 | SEAL SPACER (2) | FLTRXSTSE |
| 6 | 45500581 | SLIDER BUSHING (2) | FLTRXSTSE |
| 7 | 45500589 | DUST SEAL (2) | FLTRXSTSE |
| 8 | 45500593 | SPRING COLLAR (2) | FLTRXSTSE |
| 9 | 45500600 | SPRING JOINT (2) | FLTRXSTSE |
| 10 | 45500754 | COLLAR, spring, rubber (2) | FLTRXSTSE |
| 11 | 45500583 | CAP, FORK TUBE, left | FLTRXSTSE |
| 11 | 45500584 | CAP, FORK TUBE, right | FLTRXSTSE |
| 12 | 45500825 | BOLT (2) | FLTRXSTSE |
| 13 | 45500843 | OUTER TUBE (2) | FLTRXSTSE |
| 14 | 45500861 | SPRING (2) | FLTRXSTSE |
| 15 | 45500869 | SLIDER, fork, with 45500850 (left) | FLTRXSTSE |
| 16 | 45500868 | SLIDER, fork, with 45500851 (right) | FLTRXSTSE |
| 17 | 45500850 | AXLE HOLDER (left) | FLTRXSTSE |
| 18 | 45500851 | AXLE HOLDER (right) | FLTRXSTSE |
| 19 | 45500862 | DAMPER , fork (left) | FLTRXSTSE |
| 20 | 45500863 | DAMPER , fork (right) | FLTRXSTSE |
| 21 | 45500582 | STOPPER , spring seat (2) | FLTRXSTSE |
| 22 | 46353-06 | CENTERING PLATE (2) | FLTRXSTSE |
| 23 | 7468M | NUT (2) | FLTRXSTSE |
| 24 | 45400341 | FORK ASSEMBLY (left) | FLTRXSTSE |
| 25 | 45400342 | FORK ASSEMBLY (right) | FLTRXSTSE |
| 26 | 67900659 | REFLECTOR, with 67900212A(amber) (2) | FLTRXSTSE |
| 27 | 67900212A | REFLECTOR (amber) (2) | FLTRXSTSE |
| 28 | 45800157 | COVER, fork tube (left) | FLTRXSTSE |
| 29 | 45800158 | COVER, fork tube (right) | FLTRXSTSE |
| 30 | 45500132 | SCREW (right) | FLTRXSTSE |
| 31 | 10200922 | SCREW (4) | FLTRXSTSE |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | SCREW (4) | FLTRXSTSE |
| 2 | 6590HW | WASHER (4) | FLTRXSTSE |
| 3 | 54000316 | REAR SHOCK ABSORBER, assembly (left) | FLTRXSTSE |
| 4 | 54000317 | REAR SHOCK ABSORBER, assembly (right) | FLTRXSTSE |
| 5 | 10200588 | SCREW (4) | FLTRXSTSE |
FRAME AND JIFFY STAND
| Index No. | Part No. | Description | Model(s) |
| 1 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLTRXSTSE |
| 2 | 3445 | BOLT | FLTRXSTSE |
| 3 | 3594 | SCREW | FLTRXSTSE |
| 4 | 4688 | SCREW (2) | FLTRXSTSE |
| 5 | 4924 | SCREW (2) | FLTRXSTSE |
| 6 | 14000827 | CLEAR OVERLAY, VIN label | FLTRXSTSE |
| 7 | 12200271 | CLIP | FLTRXSTSE |
| 8 | 6116 | WASHER | FLTRXSTSE |
| 9 | 7495 | NUT (2) | FLTRXSTSE |
| 10 | 10177 | CABLE STRAP, anchored, jiffy stand | FLTRXSTSE |
| 11 | 10039 | CABLE STRAP (6) | FLTRXSTSE |
| 12 | 10264 | CLIP, clutch line (2) | FLTRXSTSE |
| 13 | 47000344 | FRAME, main, with bearing cups (also order 45700009) | FLTRXSTSE |
| 14 | 49000242 | ENGINE GUARD, KIT (black) | FLTRXSTSE |
| 15 | 49725-07A | SPRING, jiffy stand | FLTRXSTSE |
| 16 | 50015-74A | LEG STOP | FLTRXSTSE |
| 17 | 50000149 | LEG, jiffy stand (black) | FLTRXSTSE |
| 18 | 50000143 | BRACKET, jiffy stand (black) | FLTRXSTSE |
| 19 | 50126-08B | SENSOR, jiffy stand, with 72169-07, 72511-07BK and 73213-07 | FLTRXSTSE |
| 20 | 50245-07 | BUMPER, jiffy stand | FLTRXSTSE |
| 21 | 72169-07 | TERMINAL, pin, 16-20 AWG (3) | FLTRXSTSE |
| 22 | 72511-07BK | HOUSING, three-way pin (black) | FLTRXSTSE |
| 23 | 73213-07 | RETAINER, anchored | FLTRXSTSE |
| 24 | 10200546 | SCREW | FLTRXSTSE |
| 25 | 10800025A | CLIP, conduit, rosebud (2) | FLTRXSTSE |
| 26 | 12200221 | CLIP, retaining | FLTRXSTSE |
| 27 | 12600197 | FASTENER, plastic (2) | FLTRXSTSE |
| 28 | 882 | SCREW (2) | FLTRXSTSE |
| 29 | 10200242 | SCREW (black) (2) | FLTRXSTSE |
| 30 | 10300129 | WASHER (2) | FLTRXSTSE |
| 31 | 49000243 | CAP, with 10201242 (2) | FLTRXSTSE |
| 32 | 90493-83 | PLUG (6) | FLTRXSTSE |
COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 11650 | GROMMET, side cover (6) | FLTRXSTSE |
| 2 | 61301292 | PANEL, trim, cover (right) | FLTRXSTSE |
| 2 | 61301291 | PANEL, trim, cover (left) | FLTRXSTSE |
| 3 | 57200431EXZ | SIDE COVER, with 61301291 (left) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 3 | 57200431EWR | SIDE COVER, with 61301292 (left) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 3 | 57200398EXZ | SIDE COVER, with 61301291 (right) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 3 | 57200398EWR | SIDE COVER, with 61301292 (right) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 4 | 69202720A | TRAY, wire trough (main harness) with 69202637 | FLTRXSTSE |
| 5 | 69202636A | COVER, wire trough (main harness) | FLTRXSTSE |
| 6 | 69202637 | CLIP (2) | FLTRXSTSE |
FRAME AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (4) | FLTRXSTSE |
| 2 | 3536 | BOLT (6) | FLTRXSTSE |
| 3 | 6532 | WASHER (6) | FLTRXSTSE |
| 4 | 6982 | WASHER, hex cup (2) | FLTRXSTSE |
| 5 | 9208 | BEARING (2) | FLTRXSTSE |
| 6 | 11779 | FASTENER, push-in (black) | FLTRXSTSE |
| 7 | 47540-11 | SHAFT, rear fork | FLTRXSTSE |
| 8 | 47549-09A | REAR FORK, with 9208, 11779 and 48489-02 | FLTRXSTSE |
| 9 | 47584-09 | RUBBER MOUNT (2) | FLTRXSTSE |
| 10 | 48079-09BHP | FRAME, rear | FLTRXSTSE |
| 11 | 48487-02 | SPACER, outer (2) | FLTRXSTSE |
| 12 | 48489-02 | SPACER, inner (2) | FLTRXSTSE |
| 13 | 67875-11 | CAP (2) | FLTRXSTSE |
| 14 | 16400005 | BRACKET, rear fork (left) | FLTRXSTSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 6441 | WASHER | FLTRXSTSE |
| 2 | 10400077 | NUT (2) | FLTRXSTSE |
| 3 | 10500203 | SCREW, seat | FLTRXSTSE |
| 4 | 14100881 | MEDALLION, seat screw | FLTRXSTSE |
| 5 | 52000715 | SEAT, rider (black/red trim) | FLTRXSTSE |
| 6 | 61301370 | COWL, passenger, includes 61301382 (forged carbon fiber) | FLTRXSTSE |
| 7 | 61301382 | GASKET, cowl, front | FLTRXSTSE |
FOOTBOARDS, RIDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200429 | SCREW (2) | FLTRXSTSE |
| 2 | 4688 | SCREW (2) | FLTRXSTSE |
| 3 | 7038 | LOCKWASHER (2) | FLTRXSTSE |
| 4 | 7716 | LOCKNUT (4) | FLTRXSTSE |
| 5 | 33130-07A | WEAR PEG (2) | FLTRXSTSE |
| 6 | 10200986 | BOLT, footboard hinge (2) | FLTRXSTSE |
| 7 | 50622-09A | BRACKET SUPPORT, footboard, rear (left) (black) | FLTRXSTSE |
| 8 | 50518-09 | BRACKET SUPPORT, footboard, rear (right) (black) | FLTRXSTSE |
| 9 | 50502582 | MOUNTING BRACKET, front footboard (right) (gloss black) | FLTRXSTSE |
| 9 | 50502591 | MOUNTING BRACKET, front footboard (left) (gloss black) | FLTRXSTSE |
| 10 | 50502589 | FOOTBOARD, support plate (right) | FLTRXSTSE |
| 10 | 50502590 | FOOTBOARD, support plate (left) | FLTRXSTSE |
| 11 | 50502634 | FOOTBOARD, frame assembly (right) (gloss black) | FLTRXSTSE |
| 11 | 50502635 | FOOTBOARD, frame assembly (left) (gloss black) | FLTRXSTSE |
| 12 | 10040 | CLIP (8) | FLTRXSTSE |
| 13 | 67900009 | BUMPER (8) | FLTRXSTSE |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2479 | SCREW (4) | FLTRXSTSE |
| 2 | 58900624 | FENDER, front (forged carbon fiber) | FLTRXSTSE |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (4) | FLTRXSTSE |
| 2 | 6703 | WASHER | FLTRXSTSE |
| 3 | 7434 | WASHER (2) | FLTRXSTSE |
| 4 | 3612 | SCREW (6) | FLTRXSTSE |
| 5 | 7531 | LOCKNUT (2) | FLTRXSTSE |
| 6 | 7686 | LOCKNUT | FLTRXSTSE |
| 7 | 7880 | NUT (4) | FLTRXSTSE |
| 8 | 10102 | CLIP (2) | FLTRXSTSE |
| 9 | 11891 | SPACER (2) | FLTRXSTSE |
| 10 | 59500519 | STUD PLATE | FLTRXSTSE |
| 11 | 59768-97 | FENDER SEAT NUT KIT | FLTRXSTSE |
| 12 | 59786-01 | BOSS, fender mounting, inner (4) | FLTRXSTSE |
| 13 | 59788-01 | WASHER (4) | FLTRXSTSE |
| 14 | 67801341 | STUD PLATE (2) | FLTRXSTSE |
| 15 | 60463-09B | FENDER, rear (prime) | FLTRXSTSE |
| 15 | 59501021EWR | FENDER, rear (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 15 | 59501021EXZ | FENDER, rear (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 16 | 91140-09 | BRACKET, fender to saddlebag support | FLTRXSTSE |
| 17 | 59501044EWR | TRIM, FENDER, light housing (right) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 17 | 59501044EXZ | TRIM, FENDER, light housing (right) (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 18 | 59501045EWR | TRIM, FENDER, light housing (left) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 18 | 59501045EXZ | TRIM, FENDER, light housing (left) (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 19 | 67801344 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, amber turnsignal, and bracket (right) | FLTRXSTSE |
| 20 | 67801345 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, amber turnsignal, and bracket (left) | FLTRXSTSE |
| 21 | 10200628 | SCREW (6) | FLTRXSTSE |
| 22 | 7499 | NUT (6) | FLTRXSTSE |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (2) | FLTRXSTSE |
| 2 | 6119 | WASHER (2) | FLTRXSTSE |
| 3 | 69203119 | BRACKET, electrical mount, license plate | FLTRXSTSE |
| 4 | 60916-09 | COVER | FLTRXSTSE |
| 5 | 67900655 | LAMP ASSEMBLY, with 72905-11 | FLTRXSTSE |
| 6 | 67900642EWR | COVER, license plate lamp (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 6 | 67900642DH | COVER, license plate lamp (Vivid Black) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 7 | 69490-07 | REFLECTOR | FLTRXSTSE |
| 8 | 72905-11 | HOUSING, two-way pin | FLTRXSTSE |
| 9 | 67900649 | GASKET, license plate holder | FLTRXSTSE |
| 10 | 67900640 | BRACKET, license plate | FLTRXSTSE |
| 11 | 67900243 | BRACKET | FLTRXSTSE |
| 12 | 10201386 | SCREW (2) | FLTRXSTSE |
| 13 | 10201279 | SCREW (2) | FLTRXSTSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLTRXSTSE |
| 2 | 61400716 | BOOT, tank bracket (right) | FLTRXSTSE |
| 3 | 61400717 | BOOT, tank bracket (left) | FLTRXSTSE |
| 4 | 10201318 | SCREW, filler neck (6) | FLTRXSTSE |
| 5 | 61001119 | FILLER NECK (gloss black) includes 61100207 | FLTRXSTSE |
| 6 | 61100207 | GASKET, filler neck | FLTRXSTSE |
| 7 | 61000986 | FUEL TANK, prime | FLTRXSTSE |
| 7 | 61001099EWR | FUEL TANK, with graphics (Raven Metallic) (performance 1, M25 paint scheme) **RESTRICTED SALES PART** | FLTRXSTSE |
| 7 | 61001099EXZ | FUEL TANK, with graphics (Golden White Pearl) (performance 2, M26 paint scheme) **RESTRICTED SALES PART** | FLTRXSTSE |
| 8 | 10500167 | PLUG, drain, fuel tank, includes o-ring | FLTRXSTSE |
FUEL TANK VENT HOSES (Australia, Canada, Domestic)
| Index No. | Part No. | Description | Model(s) |
| 1 | 70681-09 | RETAINER (2) | FLTRXSTSE |
| 2 | 10039 | CABLE STRAP (2) | FLTRXSTSE |
| 3 | 10800182 | CLAMP, hose (2) | FLTRXSTSE |
| 4 | 60800120 | HOSE, vapor vent to mid-point | FLTRXSTSE |
| 5 | 61100204 | LINE, vapor vent, mid-point to atmosphere | FLTRXSTSE |
| 6 | 61100202 | HOSE, overfill, upper | FLTRXSTSE |
| 7 | 61100206 | LINE, overfill, lower | FLTRXSTSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200032 | SCREW | FLTRXSTSE |
| 2 | 8142 | NUT, speed | FLTRXSTSE |
| 3 | 4856 | SCREW | FLTRXSTSE |
| 4 | 70900948 | GASKET, fuel filler housing | FLTRXSTSE |
| 5 | 14101920 | CONSOLE INSERT (black/hot rod red) **RESTRICTED SALES PART** | FLTRXSTSE |
| 6 | 70901170 | TRIM, console (sold as 1 part to be split to service both sides of console) | FLTRXSTSE |
| 7 | 70901169 | CONSOLE ASSEMBLY (black, includes 70900948, 70901170, does NOT include insert 14101920) | FLTRXSTSE |
INFOTAINMENT CONTROL UNIT (IFCU)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201339 | SCREW (4) | FLTRXSTSE |
| 2 | 10201370 | SCREW (4) | FLTRXSTSE |
| 3 | 61400719 | TRIM, infotainment control unit (IFCU) | FLTRXSTSE |
| 4 | 70901090A | INFOTAINMENT CONTROL UNIT, HD, option code 939 (California, Canada, Domestic, HDI) | FLTRXSTSE |
| 4 | 70901092A | INFOTAINMENT CONTROL UNIT, DAB, option code 940 (Australia, England, HDI) | FLTRXSTSE |
| 4 | 70901093A | INFOTAINMENT CONTROL UNIT, option code 941 (China, HDI, Japan) | FLTRXSTSE |
NACELLE
| Index No. | Part No. | Description | Model(s) |
| 1 | 2933 | SCREW (2) | FLTRXSTSE |
| 2 | 3588 | SCREW (2) | FLTRXSTSE |
| 3 | 12200025 | CLIP (3) | FLTRXSTSE |
| 4 | 14101866 | MEDALLION, lock, with 12200025 | FLTRXSTSE |
| 5 | 57300403EWR | NACELLE, cover, (left) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 5 | 57300403DH | NACELLE, cover, (left) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 6 | 70901104EWR | NACELLE, cover, with 12200025 (right) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 6 | 70901104DH | NACELLE, cover, with 12200025 (right) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 7 | 12600358 | FASTENER | FLTRXSTSE |
| 8 | 55801537 | PLUG, nacelle | FLTRXSTSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201216 | SCREW (5) | FLTRXSTSE |
| 2 | 61200091A | PUMP ASSEMBLY, fuel, complete, includes 61200097, 61200110 | FLTRXSTSE |
| 3 | 61200097 | GASKET, fuel pump | FLTRXSTSE |
| 4 | 61200100 | PRESSURE REGULATOR KIT, fuel | FLTRXSTSE |
| 5 | 61200101 | LEVEL SENDER, fuel | FLTRXSTSE |
| 6 | 61200102 | FILTER KIT, fuel | FLTRXSTSE |
| 7 | 61200110 | VALVE, fuel, check | FLTRXSTSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLTRXSTSE |
| 2 | 10800182 | CLAMP, hose (12) | FLTRXSTSE |
| 3 | 12200278 | CLIP, evap lines (2) | FLTRXSTSE |
| 4 | 70681-09 | RETAINER (2) | FLTRXSTSE |
| 5 | 31400137 | SOLENOID, purge valve | FLTRXSTSE |
| 6 | 60800109 | HOSE, mid-point to canister | FLTRXSTSE |
| 7 | 60800110 | HOSE, canister to purge solenoid | FLTRXSTSE |
| 8 | 60800111 | HOSE, purge solenoid to induction module | FLTRXSTSE |
| 9 | 60800116 | CARBON CANISTER | FLTRXSTSE |
| 10 | 60800120 | HOSE, fuel tank vapor valve to mid-point | FLTRXSTSE |
| 11 | 61100202 | HOSE, overfill, upper | FLTRXSTSE |
| 12 | 61100206 | HOSE, overfill, lower | FLTRXSTSE |
| NOTE: These parts are required for configurations: California, China, England, HDI and Japan. | |||
WINDSHIELD, FAIRING AND FRONT LIGHTING (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200721 | SCREW (2) | FLTRXSTSE |
| 2 | 10200890 | SCREW (4) | FLTRXSTSE |
| 3 | 10201350 | SCREW (6) | FLTRXSTSE |
| 4 | 10201389 | SCREW (4) | FLTRXSTSE |
| 5 | 12100141 | GROMMET, rubber (4) | FLTRXSTSE |
| 6 | 12200025 | CLIP, panel (2) | FLTRXSTSE |
| 7 | 29200178 | OUTER COVER, air duct, includes 57400658 | FLTRXSTSE |
| 8 | 29200180 | OUTLET, air duct, includes 12200025 | FLTRXSTSE |
| 9 | 29200181 | VANE, air duct | FLTRXSTSE |
| 10 | 29200182 | TOP FLOOR, air duct, includes 10200721, 29200181, 29200189, 29200193 | FLTRXSTSE |
| 11 | 29200189 | PILLOW BLOCK, air duct vane | FLTRXSTSE |
| 12 | 29200193 | END CAP, air duct button | FLTRXSTSE |
| 13 | 57300409 | BRACKET KIT, windshield, includes 10201350, and left and right brackets | FLTRXSTSE |
| 14 | 57400658 | MOUNT, windshield isolator (2) | FLTRXSTSE |
| 15 | 57400617 | WINDSHIELD, KIT (dark) | FLTRXSTSE |
| 16 | 57640-08 | TORQUE HINGE | FLTRXSTSE |
WINDSHIELD, FAIRING AND FRONT LIGHTING (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 7900 | CLIP NUT (4) | FLTRXSTSE |
| 2 | 10200723 | SCREW (2) | FLTRXSTSE |
| 3 | 10200721 | SCREW (2) | FLTRXSTSE |
| 4 | 10201350 | SCREW (2) | FLTRXSTSE |
| 5 | 10201351 | SCREW (6) | FLTRXSTSE |
| 6 | 10201368 | SCREW (4) | FLTRXSTSE |
| 7 | 10201394 | SCREW (4) | FLTRXSTSE |
| 8 | 57001942 | FAIRING, outer, unpainted, includes 7900 | FLTRXSTSE |
| 8 | 57001913EWR | FAIRING, outer, includes 7900 (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 8 | 57001913EXZ | FAIRING, outer, includes 7900 (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 9 | 57001986 | HINGE SERVICE KIT, wing spoiler, includes one torque hinge, one snap hinge, one hinge plug (2) | FLTRXSTSE |
| 10 | 57100421 | SIDE FAIRING, unpainted (left) | FLTRXSTSE |
| 10 | 57100423EWR | SIDE FAIRING (left) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 10 | 57100423EXZ | SIDE FAIRING (left) (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 11 | 57100422 | SIDE FAIRING, unpainted (right) | FLTRXSTSE |
| 11 | 57100424EWR | SIDE FAIRING (right) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 11 | 57100424EXZ | SIDE FAIRING (right) (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 12 | 57200375B | WING ASSEMBLY, adjustable spoiler, with 57640-08 (left) | FLTRXSTSE |
| 13 | 57200376B | WING ASSEMBLY, adjustable spoiler, with 56740-08 (right) | FLTRXSTSE |
| 14 | 57300393 | PANEL, fairing filler | FLTRXSTSE |
| 15 | 67700660 | HEADLAMP, assembly, LED | FLTRXSTSE |
FAIRING, INNER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (10) | FLTRXSTSE |
| 2 | 7900 | SCREW (2) | FLTRXSTSE |
| 3 | 11668 | FOAM PAD (6) | FLTRXSTSE |
| 4 | 10200721 | SCREW, plastite (not all illustrated) (38) | FLTRXSTSE |
| 5 | 10201339 | SCREW (14) | FLTRXSTSE |
| 6 | 69203090 | USB-C CABLE ASSEMBLY | FLTRXSTSE |
| 7 | 76000127 | LATCH, media compartment door (2) | FLTRXSTSE |
| 8 | 76001153 | ENCLOSURE, speaker, right, includes 10200721, 11668 | FLTRXSTSE |
| 9 | 76001154 | ENCLOSURE, speaker, left, includes 10200721, 11668 | FLTRXSTSE |
| 10 | 76001202 | HINGE, media compartment door, right | FLTRXSTSE |
| 11 | 76001203 | HINGE, media compartment door, left | FLTRXSTSE |
| 12 | 76001206 | COMPARTMENT, media storage, right | FLTRXSTSE |
| 13 | 76001207 | COMPARTMENT, media storage, left | FLTRXSTSE |
| 14 | 76001208 | LINER, felt, media compartment, right (not shown) | FLTRXSTSE |
| 15 | 76001209 | LINER, felt, media compartment, left (not shown) | FLTRXSTSE |
| 16 | 57001885 | INNER FAIRING (unpainted) | FLTRXSTSE |
| 16 | 57001665DH | INNER FAIRING (Vivid Black, performance 2 M26 paint scheme) | FLTRXSTSE |
| 16 | 57001665EWR | INNER FAIRING (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 17 | 76001233DH | MEDIA DOOR ASSEMBLY (left) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 17 | 76001233EWR | MEDIA DOOR ASSEMBLY (left) (Raven Metallic performance 1, M25 paint scheme) | FLTRXSTSE |
| 18 | 76001234DH | MEDIA DOOR ASSEMBLY (right) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 18 | 76001234EWR | MEDIA DOOR ASSEMBLY (right) (Raven Metallic performance 1, M25 paint scheme) | FLTRXSTSE |
| 19 | 10177 | CABLE STRAP | FLTRXSTSE |
| 20 | 29200169 | AIR DUCT (left) | FLTRXSTSE |
| 21 | 29200168 | AIR DUCT (right) | FLTRXSTSE |
FAIRING, INNER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2479 | SCREW (2) | FLTRXSTSE |
| 2 | 3787 | SCREW (2) | FLTRXSTSE |
| 3 | 6703 | WASHER (2) | FLTRXSTSE |
| 4 | 7601 | NUT, flange, locking (2) | FLTRXSTSE |
| 5 | 8144 | CLIP NUT (2) | FLTRXSTSE |
| 6 | 10200120 | SCREW (4) | FLTRXSTSE |
| 7 | 10201339 | SCREW (8) | FLTRXSTSE |
| 8 | 12100153 | GROMMET (4) | FLTRXSTSE |
| 9 | 47200266 | BRACKET, fairing mount | FLTRXSTSE |
| 10 | 47200945 | BRACKET, inner fairing support, main | FLTRXSTSE |
| 11 | 47201041 | BRACKET, fairing support, lower (black) | FLTRXSTSE |
| 12 | 57300388 | SCREW, hex (2) | FLTRXSTSE |
| 13 | 57300444 | BRACKET, fairing, right (gloss black) | FLTRXSTSE |
| 14 | 57300445 | BRACKET, fairing, left (gloss black) | FLTRXSTSE |
| 15 | 69200702 | GUIDE, main wire harness, left | FLTRXSTSE |
| 16 | 69202786 | GUIDE, main wire harness, right | FLTRXSTSE |
| 17 | 10177 | CABLE STRAP | FLTRXSTSE |
| 18 | 10200723 | SCREW (2) | FLTRXSTSE |
| 19 | 7900 | CLIP NUT (2) | FLTRXSTSE |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | HOUSING (2) | FLTRXSTSE |
| 2 | 6101 | WASHER (2) | FLTRXSTSE |
| 3 | 32700167 | SENSOR, TWIST GRIP | FLTRXSTSE |
| 4 | 72908-11 | HOUSING, four-way socket, clutch and brake switch connectors (2) | FLTRXSTSE |
| 5 | 69200308 | TERMINAL, socket, clutch and brake switch connectors (6) | FLTRXSTSE |
| 6 | 5118 | SEAL PIN, clutch and brake switch connectors (2) | FLTRXSTSE |
| 7 | 69200306 | HOUSING, four-way socket (white) (2) | FLTRXSTSE |
| 8 | 69200307 | TERMINAL, socket (38) | FLTRXSTSE |
| 9 | 69201162 | CONNECTOR, six-way socket | FLTRXSTSE |
| 10 | 69201712 | CONNECTOR, eight-way socket (3) | FLTRXSTSE |
| 11 | 69203017 | WIRING HARNESS, JUMPER (left) | FLTRXSTSE |
| 12 | 69203018 | WIRING HARNESS, JUMPER (right) | FLTRXSTSE |
| 13 | 69203192 | CONNECTOR BOOT (2) | FLTRXSTSE |
| 14 | 71500609A | HAND CONTROL, includes 3, 18, cover and switchpack (right) (gloss black) | FLTRXSTSE |
| 15 | 71500610 | HAND CONTROL, includes cover and switchpack (left) (gloss black) | FLTRXSTSE |
| 16 | 71500611A | HAND CONTROL COVER, rear (right) (gloss black) | FLTRXSTSE |
| 17 | 71500612 | HAND CONTROL COVER, rear (left) (gloss black) | FLTRXSTSE |
| 18 | 71500660 | BRIDGE, WIRE (right) | FLTRXSTSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3153 | SCREW (4) | FLTRXSTSE |
| 2 | 4240 | SCREW (2) | FLTRXSTSE |
| 3 | 9853 | TAB, fastening | FLTRXSTSE |
| 4 | 56159-73 | CUP WASHER (4) | FLTRXSTSE |
| 5 | 56161-83A | BUSHING, rubber (4) | FLTRXSTSE |
| 6 | 56163-93 | SPACER (2) | FLTRXSTSE |
| 7 | 72053-92 | HOUSING, one-way pin (black) | FLTRXSTSE |
| 8 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLTRXSTSE |
| 9 | 12600032 | SCREW (2) | FLTRXSTSE |
| 10 | 55801486 | HANDLEBAR, KIT (black) | FLTRXSTSE |
| 11 | 55900308 | CLAMP (upper) (black) | FLTRXSTSE |
| 12 | 55801485 | RISER KIT, handlebar, with 12600032, 55900308 (black) | FLTRXSTSE |
| 13 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69203195 | FLTRXSTSE |
| 14 | 69203195 | TERMINAL, ring | FLTRXSTSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 56100600 | HANDGRIP (left) (black) | FLTRXSTSE |
| 2 | 56100566 | THROTTLE ASSEMBLY, with grip (right) (black) | FLTRXSTSE |
| 3 | 56100564 | KIT, GRIPS, with 56100566, 56100500 (black) | FLTRXSTSE |
EXHAUST SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200569 | SCREW | FLTRXSTSE |
| 2 | 3929 | SCREW (4) | FLTRXSTSE |
| 3 | 4705 | SCREW (2) | FLTRXSTSE |
| 4 | 7041 | LOCKWASHER (4) | FLTRXSTSE |
| 5 | 7593 | NUT (5) | FLTRXSTSE |
| 6 | 9955 | CLAMP, worm drive #24 (6) | FLTRXSTSE |
| 7 | 10039 | CABLE STRAP (2) | FLTRXSTSE |
| 8 | 9956 | CLAMP, worm drive #40 (2) | FLTRXSTSE |
| 9 | 11936 | GASKET, oxygen (O2) sensor (2) | FLTRXSTSE |
| 10 | 32700116 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLTRXSTSE |
| 11 | 65324-83B | GASKET, exhaust port (2) | FLTRXSTSE |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLTRXSTSE |
| 13 | 65328-83A | CLAMP, exhaust manifold (2) | FLTRXSTSE |
| 14 | 65723-85 | MOUNTING BRACKET (2) | FLTRXSTSE |
| 15 | 65724-85A | MOUNT, rubber (2) | FLTRXSTSE |
| 16 | 65900056 | GASKET (Australia, England, HDI, Japan, China) | FLTRXSTSE |
| 17 | 65900017A | GASKET (Australia, England, HDI, Japan, China) (2) | FLTRXSTSE |
| 18 | 66861-09B | CLAMP, exhaust pipe, hinged | FLTRXSTSE |
| 19 | 66881-09 | BRACKET, exhaust pipe hanger | FLTRXSTSE |
| 20 | 72177-07BK | HOUSING, four-way socket (black) | FLTRXSTSE |
| 21 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLTRXSTSE |
| 22 | 72444-07GY | HOUSING, four-way, socket (gray) | FLTRXSTSE |
| 23 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLTRXSTSE |
| 24 | 10900015A | STUD, exhaust | FLTRXSTSE |
| 25 | 32700130 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | FLTRXSTSE |
| 26 | 64901354 | MUFFLER (left) (California, Canada, Domestic) (titanium) | FLTRXSTSE |
| 26 | 64901352 | MUFFLER (left) (Australia, Brazil, England, HDI, Japan, China) (titanium) | FLTRXSTSE |
| 27 | 64901353 | MUFFLER (right) (Australia, Brazil, England, HDI, Japan, China) (titanium) | FLTRXSTSE |
| 27 | 64901355 | MUFFLER (right) (titanium) (California, Canada, Domestic) | FLTRXSTSE |
EXHAUST SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 28 | 65400435A | SHIELD, exhaust pipe, front (black onyx) | FLTRXSTSE |
| 29 | 65400436 | EXHAUST SHIELD ASSEMBLY, rear header pipe (black onyx) | FLTRXSTSE |
| 30 | 65400437 | EXHAUST SHIELD ASSEMBLY, catalytic converter (black onyx) | FLTRXSTSE |
| 31 | 65400438 | SHIELD, left exhaust pipe, rear (black onyx) | FLTRXSTSE |
| 32 | 32700124 | SENSOR, Oxygen (Australia, Brazil, England, HDI, Japan, China) | FLTRXSTSE |
| 33 | 65500042 | BRACKET, muffler strap, male | FLTRXSTSE |
| 34 | 65500043B | BRACKET, muffler strap, female | FLTRXSTSE |
| 35 | 65600451 | HEADER ASSEMBLY, catalytic (Domestic, California, Canada) (chrome) | FLTRXSTSE |
| 35 | 65600377 | HEADER ASSEMBLY, catalytic (Australia, Brazil, England, HDI, Japan, China) (chrome) | FLTRXSTSE |
| 36 | 65600178A | CROSSOVER PIPE ASSEMBLY (chrome) (California, Canada, Domestic) | FLTRXSTSE |
| 36 | 65600379 | CROSSOVER PIPE ASSEMBLY (chrome) (Australia, Brazil, England, HDI, Japan, China) | FLTRXSTSE |
| 37 | 65296-95B | CLAMP, muffler (2) | FLTRXSTSE |
| 38 | 65900015 | CLAMP, muffler | FLTRXSTSE |
| 39 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
WIRING HARNESS, MAIN (1 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG | FLTRXSTSE |
| 2 | 72364-06 | TERMINAL, socket, 10-14 AWG | FLTRXSTSE |
| 3 | 72414-07BK | HOUSING, six-way socket (black) | FLTRXSTSE |
| 4 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLTRXSTSE |
| 5 | 32700010 | SENSOR, temperature | FLTRXSTSE |
| 6 | 69200201 | HOUSING, two-way socket, key B | FLTRXSTSE |
| 7 | 69201164 | TERMINAL, pin, 22 AWG | FLTRXSTSE |
| 8 | 69201652 | CONNECTOR, four-way pin | FLTRXSTSE |
WIRING HARNESS, MAIN (2 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 6, 8, 9 (7) | FLTRXSTSE |
| 2 | 72177-07BK | HOUSING, four-way socket (black) | FLTRXSTSE |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRXSTSE |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 7, 10, 11, 12 (5) | FLTRXSTSE |
| 5 | 72487-07BK | HOUSING, 12-way socket (black) (2) | FLTRXSTSE |
| 6 | 72606-08 | HOUSING, two-way socket (black) | FLTRXSTSE |
| 7 | 72609-08 | SECONDARY LOCK, two-way socket | FLTRXSTSE |
| 8 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRXSTSE |
| 9 | 69201164 | TERMINAL, pin, 22 AWG (12) | FLTRXSTSE |
| 10 | 69201652 | CONNECTOR, four-way pin | FLTRXSTSE |
| 11 | 69201711 | HOUSING, eight-way pin | FLTRXSTSE |
| 12 | 69201722 | CONNECTOR, clip | FLTRXSTSE |
| 13 | 69202491 | TERMINAL, pin, 20 AWG (2) | FLTRXSTSE |
| 14 | 69202492 | SEAL PIN (green) (2) | FLTRXSTSE |
| 15 | 69202959 | HOUSING, two-way pin (black) | FLTRXSTSE |
| 16 | 10177 | CABLE STRAP, anchored (2) | FLTRXSTSE |
| 17 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLTRXSTSE |
WIRING HARNESS, MAIN (3 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10081 | CABLE STRAP, double loop | FLTRXSTSE |
| 2 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLTRXSTSE |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLTRXSTSE |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLTRXSTSE |
| 6 | 72066-06A | HOUSING, four-way socket (black) | FLTRXSTSE |
| 7 | 72098-06 | HOUSING, two-way socket (gray) | FLTRXSTSE |
| 8 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) terminal location A (2) | FLTRXSTSE |
| 9 | 72110-06 | TERMINAL, socket, 16-18 AWG, terminal location A (2) | FLTRXSTSE |
| 10 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLTRXSTSE |
| 11 | 72175-07BK | HOUSING, four-way pin | FLTRXSTSE |
| 12 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLTRXSTSE |
| 13 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLTRXSTSE |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLTRXSTSE |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLTRXSTSE |
| 16 | 72499-07 | WIRE SEAL, 20-22 AWG (green) terminal location B (8) | FLTRXSTSE |
| 17 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location B (4) | FLTRXSTSE |
| 18 | 69201299 | HOUSING, socket, two-way, key B (2) | FLTRXSTSE |
| 19 | 69201300 | TERMINAL, socket, 20 AWG (6) | FLTRXSTSE |
| 20 | 69201301 | WIRE SEAL, 22 AWG (green) (10) | FLTRXSTSE |
| 21 | 69201393 | HOUSING, two-way socket (black) | FLTRXSTSE |
| 22 | 69201397 | HOUSING, two-way pin (gray) | FLTRXSTSE |
| 23 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRXSTSE |
| 24 | 69201407 | TERMINAL, socket, 20 AWG (4) | FLTRXSTSE |
| 25 | 69201441 | HOUSING, four-way socket | FLTRXSTSE |
| 26 | 69201394 | HOUSING, six-way socket (black) | FLTRXSTSE |
| 27 | 69201395 | SECONDARY LOCK, six-way socket | FLTRXSTSE |
| 28 | 69201396 | TERMINAL, socket, 20 AWG, terminal location B, C, D, E (4) | FLTRXSTSE |
| 29 | 69201416 | SECONDARY LOCK, six-way socket (4) | FLTRXSTSE |
| 30 | 10065 | CABLE STRAP | FLTRXSTSE |
| 31 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location A, F (2) | FLTRXSTSE |
WIRING HARNESS, MAIN (4 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLTRXSTSE |
| 2 | 72064-06 | HOUSING, three-way socket (black) | FLTRXSTSE |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLTRXSTSE |
| 4 | 72175-07BK | HOUSING, four-way pin | FLTRXSTSE |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRXSTSE |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location B1 | FLTRXSTSE |
| 7 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location H4 | FLTRXSTSE |
| 8 | 72229-11 | SEAL PIN, orange, terminal location G1, G2, G3, G4, H1, H2, H3 (7) | FLTRXSTSE |
| 9 | 72256-11 | SEAL PIN, white, terminal location A1, A2, A3, A4, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4 (23) | FLTRXSTSE |
| 10 | 72296-95 | TERMINAL, socket, 14-16 AWG, terminal location 12, 20, 21, 22, 23, 24 (6) | FLTRXSTSE |
| 11 | 72299-95 | PLUG, cavity (2) | FLTRXSTSE |
| 12 | 72308-97 | TERMINAL, socket, 12-14 AWG, terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLTRXSTSE |
| 13 | 72356-95 | TERMINAL, socket, 18-20 AWG, terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLTRXSTSE |
| 14 | 72473-07 | SEAL PIN, 20 A (yellow) (6) | FLTRXSTSE |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLTRXSTSE |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLTRXSTSE |
| 17 | 69201962 | COVER, connector | FLTRXSTSE |
| 18 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLTRXSTSE |
| 19 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRXSTSE |
| 20 | 72632-10 | PLUG, weather, four-way pin (2) | FLTRXSTSE |
| 21 | 69200194 | HOUSING, 24-way socket | FLTRXSTSE |
| 22 | 69200212 | CONNECTOR, battery tender, over-mold | FLTRXSTSE |
| 23 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLTRXSTSE |
| 24 | 69201890 | TERMINAL, socket, terminal location 1, 2, 3, 4, 5 (5) | FLTRXSTSE |
| 25 | 69202453 | TERMINAL, socket, terminal location 6, 7, 8, 14, 16, 17, 20, 21, 23, 24, 25, 28, 31, 43, 44, 49, 53, 67, 71, 77, 78, 80 (21) | FLTRXSTSE |
| 26 | 69201931 | HOUSING, two-way | FLTRXSTSE |
| 27 | 69201933 | HOUSING, 32-way | FLTRXSTSE |
| 28 | 69202028 | TERMINAL, pin plug (29) | FLTRXSTSE |
| 29 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) terminal location 1, 2, 3, 4, 5 (5) | FLTRXSTSE |
| 30 | 69202032 | SECONDARY LOCK | FLTRXSTSE |
| 31 | 69202098 | HOUSING, six-way socket (red) | FLTRXSTSE |
| 32 | 69202106 | WIRE SEAL, 1.6-1.7 mm (red/violet) | FLTRXSTSE |
WIRING HARNESS, MAIN (5 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 33 | 69202107 | SEAL PIN (light gray) | FLTRXSTSE |
| 34 | 69202109 | SECONDARY LOCK | FLTRXSTSE |
| 35 | 69202183 | TERMINAL, socket | FLTRXSTSE |
| 36 | 69202184 | SEAL PIN, 4.1-5.0 mm | FLTRXSTSE |
| 37 | 69202322 | HOUSING, 81-way socket | FLTRXSTSE |
| 38 | 69202996 | HOUSING, heated gear | FLTRXSTSE |
| 39 | 69202453 | TERMINAL, socket, terminal location 11, 26, 27, 29, 30, 32, 34, 36, 37, 38, 39, 41, 42, 47, 48, 52, 55, 65, 66, 70, 72, 74 (24) | FLTRXSTSE |
| 40 | 69203057 | CONNECTOR, COVER, 81-way housing | FLTRXSTSE |
| 41 | 72518-01 | HOUSING, two-way socket (red) | FLTRXSTSE |
| 42 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLTRXSTSE |
| 43 | 69200199 | WIRE SEAL, 18-20 AWG (purple) terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLTRXSTSE |
| 44 | 72298-95 | WIRE SEAL, 14-18 AWG (green) terminal location 12, 20, 21, 22, 23, 24 (6) | FLTRXSTSE |
| 45 | 69202104 | TERMINAL, socket, 22AWG (2) | FLTRXSTSE |
WIRING HARNESS, MAIN (6 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLTRXSTSE |
| 2 | 10177 | CABLE STRAP, anchored | FLTRXSTSE |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 9, 10, 11 (7) | FLTRXSTSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 4, 7, 9 (6) | FLTRXSTSE |
| 5 | 72209-11 | COVER, wire dress | FLTRXSTSE |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23 (16) | FLTRXSTSE |
| 7 | 72226-11 | TERMINAL, socket, 14-16 AWG (28) | FLTRXSTSE |
| 8 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 6, 11, 12 (4) | FLTRXSTSE |
| 9 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 6, 7, 8, 12 (5) | FLTRXSTSE |
| 10 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location 24, 25, 26, 27 (4) | FLTRXSTSE |
| 11 | 72256-11 | SEAL PIN, terminal location 10 | FLTRXSTSE |
| 12 | 72473-07 | SEAL PIN, terminal location 8, 10 (2) | FLTRXSTSE |
| 13 | 72488-07BK | HOUSING, 12-way pin (black) | FLTRXSTSE |
| 14 | 72720-07 | HOUSING, two-way socket (black) | FLTRXSTSE |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLTRXSTSE |
| 16 | 69200205 | PLUG, weather, 12-way pin | FLTRXSTSE |
| 17 | 69201932 | HOUSING, 28-way | FLTRXSTSE |
| 18 | 69202170 | TERMINAL, socket, 14-16 AWG, terminal location 1 | FLTRXSTSE |
| 19 | 69202171 | WIRE SEAL, 2.1-2.8 mm, terminal location 1 | FLTRXSTSE |
| 20 | 69202172 | TERMINAL, socket, 18-20 AWG, terminal location 2, 3, 4, 5 (4) | FLTRXSTSE |
| 21 | 69202173 | WIRE SEAL, 1.4-2.15 mm, terminal location 2, 3, 4, 5 (4) | FLTRXSTSE |
| 22 | 69202489 | TERMINAL, socket, 22 AWG, terminal location 20 | FLTRXSTSE |
| 23 | 76000925 | ANTENNA | FLTRXSTSE |
| 24 | 72487-07BK | HOUSING, 12-way socket (black) | FLTRXSTSE |
| 25 | 69201596 | TERMINAL, ring, 8-10 AWG | FLTRXSTSE |
| 26 | 69202219 | CONDUIT, shrink tube (black) | FLTRXSTSE |
| 27 | 9819 | TERMINAL, ring, 12 AWG (2) | FLTRXSTSE |
WIRING HARNESS, MAIN (7 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 9937 | TERMINAL, socket, 14-18 AWG, terminal location 3, 5 | FLTRXSTSE |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2 (6) | FLTRXSTSE |
| 3 | 72175-07BK | HOUSING, four-way pin | FLTRXSTSE |
| 4 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRXSTSE |
| 5 | 72291-94 | TERMINAL, socket 14-16 AWG (2) | FLTRXSTSE |
| 6 | 69203487 | CONNECTOR, starter housing | FLTRXSTSE |
| 7 | 72343-10 | TERMINAL, pin, 16-20 AWG, terminal location 3, 4 (2) | FLTRXSTSE |
| 8 | 72415-07GY | HOUSING, four-way pin (gray) | FLTRXSTSE |
| 9 | 72427-00 | TERMINAL, socket, 16-22 AWG, terminal location 1, 2, 4 (6) | FLTRXSTSE |
| 10 | 72606-08 | HOUSING, two-way socket (black) (2) | FLTRXSTSE |
| 11 | 72609-08 | SECONDARY LOCK, two-way socket | FLTRXSTSE |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRXSTSE |
| 13 | 72632-10 | PLUG, weather, four-way pin | FLTRXSTSE |
| 14 | 73213-07 | RETAINER, anchored | FLTRXSTSE |
| 15 | 10065 | CABLE STRAP (5) | FLTRXSTSE |
| 16 | 69200183 | HOUSING, 26-way socket | FLTRXSTSE |
| 17 | 69200184 | COVER, 26-way socket | FLTRXSTSE |
| 18 | 69200185 | TERMINAL, socket, 20 AWG, terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLTRXSTSE |
| 19 | 69200186 | TERMINAL, socket, 14-16 AWG, terminal location 17, 26 (2) | FLTRXSTSE |
| 20 | 69200187 | TERMINAL, socket, 12 AWG, terminal location 1, 9 (2) | FLTRXSTSE |
| 21 | 69200188 | WIRE SEAL, 20 AWG (gray) terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLTRXSTSE |
| 22 | 69200189 | WIRE SEAL, 14-16 AWG (brown) terminal location 17, 26 (2) | FLTRXSTSE |
| 23 | 69200190 | WIRE SEAL, 12 AWG (blue) terminal location 1, 9 (2) | FLTRXSTSE |
| 24 | 69200191 | SEAL PIN (15) | FLTRXSTSE |
| 25 | 69200600 | FUSE BLOCK, five-way socket relay (2) | FLTRXSTSE |
| 26 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLTRXSTSE |
| 27 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRXSTSE |
| 28 | 69202285 | HOUSING, four-way pin | FLTRXSTSE |
| 29 | 69201427 | SEAL PIN | FLTRXSTSE |
| 30 | 69201722 | CONNECTOR, clip | FLTRXSTSE |
| 31 | 69201779 | HOUSING, four-way (black) | FLTRXSTSE |
| 32 | 69201814 | TERMINAL, socket (4) | FLTRXSTSE |
| 33 | 69202491 | TERMINAL, pin, 20 AWG (2) | FLTRXSTSE |
| 34 | 69202492 | SEAL PIN (green) (2) | FLTRXSTSE |
| 35 | 69202958 | RESISTOR PACK | FLTRXSTSE |
| 36 | 69202959 | HOUSING, two-way pin (black) | FLTRXSTSE |
| 37 | 9819 | TERMINAL, ring, 12 AWG | FLTRXSTSE |
| 38 | 69203209 | TERMINAL, ring | FLTRXSTSE |
| 39 | 69202219 | HEAT SHRINK | FLTRXSTSE |
WIRING HARNESS, MAIN (8 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10147 | CLIP, connector | FLTRXSTSE |
| 2 | 10177 | CABLE STRAP, anchored (3) | FLTRXSTSE |
| 3 | 69201301 | WIRE SEAL, 18-22 AWG (green) (3) | FLTRXSTSE |
| 4 | 69201300 | TERMINAL, socket, 18-22 AWG (3) | FLTRXSTSE |
| 5 | 72063-06 | HOUSING, two-way socket (black) | FLTRXSTSE |
| 6 | 72065-06A | HOUSING, three-way socket (black) | FLTRXSTSE |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLTRXSTSE |
| 8 | 69201722 | CONNECTOR, clip | FLTRXSTSE |
| 9 | 72127-06 | SECONDARY LOCK, three-way socket (gray) | FLTRXSTSE |
| 10 | 74152-98 | SECONDARY LOCK, two-way socket | FLTRXSTSE |
| 11 | 72168-07 | TERMINAL, socket, 18-20 AWG | FLTRXSTSE |
| 12 | 74191-98 | TERMINAL, socket, 16-20 AWG | FLTRXSTSE |
| 13 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLTRXSTSE |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (5) | FLTRXSTSE |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (5) | FLTRXSTSE |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLTRXSTSE |
| 17 | 73213-07 | RETAINER, anchored (3) | FLTRXSTSE |
| 18 | 74112-98BK | HOUSING, two-way socket (black) | FLTRXSTSE |
| 19 | 69202285 | HOUSING, four-way pin, key A | FLTRXSTSE |
| 20 | 12500014 | CABLE STRAP | FLTRXSTSE |
| 21 | 12500016 | CABLE STRAP, anchored, two-piece | FLTRXSTSE |
| 22 | 69200238 | TERMINAL, insulated (2) | FLTRXSTSE |
| 23 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRXSTSE |
| 24 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLTRXSTSE |
| 25 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRXSTSE |
| 26 | 69201427 | SEAL PIN | FLTRXSTSE |
| 27 | 69201406 | HOUSING, three-way socket | FLTRXSTSE |
| 28 | 69203028 | HOUSING, two-way socket | FLTRXSTSE |
| 29 | 69203120 | TERMINAL, socket, 8-10 AWG (2) | FLTRXSTSE |
| 30 | 69203121 | SEAL, 8 AWG (2) | FLTRXSTSE |
| 31 | 72607-08 | HOUSING, two-way pin (black) | FLTRXSTSE |
| 32 | 72608-08 | TERMINAL, pin, 16-20 AWG | FLTRXSTSE |
| 33 | 72188-07BK | HOUSING, six-way pin | FLTRXSTSE |
| 34 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 5, 6 (5) | FLTRXSTSE |
| 35 | 72473-07 | SEAL PIN, natural | FLTRXSTSE |
| 36 | 72609-08 | SECONDARY LOCK, two-way pin | FLTRXSTSE |
| 37 | 72519-09BK | DUST CAP, three-way socket | FLTRXSTSE |
| 38 | 69201441 | HOUSING, four-way socket | FLTRXSTSE |
WIRING HARNESS, MAIN (9 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 69201307 | BOOT, pos cable assembly | FLTRXSTSE |
| 2 | 69203052 | FUSE HOLDER, two-way | FLTRXSTSE |
| 3 | 69203123 | HARNESS, wire, positive battery | FLTRXSTSE |
WIRING HARNESS, MAIN (10 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLTRXSTSE |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLTRXSTSE |
| 3 | 69201287A | BRACKET, mounting | FLTRXSTSE |
| 4 | 69202720A | BRACKET, wire trough | FLTRXSTSE |
| 5 | 69202636A | COVER, bracket, wire trough | FLTRXSTSE |
| 6 | 69203046 | BRACKET, BCM caddy | FLTRXSTSE |
| 7 | 69203096 | BRACKET, upper triple clamp caddy | FLTRXSTSE |
WIRING HARNESS, MAIN (11 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLTRXSTSE |
| 2 | 31586-07 | RELAY (2) | FLTRXSTSE |
| 3 | 72330-95 | FUSE, 15 A (blue) | FLTRXSTSE |
| 4 | 72462-00 | FUSE, 10 A mini | FLTRXSTSE |
| 5 | 72539-06 | FUSE, 30 A (green) (3) | FLTRXSTSE |
| 6 | 69200194 | HOUSING, 24-way socket | FLTRXSTSE |
| 7 | 69200293 | FUSE, 7.5 A (brown) (2) | FLTRXSTSE |
| 8 | 69203010 | BRACKET, ECM/fuse block caddy | FLTRXSTSE |
WIRING HARNESS, MAIN (12 OF 12)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| NOTE: Includes the following parts. | |||
| 1 | 3018A | SCREW (2) | FLTRXSTSE |
| 2 | 6150W | WASHER (2) | FLTRXSTSE |
| 3 | 10065 | CABLE STRAP | FLTRXSTSE |
| 4 | 12200181 | CABLE STRAP | FLTRXSTSE |
| 5 | 12600116 | CLIP, push-in (3) | FLTRXSTSE |
| 6 | 69200611 | BRACKET, relay | FLTRXSTSE |
| 7 | 69201287A | BRACKET, mounting | FLTRXSTSE |
| 8 | 69203519 | COVER, fuse box | FLTRXSTSE |
| 9 | 71400100 | RELAY (2) | FLTRXSTSE |
WIRING HARNESS, FAIRING
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202989 | WIRING HARNESS, fairing | FLTRXSTSE |
| NOTE: Includes the following parts. | |||
| 2 | 10081 | CABLE STRAP (3) | FLTRXSTSE |
| 3 | 10177 | CABLE STRAP (6) | FLTRXSTSE |
| 4 | 69200271 | HOUSING, two-way socket (black) (2) | FLTRXSTSE |
| 5 | 69201301 | WIRE SEAL, 20- 22 AWG (green) terminal location 3 | FLTRXSTSE |
| 6 | 69201377 | WIRE SEAL, 20- 22 AWG (gray) terminal location 2, 3, 17, 18 (4) | FLTRXSTSE |
| 7 | 69201379 | SEAL PIN, 1.5mm plug (10) | FLTRXSTSE |
| 8 | 69201385 | TERMINAL, socket, 18-20 AWG, silver, terminal location 1, 2, 3, 4, 10, 11, 17, 18 (8) | FLTRXSTSE |
| 9 | 69201407 | TERMINAL, socket, 20 AWG, terminal location 3 | FLTRXSTSE |
| 10 | 69201412 | SEAL PIN, 16- 18 AWG (yellow) terminal location 1, 4, 10, 11 (4) | FLTRXSTSE |
| 11 | 69201427 | SEAL PIN (7) | FLTRXSTSE |
| 12 | 69201442 | TERMINAL, socket, 18 AWG, terminal location 1, 2 (2) | FLTRXSTSE |
| 13 | 69201575 | HOUSING, 18-way socket | FLTRXSTSE |
| 14 | 69203042 | HOUSING, 5-way socket | FLTRXSTSE |
| 15 | 69203105 | HOUSING, 5-way pin | FLTRXSTSE |
| 16 | 69203106 | SEAL PIN (4) | FLTRXSTSE |
| 17 | 72168-07 | TERMINAL, socket, 18 - 20 AWG, terminal location 1, 2, 3, 4 (4) | FLTRXSTSE |
| 18 | 72169-07 | TERMINAL, pin, 16 - 20 AWG (4) | FLTRXSTSE |
| 19 | 72175-07BK | HOUSING, 4-way pin (black) | FLTRXSTSE |
| 20 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 7, 11, 12 (4) | FLTRXSTSE |
| 21 | 72272-07 | TERMINAL, socket, 14 - 16 AWG (4) | FLTRXSTSE |
| 22 | 72473-07 | SEAL PIN | FLTRXSTSE |
| 23 | 72488-07BK | HOUSING, 12-way pin (black) | FLTRXSTSE |
| 24 | 72500-07ABK | HOUSING, 20-way socket (black) | FLTRXSTSE |
| 25 | 73213-07 | RETAINER, tree clip (2) | FLTRXSTSE |
| 26 | 72272-07 | TERMINAL, socket, 14 - 16 AWG, terminal location 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20 (12) | FLTRXSTSE |
| 27 | 69201412 | SEAL PIN, 16- 18 AWG (yellow) terminal location 1, 2 (2) | FLTRXSTSE |
| 28 | 72169-07 | TERMINAL, pin, 16 - 20 AWG, terminal location 1, 2, 3, 4, 6, 8, 10 (7) | FLTRXSTSE |
REAR LIGHTING HARNESS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLTRXSTSE |
| 2 | 10177 | CABLE STRAP | FLTRXSTSE |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (5) | FLTRXSTSE |
| 4 | 72906-11 | HOUSING, two-way socket (black) | FLTRXSTSE |
| 5 | 72908-11 | HOUSING, four-way socket (black) | FLTRXSTSE |
| 6 | 70717-10 | CONDUIT, wiring harness, self-adhesive | FLTRXSTSE |
| 7 | 72910-11 | TERMINAL, socket, 20-22 AWG (10) | FLTRXSTSE |
| 8 | 72473-07 | SEAL PIN (7) | FLTRXSTSE |
| 9 | 72488-07BK | HOUSING, 12-way pin (black) | FLTRXSTSE |
| 10 | 73213-07 | RETAINER, anchored | FLTRXSTSE |
| 11 | 69203058 | WIRING HARNESS, rear lighting | FLTRXSTSE |
| 12 | 69201179 | HOUSING, four-way socket (gray) | FLTRXSTSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLTRXSTSE |
| 2 | 2445 | SCREW | FLTRXSTSE |
| 3 | 4312C | SCREW (2) | FLTRXSTSE |
| 4 | 7792 | NUT | FLTRXSTSE |
| 5 | 15368-01A | LABEL BATTERY WARNING | FLTRXSTSE |
| 6 | 66010-97E | BATTERY | FLTRXSTSE |
| 7 | 66051-08 | STRAP, battery removal | FLTRXSTSE |
| 8 | 9819 | TERMINAL, ring, 10-12 AWG | FLTRXSTSE |
| 9 | 66000339 | BATTERY TRAY, includes 66051-08 | FLTRXSTSE |
| 10 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | FLTRXSTSE |
| 11 | 69203052 | FUSE HOLDER, two-way | FLTRXSTSE |
| 12 | 69203123 | WIRE HARNESS, battery positive to starter, with 69203052 | FLTRXSTSE |
| 13 | 69201307 | BOOT, battery positive | FLTRXSTSE |
| 14 | 69203011 | BRACKET, BCM | FLTRXSTSE |
| 15 | 69203624 | BRACKET, harness support (late change) | FLTRXSTSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3061 | SCREW (2) | FLTRXSTSE |
| 2 | 7495 | NUT | FLTRXSTSE |
| 3 | 69060-90H | HORN KIT | FLTRXSTSE |
| 4 | 69000125B | BRACKET, horn | FLTRXSTSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2934 | SCREW (2) | FLTRXSTSE |
| 2 | 6150W | WASHER (2) | FLTRXSTSE |
| 3 | 9907 | WIRE TERMINAL (2) | FLTRXSTSE |
| 4 | 10065 | CABLE STRAP | FLTRXSTSE |
| 5 | 12100203 | PLUG, with 11900200 | FLTRXSTSE |
| 6 | 66373-06 | BATTERY, 3V, CR2032 | FLTRXSTSE |
| 7 | 76000925 | ANTENNA MODULE, security system | FLTRXSTSE |
| 8 | 69000124 | SIREN | FLTRXSTSE |
| 9 | 69309-10 | BATTERY REPLACE KIT, siren alarm | FLTRXSTSE |
| 10 | 72023-51E | KIT, SWITCH, rear stop lamp, with 9907 | FLTRXSTSE |
| 11 | 32700010 | SENSOR, ambient temperature | FLTRXSTSE |
| 12 | 41001501 | BODY CONTROL MODULE (BCM) (except Japan) | FLTRXSTSE |
| 12 | 41001502 | BODY CONTROL MODULE (BCM) (Japan) | FLTRXSTSE |
| 13 | 71540-94B | FORK LOCK (specify key number) | FLTRXSTSE |
| 14 | 90300228 | KEY AND FOB ASSEMBLY (specify key number) (Japan only) (2) | FLTRXSTSE |
| 14 | 90300229 | KEY AND FOB ASSEMBLY (specify key number) (all except Australia, Japan) (2) | FLTRXSTSE |
| 14 | 90300232 | KEY AND FOB ASSEMBLY (specify key number) (Australia only) (2) | FLTRXSTSE |
| 15 | 90300224 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan only) | FLTRXSTSE |
| 15 | 90300225 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (all except Australia, Japan) | FLTRXSTSE |
| 15 | 90300233 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Australia only) | FLTRXSTSE |
| 16 | 11900200 | O-RING | FLTRXSTSE |
SOUND SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201096 | SCREW (8) | FLTRXSTSE |
| 2 | 10201351 | SCREW (4) | FLTRXSTSE |
| 3 | 10201426 | SCREW | FLTRXSTSE |
| 4 | 12200025 | CLIP, panel (4) | FLTRXSTSE |
| 5 | 69200272 | HOUSING, two-way pin (black) (2) | FLTRXSTSE |
| 6 | 69200752 | WIRE HARNESS, speaker jumper, with 72169-07, 72290-94, 72294-94, 73213-07, 69200272 (2) | FLTRXSTSE |
| 7 | 76000789 | ANTENNA, GPS | FLTRXSTSE |
| 8 | 76000999 | SPEAKER, front, left | FLTRXSTSE |
| 9 | 76001011 | SPEAKER, front, right | FLTRXSTSE |
| 10 | 76001132 | AMPLIFIER, four channel | FLTRXSTSE |
| 11 | 76001146 | SPEAKER GRILLE, assembly, includes 4, 14 and medallion (left) | FLTRXSTSE |
| 12 | 76001147 | SPEAKER GRILLE, assembly, includes 4, 15 and medallion (right) | FLTRXSTSE |
| 13 | 76001235 | ANTENNA, am/fm/dab (Australia, England, HDI) | FLTRXSTSE |
| 13 | 76001251 | ANTENNA, am/fm (California, Canada, China, Domestic, HDI, Japan) | FLTRXSTSE |
| 14 | 76001254 | GASKET, speaker grille (left) | FLTRXSTSE |
| 15 | 76001255 | GASKET, speaker grille (right) | FLTRXSTSE |
| 16 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLTRXSTSE |
| 17 | 72290-94 | TERMINAL, insulated, female (black) (2) | FLTRXSTSE |
| 18 | 72294-94 | TERMINAL, insulated, female (white) (2) | FLTRXSTSE |
| 19 | 73213-07 | RETAINER, tree clip (2) | FLTRXSTSE |
| Dealer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please refer to the latest Warranty Bulletin revision of the Harley-Davidson Audio Powered by Rockford Fosgate Audio System Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please contact your Harley-Davidson dealership. | |||
SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3656 | SCREW (4) | FLTRXSTSE |
| 2 | 90202462EWR | FACEPLATE (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 2 | 90202462EXZ | FACEPLATE (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 2 | 90202463EWR | FACEPLATE (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 2 | 90202463EXZ | FACEPLATE (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 3 | 57000779 | CLIP (6) | FLTRXSTSE |
| 4 | 10200147 | SCREW (6) | FLTRXSTSE |
| 5 | 7586 | NUT (2) | FLTRXSTSE |
| 6 | 10200557 | SCREW (6) | FLTRXSTSE |
| 7 | 10200063 | SCREW (4) | FLTRXSTSE |
| 8 | 10200065 | SCREW (8) | FLTRXSTSE |
| 9 | 10200103 | SCREW (16) | FLTRXSTSE |
| 10 | 90300024 | LOCK (specify key number) (2) | FLTRXSTSE |
| 11 | 10200220 | SCREW (4) | FLTRXSTSE |
| 12 | 10200064 | SCREW (2) | FLTRXSTSE |
| 13 | 10200533 | SCREW, single sided lever (4) | FLTRXSTSE |
| 14 | 90300225 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (all except Australia, AU2, Japan, JP2) | FLTRXSTSE |
| 14 | 90300233 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (Australia, AU2) | FLTRXSTSE |
| 14 | 90300224 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (Japan, JP2) | FLTRXSTSE |
| 15 | 10400034 | NUT, clip (4) | FLTRXSTSE |
| 16 | 90201775 | HANDLE KIT, saddlebag, with grommet includes 10200064 (left) (black) | FLTRXSTSE |
| 16 | 90201774 | HANDLE KIT, saddlebag, with grommet includes 10200064 (right) (black) | FLTRXSTSE |
| 17 | 67900065 | REFLECTOR (left) (red) (Canada, Domestic) | FLTRXSTSE |
| 17 | 67900066 | REFLECTOR (left) (amber) (all except Canada, Domestic) | FLTRXSTSE |
| 17 | 67900067 | REFLECTOR (right) (red) (Canada, Domestic only) | FLTRXSTSE |
| 17 | 67900068 | REFLECTOR (right) (amber) (all except Canada, Domestic) | FLTRXSTSE |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 18 | 90202454 | SADDLEBAG COVER (right) (unpainted) | FLTRXSTSE |
| 18 | 90202698EWR | SADDLEBAG COVER (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 18 | 90202698EXZ | SADDLEBAG COVER (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 18 | 90202455 | SADDLEBAG COVER (left) (unpainted) | FLTRXSTSE |
| 18 | 90202699EWR | SADDLEBAG COVER (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 18 | 90202699EXZ | SADDLEBAG COVER (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 19 | 90202509 | GASKET, cover (2) | FLTRXSTSE |
| 20 | 90200467 | CUSHION, saddlebag support (4) | FLTRXSTSE |
| 21 | 90200519 | STRIKE, saddlebag (4) | FLTRXSTSE |
| 22 | 90202466A | LATCH ASSEMBLY, with 10200220, 90200899 and 90200901 (right) | FLTRXSTSE |
| 22 | 90202467A | LATCH ASSEMBLY, with 10200220, 90200900 and 90200901 (left) | FLTRXSTSE |
| 23 | 90202692 | TETHER, saddlebag (2) | FLTRXSTSE |
| 24 | 90200611 | ISOLATOR, saddlebag (4) | FLTRXSTSE |
| 25 | 90201540 | KIT, SADDLEBAG MOUNT, with 10200533 and 10400034 (set of 4) | FLTRXSTSE |
| 26 | 90202889 | SADDLEBAG BOTTOM (right) (unpainted) | FLTRXSTSE |
| 26 | 90202728EWR | SADDLEBAG BOTTOM (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 26 | 90202728EXZ | SADDLEBAG BOTTOM (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 26 | 90202890 | SADDLEBAG BOTTOM (left) (unpainted) | FLTRXSTSE |
| 26 | 90202729EWR | SADDLEBAG BOTTOM (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 26 | 90202729EXZ | SADDLEBAG BOTTOM (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 27 | 90200899 | HINGE ASSEMBLY (right) | FLTRXSTSE |
| 27 | 90200900 | HINGE ASSEMBLY (left) | FLTRXSTSE |
| 28 | 90200901 | SEAL (2) | FLTRXSTSE |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 3684 | SCREW (4) | FLTRXSTSE |
| 2 | 3901 | SCREW (2) | FLTRXSTSE |
| 3 | 3536 | SCREW (2) | FLTRXSTSE |
| 4 | 6703 | WASHER (2) | FLTRXSTSE |
| 5 | 7531 | LOCKNUT (2) | FLTRXSTSE |
| 6 | 7601 | LOCKNUT (2) | FLTRXSTSE |
| 7 | 10200217 | SCREW (2) | FLTRXSTSE |
| 8 | 10400034 | NUT, clip (4) | FLTRXSTSE |
| 9 | 11100068 | CUSHION (2) | FLTRXSTSE |
| 10 | 90201129EWR | SUPPORT, saddlebag, with 11100068 (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 10 | 90201129EXZ | SUPPORT, saddlebag, with 11100068 (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 10 | 90201127EWR | SUPPORT, saddlebag, with 11100068 (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 10 | 90201127EXZ | SUPPORT, saddlebag, with 11100068 (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 11 | 10201187 | SCREW (2) | FLTRXSTSE |
| 12 | 54000319 | INSERT ASSEMBLY, shock reservoir bracket (left) | FLTRXSTSE |
| 12 | 54000320 | INSERT ASSEMBLY, shock reservoir bracket (right) | FLTRXSTSE |
| 13 | 90200549 | SUPPORT (left) (black) | FLTRXSTSE |
| 13 | 90200550 | SUPPORT (right) (black) | FLTRXSTSE |
| 14 | 10201188 | SCREW (2) | FLTRXSTSE |
| 15 | 6532 | WASHER (2) | FLTRXSTSE |

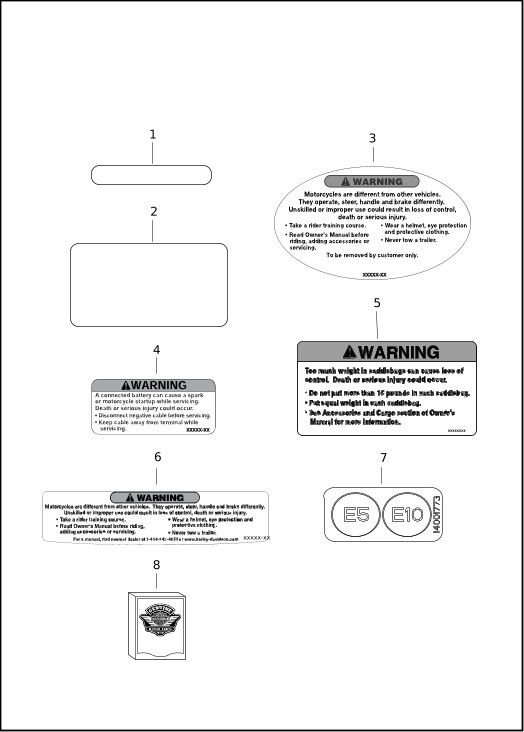

LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14000827 | CLEAR OVERLAY, VIN label (Japan only) | FLTRXSTSE |
| 2 | 14001859 | LABEL, general warning (China only) (not shown) | FLTRXSTSE |
| 2 | 14001799A | LABEL, air cleaner cover (China only) (not shown) | FLTRXSTSE |
| 2 | 14002624 | LABEL, brake warning (China only) (not shown) | FLTRXSTSE |
| 2 | 14002625 | LABEL, brake warning (China only) (not shown) | FLTRXSTSE |
| 2 | 14002628 | LABEL, rear shock warning (China only) (not shown) | FLTRXSTSE |
| 3 | 15342-06A | MIRROR WARNING LABEL | FLTRXSTSE |
| 3 | 14001799A | MIRROR WARNING LABEL (China only) (not shown) | FLTRXSTSE |
| 4 | 15368-01A | BATTERY WARNING LABEL | FLTRXSTSE |
| 4 | 14002622 | BATTERY WARNING LABEL (China only) (not shown) | FLTRXSTSE |
| 4 | 14002626 | BATTERY WARNING LABEL (China only) (not shown) | FLTRXSTSE |
| 5 | 14003785 | SADDLEBAG WARNING LABEL | FLTRXSTSE |
| 5 | 14003824 | SADDLEBAG WARNING LABEL (not shown) | FLTRXSTSE |
| 5 | 14002629 | SADDLEBAG WARNING LABEL (not shown) (China) | FLTRXSTSE |
| 5 | 90820-93D | SADDLEBAG WARNING LABEL (not shown) | FLTRXSTSE |
| 6 | 14001624 | AIR CLEANER WARNING LABEL (black) | FLTRXSTSE |
| 6 | 14001798A | AIR CLEANER WARNING LABEL (China) | FLTRXSTSE |
| 7 | 14001773 | LABEL, fuel warning (England, HDI) | FLTRXSTSE |
| 8 | 14003552 | YEAR OF MANUFACTURE LABEL (Brazil) (2023) | FLTRXSTSE |
| 9 | 14003856 | YEAR OF MANUFACTURE LABEL (Brazil) (2024) | FLTRXSTSE |
| 10 | 14001739 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 14001734 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 14003825 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 15385-08 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 94000326 | MOTORCYCLE LITERATURE PACK - 2 WHEEL (Domestic) | FLTRXSTSE |
| 1 | 94001156 | OWNERS MANUAL | FLTRXSTSE |
| 1 | 57200431EWR | SIDE COVER, with 61301292 (left) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 1 | 57200431EXZ | SIDE COVER, with 61301291 (left) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 1 | 10200890 | SCREW, windshield (4) | FLTRXSTSE |
| 1 | 12100141 | GROMMET, windshield, rubber (4) | FLTRXSTSE |
| 1 | 57400617 | WINDSHIELD, KIT (dark) | FLTRXSTSE |
| 1 | 69203053 | FUSE, main, 60A (yellow) | FLTRXSTSE |
| 1 | 90300228 | KEY AND FOB ASSEMBLY (specify key number) (Japan only) (2) | FLTRXSTSE |
| 1 | 90300229 | KEY AND FOB ASSEMBLY (specify key number) (all except Australia, Japan) (2) | FLTRXSTSE |
| 1 | 90300232 | KEY AND FOB ASSEMBLY (specify key number) (Australia only) (2) | FLTRXSTSE |
| 1 | 14900135 | WRENCH, shock spanner | FLTRXSTSE |
| 1 | 57300409 | BRACKET KIT, windshield | FLTRXSTSE |
| Part No. | Description |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10200032 | SCREW 1/4-20 X 1/2 TORX, button hd with lockpatch, (Grade 8) (bright zinc) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200064 | SCREW No. 8-32 X 1 TORX pan head (zinc) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200120 | SCREW 5/16 X 18 X 1.00 hex cap |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200350 | SCREW 1/4-20 X 1-1/8 SEMS hex socket head (Grade 8) (zinc) |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200544 | SCREW M5 X 12 torx pan head T-25 |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10200628 | SCREW 1/4-20 X 7/16 TORX, button hd, (Grade 8) (zinc) |
| 10200721 | SCREW PT30 X 1.12 X 11.5 T-10 Torx Delta washer |
| 10200723 | SCREW 1/4-20 X 1.0, TORX SEMS with lockpatch, T-27 (black zinc) |
| 10200890 | SCREW M5 X 0.8 X 10 button head, T-25 TORX |
| 10201096 | SCREW #10 x 5/8 hi-lo self tapping button head |
| 10201187 | SCREW .375-16 X 2.750 TORX button head T-45 |
| 10201188 | SCREW .312-18 X 1.30 TORX pan head T-40 |
| 10201216 | SCREW 10-24 X 875 TORX Pan Head with washer and lock patch (Grade 5) |
| 10201318 | SCREW 10-24 X 1.25 TORX socket head cap T-27 |
| 10201326 | SCREW 5/16 -18 X 1.25 socket head cap |
| 10201339 | SCREW 1/4 -20 X 11/16 socket head cap SEMS |
| 10201350 | SCREW 1/4-20 X 5/8 button head SEMS, T-25 TORX |
| 10201351 | SCREW 1/4-20 X 1 3/32 TORX T-30 cap SEMS |
| 10201368 | SCREW 1/4-20 socket head cap SEMS, TORX T-27, w/dog point |
| 10201370 | SCREW 40 X1.46 X 14 delta point pan head, TORX T-20 |
| 10201381 | SCREW 5/16-18 X 1.0 self tapping TORX T-40 |
| 10201389 | SCREW 50 X 1.8 X 19 delta point button head SEMS, T-25 TORX |
| 10201394 | SCREW 1/4-20 X 1 button head, T-27 TORX |
| 10201397 | SCREW 1/4-20 X 11/16 socket head cap, sems, with lock patch |
| 10201404 | SCREW 3/8-16 X 3.35 hex flange head, grade 8, with lock patch |
| 10201406 | SCREW M4 X 10 tri lobe self tapping, black, TORX T-20 |
| 10201418 | SCREW M6 X 1 X 25 socket head, sems |
| 10201426 | SCREW delta point, M5 X 18 TORX T-15 |
| 10500071 | SCREW M6 X 1 X 25 button head, T-30 TORX |
| 10500107 | SCREW 5/16-24 X 2.33 hex socket head, with lock |
| 10500216 | SCREW 1/4 X 20 X 7/8 socket head, sems, grade 8, lock patch, black |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch (Grade 5) |
| 12600369 | SCREW 1/4-20 X 1 flange head, 3/8 hex / T-30 TORX |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 29400487 | SCREW 3/8-16 X 1 3/8 with thread lock |
| 3018A | SCREW 10-24 X 3/8 TORX head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3153 | SCREW 5/16-18 X 1 1/8 socket head, 1/4 internal hex |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3340 | SCREW 5/16-18 X 1/2 hex head (Grade 8) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4015 | SCREW 1/4-20 X 7/8 socket button head (Grade 8) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4192 | SCREW 5/16-24 X 59/64 hex head |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4816A | SCREW 5/16-18 X 1-1/2 socket head |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 57300388 | SCREW 3/8-16 X 4.5 hex head (Grade 5) |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6441 | WASHER 1/4 X 5/8 X 1/16 nylon |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 69203119 | BRACKET |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8144 | NUT CLIP 5/16-18 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 8973 | WASHER 1-1/4 X 1-53/64 X 9/64 |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200900 | ENGINE ASSEMBLY, complete (Water-Cooled) (Milwaukee-Eight® 121 HO engine) (black granite/hot rod red) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 16501116A | GASKET, cylinder head (2) | FLTRXSTSE |
| 22 | 25701945 | GASKET KIT, top end | FLTRXSTSE |
| 22 | 25701944 | GASKET KIT, engine overhaul | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 12200281 | CAP, cover spring (hot rod red) (4) | FLTRXSTSE |
| 9 | 18100135 | RETAINER, spring cap (black) (4) | FLTRXSTSE |
| 24 | 25700894 | LIFTER COVER, front (black) | FLTRXSTSE |
| 24 | 25700893 | LIFTER COVER, rear (black) | FLTRXSTSE |
| 26 | 25701194 | COVER, pushrod (lower) (black) (4) | FLTRXSTSE |
| 27 | 25701609 | ROCKER COVER, lower, with 25700425 (hot rod red) (2) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 26900301 | HOSE, rear head inlet (late) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 13 | 12700198 | BRACKET, coolant pump (late) | FLTRXSTSE |
| 15 | 26800266 | RADIATOR (late) | FLTRXSTSE |
| 19 | 26900350 | HOSE, coolant, radiator outlet (late) | FLTRXSTSE |
| 24 | 57200428EWR | COVER, radiator shroud (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 62700089A | PISTON JET ASSEMBLY, front, with 25700433 | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 25400460 | CAMSHAFT | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 25701511 | COVER, cam timer (black) without insert | FLTRXSTSE |
| 28 | 14102001 | INSERT, cam timer cover (black/hot rod red) (not shown) | FLTRXSTSE |
| 40 | 25701666 | CAMSHAFT COVER (gloss black) | FLTRXSTSE |
| 41 | 18400117 | ROTOR CUP, cam position | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 29400470 | FILTER, air intake | FLTRXSTSE |
| 3 | 29000428 | SEAL, airbox to filter | FLTRXSTSE |
| 4 | 29400487 | SCREW, airbox to cylinder head | FLTRXSTSE |
| 5 | 10201404 | SCREW, hex flange, airbox to cylinder head | FLTRXSTSE |
| 6 | 10500216 | SCREW, black, throttle body (3) | FLTRXSTSE |
| 7 | 10201418 | SCREW (2) | FLTRXSTSE |
| 8 | 10201397 | SCREW (2) | FLTRXSTSE |
| 9 | 29000417 | BASEPLATE, AIRBOX ASSEMBLY, with 10201406, 10201418, 14003813, 61301409, 61400734 (all except China) | FLTRXSTSE |
| 9 | 29000433 | BASEPLATE, AIRBOX ASSEMBLY, with 14003814 (China) | FLTRXSTSE |
| 10 | 61301409 | COVER, throttle body, includes 57300433 | FLTRXSTSE |
| 11 | 57300433 | PAD, throttle body cover | FLTRXSTSE |
| 12 | 62700324 | TUBE, breather | FLTRXSTSE |
| 13 | 61400734 | BRACKET, trim insert | FLTRXSTSE |
| 14 | 61400732 | TRIM, insert | FLTRXSTSE |
| 16 | 10201406 | SCREW, throttle body cover (3) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 29900118 | ROTOR ASSEMBLY | FLTRXSTSE |
| 7 | 29900114 | STATOR ASSEMBLY, 3-phase, 56 A | FLTRXSTSE |
| 8 | 74700048 | VOLTAGE REGULATOR ASSEMBLY | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 41001351 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLTRXSTSE |
| 12 | 16400109 | BRACKET, engine mount, mid, includes sensor spacer (1) | FLTRXSTSE |
| 13 | 29900147 | KIT, double stud service kit, includes bracket, studs and nuts (1) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 33 | 33600411 | SHIFTER PEG (black) includes 10500107 | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 30 | 25800185 | INSERT, transmission cover (black/hot rod red) NOT SHOWN | FLTRXSTSE |
| 36 | 69203188 | HARNESS, gear position sensor | FLTRXSTSE |
| 37 | 69201441 | HOUSING, socket, 4 way | FLTRXSTSE |
| 38 | 69201407 | TERMINAL, socket (6) | FLTRXSTSE |
| 39 | 69201427 | SEAL PIN | FLTRXSTSE |
| 40 | 69201301 | WIRE SEAL | FLTRXSTSE |
| 41 | 69201406 | HOUSING, 3 way socket | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 12600369 | SCREW (for use with 24400180A) (16) | FLTRXSTSE |
| 6 | 11900208 | O-RING (2) | FLTRXSTSE |
| 11 | 62700327 | PLUG, quarter turn, includes 11900208 (2) | FLTRXSTSE |
| 14 | 34700552 | TRANSMISSION CASE SUBASSEMBLY, with 11000101, 11161, 16574-99A, 83595-11A, 35082-07, 35122-06A, 35186-06A, 35241-06, 35242-06, 3594, 66290-06, 8963, 8967A, 9701A (black granite) | FLTRXSTSE |
| 15 | 24400390 | OIL PAN ASSEMBLY, composite, includes gasket and drain plugs | FLTRXSTSE |
| 16 | 25701809 | GASKET, composite oil pan | FLTRXSTSE |
| 18 | 12600369 | SCREW (12) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 25701610 | COVER, clutch (black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 40000036 | REAR BELT, 139 teeth, 24 mm | FLTRXSTSE |
| 13 | 83595-11A | SPROCKET, transmission, 30 teeth | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 92082-03 | MIRROR (left) | FLTRXSTSE |
| 4 | 92078-03 | MIRROR (right) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 41600390 | BRACKET, brake line | FLTRXSTSE |
| 15 | 41800931 | BRAKE LINE, front master cylinder to ABS (black) | FLTRXSTSE |
| 18 | 41600386 | BRACKET, brake line alignment | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 34 | 50600546 | PEDAL, kit, brake, with washer and screw (black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 41100122 | ABS MODULE (EHCU) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 41300291 | CALIPER ASSEMBLY, with 41300225, 41300227 (left) (not shown) | FLTRXSTSE |
| 2 | 41300292 | CALIPER ASSEMBLY, with 41300225, 41300227 (right) | FLTRXSTSE |
| 6 | 10200802 | SCREW (4) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 41123-79 | CAP, tire valve (black) | FLTRXSTSE |
| 6 | 43000300A | AXLE | FLTRXSTSE |
| 14 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300139, 42300141 (except Japan, JP2) | FLTRXSTSE |
| 14 | 42300143 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300140, 42300141 (Japan, JP2) | FLTRXSTSE |
| 17 | 42300141 | VALVE STEM, 90 degree (black) | FLTRXSTSE |
| 18 | 41500210 | BRAKE DISC (2) | FLTRXSTSE |
| 22 | 43300951 | WHEEL ASSEMBLY, 19 inch (gloss black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 41123-79 | CAP, tire valve | FLTRXSTSE |
| 11 | 41810-08C | BRAKE DISC | FLTRXSTSE |
| 21 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300139, 42300141 (all except Japan, JP2) | FLTRXSTSE |
| 21 | 42300143 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300140, 42300141 (Japan, JP2) | FLTRXSTSE |
| 22 | 42300141 | VALVE STEM, 90 degree angle (black) | FLTRXSTSE |
| 23 | 40900928 | WHEEL, seven spoke (gloss black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 41600390 | BRACKET, brake line | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 45500583 | CAP, FORK TUBE, left | FLTRXSTSE |
| 11 | 45500584 | CAP, FORK TUBE, right | FLTRXSTSE |
| 14 | 45500861 | SPRING (2) | FLTRXSTSE |
| 15 | 45500869 | SLIDER, fork, with 45500850 (left) | FLTRXSTSE |
| 16 | 45500868 | SLIDER, fork, with 45500851 (right) | FLTRXSTSE |
| 19 | 45500862 | DAMPER , fork (left) | FLTRXSTSE |
| 20 | 45500863 | DAMPER , fork (right) | FLTRXSTSE |
| 21 | 45500582 | STOPPER , spring seat (2) | FLTRXSTSE |
| 23 | 7468M | NUT (2) | FLTRXSTSE |
| 24 | 45400341 | FORK ASSEMBLY (left) | FLTRXSTSE |
| 25 | 45400342 | FORK ASSEMBLY (right) | FLTRXSTSE |
| 31 | 10200922 | SCREW (4) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 54000316 | REAR SHOCK ABSORBER, assembly (left) | FLTRXSTSE |
| 4 | 54000317 | REAR SHOCK ABSORBER, assembly (right) | FLTRXSTSE |
| 5 | 10200588 | SCREW (4) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 49000242 | ENGINE GUARD, KIT (black) | FLTRXSTSE |
| 29 | 10200242 | SCREW (black) (2) | FLTRXSTSE |
| 30 | 10300129 | WASHER (2) | FLTRXSTSE |
| 31 | 49000243 | CAP, with 10201242 (2) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 61301292 | PANEL, trim, cover (right) | FLTRXSTSE |
| 2 | 61301291 | PANEL, trim, cover (left) | FLTRXSTSE |
| 3 | 57200431EXZ | SIDE COVER, with 61301291 (left) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 3 | 57200431EWR | SIDE COVER, with 61301292 (left) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 3 | 57200398EXZ | SIDE COVER, with 61301291 (right) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 3 | 57200398EWR | SIDE COVER, with 61301292 (right) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 5 | 69202636A | COVER, wire trough (main harness) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 52000715 | SEAT, rider (black/red trim) | FLTRXSTSE |
| 6 | 61301370 | COWL, passenger, includes 61301382 (forged carbon fiber) | FLTRXSTSE |
| 7 | 61301382 | GASKET, cowl, front | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 33130-07A | WEAR PEG (2) | FLTRXSTSE |
| 9 | 50502582 | MOUNTING BRACKET, front footboard (right) (gloss black) | FLTRXSTSE |
| 9 | 50502591 | MOUNTING BRACKET, front footboard (left) (gloss black) | FLTRXSTSE |
| 10 | 50502589 | FOOTBOARD, support plate (right) | FLTRXSTSE |
| 10 | 50502590 | FOOTBOARD, support plate (left) | FLTRXSTSE |
| 11 | 50502634 | FOOTBOARD, frame assembly (right) (gloss black) | FLTRXSTSE |
| 11 | 50502635 | FOOTBOARD, frame assembly (left) (gloss black) | FLTRXSTSE |
| 12 | 10040 | CLIP (8) | FLTRXSTSE |
| 13 | 67900009 | BUMPER (8) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2479 | SCREW (4) | FLTRXSTSE |
| 2 | 58900624 | FENDER, front (forged carbon fiber) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 59501021EWR | FENDER, rear (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 15 | 59501021EXZ | FENDER, rear (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 17 | 59501044EWR | TRIM, FENDER, light housing (right) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 17 | 59501044EXZ | TRIM, FENDER, light housing (right) (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 18 | 59501045EWR | TRIM, FENDER, light housing (left) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 18 | 59501045EXZ | TRIM, FENDER, light housing (left) (White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 67900642EWR | COVER, license plate lamp (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 6 | 67900642DH | COVER, license plate lamp (Vivid Black) (performance 2, M26 paint scheme) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 61001119 | FILLER NECK (gloss black) includes 61100207 | FLTRXSTSE |
| 7 | 61001099EWR | FUEL TANK, with graphics (Raven Metallic) (performance 1, M25 paint scheme) **RESTRICTED SALES PART** | FLTRXSTSE |
| 7 | 61001099EXZ | FUEL TANK, with graphics (Golden White Pearl) (performance 2, M26 paint scheme) **RESTRICTED SALES PART** | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 14101920 | CONSOLE INSERT (black/hot rod red) **RESTRICTED SALES PART** | FLTRXSTSE |
| 7 | 70901169 | CONSOLE ASSEMBLY (black, includes 70900948, 70901170, does NOT include insert 14101920) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 70901090A | INFOTAINMENT CONTROL UNIT, HD, option code 939 (California, Canada, Domestic, HDI) | FLTRXSTSE |
| 4 | 70901092A | INFOTAINMENT CONTROL UNIT, DAB, option code 940 (Australia, England, HDI) | FLTRXSTSE |
| 4 | 70901093A | INFOTAINMENT CONTROL UNIT, option code 941 (China, HDI, Japan) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2933 | SCREW (2) | FLTRXSTSE |
| 2 | 3588 | SCREW (2) | FLTRXSTSE |
| 5 | 57300403DH | NACELLE, cover, (left) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 6 | 70901104DH | NACELLE, cover, with 12200025 (right) (Vivid Black, performance 2, M26 paint scheme) | FLTRXSTSE |
| 8 | 55801537 | PLUG, nacelle | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 61200091A | PUMP ASSEMBLY, fuel, complete, includes 61200097, 61200110 | FLTRXSTSE |
| 7 | 61200110 | VALVE, fuel, check | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 15 | 57400617 | WINDSHIELD, KIT (dark) | FLTRXSTSE |
| 16 | 57640-08 | TORQUE HINGE | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 10200723 | SCREW (2) | FLTRXSTSE |
| 8 | 57001913EWR | FAIRING, outer, includes 7900 (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 8 | 57001913EXZ | FAIRING, outer, includes 7900 (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 10 | 57100423EWR | SIDE FAIRING (left) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 10 | 57100423EXZ | SIDE FAIRING (left) (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 11 | 57100424EWR | SIDE FAIRING (right) (Raven Metallic) (performance 1, M25 paint scheme) | FLTRXSTSE |
| 11 | 57100424EXZ | SIDE FAIRING (right) (Golden White Pearl) (performance 2, M26 paint scheme) | FLTRXSTSE |
| 12 | 57200375B | WING ASSEMBLY, adjustable spoiler, with 57640-08 (left) | FLTRXSTSE |
| 13 | 57200376B | WING ASSEMBLY, adjustable spoiler, with 56740-08 (right) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 29200169 | AIR DUCT (left) | FLTRXSTSE |
| 21 | 29200168 | AIR DUCT (right) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 12100153 | GROMMET (4) | FLTRXSTSE |
| 11 | 47201041 | BRACKET, fairing support, lower (black) | FLTRXSTSE |
| 13 | 57300444 | BRACKET, fairing, right (gloss black) | FLTRXSTSE |
| 14 | 57300445 | BRACKET, fairing, left (gloss black) | FLTRXSTSE |
| 18 | 10200723 | SCREW (2) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 71500609A | HAND CONTROL, includes 3, 18, cover and switchpack (right) (gloss black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 55801486 | HANDLEBAR, KIT (black) | FLTRXSTSE |
| 11 | 55900308 | CLAMP (upper) (black) | FLTRXSTSE |
| 12 | 55801485 | RISER KIT, handlebar, with 12600032, 55900308 (black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 56100600 | HANDGRIP (left) (black) | FLTRXSTSE |
| 2 | 56100566 | THROTTLE ASSEMBLY, with grip (right) (black) | FLTRXSTSE |
| 3 | 56100564 | KIT, GRIPS, with 56100566, 56100500 (black) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 65900017A | GASKET (Australia, England, HDI, Japan, China) (2) | FLTRXSTSE |
| 26 | 64901354 | MUFFLER (left) (California, Canada, Domestic) (titanium) | FLTRXSTSE |
| 27 | 64901353 | MUFFLER (right) (Australia, Brazil, England, HDI, Japan, China) (titanium) | FLTRXSTSE |
| 27 | 64901355 | MUFFLER (right) (titanium) (California, Canada, Domestic) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 65400435A | SHIELD, exhaust pipe, front (black onyx) | FLTRXSTSE |
| 29 | 65400436 | EXHAUST SHIELD ASSEMBLY, rear header pipe (black onyx) | FLTRXSTSE |
| 30 | 65400437 | EXHAUST SHIELD ASSEMBLY, catalytic converter (black onyx) | FLTRXSTSE |
| 31 | 65400438 | SHIELD, left exhaust pipe, rear (black onyx) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| 25 | 69202453 | TERMINAL, socket, terminal location 6, 7, 8, 14, 16, 17, 20, 21, 23, 24, 25, 28, 31, 43, 44, 49, 53, 67, 71, 77, 78, 80 (21) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| 39 | 69202453 | TERMINAL, socket, terminal location 11, 26, 27, 29, 30, 32, 34, 36, 37, 38, 39, 41, 42, 47, 48, 52, 55, 65, 66, 70, 72, 74 (24) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| 3 | 69201287A | BRACKET, mounting | FLTRXSTSE |
| 4 | 69202720A | BRACKET, wire trough | FLTRXSTSE |
| 5 | 69202636A | COVER, bracket, wire trough | FLTRXSTSE |
| 6 | 69203046 | BRACKET, BCM caddy | FLTRXSTSE |
| 7 | 69203096 | BRACKET, upper triple clamp caddy | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRXSTSE | |
| 8 | 69203519 | COVER, fuse box | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 69203058 | WIRING HARNESS, rear lighting | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLTRXSTSE |
| 15 | 69203624 | BRACKET, harness support (late change) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 41001501 | BODY CONTROL MODULE (BCM) (except Japan) | FLTRXSTSE |
| 12 | 41001502 | BODY CONTROL MODULE (BCM) (Japan) | FLTRXSTSE |
| 14 | 90300228 | KEY AND FOB ASSEMBLY (specify key number) (Japan only) (2) | FLTRXSTSE |
| 14 | 90300229 | KEY AND FOB ASSEMBLY (specify key number) (all except Australia, Japan) (2) | FLTRXSTSE |
| 14 | 90300232 | KEY AND FOB ASSEMBLY (specify key number) (Australia only) (2) | FLTRXSTSE |
| 15 | 90300224 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Japan only) | FLTRXSTSE |
| 15 | 90300225 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (all except Australia, Japan) | FLTRXSTSE |
| 15 | 90300233 | LOCKSET, complete, with key and fob assembly, fork lock and saddlebag lock (Australia only) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 90202462EWR | FACEPLATE (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 2 | 90202462EXZ | FACEPLATE (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 2 | 90202463EWR | FACEPLATE (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 2 | 90202463EXZ | FACEPLATE (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 3 | 57000779 | CLIP (6) | FLTRXSTSE |
| 4 | 10200147 | SCREW (6) | FLTRXSTSE |
| 6 | 10200557 | SCREW (6) | FLTRXSTSE |
| 14 | 90300225 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (all except Australia, AU2, Japan, JP2) | FLTRXSTSE |
| 14 | 90300233 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (Australia, AU2) | FLTRXSTSE |
| 14 | 90300224 | LOCKSET, complete, with key, fork lock, FOB and saddlebag lock (Japan, JP2) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 18 | 90202454 | SADDLEBAG COVER (right) (unpainted) | FLTRXSTSE |
| 18 | 90202698EWR | SADDLEBAG COVER (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 18 | 90202698EXZ | SADDLEBAG COVER (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 18 | 90202455 | SADDLEBAG COVER (left) (unpainted) | FLTRXSTSE |
| 18 | 90202699EWR | SADDLEBAG COVER (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 18 | 90202699EXZ | SADDLEBAG COVER (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 19 | 90202509 | GASKET, cover (2) | FLTRXSTSE |
| 22 | 90202466A | LATCH ASSEMBLY, with 10200220, 90200899 and 90200901 (right) | FLTRXSTSE |
| 22 | 90202467A | LATCH ASSEMBLY, with 10200220, 90200900 and 90200901 (left) | FLTRXSTSE |
| 23 | 90202692 | TETHER, saddlebag (2) | FLTRXSTSE |
| 26 | 90202889 | SADDLEBAG BOTTOM (right) (unpainted) | FLTRXSTSE |
| 26 | 90202728EWR | SADDLEBAG BOTTOM (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 26 | 90202728EXZ | SADDLEBAG BOTTOM (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 26 | 90202890 | SADDLEBAG BOTTOM (left) (unpainted) | FLTRXSTSE |
| 26 | 90202729EWR | SADDLEBAG BOTTOM (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 26 | 90202729EXZ | SADDLEBAG BOTTOM (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 3536 | SCREW (2) | FLTRXSTSE |
| 10 | 90201129EWR | SUPPORT, saddlebag, with 11100068 (right) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 10 | 90201129EXZ | SUPPORT, saddlebag, with 11100068 (right) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 10 | 90201127EWR | SUPPORT, saddlebag, with 11100068 (left) (Raven Metallic, M25 paint scheme) | FLTRXSTSE |
| 10 | 90201127EXZ | SUPPORT, saddlebag, with 11100068 (left) (Golden White Pearl, M26 paint scheme) | FLTRXSTSE |
| 12 | 54000319 | INSERT ASSEMBLY, shock reservoir bracket (left) | FLTRXSTSE |
| 12 | 54000320 | INSERT ASSEMBLY, shock reservoir bracket (right) | FLTRXSTSE |
| 15 | 6532 | WASHER (2) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 14002629 | SADDLEBAG WARNING LABEL (not shown) (China) | FLTRXSTSE |
| 5 | 90820-93D | SADDLEBAG WARNING LABEL (not shown) | FLTRXSTSE |
| 8 | 14003552 | YEAR OF MANUFACTURE LABEL (Brazil) (2023) | FLTRXSTSE |
| 9 | 14003856 | YEAR OF MANUFACTURE LABEL (Brazil) (2024) | FLTRXSTSE |
| 10 | 14001739 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 14001734 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 14003825 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| 10 | 15385-08 | LABEL, GENERAL WARNING (Brazil) (not shown) | FLTRXSTSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 57200431EWR | SIDE COVER, with 61301292 (left) (Raven Metallic, performance 1, M25 paint scheme) | FLTRXSTSE |
| 1 | 57200431EXZ | SIDE COVER, with 61301291 (left) (Golden White Pearl, performance 2, M26 paint scheme) | FLTRXSTSE |
| 1 | 57400617 | WINDSHIELD, KIT (dark) | FLTRXSTSE |
| 1 | 90300228 | KEY AND FOB ASSEMBLY (specify key number) (Japan only) (2) | FLTRXSTSE |
| 1 | 90300229 | KEY AND FOB ASSEMBLY (specify key number) (all except Australia, Japan) (2) | FLTRXSTSE |
| 1 | 90300232 | KEY AND FOB ASSEMBLY (specify key number) (Australia only) (2) | FLTRXSTSE |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10040 | |
| 10065 | |
| 10076 | |
| 10081 | |
| 1009M | |
| 10100062 | |
| 10100178 | |
| 10102 | |
| 10147 | |
| 10177 | |
| 10200032 | |
| 10200063 | |
| 10200064 | |
| 10200065 | |
| 10200103 | |
| 10200120 | |
| 10200147 | |
| 10200217 | |
| 10200220 | |
| 10200223 | |
| 10200242 | |
| 10200303 | |
| 10200308 | |
| 10200343 | |
| 10200350 | |
| 10200373 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200533 | |
| 10200544 | |
| 10200546 | |
| 10200557 | |
| 10200569 | |
| 10200588 | |
| 10200628 | |
| 10200721 | |
| 10200723 | |
| 10200802 | |
| 10200890 | |
| 10200922 | |
| 10200986 | |
| 10201096 | |
| 10201167 | |
| 10201173 | |
| 10201187 | |
| 10201188 | |
| 10201216 | |
| 10201279 | |
| 10201318 | |
| 10201326 | |
| 10201339 | |
| 10201350 | |
| 10201351 | |
| 10201368 | |
| 10201370 | |
| 10201376 | |
| 10201381 | |
| 10201386 | |
| 10201389 | |
| 10201394 | |
| 10201397 | |
| 10201404 | |
| 10201406 | |
| 10201418 | |
| 10201426 | |
| 10264 | |
| 10300129 | |
| 10340B | |
| 10400034 | |
| 10400077 | |
| 10500031 | |
| 10500069 | |
| 10500071 | |
| 10500107 | |
| 10500167 | |
| 10500203 | |
| 10500216 | |
| 10600007 | |
| 1062 | |
| 10800025A | |
| 10800182 | |
| 10800201 | |
| 10800212 | |
| 10800216 | |
| 10800227 | |
| 10900015A | |
| 10991A | |
| 10998 | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11081A | |
| 11082A | |
| 11096 | |
| 11100068 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11289A | |
| 11293 | |
| 11389 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11615 | |
| 11650 | |
| 11668 | |
| 11779 | |
| 11785 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900010 | |
| 11900021 | |
| 11900092 | |
| 11900103 | |
| 11900130 | |
| 11900155 | |
| 11900172 | |
| 11900179 | |
| 11900180 | |
| 11900192 | |
| 11900197 | |
| 11900200 | |
| 11900208 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074 | |
| 12077 | |
| 12100007 | |
| 12100069 | |
| 12100141 | |
| 12100153 | |
| 12100203 | |
| 12100208 | |
| 12100212 | |
| 12102 | |
| 12200025 | |
| 12200144 | |
| 12200154 | |
| 12200181 | |
| 12200221 | |
| 12200271 | |
| 12200278 | |
| 12200281 | |
| 12400099 | |
| 12500014 | |
| 12500016 | |
| 12600032 | |
| 12600116 | |
| 12600197 | |
| 12600358 | |
| 12600360 | |
| 12600362 | |
| 12600369 | |
| 12700182A | |
| 12700183 | |
| 12700198 | |
| 14000827 | |
| 14001624 | |
| 14001734 | |
| 14001739 | |
| 14001773 | |
| 14001798A | |
| 14001799A | |
| 14001859 | |
| 14002622 | |
| 14002624 | |
| 14002625 | |
| 14002626 | |
| 14002628 | |
| 14002629 | |
| 14003552 | |
| 14003785 | |
| 14003813 | |
| 14003814 | |
| 14003815 | |
| 14003824 | |
| 14003825 | |
| 14003856 | |
| 14100881 | |
| 14101866 | |
| 14101872 | |
| 14101920 | |
| 14102001 | |
| 14900135 | |
| 15342-06A | |
| 15368-01A | |
| 15385-08 | |
| 16200877 | |
| 16200900 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400041 | |
| 16400042 | |
| 16400087B | |
| 16400109 | |
| 16500332 | |
| 16500969 | |
| 16500975 | |
| 16501116A | |
| 16574-99A | |
| 16583-00B | |
| 16589-99A | |
| 16589-99B | |
| 16800063 | |
| 16800373 | |
| 16800377 | |
| 17300053 | |
| 17300055 | |
| 17300059B | |
| 17369-06 | |
| 1775 | |
| 17900022A | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17947-36 | |
| 17948-99A | |
| 18000016 | |
| 18000034A | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18100135 | |
| 18100140 | |
| 18400073B | |
| 18400117 | |
| 21900128 | |
| 22000041 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100080 | |
| 24100152 | |
| 24400187 | |
| 24400215 | |
| 24400388 | |
| 24400390 | |
| 24400410 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 25400103 | |
| 25400257 | |
| 25400452 | |
| 25400460 | |
| 25500013 | |
| 25566-06 | |
| 25673-06 | |
| 25675-06 | |
| 25700362A | |
| 25700370A | |
| 25700372B | |
| 25700378 | |
| 25700425 | |
| 25700433A | |
| 25700491 | |
| 25700520 | |
| 25700650 | |
| 25700679 | |
| 25700731 | |
| 25700830 | |
| 25700893 | |
| 25700894 | |
| 25701194 | |
| 25701479 | |
| 25701511 | |
| 25701513 | |
| 25701609 | |
| 25701610 | |
| 25701666 | |
| 25701809 | |
| 25701944 | |
| 25701945 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800165 | |
| 25800170 | |
| 25800185 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 26500026 | |
| 26500027 | |
| 26600061 | |
| 26800086 | |
| 26800212 | |
| 26800227 | |
| 26800228 | |
| 26800232 | |
| 26800266 | |
| 26900301 | |
| 26900302 | |
| 26900303 | |
| 26900304 | |
| 26900305 | |
| 26900308 | |
| 26900326 | |
| 26900327 | |
| 26900350 | |
| 27200094 | |
| 27300196 | |
| 27300197 | |
| 27300198 | |
| 27300199 | |
| 27300200 | |
| 27300201 | |
| 27400065 | |
| 27400071 | |
| 27444-00Y | |
| 29000364 | |
| 29000417 | |
| 29000428 | |
| 29000433 | |
| 29200168 | |
| 29200169 | |
| 29200178 | |
| 29200180 | |
| 29200181 | |
| 29200182 | |
| 29200189 | |
| 29200193 | |
| 2933 | |
| 2934 | |
| 29400448 | |
| 29400470 | |
| 29400487 | |
| 29900041 | |
| 29900114 | |
| 29900118 | |
| 29900147 | |
| 3018A | |
| 3050 | |
| 3057 | |
| 3061 | |
| 31400053 | |
| 31400137 | |
| 3153 | |
| 31586-07 | |
| 31600012 | |
| 31600081 | |
| 31600194 | |
| 31600195 | |
| 32001-08A | |
| 3249 | |
| 32700010 | |
| 32700015 | |
| 32700054 | |
| 32700065 | |
| 32700066 | |
| 32700101 | |
| 32700113 | |
| 32700116 | |
| 32700124 | |
| 32700130 | |
| 32700144 | |
| 32700162 | |
| 32700166 | |
| 32700167 | |
| 3275 | |
| 33130-07A | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33600091 | |
| 33600102 | |
| 33600188 | |
| 33600243 | |
| 33600304 | |
| 33600411 | |
| 33899-08 | |
| 33900180 | |
| 33900265 | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34700552 | |
| 34800043 | |
| 34800071 | |
| 34920-86A | |
| 34987-06 | |
| 35000178 | |
| 35000179 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 35186-06A | |
| 35187-06 | |
| 35200021 | |
| 35200150 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06A | |
| 35223-06A | |
| 35241-06 | |
| 35242-06 | |
| 35243-06A | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 3536 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3563 | |
| 35654-06 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3607 | |
| 3612 | |
| 36500075A | |
| 36500092A | |
| 3655A | |
| 3656 | |
| 36700286 | |
| 36700288 | |
| 36700291 | |
| 36706-01K | |
| 3684 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000219 | |
| 37000270A | |
| 37000295 | |
| 37000376 | |
| 37000377 | |
| 37000382 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37200395A | |
| 37200396 | |
| 37200437 | |
| 37200545 | |
| 37200609 | |
| 37312-75 | |
| 37313-80 | |
| 37496-90A | |
| 3787 | |
| 37903-90 | |
| 37904-90 | |
| 37909-90 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 40000036 | |
| 40037-07 | |
| 40100041 | |
| 40100064 | |
| 40100076 | |
| 4015 | |
| 40217-09 | |
| 40278-09 | |
| 40615-08 | |
| 40900928 | |
| 40984-10 | |
| 41001351 | |
| 41001501 | |
| 41001502 | |
| 41100122 | |
| 41123-79 | |
| 41229-08 | |
| 41300225 | |
| 41300226 | |
| 41300227 | |
| 41300291 | |
| 41300292 | |
| 4132 | |
| 41349-07 | |
| 41500210 | |
| 41600078 | |
| 41600320 | |
| 41600382 | |
| 41600383 | |
| 41600384 | |
| 41600385 | |
| 41600386 | |
| 41600390 | |
| 41700028A | |
| 41700195 | |
| 41700367 | |
| 41700625 | |
| 41701089 | |
| 41701125 | |
| 41701131 | |
| 41701406 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800890 | |
| 41800891 | |
| 41800914 | |
| 41800915 | |
| 41800931 | |
| 41810-08C | |
| 41852-08B | |
| 41900-08 | |
| 4192 | |
| 42300001A | |
| 42300139 | |
| 42300140 | |
| 42300141 | |
| 42300142 | |
| 42300143 | |
| 4240 | |
| 42400019 | |
| 42460-80B | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42858-06A | |
| 42860-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42889-06 | |
| 42932-08A | |
| 42934-08 | |
| 42937-08C | |
| 43000203 | |
| 43000207 | |
| 43000300A | |
| 43100045 | |
| 4312C | |
| 43200045 | |
| 43300951 | |
| 43567-92 | |
| 44080-08C | |
| 44089-08 | |
| 4419 | |
| 45400341 | |
| 45400342 | |
| 45500132 | |
| 45500576 | |
| 45500577 | |
| 45500578 | |
| 45500579 | |
| 45500580 | |
| 45500581 | |
| 45500582 | |
| 45500583 | |
| 45500584 | |
| 45500589 | |
| 45500593 | |
| 45500600 | |
| 45500754 | |
| 45500825 | |
| 45500843 | |
| 45500850 | |
| 45500851 | |
| 45500861 | |
| 45500862 | |
| 45500863 | |
| 45500868 | |
| 45500869 | |
| 45700009 | |
| 45700070 | |
| 45800157 | |
| 45800158 | |
| 45900330A | |
| 45900331 | |
| 4597M | |
| 4612 | |
| 46353-06 | |
| 4688 | |
| 47000344 | |
| 4705 | |
| 4718A | |
| 47200266 | |
| 47200945 | |
| 47201041 | |
| 4740A | |
| 4741A | |
| 47540-11 | |
| 47549-09A | |
| 47584-09 | |
| 48079-09BHP | |
| 4813A | |
| 4816A | |
| 4820A | |
| 4822A | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4890 | |
| 49000242 | |
| 49000243 | |
| 4924 | |
| 49725-07A | |
| 50000143 | |
| 50000149 | |
| 50015-74A | |
| 50126-08B | |
| 50245-07 | |
| 50502582 | |
| 50502589 | |
| 50502590 | |
| 50502591 | |
| 50502634 | |
| 50502635 | |
| 50518-09 | |
| 50600244 | |
| 50600546 | |
| 50622-09A | |
| 5118 | |
| 515 | |
| 52000715 | |
| 54000316 | |
| 54000317 | |
| 54000319 | |
| 54000320 | |
| 55801485 | |
| 55801486 | |
| 55801537 | |
| 55900308 | |
| 56100564 | |
| 56100566 | |
| 56100600 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000779 | |
| 57001665DH | |
| 57001665EWR | |
| 57001885 | |
| 57001913EWR | |
| 57001913EXZ | |
| 57001942 | |
| 57001986 | |
| 57100421 | |
| 57100422 | |
| 57100423EWR | |
| 57100423EXZ | |
| 57100424EWR | |
| 57100424EXZ | |
| 57100444 | |
| 57200375B | |
| 57200376B | |
| 57200398EWR | |
| 57200398EXZ | |
| 57200405 | |
| 57200428EWR | |
| 57200431EWR | |
| 57200431EXZ | |
| 57300388 | |
| 57300393 | |
| 57300403DH | |
| 57300403EWR | |
| 57300409 | |
| 57300433 | |
| 57300444 | |
| 57300445 | |
| 57400617 | |
| 57400658 | |
| 57640-08 | |
| 5837B | |
| 58900624 | |
| 59500519 | |
| 59501021EWR | |
| 59501021EXZ | |
| 59501044EWR | |
| 59501044EXZ | |
| 59501045EWR | |
| 59501045EXZ | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 601 | |
| 60328-98B | |
| 60386-09 | |
| 60463-09B | |
| 60678-85 | |
| 60800109 | |
| 60800110 | |
| 60800111 | |
| 60800116 | |
| 60800120 | |
| 60900061 | |
| 60916-09 | |
| 61000986 | |
| 61001099EWR | |
| 61001099EXZ | |
| 61001119 | |
| 6101 | |
| 61100202 | |
| 61100204 | |
| 61100206 | |
| 61100207 | |
| 6116 | |
| 6119 | |
| 61200091A | |
| 61200096 | |
| 61200097 | |
| 61200100 | |
| 61200101 | |
| 61200102 | |
| 61200110 | |
| 61301291 | |
| 61301292 | |
| 61301370 | |
| 61301382 | |
| 61301409 | |
| 6139 | |
| 61400716 | |
| 61400717 | |
| 61400719 | |
| 61400732 | |
| 61400734 | |
| 6150W | |
| 6220W | |
| 62400055 | |
| 62400205 | |
| 62400233 | |
| 62400242 | |
| 62400245 | |
| 62700089A | |
| 62700117 | |
| 62700150 | |
| 62700219 | |
| 62700291 | |
| 62700296 | |
| 62700324 | |
| 62700327 | |
| 62800013 | |
| 62800067 | |
| 62800073 | |
| 6416 | |
| 6421 | |
| 6441 | |
| 64901352 | |
| 64901353 | |
| 64901354 | |
| 64901355 | |
| 6497HW | |
| 65296-95B | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400435A | |
| 65400436 | |
| 65400437 | |
| 65400438 | |
| 65500042 | |
| 65500043B | |
| 65600178A | |
| 65600377 | |
| 65600379 | |
| 65600451 | |
| 65723-85 | |
| 65724-85A | |
| 65900015 | |
| 65900017A | |
| 65900056 | |
| 6590HW | |
| 66000116 | |
| 66000339 | |
| 66010-97E | |
| 66051-08 | |
| 66290-06 | |
| 66373-06 | |
| 66861-09B | |
| 66881-09 | |
| 6703 | |
| 67700660 | |
| 67801341 | |
| 67801344 | |
| 67801345 | |
| 67875-11 | |
| 67900009 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 67900212A | |
| 67900243 | |
| 67900640 | |
| 67900642DH | |
| 67900642EWR | |
| 67900649 | |
| 67900655 | |
| 67900659 | |
| 68042-99 | |
| 68120-00 | |
| 69000124 | |
| 69000125B | |
| 69060-90H | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200205 | |
| 69200212 | |
| 69200224 | |
| 69200238 | |
| 69200271 | |
| 69200272 | |
| 69200293 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200312 | |
| 69200536 | |
| 69200600 | |
| 69200611 | |
| 69200702 | |
| 69200752 | |
| 69201162 | |
| 69201164 | |
| 69201179 | |
| 69201287A | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201377 | |
| 69201379 | |
| 69201385 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201406 | |
| 69201407 | |
| 69201412 | |
| 69201416 | |
| 69201427 | |
| 69201441 | |
| 69201442 | |
| 69201575 | |
| 69201596 | |
| 69201652 | |
| 69201711 | |
| 69201712 | |
| 69201722 | |
| 69201779 | |
| 69201814 | |
| 69201890 | |
| 69201924 | |
| 69201931 | |
| 69201932 | |
| 69201933 | |
| 69201962 | |
| 69202028 | |
| 69202031 | |
| 69202032 | |
| 69202098 | |
| 69202104 | |
| 69202106 | |
| 69202107 | |
| 69202109 | |
| 69202170 | |
| 69202171 | |
| 69202172 | |
| 69202173 | |
| 69202183 | |
| 69202184 | |
| 69202219 | |
| 69202285 | |
| 69202322 | |
| 69202453 | |
| 69202489 | |
| 69202491 | |
| 69202492 | |
| 69202636A | |
| 69202637 | |
| 69202720A | |
| 69202786 | |
| 69202958 | |
| 69202959 | |
| 69202980A | |
| 69202989 | |
| 69202996 | |
| 69203010 | |
| 69203011 | |
| 69203017 | |
| 69203018 | |
| 69203028 | |
| 69203042 | |
| 69203046 | |
| 69203052 | |
| 69203053 | |
| 69203057 | |
| 69203058 | |
| 69203090 | |
| 69203096 | |
| 69203096A | |
| 69203105 | |
| 69203106 | |
| 69203119 | |
| 69203120 | |
| 69203121 | |
| 69203123 | |
| 69203188 | |
| 69203192 | |
| 69203195 | |
| 69203209 | |
| 69203403 | |
| 69203487 | |
| 69203519 | |
| 69203624 | |
| 69309-10 | |
| 69490-07 | |
| 6982 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70631-08 | |
| 70681-09 | |
| 70717-10 | |
| 70900948 | |
| 70901090A | |
| 70901092A | |
| 70901093A | |
| 70901104DH | |
| 70901104EWR | |
| 70901169 | |
| 70901170 | |
| 71400100 | |
| 71400112A | |
| 71400141 | |
| 71400196 | |
| 71500609A | |
| 71500610 | |
| 71500611A | |
| 71500612 | |
| 71500660 | |
| 71540-94B | |
| 7155 | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72098-06 | |
| 72099-06 | |
| 72110-06 | |
| 72111-06 | |
| 72127-06 | |
| 72135-06 | |
| 72145-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72229-11 | |
| 72241-94A | |
| 72256-11 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72356-95 | |
| 72364-06 | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72427-00 | |
| 72444-07GY | |
| 72462-00 | |
| 72473-07 | |
| 72484-08 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72499-07 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72539-06 | |
| 72569-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72720-07 | |
| 72721-07 | |
| 72905-11 | |
| 72906-11 | |
| 72908-11 | |
| 72910-11 | |
| 73213-07 | |
| 7326 | |
| 7330 | |
| 73307-10 | |
| 7340 | |
| 7352 | |
| 74112-98BK | |
| 74152-98 | |
| 74191-98 | |
| 74194-98 | |
| 7434 | |
| 7468M | |
| 74700048 | |
| 7495 | |
| 7499 | |
| 7531 | |
| 7586 | |
| 7593 | |
| 76000127 | |
| 76000789 | |
| 76000925 | |
| 76000999 | |
| 76001011 | |
| 76001132 | |
| 76001146 | |
| 76001147 | |
| 76001153 | |
| 76001154 | |
| 76001202 | |
| 76001203 | |
| 76001206 | |
| 76001207 | |
| 76001208 | |
| 76001209 | |
| 76001233DH | |
| 76001233EWR | |
| 76001234DH | |
| 76001234EWR | |
| 76001235 | |
| 76001251 | |
| 76001254 | |
| 76001255 | |
| 7601 | |
| 765 | |
| 7686 | |
| 7716 | |
| 7792 | |
| 780 | |
| 7825 | |
| 7848W | |
| 786A | |
| 7880 | |
| 7900 | |
| 791A | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8142 | |
| 8144 | |
| 83595-11A | |
| 83936-09A | |
| 856A | |
| 881A | |
| 882 | |
| 8873 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8973 | |
| 90200467 | |
| 90200519 | |
| 90200549 | |
| 90200550 | |
| 90200611 | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90201127EWR | |
| 90201127EXZ | |
| 90201129EWR | |
| 90201129EXZ | |
| 90201540 | |
| 90201774 | |
| 90201775 | |
| 90202454 | |
| 90202455 | |
| 90202462EWR | |
| 90202462EXZ | |
| 90202463EWR | |
| 90202463EXZ | |
| 90202466A | |
| 90202467A | |
| 90202509 | |
| 90202692 | |
| 90202698EWR | |
| 90202698EXZ | |
| 90202699EWR | |
| 90202699EXZ | |
| 90202728EWR | |
| 90202728EXZ | |
| 90202729EWR | |
| 90202729EXZ | |
| 90202889 | |
| 90202890 | |
| 90300024 | |
| 90300224 | |
| 90300225 | |
| 90300228 | |
| 90300229 | |
| 90300232 | |
| 90300233 | |
| 90493-83 | |
| 90820-93D | |
| 91140-09 | |
| 91800058 | |
| 91800075A | |
| 92078-03 | |
| 9208 | |
| 92082-03 | |
| 923 | |
| 9231 | |
| 9252A | |
| 9276B | |
| 9298B | |
| 940 | |
| 94000326 | |
| 94001156 | |
| 942 | |
| 945 | |
| 9701A | |
| 9819 | |
| 9853 | |
| 9907 | |
| 9937 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7326 | Unknown |
| 7330 | Unknown |
| 7340 | Unknown |
| 7468M | 2006 |
| 7495 | 1994 |
| 7499 | Unknown |
| 7586 | Unknown |
| 7593 | 1991 |
| 7601 | 1990 |
| 7792 | 2012 |
| 7825 | Unknown |
| 7880 | Unknown |
| 7900 | Unknown |
| 8020 | 2002 |
| 8142 | Unknown |
| 8144 | Unknown |
| 10100062 | 2017 |
| 10100178 | 2023 |
| 102A1 - Generic Screws | |
| 1009M | Unknown |
| 10200032 | 2012 |
| 10200063 | 2014 |
| 10200064 | 2014 |
| 10200065 | 2014 |
| 10200103 | 2014 |
| 10200120 | 2011 |
| 10200147 | 2014 |
| 10200217 | 2014 |
| 10200220 | 2014 |
| 10200223 | 2014 |
| 10200242 | 2014 |
| 10200303 | 2017 |
| 10200308 | 2017 |
| 10200343 | 2017 |
| 10200350 | 2015 |
| 10200373 | 2017 |
| 10200393 | 2017 |
| 10200408A | 2018 |
| 10200414 | 2017 |
| 10200422 | 2017 |
| 10200429 | 2017 |
| 10200446 | 2017 |
| 10200463 | 2017 |
| 10200503 | 2017 |
| 10200533 | 2016 |
| 10200544 | 2018 |
| 10200546 | 2017 |
| 10200557 | 2018 |
| 10200569 | 2017 |
| 10200588 | 2018 |
| 10200628 | 2018 |
| 10200721 | 2020 |
| 10200723 | 2019 |
| 10200802 | 2020 |
| 10200890 | 2021 |
| 10200922 | 2021 |
| 10200986 | 2020 |
| 10201096 | 2021 |
| 10201167 | 2021 |
| 10201173 | 2021 |
| 10201187 | 2021 |
| 10201188 | 2021 |
| 10201216 | 2021 |
| 10201279 | 2024 |
| 10201318 | 2021 |
| 10201326 | 2023 |
| 10201339 | 2023 |
| 10201350 | 2023 |
| 10201351 | 2023 |
| 10201368 | 2023 |
| 10201370 | 2023 |
| 10201376 | 2023 |
| 10201381 | 2021 |
| 10201386 | 2023 |
| 10201389 | 2023 |
| 10201394 | 2023 |
| 10201397 | 2024 |
| 10201404 | 2024 |
| 10201406 | 2024 |
| 10201418 | 2024 |
| 10201426 | 2023 |
| 1062 | Unknown |
| 1775 | Unknown |
| 2445 | Unknown |
| 2478 | 2007 |
| 2479 | Unknown |
| 2933 | Unknown |
| 2934 | 1995 |
| 3018A | 2010 |
| 3050 | Unknown |
| 3057 | Unknown |
| 3061 | Unknown |
| 3153 | Unknown |
| 3249 | Unknown |
| 3275 | 2002 |
| 3340 | Unknown |
| 3445 | Unknown |
| 35244-06 | 2014 |
| 35259-06 | 2006 |
| 3536 | Unknown |
| 3563 | 1999 |
| 3588 | 1990 |
| 3594 | 1992 |
| 3607 | 2009 |
| 3612 | 2012 |
| 3655A | Unknown |
| 3656 | Unknown |
| 3684 | Unknown |
| 3699D | 2006 |
| 3787 | Unknown |
| 3892 | Unknown |
| 3901 | Unknown |
| 3929 | 2009 |
| 3976 | 2004 |
| 3983 | 2005 |
| 4015 | Unknown |
| 4132 | Unknown |
| 4192 | 1998 |
| 4240 | Unknown |
| 42858-06A | 2006 |
| 4312C | Unknown |
| 43567-92 | 1992 |
| 4419 | Unknown |
| 4597M | Unknown |
| 4612 | Unknown |
| 4688 | Unknown |
| 4705 | 2005 |
| 4718A | 1994 |
| 4740A | 1994 |
| 4741A | 1994 |
| 4813A | 1990 |
| 4816A | Unknown |
| 4820A | Unknown |
| 4822A | 1994 |
| 4856 | Unknown |
| 4890 | Unknown |
| 4924 | Unknown |
| 68042-99 | 1999 |
| 68120-00 | 2000 |
| 703B | Unknown |
| 780 | Unknown |
| 786A | Unknown |
| 791A | 2007 |
| 856A | 1990 |
| 881A | 2018 |
| 882 | 2000 |
| 923 | Unknown |
| 940 | Unknown |
| 942 | 1992 |
| 945 | Unknown |
| 103A1 - Generic Washers | |
| 7434 | 1999 |
| 8973 | 2001 |
| 10300129 | 2018 |
| 11891 | Unknown |
| 56159-73 | 1973 |
| 59788-01 | 2001 |
| 6101 | 2011 |
| 6116 | Unknown |
| 6139 | Unknown |
| 6150W | Unknown |
| 6220W | Unknown |
| 6416 | Unknown |
| 6421 | 1996 |
| 6441 | Unknown |
| 6497HW | 2010 |
| 6532 | 2000 |
| 6590HW | Unknown |
| 6703 | 1970 |
| 7038 | 1998 |
| 7041 | 1958 |
| 104A1 - Custom Nuts | |
| 10400034 | 2016 |
| 7352 | 2010 |
| 104Z1 - Kit,Custom Nut | |
| 10400077 | 2023 |
| 105A1 - Custom Screws | |
| 10500031 | 2014 |
| 10500069 | 2017 |
| 10500071 | 2017 |
| 10500107 | 2018 |
| 10500167 | 2020 |
| 10500203 | 2021 |
| 10500216 | 2024 |
| 37090-98A | 1998 |
| 106A1 - Custom Washers | |
| 10600007 | 2014 |
| 108A1 - Hose Clamps | |
| 10340B | 2015 |
| 10800025A | 2017 |
| 10800182 | 2021 |
| 10800201 | 2022 |
| 10800212 | 2023 |
| 9955 | Unknown |
| 9956 | 1972 |
| 108B1 - P Clamps | |
| 10076 | 2010 |
| 10800216 | 2023 |
| 10800227 | 2023 |
| 109A1 - Studs | |
| 10900015A | 2018 |
| 66290-06 | 2006 |
| 110B1 - Plain Bushings | |
| 11000050 | 2014 |
| 11000139 | 2017 |
| 12077 | Unknown |
| 8967A | 2017 |
| 9208 | Unknown |
| 9701A | 2011 |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 11000134 | 2017 |
| 12052A | 2003 |
| 12074 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 11000010 | 2011 |
| 24605-07 | 2007 |
| 8042A | 2018 |
| 8963 | Unknown |
| 8970A | 2012 |
| 9231 | Unknown |
| 9252A | 2017 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 72008-05 | 2005 |
| 72110-06 | 2006 |
| 9819 | Unknown |
| 9907 | Unknown |
| 111C1 - Insulating Tape | |
| 11668 | Unknown |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 116A1 - Banjo Bolts | |
| 11600001 | 2012 |
| 11600009 | 2014 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 119A1 - O-Rings | |
| 11105 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11145A | 2007 |
| 11179 | 1986 |
| 11201 | Unknown |
| 11289A | Unknown |
| 11293 | 1996 |
| 11900010 | 2013 |
| 11900021 | 2014 |
| 11900092 | 2017 |
| 11900103 | 2017 |
| 11900130 | 2018 |
| 11900155 | 2020 |
| 11900172 | 2020 |
| 11900179 | 2021 |
| 11900180 | 2020 |
| 11900192 | 2021 |
| 11900197 | 2023 |
| 11900200 | 2023 |
| 11900208 | 2024 |
| 27444-00Y | 2000 |
| 120A1 - Pins | |
| 16574-99A | 1999 |
| 16583-00B | 2021 |
| 16589-99A | 1999 |
| 16589-99B | 2020 |
| 221 | 2026 |
| 24754-75A | 1975 |
| 42460-80B | 1980 |
| 515 | Unknown |
| 601 | Unknown |
| 121A1 - Grommets | |
| 11650 | 2010 |
| 12100007 | 2014 |
| 12100141 | 2021 |
| 12100153 | 2021 |
| 12100208 | 2023 |
| 12100212 | 2023 |
| 121B1 - Press-Fit Plugs | |
| 12100069 | 2017 |
| 765 | 1997 |
| 121C1 - Threaded Plugs | |
| 12100203 | 2023 |
| 122A1 - Retaining Rings | |
| 10040 | 1982 |
| 10147 | 2018 |
| 10264 | Unknown |
| 10991A | Unknown |
| 10998 | 1985 |
| 11081A | 2008 |
| 11082A | 2016 |
| 11096 | 2010 |
| 11150 | 1984 |
| 11161 | 1984 |
| 11177A | 1996 |
| 11389 | Unknown |
| 11575 | Unknown |
| 11615 | Unknown |
| 12200025 | 2014 |
| 12200144 | 2018 |
| 12200281 | 2024 |
| 35087-99A | 1999 |
| 35114-02 | 2002 |
| 41229-08 | 2008 |
| 60678-85 | 1985 |
| 65325-83A | 1983 |
| 9853 | Unknown |
| 122A2 - Retaining Clips | |
| 12200154 | 2018 |
| 12200181 | 2018 |
| 12200221 | 2021 |
| 12200271 | 2023 |
| 12200278 | 2023 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7155 | Unknown |
| 124A1 - Spacers | |
| 11599A | 2012 |
| 11848 | Unknown |
| 12400099 | 2017 |
| 41900-08 | 2008 |
| 42400019 | 2016 |
| 5837B | 2020 |
| 125A1 - Tie Straps | |
| 10006 | 1960 |
| 10039 | 1981 |
| 10065 | 1985 |
| 10081 | 1984 |
| 10177 | 1996 |
| 12500014 | 2017 |
| 12500016 | 2017 |
| 126A1 - Miscellaneous Hardware | |
| 12600032 | 2014 |
| 12600360 | 2023 |
| 12600362 | 2023 |
| 12600369 | 2024 |
| 56161-83A | 1983 |
| 8041 | Unknown |
| 8873 | 1984 |
| 90493-83 | 1983 |
| 126B1 - Rivets Fasteners | |
| 11779 | 2008 |
| 11785 | Unknown |
| 12600116 | 2014 |
| 12600358 | 2022 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 127B1 - Generic Mounting Bracket | |
| 12700182A | 2023 |
| 12700183 | 2023 |
| 12700198 | 2024 |
| 140A1 - Battery Warning Label | |
| 14002622 | 2021 |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14001624 | 2019 |
| 14001734 | 2019 |
| 14001739 | 2019 |
| 14001773 | 2019 |
| 14001798A | 2021 |
| 14001799A | 2021 |
| 14001859 | 2019 |
| 14002626 | 2021 |
| 14003785 | 2023 |
| 14003813 | 2024 |
| 14003814 | 2024 |
| 14003815 | 2024 |
| 14003824 | 2023 |
| 14003825 | 2024 |
| 15385-08 | 2008 |
| 140A3 - Other Special Warning Label | |
| 14002624 | 2021 |
| 14002625 | 2021 |
| 14002628 | 2021 |
| 14002629 | 2021 |
| 15342-06A | 2006 |
| 90820-93D | 1993 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 14003552 | 2023 |
| 14003856 | 2024 |
| 141A1 - Medallion | |
| 14100881 | 2016 |
| 14101866 | 2023 |
| 14101872 | 2023 |
| 14101920 | 2024 |
| 14102001 | 2024 |
| 42856-06 | 2006 |
| 149A1 - Tool | |
| 14900135 | 2022 |
| 162D1 - Engine Assembly | |
| 16200900 | 2024 |
| 162D3 - Engine Assembly Short Block | |
| 16200877 | 2023 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 16400087B | 2023 |
| 16400109 | 2024 |
| 164B1 - Engine Mount Bracket sub-component | |
| 16219-09 | 2009 |
| 7531 | 1980 |
| 7686 | Unknown |
| 7716 | 1990 |
| 7848W | Unknown |
| 164D1 - Tiebar Mount | |
| 16400041 | 2017 |
| 165A1 - Cylinder Head | |
| 16500969 | 2023 |
| 16500975 | 2023 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500332 | 2017 |
| 16501116A | 2025 |
| 17369-06 | 2006 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 33899-08 | 2008 |
| 168A1 - Cylinder | |
| 16800373 | 2023 |
| 16800377 | 2023 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300053 | 2017 |
| 17300055 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059B | 2020 |
| 179A1 - Lifters | |
| 17900022A | 2018 |
| 179B1 - Push Rod | |
| 17900030 | 2017 |
| 17900031 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900034 | 2017 |
| 17900035 | 2017 |
| 180A1 - Valves | |
| 18000016 | 2017 |
| 18000034A | 2022 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 18100045 | 2017 |
| 18100060 | 2017 |
| 18100135 | 2021 |
| 181C3 - Valve Springs | |
| 18100140 | 2023 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 18400117 | 2024 |
| 9298B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900128 | 2023 |
| 220A1 - Piston Ring | |
| 22000041 | 2017 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100152 | 2023 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400187 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215 | 2017 |
| 244E1 - Transmission Access Door | |
| 24400388 | 2023 |
| 24400410 | 2024 |
| 244F1 - Oil Pan | |
| 24400390 | 2024 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25400460 | 2024 |
| 25673-06 | 2006 |
| 25675-06 | 2006 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400452 | 2023 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 257A1 - Cam Cover | |
| 25701511 | 2023 |
| 25701513 | 2023 |
| 25701666 | 2024 |
| 257B1 - Clutch Cover | |
| 25701610 | 2024 |
| 257E1 - Cover Gaskets | |
| 11902 | Unknown |
| 11936 | Unknown |
| 25700362A | 2022 |
| 25700370A | 2022 |
| 25700372B | 2018 |
| 25700378 | 2017 |
| 25700425 | 2017 |
| 25700433A | 2022 |
| 25700679 | 2017 |
| 25701479 | 2023 |
| 25701809 | 2024 |
| 35654-06 | 2006 |
| 65324-83B | 2009 |
| 257L1 - Primary Cover | |
| 25700491 | 2017 |
| 25700650 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 25701194 | 2021 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700520 | 2017 |
| 25701609 | 2024 |
| 257P1 - Tappet Cover | |
| 25700893 | 2018 |
| 25700894 | 2018 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700731 | 2017 |
| 25700830 | 2017 |
| 25701944 | 2025 |
| 25701945 | 2025 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800165 | 2023 |
| 25800170 | 2023 |
| 25800185 | 2024 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 266B1 - Water Pump | |
| 26600061 | 2023 |
| 268B1 - Cooling Fan | |
| 26800228 | 2023 |
| 268C1 - Radiator | |
| 26800227 | 2023 |
| 26800266 | 2024 |
| 268E1 - Radiator sub-component | |
| 26800232 | 2023 |
| 268F1 - Radiator Pressure Cap | |
| 26800086 | 2021 |
| 26800212 | 2021 |
| 269B1 - Radiator Hose | |
| 26900301 | 2026 |
| 26900302 | 2023 |
| 26900303 | 2023 |
| 26900304 | 2023 |
| 26900305 | 2023 |
| 26900308 | 2023 |
| 26900326 | 2023 |
| 26900327 | 2023 |
| 26900350 | 2024 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200094 | 2023 |
| 273A1 - Intake Manifold | |
| 27300196 | 2023 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300200 | 2023 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300199 | 2023 |
| 27300201 | 2023 |
| 273G1 - Throttle Body | |
| 27300197 | 2023 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300198 | 2023 |
| 274B1 - Fuel Rail | |
| 27400071 | 2023 |
| 274C1 - Fuel Injector | |
| 27400065 | 2023 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29000417 | 2024 |
| 29000433 | 2024 |
| 290D1 - Airbox Seal | |
| 29000364 | 2023 |
| 29000428 | 2024 |
| 292A1 - Air Duct | |
| 29200168 | 2023 |
| 29200169 | 2023 |
| 29200178 | 2023 |
| 29200180 | 2023 |
| 29200181 | 2023 |
| 29200189 | 2023 |
| 29200193 | 2023 |
| 292S2 - Sub-Assembly,Air Duct | |
| 29200182 | 2023 |
| 294A1 - Air Filter Element | |
| 29400470 | 2024 |
| 294B1 - Breather Bolt | |
| 29400487 | 2024 |
| 294F1 - Engine Breather Valve | |
| 29400448 | 2023 |
| 299B1 - Charging Rotor Assembly | |
| 29900118 | 2023 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900114 | 2023 |
| 299Z1 - Kit,Charging | |
| 29900147 | 2025 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 31400137 | 2021 |
| 316A1 - Ignition Coil | |
| 31600194 | 2023 |
| 316B1 - Spark Plug Cable | |
| 31600081 | 2018 |
| 31600195 | 2023 |
| 32001-08A | 2008 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 32700101 | 2019 |
| 32700113 | 2021 |
| 32700144 | 2020 |
| 32700166 | 2023 |
| 32700167 | 2023 |
| 50126-08B | 2018 |
| 327B1 - Chemical / Gas Sensor | |
| 32700116 | 2021 |
| 32700124 | 2021 |
| 32700130 | 2021 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700015 | 2014 |
| 32700162 | 2023 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32700054 | 2017 |
| 32700065 | 2017 |
| 32700066 | 2015 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600091 | 2017 |
| 33600102 | 2016 |
| 33600188 | 2017 |
| 33600304 | 2019 |
| 336Z1 - Kit,Shift Lever | |
| 33600243 | 2017 |
| 336Z2 - KIT,TOEPEG | |
| 33600411 | 2023 |
| 339A1 - Shift Lever | |
| 33900180 | 2017 |
| 339C1 - Shifter Drum | |
| 33900265 | 2023 |
| 339D1 - Shifter Fork | |
| 35187-06 | 2006 |
| 35210-06 | 2006 |
| 35217-06 | 2006 |
| 35222-06A | 2020 |
| 35223-06A | 2020 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33389-07 | 2014 |
| 33409-06B | 2006 |
| 34064-00C | 2000 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35081-06 | 2006 |
| 35082-07 | 2007 |
| 35186-06A | 2020 |
| 35243-06A | 2020 |
| 35249-06A | 2006 |
| 347B1 - Transmission Case | |
| 34700552 | 2024 |
| 348C1 - Transmission Top Cover | |
| 34800043 | 2018 |
| 34800071 | 2023 |
| 350A1 - Transmission Output Sprocket | |
| 83595-11A | 2024 |
| 350E1 - Transmission Gear | |
| 35000179 | 2018 |
| 35122-06A | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 11207A | 2009 |
| 25729-06 | 2006 |
| 25731-06 | 2006 |
| 25734-06 | 2006 |
| 25736-06 | 2006 |
| 25737-06 | 2006 |
| 25738-06 | 2006 |
| 352A1 - Engine Balancer | |
| 35200150 | 2023 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35600094 | 2018 |
| 35600103 | 2017 |
| 35807-06 | 2006 |
| 35811-06 | 2006 |
| 35814-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35126-06 | 2006 |
| 35204-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35124-06 | 2006 |
| 35202-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075A | 2021 |
| 365E1 - Inner Primary Housing | |
| 36500092A | 2020 |
| 367A1 - Clutch Lever | |
| 36700286 | 2023 |
| 367F1 - Clutch Lever Perch | |
| 36700288 | 2023 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 34920-86A | 1986 |
| 36700291 | 2023 |
| 37312-75 | 1975 |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000377 | 2023 |
| 37496-90A | 1990 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000219 | 2017 |
| 37000295 | 2019 |
| 37000382 | 2023 |
| 370Z1 - Kit,Clutch | |
| 37000376 | 2021 |
| 372D1 - Clutch Cable | |
| 37200395A | 2018 |
| 37200396 | 2018 |
| 37200437 | 2021 |
| 37200545 | 2021 |
| 37200609 | 2024 |
| 400A1 - Drive-Belt | |
| 40000036 | 2024 |
| 401A1 - Engine Sprocket | |
| 40100041 | 2014 |
| 40100064 | 2017 |
| 83936-09A | 2013 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076 | 2017 |
| 409A1 - Rear Wheel | |
| 40900928 | 2024 |
| 410A1 - Body Control Module (BCM) | |
| 41001501 | 2024 |
| 41001502 | 2024 |
| 410D1 - Electronic Control Module (ECM) | |
| 41001351 | 2024 |
| 411A1 - ABS Control Unit | |
| 41100122 | 2023 |
| 413A1 - Brake Caliper | |
| 41300291 | 2024 |
| 41300292 | 2024 |
| 44080-08C | 2012 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 413D1 - Brake Pad | |
| 41300227 | 2020 |
| 41852-08B | 2012 |
| 42867-06A | 2006 |
| 413E1 - Brake Pad Pin | |
| 41300226 | 2020 |
| 42865-06B | 2006 |
| 413F1 - Brake Pad Retaining Spring | |
| 41300225 | 2020 |
| 415B1 - Brake Rotor | |
| 41500210 | 2024 |
| 41810-08C | 2024 |
| 416A1 - Brakes Miscellaneous Component | |
| 42860-06B | 2006 |
| 42863-06 | 2006 |
| 42934-08 | 2008 |
| 44089-08 | 2008 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600078 | 2014 |
| 41600320 | 2021 |
| 41600382 | 2023 |
| 41600383 | 2023 |
| 41600384 | 2023 |
| 41600385 | 2023 |
| 41600386 | 2023 |
| 41600390 | 2023 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700028A | 2018 |
| 41701089 | 2023 |
| 417B1 - Brake Master Cylinder | |
| 41700625 | 2021 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700367 | 2015 |
| 42937-08C | 2018 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41701125 | 2023 |
| 417G1 - Front Brake Lever | |
| 41701131 | 2023 |
| 41701406 | 2024 |
| 418B1 - Brake Line | |
| 41800890 | 2023 |
| 41800891 | 2023 |
| 41800914 | 2023 |
| 41800915 | 2023 |
| 41800931 | 2024 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423F1 - Tire Pressure Monitor | |
| 42300139 | 2021 |
| 42300140 | 2021 |
| 42300142 | 2021 |
| 42300143 | 2021 |
| 423G1 - Valve Stem | |
| 42300141 | 2021 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 42300001A | 2021 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 40984-10 | 2010 |
| 430D1 - Front Axle | |
| 43000300A | 2023 |
| 430E1 - Rear Axle | |
| 43000203 | 2020 |
| 43000207 | 2020 |
| 431A1 - Front Tire | |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200045 | 2020 |
| 433A1 - Front Wheel | |
| 43300951 | 2024 |
| 433B1 - Front Wheel Bearing Spacer | |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 48489-02 | 2002 |
| 56163-93 | 1993 |
| 454A1 - Front Telescopic Fork | |
| 45400341 | 2024 |
| 45400342 | 2024 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500132 | 2014 |
| 45500577 | 2021 |
| 45500579 | 2021 |
| 45500580 | 2021 |
| 45500581 | 2021 |
| 45500582 | 2021 |
| 45500583 | 2021 |
| 45500584 | 2021 |
| 45500593 | 2021 |
| 45500600 | 2021 |
| 45500754 | 2021 |
| 45500825 | 2021 |
| 45500843 | 2023 |
| 45500850 | 2023 |
| 45500851 | 2023 |
| 45500861 | 2024 |
| 45500862 | 2024 |
| 45500863 | 2024 |
| 45500868 | 2023 |
| 45500869 | 2023 |
| 46353-06 | 2006 |
| 455D1 - Front Telescopic Fork Seal | |
| 45500576 | 2021 |
| 45500578 | 2021 |
| 45500589 | 2021 |
| 456C1 - Fork Lock | |
| 71540-94B | 2016 |
| 457D1 - Steering Stem | |
| 45700070 | 2023 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45800157 | 2023 |
| 45800158 | 2023 |
| 459A1 - Upper Triple Clamp | |
| 45900330A | 2023 |
| 459B1 - Lower Triple Clamp | |
| 45900331 | 2023 |
| 470A1 - Frame | |
| 47000344 | 2023 |
| 48079-09BHP | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 472C1 - Front Fairing Support Bracket | |
| 47200266 | 2015 |
| 47200945 | 2023 |
| 472C2 - Fairing Lower Support Bracket | |
| 47201041 | 2023 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 91140-09 | 2009 |
| 474C1 - Swingarm | |
| 47549-09A | 2017 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490A1 - Frame Guard | |
| 49000243 | 2024 |
| 490Z1 - Kit,Engine/Frame Guard | |
| 49000242 | 2024 |
| 500B1 - Sidestand Bracket | |
| 50000143 | 2018 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50000149 | 2018 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50502582 | 2024 |
| 50502589 | 2024 |
| 50502590 | 2024 |
| 50502591 | 2024 |
| 50502634 | 2024 |
| 50502635 | 2024 |
| 505B1 - Footpeg Mount Bracket | |
| 50518-09 | 2009 |
| 50622-09A | 2015 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 506A1 - Brake Pedal | |
| 50600244 | 2017 |
| 506Z1 - Kit,Brake Pedal | |
| 50600546 | 2023 |
| 520A1 - Rider Seat or Full Seat | |
| 52000715 | 2024 |
| 540B1 - Rear Shock | |
| 54000316 | 2024 |
| 54000317 | 2024 |
| 540K1 - Shock Reservoir Bracket | |
| 54000319 | 2024 |
| 54000320 | 2024 |
| 558A1 - Handlebar | |
| 55801537 | 2024 |
| 558Z1 - Kit,Handlebar | |
| 55801485 | 2024 |
| 55801486 | 2024 |
| 559E1 - Upper Handlebar Clamp | |
| 55900308 | 2024 |
| 560A1 - Mirror | |
| 92078-03 | 2003 |
| 92082-03 | 2003 |
| 561B1 - Left Hand Grip | |
| 56100600 | 2023 |
| 561E1 - Throttle Grip | |
| 56100566 | 2023 |
| 561F1 - Grip Kit | |
| 56100564 | 2023 |
| 570A1 - Front Fairing | |
| 57000779 | 2018 |
| 570C1 - Inner Fairing | |
| 57001665DH | 2023 |
| 57001665EWR | 2023 |
| 570D1 - Air Deflector | |
| 57001986 | 2023 |
| 570S2 - Sub-Assembly,Fairing | |
| 57001885 | 2023 |
| 570Z1 - Kit,Fairing | |
| 57001913EWR | 2024 |
| 57001913EXZ | 2024 |
| 57001942 | 2023 |
| 571C1 - Fairing Side | |
| 57100421 | 2023 |
| 57100422 | 2023 |
| 57100423EWR | 2024 |
| 57100423EXZ | 2024 |
| 57100424EWR | 2024 |
| 57100424EXZ | 2024 |
| 571D1 - Debris Deflector | |
| 57100444 | 2023 |
| 572A1 - Chin Spoiler | |
| 57200405 | 2023 |
| 57200428EWR | 2024 |
| 572E1 - Side Cover | |
| 57200398EWR | 2024 |
| 57200398EXZ | 2024 |
| 57200431EWR | 2024 |
| 57200431EXZ | 2024 |
| 572S3 - Sub-Assembly,Spoiler | |
| 57200375B | 2023 |
| 57200376B | 2023 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57300388 | 2021 |
| 57300393 | 2023 |
| 57300403DH | 2024 |
| 57300403EWR | 2023 |
| 57300433 | 2024 |
| 57640-08 | 2025 |
| 573B1 - Bodywork Mounting Bracket | |
| 57300444 | 2023 |
| 57300445 | 2023 |
| 59786-01 | 2001 |
| 573Z1 - Kit,Bodywork Miscellaneous Component | |
| 57300409 | 2023 |
| 574B1 - Windscreen / Windshield | |
| 57400658 | 2023 |
| 574Z1 - Kit,Windshield | |
| 57400617 | 2023 |
| 589A1 - Front Fender | |
| 58900624 | 2024 |
| 595D1 - Rear Fender | |
| 59500519 | 2018 |
| 59501021EWR | 2024 |
| 59501021EXZ | 2024 |
| 59501044EWR | 2024 |
| 59501044EXZ | 2024 |
| 59501045EWR | 2024 |
| 59501045EXZ | 2024 |
| 59768-97 | 1997 |
| 60463-09B | 2023 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800116 | 2022 |
| 608B1 - Carbon Canister Hose | |
| 60800109 | 2023 |
| 60800110 | 2023 |
| 60800111 | 2023 |
| 60800120 | 2023 |
| 609A1 - Fuel Miscellaneous Component | |
| 60900061 | 2018 |
| 6119 | 2016 |
| 610A1 - Fuel Tank | |
| 61000986 | 2023 |
| 61001099EWR | 2024 |
| 61001099EXZ | 2024 |
| 61001119 | 2024 |
| 611B1 - Fuel Cap | |
| 61100207 | 2023 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 61100202 | 2023 |
| 61100204 | 2023 |
| 61100206 | 2023 |
| 612B2 - Fuel Valve | |
| 61200110 | 2024 |
| 612F1 - Fuel Pump | |
| 61200091A | 2024 |
| 612K1 - Fuel Pump sub-component | |
| 61200097 | 2023 |
| 61200100 | 2023 |
| 612Z1 - Kit,Fuel Pump | |
| 61200101 | 2023 |
| 61200102 | 2023 |
| 612Z2 - Kit,Fuel Line | |
| 61200096 | 2023 |
| 613A1 - Trim Panel | |
| 61301291 | 2023 |
| 61301292 | 2023 |
| 613G1 - Passenger Seat Cowl | |
| 61301370 | 2024 |
| 61301382 | 2024 |
| 613J1 - Throttle Body Cover | |
| 61301409 | 2024 |
| 614C1 - Trim | |
| 61400716 | 2023 |
| 61400717 | 2023 |
| 61400719 | 2023 |
| 61400732 | 2024 |
| 61400734 | 2024 |
| 624A1 - Oil Pump Assembly | |
| 62400242 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 62400055 | 2017 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 62700150 | 2017 |
| 62700327 | 2024 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62700219 | 2018 |
| 62700291 | 2021 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296 | 2020 |
| 627G1 - Oil Jet | |
| 62700089A | 2022 |
| 62700117 | 2017 |
| 627H1 - Oil Line | |
| 62700324 | 2023 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800013 | 2013 |
| 62800067 | 2023 |
| 62800073 | 2023 |
| 649A1 - Muffler | |
| 64901352 | 2024 |
| 64901353 | 2024 |
| 64901354 | 2024 |
| 64901355 | 2024 |
| 654A1 - Exhaust Shield | |
| 65400435A | 2020 |
| 65400436 | 2018 |
| 65400437 | 2018 |
| 65400438 | 2018 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85A | 2016 |
| 66861-09B | 2019 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65296-95B | 2021 |
| 65500042 | 2017 |
| 65500043B | 2021 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600178A | 2021 |
| 65600377 | 2021 |
| 65600379 | 2021 |
| 65600451 | 2023 |
| 659A1 - Exhaust Clamp | |
| 65900015 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 65900017A | 2022 |
| 65900056 | 2021 |
| 660A1 - Battery | |
| 66010-97E | 2021 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000339 | 2023 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 677A1 - Headlight | |
| 67700660 | 2023 |
| 678A1 - Taillight | |
| 67801341 | 2023 |
| 67801344 | 2023 |
| 67801345 | 2023 |
| 679A1 - License Plate Tray / Holder | |
| 67900640 | 2023 |
| 67900642DH | 2024 |
| 67900642EWR | 2024 |
| 67900649 | 2023 |
| 679B1 - Reflector | |
| 67900065 | 2014 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 67900212A | 2019 |
| 67900659 | 2023 |
| 69490-07 | 2007 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900243 | 2015 |
| 679D1 - License Plate Bracket | |
| 60916-09 | 2009 |
| 67900009 | 2012 |
| 679E1 - License Plate Light | |
| 67900655 | 2023 |
| 690A1 - Emergency Siren | |
| 69000124 | 2021 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000125B | 2023 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200611 | 2014 |
| 72299-95 | 1995 |
| 692C2 - Electrical Mounting Bracket | |
| 69201287A | 2023 |
| 69201924 | 2020 |
| 69202636A | 2023 |
| 69202637 | 2021 |
| 69202720A | 2022 |
| 69203010 | 2023 |
| 69203011 | 2023 |
| 69203046 | 2023 |
| 69203096 | 2023 |
| 69203096A | 2023 |
| 69203119 | 2023 |
| 69203624 | 2024 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 69203053 | 2023 |
| 72330-95 | 1995 |
| 72462-00 | 2000 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 69200600 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69203519 | 2024 |
| 692F1 - Wire Harness | |
| 69200224 | 2014 |
| 69200752 | 2015 |
| 69202980A | 2023 |
| 69202989 | 2023 |
| 69203017 | 2023 |
| 69203018 | 2023 |
| 69203058 | 2024 |
| 69203090 | 2023 |
| 69203123 | 2023 |
| 69203188 | 2023 |
| 69203403 | 2024 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 692G2 - Wire Guide | |
| 69200702 | 2015 |
| 69202786 | 2021 |
| 72298-95 | 1995 |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 72009-05 | 2005 |
| 72063-06 | 2006 |
| 72064-06 | 2006 |
| 72098-06 | 2006 |
| 72111-06 | 2006 |
| 72127-06 | 2006 |
| 72444-07GY | 2007 |
| 72518-01 | 2001 |
| 72519-09BK | 2009 |
| 72632-10 | 2010 |
| 72639-10 | 2010 |
| 72905-11 | 2011 |
| 72906-11 | 2011 |
| 72908-11 | 2011 |
| 69200183 | 2014 |
| 69200184 | 2014 |
| 69200212 | 2014 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 69200306 | 2014 |
| 69201179 | 2016 |
| 69201299 | 2017 |
| 69201302 | 2017 |
| 69201393 | 2017 |
| 69201394 | 2017 |
| 69201395 | 2017 |
| 69201397 | 2017 |
| 69201406 | 2017 |
| 69201427 | 2017 |
| 69201441 | 2017 |
| 69201575 | 2017 |
| 69201652 | 2018 |
| 69201711 | 2018 |
| 69201712 | 2018 |
| 69201779 | 2019 |
| 69201931 | 2021 |
| 69201932 | 2021 |
| 69201933 | 2021 |
| 69202028 | 2021 |
| 69202032 | 2021 |
| 69202098 | 2019 |
| 69202109 | 2019 |
| 69202285 | 2023 |
| 69202322 | 2021 |
| 69202958 | 2021 |
| 69202959 | 2021 |
| 69202996 | 2021 |
| 69203028 | 2023 |
| 69203042 | 2023 |
| 69203057 | 2023 |
| 69203105 | 2023 |
| 692H2 - Terminal | |
| 5118 | 2011 |
| 69200185 | 2014 |
| 69200186 | 2014 |
| 69200187 | 2014 |
| 69200238 | 2011 |
| 69200307 | 2014 |
| 69200308 | 2014 |
| 69200536 | 2014 |
| 69201300 | 2017 |
| 69201385 | 2016 |
| 69201596 | 2017 |
| 69201814 | 2019 |
| 69201890 | 2021 |
| 69202104 | 2019 |
| 69202170 | 2021 |
| 69202172 | 2021 |
| 69202183 | 2021 |
| 69202453 | 2021 |
| 69202489 | 2021 |
| 69202491 | 2021 |
| 69203120 | 2023 |
| 69203195 | 2022 |
| 69203209 | 2022 |
| 72168-07 | 2007 |
| 72169-07 | 2007 |
| 72213-94 | 1994 |
| 72222-11 | 2011 |
| 72226-11 | 2011 |
| 72227-11 | 2011 |
| 72229-11 | 2011 |
| 72241-94A | 1994 |
| 72256-11 | 2011 |
| 72272-07 | 2007 |
| 72283-09 | 2009 |
| 72290-94 | 1994 |
| 72291-94 | 1994 |
| 72294-94 | 1994 |
| 72296-95 | 1995 |
| 72308-97 | 1997 |
| 72343-10 | 2010 |
| 72344-10 | 2010 |
| 72356-95 | 1995 |
| 72364-06 | 2006 |
| 72427-00 | 2000 |
| 72484-08 | 2008 |
| 72569-08 | 2008 |
| 72608-08 | 2008 |
| 72721-07 | 2007 |
| 72910-11 | 2011 |
| 73307-10 | 2010 |
| 74194-98 | 1998 |
| 9937 | Unknown |
| 692K1 - Connector / Terminal Seal | |
| 72225-09 | 2009 |
| 69201162 | 2016 |
| 69201164 | 2016 |
| 69201301 | 2017 |
| 69201377 | 2016 |
| 69201379 | 2016 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 69201407 | 2017 |
| 69201412 | 2017 |
| 69201416 | 2017 |
| 69201442 | 2017 |
| 69202031 | 2021 |
| 69202106 | 2019 |
| 69202107 | 2019 |
| 69202171 | 2021 |
| 69202173 | 2021 |
| 69202184 | 2021 |
| 69202492 | 2021 |
| 69203121 | 2023 |
| 692L1 - Wire Harness sub-component | |
| 10102 | Unknown |
| 69200188 | 2014 |
| 69200189 | 2014 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 69200201 | 2014 |
| 69200205 | 2014 |
| 69201307 | 2017 |
| 69201722 | 2018 |
| 69201962 | 2021 |
| 69203052 | 2023 |
| 69203106 | 2023 |
| 69203192 | 2023 |
| 69203487 | 2024 |
| 70631-08 | 2008 |
| 70681-09 | 2009 |
| 70717-10 | 2010 |
| 72010-05 | 2005 |
| 72053-92 | 1992 |
| 72065-06A | 2006 |
| 72066-06A | 2006 |
| 72099-06 | 2006 |
| 72135-06 | 2006 |
| 72145-06 | 2006 |
| 72175-07BK | 2007 |
| 72177-07BK | 2007 |
| 72188-07BK | 2007 |
| 72209-11 | 2011 |
| 72414-07BK | 2007 |
| 72415-07GY | 2007 |
| 72473-07 | 2007 |
| 72486-08 | 2008 |
| 72487-07BK | 2007 |
| 72488-07BK | 2007 |
| 72499-07 | 2007 |
| 72500-07ABK | 2007 |
| 72511-07BK | 2007 |
| 72512-07BK | 2007 |
| 72606-08 | 2008 |
| 72607-08 | 2008 |
| 72609-08 | 2008 |
| 72610-08 | 2008 |
| 72720-07 | 2007 |
| 73213-07 | 2007 |
| 74112-98BK | 1998 |
| 74152-98 | 1998 |
| 74191-98 | 1998 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70901090A | 2024 |
| 70901092A | 2024 |
| 70901093A | 2024 |
| 709E1 - Tank Console | |
| 70900948 | 2021 |
| 70901169 | 2024 |
| 70901170 | 2023 |
| 709S2 - Sub-Assembly,Console | |
| 70901104DH | 2024 |
| 70901104EWR | 2023 |
| 714B1 - Mechanical Switch | |
| 71400141 | 2021 |
| 71400196 | 2023 |
| 714C1 - Pressure Switch | |
| 71400112A | 2021 |
| 714D1 - Relay | |
| 71400100 | 2014 |
| 715A1 - Hand Control | |
| 71500609A | 2024 |
| 71500610 | 2023 |
| 71500611A | 2023 |
| 71500612 | 2023 |
| 71500660 | 2024 |
| 747A1 - Voltage Regulator | |
| 74700048 | 2023 |
| 760B1 - Antenna | |
| 76000789 | 2019 |
| 76000925 | 2021 |
| 76001235 | 2023 |
| 76001251 | 2023 |
| 760C1 - Audio System Amplifier | |
| 76001132 | 2023 |
| 760C2 - Audio System Speaker | |
| 76000999 | 2021 |
| 76001011 | 2021 |
| 76001146 | 2023 |
| 76001147 | 2023 |
| 76001254 | 2023 |
| 76001255 | 2023 |
| 760C5 - Speaker Enclosure | |
| 76001153 | 2023 |
| 76001154 | 2023 |
| 760C6 - Media Storage Compartment | |
| 76000127 | 2014 |
| 76001202 | 2023 |
| 76001203 | 2023 |
| 76001206 | 2023 |
| 76001207 | 2023 |
| 76001208 | 2023 |
| 76001209 | 2023 |
| 76001233DH | 2023 |
| 76001233EWR | 2023 |
| 76001234DH | 2023 |
| 76001234EWR | 2023 |
| 902A1 - Saddlebag | |
| 90202462EWR | 2024 |
| 90202462EXZ | 2024 |
| 90202463EWR | 2024 |
| 90202463EXZ | 2024 |
| 90202509 | 2023 |
| 90202692 | 2023 |
| 902B1 - Saddlebag Cover | |
| 90202454 | 2024 |
| 90202455 | 2024 |
| 902E1 - Saddlebag Bottom | |
| 90200467 | 2014 |
| 90200519 | 2014 |
| 90200549 | 2014 |
| 90200550 | 2014 |
| 90200611 | 2014 |
| 90200899 | 2014 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 90202728EWR | 2024 |
| 90202728EXZ | 2024 |
| 90202729EWR | 2024 |
| 90202729EXZ | 2024 |
| 90202889 | 2024 |
| 90202890 | 2024 |
| 902H3 - Saddlebag Support | |
| 90201127EWR | 2024 |
| 90201127EXZ | 2024 |
| 90201129EWR | 2024 |
| 90201129EXZ | 2024 |
| 902J1 - Saddlebag Latch | |
| 90202466A | 2024 |
| 90202467A | 2024 |
| 902Z1 - Kit,Saddlebag | |
| 90201540 | 2017 |
| 90201774 | 2018 |
| 90201775 | 2018 |
| 90202698EWR | 2024 |
| 90202698EXZ | 2024 |
| 90202699EWR | 2024 |
| 90202699EXZ | 2024 |
| 903A1 - Lockset | |
| 90300024 | 2014 |
| 90300224 | 2024 |
| 90300225 | 2024 |
| 90300233 | 2024 |
| 903C1 - Key Transponder | |
| 90300228 | 2024 |
| 90300229 | 2024 |
| 90300232 | 2024 |
| 918B1 - Hardware Kit | |
| 91800058 | 2017 |
| 91800075A | 2023 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 940A2 - Owner's Manual | |
| 94001156 | 2024 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | FENDER, REAR: |
| 1062 | SCREW | PRIMARY HOUSING: BRAKE LINES, REAR: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: TRANSMISSION BEARINGS AND COVERS: |
| 11105 | O-RING | PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11150 | RETAINING RING | SHIFTER, GEAR: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER (1 OF 2): |
| 11900103 | O-RING | CAMSHAFT AND CAMSHAFT COVER (1 OF 2): |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | TRANSMISSION BEARINGS AND COVERS: |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 2445 | SCREW | BATTERY: |
| 25700378 | GASKET | PRIMARY HOUSING: |
| 25700425 | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 25700731 | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER (2 OF 2): |
| 25700830 | GASKET KIT | PRIMARY HOUSING: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 3050 | SCREW | ALTERNATOR AND REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 35654-06 | GASKET | TRANSMISSION BEARINGS AND COVERS: |
| 3655A | SCREW | WHEEL, FRONT: |
| 3656 | SCREW | SADDLEBAGS (1 OF 2): |
| 4132 | SCREW | CLUTCH CONTROL: BRAKE CONTROL, FRONT: SWITCHES, HANDLEBAR: |
| 41751-06A | GASKET | BRAKE LINES, FRONT: BRAKE CONTROL, REAR: BRAKE LINES, REAR: |
| 43567-92 | SCREW | WHEEL, REAR: |
| 4740A | SCREW | CAMSHAFT AND CAMSHAFT COVER (1 OF 2): |
| 59768-97 | FENDER SEAT NUT KIT | FENDER, REAR: |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 65324-83B | GASKET | EXHAUST SYSTEM (1 OF 2): |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM (1 OF 2): |
| 7041 | LOCKWASHER | EXHAUST SYSTEM (1 OF 2): |
| 7586 | NUT | SADDLEBAGS (1 OF 2): |
| 7593 | NUT | EXHAUST SYSTEM (1 OF 2): |
| 7716 | LOCKNUT | FOOTBOARDS, RIDER: |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9955 | CLAMP | EXHAUST SYSTEM (1 OF 2): |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD AND PIN KIT | BRAKE CALIPER, REAR: |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | FRAME AND JIFFY STAND: |
| 50245-07 | BUMPER | FRAME AND JIFFY STAND: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | KIT SWITCH | BRAKE CONTROL, REAR: SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN (11 OF 12): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 33600091 | SHAFT | SHIFTER, GEAR: |
| 37909-90 | RING | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 65900015 | CLAMP | EXHAUST SYSTEM (2 OF 2): |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 66373-06 | BATTERY | SWITCHES: |
