GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2024 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 4. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
The full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2024 PAN AMERICA MODELS
VIN Model Codes

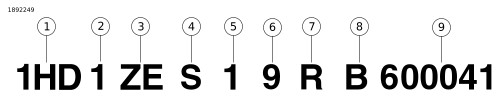

Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown: 2024 Pan America Models
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States or Thailand for sale outside of the United States 932=Originally manufactured in Brazil MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | S=Revolution Max™ 1252 cm3 liquid-cooled, fuel-injected | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=ENG/EN2/HDI/HD2/HD4 5=Japan (JPN) 6=Australia (AUS/AU2) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=IN2 0=ASEAN (AZN) A=China (CHN) G=HD3 | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | R=2024 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes: Pan America Models
CODE | MODEL |
|---|---|
ZE | RA1250S Pan America® Special |
Table 4. 2024 Pan America Color Options
CODE | COLOR SCHEME | SUFFIX | MODEL |
|---|---|---|---|
010 | Vivid Black | DH | RA1250S |
F85 | Gray Haze | EWX | RA1250S |
F99 | Industrial Yellow/White Sand | EXE | RA1250S |
NOTES
ELECTRONIC IGNITION SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 41001214 | ELECTRONIC CONTROL MODULE (ECM) | RA1250S |
| 1 | 69202117 | IGNITION COIL BRACKET | RA1250S |
| 1 | 69202312 | ECM CADDY | RA1250S |
| 1 | 31600167 | IGNITION COIL (single) (2) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
RADIATOR CAP
| Index No. | Part No. | Description | Model(s) |
| 1 | 26800086 | PRESSURE CAP | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 61000616 | LOCKING FUEL CAP, with 61100197 | RA1250S |
| 1 | 61100197 | GASKET | RA1250S |
| 1 | 61100200 | REPLACEMENT FUEL FILL LOCKSET | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 11936 | GASKET, 02 sensor (3) | RA1250S |
| 1 | 32700131 | SENSOR, O2 | RA1250S |
| 1 | 65600320 | HEADER | RA1250S |
| 1 | 65900056 | GASKET, exhaust, muffler header | RA1250S |
| 1 | 72177-07BK | HOUSING, four-way socket (black) (2) | RA1250S |
| 1 | 72344-10 | TERMINAL, socket, 22 AWG (6) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10800182 | CLAMP (12) | RA1250S |
| 2 | 12200214 | CLIP, triple (2) | RA1250S |
| 3 | 60800054 | HOSE, carbon canister midpoint to purge port | RA1250S |
| 4 | 10065 | CABLE STRAP (3) | RA1250S |
| 5 | 12600213 | CLIP, double (2) | RA1250S |
| 6 | 57300308 | PAD (4) | RA1250S |
| 7 | 60800113 | HOSE, fuel tank to mid point | RA1250S |
| 8 | 60800055 | EVAP CANISTER, with 57300308 | RA1250S |
| 9 | 60800057 | HOSE, carbon canister, purge solenoid to midpoint, with 10800182 | RA1250S |
| 10 | 60800067 | HOSE, carbon canister to fresh air port | RA1250S |
| 11 | 61100174 | HOSE, fuel tank vapor vent overfill | RA1250S |
| 12 | 60800112 | HOSE, midpoint to canister | RA1250S |
| 13 | 31400137 | SOLENOID, purge | RA1250S |
| 14 | 60800053 | HOSE, carbon canister to purge solenoid | RA1250S |
| 15 | 10039 | CABLE STRAP | RA1250S |
| NOTE: These parts are required for motorcycles sold in Brazil markets.NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
WHEELS, LACED
| Index No. | Part No. | Description | Model(s) |
| 1 | 42300145 | MONITOR, TIRE PRESSURE ASSEMBLY, with 10201167, 11900155, 42300139, 42300144 | RA1250S |
| 1 | 10201167 | SCREW | RA1250S |
| 1 | 11900155 | O-RING | RA1250S |
| 1 | 42300139 | MONITOR, TIRE PRESSURE | RA1250S |
| 1 | 42300144 | VALVE STEM, 116 degree | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
WHEELS, 5-SPOKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 42300139 | MONITOR, TIRE PRESSURE | RA1250S |
| 1 | 10201167 | SCREW | RA1250S |
| 1 | 11900155 | O-RING | RA1250S |
| 1 | 42300141 | VALVE STEM | RA1250S |
| 1 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, with 10201167, 11900155, 42300139, 42300141 (except Japan, JP2) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
FRONT TURN SIGNALS
| Index No. | Part No. | Description | Model(s) |
| 1 | 67801235 | TURN SIGNAL, FRONT, right, amber, LED bullet, with 5118, 69200308, 72908-11 | RA1250S |
| 1 | 67801236 | TURN SIGNAL, FRONT, left, amber, LED bullet, with 5118, 69200308, 69201179 | RA1250S |
| 1 | 5118 | SEAL PIN (4) | RA1250S |
| 1 | 72908-11 | HOUSING, four-way socket, right (black) | RA1250S |
| 1 | 69201179 | HOUSING, four-way socket, left (gray) | RA1250S |
| 1 | 69200308 | TERMINAL, socket, 22 AWG (4) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
REAR REFLECTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 67900212A | REFLECTOR (amber) (2) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
BODY CONTROL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 41000674A | BODY CONTROL MODULE (BCM) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 66000064A | BATTERY | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14003534 | LABEL, warning, (Brazil) | RA1250S |
| 1 | 14003539 | LABEL, shock, (Brazil) | RA1250S |
| 1 | 14003540 | LABEL, load, mini rack, (Brazil) | RA1250S |
| 1 | 14003206 | LABEL, warning, year of manufacture, 2022 (Brazil) | RA1250S |
| 1 | 14003552 | LABEL, warning, year of manufacture, 2023 (Brazil) | RA1250S |
| 1 | 14003856 | LABEL, warning, year of manufacture, 2024 (Brazil) | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 90300146 | KEY FOB, with 66000231 | RA1250S |
| 1 | 66000231 | BATTERY, 3 volt, key fob | RA1250S |
| 1 | 45600108 | FORK, SEAT AND FUEL FILLER LOCK SET WITH KEYS | RA1250S |
| NOTE: This catalog provides a list of part numbers specific to the Brazil 2024 RA1250S. For a COMPLETE listing of ALL parts with illustrations, for 2024 Brazil RA1250S, please see the 2023 PanAm Parts Catalog: 94001042. | |||
| Part No. | Description |
| Index No. | Part No. | Description | Model(s) |
| 1 | 41001214 | ELECTRONIC CONTROL MODULE (ECM) | RA1250S |
| Index No. | Part No. | Description | Model(s) |
| 1 | 66000064A | BATTERY | RA1250S |
| Index No. | Part No. | Description | Model(s) |
| 1 | 14003534 | LABEL, warning, (Brazil) | RA1250S |
| 1 | 14003539 | LABEL, shock, (Brazil) | RA1250S |
| 1 | 14003540 | LABEL, load, mini rack, (Brazil) | RA1250S |
| 1 | 14003206 | LABEL, warning, year of manufacture, 2022 (Brazil) | RA1250S |
| 1 | 14003552 | LABEL, warning, year of manufacture, 2023 (Brazil) | RA1250S |
| 1 | 14003856 | LABEL, warning, year of manufacture, 2024 (Brazil) | RA1250S |
| Part No. | Description |
| 10039 | |
| 10065 | |
| 10201167 | |
| 10800182 | |
| 11900155 | |
| 11936 | |
| 12200214 | |
| 12600213 | |
| 14003206 | |
| 14003534 | |
| 14003539 | |
| 14003540 | |
| 14003552 | |
| 14003856 | |
| 26800086 | |
| 31400137 | |
| 31600167 | |
| 32700131 | |
| 41000674A | |
| 41001214 | |
| 42300139 | |
| 42300141 | |
| 42300142 | |
| 42300144 | |
| 42300145 | |
| 45600108 | |
| 5118 | |
| 57300308 | |
| 60800053 | |
| 60800054 | |
| 60800055 | |
| 60800057 | |
| 60800067 | |
| 60800112 | |
| 60800113 | |
| 61000616 | |
| 61100174 | |
| 61100197 | |
| 61100200 | |
| 65600320 | |
| 65900056 | |
| 66000064A | |
| 66000231 | |
| 67801235 | |
| 67801236 | |
| 67900212A | |
| 69200308 | |
| 69201179 | |
| 69202117 | |
| 69202312 | |
| 72177-07BK | |
| 72344-10 | |
| 72908-11 | |
| 90300146 |
| Part No. | Description |
| 102A1 - Generic Screws | |
| 10201167 | 2021 |
| 108A1 - Hose Clamps | |
| 10800182 | 2021 |
| 119A1 - O-Rings | |
| 11900155 | 2020 |
| 122A2 - Retaining Clips | |
| 12200214 | 2021 |
| 125A1 - Tie Straps | |
| 10065 | 1985 |
| 10039 | 1981 |
| 126B2 - Tree Fasteners | |
| 12600213 | 2018 |
| 140A3 - Other Special Warning Label | |
| 14003539 | 2022 |
| 140G2 - EPA Label | |
| 14003534 | 2022 |
| 140P2 - General Label | |
| 14003206 | 2022 |
| 14003540 | 2022 |
| 14003552 | 2023 |
| 14003856 | 2024 |
| 257E1 - Cover Gaskets | |
| 11936 | Unknown |
| 268F1 - Radiator Pressure Cap | |
| 26800086 | 2021 |
| 314H1 - Starter Solenoid | |
| 31400137 | 2021 |
| 316A1 - Ignition Coil | |
| 31600167 | 2021 |
| 327B1 - Chemical / Gas Sensor | |
| 32700131 | 2021 |
| 410A1 - Body Control Module (BCM) | |
| 41000674A | 2022 |
| 410D1 - Electronic Control Module (ECM) | |
| 41001214 | 2022 |
| 423F1 - Tire Pressure Monitor | |
| 42300139 | 2021 |
| 42300142 | 2021 |
| 42300145 | 2021 |
| 423G1 - Valve Stem | |
| 42300141 | 2021 |
| 42300144 | 2021 |
| 456Z3 - Kit,Fork Lock | |
| 45600108 | 2021 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57300308 | 2021 |
| 608A1 - Carbon Canister | |
| 60800055 | 2021 |
| 608B1 - Carbon Canister Hose | |
| 60800053 | 2021 |
| 60800054 | 2021 |
| 60800057 | 2021 |
| 60800067 | 2021 |
| 60800112 | 2021 |
| 60800113 | 2021 |
| 610A1 - Fuel Tank | |
| 61000616 | 2021 |
| 611B1 - Fuel Cap | |
| 61100197 | 2021 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 61100174 | 2021 |
| 611Z1 - Kit,Fuel Filling | |
| 61100200 | 2021 |
| 656C1 - Header | |
| 65600320 | 2021 |
| 659C1 - Exhaust Gasket | |
| 65900056 | 2021 |
| 660A1 - Battery | |
| 66000064A | 2021 |
| 66000231 | 2021 |
| 678D1 - Turnsignal | |
| 67801235 | 2021 |
| 67801236 | 2021 |
| 679B1 - Reflector | |
| 67900212A | 2019 |
| 692C1 - Electrical Miscellaneous Component | |
| 69202312 | 2021 |
| 692C2 - Electrical Mounting Bracket | |
| 69202117 | 2021 |
| 692H1 - Connector | |
| 69201179 | 2016 |
| 72908-11 | 2011 |
| 692H2 - Terminal | |
| 5118 | 2011 |
| 69200308 | 2014 |
| 72344-10 | 2010 |
| 692L1 - Wire Harness sub-component | |
| 72177-07BK | 2007 |
| 903C1 - Key Transponder | |
| 90300146 | 2021 |
