2020 HARLEY-DAVIDSON® PARTS CATALOG: FLHTCUTGSE MODEL
READER'S COMMENTS
The Harley-Davidson Service Communications Department maintains a continuous effort to improve the quality and usefulness of its publications. To do this effectively, we need user feedback - your critical evaluation of this manual.
Please comment on the completeness, accuracy, organization, usability, and readability of this manual.
Please list the page, item, and part number(s) of any errors you find in this manual.
Please tell us how we can improve this manual.
Name | Document 94000724 | |
Occupation | Dealership | |
Street | Department | |
City | State | Zip |
- Return this form to:Harley-Davidson Motor CompanyDepartment 625 Service CommunicationsP.O. Box 653Milwaukee WI 53201 USA
PLEASE ADD ANY OTHER COMMENTS HERE
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2019 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 1. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 1.
For all models except V-Rod the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
For V-Rod models only the full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the steering head. The vehicle identification number (VIN) is also printed on a label on the left frame tube above the front engine cylinder. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase below the rear cylinder head.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2020 TRIKE MODELS
VIN Model Codes
Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown: 2020 CVO Tri Glide (FLHTCUTGSE)
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States for sale outside of the United States 932=Originally manufactured in Brazil MEG=Originally manufactured in India MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | TB=CVO® Tri Glide® (FLHTCUTGSE) | |
4 | Engine type | H=Twin-Cooled™ Milwaukee-Eight™ 117 Engine, 1917 cm3 | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=HDI 5=Japan (JPN) 6=Australia (AUS) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=India (IND) 0=ASEAN (AZN) A=China (CHN) | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | L=2020 | |
8 | Assembly plant | B=York, PA USA D=H-D Brazil-Manaus, Brazil (CKD) N=Haryana India (Bawal District Rewari) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |

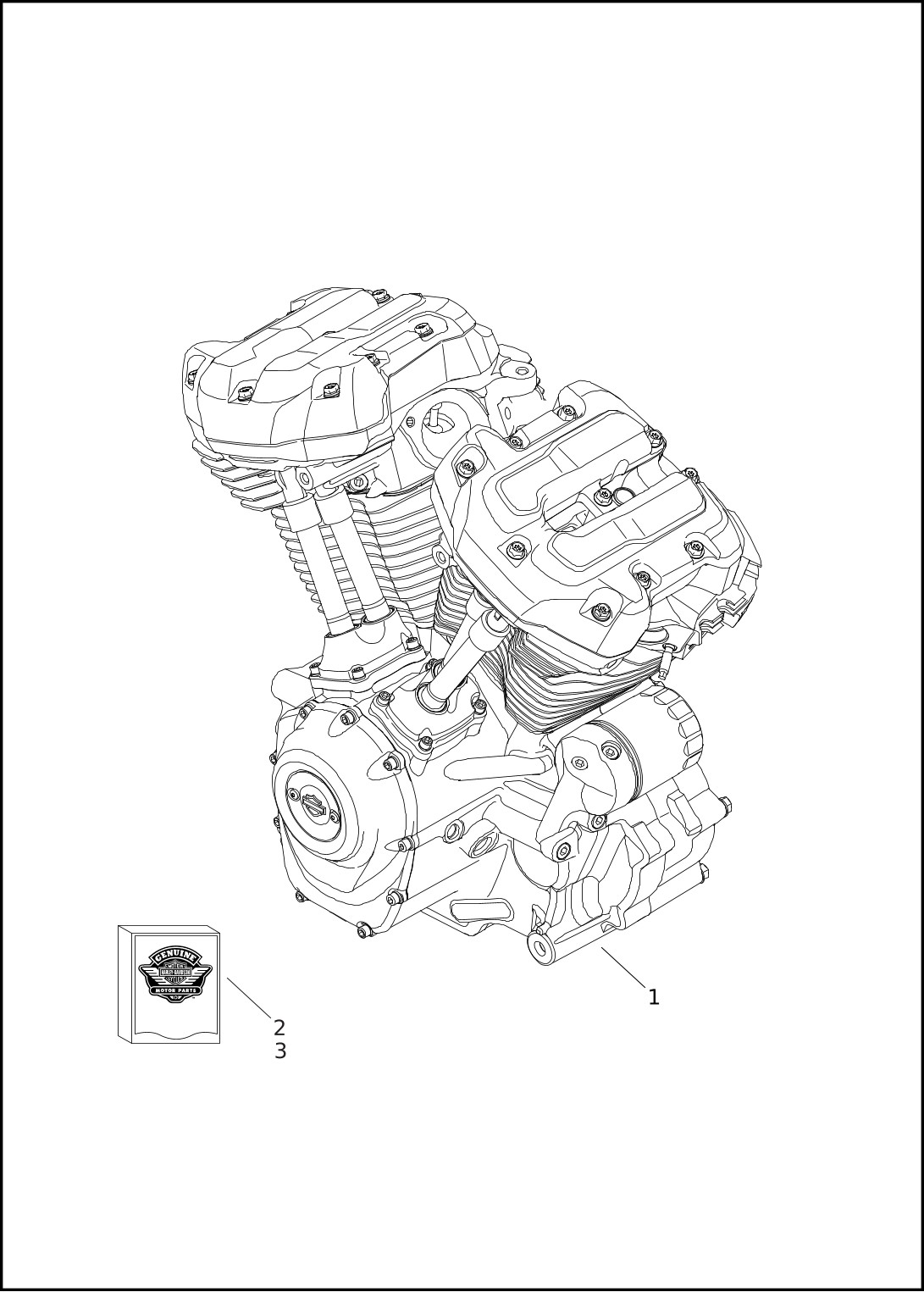

ENGINE ASSEMBLY - Milwaukee-Eight® 117 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200664 | ENGINE ASSEMBLY, complete (Twin-Cooled) (Milwaukee-Eight® 117 engine) (chrome) | FLHTCUTGSE |
| 2 | 16200395 | ENGINE ASSEMBLY, shortblock, with 9180072, crankcase, flywheel assembly, camshaft support plate assembly, oil pump, engine balancer and cylinder studs (black granite) | FLHTCUTGSE |
| 3 | 91800064 | KIT, shortblock installation, with 25700729 upper end gasket kit, 25700746 inner primary gasket kit, camshaft sprocket, camshaft drive chain and camshaft tensioner | FLHTCUTGSE |
| Note: Cylinders, cylinder heads, camshaft, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil pump, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99A | DOWEL PIN (4) | FLHTCUTGSE |
| 2 | 10200303 | FLANGE NUT (dull silver) (8) | FLHTCUTGSE |
| 3 | 10900015A | STUD, exhaust port (4) | FLHTCUTGSE |
| 4 | 16500599 | GASKET, cylinder head (4.075 in) (2) | FLHTCUTGSE |
| 5 | 16500332 | GASKET, cylinder base (2) | FLHTCUTGSE |
| 6 | 16500499 | CYLINDER HEAD, rear, with 65324-83B, 10900015A, 14101169, 18000016, 18000034, 18100043, 18100044, 18100045,18100060, 18400073, 68120-00 (TWIN-COOLED™) (black granite) | FLHTCUTGSE |
| 6 | 16500509 | CYLINDER HEAD, front, with 65324-83B, 10900015A, 14101169, 18000016, 18000034, 18100043, 18100044, 18100045,18100060, 18400073, 68120-00 (TWIN-COOLED™) (black granite) | FLHTCUTGSE |
| 7 | 16800063 | STUD, cylinder (8) | FLHTCUTGSE |
| 8 | 16800121 | CYLINDER, front, with 16589-99A (4.075 in) (black granite) | FLHTCUTGSE |
| 8 | 16800123 | CYLINDER, rear, with 16589-99A (4.075 in) (black granite) | FLHTCUTGSE |
| 9 | 18000016 | INTAKE VALVE (4) | FLHTCUTGSE |
| 10 | 18000034 | EXHAUST VALVE (4) | FLHTCUTGSE |
| 11 | 18100043 | VALVE SPRING (8) | FLHTCUTGSE |
| 12 | 18100044 | SEAL, valve (8) | FLHTCUTGSE |
| 13 | 18100045 | COLLAR, valve spring (8) | FLHTCUTGSE |
| 14 | 18100060 | KEEPER, valve (16) | FLHTCUTGSE |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | ALL |
| 16 | 25700983 | GASKET KIT, top end | FLHTCUTGSE |
| 16 | 25700984 | GASKET KIT, engine overhaul | FLHTCUTGSE |
| 17 | 14101169 | MEDALLION (2) | FLHTCUTGSE |
| 18 | 68120-00 | SCREW (4) | FLHTCUTGSE |
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | FLHTCUTGSE |
| 2 | 4741A | SCREW (8) | FLHTCUTGSE |
| 3 | 11132A | O-RING, pushrod cover (4) | FLHTCUTGSE |
| 4 | 11145A | O-RING, pushrod cover (4) | FLHTCUTGSE |
| 5 | 11293 | O-RING (4) | FLHTCUTGSE |
| 6 | 17945-36B | CAP, cover spring (4) | FLHTCUTGSE |
| 7 | 17947-36 | SPRING, pushrod cover (4) | FLHTCUTGSE |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | FLHTCUTGSE |
| 9 | 17968-99 | RETAINER, spring cap (4) | FLHTCUTGSE |
| 10 | 18538-99C | HYDRAULIC LIFTER (4) | FLHTCUTGSE |
| 11 | 10200258 | SCREW (2) | FLHTCUTGSE |
| 12 | 10200308 | SCREW (20) | FLHTCUTGSE |
| 13 | 10200446 | SCREW (8) | FLHTCUTGSE |
| 14 | 10200503 | SCREW (8) | FLHTCUTGSE |
| 15 | 10500069 | SPACER, rocker cover (2) | FLHTCUTGSE |
| 16 | 11900116 | O-RING (2) | FLHTCUTGSE |
| 17 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | FLHTCUTGSE |
| 18 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | FLHTCUTGSE |
| 19 | 17300059A | SHAFT, rocker arm (4) | FLHTCUTGSE |
| 20 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | FLHTCUTGSE |
| 21 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | FLHTCUTGSE |
| 22 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | FLHTCUTGSE |
| 22 | 17900035 | ANTI-ROTATION DEVICE, front cylinder | FLHTCUTGSE |
| 23 | 25700362 | GASKET, lifter cover (2) | FLHTCUTGSE |
| 24 | 25700372B | GASKET, rocker arm cover (2) | FLHTCUTGSE |
| 25 | 25700409 | ROCKER COVER (chrome) (2) | FLHTCUTGSE |
| 26 | 25700410 | LIFTER COVER, front (chrome) | FLHTCUTGSE |
| 26 | 25700411 | LIFTER COVER, rear (chrome) | FLHTCUTGSE |
| 27 | 25700425 | GASKET, rocker housing, lower (2) | FLHTCUTGSE |
| 28 | 25701000 | COVER KIT, pushrod (lower) (4) | FLHTCUTGSE |
| 29 | 25701055 | ROCKER COVER ASSEMBLY, lower, with 25700425 (red) (2) | FLHTCUTGSE |
| 30 | 25700731 | GASKET KIT, camshaft service | FLHTCUTGSE |
| 31 | 29400183 | BREATHER ASSEMBLY, rear, with 11900116 | FLHTCUTGSE |
| 31 | 29400210 | BREATHER ASSEMBLY, front, with 11900116 | FLHTCUTGSE |
COOLING SYSTEM, ENGINE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200446 | SCREW (2) | FLHTCUTGSE |
| 2 | 10800052 | CLAMP (2) | FLHTCUTGSE |
| 3 | 11900090 | O-RING, coolant manifold (4) | FLHTCUTGSE |
| 4 | 26900117 | BRACKET, coolant tube (2) | FLHTCUTGSE |
| 5 | 26900133 | COOLANT LINE ASSEMBLY, water, with 3, 4, 8 and 9 | FLHTCUTGSE |
| 6 | 26900144 | HOSE | FLHTCUTGSE |
| 7 | 26900145 | HOSE | FLHTCUTGSE |
| 8 | 10800109 | CLAMP (2) | FLHTCUTGSE |
| 9 | 10800111 | SLEEVE (2) | FLHTCUTGSE |
COOLANT DISTRIBUTION, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHTCUTGSE |
| 2 | 10344 | CLAMP | FLHTCUTGSE |
| 3 | 11692 | GROMMET (2) | FLHTCUTGSE |
| 4 | 70681-09 | CLIP, wire retention | FLHTCUTGSE |
| 5 | 10200414 | SCREW (2) | FLHTCUTGSE |
| 6 | 10800052 | CLAMP (3) | FLHTCUTGSE |
| 7 | 12700091 | BRACKET, voltage regulator | FLHTCUTGSE |
| 8 | 26600048 | PUMP, coolant | FLHTCUTGSE |
| 9 | 26800077 | COVER, coolant pump | FLHTCUTGSE |
| 10 | 26900088 | HOSE, outlet, water pump | FLHTCUTGSE |
RADIATOR, COOLANT HOSES AND BOTTLE, TWIN-COOLED™
| Index No. | Part No. | Description | Model(s) |
| 1 | 7716 | LOCKNUT | FLHTCUTGSE |
| 2 | 10006 | CABLE STRAP (6) | FLHTCUTGSE |
| 3 | 10147 | CLIP, connector (2) | FLHTCUTGSE |
| 4 | 10344 | CLAMP (4) | FLHTCUTGSE |
| 5 | 26780-05A | CAP ASSEMBLY, coolant bottle | FLHTCUTGSE |
| 6 | 72063-06 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHTCUTGSE |
| 9 | 72177-07BK | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 10 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHTCUTGSE |
| 11 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTGSE |
| 12 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTGSE |
| 13 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHTCUTGSE |
| 14 | 72607-08 | HOUSING, two-way pin (black) (2) | FLHTCUTGSE |
| 15 | 72608-08 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTGSE |
| 16 | 72609-08 | SECONDARY LOCK, two-way (4) | FLHTCUTGSE |
| 17 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (8) | FLHTCUTGSE |
| 18 | 10800023 | CLAMP (2) | FLHTCUTGSE |
| 19 | 10800052 | CLAMP (4) | FLHTCUTGSE |
| 20 | 10800078 | CLAMP (3) | FLHTCUTGSE |
| 21 | 26800005 | CORE, radiator (right) | FLHTCUTGSE |
| 22 | 26800006 | CORE, radiator (left) | FLHTCUTGSE |
| 23 | 26800007A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (left) | FLHTCUTGSE |
| 24 | 26800019A | FAN ASSEMBLY, with 72213-94, 72606-08, 72609-08 and 72610-08 (right) | FLHTCUTGSE |
| 25 | 26800020A | FILL NECK, coolant | FLHTCUTGSE |
| 26 | 26800021 | CAP, pressure | FLHTCUTGSE |
| 27 | 26900008 | HOSE, coolant, left cross tube | FLHTCUTGSE |
| 28 | 26900009 | LINE, coolant, right to left | FLHTCUTGSE |
| 29 | 26900010 | HOSE, coolant, right cross tube | FLHTCUTGSE |
| 30 | 26900014 | BOTTLE ASSEMBLY, coolant, with 26780-05A | FLHTCUTGSE |
| 31 | 26900016 | HOSE, coolant vent | FLHTCUTGSE |
| 32 | 26900017 | HOSE, coolant overflow | FLHTCUTGSE |
| 33 | 26900018 | HOSE, coolant fill | FLHTCUTGSE |
| 34 | 26900114 | HOSE, radiator to engine outlet | FLHTCUTGSE |
| 35 | 26900115 | HOSE, radiator to pump inlet | FLHTCUTGSE |
| 36 | 32700066 | SENSOR, coolant temperature | FLHTCUTGSE |
| 37 | 62800004 | CLIP, coolant line to frame (2) | FLHTCUTGSE |
| 38 | 69200271 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 39 | 69200311 | WIRE HARNESS, twin cooling jumper, with 10147, 72168-07, 72607-08, 72608-08, 72609-08, 72610-08 and 69200271 (right) | FLHTCUTGSE |
| 40 | 69201548 | WIRE HARNESS, twin cooling jumper, with 10147, 72063-06, 72111-06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08, 72609-08 and 72610-08 (left) | FLHTCUTGSE |
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-Eight® 117 engine
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHTCUTGSE |
| 2 | 22097-99 | LOCK RING, piston pin (4) | FLHTCUTGSE |
| 3 | 21900082 | PISTON AND RINGS ASSEMBLY, with 22097-99, 22000061 and 22100006 (4.075 in) (2) | FLHTCUTGSE |
| 4 | 22000079 | PISTON RING SET (4.075 in) (2) | FLHTCUTGSE |
| 5 | 22100006 | PISTON PIN (2) | FLHTCUTGSE |
| 6 | 24100045A | FLYWHEEL ASSEMBLY KIT, with 11177A | FLHTCUTGSE |
| 7 | 35200057 | BALANCER ASSEMBLY | FLHTCUTGSE |
CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHTCUTGSE |
| 2 | 765 | PLUG (5) | FLHTCUTGSE |
| 3 | 8972 | WASHER | FLHTCUTGSE |
| 4 | 9215 | NEEDLE BEARING, left side, camshaft | FLHTCUTGSE |
| 5 | 16574-99A | DOWEL PIN (2) | FLHTCUTGSE |
| 6 | 16589-99A | DOWEL PIN (4) | FLHTCUTGSE |
| 7 | 24605-07 | BEARING, main (2) | FLHTCUTGSE |
| 8 | 26352-95A | ADAPTER | FLHTCUTGSE |
| 9 | 35114-02 | RING, retaining, internal | FLHTCUTGSE |
| 10 | 62700296 | OIL FILTER (black) | FLHTCUTGSE |
| 11 | 68042-99 | SCREW (4) | FLHTCUTGSE |
| 12 | 10200343 | SCREW (12) | FLHTCUTGSE |
| 13 | 11000134 | SEAL, oil | FLHTCUTGSE |
| 14 | 11900010 | O-RING (TWIN-COOLED™) | FLHTCUTGSE |
| 15 | 12400099 | SPACER, front mount (2) | FLHTCUTGSE |
| 16 | 24100080 | BEARING KIT, with 8972, 24605-07, 35114-02 and inner race | FLHTCUTGSE |
| 17 | 24400187 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 15, 18, 20, 21 and 22 (black granite) | FLHTCUTGSE |
| 18 | 25700433 | GASKET, piston jet (2) | FLHTCUTGSE |
| 19 | 29900041 | SPACER, sprocket shaft | FLHTCUTGSE |
| 20 | 35200021 | BEARING, balancer (2) | FLHTCUTGSE |
| 21 | 62700089 | PISTON JET ASSEMBLY, front, with 25700433 | FLHTCUTGSE |
| 22 | 62700117 | PISTON JET ASSEMBLY, rear, with 25700433 | FLHTCUTGSE |
| 23 | 62800013 | PLUG, with 11900010 (TWIN-COOLED™) | FLHTCUTGSE |
CAMSHAFT AND CAMSHAFT COVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHTCUTGSE |
| 2 | 942 | SCREW (2) | FLHTCUTGSE |
| 3 | 4740A | SCREW (15) | FLHTCUTGSE |
| 4 | 4822A | SCREW (4) | FLHTCUTGSE |
| 5 | 6294 | WASHER | FLHTCUTGSE |
| 6 | 8873 | BALL (7) | FLHTCUTGSE |
| 7 | 9215 | NEEDLE BEARING, camshaft | FLHTCUTGSE |
| 8 | 11293 | O-RING | FLHTCUTGSE |
| 9 | 16589-99A | DOWEL PIN | FLHTCUTGSE |
| 10 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with 6294, screws and washer | FLHTCUTGSE |
| 11 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLHTCUTGSE |
| 12 | 25675-06 | CHAIN, primary camshaft drive | FLHTCUTGSE |
| 13 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLHTCUTGSE |
| 13 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLHTCUTGSE |
| 13 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLHTCUTGSE |
| 13 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLHTCUTGSE |
| 13 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLHTCUTGSE |
| 13 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLHTCUTGSE |
| 14 | 26210-99 | SPRING, relief valve | FLHTCUTGSE |
| 15 | 26400-82B | RELIEF VALVE, oil pump bypass | FLHTCUTGSE |
| 16 | 68120-00 | SCREW (2) | FLHTCUTGSE |
| 17 | 11900103 | O-RING | FLHTCUTGSE |
| 18 | 25400103 | SPROCKET, camshaft drive, 34 teeth | FLHTCUTGSE |
| 19 | 25400133 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99A | FLHTCUTGSE |
| 20 | 25400273 | CAMSHAFT | FLHTCUTGSE |
| 21 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25400103 | FLHTCUTGSE |
| 22 | 25500013 | CHAIN TENSIONER, camshaft drive chain | FLHTCUTGSE |
| 23 | 25600111 | COVER, timer cover (black) | FLHTCUTGSE |
| 24 | 25700367 | CAMSHAFT COVER (chrome) | FLHTCUTGSE |
| 25 | 25700370 | GASKET, camshaft cover | FLHTCUTGSE |
| 26 | 25700731 | GASKET KIT, camshaft service | FLHTCUTGSE |
| 27 | 62400233 | GEROTOR ASSEMBLY | FLHTCUTGSE |
| 28 | 62400055 | GEROTOR ASSEMBLY, feed (TWIN-COOLED™) | FLHTCUTGSE |
| 29 | 62400245 | COVER, oil pump assembly, with 62400205 | FLHTCUTGSE |
| 30 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (TWIN-COOLED™) Also order 62400055 | FLHTCUTGSE |
| 31 | 62400205 | OIL SEAL | FLHTCUTGSE |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | FLHTCUTGSE |
| 2 | 6127 | WASHER (2) | FLHTCUTGSE |
| 3 | 16219-09 | STABLIZER LINK | FLHTCUTGSE |
| 4 | 10100062 | LOCKNUT | FLHTCUTGSE |
| 5 | 10200393 | SCREW | FLHTCUTGSE |
| 6 | 10200408A | SCREW (2) | FLHTCUTGSE |
| 7 | 10200463 | SCREW (2) | FLHTCUTGSE |
| 8 | 16300005 | ENGINE MOUNT, front (2) | FLHTCUTGSE |
| 9 | 16400042 | END CAP, front mount | FLHTCUTGSE |
| 10 | 16400046 | BRACKET, tie link | FLHTCUTGSE |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHTCUTGSE |
| 3 | 10200373 | SCREW (3) | FLHTCUTGSE |
| 3 | 12100069 | PLUG, purge tube cap | FLHTCUTGSE |
| 4 | 27200025 | MANIFOLD THROTTLE BODY INTAKE KIT, with 27300122, 27400019 and 91800058 | FLHTCUTGSE |
| 5 | 27300082 | GASKET, throttle body to manifold | FLHTCUTGSE |
| 6 | 27300086 | FLANGE, intake (2) | FLHTCUTGSE |
| 7 | 27300087 | SEAL, intake (2) | FLHTCUTGSE |
| 8 | 27300121 | INTAKE MANIFOLD ASSEMBLY, with 27300082 | FLHTCUTGSE |
| 9 | 27300122 | THROTTLE BODY ASSEMBLY, with 12100069 | FLHTCUTGSE |
| 10 | 27400015 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLHTCUTGSE |
| 11 | 27400019 | FUEL RAIL KIT | FLHTCUTGSE |
| 12 | 32700065 | SENSOR, temperature manifold absolute pressure, with O-ring | FLHTCUTGSE |
| 13 | 61200022 | FUEL LINE | FLHTCUTGSE |
| 14 | 91800058 | HARDWARE KIT, induction module | FLHTCUTGSE |
AIR CLEANER
| Index No. | Part No. | Description | Model(s) |
| 1 | 869 | SCREW (3) | FLHTCUTGSE |
| 2 | 923 | SCREW (2) | FLHTCUTGSE |
| 3 | 3048 | SCREW (2) | FLHTCUTGSE |
| 4 | 29465-08B | BOLT, breather (2) | FLHTCUTGSE |
| 5 | 14101119 | INSERT, air cleaner cover | FLHTCUTGSE |
| 6 | 29000148 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHTCUTGSE |
| 7 | 29000149 | GASKET | FLHTCUTGSE |
| 8 | 29400267 | ELEMENT, air filter | FLHTCUTGSE |
| 9 | 29400336 | HOSE, front | FLHTCUTGSE |
| 10 | 29400337 | HOSE, rear | FLHTCUTGSE |
| 11 | 61300721 | RAINSOCK | FLHTCUTGSE |
| 12 | 61300750 | COVER, with label (chrome) | FLHTCUTGSE |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | FLHTCUTGSE |
| 2 | 10039 | CABLE STRAP (3) | FLHTCUTGSE |
| 3 | 10177 | CABLE STRAP, anchored | FLHTCUTGSE |
| 4 | 10200422 | SCREW (4) | FLHTCUTGSE |
| 5 | 29900038 | ROTOR ASSEMBLY | FLHTCUTGSE |
| 6 | 29900041 | SPACER, sprocket shaft | FLHTCUTGSE |
| 7 | 29900042A | STATOR ASSEMBLY, 3-phase, 48 A | FLHTCUTGSE |
| 8 | 69201423 | DC LEAD ASSEMBLY, voltage regulator (from main wiring harness) | FLHTCUTGSE |
| 9 | 74700025 | VOLTAGE REGULATOR ASSEMBLY, with 74700038 and 74700039 | FLHTCUTGSE |
| 10 | 74700038 | LATCH, voltage regulator, AC | FLHTCUTGSE |
| 11 | 74700039 | LATCH, voltage regulator, DC | FLHTCUTGSE |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4813A | SCREW (2) | FLHTCUTGSE |
| 2 | 10177 | CABLE STRAP, anchored (6) | FLHTCUTGSE |
| 3 | 70681-09 | RETAINER, wire harness (California, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 4 | 12200170 | CLIP, retaining, anchored (2) | FLHTCUTGSE |
| 5 | 12200172 | CABLE STRAP, anchored | FLHTCUTGSE |
| 6 | 31600012 | SPARK PLUG, M10 (4) | FLHTCUTGSE |
| 7 | 31600017 | IGNITION COIL | FLHTCUTGSE |
| 8 | 31600018B | SPARK PLUG CABLE, right front cylinder, with 10177 | FLHTCUTGSE |
| 9 | 31600023A | SPARK PLUG CABLE, right rear cylinder, with 10177 | FLHTCUTGSE |
| 10 | 31600078A | SPARK PLUG CABLE, left front cylinder, with 10177 and 12200170 | FLHTCUTGSE |
| 11 | 31600079 | SPARK PLUG CABLE, left rear cylinder, with 10177 | FLHTCUTGSE |
| 12 | 41000599 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHTCUTGSE |
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (2) | FLHTCUTGSE |
| 2 | 942 | SCREW | FLHTCUTGSE |
| 3 | 10177 | CABLE STRAP, anchored | FLHTCUTGSE |
| 4 | 11289A | O-RING, crankshaft position sensor | FLHTCUTGSE |
| 5 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLHTCUTGSE |
| 6 | 11900010 | O-RING | FLHTCUTGSE |
| 7 | 32700048 | SENSOR, crankshaft position, with 11289A, 74194-98 and 69201302 | FLHTCUTGSE |
| 8 | 32700054 | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLHTCUTGSE |
| 9 | 32700065 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHTCUTGSE |
| 10 | 71400112 | OIL PRESSURE SWITCH | FLHTCUTGSE |
| 11 | 62800013 | PLUG ASSEMBLY, with 11900010 (TWIN-COOLED™) | FLHTCUTGSE |
| 12 | 69200840 | SENSOR, knock (2) | FLHTCUTGSE |
| 13 | 69201299 | HOUSING, two-way socket | FLHTCUTGSE |
| 14 | 69201300 | TERMINAL, socket, 20 AWG (2) | FLHTCUTGSE |
| 15 | 69201301 | WIRE SEAL, 20-22 AWG (green) (2) | FLHTCUTGSE |
| 16 | 69201302 | CONNECTOR ANCHOR | FLHTCUTGSE |
| 17 | 11900172 | O-RING | FLHTCUTGSE |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLHTCUTGSE |
| 2 | 27444-00Y | O-RING, starter-to-case | FLHTCUTGSE |
| 3 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | FLHTCUTGSE |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHTCUTGSE |
| 2 | 856A | SCREW | FLHTCUTGSE |
| 3 | 5817 | SPACER | FLHTCUTGSE |
| 4 | 6497HW | WASHER | FLHTCUTGSE |
| 5 | 10500108 | SCREW (zinc) | FLHTCUTGSE |
| 6 | 7904 | ACORN NUT | FLHTCUTGSE |
| 7 | 33600251 | SHIFTER PEG (chrome) (2) | FLHTCUTGSE |
| 8 | 11150 | RETAINING RING | FLHTCUTGSE |
| 9 | 11389 | RING, shift camshaft retaining | FLHTCUTGSE |
| 10 | 11575 | RING, shift camshaft retaining | FLHTCUTGSE |
| 11 | 33389-07 | SPRING, detent | FLHTCUTGSE |
| 12 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLHTCUTGSE |
| 13 | 33814-98A | SHIFTER ROD | FLHTCUTGSE |
| 14 | 33600061A | LEVER, heel shifter (long) (chrome_ | FLHTCUTGSE |
| 15 | 34064-00C | SPRING, shift lever centering | FLHTCUTGSE |
| 16 | 33600060A | LEVER, toe shifter (short) (chrome) | FLHTCUTGSE |
| 17 | 34987-06 | SPRING, ratchet lever | FLHTCUTGSE |
| 18 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | FLHTCUTGSE |
| 19 | 35082-07 | CENTERING SCREW, shift lever | FLHTCUTGSE |
| 20 | 35186-06 | SLEEVE | FLHTCUTGSE |
| 21 | 35187-06 | FORK, shift 1 - 2 | FLHTCUTGSE |
| 22 | 35210-06 | FORK, shift 3 - 4 | FLHTCUTGSE |
| 23 | 35217-06 | FORK, shift 5 - 6 | FLHTCUTGSE |
| 24 | 35222-06 | SHAFT, 5 - 6 shift fork | FLHTCUTGSE |
| 25 | 35223-06 | SHAFT, 1 - 2 and 3 - 4 shift fork | FLHTCUTGSE |
| 26 | 35243-06 | SLEEVE | FLHTCUTGSE |
| 27 | 35244-06 | SCREW | FLHTCUTGSE |
| 28 | 35249-06A | LOCK PLATE, shift camshaft | FLHTCUTGSE |
| 29 | 35259-06 | SCREW (2) | FLHTCUTGSE |
| 30 | 3275 | SCREW (2) | FLHTCUTGSE |
| 31 | 11000101 | OIL SEAL | FLHTCUTGSE |
| 32 | 33600088 | LEVER, gear shifter | FLHTCUTGSE |
| 33 | 33600091 | SHAFT | FLHTCUTGSE |
| 34 | 33900172 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHTCUTGSE |
| 35 | 33900180 | LEVER, shifter rod | FLHTCUTGSE |
| 36 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 9, 10, 11, 12, 21, 22, 23, 24, 25, 26, 27, 28, 29, 34, 7340, 35260-06B, input shaft, countershaft and gears (black granite) | FLHTCUTGSE |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | ALL |
| 2 | 3249 | SCREW (8) | ALL |
| 3 | 4705 | SCREW (4) | ALL |
| 4 | 4718A | SCREW (4) | ALL |
| 5 | 4741A | SCREW (2) | ALL |
| 6 | 4890 | BLEEDER SCREW | ALL |
| 7 | 7340 | NUT, mainshaft and countershaft (2) | ALL |
| 8 | 8963 | BEARING, needle | ALL |
| 9 | 8967A | BEARING | ALL |
| 10 | 8970A | BEARING | ALL |
| 11 | 9701A | BUSHING | ALL |
| 12 | 11132A | O-RING, dipstick | ALL |
| 13 | 11161 | RETAINING RING | ALL |
| 14 | 12074 | SEAL | ALL |
| 15 | 16583-00A | BUSHING, dowel (2) | ALL |
| 16 | 35082-07 | CENTERING SCREW, shift lever | ALL |
| 17 | 35087-99A | RETAINING RING (2) | ALL |
| 18 | 35186-06 | SLEEVE | ALL |
| 19 | 35260-06B | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00A, 35087-99A and 11000010 (black) | ALL |
| 20 | 35654-06 | GASKET, bearing housing | ALL |
| 21 | 36805-06 | GASKET, cover | ALL |
| 22 | 37065-06A | DIPSTICK (chrome) | ALL |
| 23 | 11000010 | BEARING | ALL |
| 24 | 11000101 | OIL SEAL | ALL |
| 25 | 11900092 | O-RING | ALL |
| 26 | 24400215 | GASKET | ALL |
| 27 | 25700178 | INNER SIDE COVER, transmission | ALL |
| 28 | 25800123 | INSERT, side cover, six speed | FLHTCUTGSE |
| 29 | 25800054 | SIDE COVER, transmission, with 25800109 and 25800110 (chrome) | ALL |
| 30 | 25800124 | SIDE COVER ASSEMBLY, transmission, with 25800123 and 25800054 (chrome) | FLHTCUTGSE |
| 31 | 25800109 | TRIM, rubber | ALL |
| 32 | 25800110 | TAPE, foam | ALL |
| 33 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | ALL |
| 34 | 62700150 | PLUG, transmission, with 11900092 (TWIN-COOLED™) | FLHTCUTGSE |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHTCUTGSE |
| 2 | 3983 | SCREW (2) | FLHTCUTGSE |
| 3 | 942 | SCREW | FLHTCUTGSE |
| 4 | 4741A | SCREW (18) | FLHTCUTGSE |
| 5 | 7792 | NUT | FLHTCUTGSE |
| 6 | 11105 | O-RING (2) | FLHTCUTGSE |
| 7 | 11120 | O-RING | FLHTCUTGSE |
| 8 | 11289A | O-RING | FLHTCUTGSE |
| 9 | 16574-99A | DOWEL PIN (2) | FLHTCUTGSE |
| 10 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHTCUTGSE |
| 11 | 60328-98B | PLUG, magnetic, with 11105 (2) | FLHTCUTGSE |
| 12 | 62372-09 | VENT HOSE, transmission | FLHTCUTGSE |
| 13 | 66290-06 | STUD, ground | FLHTCUTGSE |
| 14 | 74402-05B | SPEED SENSOR, with 11289A | FLHTCUTGSE |
| 15 | 24400180 | OIL PAN ASSEMBLY, with 60328-98B (black) | FLHTCUTGSE |
| 16 | 25700452 | GASKET, oil pan | FLHTCUTGSE |
| 17 | 25700453 | GASKET, upper cover | FLHTCUTGSE |
| 18 | 34700092 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967A, 9701A, 11161, 12074, 16574-99A, 35082-07, 35122-06A, 35186-06, 35241-06, 35242-06, 66290-06, 83595-11 and 11000101 (black granite) | FLHTCUTGSE |
| 19 | 34800025 | TRANSMISSION COVER, top, with 62372-09 (chrome) | FLHTCUTGSE |
| 20 | 62700198 | DIPSTICK ASSEMBLY, with 11120 (chrome) | FLHTCUTGSE |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837A | SPACER | FLHTCUTGSE |
| 2 | 7340 | NUT (2) | FLHTCUTGSE |
| 3 | 8026K | BEARING, needle (4) | FLHTCUTGSE |
| 4 | 8041 | BEARING, needle | FLHTCUTGSE |
| 5 | 8042A | BEARING, needle (2) | FLHTCUTGSE |
| 6 | 10991A | RETAINING RING (2) | FLHTCUTGSE |
| 7 | 11081A | RING, lock (3) | FLHTCUTGSE |
| 8 | 11082A | SECURING SEGMENT (6) | FLHTCUTGSE |
| 9 | 11201 | O-RING | FLHTCUTGSE |
| 10 | 11207A | WASHER, internal spline | FLHTCUTGSE |
| 11 | 11599A | SPACER, bearing | FLHTCUTGSE |
| 12 | 12077 | OIL SEAL | FLHTCUTGSE |
| 13 | 34091-08 | BEARING, inner race | FLHTCUTGSE |
| 14 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042, 10991A, 11201, 11599A and 12077 | FLHTCUTGSE |
| 15 | 35124-06 | GUIDE HUB, dog ring | FLHTCUTGSE |
| 16 | 35126-06 | DOG RING, lugged (2) | FLHTCUTGSE |
| 17 | 35202-06 | GUIDE HUB, dog ring | FLHTCUTGSE |
| 18 | 35204-06 | DOG RING, pocketed | FLHTCUTGSE |
| 19 | 35467-06C | INPUT SHAFT KIT, with 34091-08, 12200144 and 35000178 | FLHTCUTGSE |
| 20 | 35807-06 | GEAR, countershaft-second | FLHTCUTGSE |
| 21 | 35811-06 | GEAR, countershaft-third | FLHTCUTGSE |
| 22 | 35814-06 | GEAR, countershaft-fourth | FLHTCUTGSE |
| 23 | 12200144 | RETAINING RING | FLHTCUTGSE |
| 24 | 35000178 | GUIDE HUB, dog ring | FLHTCUTGSE |
| 25 | 35000179 | GEAR, fifth input | FLHTCUTGSE |
| 26 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 10, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 35260-06B, shifter camshaft and forks (black granite) | FLHTCUTGSE |
| 27 | 35600094 | COUNTERSHAFT ASSEMBLY | FLHTCUTGSE |
| 28 | 35600103 | GEAR ASSEMBLY, countershaft-first | FLHTCUTGSE |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 8885 | BEARING | FLHTCUTGSE |
| 2 | 11143 | RETAINING RING, external | FLHTCUTGSE |
| 3 | 36706-01K | BOLT (3) | FLHTCUTGSE |
| 4 | 36731-91 | PLATE, release, with 8885 | FLHTCUTGSE |
| 5 | 37496-90A | NUT, mainshaft | FLHTCUTGSE |
| 6 | 37904-90 | RETAINING RING, external | FLHTCUTGSE |
| 7 | 37909-90 | RING, retaining, internal | FLHTCUTGSE |
| 8 | 37000032A | PRESSURE PLATE, clutch | FLHTCUTGSE |
| 9 | 37000033 | STOPPER PLATE | FLHTCUTGSE |
| 10 | 37000034 | SPRING, damper | FLHTCUTGSE |
| 11 | 37000295 | SEAT, damper-spring | FLHTCUTGSE |
| 12 | 37000083 | HUB ASSEMBLY | FLHTCUTGSE |
| 13 | 37000168 | BEARING, ball, double-row | FLHTCUTGSE |
| 14 | 37000169 | RETAINING RING, internal | FLHTCUTGSE |
| 15 | 37000217 | RELEASE ROD, clutch | FLHTCUTGSE |
| 16 | 37000218 | PUSHROD, clutch release | FLHTCUTGSE |
| 17 | 37000219 | SEAT (3) | FLHTCUTGSE |
| 18 | 37000254A | CLUTCH ASSEMBLY, complete, with 3, 6, 8, 9, 10, 11, 12, 13, 14, 17, 19 and 20 | FLHTCUTGSE |
| 19 | 37000258 | CLUTCH DISKS KIT | FLHTCUTGSE |
| 20 | 37000270A | COIL SPRING (3) | FLHTCUTGSE |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHTCUTGSE |
| 2 | 791A | SCREW (2) | FLHTCUTGSE |
| 3 | 1062 | SCREW (5) | FLHTCUTGSE |
| 4 | 1775 | SCREW (4) | FLHTCUTGSE |
| 5 | 4813A | SCREW (9) | FLHTCUTGSE |
| 6 | 4820A | SCREW | FLHTCUTGSE |
| 7 | 9231 | BEARING | FLHTCUTGSE |
| 8 | 11105 | O-RING | FLHTCUTGSE |
| 9 | 12052A | SEAL | FLHTCUTGSE |
| 10 | 16583-00A | BUSHING, dowel (2) | FLHTCUTGSE |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | FLHTCUTGSE |
| 12 | 24754-75A | DOWEL BUSHING (4) | FLHTCUTGSE |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | FLHTCUTGSE |
| 14 | 60678-85 | RETAINING RING | FLHTCUTGSE |
| 15 | 11000139 | BUSHING | FLHTCUTGSE |
| 16 | 25700378 | GASKET, primary cover | FLHTCUTGSE |
| 17 | 25701157 | COVER, clutch (chrome) | FLHTCUTGSE |
| 18 | 25700418 | COVER, primary (chrome) | FLHTCUTGSE |
| 19 | 25700679 | GASKET, primary housing to case | FLHTCUTGSE |
| 20 | 25700650 | SLEEVE, damper | FLHTCUTGSE |
| 21 | 25700746 | GASKET KIT, inner primary | FLHTCUTGSE |
| 22 | 36500092A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 60328-98B, 60678-85 and 11000139 (black granite) | FLHTCUTGSE |
| 23 | 36500075 | CHAIN TENSIONER ASSEMBLY | FLHTCUTGSE |
| 24 | 26500026 | HOSE, vent | FLHTCUTGSE |
| 25 | 26500027 | KIT, VENT, primary, with 11105, 25700378, 26500026 and clutch cover seal | FLHTCUTGSE |
BELT, CHAIN AND SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLHTCUTGSE |
| 2 | 35241-06 | NUT | FLHTCUTGSE |
| 3 | 35242-06 | LOCKPLATE | FLHTCUTGSE |
| 4 | 40037-07 | PRIMARY CHAIN | FLHTCUTGSE |
| 5 | 40040-05 | REAR BELT, 139 teeth, 1-1/8 in | FLHTCUTGSE |
| 6 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUTGSE |
| 7 | 83424-09 | SPROCKET ASSEMBLY, rear, 70 teeth, with bearing (chrome) | FLHTCUTGSE |
| 8 | 83595-11 | SPROCKET, transmission, 30 teeth | FLHTCUTGSE |
| 9 | 83936-09A | SPRING PACK | FLHTCUTGSE |
| 10 | 10500031 | SCREW, compensator | FLHTCUTGSE |
| 11 | 40100041 | RETAINER, sprocket | FLHTCUTGSE |
| 12 | 40100064 | THRUST WASHER | FLHTCUTGSE |
| 13 | 40100076 | ENGINE SPROCKET KIT, compensator assembly | FLHTCUTGSE |
CLUTCH CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTCUTGSE |
| 2 | 42856-06 | MEDALLION | FLHTCUTGSE |
| 3 | 6099 | WASHER (2) | FLHTCUTGSE |
| 4 | 41700367 | BUTTON, anti-bubble | FLHTCUTGSE |
| 5 | 10039 | CABLE STRAP (3) | FLHTCUTGSE |
| 6 | 41751-06A | GASKET, bolt, banjo (2) | FLHTCUTGSE |
| 7 | 42010-06B | BOLT, BANJO | FLHTCUTGSE |
| 8 | 42882-06 | SCREW (set of 2) | FLHTCUTGSE |
| 9 | 45138-08A | CLAMP, master cylinder and clutch (black) | FLHTCUTGSE |
| 9 | 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHTCUTGSE |
| 10 | 12100077 | GROMMET | FLHTCUTGSE |
| 11 | 37200131C | SECONDARY CLUTCH ACTUATOR with 4890 | FLHTCUTGSE |
| 12 | 36700170A | MASTER CYLINDER ASSEMBLY, clutch, with 36700132, 36700172A, 41700367, 41700439 (chrome) | FLHTCUTGSE |
| 13 | 41700439 | MASTER CYLINDER COVER KIT, with 42856-06, 42882-06 and 36700131 | FLHTCUTGSE |
| 14 | 36700132 | REBUILD KIT, master cylinder | FLHTCUTGSE |
| 15 | 36700131 | GASKET, cover, master cylinder | FLHTCUTGSE |
| 16 | 36700172A | LEVER ASSEMBLY, hand, with 42105-06A and bushing (chrome) | FLHTCUTGSE |
| 17 | 42105-06A | PIVOT PIN KIT, with retaining ring | FLHTCUTGSE |
| 18 | 37200129 | LINE ASSEMBLY, hydraulic clutch, with 12100077 | FLHTCUTGSE |
| 19 | 37200425 | CLUTCH ACTUATION KIT, with 41751-06A, 42010-06B, 36700170A, 37200129 and 37200131C | FLHTCUTGSE |
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTCUTGSE |
| 2 | 6099 | WASHER (2) | FLHTCUTGSE |
| 3 | 42010-06B | BOLT, BANJO, brake line | FLHTCUTGSE |
| 4 | 41751-06A | GASKET (2) | FLHTCUTGSE |
| 5 | 42854-06 | KIT, SIGHT GLASS, reservoir | FLHTCUTGSE |
| 6 | 42123-08 | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42882-06 | FLHTCUTGSE |
| 7 | 42856-06 | DECAL, reservoir cover | FLHTCUTGSE |
| 8 | 42857-06B | GASKET, reservoir cover | FLHTCUTGSE |
| 9 | 42882-06 | SCREW (2) | FLHTCUTGSE |
| 10 | 42271-06A | BRAKE LEVER ASSEMBLY, front, with 42860-06B (chrome) | FLHTCUTGSE |
| 11 | 42860-06B | PIVOT PIN KIT, with retaining ring | FLHTCUTGSE |
| 12 | 42861-06B | PUSHROD, master cylinder | FLHTCUTGSE |
| 13 | 42862-06B | PISTON SERVICE KIT, master cylinder | FLHTCUTGSE |
| 14 | 42102-08D | MASTER CYLINDER ASSEMBLY, front, with 5, 6, 7, 8, 9, 10, 11, 12, 13 and 16 (chrome) | FLHTCUTGSE |
| 15 | 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHTCUTGSE |
| 16 | 41700367 | BUTTON, anti-bubble | FLHTCUTGSE |
MIRRORS
| Index No. | Part No. | Description | Model(s) |
| 1 | 92448-11 | MIRROR KIT, short, convex, chrome (right) | FLHTCUTGSE |
| 1 | 92447-11 | MIRROR KIT, short, convex, chrome (left) | FLHTCUTGSE |
| 2 | 6771A | WASHER (2) | FLHTCUTGSE |
| 3 | 7155 | LOCKWASHER (2) | FLHTCUTGSE |
| 4 | 7331 | ACORN NUT (2) | FLHTCUTGSE |
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHTCUTGSE |
| 2 | 10039 | CABLE STRAP (2) | FLHTCUTGSE |
| 3 | 41750-06B | BOLT, BANJO, brake line (2) | FLHTCUTGSE |
| 4 | 41751-06A | GASKET (10) | FLHTCUTGSE |
| 5 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLHTCUTGSE |
| 6 | 42853-06 | CAP, bleeder screw (2) | FLHTCUTGSE |
| 7 | 41600032 | BRACKET, brake line | FLHTCUTGSE |
| 8 | 41800687 | BRAKE LINE, front, ABS (upper) | FLHTCUTGSE |
| 9 | 41800686 | BRAKE LINE, front, ABS (right) | FLHTCUTGSE |
| 10 | 41800685 | BRAKE LINE, front, ABS (left) | FLHTCUTGSE |
| 11 | 70631-08 | CONDUIT CLIP | FLHTCUTGSE |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHTCUTGSE |
| 2 | 2479 | SCREW (2) | FLHTCUTGSE |
| 3 | 6220W | WASHER | FLHTCUTGSE |
| 4 | 6416 | WASHER | FLHTCUTGSE |
| 5 | 7825 | NUT | FLHTCUTGSE |
| 6 | 11445 | GROMMET | FLHTCUTGSE |
| 7 | 11608 | CLIP (2) | FLHTCUTGSE |
| 8 | 11902 | GASKET | FLHTCUTGSE |
| 9 | 12102 | DUST BOOT | FLHTCUTGSE |
| 10 | 50600340 | PAD, with 3340, 6421 (chrome) | FLHTCUTGSE |
| 11 | 42460-80B | CLEVIS PIN | FLHTCUTGSE |
| 12 | 42889-06 | SPRING RETENTION KIT | FLHTCUTGSE |
| 13 | 42932-08A | REBUILD KIT | FLHTCUTGSE |
| 14 | 42934-08 | SPRING | FLHTCUTGSE |
| 15 | 10400038 | NUT | FLHTCUTGSE |
| 16 | 10500114 | SCREW | FLHTCUTGSE |
| 17 | 11000050 | BUSHING (2) | FLHTCUTGSE |
| 18 | 11900021 | O-RING (2) | FLHTCUTGSE |
| 19 | 12100124 | GROMMET | FLHTCUTGSE |
| 20 | 41600263 | BRACKET | FLHTCUTGSE |
| 21 | 41700195 | PUSHROD KIT | FLHTCUTGSE |
| 22 | 41700561 | MASTER CYLINDER, rear, with 9, 12, 13, 14, 21, 23 and 25 | FLHTCUTGSE |
| 23 | 41700562 | RESERVOIR, with/ 11608 and 41700581 (smoked) | FLHTCUTGSE |
| 24 | 41700581 | COVER, with 11902 and screws | FLHTCUTGSE |
| 25 | 41700582 | SPIGOT | FLHTCUTGSE |
| 26 | 50600067 | LEVER ASSEMBLY, footbrake, with 11000050 | FLHTCUTGSE |
| 27 | 3340 | SCREW | FLHTCUTGSE |
| 28 | 6421 | WASHER | FLHTCUTGSE |
BRAKE LINES AND MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (2) | FLHTCUTGSE |
| 2 | 3563 | SCREW | FLHTCUTGSE |
| 3 | 4890 | BLEEDER SCREW (2) | FLHTCUTGSE |
| 4 | 7686 | NUT | FLHTCUTGSE |
| 5 | 10065 | CABLE STRAP | FLHTCUTGSE |
| 6 | 10076 | CLAMP | FLHTCUTGSE |
| 7 | 10108 | CLIP (4) | FLHTCUTGSE |
| 9 | 41750-06B | BOLT, BANJO, brake line, ABS (2) | FLHTCUTGSE |
| 10 | 41751-06A | GASKET (8) | FLHTCUTGSE |
| 11 | 41783-08 | BOLT, banjo, bleeder assembly, with 4890 (2) | FLHTCUTGSE |
| 12 | 42853-06 | CAP, bleeder screw (2) | FLHTCUTGSE |
| 13 | 10800028 | TUBE CLIP (lower) | FLHTCUTGSE |
| 14 | 32700100 | SENSOR | FLHTCUTGSE |
| 15 | 41100093 | ABS MODULE (EHCU) | FLHTCUTGSE |
| 16 | 41600091 | TUBE CLIP (upper) | FLHTCUTGSE |
| 17 | 41600257 | BRACKET | FLHTCUTGSE |
| 18 | 41600267 | GROMMET | FLHTCUTGSE |
| 19 | 41600352 | BRACKET, kit, guide bracket | FLHTCUTGSE |
| 20 | 41800682 | BRAKE LINE, ABS module to master cylinder | FLHTCUTGSE |
| 21 | 41800683 | BRAKE LINE, EHCU, to right rear caliper | FLHTCUTGSE |
| 22 | 41800684 | BRAKE LINE, EHCU, to left rear caliper | FLHTCUTGSE |
PARKING BRAKE
| Index No. | Part No. | Description | Model(s) |
| 1 | 509 | COTTER PIN, parking brake | FLHTCUTGSE |
| 2 | 4688 | SCREW (5) | FLHTCUTGSE |
| 3 | 6334 | WASHER | FLHTCUTGSE |
| 4 | 7716 | LOCKNUT | FLHTCUTGSE |
| 5 | 7825 | LOCKNUT | FLHTCUTGSE |
| 6 | 8351 | SPACER, pawl (2) | FLHTCUTGSE |
| 7 | 8353 | BUSHING, pawl | FLHTCUTGSE |
| 8 | 8357 | SPRING, pawl return | FLHTCUTGSE |
| 9 | 8368 | CLEVIS PIN | FLHTCUTGSE |
| 10 | 10039 | CABLE STRAP (3) | FLHTCUTGSE |
| 11 | 10177 | CABLE STRAP | FLHTCUTGSE |
| 12 | 11012 | RETAINING RING (4) | FLHTCUTGSE |
| 13 | 11321 | CABLE STRAP (4) | FLHTCUTGSE |
| 14 | 11364 | O-RING (2) | FLHTCUTGSE |
| 15 | 57217-02A | BUSHING, brake lever (2) | FLHTCUTGSE |
| 16 | 50600426 | KIT, BRAKE PEDAL SERVICE, with brake pedal pad and 10200422 | FLHTCUTGSE |
| 17 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 18 | 72473-07 | SEAL PIN | FLHTCUTGSE |
| 19 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 20 | 10100006 | NUT | FLHTCUTGSE |
| 21 | 10200001 | SCREW | FLHTCUTGSE |
| 22 | 10300003 | WASHER (2) | FLHTCUTGSE |
| 23 | 12200177 | RETAINING RING (2) | FLHTCUTGSE |
| 24 | 12700032 | MAGNET, sensor | FLHTCUTGSE |
| 25 | 32700011 | SENSOR ASSEMBLY, proximity, with 72168-07, 72473-07 and 72512-07BK | FLHTCUTGSE |
| 26 | 41700469 | KIT, PARKING BRAKE BRACKET, with 10200429 (black) | FLHTCUTGSE |
| 27 | 83000014 | PEDAL ASSEMBLY, parking brake, with 57217-02A and 12700032 (black) | FLHTCUTGSE |
| 28 | 83000018A | PAWL, parking brake | FLHTCUTGSE |
| 29 | 83000026 | BRACKET, parking brake | FLHTCUTGSE |
| 30 | 83000030A | SPRING, brake pedal return | FLHTCUTGSE |
| 31 | 83000136 | EQUALIZER ASSEMBLY, parking brake, with 11012, 83000026, 83000137, 83000138 and 83000139 | FLHTCUTGSE |
| 32 | 83000137 | CABLE ASSEMBLY, parking brake | FLHTCUTGSE |
| 33 | 83000138 | CABLE ASSEMBLY, parking brake, right rear | FLHTCUTGSE |
| 34 | 83000139 | CABLE ASSEMBLY, parking brake, left rear | FLHTCUTGSE |
| 35 | 10200422 | SCREW | FLHTCUTGSE |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | BRAKE PAD KIT, with 42849-08 and brake pads (2) | FLHTCUTGSE |
| 2 | 42849-08 | PAD PIN KIT, with pad pin and retaining clip (2) | FLHTCUTGSE |
| 3 | 42019-06 | COVER (chrome) (2) | FLHTCUTGSE |
| 4 | 42852-06A | SPRING, anti-rattle (2) | FLHTCUTGSE |
| 5 | 46369-10 | CALIPER ASSEMBLY, left, with 41854-08, 42019-06, 42849-08, 42852-06A (black) | FLHTCUTGSE |
| 5 | 42938-08 | CALIPER ASSEMBLY, left, with 41854-08, 42019-06, 42849-08, 42852-06A (silver) | FLHTCUTGSE |
| 5 | 46368-10 | CALIPER ASSEMBLY, right, with 41854-08, 42019-06, 42849-08, 42852-06A (black) | FLHTCUTGSE |
| 5 | 42939-08 | CALIPER ASSEMBLY, right, with41854-08, 42019-06, 42849-08, 42852-06A (silver) | FLHTCUTGSE |
| 6 | 44160-00 | BOLT, mounting (4) | FLHTCUTGSE |
| 7 | 44935-06 | MEDALLION (2) **RESTRICTED SALES PART** | FLHTCUTGSE |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8314 | SCREW (4) | FLHTCUTGSE |
| 2 | 41751-06A | GASKET (4) | FLHTCUTGSE |
| 3 | 41783-08 | BLEEDER BOLT ASSEMBLY, BANJO (2) | FLHTCUTGSE |
| 4 | 42853-06 | CAP (2) | FLHTCUTGSE |
| 5 | 41300212 | CALIPER ASSEMBLY, rear, with pads (left) | FLHTCUTGSE |
| 5 | 41300215 | CALIPER ASSEMBLY, rear, with pads (right) | FLHTCUTGSE |
| 6 | 41300214 | KIT, brake pads, with pins and springs (set of 4) | FLHTCUTGSE |
| 7 | 41500151 | BRAKE ROTOR, rear (2) | FLHTCUTGSE |
WHEELS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 520W | COTTER PIN | FLHTCUTGSE |
| 2 | 3267 | SCREW, set (2) | FLHTCUTGSE |
| 3 | 41500020 | SCREW (10) | FLHTCUTGSE |
| 4 | 6594 | WASHER | FLHTCUTGSE |
| 5 | 7823 | NUT | FLHTCUTGSE |
| 6 | 9252A | BALL BEARING | FLHTCUTGSE |
| 7 | 9276B | BALL BEARING | FLHTCUTGSE |
| 8 | 42300112 | VALVE STEM | FLHTCUTGSE |
| 9 | 42300093 | VALVE CAP | FLHTCUTGSE |
| 10 | 43475-08 | COVER, axle nut, with 3267 (chrome) (2) | FLHTCUTGSE |
| 11 | 41900-08 | SLEEVE, bearing spacer | FLHTCUTGSE |
| 12 | 43100045 | TIRE | FLHTCUTGSE |
| 13 | 70493-08 | BRACKET, wheel speed sensor, ABS | FLHTCUTGSE |
| 14 | 70494-08 | CLIP, wheel speed sensor, ABS | FLHTCUTGSE |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLHTCUTGSE |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTGSE |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 18 | 14101128 | MEDALLION (red) | FLHTCUTGSE |
| 19 | 43300703 | WHEEL, cast, 19 inch, 5 spoke (gray, satin ice) | FLHTCUTGSE |
| 19 | 43300737 | WHEEL, cast, 19 inch, 5 spoke (black) | FLHTCUTGSE |
| 20 | 44583-08 | SPACER (right only) | FLHTCUTGSE |
| 21 | 83889-09 | AXLE | FLHTCUTGSE |
| 22 | 42300001 | WEIGHT, 5 g, cast wheels (black) (3) | FLHTCUTGSE |
| 23 | 32700015 | SENSOR, with 72607-08, 72608-08, 72639-10 | FLHTCUTGSE |
| 24 | 10201001 | SCREW | FLHTCUTGSE |
| 25 | 41500017 | BRAKE DISC (2) | FLHTCUTGSE |
| 26 | 40786-08 | COVER, wheel speed sensor | FLHTCUTGSE |
| 27 | 41500018 | BUSHING (10) | FLHTCUTGSE |
| 28 | 41500019 | SPRING (10) | FLHTCUTGSE |
| 29 | 11900155 | O-RING | FLHTCUTGSE |
| 30 | 42300114 | MONITOR, TIRE PRESSURE (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 30 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHTCUTGSE |
| 31 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 31 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHTCUTGSE |
WHEELS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 43200046 | TIRE (2) | FLHTCUTGSE |
| 2 | 14101125 | MEDALLION | FLHTCUTGSE |
| 3 | 42300112 | VALVE STEM (2) | FLHTCUTGSE |
| 4 | 42300093 | VALVE CAP (2) | FLHTCUTGSE |
| 5 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 5 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHTCUTGSE |
| 6 | 40900663 | WHEEL, rear, 5 spoke, 18 in (gray, satin ice) (2) | FLHTCUTGSE |
| 6 | 40900724 | WHEEL, rear, 5 spoke, 18 in (gloss black) (2) | FLHTCUTGSE |
| 7 | 42500016 | HUB CAP (black) (2) | FLHTCUTGSE |
| 7 | 42500013 | HUB CAP (white) (2) | FLHTCUTGSE |
| 8 | 10100071 | LUG NUT, rear wheel (8) | FLHTCUTGSE |
| 9 | 42300001 | WEIGHT, 5 g, cast wheels (black) (12) | FLHTCUTGSE |
| 10 | 11900155 | O-RING | FLHTCUTGSE |
| 11 | 42300114 | MONITOR, TIRE PRESSURE (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 11 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHTCUTGSE |
| 12 | 10201001 | SCREW | FLHTCUTGSE |
AXLE ASSEMBLY, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 965M | SCREW (2) | FLHTCUTGSE |
| 2 | 4795 | SCREW (8) | FLHTCUTGSE |
| 3 | 6701 | WASHER (8) | FLHTCUTGSE |
| 4 | 8308 | SCREW (8) | FLHTCUTGSE |
| 5 | 8313 | SCREW (10) | FLHTCUTGSE |
| 6 | 8319 | SCREW (4) | FLHTCUTGSE |
| 7 | 40278-08 | ISOLATOR, rubber (6) | FLHTCUTGSE |
| 8 | 83311-09 | STUD, wheel (8) | FLHTCUTGSE |
| 9 | 83312-09 | NUT (8) | FLHTCUTGSE |
| 10 | 83313-09 | RETAINER, bearing (2) | FLHTCUTGSE |
| 11 | 83314-09 | BEARING, wheel (2) | FLHTCUTGSE |
| 12 | 83316-09 | RETAINER, snap ring (2) | FLHTCUTGSE |
| 13 | 83317-09 | BEARING, case (2) | FLHTCUTGSE |
| 14 | 83323-09 | BOLT (4) | FLHTCUTGSE |
| 15 | 83331-09A | SNAP RING, sprocket bearing | FLHTCUTGSE |
| 16 | 83424-09 | SPROCKET ASSEMBLY, 70 teeth | FLHTCUTGSE |
| 17 | 83429-09 | BRACKET, caliper reaction (2) | FLHTCUTGSE |
| 18 | 83450-09 | DIFFERENTIAL ASSEMBLY, rear, with 21 and 22 | FLHTCUTGSE |
| 19 | 83456-09 | DOWEL PIN (2) | FLHTCUTGSE |
| 20 | 83459-09 | FITTING, grease | FLHTCUTGSE |
| 21 | 83460-09 | PLUG, grease | FLHTCUTGSE |
| 22 | 83848-09 | BEARING SEAL (2) | FLHTCUTGSE |
| 23 | 83849-09A | RING GEAR, reverse | FLHTCUTGSE |
| 24 | 83850-09 | KIT, COMPENSATOR BOWL, with 8313 | FLHTCUTGSE |
| 25 | 32700102 | SENSOR, wheel speed, rear | FLHTCUTGSE |
| 26 | 12200173 | TONE RING, axle shaft (2) | FLHTCUTGSE |
| 27 | 12600212 | STUD (8) | FLHTCUTGSE |
| 28 | 43000153 | HOUSING, axle, rear | FLHTCUTGSE |
| 29 | 43000154 | AXLE ASSEMBLY, rear, with reverse, with 4, 5, 6, 7, 13, 14, 15, 16, 17, 18, 19, 23, 24, 28, 30, 31 | FLHTCUTGSE |
| 30 | 43000155 | SHAFT ASSEMBLY, axle, with 8, 10, 11, 12 and 26 (right) | FLHTCUTGSE |
| 31 | 43000156 | SHAFT ASSEMBLY, axle, with 8, 10, 11, 12 and 26 (left) | FLHTCUTGSE |
STEERING DAMPER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2998 | SCREW | FLHTCUTGSE |
| 2 | 7531 | LOCKNUT | FLHTCUTGSE |
| 3 | 7992 | ACORN NUT | FLHTCUTGSE |
| 4 | 8324 | WASHER | FLHTCUTGSE |
| 5 | 83808-09A | STEERING DAMPER | FLHTCUTGSE |
| 6 | 83864-09 | SPACER, damper rod side bracket | FLHTCUTGSE |
| 7 | 83865-09 | BRACKET, steering damper | FLHTCUTGSE |
| 8 | 50000031 | BRACKET, damper mount | FLHTCUTGSE |
FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHTCUTGSE |
| 2 | 10200042 | SCREW (4) | FLHTCUTGSE |
| 3 | 10500022 | SCREW (6) | FLHTCUTGSE |
| 4 | 10500036 | SCREW | FLHTCUTGSE |
| 5 | 45600018 | COVER ASSEMBLY, fork tube (left) | FLHTCUTGSE |
| 6 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHTCUTGSE |
| 7 | 45700020 | STEM ASSEMBLY, upper steering, with bearing cone and dirt guard | FLHTCUTGSE |
| 8 | 45600017 | COVER ASSEMBLY, fork tube (right) | FLHTCUTGSE |
| 9 | 45900027 | BRACKET, upper fork stem | FLHTCUTGSE |
| 10 | 45900234 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHTCUTGSE |
| 11 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHTCUTGSE |
| 12 | 10200134 | SCREW (2) | FLHTCUTGSE |
| 13 | 12200174 | CLIP (2) | FLHTCUTGSE |
| 14 | 12200175A | CLIP | FLHTCUTGSE |
| 15 | 41600261 | BRACKET | FLHTCUTGSE |
| 16 | 61300926 | PANEL | FLHTCUTGSE |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 45500424 | BUSHING, slider (2) | FLHTCUTGSE |
| 2 | 46508-01 | O-RING (2) | FLHTCUTGSE |
| 3 | 46509-01 | WASHER (2) | FLHTCUTGSE |
| 4 | 45500398 | COLLAR, spring (2) | FLHTCUTGSE |
| 5 | 46513-01 | RING, stopper (2) | FLHTCUTGSE |
| 6 | 46514-01A | OIL SEAL (2) | FLHTCUTGSE |
| 7 | 46515-01 | SPACER, seal (2) | FLHTCUTGSE |
| 8 | 45500421 | BUSHING GUIDE (2) | FLHTCUTGSE |
| 9 | 45500396 | SPRING, rebound (2) | FLHTCUTGSE |
| 10 | 46615-06 | PACKING SEAL (2) | FLHTCUTGSE |
| 11 | 59482-00 | REFLECTOR, left (amber) | FLHTCUTGSE |
| 12 | 59481-00 | REFLECTOR (amber) | FLHTCUTGSE |
| 13 | 22000031 | PISTON RING (2) | FLHTCUTGSE |
| 14 | 45400255 | FORK ASSEMBLY, complete (right) | FLHTCUTGSE |
| 15 | 45400254 | FORK ASSEMBLY, complete (left) | FLHTCUTGSE |
| 16 | 45500540 | DAMPER TUBE, with 22000031 (2) | FLHTCUTGSE |
| 17 | 45500117 | BOLT, fork (2) | FLHTCUTGSE |
| 18 | 45500118 | SCREW (2) | FLHTCUTGSE |
| 19 | 45500202 | SLIDER, fork (left) | FLHTCUTGSE |
| 20 | 45500201 | SLIDER, fork (right) | FLHTCUTGSE |
| 21 | 45500538 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLHTCUTGSE |
| 22 | 45500541 | SPRING, fork (2) | FLHTCUTGSE |
| 23 | 45500132 | SCREW (right) | FLHTCUTGSE |
| 24 | 45500397 | OIL LOCK PIECE (2) | FLHTCUTGSE |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 2, 5, 6, 7, 8, 10, 13 and 18 (2) | FLHTCUTGSE |
FRAME, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW | FLHTCUTGSE |
| 2 | 3787 | BOLT (4) | FLHTCUTGSE |
| 3 | 4924 | SCREW (2) | FLHTCUTGSE |
| 4 | 6036 | WASHER (4) | FLHTCUTGSE |
| 5 | 6116 | WASHER | FLHTCUTGSE |
| 6 | 7495 | NUT (2) | FLHTCUTGSE |
| 7 | 8194 | NUT, special (2) | FLHTCUTGSE |
| 8 | 10039 | CABLE STRAP (5) | FLHTCUTGSE |
| 9 | 8108 | SPEED NUT (2) | FLHTCUTGSE |
| 10 | 12600197 | FASTENER, plastic (2) | FLHTCUTGSE |
| 11 | 10289A | CLIP, clutch line (2) | FLHTCUTGSE |
| 12 | 11650 | GROMMET, side cover (6) | FLHTCUTGSE |
| 13 | 14148-86 | ENGINE GUARD LABEL | FLHTCUTGSE |
| 14 | 15368-01A | LABEL BATTERY WARNING | FLHTCUTGSE |
| 15 | 49184-09A | ENGINE GUARD, with 2708A, 6116 and 14148-86 | FLHTCUTGSE |
| 16 | 57200243 | DEFLECTOR, air (right) | FLHTCUTGSE |
| 16 | 57200256 | DEFLECTOR, air (left) | FLHTCUTGSE |
| 17 | 69201459 | BRACKET | FLHTCUTGSE |
| 18 | 83865-09 | BRACKET, steering damper | FLHTCUTGSE |
| 19 | 10200546 | SCREW | FLHTCUTGSE |
| 20 | 10800025A | CLIP, conduit, anchored (2) | FLHTCUTGSE |
| 21 | 12200075 | CLIP, clutch line (2) | FLHTCUTGSE |
| 22 | 12200147A | CLIP, retaining | FLHTCUTGSE |
| 23 | 12600067 | FASTENER, plastic (2) | FLHTCUTGSE |
| 24 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTGSE |
| 25 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHTCUTGSE |
| 26 | 69200203A | COVER, wire trough, with 15368-01A and 69201459 (main harness) | FLHTCUTGSE |
| 27 | 47000089BHP | FRAME, main, with bearing cups (also order 45700009) | FLHTCUTGSE |
| 28 | 69200202A | WIRE TROUGH (main harness) | FLHTCUTGSE |
| 29 | 57200245 | KIT-AIR DEFLECTOR, with 3787, 6036, 8108, 8194, 10300222, 57200243, 57200256 | FLHTCUTGSE |
| 30 | 10300222 | WASHER (4) | FLHTCUTGSE |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4622 | SCREW (4) | FLHTCUTGSE |
| 2 | 4795 | SCREW (6) | FLHTCUTGSE |
| 3 | 6590HW | WASHER (2) | FLHTCUTGSE |
| 4 | 6701 | WASHER (6) | FLHTCUTGSE |
| 5 | 6771A | WASHER | FLHTCUTGSE |
| 6 | 7686 | NUT (2) | FLHTCUTGSE |
| 7 | 83860-09 | BRACKET ASSEMBLY, shock mounting (left) (lower) | FLHTCUTGSE |
| 8 | 83861-09 | BRACKET ASSEMBLY, shock mounting (right) (lower) | FLHTCUTGSE |
| 9 | 10500116 | SCREW | FLHTCUTGSE |
| 10 | 11900132 | O-RING | FLHTCUTGSE |
| 11 | 12100119 | GROMMET | FLHTCUTGSE |
| 12 | 54000144 | SHOCK ABSORBER, complete (2 shocks) | FLHTCUTGSE |
| 13 | 54000148 | BRACKET | FLHTCUTGSE |
| 14 | 54000149 | CLIP (2) | FLHTCUTGSE |
| 15 | 54000145 | KNOB SERVICE KIT | FLHTCUTGSE |
FRAME, INTERMEDIATE AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (2) | FLHTCUTGSE |
| 2 | 3391 | SCREW (2) | FLHTCUTGSE |
| 3 | 3536 | BOLT (6) | FLHTCUTGSE |
| 4 | 4685 | SCREW (4) | FLHTCUTGSE |
| 5 | 4686 | SCREW, hex (2) | FLHTCUTGSE |
| 6 | 4687 | SCREW (6) | FLHTCUTGSE |
| 7 | 4688 | SCREW (2) | FLHTCUTGSE |
| 8 | 4930 | SCREW | FLHTCUTGSE |
| 9 | 6532 | WASHER (6) | FLHTCUTGSE |
| 10 | 7069 | LOCKWASHER | FLHTCUTGSE |
| 11 | 7783 | NUT (2) | FLHTCUTGSE |
| 12 | 9208 | BEARING (2) | FLHTCUTGSE |
| 13 | 11779 | FASTENER, push-in (black) | FLHTCUTGSE |
| 14 | 32495-98A | SWITCH, bank angle | FLHTCUTGSE |
| 15 | 47505-02 | SHAFT, rear fork | FLHTCUTGSE |
| 16 | 48487-02 | SPACER, outer (2) | FLHTCUTGSE |
| 17 | 48489-02 | SPACER, inner (2) | FLHTCUTGSE |
| 18 | 67875-11 | HOLE PLUG (black) (2) | FLHTCUTGSE |
| 19 | 83366-09 | REAR FORK, with 9208 and 48489-02 | FLHTCUTGSE |
| 20 | 83373-09A | ADAPTER PLATE, rear fork (2) | FLHTCUTGSE |
| 21 | 83382-09 | RUBBER MOUNT (2) | FLHTCUTGSE |
| 22 | 83407-09 | BRACE ASSEMBLY (2) | FLHTCUTGSE |
| 23 | 83466-11BHP | FRAME, intermediate | FLHTCUTGSE |
| 24 | 83496-09 | NUT, pivot, rear (2) | FLHTCUTGSE |
| 25 | 83886-09 | WASHER (2) | FLHTCUTGSE |
| 26 | 83943-09 | BRACKET, switch, bank angle | FLHTCUTGSE |
| 27 | 16400005 | BRACKET, rear fork (left) | FLHTCUTGSE |
FRAME, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4678 | SCREW | FLHTCUTGSE |
| 2 | 4685 | SCREW (8) | FLHTCUTGSE |
| 3 | 6408HB | WASHER (8) | FLHTCUTGSE |
| 4 | 6645 | WASHER (4) | FLHTCUTGSE |
| 5 | 6718 | WASHER (2) | FLHTCUTGSE |
| 6 | 7768W | LOCKNUT | FLHTCUTGSE |
| 7 | 8328 | WASHER, rod end (2) | FLHTCUTGSE |
| 8 | 8369 | BOLT (4) | FLHTCUTGSE |
| 9 | 76259-86 | NUT (2) | FLHTCUTGSE |
| 10 | 83823-09 | PANHARD ROD ASSEMBLY, with 76259-86 | FLHTCUTGSE |
| 11 | 47200001B | SUB-FRAME ASSEMBLY, rear | FLHTCUTGSE |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHTCUTGSE |
| 2 | 52589-09A | MOUNTING HARDWARE KIT, seat, with 3546, 3574, 7531, 7716, 52567-93D, 52585-09, 52590-09 | FLHTCUTGSE |
| 3 | 6026 | WASHER (3) | FLHTCUTGSE |
| 4 | 7531 | LOCKNUT (3) | FLHTCUTGSE |
| 5 | 10500113 | SCREW | FLHTCUTGSE |
| 6 | 11100094 | TAPE, protective | FLHTCUTGSE |
| 7 | 52000441 | SEAT, with 51652-97A | FLHTCUTGSE |
| 8 | 51652-97A | SEAT BRACKET | FLHTCUTGSE |
| 9 | 52300651 | BACKREST ASSEMBLY, with 6026, 7531, 52300121, 52300122, 52300123 and 52300127 (black) | FLHTCUTGSE |
| 10 | 52300121 | SUPPORT BRACKET (center) | FLHTCUTGSE |
| 11 | 52300122 | SUPPORT BRACKET (right) | FLHTCUTGSE |
| 12 | 52300123 | SUPPORT BRACKET (left) | FLHTCUTGSE |
| 13 | 52300127 | KIT, BACKREST ISOLATION, passenger backrest (3) | FLHTCUTGSE |
| 14 | 52400090 | HANDRAIL ASSEMBLY, passenger, with 11100094 (chrome) | FLHTCUTGSE |
| 15 | 52567-93D | BACKREST SUPPORT ASSEMBLY | FLHTCUTGSE |
| 16 | 3546 | SCREW | FLHTCUTGSE |
| 17 | 52585-09 | BRACKET (intermediate) | FLHTCUTGSE |
| 18 | 3574 | SCREW | FLHTCUTGSE |
| 19 | 52590-09 | RIDER BACKREST MOUNTING BRACKET | FLHTCUTGSE |
| 20 | 7716 | NUT | FLHTCUTGSE |
FOOTBOARDS, RIDER
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200429 | SCREW (2) | FLHTCUTGSE |
| 2 | 4688 | SCREW (4) | FLHTCUTGSE |
| 3 | 4916 | SCREW (2) | FLHTCUTGSE |
| 4 | 7038 | LOCKWASHER (4) | FLHTCUTGSE |
| 5 | 7716 | LOCKNUT (4) | FLHTCUTGSE |
| 6 | 33130-07A | WEAR PEG (2) | FLHTCUTGSE |
| 7 | 50501220 | BOTTOM ASSEMBLY, with hinge (right) | FLHTCUTGSE |
| 8 | 50518-09 | BRACKET, right rear | FLHTCUTGSE |
| 9 | 50501218 | INSERT ASSEMBLY, rider (right) | FLHTCUTGSE |
| 10 | 50501221 | BOTTOM ASSEMBLY, with hinge (left) | FLHTCUTGSE |
| 11 | 50501219 | INSERT ASSEMBLY, rider, left | FLHTCUTGSE |
| 12 | 47200302A | BRACKET, front footboard (2) | FLHTCUTGSE |
| 13 | 50674-05 | SHOULDER BOLT, footboard (4) | FLHTCUTGSE |
| 14 | 41700469 | KIT, PARKING BRAKE BRACKET, with 10200429 (black) | FLHTCUTGSE |
FOOTBOARDS, PASSENGER
| Index No. | Part No. | Description | Model(s) |
| 1 | 3143 | SCREW (2) | FLHTCUTGSE |
| 2 | 51023-07 | WAVE SPRING (4) | FLHTCUTGSE |
| 3 | 4631 | SCREW (4) | FLHTCUTGSE |
| 4 | 51501-07 | SPRING (2) | FLHTCUTGSE |
| 5 | 4916 | SCREW (2) | FLHTCUTGSE |
| 6 | 7038 | LOCKWASHER (4) | FLHTCUTGSE |
| 7 | 50501210 | HOUSING, passenger (left) (chrome) (1) | FLHTCUTGSE |
| 7 | 50501211 | HOUSING, passenger (right) (chrome) (1) | FLHTCUTGSE |
| 8 | 8861 | BALL (2) | FLHTCUTGSE |
| 9 | 44430-04 | PAD, rubber (all except Canada, Domestic) (2) | FLHTCUTGSE |
| 10 | 50998-07 | ARM, rotating (right) (chrome) | FLHTCUTGSE |
| 10 | 51006-07A | ARM, rotating (left) (chrome) (not shown) | FLHTCUTGSE |
| 11 | 51007-07 | SUPPORT, footboard (chrome) (2) | FLHTCUTGSE |
| 12 | 50501154 | FOOTBOARD, upper, passenger (left) (chrome) | FLHTCUTGSE |
| 12 | 50501155 | FOOTBOARD, upper, passenger (right) (chrome) | FLHTCUTGSE |
| 13 | 50500397 | ARM, main mounting assembly (chrome) (4) | FLHTCUTGSE |
| 14 | 2548 | SCREW (bright polish) (2) | FLHTCUTGSE |
| 15 | 50933-86A | PIVOT PIN (4) | FLHTCUTGSE |
HIGHWAY PEGS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4617 | SCREW (4) | FLHTCUTGSE |
| 2 | 11304 | RETAINING RING (2) | FLHTCUTGSE |
| 3 | 45041-01A | PIN, clevis (bright silver) (2) | FLHTCUTGSE |
| 4 | 50351-03 | MOUNT, footpeg support (chrome) (2) | FLHTCUTGSE |
| 5 | 50912-72 | WASHER, spring (2) | FLHTCUTGSE |
| 6 | 50501293 | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 7 | 51009-02A | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 8 | 2708A | SCREW (2) | FLHTCUTGSE |
| 9 | 50501189 | FOOTPEG LOWER (left) (chrome) (not shown) | FLHTCUTGSE |
| 9 | 50501191 | FOOTPEG LOWER (right) (chrome) | FLHTCUTGSE |
| 10 | 50501181 | FOOTPEG UPPER (left) (not shown) | FLHTCUTGSE |
| 10 | 50501184 | FOOTPEG UPPER (right) | FLHTCUTGSE |
FENDERS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 58900370 | FENDER (unpainted) | FLHTCUTGSE |
| 1 | 58900371ELZ | FENDER (Black Stardust) | FLHTCUTGSE |
| 1 | 58900371ELW | FENDER (Blizzard White Pearl) | FLHTCUTGSE |
| 2 | 10500015 | SCREW (4) | FLHTCUTGSE |
FENDERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTGSE |
| 2 | 6703 | WASHER (2) | FLHTCUTGSE |
| 3 | 8360 | SCREW (12) | FLHTCUTGSE |
| 4 | 10102 | CLIP, small (4) | FLHTCUTGSE |
| 5 | 10103 | CLIP, large (2) | FLHTCUTGSE |
| 6 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (4) | FLHTCUTGSE |
| 7 | 83811-09 | FOAM TAPE (4) | FLHTCUTGSE |
| 8 | 67900196A | REFLECTOR (white) (Canada) (2) | FLHTCUTGSE |
| 9 | 67900205A | REFLECTOR (red) (California, Canada, Domestic) (2) | FLHTCUTGSE |
| 9 | 67900212A | REFLECTOR (amber) (Australia, England, HDI, Japan) (2) | FLHTCUTGSE |
| 10 | 67900205A | REFLECTOR (red) (Australia, Canada, England, HDI, Japan) (2) | FLHTCUTGSE |
| 11 | 67900265 | REFLECTOR ASSEMBLY, front, with 67900196A (white) (Canada) (2) | FLHTCUTGSE |
| 12 | 67900269 | REFLECTOR ASSEMBLY, rear, with 67900205 (red) (Australia, Canada, England, HDI, Japan) (2) | FLHTCUTGSE |
| 13 | 83000053ELW | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 13 | 83000053ELZ | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 83000055ELW | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 83000055ELZ | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTCUTGSE |
| 2 | 10039 | CABLE STRAP (2) | FLHTCUTGSE |
| 3 | 10396 | RETAINER, fuel line, 3/8 (natural) | FLHTCUTGSE |
| 4 | 11323A | O-RING, check valve to tank | FLHTCUTGSE |
| 5 | 27291-09A | TUBE, evaporative line, tank | FLHTCUTGSE |
| 6 | 27440-09A | TUBE, evaporative line (Domestic, Canada, Japan) | FLHTCUTGSE |
| 7 | 61356-08 | FUEL TANK (prime) | FLHTCUTGSE |
| 7 | 61000634EMN | FUEL TANK, with 14101322 and 14100323 (Blizzard White Pearl with Lightning Silver and Stormcloud) | FLHTCUTGSE |
| 7 | 61000634EMO | FUEL TANK, with 14101322 and 14100323 (Black Stardust with Magnetic Gray and Wicked Red) | FLHTCUTGSE |
| 8 | 62228-08C | CHECK VALVE, assembly, with 10396 and 11323A | FLHTCUTGSE |
| 9 | 70901-09 | BOOT, tank bracket (right) | FLHTCUTGSE |
| 10 | 70999-09 | BOOT, tank bracket (left) | FLHTCUTGSE |
| 11 | 14101322 | MEDALLION (left) | FLHTCUTGSE |
| 11 | 14101323 | MEDALLION (right) | FLHTCUTGSE |
| 12 | 61200022 | FUEL LINE, tank to intake | FLHTCUTGSE |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 3588 | SCREW | FLHTCUTGSE |
| 2 | 4194 | SCREW (2) | FLHTCUTGSE |
| 3 | 4856 | SCREW | FLHTCUTGSE |
| 4 | 8142 | NUT, speed | FLHTCUTGSE |
| 5 | 10065 | CABLE STRAP | FLHTCUTGSE |
| 6 | 10103 | CLIP, adhesive backed (2) | FLHTCUTGSE |
| 7 | 10334 | CLIP, hinge mounting | FLHTCUTGSE |
| 8 | 66373-06 | BATTERY, 3V, CR2032 | FLHTCUTGSE |
| 9 | 53919-04B | PUSH BUTTON KIT, fuel tank, with 84850-92 (California, Canada, Domestic) | FLHTCUTGSE |
| 10 | 61029-92A | LOCK, fuel tank, with 84850-92 (Australia, England, HDI, Japan) | FLHTCUTGSE |
| 11 | 90300106 | REMOTE CONTROL FOB, with 66373-06 (all except Japan) (specify key number) (2) | FLHTCUTGSE |
| 11 | 90300107 | REMOTE CONTROL FOB, with 66373-06 (Japan only) (specify key number) (2) | FLHTCUTGSE |
| 12 | 61109-85D | GASKET, filler cap | FLHTCUTGSE |
| 13 | 61112-08 | BOOT | FLHTCUTGSE |
| 14 | 69214-08 | CONSOLE ASSEMBLY, with hinge pin | FLHTCUTGSE |
| 15 | 61274-92 | FUEL FILLER CAP, vacuum vented, with 61109-85D | FLHTCUTGSE |
| 16 | 61293-08A | DOOR KIT, console, with 10200442 | FLHTCUTGSE |
| 17 | 61313-88 | BUMPER, cover (2) | FLHTCUTGSE |
| 18 | 62775-08 | TRIM COVER, fuel tank | FLHTCUTGSE |
| 19 | 67493-08 | BRACKET, console mount | FLHTCUTGSE |
| 20 | 69241-08 | DRAIN HOSE, console | FLHTCUTGSE |
| 21 | 71294-08 | MOLDING, rubber (2) | FLHTCUTGSE |
| 22 | 72168-07 | TERMINAL, socket, 18-20 AWG (10) | FLHTCUTGSE |
| 23 | 69200125 | WIRE HARNESS, console, with 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 and 72557-07 | FLHTCUTGSE |
| 24 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHTCUTGSE |
| 25 | 72485-07 | SOCKET HOUSING, four-way | FLHTCUTGSE |
| 26 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTGSE |
| 27 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTGSE |
| 28 | 72557-07 | SECONDARY LOCK, four-way socket | FLHTCUTGSE |
| 29 | 14101133 | INSERT, console pod | FLHTCUTGSE |
| 30 | 84850-92 | NUT | FLHTCUTGSE |
| 31 | 10200442 | SCREW (2) | FLHTCUTGSE |
| 32 | 61007-10 | INSERT, fuel door **RESTRICTED SALES PART** | FLHTCUTGSE |
INSTRUMENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2563 | SCREW (6) | FLHTCUTGSE |
| 2 | 10200147 | SCREW (3) | FLHTCUTGSE |
| 3 | 12100020 | GROMMET, instrument cluster mount (3) | FLHTCUTGSE |
| 4 | 12400034 | INSERT, instrument cluster mount (3) | FLHTCUTGSE |
| 5 | 12600067 | FASTENER, plastic (2) | FLHTCUTGSE |
| 6 | 61400080 | GAUGE TRIM BEZEL ASSEMBLY, large (2) | FLHTCUTGSE |
| 7 | 61400081 | GAUGE TRIM BEZEL ASSEMBLY, small (2) | FLHTCUTGSE |
| 8 | 69201862A | WIRING HARNESS, fairing (used with single headlamp) (Domestic, Japan, Australia) | FLHTCUTGSE |
| 8 | 69202377 | WIRING HARNESS, fairing (used with dual headlamp) (England, HDI) | FLHTCUTGSE |
| 9 | 69200257 | BACK CLAMP, gauge (right) | FLHTCUTGSE |
| 10 | 69200258 | BACK CLAMP, gauge (left) | FLHTCUTGSE |
| 11 | 70900773B | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (California, Domestic) (chrome) | FLHTCUTGSE |
| 11 | 70900777B | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (Australia, Canada, HDI, Japan) (chrome) | FLHTCUTGSE |
| 11 | 70900778B | INSTRUMENT MODULE, dual, mph/km/h, with 12100020 and 12400034 (England) (chrome) | FLHTCUTGSE |
| 12 | 70900774 | FUEL GAUGE (chrome) | FLHTCUTGSE |
| 13 | 70900775 | VOLTMETER (chrome) | FLHTCUTGSE |
FUEL PUMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 10395 | RETAINER, fuel line, 5/16 (black) | FLHTCUTGSE |
| 2 | 11686 | O-RING | FLHTCUTGSE |
| 3 | 61011-04A | FUEL FILTER KIT, with 11686 | FLHTCUTGSE |
| 4 | 61012-04A | CLIP, filter retainer | FLHTCUTGSE |
| 5 | 61015-04A | FUEL REGULATOR ASSEMBLY KIT, with O-rings, spacer and screen | FLHTCUTGSE |
| 6 | 61213-04A | CLIP, regulator retainer | FLHTCUTGSE |
| 7 | 61402-08 | GASKET, top plate | FLHTCUTGSE |
| 8 | 62229-08B | FILTER SHELL | FLHTCUTGSE |
| 9 | 62908-08 | PUMP ASSEMBLY, fuel, with 10395, 75229-08 and 75254-04A | FLHTCUTGSE |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 11 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHTCUTGSE |
| 12 | 72485-07 | SOCKET HOUSING, four-way | FLHTCUTGSE |
| 13 | 72493-07 | TERMINAL SOCKET, 16-18 AWG (4) | FLHTCUTGSE |
| 14 | 72494-07 | WIRE SEAL, 16-18 AWG (4) | FLHTCUTGSE |
| 15 | 72557-07 | SECONDARY LOCK, four-way socket | FLHTCUTGSE |
| 16 | 75069-08D | TOP PLATE ASSEMBLY, with 3, 4, 5, 6, 8 and 18 | FLHTCUTGSE |
| 17 | 75089-08 | RING, fuel tank, cam | FLHTCUTGSE |
| 18 | 75205-08A | FUEL LEVEL SENDER | FLHTCUTGSE |
| 19 | 75229-08 | HARNESS, fuel pump module | FLHTCUTGSE |
| 20 | 75254-04A | STRAINER, fuel pump inlet | FLHTCUTGSE |
| 21 | 75269-08 | TRANSFER TUBE, fuel pump | FLHTCUTGSE |
| 22 | 75322-09 | GROUND HARNESS | FLHTCUTGSE |
| 23 | 60900036 | TOP PLATE, with 75322-09 | FLHTCUTGSE |
| 24 | 69200125 | WIRE HARNESS, console, with 72168-07, 72444-07GY, 72485-07, 72493-07, 72494-07 and 72557-07 | FLHTCUTGSE |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHTCUTGSE |
| 2 | 27291-09A | LINE, evaporative (EVAP), tank to canister | FLHTCUTGSE |
| 3 | 27297-09A | LINE, evaporative (EVAP), canister | FLHTCUTGSE |
| 4 | 27298-09A | LINE, evaporative (EVAP), purge to canister | FLHTCUTGSE |
| 5 | 27715-07 | SOLENOID, purge valve | FLHTCUTGSE |
| 6 | 70681-09 | RETAINER (2) | FLHTCUTGSE |
| 7 | 60800006 | CARBON CANISTER | FLHTCUTGSE |
| 8 | 60800026 | TUBE, solenoid to induction module | FLHTCUTGSE |
| NOTE: These parts are required for motorcycles sold in California, England, HDI and Japan markets. | |||
AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - (AUSTRALIA, CANADA, DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 1332 | SCREW (2) | FLHTCUTGSE |
| 2 | 3514 | SCREW (2) | FLHTCUTGSE |
| 3 | 7041 | LOCKWASHER (2) | FLHTCUTGSE |
| 4 | 7130W | LOCKWASHER (2) | FLHTCUTGSE |
| 5 | 7606 | LOCKNUT (2) | FLHTCUTGSE |
| 6 | 7667 | NUT (2) | FLHTCUTGSE |
| 7 | 7992 | ACORN NUT (4) | FLHTCUTGSE |
| 8 | 40901-05 | ISOLATOR, rubber (2) | FLHTCUTGSE |
| 9 | 67800257 | LAMP, amber, LED, turn signal (2) | FLHTCUTGSE |
| 10 | 68331-02 | RING, auxiliary lamps (2) | FLHTCUTGSE |
| 11 | 68725-62A | BEZEL RING, auxiliary/fog lamps (2) | FLHTCUTGSE |
| 12 | 68821-00 | TURN SIGNAL MOUNT, directional (chrome) (2) | FLHTCUTGSE |
| 12 | 73333-10 | TURN SIGNAL MOUNT, directional (black) (2) | FLHTCUTGSE |
| 13 | 67800259 | WIRE HARNESS, 3-wire (Canada, Domestic) | FLHTCUTGSE |
| 13 | 69200601 | WIRE HARNESS, 2-wire (Australia) | FLHTCUTGSE |
| 14 | 67800251 | LENS (2) | FLHTCUTGSE |
| 15 | 69563-06 | CLAMP BLOCK, auxiliary/fog lamps (2) | FLHTCUTGSE |
| 16 | 72906-11 | HOUSING, two-way socket (2) | FLHTCUTGSE |
| 17 | 72356-95 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 18 | 72908-11 | HOUSING, four-way socket (4) | FLHTCUTGSE |
| 19 | 72910-11 | TERMINAL, socket, 20-22 AWG (Canada, Domestic) (16) | FLHTCUTGSE |
| 19 | 72910-11 | TERMINAL, socket, 20-22 AWG (Australia) (12) | FLHTCUTGSE |
| 20 | 5118 | SEAL PIN (Canada, Domestic) (4) | FLHTCUTGSE |
| 20 | 5118 | SEAL PIN (Australia) (8) | FLHTCUTGSE |
| 21 | 67800109 | HOUSING, turn signal (chrome) (2) | FLHTCUTGSE |
| 22 | 68000264A | HOUSING (black) (2) | FLHTCUTGSE |
| 22 | 68000265A | HOUSING (chrome) (2) | FLHTCUTGSE |
| 23 | 68000203 | AUXILIARY/FOG LAMP, LED (chrome) | FLHTCUTGSE |
| 23 | 68000239 | AUXILIARY/FOG LAMP, LED (black) | FLHTCUTGSE |
| 24 | 68000021 | BRACKET, auxiliary/fog lamp (left) (chrome) (Australia, Canada, Domestic) | FLHTCUTGSE |
| 24 | 68000102 | BRACKET, auxiliary/fog lamp (left) (black) (Australia, Canada, Domestic) | FLHTCUTGSE |
| 25 | 68000022 | BRACKET, auxiliary/fog lamp (right) (chrome) (Australia, Canada, Domestic) | FLHTCUTGSE |
| 25 | 68000103 | BRACKET, auxiliary/fog lamp (right) (black) (Australia, Canada, Domestic) | FLHTCUTGSE |
| 26 | 69200199 | WIRE SEAL (purple) (4) | FLHTCUTGSE |
| 27 | 69200529 | SOCKET HOUSING, two-way (2) | FLHTCUTGSE |
HEADLAMPS AND TURN SIGNALS, FRONT - (ENGLAND, HDI, HD2, JAPAN)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3514 | SCREW (England, HDI, HD2) (2) | FLHTCUTGSE |
| 2 | 5118 | SEAL PIN (Japan) (2) | FLHTCUTGSE |
| 3 | 7068 | LOCKWASHER (England, HDI, HD2) (2) | FLHTCUTGSE |
| 4 | 7606 | LOCKNUT (England, HDI, HD2) (2) | FLHTCUTGSE |
| 5 | 7880 | NUT (England, HDI, HD2) (2) | FLHTCUTGSE |
| 6 | 7992 | ACORN NUT (England, HDI, HD2, Japan) (4) | FLHTCUTGSE |
| 7 | 67815-59A | WASHER (England, HDI, HD2) (2) | FLHTCUTGSE |
| 8 | 72113-94BK | HOUSING, socket, sealed (England, HDI, HD2) (2) | FLHTCUTGSE |
| 9 | 72153-94 | SECONDARY LOCK, three-way (England, HDI, HD2) (2) | FLHTCUTGSE |
| 10 | 72191-94 | TERMINAL, socket, 16-18 AWG (England, HDI, HD2) (6) | FLHTCUTGSE |
| 11 | 72906-11 | HOUSING, two-way socket (England, HDI, HD2) (2) | FLHTCUTGSE |
| 12 | 72908-11 | HOUSING, four-way socket (England, HDI, HD2, Japan) (2) | FLHTCUTGSE |
| 13 | 72910-11 | TERMINAL, socket, 20-22 AWG (England, HDI, HD2) (12) | FLHTCUTGSE |
| 13 | 72910-11 | TERMINAL, socket, 20-22 AWG (Japan) (6) | FLHTCUTGSE |
| 14 | 10200142 | SCREW (England, HDI, HD2, Japan) (2) | FLHTCUTGSE |
| 15 | 67700056 | BRACKET, headlamp (left) (England, HDI, HD2) | FLHTCUTGSE |
| 16 | 67700057 | BRACKET, headlamp (right) (England, HDI, HD2) | FLHTCUTGSE |
| 17 | 67700058 | HEADLAMP ASSEMBLY, with 1, 8, 9, 10, 13, 18, 19, 20 and 21 (England, HDI, HD2) (2) | FLHTCUTGSE |
| 18 | 67700069 | HOUSING, headlamp (England, HDI, HD2) (2) | FLHTCUTGSE |
| 19 | 67700070 | BEZEL, headlamp (England, HDI, HD2) (2) | FLHTCUTGSE |
| 20 | 67700071 | RING NEST, headlamp (England, HDI, HD2) (2) | FLHTCUTGSE |
| 21 | 67700077 | HEADLAMP (England, HDI, HD2) (2) | FLHTCUTGSE |
| 22 | 67700239 | BRACKET, headlamp (right) (Japan) | FLHTCUTGSE |
| 23 | 67700240 | BRACKET, headlamp (left) (Japan) | FLHTCUTGSE |
| 24 | 67800131 | TURN SIGNAL ASSEMBLY, front, with 72910-11 (England, HDI, HD2, Japan) (2) | FLHTCUTGSE |
WINDSHIELD, FAIRING AND HEADLAMP
| Index No. | Part No. | Description | Model(s) |
| 1 | 4976 | SCREW (2) | FLHTCUTGSE |
| 2 | 3088 | SCREW (Australia, Canada, Domestic, Japan) (3) | FLHTCUTGSE |
| 3 | 4790 | SCREW (4) | FLHTCUTGSE |
| 4 | 7900 | CLIP NUT (4) | FLHTCUTGSE |
| 5 | 67712-83B | TRIM RING (Australia, Canada, Domestic, Japan) | FLHTCUTGSE |
| 6 | 67716-60C | GASKET, headlamp door (Australia, Canada, Domestic, Japan) | FLHTCUTGSE |
| 7 | 67721-48 | SCREW (Australia, Canada, Domestic, Japan) (3) | FLHTCUTGSE |
| 8 | 67726-08 | RETAINING RING, headlamp (Australia, Canada, Domestic, Japan) | FLHTCUTGSE |
| 9 | 67778-60A | SPRING, trim ring, headlamp, top (used with dual headlamp) (HDI, England) | FLHTCUTGSE |
| 10 | 67780-60A | SPRING, trim ring, headlamp, bottom (Australia, Canada, Domestic, Japan) (2) | FLHTCUTGSE |
| 11 | 10200059 | SCREW (2) | FLHTCUTGSE |
| 12 | 10200060 | SCREW (2) | FLHTCUTGSE |
| 13 | 10500034 | SCREW | FLHTCUTGSE |
| 14 | 10200156 | SCREW | FLHTCUTGSE |
| 15 | 61300504ELW | BEZEL, air duct, outer fairing (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 15 | 61300504ELZ | BEZEL, air duct, outer fairing (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 16 | 6383 | WASHER (3) | FLHTCUTGSE |
| 17 | 57000383 | FAIRING KIT, outer, (unpainted) | FLHTCUTGSE |
| 17 | 57000628EMN | FAIRING KIT, outer, with 61300504ELW, 7900 (Blizzard White Pearl with Lightning Silver and Stormcloud) | FLHTCUTGSE |
| 17 | 57000628EMO | FAIRING KIT, outer, with 61300504ELZ, 7900 (Black Stardust with Magnetic Gray and Wicked Red) | FLHTCUTGSE |
| 18 | 57400373 | WINDSHIELD (smoked) | FLHTCUTGSE |
| 19 | 61300089 | HEADLIGHT COVER, (used with dual headlamp) (HDI, England) | FLHTCUTGSE |
| 20 | 61400224 | TRIM, windshield with 10300036, 6549 (used on Blizzard White Pearl) | FLHTCUTGSE |
| 20 | 57400377ELZ | TRIM, windshield with 10300036, 6549 (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 21 | 61400192 | TRIM, headlight cover (used with dual headlamp) (HDI, England) | FLHTCUTGSE |
| 22 | 67700320A | HEADLAMP, LED (used on Blizzard White Pearl) | FLHTCUTGSE |
| 22 | 67700339A | HEADLAMP, LED (used on Black Stardust) | FLHTCUTGSE |
| 23 | 67700124 | BRACKET, headlight cover (used with dual headlamp) (HDI, England) | FLHTCUTGSE |
| 24 | 67700204 | MOUNTING RING ASSEMBLY, headlamp, with 3088 and 67700205 (Domestic, California, Canada, Japan, Australia) | FLHTCUTGSE |
| 25 | 67700205 | MOUNTING RING, headlamp (Domestic, California, Canada, Japan, Australia) | FLHTCUTGSE |
| 26 | 10300036 | PAD (3) | FLHTCUTGSE |
| 27 | 6549 | PAD (2) | FLHTCUTGSE |
FAIRING, INNER - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2445 | SCREW (2) | FLHTCUTGSE |
| 2 | 2478 | SCREW (5) | FLHTCUTGSE |
| 3 | 2563 | SCREW (7) | FLHTCUTGSE |
| 4 | 57638-08 | SNAP HINGE, air deflector (2) | FLHTCUTGSE |
| 5 | 10200141 | SCREW (4) | FLHTCUTGSE |
| 6 | 10900005 | STUD, double sided (Domestic, California, Canada, Australia) (4) | FLHTCUTGSE |
| 6 | 10900006 | STUD, double sided (England, HDI, HD2, Japan) (4) | FLHTCUTGSE |
| 7 | 11100038 | FOAM TAPE | FLHTCUTGSE |
| 8 | 11100050 | FOAM TAPE | FLHTCUTGSE |
| 9 | 11100051 | FOAM TAPE | FLHTCUTGSE |
| 10 | 11100057 | FOAM TAPE (2) | FLHTCUTGSE |
| 11 | 12200064 | CLIP, panel (10) | FLHTCUTGSE |
| 12 | 29200088A | AIR DUCT, inner fairing, with 1110038, 29200087A | FLHTCUTGSE |
| 13 | 11100105 | PAD | FLHTCUTGSE |
| 14 | 61400622 | TRIM (black tint with chrome) | FLHTCUTGSE |
| 14 | 61400614 | TRIM (black) | FLHTCUTGSE |
| 15 | 29200087A | BEZEL, air duct,inner fairing, with 12200064 | FLHTCUTGSE |
| 16 | 57001142ELY | INNER FAIRING ASSEMBLY, with 8, 9, 10, 14, 21, 22 and 28 (Stormcloud) | FLHTCUTGSE |
| 16 | 57001142ELZ | INNER FAIRING ASSEMBLY, with 8, 9, 10, 14, 21, 22 and 28 (Black Stardust) | FLHTCUTGSE |
| 17 | 57000186A | BRACKET, support, inner fairing | FLHTCUTGSE |
| 18 | 57000299 | FOAM INSERT, media compartment | FLHTCUTGSE |
| 19 | 57200012 | AIR DEFLECTOR, with 57638-08 (left) | FLHTCUTGSE |
| 20 | 57200017 | AIR DEFLECTOR, with 57638-08 (right) | FLHTCUTGSE |
| 21 | 61400063 | TRIM, inner fairing (left) | FLHTCUTGSE |
| 22 | 61400064 | TRIM, inner fairing (right) | FLHTCUTGSE |
| 23 | 69200031A | WIRE HARNESS, USB jumper | FLHTCUTGSE |
| 24 | 69200170 | POWER OUTLET, fairing, with 69200171 | FLHTCUTGSE |
| 25 | 69200171 | CAP, power outlet | FLHTCUTGSE |
| 26 | 76000107A | MEDIA COMPARTMENT ASSEMBLY, with 57000299, 69200031A and 76000127 | FLHTCUTGSE |
| 27 | 76000127 | LATCH | FLHTCUTGSE |
| 28 | 76000234 | GASKET, media storage | FLHTCUTGSE |
| 29 | 76000561ELY | DOOR, media compartment, outer (Stormcloud) | FLHTCUTGSE |
| 29 | 76000561ELZ | DOOR, media compartment, outer (Black Stardust) | FLHTCUTGSE |
FAIRING, INNER - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200134 | SCREW (6) | FLHTCUTGSE |
| 2 | 10200141 | SCREW (2) | FLHTCUTGSE |
| 3 | 10200142 | SCREW (6) | FLHTCUTGSE |
| 4 | 10200205 | SCREW (12) | FLHTCUTGSE |
| 5 | 10900005 | STUD, double sided (Domestic, California, Canada, Australia) (4) | FLHTCUTGSE |
| 5 | 10900006 | STUD, double sided (England, HDI, HD2, Japan) (4) | FLHTCUTGSE |
| 6 | 57000182 | SKIRT, outer fairing (white) | FLHTCUTGSE |
| 6 | 57001145ELZ | SKIRT, outer fairing (black) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 7 | 57000169A | BRACKET, fairing support (left) | FLHTCUTGSE |
| 8 | 57000170 | BRACKET, fairing support (right) | FLHTCUTGSE |
| 9 | 57000172 | SPEAKER ENCLOSURE ASSEMBLY (left) | FLHTCUTGSE |
| 10 | 57000175 | SPEAKER ENCLOSURE ASSEMBLY (right) | FLHTCUTGSE |
| 11 | 71400033 | SWITCH ASSEMBLY, with 71400031, 71400035, 71400036, 71400037 | FLHTCUTGSE |
| 12 | 71400032 | SWITCH PAK, illuminated, fog with 71400031, 71400034, 71400037 (Australia, Canada, Domestic) | FLHTCUTGSE |
| 13 | 70900138 | HOLE PLUG, fairing cap, (England, HDI, HD2, Japan) | FLHTCUTGSE |
| 14 | 70900392ELY | DASH PANEL, fairing (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 70900392ELZ | DASH PANEL, fairing (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 15 | 71400031 | SWITCH BUTTON, blank (Australia, Canada, Domestic) (3) | FLHTCUTGSE |
| 15 | 71400031 | SWITCH BUTTON, blank (England, HDI, HD2, Japan) | FLHTCUTGSE |
| 16 | 71400034 | SWITCH, auxiliary/fog lamps, illuminated (Australia, Canada, Domestic) | FLHTCUTGSE |
| 17 | 71400037 | SWITCH, dash panel base, illuminated (Australia, Canada, Domestic) (2) | FLHTCUTGSE |
| 18 | 71400037 | SWITCH, dash panel base, illuminated (England, HDI, HD2, Japan) | FLHTCUTGSE |
| 19 | 14101072 | MEDALLION | FLHTCUTGSE |
| 20 | 71400035 | SWITCH BUTTON, illuminated, lock | FLHTCUTGSE |
| 21 | 71400035 | SWITCH BUTTON, illuminated, unlock | FLHTCUTGSE |
FAIRING LOWERS - TWIN-COOLED™ - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3655A | SCREW (2) | FLHTCUTGSE |
| 2 | 6235 | WASHER (2) | FLHTCUTGSE |
| 3 | 7415A | WASHER (2) | FLHTCUTGSE |
| 4 | 7576 | NUT (2) | FLHTCUTGSE |
| 5 | 7716 | LOCKNUT (8) | FLHTCUTGSE |
| 6 | 8175 | BOLT, retainer (2) | FLHTCUTGSE |
| 7 | 11519 | MOUNT, rubber, right | FLHTCUTGSE |
| 8 | 10200052 | SCREW (4) | FLHTCUTGSE |
| 9 | 12200025 | CLIP (10) | FLHTCUTGSE |
| 10 | 12600049 | SCREW (8) | FLHTCUTGSE |
| 11 | 26800008 | DUCT, radiator (left) | FLHTCUTGSE |
| 12 | 26800009 | DUCT, radiator (right) | FLHTCUTGSE |
| 13 | 47200275 | CLAMP (2) | FLHTCUTGSE |
| 14 | 57100099 | PANEL ASSEMBLY, with 12200025 (2) | FLHTCUTGSE |
| 15 | 57100107 | GLOVE BOX ASSEMBLY, with 12600049, 57100148, 57100164, 57100165 and 57100225 (left) | FLHTCUTGSE |
| 16 | 57100109 | GLOVE BOX ASSEMBLY, with 12600049, 57100147, 57100164, 57100165 and 57100225 (right) | FLHTCUTGSE |
| 17 | 57100111 | CAP, fairing (lower) (left) (unpainted) | FLHTCUTGSE |
| 17 | 57100291ELW | CAP, fairing (lower) (left) (Blizzard White Pearl) | FLHTCUTGSE |
| 17 | 57100291ELZ | CAP, fairing (lower) (left) (Black Stardust) | FLHTCUTGSE |
| 18 | 57100112 | FAIRING (lower) (left) (unpainted) | FLHTCUTGSE |
| 18 | 57100313ELW | FAIRING, with 57100170 (lower) (left) (Blizzard White Pearl) | FLHTCUTGSE |
| 18 | 57100313ELZ | FAIRING, with 57100170 (lower) (left) (Black Stardust) | FLHTCUTGSE |
FAIRING LOWERS - TWIN-COOLED™ - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 57100113 | CAP, fairing (lower) (right) (unpainted) | FLHTCUTGSE |
| 19 | 57100292ELW | CAP, fairing (lower) (right) (Blizzard White Pearl) | FLHTCUTGSE |
| 19 | 57100292ELZ | CAP, fairing (lower) (right) (Black Stardust) | FLHTCUTGSE |
| 20 | 57100114 | FAIRING (lower) (right) (unpainted) | FLHTCUTGSE |
| 20 | 57100314ELW | FAIRING, with 57100171 (lower) (right) (Blizzard White Pearl) | FLHTCUTGSE |
| 20 | 57100314ELZ | FAIRING, with 57100171 (lower) (right) (Black Stardust) | FLHTCUTGSE |
| 21 | 57100147 | FRAME, glove box, with 12200025 (right) | FLHTCUTGSE |
| 22 | 57100148 | FRAME, glove box, with 12200025 (left) | FLHTCUTGSE |
| 23 | 57100151 | SCREEN, radiator (left) | FLHTCUTGSE |
| 24 | 57100152 | SCREEN, radiator (right) | FLHTCUTGSE |
| 25 | 57100153 | GASKET, radiator (2) | FLHTCUTGSE |
| 26 | 57100154 | HINGE (2) | FLHTCUTGSE |
| 27 | 57100155 | DOOR, vent (2) | FLHTCUTGSE |
| 28 | 57100164 | LINK, door vent (2) | FLHTCUTGSE |
| 29 | 57100165 | KNOB, door vent (2) | FLHTCUTGSE |
| 30 | 57100170 | FASCIA ASSEMBLY (lower) (left) | FLHTCUTGSE |
| 31 | 57100171 | FASCIA ASSEMBLY (lower) (right) | FLHTCUTGSE |
| 32 | 57100172 | CLAMP, lower fairing | FLHTCUTGSE |
| 33 | 57100187 | RETAINER, U-bolt (2) | FLHTCUTGSE |
| 34 | 57100200 | PIN, door, vent (2) | FLHTCUTGSE |
| 35 | 57100225 | SLIDER, door, vent (2) | FLHTCUTGSE |
| 36 | 57100256 | CLAMP, lower fairing | FLHTCUTGSE |
SWITCHES, HANDLEBAR, LEFT
| Index No. | Part No. | Description | Model(s) |
| 1 | 71500094 | SWITCH CAP, trigger switch | FLHTCUTGSE |
| 2 | 71500344 | COVER, rear, left hand control | FLHTCUTGSE |
| 3 | 71500529 | SWITCH PACK, left hand control, with 71500166, 71500167, 71500224, 71500226 and 71500533 | FLHTCUTGSE |
| 4 | 69200306 | SOCKET HOUSING, four-way | FLHTCUTGSE |
| 5 | 69200307 | TERMINAL, socket, 22 AWG (4) | FLHTCUTGSE |
| 6 | 71500533 | SWITCH CAP, horn and traction control | FLHTCUTGSE |
| 7 | 71500166 | SWITCH CAP, headlamp, high/low | FLHTCUTGSE |
| 8 | 71500339 | COVER, front, left hand control | FLHTCUTGSE |
| 9 | 71500167 | SWITCH CAP, left turn signal | FLHTCUTGSE |
| 10 | 69200630 | WIRE HARNESS, left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | FLHTCUTGSE |
| 11 | 72908-11 | HOUSING, four-way socket | FLHTCUTGSE |
| 12 | 69200308 | TERMINAL, socket, 22 AWG (4) | FLHTCUTGSE |
| 13 | 71500224 | SWITCH CAP, cruise | FLHTCUTGSE |
| 14 | 71500045 | SWITCH CAP, audio home | FLHTCUTGSE |
SWITCHES, HANDLEBAR, RIGHT
| Index No. | Part No. | Description | Model(s) |
| 1 | 71500554 | SWITCH PACK, right hand control, with 71500169, 71500225, 71500227, 71500484 and 71500553 | FLHTCUTGSE |
| 2 | 71500350 | COVER ASSEMBLY, with screws (right) (chrome) | FLHTCUTGSE |
| 3 | 69200631 | WIRE HARNESS, jumper (right) with 5118, 72906-11, 72908-11, 69200305, 69200306, 69200307, 69200308 | FLHTCUTGSE |
| 4 | 72908-11 | HOUSING, four-way socket | FLHTCUTGSE |
| 5 | 69200308 | TERMINAL, socket, 22AWG (5) | FLHTCUTGSE |
| 6 | 5118 | SEAL PIN (2) | FLHTCUTGSE |
| 7 | 72906-11 | HOUSING, two-way socket | FLHTCUTGSE |
| 8 | 71500227 | SWITCH CAP, audio select | FLHTCUTGSE |
| 9 | 71500225 | SWITCH CAP, push-to-talk (ptt) | FLHTCUTGSE |
| 10 | 71500484 | SWITCH CAP, right turn signal | FLHTCUTGSE |
| 11 | 71500341 | COVER, right (chrome) | FLHTCUTGSE |
| 12 | 71500553 | SWITCH CAP, right turn signal | FLHTCUTGSE |
| 13 | 71500169 | SWITCH CAP, run/stop | FLHTCUTGSE |
| 14 | 69200305 | HOUSING, two-way socket (white) | FLHTCUTGSE |
| 15 | 69200307 | TERMINAL, socket, 22AWG (5) | FLHTCUTGSE |
| 16 | 69200306 | HOUSING, four-way socket (white) | FLHTCUTGSE |
HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (4) | FLHTCUTGSE |
| 2 | 4240 | SCREW (2) | FLHTCUTGSE |
| 3 | 9853 | TAB, fastening | FLHTCUTGSE |
| 4 | 10006 | CABLE STRAP (6) | FLHTCUTGSE |
| 5 | 55918-08 | CLAMP (upper) | FLHTCUTGSE |
| 6 | 55800214 | HANDLEBAR (chrome) | FLHTCUTGSE |
| 7 | 56159-73 | CUP WASHER (4) | FLHTCUTGSE |
| 8 | 56161-83A | BUSHING, rubber (4) | FLHTCUTGSE |
| 9 | 56163-93 | SPACER (2) | FLHTCUTGSE |
| 10 | 57450-14 | RISER (lower) (left) | FLHTCUTGSE |
| 11 | 57451-14 | RISER (lower) (right) | FLHTCUTGSE |
| 12 | 72053-92 | PIN HOUSING, one-way | FLHTCUTGSE |
| 13 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHTCUTGSE |
| 14 | 12600032 | SCREW (2) | FLHTCUTGSE |
| 15 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHTCUTGSE |
| 16 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200356 | FLHTCUTGSE |
THROTTLE CONTROL
| Index No. | Part No. | Description | Model(s) |
| 1 | 32306-08 | SEAL CAP, throttle sensor | FLHTCUTGSE |
| 2 | 72902-01BK | HOUSING, two-way pin (black) (2) | FLHTCUTGSE |
| 3 | 72912-01BK | HOUSING, two-way, socket (black) | FLHTCUTGSE |
| 4 | 72990-01 | TERMINAL, pin, 18-22 AWG (2) | FLHTCUTGSE |
| 5 | 72991-01 | TERMINAL, socket, 18-22 AWG | FLHTCUTGSE |
| 6 | 32700050A | SENSOR, twist grip, with 32306-08, 72902-01BK, 72990-01, 69200307 and 69201162 | FLHTCUTGSE |
| 7 | 56100329 | END CAP (chrome) (2) | FLHTCUTGSE |
| 8 | 56100326 | HAND GRIP (right) (chrome) | FLHTCUTGSE |
| 9 | 56100325 | HAND GRIP (left) (chrome) | FLHTCUTGSE |
| 10 | 69200307 | TERMINAL, socket, 22 AWG (6) | FLHTCUTGSE |
| 11 | 69201162 | HOUSING, six-way socket (black) | FLHTCUTGSE |
| 12 | 14101170 | MEDALLION (4) | FLHTCUTGSE |
TAIL LAMP AND TURN SIGNALS, REAR - (DOMESTIC, CANADA)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTGSE |
| 2 | 6703 | WASHER (2) | FLHTCUTGSE |
| 3 | 68026-99 | SCREW (4) | FLHTCUTGSE |
| 4 | 68066-99A | TAIL LAMP BASE ASSEMBLY, with 68296-99A and 68830-99A (2) | FLHTCUTGSE |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTGSE |
| 6 | 72230-98 | HOUSING, three-way socket (black) (2) | FLHTCUTGSE |
| 7 | 68296-99A | TAIL LIGHT BASE (chrome) (2) | FLHTCUTGSE |
| 8 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (6) | FLHTCUTGSE |
| 9 | 68830-99A | CIRCUIT BOARD AND COVER (2) | FLHTCUTGSE |
| 10 | 73154-96BK | HOUSING, four-way socket (black) (2) | FLHTCUTGSE |
| 11 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTGSE |
| 12 | 69200599 | JUMPER, harness, tail lamp with 72213-94, 72230-98, 72610-08, 73154-96BK, 73191-96 (2) | FLHTCUTGSE |
| 13 | 67800442 | LENS ASSEMBLY, smoked with 68026-99 (2) | FLHTCUTGSE |
| 14 | 67801156 | TAILLIGHT ASSEMBLY, with 67800442, 69200599 (2) | FLHTCUTGSE |
TAIL LAMP AND TURN SIGNALS, REAR - (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 4696 | SCREW (2) | FLHTCUTGSE |
| 2 | 6703 | WASHER (2) | FLHTCUTGSE |
| 3 | 68026-99 | SCREW (4) | FLHTCUTGSE |
| 4 | 67800086 | TAIL LAMP ASSEMBLY (left) | FLHTCUTGSE |
| 4 | 67800099 | TAIL LAMP ASSEMBLY (right) | FLHTCUTGSE |
| 5 | 67800165 | BRACKET, tail lamp (2) | FLHTCUTGSE |
EXHAUST SYSTEM
| Index No. | Part No. | Description | Model(s) |
| 1 | 3929 | SCREW (4) | FLHTCUTGSE |
| 2 | 4705 | SCREW (2) | FLHTCUTGSE |
| 3 | 7041 | LOCKWASHER (4) | FLHTCUTGSE |
| 4 | 7593 | NUT (5) | FLHTCUTGSE |
| 5 | 9955 | CLAMP, worm drive #24 (6) | FLHTCUTGSE |
| 6 | 9956 | CLAMP, worm drive #40 (2) | FLHTCUTGSE |
| 7 | 10039 | CABLE STRAP | FLHTCUTGSE |
| 8 | 10177 | CABLE STRAP, anchored | FLHTCUTGSE |
| 9 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHTCUTGSE |
| 10 | 27809-10 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLHTCUTGSE |
| 11 | 65324-83B | GASKET, exhaust port (2) | FLHTCUTGSE |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHTCUTGSE |
| 13 | 65328-83A | CLAMP, exhaust manifold (2) | FLHTCUTGSE |
| 14 | 65723-85 | MOUNTING BRACKET (2) | FLHTCUTGSE |
| 15 | 66861-09B | CLAMP, exhaust pipe, hinged | FLHTCUTGSE |
| 16 | 66881-09 | BRACKET, exhaust pipe hanger | FLHTCUTGSE |
| 17 | 72177-07BK | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 18 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLHTCUTGSE |
| 19 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHTCUTGSE |
| 20 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHTCUTGSE |
| 21 | 84021-10 | MOUNT, rubber (2) | FLHTCUTGSE |
| 22 | 10200569 | SCREW | FLHTCUTGSE |
| 23 | 10900015A | STUD, exhaust | FLHTCUTGSE |
| 24 | 32700046 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | FLHTCUTGSE |
| 25 | 64900946 | MUFFLER (left) (chrome) (California, Canada, Domestic) | FLHTCUTGSE |
| 25 | 64900295 | MUFFLER (left) (chrome) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 26 | 64900946 | MUFFLER (right) (chrome) (California, Canada, Domestic) | FLHTCUTGSE |
| 26 | 64900294 | MUFFLER (right) (chrome) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 27 | 65400176 | SHIELD, exhaust pipe, front | FLHTCUTGSE |
| 28 | 65400177 | EXHAUST SHIELD ASSEMBLY, rear header pipe | FLHTCUTGSE |
| 29 | 65400178 | EXHAUST SHIELD ASSEMBLY, catalytic converter | FLHTCUTGSE |
| 30 | 65400179 | SHIELD, left exhaust pipe, rear | FLHTCUTGSE |
| 31 | 65500042 | BRACKET, muffler strap, male | FLHTCUTGSE |
| 32 | 65500043 | BRACKET, muffler strap, female | FLHTCUTGSE |
| 33 | 65600176 | HEADER ASSEMBLY, catalytic (Domestic, California, Canada) (chrome) | FLHTCUTGSE |
| 33 | 65600177 | HEADER ASSEMBLY, catalytic (Australia, England, HDI, HD2, Japan)(chrome) | FLHTCUTGSE |
| 34 | 65600179 | EXTENSION, header pipe | FLHTCUTGSE |
| 35 | 65600190 | CROSSOVER PIPE ASSEMBLY (chrome) | FLHTCUTGSE |
| 36 | 65900012 | CLAMP, muffler (3) | FLHTCUTGSE |
| 37 | 65900015 | CLAMP, muffler | FLHTCUTGSE |
| 38 | 66078-06 | CLAMP | FLHTCUTGSE |
| 39 | 8146 | NUT CLIP (4) | FLHTCUTGSE |
| 40 | 10200384 | SCREW (4) | FLHTCUTGSE |
| 41 | 65100190 | END CAP, muffler | FLHTCUTGSE |
WIRING HARNESS, MAIN - (1 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (7) | FLHTCUTGSE |
| 2 | 10177 | CABLE STRAP, anchored | FLHTCUTGSE |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTGSE |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLHTCUTGSE |
| 5 | 72364-06 | TERMINAL, socket, 10-14 AWG | FLHTCUTGSE |
| 6 | 72414-07BK | HOUSING, six-way socket (black) | FLHTCUTGSE |
| 7 | 69201459 | BRACKET | FLHTCUTGSE |
| 8 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTCUTGSE |
| 9 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 10 | 69200201 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 11 | 69200202A | WIRE TROUGH | FLHTCUTGSE |
| 12 | 69200203A | COVER, wire trough, with 15368-01A and 69201459 | FLHTCUTGSE |
| 13 | 69200214 | CADDY, left steer head | FLHTCUTGSE |
| 14 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTGSE |
| 15 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTGSE |
| 16 | 69201287 | BRACKET, mounting, electrical connector | FLHTCUTGSE |
WIRING HARNESS, MAIN - (2 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (5) | FLHTCUTGSE |
| 3 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTGSE |
| 4 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHTCUTGSE |
| 5 | 72166-07BK | HOUSING, 16-way socket, (black) | FLHTCUTGSE |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (39) | FLHTCUTGSE |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHTCUTGSE |
| 8 | 72209-11 | COVER, wire | FLHTCUTGSE |
| 9 | 72213-94 | TERMINAL, socket,16-20 AWG (2) | FLHTCUTGSE |
| 10 | 72222-11 | TERMINAL, socket, 18-20 AWG (27) | FLHTCUTGSE |
| 11 | 72226-11 | TERMINAL, socket, 14-16 AWG (8) | FLHTCUTGSE |
| 12 | 72256-11 | SEAL PIN (white) 0.6 mm (13) | FLHTCUTGSE |
| 13 | 72414-07BK | HOUSING, six-way socket (black) (2) | FLHTCUTGSE |
| 14 | 72473-07 | SEAL PIN (natural) (2) | FLHTCUTGSE |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (2) | FLHTCUTGSE |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (2) | FLHTCUTGSE |
| 17 | 72488-07BK | HOUSING, 12-way pin (black) | FLHTCUTGSE |
| 18 | 72491-07GY | HOUSING, 16-way socket (gray) | FLHTCUTGSE |
| 19 | 72606-08 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 20 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTGSE |
| 21 | 72639-10 | SECONDARY LOCK, two-way socket (2) | FLHTCUTGSE |
| 22 | 73213-07 | RETAINER, anchored (2) | FLHTCUTGSE |
| 23 | 69200193 | HOUSING, 48-way socket (black) | FLHTCUTGSE |
| 24 | 69200205 | PLUG, weather, s12-way pin (2) | FLHTCUTGSE |
| 25 | 69200215 | CADDY, right steer hd | FLHTCUTGSE |
| 26 | 69201163 | HOUSING, six-way pin (black) | FLHTCUTGSE |
| 27 | 69201164 | TERMINAL, pin, 22 AWG (6) | FLHTCUTGSE |
| 28 | 72066-06A | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 29 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 30 | 72272-07 | TERMINAL, socket, 14-16 AWG (2) | FLHTCUTGSE |
| 31 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHTCUTGSE |
| 32 | 69202412 | DUST CAP (Models without a TCU) (not shown) (see note) | FLHTCUTGSE |
WIRING HARNESS, MAIN - (3 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTCUTGSE |
| 2 | 10177 | CABLE STRAP, anchored | FLHTCUTGSE |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLHTCUTGSE |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLHTCUTGSE |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHTCUTGSE |
| 6 | 72098-06 | HOUSING, two-way socket (gray) | FLHTCUTGSE |
| 7 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (4) | FLHTCUTGSE |
| 8 | 72110-06 | TERMINAL, socket, 16-18 AWG (4) | FLHTCUTGSE |
| 9 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLHTCUTGSE |
| 10 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHTCUTGSE |
| 11 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (6) | FLHTCUTGSE |
| 12 | 72569-08 | TERMINAL, socket, 20-22 AWG (2) | FLHTCUTGSE |
| 13 | 69201301 | WIRE SEAL, 20-22 AWG (green) (6) | FLHTCUTGSE |
| 14 | 69201390 | HOUSING, two-way socket (black) (2) | FLHTCUTGSE |
| 15 | 69201391 | TERMINAL, socket, 20 AWG (4) | FLHTCUTGSE |
| 16 | 69201392 | WIRE SEAL, 20 AWG (yellow) (4) | FLHTCUTGSE |
| 17 | 69201393 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 18 | 69201394 | HOUSING, six-way socket (black) | FLHTCUTGSE |
| 19 | 69201395 | SECONDARY LOCK, six-way socket | FLHTCUTGSE |
| 20 | 69201396 | TERMINAL, socket, 20 AWG (4) | FLHTCUTGSE |
| 21 | 69201397 | HOUSING, two-way pin (gray) | FLHTCUTGSE |
| 22 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHTCUTGSE |
| 23 | 69201416 | CPA, six-way socket | FLHTCUTGSE |
| 24 | 69201441 | HOUSING, four-way socket | FLHTCUTGSE |
| 25 | 69201442 | TERMINAL, socket, 18 AWG (4) | FLHTCUTGSE |
| 26 | 12500015 | CABLE STRAP | FLHTCUTGSE |
WIRING HARNESS, MAIN - (4 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHTCUTGSE |
| 2 | 10147 | CLIP, connector | FLHTCUTGSE |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTGSE |
| 4 | 72518-01 | HOUSING, two-way socket (red) | FLHTCUTGSE |
| 5 | 72533-06 | PLUG, weather, two-way pin | FLHTCUTGSE |
| 6 | 72609-08 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 7 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTGSE |
| 8 | 72664-12A | HOUSING, 18-way socket (black) | FLHTCUTGSE |
| 9 | 72666-12 | TERMINAL, socket, 18-20 AWG (46) | FLHTCUTGSE |
| 10 | 72720-07 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 11 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 12 | 69201168 | TERMINAL, socket, 22 AWG (2) | FLHTCUTGSE |
| 13 | 69201410 | HOUSING, 18-way socket (brown) | FLHTCUTGSE |
| 14 | 69201414 | HOUSING, 18-way socket (gray) | FLHTCUTGSE |
| 15 | 72124-94GY | HOUSING, four-way pin (gray) | FLHTCUTGSE |
| 16 | 72144-94 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 17 | 72195-94 | SEAL PIN (2) | FLHTCUTGSE |
| 18 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHTCUTGSE |
WIRING HARNESS, MAIN - (5 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN (2) | FLHTCUTGSE |
| 2 | 9819 | TERMINAL, ring, 12 AWG (2) | FLHTCUTGSE |
| 3 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 4 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLHTCUTGSE |
| 5 | 72169-07 | TERMINAL, pin, 16-20 AWG (22) | FLHTCUTGSE |
| 6 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTGSE |
| 7 | 69202219 | HEAT SHRINK TUBE (black) (3) | FLHTCUTGSE |
| 8 | 72414-07BK | HOUSING, six-way socket (black) | FLHTCUTGSE |
| 9 | 72415-07GY | HOUSING, four-way pin (gray) | FLHTCUTGSE |
| 10 | 69201765 | HARNESS, wireless headset interface module (WHIM) USB cable | FLHTCUTGSE |
| 11 | 72473-07 | SEAL PIN (natural) (4) | FLHTCUTGSE |
| 12 | 72905-11 | HOUSING, two-way pin (black) | FLHTCUTGSE |
| 13 | 72906-11 | HOUSING, two-way socket (black) (2) | FLHTCUTGSE |
| 14 | 72910-11 | TERMINAL, socket, 20-22 AWG (2) | FLHTCUTGSE |
| 15 | 73213-07 | RETAINER, anchored (3) | FLHTCUTGSE |
| 16 | 69200391 | WIRE HARNESS, AM/FM antenna | FLHTCUTGSE |
| 17 | 69200394 | WIRE HARNESS, CB antenna | FLHTCUTGSE |
| 18 | 69201596 | TERMINAL, ring, 8-10 AWG | FLHTCUTGSE |
| 19 | 72478-07BK | HOUSING, eight-way pin (black) | FLHTCUTGSE |
| 20 | 10065 | CABLE STRAP (2) | FLHTCUTGSE |
WIRING HARNESS, MAIN - (6 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (4) | FLHTCUTGSE |
| 3 | 11779 | FASTENER, push-in (black) (2) | FLHTCUTGSE |
| 4 | 72291-94 | TERMINAL, 14-16 AWG | FLHTCUTGSE |
| 5 | 72295-94 | HOUSING, one-way socket (white) | FLHTCUTGSE |
| 6 | 72405-98BK | WIRE ASSEMBLY, push-on, right angle molded, 65-1/2 in length (2) | FLHTCUTGSE |
| 7 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHTCUTGSE |
| 8 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHTCUTGSE |
| 9 | 72543-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 10 | 72544-07 | SECONDARY LOCK, three-way socket | FLHTCUTGSE |
| 11 | 69200175 | CADDY, fuse block, electrical panel | FLHTCUTGSE |
| 12 | 3634 | SCREW, NOTE: Screw is sold separately and is not part of main harness (2) | FLHTCUTGSE |
WIRING HARNESS, MAIN - (7 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHTCUTGSE |
| 2 | 10147 | CLIP, connector | FLHTCUTGSE |
| 3 | 10177 | CABLE STRAP, anchored (3) | FLHTCUTGSE |
| 4 | 72065-06A | HOUSING, three-way socket | FLHTCUTGSE |
| 5 | 72127-06 | SECONDARY LOCK, three-way (gray) | FLHTCUTGSE |
| 6 | 72168-07 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 7 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHTCUTGSE |
| 8 | 72175-07BK | HOUSING, four-way pin (black) (2) | FLHTCUTGSE |
| 9 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTGSE |
| 10 | 72343-10 | TERMINAL, pin, 16-20 AWG (gold) (4) | FLHTCUTGSE |
| 11 | 72415-07GY | HOUSING, four-way pin (gray) | FLHTCUTGSE |
| 12 | 72473-07 | SEAL PIN (2) | FLHTCUTGSE |
| 13 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTGSE |
| 14 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTGSE |
| 15 | 72511-07BK | HOUSING, three-way pin (black) | FLHTCUTGSE |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 17 | 72519-09BK | PLUG, weather, three-way socket | FLHTCUTGSE |
| 18 | 72533-06 | PLUG, weather, two-way pin | FLHTCUTGSE |
| 19 | 72544-07 | SECONDARY LOCK, three-way socket | FLHTCUTGSE |
| 20 | 72589-09 | HOUSING, three-way socket | FLHTCUTGSE |
| 21 | 72606-08 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 22 | 72609-08 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 23 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHTCUTGSE |
| 24 | 73213-07 | RETAINER, anchored (6) | FLHTCUTGSE |
| 25 | 74112-98BK | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 26 | 74152-98 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 27 | 74191-98 | TERMINAL, socket (2) | FLHTCUTGSE |
| 28 | 12500014 | CABLE STRAP | FLHTCUTGSE |
| 29 | 12500018 | CABLE STRAP | FLHTCUTGSE |
| 30 | 69200187 | TERMINAL, socket, 12AWG (4) | FLHTCUTGSE |
| 31 | 69200190 | WIRE SEAL, 20 AWG (4) | FLHTCUTGSE |
| 32 | 69200221 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 33 | 69200222 | WIRE SEAL, 20 AWG (4) | FLHTCUTGSE |
| 34 | 69200272 | HOUSING, two-way pin | FLHTCUTGSE |
| 35 | 69201301 | WIRE SEAL, 20-22 AWG (green) (3) | FLHTCUTGSE |
| 36 | 69201406 | HOUSING, three-way socket | FLHTCUTGSE |
| 37 | 69201407 | TERMINAL, socket, 20 AWG (3) | FLHTCUTGSE |
| 38 | 69201423 | DC LEAD ASSEMBLY, two-way socket | FLHTCUTGSE |
| 39 | 69201778 | HOUSING, 46-way socket (black) | FLHTCUTGSE |
| 40 | 69201789 | HOUSING, two-way socket (black) (2) | FLHTCUTGSE |
| 41 | 69201792 | HOUSING, five-way socket (black) | FLHTCUTGSE |
| 42 | 69201811 | TERMINAL, socket, 20-22 AWG (3) | FLHTCUTGSE |
| 43 | 69201812 | WIRE SEAL, 20-22 AWG (red) (15) | FLHTCUTGSE |
| 44 | 69201818 | TERMINAL, socket, 20-22 AWG (12) | FLHTCUTGSE |
| 45 | 69201820 | SEAL PIN (green) 2.8 mm (Australia) (4) | FLHTCUTGSE |
| 46 | 69201821 | SEAL PIN (white) 1.2 mm (Domestic, California, Canada, England, HDI, Japan) (32) | FLHTCUTGSE |
| 46 | 69201821 | SEAL PIN (white) 1.2 mm (Australia) (28) | FLHTCUTGSE |
| 47 | 69201822 | COVER, fuse block | FLHTCUTGSE |
WIRING HARNESS, MAIN - (8 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (2) | FLHTCUTGSE |
| 3 | 72081-11 | HOUSING, 48-way socket | FLHTCUTGSE |
| 4 | 72209-11 | COVER, wire | FLHTCUTGSE |
| 5 | 72222-11 | TERMINAL, socket, 18-20 AWG (22) | FLHTCUTGSE |
| 6 | 72256-11 | SEAL PIN (7) | FLHTCUTGSE |
| 7 | 72226-11 | TERMINAL, socket, 14-16 AWG | FLHTCUTGSE |
| 8 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHTCUTGSE |
| 9 | 31586-07 | RELAY (2) | FLHTCUTGSE |
| 10 | 72345-02 | FUSE, 20 A (yellow) (3) | FLHTCUTGSE |
| 11 | 72356-95 | TERMINAL, socket, 18-20 AWG (14) | FLHTCUTGSE |
| 12 | 69200600 | FUSE BLOCK, five-way socket relay (3) | FLHTCUTGSE |
| 13 | 69201411 | COVER, fuse block | FLHTCUTGSE |
| 14 | 69200312 | SECONDARY LOCK, 24-way fuse block | FLHTCUTGSE |
| 15 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHTCUTGSE |
| 16 | 69200199 | WIRE SEAL (purple) (14) | FLHTCUTGSE |
| 17 | 69200194 | HOUSING, 24-way fuse block | FLHTCUTGSE |
| 18 | 72412-97 | SEAL, cable, 12-14 AWG (5) | FLHTCUTGSE |
| 19 | 72296-95 | TERMINAL, socket, sealed (3) | FLHTCUTGSE |
| 20 | 72298-95 | CABLE SEAL (3) | FLHTCUTGSE |
| 21 | 72299-95 | PLUG, cavity (2) | FLHTCUTGSE |
| 22 | 72308-97 | TERMINAL, socket, 12-14 AWG (5) | FLHTCUTGSE |
| 23 | 72330-95 | FUSE, 15 A (blue) | FLHTCUTGSE |
| 24 | 72331-95 | FUSE, 5 A (tan) (2) | FLHTCUTGSE |
| 25 | 73301-04 | HOUSING, two-way pin | FLHTCUTGSE |
| 26 | 73303-04 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 27 | 73304-04 | TERMINAL, socket, 10 AWG (3) | FLHTCUTGSE |
| 28 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FLHTCUTGSE |
| 29 | 69200336 | MAIN FUSE, 50 A (red), NOTE: Fuse is sold separately and is not part of main harness | FLHTCUTGSE |
| 30 | 69201404 | CONNECTOR, anchored | FLHTCUTGSE |
| 31 | 69201405 | RESISTOR PACK | FLHTCUTGSE |
| 32 | 8339 | SEAL PIN | FLHTCUTGSE |
| 33 | 83944-09 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTGSE |
| 34 | 69200461 | HOUSING, eight-way socket | FLHTCUTGSE |
| 35 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTGSE |
| 36 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTGSE |
| 37 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTGSE |
| 38 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (2) | FLHTCUTGSE |
| 39 | 69201396 | TERMINAL, socket, 20 AWG (2) | FLHTCUTGSE |
| 40 | 69201400 | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 41 | 69201401 | SECONDARY LOCK, two-way socket | FLHTCUTGSE |
| 42 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHTCUTGSE |
| 43 | 69201779 | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 44 | 69201814 | TERMINAL, socket (4) | FLHTCUTGSE |
| 45 | 72427-00 | TERMINAL, socket, 16-22 AWG (8) | FLHTCUTGSE |
| 46 | 9937 | TERMINAL, socket, 14-18 AWG (6) | FLHTCUTGSE |
WIRING HARNESS, MAIN - (9 OF 9)
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 6990 | PLUG, six-way pin, weather | FLHTCUTGSE |
| 2 | 72195-94 | SEAL PIN | FLHTCUTGSE |
| 3 | 72194-94 | TERMINAL, pin, 20 AWG (3) | FLHTCUTGSE |
| 4 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHTCUTGSE |
| 5 | 72146-94 | SECONDARY LOCK, six-way pin | FLHTCUTGSE |
| 6 | 72106-94BK | HOUSING, six-way pin (black) (replaces gray connector) | FLHTCUTGSE |
| 7 | 69200212 | HARNESS, battery tender | FLHTCUTGSE |
| 8 | 69201308 | BOOT, battery positive | FLHTCUTGSE |
| 9 | 69201134A | WIRE HARNESS, positive cable, with 73304-04, 73305-04 and 69201308 | FLHTCUTGSE |
| 10 | 73304-04 | TERMINAL, socket, 10 AWG (3) | FLHTCUTGSE |
| 11 | 72632-10 | PLUG, weather, four-way pin | FLHTCUTGSE |
| 12 | 72169-07 | TERMINAL, pin, 16-20 AWG (8) | FLHTCUTGSE |
| 13 | 72175-07BK | HOUSING, four-way pin (black) (2) | FLHTCUTGSE |
| 14 | 72350-11 | HOUSING, one-way socket | FLHTCUTGSE |
| 15 | 72575-11 | SECONDARY LOCK | FLHTCUTGSE |
| 16 | 72064-06 | HOUSING, three-way socket | FLHTCUTGSE |
| 17 | 72484-08 | TERMINAL, socket, 20 AWG (3) | FLHTCUTGSE |
| 18 | 72486-08 | WIRE SEAL, 20 AWG (green) (3) | FLHTCUTGSE |
| 19 | 10065 | CABLE STRAP | FLHTCUTGSE |
| 20 | 73305-04 | SEAL WIRE, 10 AWG (blue) (3) | FLHTCUTGSE |
| 21 | 11100115 | CLOTH, HARNESS WRAP (not shown) | FLHTCUTGSE |
WIRING HARNESS, FAIRING - (AUSTRALIA, CANADA, DOMESTIC, JAPAN) (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69201862A | WIRING HARNESS, fairing (Australia, Canada, Domestic, Japan) (used with single headlamp) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN (3) | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (9) | FLHTCUTGSE |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHTCUTGSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (26) | FLHTCUTGSE |
| 5 | 72213-94 | TERMINAL, socket, 20 AWG (4) | FLHTCUTGSE |
| 6 | 72225-09 | TERMINAL, pin, 14 AWG (2) | FLHTCUTGSE |
| 7 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTGSE |
| 8 | 72610-08 | SEAL, 18-20 AWG (white) (4) | FLHTCUTGSE |
| 9 | 72902-01BK | PIN HOUSING, two-way (black) | FLHTCUTGSE |
| 10 | 72905-11 | HOUSING, two-way pin (black) (2) | FLHTCUTGSE |
| 11 | 72907-11 | HOUSING, four-way pin (4) | FLHTCUTGSE |
| 12 | 72909-11 | TERMINAL, pin, 20-22 AWG (19) | FLHTCUTGSE |
| 13 | 72912-01BK | HOUSING, two-way socket, (black) | FLHTCUTGSE |
| 14 | 69200109 | CADDY, fairing harness | FLHTCUTGSE |
| 15 | 69200254 | SOCKET HOUSING, four-way | FLHTCUTGSE |
| 16 | 69200256 | LOCK, secondary, four-way | FLHTCUTGSE |
| 17 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTGSE |
| 18 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHTCUTGSE |
| 19 | 72397-98 | SEAL PIN (4) | FLHTCUTGSE |
| 20 | 72382-98BK | HOUSING, 23-way socket (black) | FLHTCUTGSE |
WIRING HARNESS, FAIRING - (AUSTRALIA, CANADA, DOMESTIC, JAPAN) (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69201862A | WIRING HARNESS, fairing (Australia, Canada, Domestic, Japan) (used with single headlamp) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored (4) | FLHTCUTGSE |
| 2 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHTCUTGSE |
| 3 | 72097-06 | CAVITY PLUG, oval (orange) (2) | FLHTCUTGSE |
| 4 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTCUTGSE |
| 5 | 72135-06 | SECONDARY LOCK, four-way socket (2) | FLHTCUTGSE |
| 6 | 72189-04 | SEAL PIN (3) | FLHTCUTGSE |
| 7 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 9 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTGSE |
| 10 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTGSE |
| 11 | 74104-98BK | HOUSING, four-way pin (black) | FLHTCUTGSE |
| 12 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTGSE |
| 13 | 73152-96BK | SOCKET HOUSING, two-way (black) | FLHTCUTGSE |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTGSE |
| 15 | 74196-04 | TERMINAL, socket (9) | FLHTCUTGSE |
| 16 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHTCUTGSE |
| 17 | 12500002 | CABLE STRAP (2) | FLHTCUTGSE |
| 18 | 69200271 | SOCKET HOUSING, two-way (2) | FLHTCUTGSE |
| 19 | 69200337 | SOCKET HOUSING, two-way | FLHTCUTGSE |
| 20 | 74144-98 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 21 | 74190-98 | TERMINAL, pin, 16-20 AWG (3) | FLHTCUTGSE |
| 22 | 74195-98 | TERMINAL, pin, 16-20 AWG | FLHTCUTGSE |
WIRING HARNESS, FAIRING - (HDI, ENGLAND) (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69202377 | WIRING HARNESS, fairing (England, HDI) (used with dual headlamp) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 5118 | SEAL PIN | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (7) | FLHTCUTGSE |
| 3 | 72167-07BK | HOUSING, pin, 16-way (black) | FLHTCUTGSE |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG (17) | FLHTCUTGSE |
| 5 | 72473-07 | SEAL PIN (2) | FLHTCUTGSE |
| 6 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTGSE |
| 7 | 72902-01BK | PIN HOUSING, two-way (black) | FLHTCUTGSE |
| 8 | 72905-11 | HOUSING, two-way pin (black) (3) | FLHTCUTGSE |
| 9 | 72907-11 | HOUSING, four-way pin (black) (4) | FLHTCUTGSE |
| 10 | 72909-11 | TERMINAL, pin, 20-22 AWG (21) | FLHTCUTGSE |
| 11 | 72912-01BK | HOUSING, two-way socket, (black) | FLHTCUTGSE |
| 12 | 69200109 | CADDY, fairing harness | FLHTCUTGSE |
| 13 | 69201240 | TERMINAL, socket, 18 AWG (2) | FLHTCUTGSE |
| 14 | 72225-09 | TERMINAL, pin, 14 AWG (2) | FLHTCUTGSE |
| 15 | 72382-98BK | HOUSING, 23-way socket (black) | FLHTCUTGSE |
| 16 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHTCUTGSE |
| 17 | 72381-98 | SEAL PIN (4) | FLHTCUTGSE |
WIRING HARNESS, FAIRING - (HDI, ENGLAND) (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 69202377 | WIRING HARNESS, fairing (England, HDI) (used with dual headlamp) | FLHTCUTGSE | |
| NOTE: Includes the following parts. | |||
| 1 | 10177 | CABLE STRAP, anchored (5) | FLHTCUTGSE |
| 2 | 72066-06A | HOUSING, four-way socket (black) (2) | FLHTCUTGSE |
| 3 | 72097-06 | CAVITY PLUG, oval (orange) (2) | FLHTCUTGSE |
| 4 | 72130-04 | SOCKET HOUSING, 12-way (black) | FLHTCUTGSE |
| 5 | 72135-06 | SECONDARY LOCK, four-way socket (2) | FLHTCUTGSE |
| 6 | 72189-04 | SEAL PIN (3) | FLHTCUTGSE |
| 7 | 72264-94 | TERMINAL, socket, 18-20 AWG (2) | FLHTCUTGSE |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 9 | 72484-08 | TERMINAL, socket, 20 AWG (6) | FLHTCUTGSE |
| 10 | 72486-08 | WIRE SEAL, 20 AWG (green) (6) | FLHTCUTGSE |
| 11 | 74195-98 | TERMINAL, four-way pin | FLHTCUTGSE |
| 12 | 73102-96BK | HOUSING, two-way pin (black) | FLHTCUTGSE |
| 13 | 73152-96BK | SOCKET HOUSING, two-way (black) | FLHTCUTGSE |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (2) | FLHTCUTGSE |
| 15 | 74196-04 | TERMINAL, socket (9) | FLHTCUTGSE |
| 16 | 74197-04 | SECONDARY LOCK, 12-way socket | FLHTCUTGSE |
| 17 | 12500002 | CABLE STRAP (2) | FLHTCUTGSE |
| 18 | 69200271 | SOCKET HOUSING, two-way (2) | FLHTCUTGSE |
| 19 | 69200337 | SOCKET HOUSING, two-way | FLHTCUTGSE |
| 20 | 74104-98BK | HOUSING, four-way pin (black) | FLHTCUTGSE |
| 21 | 74144-98 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 22 | 74190-98 | TERMINAL, pin, 16-20 AWG (3) | FLHTCUTGSE |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - (CANADA, DOMESTIC)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTGSE |
| 2 | 10102 | CLIP, small (4) | FLHTCUTGSE |
| 3 | 10103 | CLIP, large (2) | FLHTCUTGSE |
| 4 | 10270 | CABLE STRAP | FLHTCUTGSE |
| 5 | 72168-07 | TERMINAL, socket, 18-20 AWG (9) | FLHTCUTGSE |
| 6 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTCUTGSE |
| 7 | 72473-07 | SEAL PIN (3) | FLHTCUTGSE |
| 8 | 69202375 | CONNECTOR, four-way Molex | FLHTCUTGSE |
| 9 | 73103-96BK | HOUSING, three-way pin (black) | FLHTCUTGSE |
| 10 | 69202376 | TERMINAL, Molex, female (4) | FLHTCUTGSE |
| 11 | 73156-96BK | HOUSING, six-way socket (black) (2) | FLHTCUTGSE |
| 12 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTGSE |
| 13 | 73191-96 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTGSE |
| 14 | 83439-09 | GROMMET | FLHTCUTGSE |
| 15 | 69202392 | HARNESS, rear lights, with 69202375, 69202376, 72168-07, 72489-07GY, 72473-07, 73103-96BK, 73156-96BK, 73190-96 and 73191-96 | FLHTCUTGSE |
WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - (HDI)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHTCUTGSE |
| 2 | 10102 | CLIP, small (4) | FLHTCUTGSE |
| 3 | 10103 | CLIP, large (2) | FLHTCUTGSE |
| 4 | 10270 | CABLE STRAP | FLHTCUTGSE |
| 5 | 72114-94BK | HOUSING, four-way socket (black) (2) | FLHTCUTGSE |
| 6 | 72154-94 | SECONDARY LOCK, four-way socket (2) | FLHTCUTGSE |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (7) | FLHTCUTGSE |
| 8 | 72191-94 | TERMINAL, socket, 16-18 AWG (8) | FLHTCUTGSE |
| 9 | 72489-07GY | HOUSING, eight-way socket (gray) | FLHTCUTGSE |
| 10 | 72473-07 | SEAL PIN | FLHTCUTGSE |
| 11 | 69202375 | CONNECTOR, four-way Molex | FLHTCUTGSE |
| 12 | 73103-96BK | HOUSING, three-way pin (black) | FLHTCUTGSE |
| 13 | 69202376 | TERMINAL, Molex, female (4) | FLHTCUTGSE |
| 14 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTGSE |
| 15 | 74104-98BK | HOUSING, four-way pin (black) (2) | FLHTCUTGSE |
| 16 | 74114-98BK | HOUSING, four-way socket (black) (2) | FLHTCUTGSE |
| 17 | 74144-98 | SECONDARY LOCK, four-way pin (2) | FLHTCUTGSE |
| 18 | 74154-98 | SECONDARY LOCK, four-way socket (2) | FLHTCUTGSE |
| 19 | 74190-98 | TERMINAL, pin, 16-20 AWG (8) | FLHTCUTGSE |
| 20 | 74191-98 | TERMINAL, socket, 16-20 AWG (8) | FLHTCUTGSE |
| 21 | 83439-09 | GROMMET | FLHTCUTGSE |
| 22 | 69202393 | HARNESS, rear lights, with 7, 9, 10, 11, 12, 13, 14, 15, 17 and 19 | FLHTCUTGSE |
| 23 | 69200410 | HARNESS, jumper, with 5, 6, 8, 16, 18 and 20 (2) | FLHTCUTGSE |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 3634 | SCREW (4) | FLHTCUTGSE |
| 2 | 4312C | SCREW (2) | FLHTCUTGSE |
| 3 | 4705 | SCREW (2) | FLHTCUTGSE |
| 4 | 7792 | NUT | FLHTCUTGSE |
| 5 | 15368-01A | LABEL, battery warning | FLHTCUTGSE |
| 6 | 66010-97D | BATTERY, with 4312C | FLHTCUTGSE |
| 7 | 66051-08 | STRAP, battery removal | FLHTCUTGSE |
| 8 | 9819 | TERMINAL, ring, 12 AWG | FLHTCUTGSE |
| 9 | 73304-04 | TERMINAL, socket, 10 AWG | FLHTCUTGSE |
| 10 | 73305-04 | SEAL WIRE, 10 AWG (blue) | FLHTCUTGSE |
| 11 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | FLHTCUTGSE |
| 12 | 66000136 | BATTERY TRAY | FLHTCUTGSE |
| 13 | 69200174 | CADDY, electronic control module (ECM) | FLHTCUTGSE |
| 14 | 69201134A | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201308 | FLHTCUTGSE |
| 15 | 69201178 | BRACKET, battery hold down | FLHTCUTGSE |
| 16 | 69201308 | BOOT, battery positive | FLHTCUTGSE |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3563 | SCREW (2) | FLHTCUTGSE |
| 2 | 4775 | SCREW (2) | FLHTCUTGSE |
| 3 | 6019 | WASHER (2) | FLHTCUTGSE |
| 4 | 6109 | WASHER | FLHTCUTGSE |
| 5 | 7495 | NUT | FLHTCUTGSE |
| 6 | 7549A | ACORN NUT | FLHTCUTGSE |
| 7 | 8108 | SPEEDNUT (2) | FLHTCUTGSE |
| 8 | 69060-90H | HORN ASSEMBLY | FLHTCUTGSE |
| 9 | 69062-91A | CLAMP | FLHTCUTGSE |
| 10 | 69120-91 | BRACKET, horn | FLHTCUTGSE |
| 11 | 69123-92A | MOUNT, horn, rubber | FLHTCUTGSE |
| 12 | 14101120 | INSERT, horn | FLHTCUTGSE |
| 13 | 61300523A | COVER, horn (chrome) | FLHTCUTGSE |
| 14 | 69000083 | BRACKET ASSEMBLY, horn mount | FLHTCUTGSE |
REVERSE MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 7492 | NUT | FLHTCUTGSE |
| 2 | 8313 | SCREW (5) | FLHTCUTGSE |
| 3 | 8335 | LOCKWASHER | FLHTCUTGSE |
| 4 | 83388-09B | REVERSE MOTOR ASSEMBLY, with 7492, 83857-09 and 31400129 (use 83388-09C) | FLHTCUTGSE |
| 5 | 83388-09C | REVERSE MOTOR ASSEMBLY, with 31400139, 41600143, 41600327 (replaces 83388-09B) | FLHTCUTGSE |
| 6 | 83389-09A | BRACKET, adapter | FLHTCUTGSE |
| 7 | 83857-09 | SOLENOID, use with 83388-09B | FLHTCUTGSE |
| 8 | 31400129 | KIT, reverse motor | FLHTCUTGSE |
| 9 | 31400139 | SOLENOID, use with 83388-09C | FLHTCUTGSE |
| 10 | 31400143 | ELECTRICAL KIT, with 41600327 - use with 83388-09C | FLHTCUTGSE |
REVERSE CONTROL MODULE
| Index No. | Part No. | Description | Model(s) |
| 1 | 7358 | NUT (2) | FLHTCUTGSE |
| 2 | 7683 | LOCKNUT (2) | FLHTCUTGSE |
| 3 | 8339 | SEAL PIN | FLHTCUTGSE |
| 4 | 8370 | TERMINAL, pin, 18-22 AWG (7) | FLHTCUTGSE |
| 5 | 9825 | TERMINAL, ring, 14-18 AWG (4) | FLHTCUTGSE |
| 6 | 1009M | SCREW (7) | FLHTCUTGSE |
| 7 | 10006 | CABLE STRAP (3) | FLHTCUTGSE |
| 8 | 10177 | CABLE STRAP, anchored (2) | FLHTCUTGSE |
| 9 | 70018-07 | BOOT, solenoid cover | FLHTCUTGSE |
| 10 | 70578-89 | BOOT, rubber (2) | FLHTCUTGSE |
| 11 | 71474-07 | SOLENOID, starter, reverse control module, with 73152-96BK and 73191-96 | FLHTCUTGSE |
| 12 | 73152-96BK | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 13 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTGSE |
| 14 | 73213-07 | RETAINER, anchored | FLHTCUTGSE |
| 15 | 83869-09 | CIRCUIT BREAKER, 150A | FLHTCUTGSE |
| 16 | 32700101 | SENSOR, IMU | FLHTCUTGSE |
| 17 | 41600258 | BRACKET | FLHTCUTGSE |
| 18 | 69200421 | MODULE, reverse, with 8339, 8370 and 69200462 | FLHTCUTGSE |
| 19 | 69200462 | HOUSING, eight-way pin (black) | FLHTCUTGSE |
| 20 | 69201780 | HARNESS, starter-to-fuse, with 69201307 | FLHTCUTGSE |
| 21 | 69201781 | HARNESS, fuse-to-motor, with 70578-89 | FLHTCUTGSE |
| 22 | 69201782 | HARNESS, solenoid-to-motor, with 70578-89 and 9825 | FLHTCUTGSE |
| 23 | 69201783 | HARNESS, jumper, 14 AWG, with 9825 | FLHTCUTGSE |
| 24 | 69201786 | BRACKET | FLHTCUTGSE |
| 25 | 69201307 | BOOT (2) | FLHTCUTGSE |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2647B | SCREW (2) | FLHTCUTGSE |
| 2 | 6150W | WASHER (2) | FLHTCUTGSE |
| 3 | 9907 | WIRE TERMINAL (2) | FLHTCUTGSE |
| 4 | 10065 | CABLE STRAP (2) | FLHTCUTGSE |
| 5 | 33926-06B | SWITCH, neutral indicator, with O-ring | FLHTCUTGSE |
| 7 | 66373-06 | BATTERY, 3V, CR2032 | FLHTCUTGSE |
| 8 | 68956-07 | ANTENNA MODULE, security system | FLHTCUTGSE |
| 9 | 68958-07C | SIREN ALARM | FLHTCUTGSE |
| 10 | 69309-10 | BATTERY | FLHTCUTGSE |
| 11 | 90300106 | REMOTE CONTROL FOB, with 66373-06 (all except Japan) (specify key number) (2) | FLHTCUTGSE |
| 11 | 90300107 | REMOTE CONTROL FOB, with 66373-06 (Japan only) (specify key number) (2) | FLHTCUTGSE |
| 12 | 72023-51E | KIT, SWITCH, rear brakelite, with 9907 | FLHTCUTGSE |
| 13 | 71400147 | HOUSING, ignition switch | FLHTCUTGSE |
| 15 | 32700010 | SENSOR, ambient temperature | FLHTCUTGSE |
| 16 | 41000341F | BODY CONTROL MODULE (BCM) with security (all except Japan) | FLHTCUTGSE |
| 16 | 41000342F | BODY CONTROL MODULE (BCM) with security (Japan only) | FLHTCUTGSE |
| 17 | 90300081 | CAMLOCK, tour-pak | FLHTCUTGSE |
| 18 | 71400145 | LOCKSET, complete, with 71400147, 90300081, 90300106, 90300148 (all except Japan) | FLHTCUTGSE |
| 18 | 71400146 | LOCKSET, complete, with 71400147, 90300081, 90300107, 90300148 (Japan only) | FLHTCUTGSE |
| 19 | 90300148 | LOCKSET, trunk | FLHTCUTGSE |
| Index number 6 is not used in this illustration.Index number 14 is not used in this illustration.NOTE: For additional fuse and relay part number information see wiring harness pages. | |||
SOUND SYSTEM - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP | FLHTCUTGSE |
| 2 | 10065 | CABLE STRAP (2) | FLHTCUTGSE |
| 3 | 76000783A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | FLHTCUTGSE |
| 3 | 76000784A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (England, HDI) (See NOTE 2) | FLHTCUTGSE |
| 3 | 76000785A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, Australia, Japan) (See NOTE 3) | FLHTCUTGSE |
| 4 | 76000789 | ANTENNA, GPS | FLHTCUTGSE |
| 5 | 91700034 | KIT, RADIO TOUCH SCREEN PROTECTOR | FLHTCUTGSE |
| 6 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTGSE |
| 7 | 72290-94 | TERMINAL, socket 1/4 in (black) (2) | FLHTCUTGSE |
| 8 | 72294-94 | TERMINAL, socket 16-20 AWG (white) (2) | FLHTCUTGSE |
| 9 | 73213-07 | RETAINER, anchored (2) | FLHTCUTGSE |
| 10 | 10200205 | SCREW (8) | FLHTCUTGSE |
| 11 | 10500017 | SCREW (6) | FLHTCUTGSE |
| 12 | 12600070 | BOLT (4) | FLHTCUTGSE |
| 13 | 12600071 | RETAINER, bolt (4) | FLHTCUTGSE |
| 14 | 12600073 | SCREW, accessory module (2) | FLHTCUTGSE |
| 15 | 69200272 | HOUSING, two-way pin (2) | FLHTCUTGSE |
| 16 | 69200247 | WIRE HARNESS, speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07 and 69200272 (2) | FLHTCUTGSE |
| 17 | 69200391 | CABLE, AM/FM antenna | FLHTCUTGSE |
| 18 | 76000875 | SPEAKER ADAPTOR AND GRILLE, right | FLHTCUTGSE |
| 18 | 76000876 | SPEAKER ADAPTOR AND GRILLE, left | FLHTCUTGSE |
| NOTE 1: 76000783 radio with the North America mapset is used in these countries/regions: Bahamas, Canada, Cayman Islands, Mexico, Puerto Rico and United States.NOTE 2: 76000784 radio with the European mapset is used in these countries/regions: Albania, Andorra, Austria, Belarus, Belgium, Bosnia Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Malta, Moldova, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, Ukraine (Crimea), United Kingdom (Great Britain) and Vatican City.NOTE 3: 76000785 radio with the Rest Of World mapset is used in these countries/regions: Argentina, Australia, Azerbaijan, Bahrain, Botswana, Brazil, Brunei, Chile, Columbia, Costa Rica, Egypt, India, Indonesia, Jordan, Kazakhstan, Kenya, Kuwait, Lebanon, Lesotho, Malaysia, Morocco, Namibia, New Zealand, Nigeria, Oman, Paraguay, Peru, Qatar, Reunion, Russia, Saudi Arabia, Singapore, South Africa, Swaziland, Thailand, United Arab Emirates, Uruguay, Venezuela, Vietnam and the Rest Of the World.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
SOUND SYSTEM - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 19 | 10200798 | SCREW (4) | FLHTCUTGSE |
| 20 | 76000877 | SPEAKER, front (2) | FLHTCUTGSE |
| 21 | 926 | SCREW (4) | FLHTCUTGSE |
| 22 | 10500053 | SCREW (8) | FLHTCUTGSE |
| 23 | 76000252 | PLATE, accessory module | FLHTCUTGSE |
| 24 | 7686 | LOCKNUT (4) | FLHTCUTGSE |
| 25 | 76000277B | AMPLIFIER (2) | FLHTCUTGSE |
| 26 | 76000330 | BRACKET, angle amplifier (2) | FLHTCUTGSE |
| 27 | 76000945 | BRACKET, amplifier (2) | FLHTCUTGSE |
| 28 | 11100071 | PAD (8) | FLHTCUTGSE |
| 29 | 41000645 | MODULE, TCU, with 73213-07 (Domestic) (see note) (2) | FLHTCUTGSE |
| 29 | 41000721 | MODULE, TCU, with 73213-07 (HDI) (see note) (2) | FLHTCUTGSE |
| 29 | 69202412 | DUST CAP, Models without a TCU (not shown) (see note) | FLHTCUTGSE |
| 30 | 76000923 | BRACKET, with 11100071 (2) | FLHTCUTGSE |
| 31 | 2478 | SCREW (all except Japan) (3) | FLHTCUTGSE |
| 32 | 57000247 | MOUNTING BRACKET, CB MODULE (all except Japan) | FLHTCUTGSE |
| 33 | 72168-07 | TERMINAL, socket, 18-20 AWG (all except Japan) (8) | FLHTCUTGSE |
| 34 | 72473-07 | SEAL PIN (all except Japan) (4) | FLHTCUTGSE |
| 35 | 72487-07BK | HOUSING, 12-way socket (black) (all except Japan) | FLHTCUTGSE |
| 36 | 76000188 | CB MODULE, with 72168-07, 72473-07, 72487-07BK (all except Japan) | FLHTCUTGSE |
| 37 | 76250-09 | ANTENNA, CB | FLHTCUTGSE |
| 38 | 76000799 | ANTENNA, AM/FM | FLHTCUTGSE |
| 39 | 73213-07 | RETAINER, anchored (2) | FLHTCUTGSE |
| 40 | 5210 | WELL NUT (8) | FLHTCUTGSE |
| 41 | 76000771 | MODULE, wireless headset interface (WHIM) | FLHTCUTGSE |
| 42 | 76000838 | HEADSET ASSEMBLY | FLHTCUTGSE |
| NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.NOTE: TCU parts indicated are used to service motorcycles built prior to 5/27/2020. Motorcycles built after 5/28/2020 no longer use TCU parts. See Service Bulletin M1515.NOTE: For all service and warranty claims on Boom!™ Audio System components please refer to the latest Warranty Bulletin revision of the Boom!™ Audio Systems Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Boom!™ Audio System components please contact your Harley-Davidson dealership. | |||
BODY ASSEMBLY AND SIDE COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLHTCUTGSE |
| 2 | 3445 | BOLT | FLHTCUTGSE |
| 3 | 6116 | WASHER (2) | FLHTCUTGSE |
| 4 | 6645 | WASHER (6) | FLHTCUTGSE |
| 5 | 6702 | WASHER (3) | FLHTCUTGSE |
| 6 | 7739 | LOCKNUT (2) | FLHTCUTGSE |
| 7 | 8369 | BOLT (4) | FLHTCUTGSE |
| 8 | 10102 | CLIP, small (17) | FLHTCUTGSE |
| 9 | 10103 | CLIP, large (3) | FLHTCUTGSE |
| 10 | 11650 | GROMMET, side cover (6) | FLHTCUTGSE |
| 11 | 70186-82 | GROUND STRAP | FLHTCUTGSE |
| 12 | 14002116 | LABEL, tire warning | FLHTCUTGSE |
| 13 | 83777-11 | INSERT, fender mount, press-in, 5/16-18 (12) | FLHTCUTGSE |
| 14 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTGSE |
| 15 | 83782-11 | INSERT, press-in, 1/4-20 (4) | FLHTCUTGSE |
| 16 | 83798-11 | INSERT, TOP HAT, spacer (2) | FLHTCUTGSE |
| 17 | 83811-09 | FOAM TAPE (4) | FLHTCUTGSE |
| 18 | 83822-09 | STUD | FLHTCUTGSE |
| 19 | 83991-11 | SEAL, trunk door (cut to fit) | FLHTCUTGSE |
| 20 | 12300002 | SEALING WASHER, trunk lock | FLHTCUTGSE |
| 21 | 57200281ELW | SIDE COVER ASSEMBLY, with 14002116 (right) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 21 | 57200281ELZ | SIDE COVER ASSEMBLY, with 14002116 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 22 | 57200083ELW | SIDE COVER ASSEMBLY (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 22 | 57200083ELZ | SIDE COVER ASSEMBLY (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 23 | 83000172EMN | MIDSECTION ASSEMBLY, with 8, 9, 13, 14, 15, 16, 17, 19 and 20 (Blizzard White Pearl with Lightning Silver and Stormcloud) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 23 | 83000172EMO | MIDSECTION ASSEMBLY, with 8, 9, 13, 14, 15, 16, 17, 19 and 20 (Black Stardust with Magnetic Gray and Wicked Red) **RESTRICTED SALES PART** | FLHTCUTGSE |
TRUNK DOOR - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2482 | SCREW (2) | FLHTCUTGSE |
| 2 | 4365 | SCREW (2) | FLHTCUTGSE |
| 3 | 4697 | SCREW (6) | FLHTCUTGSE |
| 4 | 4699 | SCREW (3) | FLHTCUTGSE |
| 5 | 6703 | WASHER (6) | FLHTCUTGSE |
| 6 | 7686 | LOCKNUT (6) | FLHTCUTGSE |
| 7 | 7763W | JAMNUT | FLHTCUTGSE |
| 8 | 8359 | SCREW, SHOULDER (4) | FLHTCUTGSE |
| 9 | 10102 | CLIP, adhesive backed (2) | FLHTCUTGSE |
| 10 | 10968 | O-RING (Canada, Domestic) (2) | FLHTCUTGSE |
| 11 | 52441-95 | BULB (Canada, Domestic) (2) | FLHTCUTGSE |
| 12 | 59988-72A | REFLECTOR, reflex (red) (Canada, Domestic) | FLHTCUTGSE |
| 13 | 73153-96BK | SOCKET HOUSING, three-way (black) | FLHTCUTGSE |
| 14 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTGSE |
| 15 | 83337-09A | HINGE, trunk door (left) | FLHTCUTGSE |
| 16 | 83339-09A | HINGE, trunk door (right) | FLHTCUTGSE |
| 17 | 83344-11 | LANYARD ASSEMBLY (2) | FLHTCUTGSE |
| 18 | 83395-09A | BRACKET, license plate, top (Canada, Domestic) | FLHTCUTGSE |
| 19 | 83396-09A | BRACKET, license plate, bottom (Canada, Domestic) | FLHTCUTGSE |
| 20 | 67801116ELW | COVER, light, license plate (Canada, Domestic) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 20 | 67801116ELZ | COVER, light, license plate (Canada, Domestic) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 21 | 83418-09 | INSERT, square (2) | FLHTCUTGSE |
| 22 | 83419-09 | RUBBER BUMPER (Domestic) | FLHTCUTGSE |
| 23 | 83420-09 | CONTACT PAD, rubber (Domestic) | FLHTCUTGSE |
| 24 | 83434-11 | COVER, trunk door, with 83446-09 | FLHTCUTGSE |
| 25 | 83446-09 | WARNING LABEL, trunk door | FLHTCUTGSE |
| 26 | 83538-11 | LATCH PIN ASSEMBLY, with 7763W and 83781-11 | FLHTCUTGSE |
| 27 | 83778-11 | INSERT, TOP HAT, press-in, 1/4-20 (2) | FLHTCUTGSE |
| 28 | 83781-11 | LATCH PIN | FLHTCUTGSE |
| 29 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (Canada, Domestic) (3) | FLHTCUTGSE |
| 29 | 83783-11 | INSERT, BLIND TOP HAT, press-in, 1/4-20 (Australia, England, HDI, HD2, Japan) (5) | FLHTCUTGSE |
| 30 | 83799-10 | LIGHT ASSEMBLY, with lens, 52441-95 and 73191-96 (Canada, Domestic) | FLHTCUTGSE |
| 31 | 10200004 | SCREW (7) | FLHTCUTGSE |
| 32 | 14101321 | NAMEPLATE, rear body (Canada, Domestic) | FLHTCUTGSE |
| 33 | 67801117ELW | COVER, license plate light (HDI) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 33 | 67801117ELZ | COVER, license plate light (HDI) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 34 | 67900289 | GASKET, (Australia, England, HDI, HD2, Japan) (2) | FLHTCUTGSE |
| 35 | 67900170 | LIGHT ASSEMBLY, LED, license plate, (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 36 | 67900306 | BRACKET, license plate, with 83418-09 (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 37 | 67900325 | LIGHT, LED, license plate, with 73153-96BK and 73191-96 (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
TRUNK DOOR - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 38 | 83000174ELW | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Blizzard White Pearl) (Canada, Domestic) | FLHTCUTGSE |
| 38 | 83000174ELZ | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Black Stardust) (Canada, Domestic) | FLHTCUTGSE |
| 38 | 83000105ELW | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Blizzard White Pearl) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 38 | 83000105ELZ | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Black Stardust) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
LATCH ASSEMBLY, TRUNK DOOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000773 | BULB, LED | FLHTCUTGSE |
| 2 | 53865-06 | LOCK | FLHTCUTGSE |
| 3 | 8365 | SCREW (3) | FLHTCUTGSE |
| 4 | 53000077 | LATCH LEVER KIT | FLHTCUTGSE |
| 5 | 8367 | O-RING | FLHTCUTGSE |
| 6 | 12300002 | WASHER, sealing | FLHTCUTGSE |
| 7 | 10200004 | SCREW (4) | FLHTCUTGSE |
| 8 | 53000771 | LATCH COVER | FLHTCUTGSE |
| 9 | 53000753 | LATCH HOUSING ASSEMBLY, with 53000077, 53000771, 53000772, 53000773 | FLHTCUTGSE |
| 10 | 53000772 | LOCK MOTOR ASSEMBLY | FLHTCUTGSE |
| 11 | 90300148 | LOCKSET, trunk, with 53868-06 (specify key number) | FLHTCUTGSE |
TRUNK LINER
| Index No. | Part No. | Description | Model(s) |
| 1 | 83457-11 | TRUNK LINER, vertical side | FLHTCUTGSE |
| 2 | 83458-11 | TRUNK LINER, bottom | FLHTCUTGSE |
TOUR-PAK (BOTTOM) - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2724 | SCREW (2) | FLHTCUTGSE |
| 2 | 2968 | SCREW (4) | FLHTCUTGSE |
| 3 | 3910 | SCREW (6) | FLHTCUTGSE |
| 4 | 91800039 | ACTUATOR ASSEMBLY, with 10200220 | FLHTCUTGSE |
| 5 | 6703 | WASHER (6) | FLHTCUTGSE |
| 6 | 10300047 | WASHER | FLHTCUTGSE |
| 7 | 7716 | LOCKNUT (10) | FLHTCUTGSE |
| 8 | 10200225 | SCREW | FLHTCUTGSE |
| 9 | 53000637ELW | COVER, latch lock, (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 9 | 53000637ELZ | COVER, latch lock, (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 10 | 53629-10 | LINER, removable **RESTRICTED SALES PART** | FLHTCUTGSE |
| 11 | 53734-06 | TRIM, left-bottom, Tour-Pak (chrome) (all except Canada, Domestic) | FLHTCUTGSE |
| 11 | 53735-06 | TRIM, right-bottom, Tour-Pak (chrome) (all except Canada, Domestic) | FLHTCUTGSE |
| 12 | 54353-09 | LIGHT, right-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Canada, Domestic) | FLHTCUTGSE |
| 12 | 54355-09 | LIGHT, left-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Canada, Domestic) | FLHTCUTGSE |
| 13 | 57978-00 | GROMMET (2) | FLHTCUTGSE |
| 14 | 61081-92 | COVER, key-head (set of 2) | FLHTCUTGSE |
| 15 | 10200064 | SCREW (4) | FLHTCUTGSE |
| 16 | 10200220 | SCREW (4) | FLHTCUTGSE |
| 17 | 73152-96BK | SOCKET HOUSING, two-way (Canada, Domestic) (2) | FLHTCUTGSE |
| 18 | 73191-96 | TERMINAL, socket, 16-20 AWG (Canada, Domestic) (4) | FLHTCUTGSE |
| 19 | 90844-80 | ACORN NUT (2) | FLHTCUTGSE |
| 20 | 99461-89 | COVER, owner manual | FLHTCUTGSE |
| 21 | 10200061 | SCREW (12) | FLHTCUTGSE |
| 22 | 10200062 | SCREW (2) | FLHTCUTGSE |
| 23 | 53000091 | PLATE, Tour-Pak reinforcing | FLHTCUTGSE |
| 24 | 93300049 | LINER, molded, with pouch | FLHTCUTGSE |
| 25 | 53000132 | GROMMET | FLHTCUTGSE |
TOUR-PAK (BOTTOM) - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 26 | 53000633ELW | HASP ASSEMBLY, bottom (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 26 | 53000633ELZ | HASP ASSEMBLY, bottom (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 27 | 53000635ELW | HINGE ASSEMBLY, rear (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 27 | 53000635ELZ | HINGE ASSEMBLY, rear (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 28 | 53000634ELW | HINGE ASSEMBLY, front (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 28 | 53000634ELZ | HINGE ASSEMBLY, front (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 29 | 53000308 | COVER, TOUR-PAK wiring | FLHTCUTGSE |
| 30 | 53000346 | BOTTOM, Tour-Pak (drilled, unpainted) | FLHTCUTGSE |
| 30 | 53000758ELW | BOTTOM, Tour-Pak (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 30 | 53000758ELZ | BOTTOM, Tour-Pak (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 31 | 74112-98BK | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 32 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHTCUTGSE |
| 33 | 74191-98 | TERMINAL, socket, 16-20-AWG (2) | FLHTCUTGSE |
| 34 | 76000172 | MOUNTING BRACKET, speaker (left) | FLHTCUTGSE |
| 35 | 76000173 | MOUNTING BRACKET, speaker (right) | FLHTCUTGSE |
| 36 | 76000174 | GASKET, speaker pod (2) | FLHTCUTGSE |
| 37 | 90300081 | LOCK, with 10300047 (specify key number) | FLHTCUTGSE |
| 38 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) | FLHTCUTGSE |
| 39 | 4991 | SCREW (Australia) (2) | FLHTCUTGSE |
| 40 | 10102 | CLIP, adhesive backed (Australia) | FLHTCUTGSE |
| 41 | 10287 | CABLE STRAP, anchored (Australia) (2) | FLHTCUTGSE |
| 42 | 72905-11 | HOUSING, two-way pin (black) (Australia) | FLHTCUTGSE |
| 43 | 72909-11 | TERMINAL, pin, 20-22 AWG (Australia) (2) | FLHTCUTGSE |
| 44 | 67900430 | LAMP, reverse, with 10287, 72905-11 and 72909-11 (Australia) | FLHTCUTGSE |
| 45 | 67900432 | BRACKET, reverse lamp (Australia) | FLHTCUTGSE |
| 46 | 67900433 | COVER, reverse lamp (Australia) | FLHTCUTGSE |
| 47 | 93300035A | MOUNTING BRACKET, Tour-Pak | FLHTCUTGSE |
TOUR-PAK (COVER)
| Index No. | Part No. | Description | Model(s) |
| 1 | 923 | SCREW (4) | FLHTCUTGSE |
| 2 | 68000065 | LED LIGHT, with 73152-96BK, 72560-07 | FLHTCUTGSE |
| 3 | 93300050 | LINER, top | FLHTCUTGSE |
| 4 | 6703 | WASHER (4) | FLHTCUTGSE |
| 5 | 10102 | CLIP (3) | FLHTCUTGSE |
| 6 | 72560-07 | TERMINAL, socket, 22 AWG (2) | FLHTCUTGSE |
| 7 | 73152-96BK | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 8 | 79179-08 | LUGGAGE RACK, with 4860, 6235, 6703 and 90875-08 (Canada, Domestic only) | FLHTCUTGSE |
| 8 | 53665-87 | LUGGAGE RACK (not pictured), with 6703 and 90869-85A (all except Canada, Domestic) | FLHTCUTGSE |
| 9 | 90821-74C | LABEL, load limit | FLHTCUTGSE |
| 10 | 90875-08 | MOUNTING PAD AND WASHER SET, luggage rack (Canada, Domestic only) | FLHTCUTGSE |
| 10 | 90869-85A | MOUNTING PAD AND WASHER SET, luggage rack (all except Canada, Domestic) | FLHTCUTGSE |
| 11 | 10200061 | SCREW (4) | FLHTCUTGSE |
| 12 | 10200062 | SCREW (8) | FLHTCUTGSE |
| 13 | 10200154 | SCREW (5) | FLHTCUTGSE |
| 14 | 53000370 | COVER (unpainted) | FLHTCUTGSE |
| 14 | 53000429ELW | COVER, with 53000090 and 90821-74C (Blizzard White Pearl) | FLHTCUTGSE |
| 14 | 53000429ELZ | COVER, with 53000090 and 90821-74C (Black Stardust Fade) | FLHTCUTGSE |
| 15 | 11100089 | HOOK AND LOOP PAD (9) | FLHTCUTGSE |
| 16 | 53000090 | GASKET, cover | FLHTCUTGSE |
| 17 | 53000137 | HASP, Tour-Pak lid | FLHTCUTGSE |
| 18 | 53000635ELW | HINGE ASSEMBLY, rear (Blizzard White Pearl) | FLHTCUTGSE |
| 18 | 53000635ELZ | HINGE ASSEMBLY, rear (Black Stardust Fade) | FLHTCUTGSE |
| 19 | 53000634ELW | HINGE ASSEMBLY, front (Blizzard White Pearl) | FLHTCUTGSE |
| 19 | 53000634ELZ | HINGE ASSEMBLY, front (Black Stardust Fade) | FLHTCUTGSE |
| 20 | 53000141A | TETHER, retractable | FLHTCUTGSE |
LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3612 | SCREW (2) | FLHTCUTGSE |
| 2 | 5210 | WELL NUT (8) | FLHTCUTGSE |
| 3 | 5211 | CRIMP NUT (6) | FLHTCUTGSE |
| 4 | 6113 | WASHER | FLHTCUTGSE |
| 5 | 6220W | WASHER | FLHTCUTGSE |
| 6 | 7492 | NUT, with lockwasher | FLHTCUTGSE |
| 7 | 10006 | CABLE STRAP | FLHTCUTGSE |
| 8 | 10065 | CABLE STRAP (3) | FLHTCUTGSE |
| 9 | 74102-98BK | HOUSING, 2-way pin (black) | FLHTCUTGSE |
| 10 | 72168-07 | TERMINAL, socket, 18-20 AWG (16) | FLHTCUTGSE |
| 11 | 72169-07 | TERMINAL, pin, 16-20 AWG (9) | FLHTCUTGSE |
| 12 | 72188-07BK | HOUSING, six-way pin (black) | FLHTCUTGSE |
| 13 | 72213-94 | TERMINAL, socket, 16-20 AWG (5) | FLHTCUTGSE |
| 14 | 72290-94 | TERMINAL, socket, 1/4 in | FLHTCUTGSE |
| 15 | 74142-98 | SECONDARY LOCK, two-way pin (3) | FLHTCUTGSE |
| 16 | 72610-08 | SEAL, 18-20 AWG (white) (5) | FLHTCUTGSE |
| 17 | 73102-96BK | HOUSING, two-way pin (2) | FLHTCUTGSE |
| 18 | 73152-96WE | SOCKET HOUSING, two-way (white) | FLHTCUTGSE |
| 19 | 73190-96 | TERMINAL, pin, 16-20 AWG (4) | FLHTCUTGSE |
| 20 | 73191-96 | TERMINAL, socket, 16-20 AWG (2) | FLHTCUTGSE |
| 21 | 72511-07BK | HOUSING, three-way pin (black) | FLHTCUTGSE |
| 22 | 76353-00 | NUT | FLHTCUTGSE |
| 23 | 76000799 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTGSE |
| 24 | 10200105 | SCREW (8) | FLHTCUTGSE |
| 25 | 10200133 | SCREW (8) | FLHTCUTGSE |
| 26 | 12100017 | GROMMET, speaker (right) (2) | FLHTCUTGSE |
| 27 | 74190-98 | TERMINAL, pin, 16-20 AWG | FLHTCUTGSE |
| 28 | 76000166 | SET SCREW, M6 x 20mm (with CB radio) | FLHTCUTGSE |
| 29 | 67800564ELW | LAMP (Canada, Domestic) (Blizzard White Pearl), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67800564ELZ | LAMP (Canada, Domestic) (Black Stardust), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67801155ELW | LAMP (all except Canada, Domestic) (Blizzard White Pearl), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67801155ELZ | LAMP (all except Canada, Domestic) (Black Stardust), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 30 | 69202321 | WIRING HARNESS, Tour-Pak, with 10065, 72169-07, 72188-07BK, 72213-94, 72511-07BK, 72610-08, 73102-96BK, 73152-96WE, 73190-96, 73191-96, 74102-98BK, 74142-98, 74190-98, 69200210, 69200211, 69200225 and 69200226 | FLHTCUTGSE |
| 31 | 69200135 | WIRING HARNESS, AM/FM ground jumper, with 72290-94 | FLHTCUTGSE |
| 32 | 69201741 | WIRING HARNESS, speaker, with 72168-07 (left) | FLHTCUTGSE |
| 33 | 69200139 | WIRING HARNESS, speaker, with 10065, 72168-07 and 71400005 (right) | FLHTCUTGSE |
| 34 | 69200210 | CABLE EXTENSION, AM/FM antenna | FLHTCUTGSE |
| 35 | 69200211 | CABLE EXTENSION, CB antenna | FLHTCUTGSE |
| 36 | 69200225 | SOCKET CONNECTOR, five-way (black) | FLHTCUTGSE |
| 37 | 69200226 | SECONDARY LOCK, five-way (black) | FLHTCUTGSE |
| 38 | 76000208 | PLUG ASSEMBLY, antenna | FLHTCUTGSE |
| 39 | 71400005 | SWITCH ASSEMBLY, rear speaker, with 72168-07, 71400006 and 71400007 | FLHTCUTGSE |
| 40 | 71400006 | KNOB, push to talk (ptt) vol-/vol+ rear control switch | FLHTCUTGSE |
| 41 | 71400007 | KNOB, mode select up/down rear control switch | FLHTCUTGSE |
| 42 | 76000880 | GRILLE, rear speaker (2) | FLHTCUTGSE |
| 43 | 76000877 | SPEAKER (2) | FLHTCUTGSE |
| 44 | 76000268 | SPEAKER BOX ENCLOSURE, right rear | FLHTCUTGSE |
| 45 | 76000800 | SPEAKER BOX ENCLOSURE, left rear | FLHTCUTGSE |
| 46 | 76000164 | STUD, antenna | FLHTCUTGSE |
| 47 | 76000165 | SET SCREW, antenna, M5 X 43 mm | FLHTCUTGSE |
| 48 | 76000177 | BEZEL, speaker switch | FLHTCUTGSE |
| 49 | 76000186 | STUD, antenna | FLHTCUTGSE |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14148-86 | LABEL, engine guard warning | FLHTCUTGSE |
| 2 | 14272-06 | LABEL, shift pattern (Japan) | FLHTCUTGSE |
| 3 | 15368-01A | LABEL, battery warning | FLHTCUTGSE |
| 4 | 83446-09 | LABEL, trunk load limit | FLHTCUTGSE |
| 5 | 14002116 | LABEL, tire warning | FLHTCUTGSE |
| 6 | 83890-09A | LABEL, mirror warning | FLHTCUTGSE |
| 7 | 90821-74C | LABEL, Tour-Pak, load limit warning | FLHTCUTGSE |
| 8 | 14002197 | LABEL, air cleaner warning (Domestic, California) | FLHTCUTGSE |
| 9 | 14000827 | CLEAR OVERLAY, VIN label (Japan) | FLHTCUTGSE |
| 10 | 14001773 | LABEL, fuel type (England, HDI) | FLHTCUTGSE |
| 11 | 14002197 | LABEL, air cleaner (Domestic) | FLHTCUTGSE |
| 11 | 15370-01A | LABEL, mirror warning, general | FLHTCUTGSE |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
GARAGE DOOR TRANSMITTER AND RECEIVER
| Index No. | Part No. | Description | Model(s) |
| 1 | 74114-98BK | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 2 | 74154-98 | SECONDARY LOCK, four-way socket (orange) | FLHTCUTGSE |
| 3 | 74191-98 | TERMINAL, socket 16-20 AWG (3) | FLHTCUTGSE |
| 4 | 74195-98 | SEAL PIN | FLHTCUTGSE |
| 5 | 91562-01 | RECEIVER ASSEMBLY (Canada, Domestic) | FLHTCUTGSE |
| 6 | 92600009 | TRANSMITTER ASSEMBLY (Canada, Domestic, HDI) | FLHTCUTGSE |
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500113 | SCREW, seat | FLHTCUTGSE |
| 1 | 52300651 | BACKREST ASSEMBLY, passenger | FLHTCUTGSE |
| 1 | 52300652 | BACKREST ASSEMBLY, rider | FLHTCUTGSE |
| 1 | 53000431 | LUGGAGE KIT, trunk | FLHTCUTGSE |
| 1 | 53629-10 | LINER, Tour-Pak, removable | FLHTCUTGSE |
| 1 | 57200245 | MID-FRAME AIR DEFLECTOR KIT (See NOTE) | FLHTCUTGSE |
| 1 | 57200083ELW | SIDE COVER ASSEMBLY (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 1 | 57200083ELZ | SIDE COVER ASSEMBLY (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 1 | 57400373 | WINDSHIELD | FLHTCUTGSE |
| 1 | 61300721 | RAINSOCK, air cleaner | FLHTCUTGSE |
| 1 | 69200336 | MAIN FUSE, 50 A (red) | FLHTCUTGSE |
| 1 | 76000799 | ANTENNA MAST, AM/FM/WB/LW | FLHTCUTGSE |
| 1 | 76000838 | HEADSET ASSEMBLY | FLHTCUTGSE |
| 1 | 76250-09 | ANTENNA, CB | FLHTCUTGSE |
| 1 | 90300043 | KEY (specify key number) | FLHTCUTGSE |
| 1 | 90300106 | REMOTE CONTROL FOB, with 66373-06 (except Japan) (2) | FLHTCUTGSE |
| 1 | 90300107 | REMOTE CONTROL FOB, with 66373-06 (Japan) (2) | FLHTCUTGSE |
| 1 | 91562-01 | RECEIVER ASSEMBLY, garage door opener (Canada, Domestic) | FLHTCUTGSE |
| 1 | 93100061 | COVER, indoor storage | FLHTCUTGSE |
| 1 | 93300001 | DOOR ORGANIZER, trunk | FLHTCUTGSE |
| 1 | 94000501 | TRIKE MOTORCYCLE LITERATURE PACK | FLHTCUTGSE |
| 1 | 94000634 | BOOM QUICK START GUIDE 6.5 (English) | FLHTCUTGSE |
| 1 | 94000753 | OWNER'S MANUAL (Domestic, California, Australia, England) | FLHTCUTGSE |
| 1 | 99461-89 | COVER, owner manual | FLHTCUTGSE |
| 1 | 4617 | SCREW (4) | FLHTCUTGSE |
| 1 | 11304 | RETAINING RING (2) | FLHTCUTGSE |
| 1 | 45041-01A | PIN, clevis (bright silver) (2) | FLHTCUTGSE |
| 1 | 50351-03 | MOUNT, footpeg support (chrome) (2) | FLHTCUTGSE |
| 1 | 50912-72 | WASHER, spring (2) | FLHTCUTGSE |
| 1 | 50501293 | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 1 | 51009-02A | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 1 | 2708A | SCREW (2) | FLHTCUTGSE |
| 1 | 50501189 | FOOTPEG LOWER (left) (chrome) | FLHTCUTGSE |
| 1 | 50501191 | FOOTPEG LOWER (right) (chrome) | FLHTCUTGSE |
| 1 | 50501181 | FOOTPEG UPPER (left) | FLHTCUTGSE |
| 1 | 50501184 | FOOTPEG UPPER (right) | FLHTCUTGSE |
| HIGHWAY PEG KITNOTE: Order 57200245 only if missing complete kit. Otherwise order individual components as needed. Refer to the FRAME, FRONT section in this parts manual. | |||
| Part No. | Description |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10200004 | SCREW 1/4-20 X 1/2 TORX SEMS socket button head |
| 10200042 | SCREW No. 10-24 X 1-5/8 hex flange head full thread (Grade 5) (zinc) |
| 10200052 | SCREW 1/4-20 X 39/64 TORX SEMS socket button head , with lockpatch |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200061 | SCREW No. 8-32 X 1/2 TORX SEMS pan head (zinc) |
| 10200062 | SCREW No. 8-32 X 3/8 TORX pan head (zinc) |
| 10200064 | SCREW No. 8-32 X 1 TORX pan head (zinc) |
| 10200105 | SCREW No. 6-32 X 3/4 TORX pan head (black zinc) |
| 10200133 | SCREW No. 8-16 X 9/16 TORX pan head (zinc) |
| 10200134 | SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc) |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200142 | SCREW 5/16-18 X 3/4 hex flange with internal hex SEMS, hardened (zinc) |
| 10200147 | SCREW No. 10-24 X 3/4 TORX socket button head SEMS (black) |
| 10200154 | SCREW No. 8 X 3/4 TORX SEMS pan head (stainless) |
| 10200156 | SCREW No. 8-32 X 3/8 phillips round head (stainless steel) |
| 10200205 | SCREW No. 10 X 1/2 pan head TORX, hardened (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200225 | SCREW 8-32 X 1/4 TORX, self tapping, (zinc) |
| 10200258 | SCREW 1/4-20 X 1-1/4 SEMS hex socket head (Grade 8) (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200414 | SCREW 5/16-18 X 5/8 button head SEMS TORX T-40, with lockpatch (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200442 | SCREW No. 8-32 X 5/16 tri-lobe thread forming (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10300047 | WASHER retention, 0.145 ID X 0.34 OD (carbon spring steel) |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500017 | SCREW No. 10 X 3/8 pan head, TORX, plastite, hardened (zinc) |
| 10500022 | SCREW 5/16-18 X 1-1/2 SEMS hex socket head (Grade 8) (zinc) |
| 10500034 | SCREW 1/4-20 X 2-1/8 TORX button head (polish) |
| 10500036 | SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8) (black) |
| 10500108 | SCREW 5/16-24 X 2.33, hex socket head, with lock (Grade 8) (zinc) |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch (Grade 5) |
| 12600049 | SCREW No. 10-24 X 3/4 pan head torx, with lockpatch (Grade 8) (zinc) |
| 1332 | SCREW No. 5/16 X 2-1/4 socket button head with lock patch (Grade 8) |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2482 | SCREW 6-32 X 5/16 socket button head (stainless) |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2647B | SCREW No. 10-24 X 3/4 socket head, self-locking |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2724 | SCREW No. 10-16 X 1/2 (Grade 2) (chrome) |
| 2968 | SCREW No. 8-32 X 3/4 TORX pan head |
| 2998 | SCREW 5/16-18 X 1-1/8 hex head (Grade 5) |
| 3048 | SCREW No. 10-24 X 3/8 hex button head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3088 | SCREW 1/4-20 X 1-1/2 socket button head (chrome) |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3391 | SCREW 1/4-20 X 7/16 hex flange head |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 3514 | SCREW No. 8-32 X 1 fillister head (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3546 | BOLT 5/16-18 X 5/8 hex flange head, with lockpatch |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3574 | SCREW 1/4-20 X 3/4 flange |
| 3588 | SCREW 1/4-20 X 1/2 hex flange head |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3634 | SCREW 5/16-18 X 1.0 self-tapping |
| 3655A | SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch (Grade 8) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3910 | SCREW 1/2-20 X 2-1/4 hex head full thread (Grade 5) (zinc) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 41500020 | SCREW M8 X 1.25 X 30mm TORX, with threadlocker, T40 (zinc) |
| 4194 | SCREW No. 10-24 X 5/16 TORX pan head (Grade 5) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 42882-06 | SCREW M4 X 0.7 X 16mm (polished) |
| 4293 | SCREW 1/4-20 X 1-1/8 TORX button head |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 4365 | SCREW 1/4-20 X 1/2 socket button head (Grade 8) |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 4617 | SCREW 1/4-20 X 5/8 hex socket head full thread (Grade 8) |
| 4622 | SCREW 1/2-13 X 2-1/4 hex flange with lockpatch |
| 4631 | SCREW 1/2-20 X 1-3/16 hex socket head (grade 8) |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4678 | SCREW 1/2-13 X 1-3/4 hex flange |
| 4685 | SCREW 3/8-16 X 1 hex flange |
| 4686 | SCREW 3/8-16 X 4 hex |
| 4687 | SCREW 3/8-16 X 1 hex socket, SEMS |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4696 | SCREW machine, pan lock |
| 4697 | SCREW machine, flat / lock |
| 4699 | SCREW button, TORX / lock |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4775 | SCREW 3/8-16 X 1-1/4 hex head (Grade 5) |
| 4790 | SCREW No. 10-16 X 3/4 TORX head, self-tapping |
| 4795 | SCREW hex / lock |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 4930 | SCREW No. 10-24 X 3/4 hex head (zinc plate) (Grade 2) |
| 4976 | SCREW 1/4-20 X 3/4 TORX socket button head, stainless steel |
| 4991 | SCREW M6 torx pan head, |
| 6019 | WASHER 3/8 X 29/32 X 1/16 |
| 6026 | WASHER 3/8 X 7/8 X 7/64 |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6099 | WASHER 1/4 X 7/16 X 1/16 |
| 6109 | WASHER 5/16 X 11/16 X 1/8 |
| 6113 | WASHER 1/2 X 13/16 X 1/32 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6127 | WASHER 13/32 X 13/16 X 5/64 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6235 | WASHER 1/4 X 23/32 X 1/16 |
| 6294 | WASHER 3/8 X 1-1/8 X 7/32 |
| 6334 | WASHER 7/16 X 29/32 X 1/16 |
| 6408HB | WASHER 25/64 X 1.0 X 7/64 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6594 | WASHER 5/8 X 1-1/8 X 3/32 |
| 6645 | WASHER 11/32 X 1-1/32 X 1/8 |
| 6701 | WASHER 3/8 X 13/16 X 1/16 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 6718 | WASHER 1/2 X 1-1/16 X 3/32 |
| 6771A | WASHER 5/16 X 1/2 X 1/16 |
| 67721-48 | SCREW 8-32 X 1/4 phillips head self-tapping |
| 68026-99 | SCREW No. 8-32 X 1 Phillips pan head (stainless) |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 68120-00 | SCREW No. 8-32 x 1-2 TORX head, self-tapping |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7068 | LOCKWASHER 1/2 |
| 7069 | LOCKWASHER No. 10 |
| 7130W | LOCKWASHER 3/8 internal tooth |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7331 | ACORN NUT 5/16-24 |
| 7358 | NUT M6 X 1 flange |
| 7415A | WASHER 11/32 X 7/8 X 1/8 rubber |
| 7495 | NUT M6 X 1.0 flange lock |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7576 | NUT 5/16-18 UNC keps flange |
| 7593 | NUT 5/16-24 flange |
| 7606 | LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome) |
| 76259-86 | NUT 1/2-20 hex jam |
| 7667 | NUT 3/8-16 X 9/32 X 9/16 nylon insert |
| 7683 | LOCKNUT 1/4-28 X 5/16 X 7/16 |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7739 | LOCKNUT 5/16-18 X 11/32 X 1/2 |
| 7763W | JAMNUT 5/16-18 X 3/16 X 1/2 |
| 7768W | LOCKNUT 1/2-13 X 19/32 X 3/4 |
| 7783 | NUT 3/8-16 X 5/16 X 9/16 (Grade 2) |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7823 | NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 7904 | ACORN NUT 0.312-24 (stainless) |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 7992 | ACORN NUT 5/16-18 |
| 8108 | SPEEDNUT 1/4-20 |
| 8308 | SCREW hex, SEMS / lock |
| 8313 | SCREW hex, SEMS / lock |
| 8314 | SCREW hex flange |
| 8319 | SCREW hex flange / lock |
| 83312-09 | NUT bearing retainer |
| 83323-09 | BOLT bearing cap |
| 8335 | LOCKWASHER ext. tooth |
| 8359 | SCREW, SHOULDER 1/4-20, stainless steel |
| 8360 | SCREW 5/16-18 X 7/8 TORX button head SEMS, with lockpatch |
| 8365 | SCREW No. 6-32 X 1/4, socket head, with lockpatch (stainless) |
| 8369 | BOLT 5/16-18 X 1-1/2 hex head, with lockpatch (Grade 5) |
| 84850-92 | NUT 3/4-24 X 5/32 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 869 | SCREW 1/4-20 X 1-1/4 socket button head (Grade 8) |
| 882 | SCREW 1/4-20 X 7/8 knurled head, with washer (Grade 8) |
| 8972 | WASHER 1-1/4 X 1-53/64 X 1/8 |
| 90844-80 | ACORN NUT No. 10 X 3/8 flange (Grade 2) |
| 923 | SCREW 1/4-20 X 3/4 socket pan head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 2 | 16200395 | ENGINE ASSEMBLY, shortblock, with 9180072, crankcase, flywheel assembly, camshaft support plate assembly, oil pump, engine balancer and cylinder studs (black granite) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 16500599 | GASKET, cylinder head (4.075 in) (2) | FLHTCUTGSE |
| 6 | 16500499 | CYLINDER HEAD, rear, with 65324-83B, 10900015A, 14101169, 18000016, 18000034, 18100043, 18100044, 18100045,18100060, 18400073, 68120-00 (TWIN-COOLED™) (black granite) | FLHTCUTGSE |
| 6 | 16500509 | CYLINDER HEAD, front, with 65324-83B, 10900015A, 14101169, 18000016, 18000034, 18100043, 18100044, 18100045,18100060, 18400073, 68120-00 (TWIN-COOLED™) (black granite) | FLHTCUTGSE |
| 8 | 16800121 | CYLINDER, front, with 16589-99A (4.075 in) (black granite) | FLHTCUTGSE |
| 8 | 16800123 | CYLINDER, rear, with 16589-99A (4.075 in) (black granite) | FLHTCUTGSE |
| 16 | 25700983 | GASKET KIT, top end | FLHTCUTGSE |
| 16 | 25700984 | GASKET KIT, engine overhaul | FLHTCUTGSE |
| 17 | 14101169 | MEDALLION (2) | FLHTCUTGSE |
| 18 | 68120-00 | SCREW (4) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 29 | 25701055 | ROCKER COVER ASSEMBLY, lower, with 25700425 (red) (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 21900082 | PISTON AND RINGS ASSEMBLY, with 22097-99, 22000061 and 22100006 (4.075 in) (2) | FLHTCUTGSE |
| 4 | 22000079 | PISTON RING SET (4.075 in) (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 24400187 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 15, 18, 20, 21 and 22 (black granite) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 25400273 | CAMSHAFT | FLHTCUTGSE |
| 23 | 25600111 | COVER, timer cover (black) | FLHTCUTGSE |
| 27 | 62400233 | GEROTOR ASSEMBLY | FLHTCUTGSE |
| 29 | 62400245 | COVER, oil pump assembly, with 62400205 | FLHTCUTGSE |
| 30 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body (TWIN-COOLED™) Also order 62400055 | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 869 | SCREW (3) | FLHTCUTGSE |
| 2 | 923 | SCREW (2) | FLHTCUTGSE |
| 3 | 3048 | SCREW (2) | FLHTCUTGSE |
| 5 | 14101119 | INSERT, air cleaner cover | FLHTCUTGSE |
| 6 | 29000148 | BACKPLATE ASSEMBLY, air cleaner (black) | FLHTCUTGSE |
| 7 | 29000149 | GASKET | FLHTCUTGSE |
| 8 | 29400267 | ELEMENT, air filter | FLHTCUTGSE |
| 9 | 29400336 | HOSE, front | FLHTCUTGSE |
| 10 | 29400337 | HOSE, rear | FLHTCUTGSE |
| 11 | 61300721 | RAINSOCK | FLHTCUTGSE |
| 12 | 61300750 | COVER, with label (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 11900172 | O-RING | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10500108 | SCREW (zinc) | FLHTCUTGSE |
| 6 | 7904 | ACORN NUT | FLHTCUTGSE |
| 7 | 33600251 | SHIFTER PEG (chrome) (2) | FLHTCUTGSE |
| 13 | 33814-98A | SHIFTER ROD | FLHTCUTGSE |
| 14 | 33600061A | LEVER, heel shifter (long) (chrome_ | FLHTCUTGSE |
| 16 | 33600060A | LEVER, toe shifter (short) (chrome) | FLHTCUTGSE |
| 30 | 3275 | SCREW (2) | FLHTCUTGSE |
| 35 | 33900180 | LEVER, shifter rod | FLHTCUTGSE |
| 36 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 9, 10, 11, 12, 21, 22, 23, 24, 25, 26, 27, 28, 29, 34, 7340, 35260-06B, input shaft, countershaft and gears (black granite) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 28 | 25800123 | INSERT, side cover, six speed | FLHTCUTGSE |
| 30 | 25800124 | SIDE COVER ASSEMBLY, transmission, with 25800123 and 25800054 (chrome) | FLHTCUTGSE |
| 33 | 37200131C | SECONDARY CLUTCH ACTUATOR, with 4890 | ALL |
| Index No. | Part No. | Description | Model(s) |
| 18 | 34700092 | TRANSMISSION CASE SUBASSEMBLY, with 3594, 8963, 8967A, 9701A, 11161, 12074, 16574-99A, 35082-07, 35122-06A, 35186-06, 35241-06, 35242-06, 66290-06, 83595-11 and 11000101 (black granite) | FLHTCUTGSE |
| 20 | 62700198 | DIPSTICK ASSEMBLY, with 11120 (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 26 | 35000199A | GEAR PACK, FORKS AND DRUM SUBASSEMBLY, with 1, 2, 3, 4, 7, 8, 10, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 35260-06B, shifter camshaft and forks (black granite) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 25701157 | COVER, clutch (chrome) | FLHTCUTGSE |
| 19 | 25700679 | GASKET, primary housing to case | FLHTCUTGSE |
| 24 | 26500026 | HOSE, vent | FLHTCUTGSE |
| 25 | 26500027 | KIT, VENT, primary, with 11105, 25700378, 26500026 and clutch cover seal | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTCUTGSE |
| 3 | 6099 | WASHER (2) | FLHTCUTGSE |
| 7 | 42010-06B | BOLT, BANJO | FLHTCUTGSE |
| 8 | 42882-06 | SCREW (set of 2) | FLHTCUTGSE |
| 11 | 37200131C | SECONDARY CLUTCH ACTUATOR with 4890 | FLHTCUTGSE |
| 12 | 36700170A | MASTER CYLINDER ASSEMBLY, clutch, with 36700132, 36700172A, 41700367, 41700439 (chrome) | FLHTCUTGSE |
| 13 | 41700439 | MASTER CYLINDER COVER KIT, with 42856-06, 42882-06 and 36700131 | FLHTCUTGSE |
| 16 | 36700172A | LEVER ASSEMBLY, hand, with 42105-06A and bushing (chrome) | FLHTCUTGSE |
| 17 | 42105-06A | PIVOT PIN KIT, with retaining ring | FLHTCUTGSE |
| 19 | 37200425 | CLUTCH ACTUATION KIT, with 41751-06A, 42010-06B, 36700170A, 37200129 and 37200131C | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4293 | SCREW (2) | FLHTCUTGSE |
| 3 | 42010-06B | BOLT, BANJO, brake line | FLHTCUTGSE |
| 6 | 42123-08 | COVER KIT, master cylinder, with 42856-06, 42857-06B and 42882-06 | FLHTCUTGSE |
| 9 | 42882-06 | SCREW (2) | FLHTCUTGSE |
| 10 | 42271-06A | BRAKE LEVER ASSEMBLY, front, with 42860-06B (chrome) | FLHTCUTGSE |
| 15 | 42119-08 | CLAMP, master cylinder and clutch (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 92448-11 | MIRROR KIT, short, convex, chrome (right) | FLHTCUTGSE |
| 1 | 92447-11 | MIRROR KIT, short, convex, chrome (left) | FLHTCUTGSE |
| 2 | 6771A | WASHER (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 50600340 | PAD, with 3340, 6421 (chrome) | FLHTCUTGSE |
| 26 | 50600067 | LEVER ASSEMBLY, footbrake, with 11000050 | FLHTCUTGSE |
| 27 | 3340 | SCREW | FLHTCUTGSE |
| 28 | 6421 | WASHER | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 41600352 | BRACKET, kit, guide bracket | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 50600426 | KIT, BRAKE PEDAL SERVICE, with brake pedal pad and 10200422 | FLHTCUTGSE |
| 35 | 10200422 | SCREW | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 42019-06 | COVER (chrome) (2) | FLHTCUTGSE |
| 5 | 46369-10 | CALIPER ASSEMBLY, left, with 41854-08, 42019-06, 42849-08, 42852-06A (black) | FLHTCUTGSE |
| 5 | 42938-08 | CALIPER ASSEMBLY, left, with 41854-08, 42019-06, 42849-08, 42852-06A (silver) | FLHTCUTGSE |
| 5 | 46368-10 | CALIPER ASSEMBLY, right, with 41854-08, 42019-06, 42849-08, 42852-06A (black) | FLHTCUTGSE |
| 5 | 42939-08 | CALIPER ASSEMBLY, right, with41854-08, 42019-06, 42849-08, 42852-06A (silver) | FLHTCUTGSE |
| 7 | 44935-06 | MEDALLION (2) **RESTRICTED SALES PART** | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 41500020 | SCREW (10) | FLHTCUTGSE |
| 8 | 42300112 | VALVE STEM | FLHTCUTGSE |
| 9 | 42300093 | VALVE CAP | FLHTCUTGSE |
| 12 | 43100045 | TIRE | FLHTCUTGSE |
| 18 | 14101128 | MEDALLION (red) | FLHTCUTGSE |
| 19 | 43300703 | WHEEL, cast, 19 inch, 5 spoke (gray, satin ice) | FLHTCUTGSE |
| 19 | 43300737 | WHEEL, cast, 19 inch, 5 spoke (black) | FLHTCUTGSE |
| 20 | 44583-08 | SPACER (right only) | FLHTCUTGSE |
| 22 | 42300001 | WEIGHT, 5 g, cast wheels (black) (3) | FLHTCUTGSE |
| 24 | 10201001 | SCREW | FLHTCUTGSE |
| 25 | 41500017 | BRAKE DISC (2) | FLHTCUTGSE |
| 26 | 40786-08 | COVER, wheel speed sensor | FLHTCUTGSE |
| 27 | 41500018 | BUSHING (10) | FLHTCUTGSE |
| 28 | 41500019 | SPRING (10) | FLHTCUTGSE |
| 29 | 11900155 | O-RING | FLHTCUTGSE |
| 30 | 42300114 | MONITOR, TIRE PRESSURE (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 30 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHTCUTGSE |
| 31 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 31 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 43200046 | TIRE (2) | FLHTCUTGSE |
| 2 | 14101125 | MEDALLION | FLHTCUTGSE |
| 3 | 42300112 | VALVE STEM (2) | FLHTCUTGSE |
| 4 | 42300093 | VALVE CAP (2) | FLHTCUTGSE |
| 5 | 42300118 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300114 (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 5 | 42300119 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201001, 11900155, 42300112, 42300115 (Japan) | FLHTCUTGSE |
| 6 | 40900663 | WHEEL, rear, 5 spoke, 18 in (gray, satin ice) (2) | FLHTCUTGSE |
| 6 | 40900724 | WHEEL, rear, 5 spoke, 18 in (gloss black) (2) | FLHTCUTGSE |
| 7 | 42500016 | HUB CAP (black) (2) | FLHTCUTGSE |
| 7 | 42500013 | HUB CAP (white) (2) | FLHTCUTGSE |
| 9 | 42300001 | WEIGHT, 5 g, cast wheels (black) (12) | FLHTCUTGSE |
| 10 | 11900155 | O-RING | FLHTCUTGSE |
| 11 | 42300114 | MONITOR, TIRE PRESSURE (Australia, Canada, Domestic, England, HD1, HD2) | FLHTCUTGSE |
| 11 | 42300115 | MONITOR, TIRE PRESSURE (Japan) | FLHTCUTGSE |
| 12 | 10201001 | SCREW | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 45600018 | COVER ASSEMBLY, fork tube (left) | FLHTCUTGSE |
| 8 | 45600017 | COVER ASSEMBLY, fork tube (right) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 59482-00 | REFLECTOR, left (amber) | FLHTCUTGSE |
| 12 | 59481-00 | REFLECTOR (amber) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 16 | 57200243 | DEFLECTOR, air (right) | FLHTCUTGSE |
| 16 | 57200256 | DEFLECTOR, air (left) | FLHTCUTGSE |
| 29 | 57200245 | KIT-AIR DEFLECTOR, with 3787, 6036, 8108, 8194, 10300222, 57200243, 57200256 | FLHTCUTGSE |
| 30 | 10300222 | WASHER (4) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 54000144 | SHOCK ABSORBER, complete (2 shocks) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 47200001B | SUB-FRAME ASSEMBLY, rear | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 52589-09A | MOUNTING HARDWARE KIT, seat, with 3546, 3574, 7531, 7716, 52567-93D, 52585-09, 52590-09 | FLHTCUTGSE |
| 7 | 52000441 | SEAT, with 51652-97A | FLHTCUTGSE |
| 8 | 51652-97A | SEAT BRACKET | FLHTCUTGSE |
| 9 | 52300651 | BACKREST ASSEMBLY, with 6026, 7531, 52300121, 52300122, 52300123 and 52300127 (black) | FLHTCUTGSE |
| 15 | 52567-93D | BACKREST SUPPORT ASSEMBLY | FLHTCUTGSE |
| 16 | 3546 | SCREW | FLHTCUTGSE |
| 17 | 52585-09 | BRACKET (intermediate) | FLHTCUTGSE |
| 18 | 3574 | SCREW | FLHTCUTGSE |
| 19 | 52590-09 | RIDER BACKREST MOUNTING BRACKET | FLHTCUTGSE |
| 20 | 7716 | NUT | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 33130-07A | WEAR PEG (2) | FLHTCUTGSE |
| 7 | 50501220 | BOTTOM ASSEMBLY, with hinge (right) | FLHTCUTGSE |
| 9 | 50501218 | INSERT ASSEMBLY, rider (right) | FLHTCUTGSE |
| 10 | 50501221 | BOTTOM ASSEMBLY, with hinge (left) | FLHTCUTGSE |
| 11 | 50501219 | INSERT ASSEMBLY, rider, left | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 51023-07 | WAVE SPRING (4) | FLHTCUTGSE |
| 3 | 4631 | SCREW (4) | FLHTCUTGSE |
| 4 | 51501-07 | SPRING (2) | FLHTCUTGSE |
| 7 | 50501210 | HOUSING, passenger (left) (chrome) (1) | FLHTCUTGSE |
| 7 | 50501211 | HOUSING, passenger (right) (chrome) (1) | FLHTCUTGSE |
| 8 | 8861 | BALL (2) | FLHTCUTGSE |
| 9 | 44430-04 | PAD, rubber (all except Canada, Domestic) (2) | FLHTCUTGSE |
| 10 | 50998-07 | ARM, rotating (right) (chrome) | FLHTCUTGSE |
| 10 | 51006-07A | ARM, rotating (left) (chrome) (not shown) | FLHTCUTGSE |
| 11 | 51007-07 | SUPPORT, footboard (chrome) (2) | FLHTCUTGSE |
| 12 | 50501154 | FOOTBOARD, upper, passenger (left) (chrome) | FLHTCUTGSE |
| 12 | 50501155 | FOOTBOARD, upper, passenger (right) (chrome) | FLHTCUTGSE |
| 13 | 50500397 | ARM, main mounting assembly (chrome) (4) | FLHTCUTGSE |
| 14 | 2548 | SCREW (bright polish) (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4617 | SCREW (4) | FLHTCUTGSE |
| 2 | 11304 | RETAINING RING (2) | FLHTCUTGSE |
| 3 | 45041-01A | PIN, clevis (bright silver) (2) | FLHTCUTGSE |
| 4 | 50351-03 | MOUNT, footpeg support (chrome) (2) | FLHTCUTGSE |
| 5 | 50912-72 | WASHER, spring (2) | FLHTCUTGSE |
| 6 | 50501293 | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 7 | 51009-02A | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 8 | 2708A | SCREW (2) | FLHTCUTGSE |
| 9 | 50501189 | FOOTPEG LOWER (left) (chrome) (not shown) | FLHTCUTGSE |
| 9 | 50501191 | FOOTPEG LOWER (right) (chrome) | FLHTCUTGSE |
| 10 | 50501181 | FOOTPEG UPPER (left) (not shown) | FLHTCUTGSE |
| 10 | 50501184 | FOOTPEG UPPER (right) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 58900370 | FENDER (unpainted) | FLHTCUTGSE |
| 1 | 58900371ELZ | FENDER (Black Stardust) | FLHTCUTGSE |
| 1 | 58900371ELW | FENDER (Blizzard White Pearl) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 10 | 67900205A | REFLECTOR (red) (Australia, Canada, England, HDI, Japan) (2) | FLHTCUTGSE |
| 13 | 83000053ELW | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 13 | 83000053ELZ | FENDER ASSEMBLY, rear, with 4, 5 and 6 (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 83000055ELW | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 83000055ELZ | FENDER ASSEMBLY, rear, with 4, 5 and 6 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 7 | 61000634EMN | FUEL TANK, with 14101322 and 14100323 (Blizzard White Pearl with Lightning Silver and Stormcloud) | FLHTCUTGSE |
| 7 | 61000634EMO | FUEL TANK, with 14101322 and 14100323 (Black Stardust with Magnetic Gray and Wicked Red) | FLHTCUTGSE |
| 11 | 14101322 | MEDALLION (left) | FLHTCUTGSE |
| 11 | 14101323 | MEDALLION (right) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 66373-06 | BATTERY, 3V, CR2032 | FLHTCUTGSE |
| 11 | 90300106 | REMOTE CONTROL FOB, with 66373-06 (all except Japan) (specify key number) (2) | FLHTCUTGSE |
| 11 | 90300107 | REMOTE CONTROL FOB, with 66373-06 (Japan only) (specify key number) (2) | FLHTCUTGSE |
| 14 | 69214-08 | CONSOLE ASSEMBLY, with hinge pin | FLHTCUTGSE |
| 16 | 61293-08A | DOOR KIT, console, with 10200442 | FLHTCUTGSE |
| 29 | 14101133 | INSERT, console pod | FLHTCUTGSE |
| 32 | 61007-10 | INSERT, fuel door **RESTRICTED SALES PART** | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 69201862A | WIRING HARNESS, fairing (used with single headlamp) (Domestic, Japan, Australia) | FLHTCUTGSE |
| 8 | 69202377 | WIRING HARNESS, fairing (used with dual headlamp) (England, HDI) | FLHTCUTGSE |
| 11 | 70900773B | INSTRUMENT MODULE, mph, with 12100020 and 12400034 (California, Domestic) (chrome) | FLHTCUTGSE |
| 11 | 70900777B | INSTRUMENT MODULE, km/h, with 12100020 and 12400034 (Australia, Canada, HDI, Japan) (chrome) | FLHTCUTGSE |
| 11 | 70900778B | INSTRUMENT MODULE, dual, mph/km/h, with 12100020 and 12400034 (England) (chrome) | FLHTCUTGSE |
| 12 | 70900774 | FUEL GAUGE (chrome) | FLHTCUTGSE |
| 13 | 70900775 | VOLTMETER (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 67800257 | LAMP, amber, LED, turn signal (2) | FLHTCUTGSE |
| 12 | 73333-10 | TURN SIGNAL MOUNT, directional (black) (2) | FLHTCUTGSE |
| 13 | 67800259 | WIRE HARNESS, 3-wire (Canada, Domestic) | FLHTCUTGSE |
| 13 | 69200601 | WIRE HARNESS, 2-wire (Australia) | FLHTCUTGSE |
| 14 | 67800251 | LENS (2) | FLHTCUTGSE |
| 20 | 5118 | SEAL PIN (Canada, Domestic) (4) | FLHTCUTGSE |
| 20 | 5118 | SEAL PIN (Australia) (8) | FLHTCUTGSE |
| 22 | 68000264A | HOUSING (black) (2) | FLHTCUTGSE |
| 22 | 68000265A | HOUSING (chrome) (2) | FLHTCUTGSE |
| 23 | 68000203 | AUXILIARY/FOG LAMP, LED (chrome) | FLHTCUTGSE |
| 23 | 68000239 | AUXILIARY/FOG LAMP, LED (black) | FLHTCUTGSE |
| 24 | 68000102 | BRACKET, auxiliary/fog lamp (left) (black) (Australia, Canada, Domestic) | FLHTCUTGSE |
| 25 | 68000103 | BRACKET, auxiliary/fog lamp (right) (black) (Australia, Canada, Domestic) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4976 | SCREW (2) | FLHTCUTGSE |
| 13 | 10500034 | SCREW | FLHTCUTGSE |
| 15 | 61300504ELW | BEZEL, air duct, outer fairing (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 15 | 61300504ELZ | BEZEL, air duct, outer fairing (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 16 | 6383 | WASHER (3) | FLHTCUTGSE |
| 18 | 57400373 | WINDSHIELD (smoked) | FLHTCUTGSE |
| 20 | 61400224 | TRIM, windshield with 10300036, 6549 (used on Blizzard White Pearl) | FLHTCUTGSE |
| 20 | 57400377ELZ | TRIM, windshield with 10300036, 6549 (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 22 | 67700320A | HEADLAMP, LED (used on Blizzard White Pearl) | FLHTCUTGSE |
| 22 | 67700339A | HEADLAMP, LED (used on Black Stardust) | FLHTCUTGSE |
| 26 | 10300036 | PAD (3) | FLHTCUTGSE |
| 27 | 6549 | PAD (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 29200088A | AIR DUCT, inner fairing, with 1110038, 29200087A | FLHTCUTGSE |
| 13 | 11100105 | PAD | FLHTCUTGSE |
| 14 | 61400622 | TRIM (black tint with chrome) | FLHTCUTGSE |
| 14 | 61400614 | TRIM (black) | FLHTCUTGSE |
| 15 | 29200087A | BEZEL, air duct,inner fairing, with 12200064 | FLHTCUTGSE |
| 16 | 57001142ELY | INNER FAIRING ASSEMBLY, with 8, 9, 10, 14, 21, 22 and 28 (Stormcloud) | FLHTCUTGSE |
| 16 | 57001142ELZ | INNER FAIRING ASSEMBLY, with 8, 9, 10, 14, 21, 22 and 28 (Black Stardust) | FLHTCUTGSE |
| 17 | 57000186A | BRACKET, support, inner fairing | FLHTCUTGSE |
| 29 | 76000561ELY | DOOR, media compartment, outer (Stormcloud) | FLHTCUTGSE |
| 29 | 76000561ELZ | DOOR, media compartment, outer (Black Stardust) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 57001145ELZ | SKIRT, outer fairing (black) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 11 | 71400033 | SWITCH ASSEMBLY, with 71400031, 71400035, 71400036, 71400037 | FLHTCUTGSE |
| 12 | 71400032 | SWITCH PAK, illuminated, fog with 71400031, 71400034, 71400037 (Australia, Canada, Domestic) | FLHTCUTGSE |
| 13 | 70900138 | HOLE PLUG, fairing cap, (England, HDI, HD2, Japan) | FLHTCUTGSE |
| 14 | 70900392ELY | DASH PANEL, fairing (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 14 | 70900392ELZ | DASH PANEL, fairing (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 16 | 71400034 | SWITCH, auxiliary/fog lamps, illuminated (Australia, Canada, Domestic) | FLHTCUTGSE |
| 17 | 71400037 | SWITCH, dash panel base, illuminated (Australia, Canada, Domestic) (2) | FLHTCUTGSE |
| 18 | 71400037 | SWITCH, dash panel base, illuminated (England, HDI, HD2, Japan) | FLHTCUTGSE |
| 19 | 14101072 | MEDALLION | FLHTCUTGSE |
| 20 | 71400035 | SWITCH BUTTON, illuminated, lock | FLHTCUTGSE |
| 21 | 71400035 | SWITCH BUTTON, illuminated, unlock | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 17 | 57100291ELW | CAP, fairing (lower) (left) (Blizzard White Pearl) | FLHTCUTGSE |
| 17 | 57100291ELZ | CAP, fairing (lower) (left) (Black Stardust) | FLHTCUTGSE |
| 18 | 57100313ELW | FAIRING, with 57100170 (lower) (left) (Blizzard White Pearl) | FLHTCUTGSE |
| 18 | 57100313ELZ | FAIRING, with 57100170 (lower) (left) (Black Stardust) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 57100292ELW | CAP, fairing (lower) (right) (Blizzard White Pearl) | FLHTCUTGSE |
| 19 | 57100292ELZ | CAP, fairing (lower) (right) (Black Stardust) | FLHTCUTGSE |
| 20 | 57100314ELW | FAIRING, with 57100171 (lower) (right) (Blizzard White Pearl) | FLHTCUTGSE |
| 20 | 57100314ELZ | FAIRING, with 57100171 (lower) (right) (Black Stardust) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 71500344 | COVER, rear, left hand control | FLHTCUTGSE |
| 3 | 71500529 | SWITCH PACK, left hand control, with 71500166, 71500167, 71500224, 71500226 and 71500533 | FLHTCUTGSE |
| 6 | 71500533 | SWITCH CAP, horn and traction control | FLHTCUTGSE |
| 7 | 71500166 | SWITCH CAP, headlamp, high/low | FLHTCUTGSE |
| 8 | 71500339 | COVER, front, left hand control | FLHTCUTGSE |
| 9 | 71500167 | SWITCH CAP, left turn signal | FLHTCUTGSE |
| 10 | 69200630 | WIRE HARNESS, left hand control jumper, with 72908-11, 69200306, 69200307 and 69200308 | FLHTCUTGSE |
| 13 | 71500224 | SWITCH CAP, cruise | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 71500554 | SWITCH PACK, right hand control, with 71500169, 71500225, 71500227, 71500484 and 71500553 | FLHTCUTGSE |
| 2 | 71500350 | COVER ASSEMBLY, with screws (right) (chrome) | FLHTCUTGSE |
| 3 | 69200631 | WIRE HARNESS, jumper (right) with 5118, 72906-11, 72908-11, 69200305, 69200306, 69200307, 69200308 | FLHTCUTGSE |
| 8 | 71500227 | SWITCH CAP, audio select | FLHTCUTGSE |
| 9 | 71500225 | SWITCH CAP, push-to-talk (ptt) | FLHTCUTGSE |
| 10 | 71500484 | SWITCH CAP, right turn signal | FLHTCUTGSE |
| 11 | 71500341 | COVER, right (chrome) | FLHTCUTGSE |
| 12 | 71500553 | SWITCH CAP, right turn signal | FLHTCUTGSE |
| 13 | 71500169 | SWITCH CAP, run/stop | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 55800214 | HANDLEBAR (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 72912-01BK | HOUSING, two-way, socket (black) | FLHTCUTGSE |
| 5 | 72991-01 | TERMINAL, socket, 18-22 AWG | FLHTCUTGSE |
| 7 | 56100329 | END CAP (chrome) (2) | FLHTCUTGSE |
| 8 | 56100326 | HAND GRIP (right) (chrome) | FLHTCUTGSE |
| 9 | 56100325 | HAND GRIP (left) (chrome) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (6) | FLHTCUTGSE |
| 6 | 72230-98 | HOUSING, three-way socket (black) (2) | FLHTCUTGSE |
| 8 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (6) | FLHTCUTGSE |
| 12 | 69200599 | JUMPER, harness, tail lamp with 72213-94, 72230-98, 72610-08, 73154-96BK, 73191-96 (2) | FLHTCUTGSE |
| 13 | 67800442 | LENS ASSEMBLY, smoked with 68026-99 (2) | FLHTCUTGSE |
| 14 | 67801156 | TAILLIGHT ASSEMBLY, with 67800442, 69200599 (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 25 | 64900946 | MUFFLER (left) (chrome) (California, Canada, Domestic) | FLHTCUTGSE |
| 25 | 64900295 | MUFFLER (left) (chrome) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 26 | 64900946 | MUFFLER (right) (chrome) (California, Canada, Domestic) | FLHTCUTGSE |
| 26 | 64900294 | MUFFLER (right) (chrome) (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| 38 | 66078-06 | CLAMP | FLHTCUTGSE |
| 39 | 8146 | NUT CLIP (4) | FLHTCUTGSE |
| 40 | 10200384 | SCREW (4) | FLHTCUTGSE |
| 41 | 65100190 | END CAP, muffler | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHTCUTGSE |
| 18 | 72491-07GY | HOUSING, 16-way socket (gray) | FLHTCUTGSE |
| 28 | 72066-06A | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 29 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 30 | 72272-07 | TERMINAL, socket, 14-16 AWG (2) | FLHTCUTGSE |
| 31 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHTCUTGSE |
| 32 | 69202412 | DUST CAP (Models without a TCU) (not shown) (see note) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| 26 | 12500015 | CABLE STRAP | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| 15 | 72124-94GY | HOUSING, four-way pin (gray) | FLHTCUTGSE |
| 16 | 72144-94 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 17 | 72195-94 | SEAL PIN (2) | FLHTCUTGSE |
| 18 | 72190-94 | TERMINAL, pin, 16-18 AWG (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| 3 | 72512-07BK | HOUSING, three-way socket (black) | FLHTCUTGSE |
| 6 | 72490-07GY | HOUSING, 12-way pin (gray) | FLHTCUTGSE |
| 10 | 69201765 | HARNESS, wireless headset interface module (WHIM) USB cable | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE | |
| 12 | 69200600 | FUSE BLOCK, five-way socket relay (3) | FLHTCUTGSE |
| 45 | 72427-00 | TERMINAL, socket, 16-22 AWG (8) | FLHTCUTGSE |
| 46 | 9937 | TERMINAL, socket, 14-18 AWG (6) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202294 | MAIN WIRING HARNESS (Domestic, California, Canada, England, HDI, Japan) | FLHTCUTGSE | |
| 69202295 | MAIN WIRING HARNESS (Australia) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69201862A | WIRING HARNESS, fairing (Australia, Canada, Domestic, Japan) (used with single headlamp) | FLHTCUTGSE | |
| 6 | 72225-09 | TERMINAL, pin, 14 AWG (2) | FLHTCUTGSE |
| 18 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHTCUTGSE |
| 19 | 72397-98 | SEAL PIN (4) | FLHTCUTGSE |
| 20 | 72382-98BK | HOUSING, 23-way socket (black) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69201862A | WIRING HARNESS, fairing (Australia, Canada, Domestic, Japan) (used with single headlamp) | FLHTCUTGSE | |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 11 | 74104-98BK | HOUSING, four-way pin (black) | FLHTCUTGSE |
| 20 | 74144-98 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 21 | 74190-98 | TERMINAL, pin, 16-20 AWG (3) | FLHTCUTGSE |
| 22 | 74195-98 | TERMINAL, pin, 16-20 AWG | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202377 | WIRING HARNESS, fairing (England, HDI) (used with dual headlamp) | FLHTCUTGSE | |
| 14 | 72225-09 | TERMINAL, pin, 14 AWG (2) | FLHTCUTGSE |
| 15 | 72382-98BK | HOUSING, 23-way socket (black) | FLHTCUTGSE |
| 16 | 72381-98 | TERMINAL, socket, 16-20 AWG (19) | FLHTCUTGSE |
| 17 | 72381-98 | SEAL PIN (4) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 69202377 | WIRING HARNESS, fairing (England, HDI) (used with dual headlamp) | FLHTCUTGSE | |
| 8 | 72168-07 | TERMINAL, socket, 18-20 AWG (4) | FLHTCUTGSE |
| 11 | 74195-98 | TERMINAL, four-way pin | FLHTCUTGSE |
| 20 | 74104-98BK | HOUSING, four-way pin (black) | FLHTCUTGSE |
| 21 | 74144-98 | SECONDARY LOCK, four-way pin | FLHTCUTGSE |
| 22 | 74190-98 | TERMINAL, pin, 16-20 AWG (3) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 6 | 72489-07GY | HOUSING, 12-way socket (gray) | FLHTCUTGSE |
| 8 | 69202375 | CONNECTOR, four-way Molex | FLHTCUTGSE |
| 10 | 69202376 | TERMINAL, Molex, female (4) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 72489-07GY | HOUSING, eight-way socket (gray) | FLHTCUTGSE |
| 11 | 69202375 | CONNECTOR, four-way Molex | FLHTCUTGSE |
| 13 | 69202376 | TERMINAL, Molex, female (4) | FLHTCUTGSE |
| 22 | 69202393 | HARNESS, rear lights, with 7, 9, 10, 11, 12, 13, 14, 15, 17 and 19 | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 14 | 69201134A | WIRE HARNESS, battery positive to starter, with 73304-04, 73305-04 and 69201308 | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 14101120 | INSERT, horn | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 5 | 83388-09C | REVERSE MOTOR ASSEMBLY, with 31400139, 41600143, 41600327 (replaces 83388-09B) | FLHTCUTGSE |
| 9 | 31400139 | SOLENOID, use with 83388-09C | FLHTCUTGSE |
| 10 | 31400143 | ELECTRICAL KIT, with 41600327 - use with 83388-09C | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 11 | 90300106 | REMOTE CONTROL FOB, with 66373-06 (all except Japan) (specify key number) (2) | FLHTCUTGSE |
| 11 | 90300107 | REMOTE CONTROL FOB, with 66373-06 (Japan only) (specify key number) (2) | FLHTCUTGSE |
| 13 | 71400147 | HOUSING, ignition switch | FLHTCUTGSE |
| 16 | 41000341F | BODY CONTROL MODULE (BCM) with security (all except Japan) | FLHTCUTGSE |
| 16 | 41000342F | BODY CONTROL MODULE (BCM) with security (Japan only) | FLHTCUTGSE |
| 17 | 90300081 | CAMLOCK, tour-pak | FLHTCUTGSE |
| 18 | 71400145 | LOCKSET, complete, with 71400147, 90300081, 90300106, 90300148 (all except Japan) | FLHTCUTGSE |
| 18 | 71400146 | LOCKSET, complete, with 71400147, 90300081, 90300107, 90300148 (Japan only) | FLHTCUTGSE |
| 19 | 90300148 | LOCKSET, trunk | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 3 | 76000783A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (Domestic, California, Canada) (See NOTE 1) | FLHTCUTGSE |
| 3 | 76000784A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (England, HDI) (See NOTE 2) | FLHTCUTGSE |
| 3 | 76000785A | RADIO, BOOM!™ BOX GTS, with 12600070, 12600071, 12600073 and 76000252 (HDI, Australia, Japan) (See NOTE 3) | FLHTCUTGSE |
| 18 | 76000875 | SPEAKER ADAPTOR AND GRILLE, right | FLHTCUTGSE |
| 18 | 76000876 | SPEAKER ADAPTOR AND GRILLE, left | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 19 | 10200798 | SCREW (4) | FLHTCUTGSE |
| 20 | 76000877 | SPEAKER, front (2) | FLHTCUTGSE |
| 21 | 926 | SCREW (4) | FLHTCUTGSE |
| 22 | 10500053 | SCREW (8) | FLHTCUTGSE |
| 24 | 7686 | LOCKNUT (4) | FLHTCUTGSE |
| 25 | 76000277B | AMPLIFIER (2) | FLHTCUTGSE |
| 26 | 76000330 | BRACKET, angle amplifier (2) | FLHTCUTGSE |
| 27 | 76000945 | BRACKET, amplifier (2) | FLHTCUTGSE |
| 28 | 11100071 | PAD (8) | FLHTCUTGSE |
| 29 | 41000645 | MODULE, TCU, with 73213-07 (Domestic) (see note) (2) | FLHTCUTGSE |
| 29 | 41000721 | MODULE, TCU, with 73213-07 (HDI) (see note) (2) | FLHTCUTGSE |
| 29 | 69202412 | DUST CAP, Models without a TCU (not shown) (see note) | FLHTCUTGSE |
| 30 | 76000923 | BRACKET, with 11100071 (2) | FLHTCUTGSE |
| 31 | 2478 | SCREW (all except Japan) (3) | FLHTCUTGSE |
| 32 | 57000247 | MOUNTING BRACKET, CB MODULE (all except Japan) | FLHTCUTGSE |
| 33 | 72168-07 | TERMINAL, socket, 18-20 AWG (all except Japan) (8) | FLHTCUTGSE |
| 34 | 72473-07 | SEAL PIN (all except Japan) (4) | FLHTCUTGSE |
| 35 | 72487-07BK | HOUSING, 12-way socket (black) (all except Japan) | FLHTCUTGSE |
| 36 | 76000188 | CB MODULE, with 72168-07, 72473-07, 72487-07BK (all except Japan) | FLHTCUTGSE |
| 37 | 76250-09 | ANTENNA, CB | FLHTCUTGSE |
| 38 | 76000799 | ANTENNA, AM/FM | FLHTCUTGSE |
| 41 | 76000771 | MODULE, wireless headset interface (WHIM) | FLHTCUTGSE |
| 42 | 76000838 | HEADSET ASSEMBLY | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 12 | 14002116 | LABEL, tire warning | FLHTCUTGSE |
| 21 | 57200281ELW | SIDE COVER ASSEMBLY, with 14002116 (right) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 21 | 57200281ELZ | SIDE COVER ASSEMBLY, with 14002116 (right) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 22 | 57200083ELW | SIDE COVER ASSEMBLY (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 22 | 57200083ELZ | SIDE COVER ASSEMBLY (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 23 | 83000172EMN | MIDSECTION ASSEMBLY, with 8, 9, 13, 14, 15, 16, 17, 19 and 20 (Blizzard White Pearl with Lightning Silver and Stormcloud) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 23 | 83000172EMO | MIDSECTION ASSEMBLY, with 8, 9, 13, 14, 15, 16, 17, 19 and 20 (Black Stardust with Magnetic Gray and Wicked Red) **RESTRICTED SALES PART** | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 20 | 67801116ELW | COVER, light, license plate (Canada, Domestic) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 20 | 67801116ELZ | COVER, light, license plate (Canada, Domestic) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 32 | 14101321 | NAMEPLATE, rear body (Canada, Domestic) | FLHTCUTGSE |
| 33 | 67801117ELW | COVER, license plate light (HDI) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 33 | 67801117ELZ | COVER, license plate light (HDI) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 35 | 67900170 | LIGHT ASSEMBLY, LED, license plate, (Australia, England, HDI, HD2, Japan) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 38 | 83000174ELW | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Blizzard White Pearl) (Canada, Domestic) | FLHTCUTGSE |
| 38 | 83000174ELZ | TRUNK DOOR, with 10102, 83778-11 and 83783-11 (Black Stardust) (Canada, Domestic) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 53000773 | BULB, LED | FLHTCUTGSE |
| 2 | 53865-06 | LOCK | FLHTCUTGSE |
| 8 | 53000771 | LATCH COVER | FLHTCUTGSE |
| 9 | 53000753 | LATCH HOUSING ASSEMBLY, with 53000077, 53000771, 53000772, 53000773 | FLHTCUTGSE |
| 10 | 53000772 | LOCK MOTOR ASSEMBLY | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 4 | 91800039 | ACTUATOR ASSEMBLY, with 10200220 | FLHTCUTGSE |
| 6 | 10300047 | WASHER | FLHTCUTGSE |
| 8 | 10200225 | SCREW | FLHTCUTGSE |
| 9 | 53000637ELW | COVER, latch lock, (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 9 | 53000637ELZ | COVER, latch lock, (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 10 | 53629-10 | LINER, removable **RESTRICTED SALES PART** | FLHTCUTGSE |
| 12 | 54353-09 | LIGHT, right-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Canada, Domestic) | FLHTCUTGSE |
| 12 | 54355-09 | LIGHT, left-bottom, Tour-Pak, sidemarker, with 73152-96BK and 73191-96 (Canada, Domestic) | FLHTCUTGSE |
| 15 | 10200064 | SCREW (4) | FLHTCUTGSE |
| 16 | 10200220 | SCREW (4) | FLHTCUTGSE |
| 24 | 93300049 | LINER, molded, with pouch | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 26 | 53000633ELW | HASP ASSEMBLY, bottom (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 26 | 53000633ELZ | HASP ASSEMBLY, bottom (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 27 | 53000635ELW | HINGE ASSEMBLY, rear (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 27 | 53000635ELZ | HINGE ASSEMBLY, rear (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 28 | 53000634ELW | HINGE ASSEMBLY, front (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 28 | 53000634ELZ | HINGE ASSEMBLY, front (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 30 | 53000758ELW | BOTTOM, Tour-Pak (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 30 | 53000758ELZ | BOTTOM, Tour-Pak (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 31 | 74112-98BK | HOUSING, two-way socket (black) | FLHTCUTGSE |
| 32 | 74152-98 | SECONDARY LOCK, two-way socket (orange) | FLHTCUTGSE |
| 33 | 74191-98 | TERMINAL, socket, 16-20-AWG (2) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 2 | 68000065 | LED LIGHT, with 73152-96BK, 72560-07 | FLHTCUTGSE |
| 8 | 79179-08 | LUGGAGE RACK, with 4860, 6235, 6703 and 90875-08 (Canada, Domestic only) | FLHTCUTGSE |
| 8 | 53665-87 | LUGGAGE RACK (not pictured), with 6703 and 90869-85A (all except Canada, Domestic) | FLHTCUTGSE |
| 10 | 90875-08 | MOUNTING PAD AND WASHER SET, luggage rack (Canada, Domestic only) | FLHTCUTGSE |
| 10 | 90869-85A | MOUNTING PAD AND WASHER SET, luggage rack (all except Canada, Domestic) | FLHTCUTGSE |
| 14 | 53000429ELW | COVER, with 53000090 and 90821-74C (Blizzard White Pearl) | FLHTCUTGSE |
| 14 | 53000429ELZ | COVER, with 53000090 and 90821-74C (Black Stardust Fade) | FLHTCUTGSE |
| 18 | 53000635ELW | HINGE ASSEMBLY, rear (Blizzard White Pearl) | FLHTCUTGSE |
| 18 | 53000635ELZ | HINGE ASSEMBLY, rear (Black Stardust Fade) | FLHTCUTGSE |
| 19 | 53000634ELW | HINGE ASSEMBLY, front (Blizzard White Pearl) | FLHTCUTGSE |
| 19 | 53000634ELZ | HINGE ASSEMBLY, front (Black Stardust Fade) | FLHTCUTGSE |
| 20 | 53000141A | TETHER, retractable | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 9 | 74102-98BK | HOUSING, 2-way pin (black) | FLHTCUTGSE |
| 15 | 74142-98 | SECONDARY LOCK, two-way pin (3) | FLHTCUTGSE |
| 21 | 72511-07BK | HOUSING, three-way pin (black) | FLHTCUTGSE |
| 27 | 74190-98 | TERMINAL, pin, 16-20 AWG | FLHTCUTGSE |
| 29 | 67800564ELW | LAMP (Canada, Domestic) (Blizzard White Pearl), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67800564ELZ | LAMP (Canada, Domestic) (Black Stardust), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67801155ELW | LAMP (all except Canada, Domestic) (Blizzard White Pearl), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| 29 | 67801155ELZ | LAMP (all except Canada, Domestic) (Black Stardust), Tour-Pak, with 76000164, 76000165, 76000186 and 76000208 (Domestic) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 42 | 76000880 | GRILLE, rear speaker (2) | FLHTCUTGSE |
| 43 | 76000877 | SPEAKER (2) | FLHTCUTGSE |
| 44 | 76000268 | SPEAKER BOX ENCLOSURE, right rear | FLHTCUTGSE |
| 45 | 76000800 | SPEAKER BOX ENCLOSURE, left rear | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 8 | 14002197 | LABEL, air cleaner warning (Domestic, California) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 74114-98BK | HOUSING, four-way socket (black) | FLHTCUTGSE |
| 2 | 74154-98 | SECONDARY LOCK, four-way socket (orange) | FLHTCUTGSE |
| 3 | 74191-98 | TERMINAL, socket 16-20 AWG (3) | FLHTCUTGSE |
| 4 | 74195-98 | SEAL PIN | FLHTCUTGSE |
| 5 | 91562-01 | RECEIVER ASSEMBLY (Canada, Domestic) | FLHTCUTGSE |
| 6 | 92600009 | TRANSMITTER ASSEMBLY (Canada, Domestic, HDI) | FLHTCUTGSE |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10500113 | SCREW, seat | FLHTCUTGSE |
| 1 | 52300651 | BACKREST ASSEMBLY, passenger | FLHTCUTGSE |
| 1 | 52300652 | BACKREST ASSEMBLY, rider | FLHTCUTGSE |
| 1 | 53000431 | LUGGAGE KIT, trunk | FLHTCUTGSE |
| 1 | 53629-10 | LINER, Tour-Pak, removable | FLHTCUTGSE |
| 1 | 57200083ELW | SIDE COVER ASSEMBLY (left) (Blizzard White Pearl) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 1 | 57200083ELZ | SIDE COVER ASSEMBLY (left) (Black Stardust) **RESTRICTED SALES PART** | FLHTCUTGSE |
| 1 | 57400373 | WINDSHIELD | FLHTCUTGSE |
| 1 | 61300721 | RAINSOCK, air cleaner | FLHTCUTGSE |
| 1 | 76000838 | HEADSET ASSEMBLY | FLHTCUTGSE |
| 1 | 76250-09 | ANTENNA, CB | FLHTCUTGSE |
| 1 | 93100061 | COVER, indoor storage | FLHTCUTGSE |
| 1 | 93300001 | DOOR ORGANIZER, trunk | FLHTCUTGSE |
| 1 | 94000753 | OWNER'S MANUAL (Domestic, California, Australia, England) | FLHTCUTGSE |
| 1 | 4617 | SCREW (4) | FLHTCUTGSE |
| 1 | 11304 | RETAINING RING (2) | FLHTCUTGSE |
| 1 | 45041-01A | PIN, clevis (bright silver) (2) | FLHTCUTGSE |
| 1 | 50351-03 | MOUNT, footpeg support (chrome) (2) | FLHTCUTGSE |
| 1 | 50912-72 | WASHER, spring (2) | FLHTCUTGSE |
| 1 | 50501293 | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 1 | 51009-02A | MOUNT, footpeg (chrome) (2) | FLHTCUTGSE |
| 1 | 2708A | SCREW (2) | FLHTCUTGSE |
| 1 | 50501189 | FOOTPEG LOWER (left) (chrome) | FLHTCUTGSE |
| 1 | 50501191 | FOOTPEG LOWER (right) (chrome) | FLHTCUTGSE |
| 1 | 50501181 | FOOTPEG UPPER (left) | FLHTCUTGSE |
| 1 | 50501184 | FOOTPEG UPPER (right) | FLHTCUTGSE |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10076 | |
| 1009M | |
| 10100006 | |
| 10100062 | |
| 10100071 | |
| 10102 | |
| 10103 | |
| 10108 | |
| 10147 | |
| 10177 | |
| 10200001 | |
| 10200004 | |
| 10200042 | |
| 10200052 | |
| 10200059 | |
| 10200060 | |
| 10200061 | |
| 10200062 | |
| 10200064 | |
| 10200105 | |
| 10200133 | |
| 10200134 | |
| 10200141 | |
| 10200142 | |
| 10200147 | |
| 10200154 | |
| 10200156 | |
| 10200205 | |
| 10200220 | |
| 10200225 | |
| 10200258 | |
| 10200303 | |
| 10200308 | |
| 10200343 | |
| 10200373 | |
| 10200384 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200442 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200546 | |
| 10200569 | |
| 10200798 | |
| 10201001 | |
| 10270 | |
| 10287 | |
| 10289A | |
| 10300003 | |
| 10300036 | |
| 10300047 | |
| 10300222 | |
| 10334 | |
| 10344 | |
| 10395 | |
| 10396 | |
| 10400038 | |
| 10500015 | |
| 10500017 | |
| 10500022 | |
| 10500031 | |
| 10500034 | |
| 10500036 | |
| 10500053 | |
| 10500069 | |
| 10500108 | |
| 10500113 | |
| 10500114 | |
| 10500116 | |
| 1062 | |
| 10800023 | |
| 10800025A | |
| 10800028 | |
| 10800052 | |
| 10800078 | |
| 10800109 | |
| 10800111 | |
| 10900005 | |
| 10900006 | |
| 10900015A | |
| 10968 | |
| 10991A | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11012 | |
| 11081A | |
| 11082A | |
| 11100038 | |
| 11100050 | |
| 11100051 | |
| 11100057 | |
| 11100071 | |
| 11100089 | |
| 11100094 | |
| 11100105 | |
| 11100115 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11143 | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11201 | |
| 11207A | |
| 11289A | |
| 11293 | |
| 11304 | |
| 11321 | |
| 11323A | |
| 11364 | |
| 11389 | |
| 11445 | |
| 11519 | |
| 11575 | |
| 11599A | |
| 11608 | |
| 11650 | |
| 11686 | |
| 11692 | |
| 11779 | |
| 11900010 | |
| 11900021 | |
| 11900090 | |
| 11900092 | |
| 11900103 | |
| 11900116 | |
| 11900132 | |
| 11900155 | |
| 11900172 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074 | |
| 12077 | |
| 12100017 | |
| 12100020 | |
| 12100069 | |
| 12100077 | |
| 12100119 | |
| 12100124 | |
| 12102 | |
| 12200025 | |
| 12200064 | |
| 12200075 | |
| 12200144 | |
| 12200147A | |
| 12200170 | |
| 12200172 | |
| 12200173 | |
| 12200174 | |
| 12200175A | |
| 12200177 | |
| 12300002 | |
| 12400034 | |
| 12400099 | |
| 12500002 | |
| 12500014 | |
| 12500015 | |
| 12500018 | |
| 12600032 | |
| 12600049 | |
| 12600067 | |
| 12600070 | |
| 12600071 | |
| 12600073 | |
| 12600197 | |
| 12600212 | |
| 12700032 | |
| 12700091 | |
| 1332 | |
| 14000827 | |
| 14001773 | |
| 14002116 | |
| 14002197 | |
| 14101072 | |
| 14101119 | |
| 14101120 | |
| 14101125 | |
| 14101128 | |
| 14101133 | |
| 14101169 | |
| 14101170 | |
| 14101321 | |
| 14101322 | |
| 14101323 | |
| 14148-86 | |
| 14272-06 | |
| 15368-01A | |
| 15370-01A | |
| 16200395 | |
| 16200664 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400042 | |
| 16400046 | |
| 16500332 | |
| 16500499 | |
| 16500509 | |
| 16500599 | |
| 16574-99A | |
| 16583-00A | |
| 16589-99A | |
| 16800063 | |
| 16800121 | |
| 16800123 | |
| 17300053 | |
| 17300055 | |
| 17300059A | |
| 17369-06 | |
| 1775 | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99A | |
| 17968-99 | |
| 18000016 | |
| 18000034 | |
| 18100043 | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18400073B | |
| 18538-99C | |
| 21900082 | |
| 22000031 | |
| 22000079 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100045A | |
| 24100080 | |
| 24400180 | |
| 24400187 | |
| 24400215 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 2482 | |
| 25400103 | |
| 25400133 | |
| 25400257 | |
| 25400273 | |
| 2548 | |
| 25500013 | |
| 25566-06 | |
| 25600111 | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25700178 | |
| 25700362 | |
| 25700367 | |
| 25700370 | |
| 25700372B | |
| 25700378 | |
| 25700409 | |
| 25700410 | |
| 25700411 | |
| 25700418 | |
| 25700425 | |
| 25700433 | |
| 25700452 | |
| 25700453 | |
| 25700650 | |
| 25700679 | |
| 25700731 | |
| 25700746 | |
| 25700983 | |
| 25700984 | |
| 25701000 | |
| 25701055 | |
| 25701157 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800054 | |
| 25800109 | |
| 25800110 | |
| 25800123 | |
| 25800124 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 2647B | |
| 26500026 | |
| 26500027 | |
| 26600048 | |
| 26780-05A | |
| 26800005 | |
| 26800006 | |
| 26800007A | |
| 26800008 | |
| 26800009 | |
| 26800019A | |
| 26800020A | |
| 26800021 | |
| 26800077 | |
| 26900008 | |
| 26900009 | |
| 26900010 | |
| 26900014 | |
| 26900016 | |
| 26900017 | |
| 26900018 | |
| 26900088 | |
| 26900114 | |
| 26900115 | |
| 26900117 | |
| 26900133 | |
| 26900144 | |
| 26900145 | |
| 2708A | |
| 27200025 | |
| 2724 | |
| 27291-09A | |
| 27297-09A | |
| 27298-09A | |
| 27300082 | |
| 27300086 | |
| 27300087 | |
| 27300121 | |
| 27300122 | |
| 27400015 | |
| 27400019 | |
| 27440-09A | |
| 27444-00Y | |
| 27715-07 | |
| 27809-10 | |
| 29000148 | |
| 29000149 | |
| 29200087A | |
| 29200088A | |
| 29400183 | |
| 29400210 | |
| 29400267 | |
| 29400336 | |
| 29400337 | |
| 29465-08B | |
| 2968 | |
| 29900038 | |
| 29900041 | |
| 29900042A | |
| 2998 | |
| 3048 | |
| 3050 | |
| 3057 | |
| 3088 | |
| 31400053 | |
| 31400129 | |
| 31400139 | |
| 31400143 | |
| 3143 | |
| 31586-07 | |
| 31600012 | |
| 31600017 | |
| 31600018B | |
| 31600023A | |
| 31600078A | |
| 31600079 | |
| 32306-08 | |
| 3249 | |
| 32495-98A | |
| 3267 | |
| 32700010 | |
| 32700011 | |
| 32700015 | |
| 32700046 | |
| 32700048 | |
| 32700050A | |
| 32700054 | |
| 32700065 | |
| 32700066 | |
| 32700100 | |
| 32700101 | |
| 32700102 | |
| 3275 | |
| 33130-07A | |
| 33389-07 | |
| 3340 | |
| 33409-06B | |
| 33600060A | |
| 33600061A | |
| 33600088 | |
| 33600091 | |
| 33600251 | |
| 33814-98A | |
| 33900172 | |
| 33900180 | |
| 3391 | |
| 33926-06B | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34700092 | |
| 34800025 | |
| 34987-06 | |
| 35000178 | |
| 35000179 | |
| 35000199A | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 3514 | |
| 35186-06 | |
| 35187-06 | |
| 35200021 | |
| 35200057 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06 | |
| 35223-06 | |
| 35241-06 | |
| 35242-06 | |
| 35243-06 | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 35260-06B | |
| 3536 | |
| 3546 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3563 | |
| 35654-06 | |
| 3574 | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3588 | |
| 3594 | |
| 3612 | |
| 3634 | |
| 36500075 | |
| 36500092A | |
| 3655A | |
| 36700131 | |
| 36700132 | |
| 36700170A | |
| 36700172A | |
| 36706-01K | |
| 36731-91 | |
| 36805-06 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000217 | |
| 37000218 | |
| 37000219 | |
| 37000254A | |
| 37000258 | |
| 37000270A | |
| 37000295 | |
| 37065-06A | |
| 37200129 | |
| 37200131C | |
| 37200425 | |
| 37496-90A | |
| 3787 | |
| 37904-90 | |
| 37909-90 | |
| 3910 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 40037-07 | |
| 40040-05 | |
| 40100041 | |
| 40100064 | |
| 40100076 | |
| 40278-08 | |
| 40786-08 | |
| 40900663 | |
| 40900724 | |
| 40901-05 | |
| 41000341F | |
| 41000342F | |
| 41000599 | |
| 41000645 | |
| 41000721 | |
| 41100093 | |
| 41300212 | |
| 41300214 | |
| 41300215 | |
| 41500017 | |
| 41500018 | |
| 41500019 | |
| 41500020 | |
| 41500151 | |
| 41600032 | |
| 41600091 | |
| 41600257 | |
| 41600258 | |
| 41600261 | |
| 41600263 | |
| 41600267 | |
| 41600352 | |
| 41700195 | |
| 41700367 | |
| 41700439 | |
| 41700469 | |
| 41700561 | |
| 41700562 | |
| 41700581 | |
| 41700582 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800682 | |
| 41800683 | |
| 41800684 | |
| 41800685 | |
| 41800686 | |
| 41800687 | |
| 41854-08 | |
| 41900-08 | |
| 4194 | |
| 42010-06B | |
| 42019-06 | |
| 42102-08D | |
| 42105-06A | |
| 42119-08 | |
| 42123-08 | |
| 42271-06A | |
| 42300001 | |
| 42300093 | |
| 42300112 | |
| 42300114 | |
| 42300115 | |
| 42300118 | |
| 42300119 | |
| 4240 | |
| 42460-80B | |
| 42500013 | |
| 42500016 | |
| 42849-08 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42857-06B | |
| 42860-06B | |
| 42861-06B | |
| 42862-06B | |
| 42882-06 | |
| 42889-06 | |
| 4293 | |
| 42932-08A | |
| 42934-08 | |
| 42938-08 | |
| 42939-08 | |
| 43000153 | |
| 43000154 | |
| 43000155 | |
| 43000156 | |
| 43100045 | |
| 4312C | |
| 43200046 | |
| 43300703 | |
| 43300737 | |
| 43475-08 | |
| 4365 | |
| 44160-00 | |
| 4419 | |
| 44430-04 | |
| 44583-08 | |
| 44935-06 | |
| 45041-01A | |
| 45138-08A | |
| 45400254 | |
| 45400255 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500201 | |
| 45500202 | |
| 45500396 | |
| 45500397 | |
| 45500398 | |
| 45500421 | |
| 45500424 | |
| 45500538 | |
| 45500540 | |
| 45500541 | |
| 45600017 | |
| 45600018 | |
| 45700009 | |
| 45700020 | |
| 45900027 | |
| 45900234 | |
| 4612 | |
| 4617 | |
| 4622 | |
| 4631 | |
| 46368-10 | |
| 46369-10 | |
| 46508-01 | |
| 46509-01 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46615-06 | |
| 4678 | |
| 4685 | |
| 4686 | |
| 4687 | |
| 4688 | |
| 4696 | |
| 4697 | |
| 4699 | |
| 47000089BHP | |
| 4705 | |
| 4718A | |
| 47200001B | |
| 47200275 | |
| 47200302A | |
| 4740A | |
| 4741A | |
| 47505-02 | |
| 4775 | |
| 4790 | |
| 4795 | |
| 4813A | |
| 4820A | |
| 4822A | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4890 | |
| 4916 | |
| 49184-09A | |
| 4924 | |
| 4930 | |
| 4976 | |
| 4991 | |
| 50000031 | |
| 50351-03 | |
| 50500397 | |
| 50501154 | |
| 50501155 | |
| 50501181 | |
| 50501184 | |
| 50501189 | |
| 50501191 | |
| 50501210 | |
| 50501211 | |
| 50501218 | |
| 50501219 | |
| 50501220 | |
| 50501221 | |
| 50501293 | |
| 50518-09 | |
| 50600067 | |
| 50600340 | |
| 50600426 | |
| 50674-05 | |
| 509 | |
| 50912-72 | |
| 50933-86A | |
| 50998-07 | |
| 51006-07A | |
| 51007-07 | |
| 51009-02A | |
| 51023-07 | |
| 5118 | |
| 515 | |
| 51501-07 | |
| 51652-97A | |
| 52000441 | |
| 520W | |
| 5210 | |
| 5211 | |
| 52300121 | |
| 52300122 | |
| 52300123 | |
| 52300127 | |
| 52300651 | |
| 52300652 | |
| 52400090 | |
| 52441-95 | |
| 52567-93D | |
| 52585-09 | |
| 52589-09A | |
| 52590-09 | |
| 53000077 | |
| 53000090 | |
| 53000091 | |
| 53000132 | |
| 53000137 | |
| 53000141A | |
| 53000308 | |
| 53000346 | |
| 53000370 | |
| 53000429ELW | |
| 53000429ELZ | |
| 53000431 | |
| 53000633ELW | |
| 53000633ELZ | |
| 53000634ELW | |
| 53000634ELZ | |
| 53000635ELW | |
| 53000635ELZ | |
| 53000637ELW | |
| 53000637ELZ | |
| 53000753 | |
| 53000758ELW | |
| 53000758ELZ | |
| 53000771 | |
| 53000772 | |
| 53000773 | |
| 53629-10 | |
| 53665-87 | |
| 53734-06 | |
| 53735-06 | |
| 53865-06 | |
| 53919-04B | |
| 54000144 | |
| 54000145 | |
| 54000148 | |
| 54000149 | |
| 54353-09 | |
| 54355-09 | |
| 55800214 | |
| 55918-08 | |
| 56100325 | |
| 56100326 | |
| 56100329 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000169A | |
| 57000170 | |
| 57000172 | |
| 57000175 | |
| 57000182 | |
| 57000186A | |
| 57000247 | |
| 57000299 | |
| 57000383 | |
| 57000628EMN | |
| 57000628EMO | |
| 57001142ELY | |
| 57001142ELZ | |
| 57001145ELZ | |
| 57100099 | |
| 57100107 | |
| 57100109 | |
| 57100111 | |
| 57100112 | |
| 57100113 | |
| 57100114 | |
| 57100147 | |
| 57100148 | |
| 57100151 | |
| 57100152 | |
| 57100153 | |
| 57100154 | |
| 57100155 | |
| 57100164 | |
| 57100165 | |
| 57100170 | |
| 57100171 | |
| 57100172 | |
| 57100187 | |
| 57100200 | |
| 57100225 | |
| 57100256 | |
| 57100291ELW | |
| 57100291ELZ | |
| 57100292ELW | |
| 57100292ELZ | |
| 57100313ELW | |
| 57100313ELZ | |
| 57100314ELW | |
| 57100314ELZ | |
| 57200012 | |
| 57200017 | |
| 57200083ELW | |
| 57200083ELZ | |
| 57200243 | |
| 57200245 | |
| 57200256 | |
| 57200281ELW | |
| 57200281ELZ | |
| 57217-02A | |
| 57400373 | |
| 57400377ELZ | |
| 57450-14 | |
| 57451-14 | |
| 57638-08 | |
| 57978-00 | |
| 5817 | |
| 5837A | |
| 58900370 | |
| 58900371ELW | |
| 58900371ELZ | |
| 59481-00 | |
| 59482-00 | |
| 59988-72A | |
| 601 | |
| 6019 | |
| 6026 | |
| 60328-98B | |
| 6036 | |
| 60678-85 | |
| 60800006 | |
| 60800026 | |
| 60900036 | |
| 6099 | |
| 61000634EMN | |
| 61000634EMO | |
| 61007-10 | |
| 61011-04A | |
| 61012-04A | |
| 61015-04A | |
| 61029-92A | |
| 61081-92 | |
| 6109 | |
| 61109-85D | |
| 61112-08 | |
| 6113 | |
| 6116 | |
| 61200022 | |
| 61213-04A | |
| 6127 | |
| 61274-92 | |
| 61293-08A | |
| 61300089 | |
| 61300504ELW | |
| 61300504ELZ | |
| 61300523A | |
| 61300721 | |
| 61300750 | |
| 61300926 | |
| 61313-88 | |
| 61356-08 | |
| 61400063 | |
| 61400064 | |
| 61400080 | |
| 61400081 | |
| 61400192 | |
| 61400224 | |
| 61400614 | |
| 61400622 | |
| 61402-08 | |
| 6150W | |
| 6220W | |
| 62228-08C | |
| 62229-08B | |
| 6235 | |
| 62372-09 | |
| 62400055 | |
| 62400205 | |
| 62400233 | |
| 62400242 | |
| 62400245 | |
| 62700089 | |
| 62700117 | |
| 62700150 | |
| 62700198 | |
| 62700296 | |
| 62775-08 | |
| 62800004 | |
| 62800013 | |
| 62908-08 | |
| 6294 | |
| 6334 | |
| 6383 | |
| 6408HB | |
| 6416 | |
| 6421 | |
| 64900294 | |
| 64900295 | |
| 64900946 | |
| 6497HW | |
| 65100190 | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400176 | |
| 65400177 | |
| 65400178 | |
| 65400179 | |
| 6549 | |
| 65500042 | |
| 65500043 | |
| 65600176 | |
| 65600177 | |
| 65600179 | |
| 65600190 | |
| 65723-85 | |
| 65900012 | |
| 65900015 | |
| 6590HW | |
| 6594 | |
| 66000116 | |
| 66000136 | |
| 66010-97D | |
| 66051-08 | |
| 66078-06 | |
| 66290-06 | |
| 66373-06 | |
| 6645 | |
| 66861-09B | |
| 66881-09 | |
| 6701 | |
| 6702 | |
| 6703 | |
| 6718 | |
| 67493-08 | |
| 67700056 | |
| 67700057 | |
| 67700058 | |
| 67700069 | |
| 67700070 | |
| 67700071 | |
| 67700077 | |
| 67700124 | |
| 67700204 | |
| 67700205 | |
| 67700239 | |
| 67700240 | |
| 67700320A | |
| 67700339A | |
| 67712-83B | |
| 67716-60C | |
| 6771A | |
| 67721-48 | |
| 67726-08 | |
| 67778-60A | |
| 67780-60A | |
| 67800086 | |
| 67800099 | |
| 67800109 | |
| 67800131 | |
| 67800165 | |
| 67800251 | |
| 67800257 | |
| 67800259 | |
| 67800442 | |
| 67800564ELW | |
| 67800564ELZ | |
| 67801116ELW | |
| 67801116ELZ | |
| 67801117ELW | |
| 67801117ELZ | |
| 67801155ELW | |
| 67801155ELZ | |
| 67801156 | |
| 67815-59A | |
| 67875-11 | |
| 67900170 | |
| 67900196A | |
| 67900205A | |
| 67900212A | |
| 67900265 | |
| 67900269 | |
| 67900289 | |
| 67900306 | |
| 67900325 | |
| 67900430 | |
| 67900432 | |
| 67900433 | |
| 68000021 | |
| 68000022 | |
| 68000065 | |
| 68000102 | |
| 68000103 | |
| 68000203 | |
| 68000239 | |
| 68000264A | |
| 68000265A | |
| 68026-99 | |
| 68042-99 | |
| 68066-99A | |
| 68120-00 | |
| 68296-99A | |
| 68331-02 | |
| 68725-62A | |
| 68821-00 | |
| 68830-99A | |
| 68956-07 | |
| 68958-07C | |
| 69000083 | |
| 69060-90H | |
| 69062-91A | |
| 69120-91 | |
| 69123-92A | |
| 69200031A | |
| 69200109 | |
| 69200125 | |
| 69200135 | |
| 69200139 | |
| 69200170 | |
| 69200171 | |
| 69200174 | |
| 69200175 | |
| 69200187 | |
| 69200190 | |
| 69200193 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200202A | |
| 69200203A | |
| 69200205 | |
| 69200210 | |
| 69200211 | |
| 69200212 | |
| 69200214 | |
| 69200215 | |
| 69200221 | |
| 69200222 | |
| 69200224 | |
| 69200225 | |
| 69200226 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200257 | |
| 69200258 | |
| 69200271 | |
| 69200272 | |
| 69200293 | |
| 69200305 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200311 | |
| 69200312 | |
| 69200336 | |
| 69200337 | |
| 69200391 | |
| 69200394 | |
| 69200410 | |
| 69200421 | |
| 69200461 | |
| 69200462 | |
| 69200529 | |
| 69200536 | |
| 69200599 | |
| 69200600 | |
| 69200601 | |
| 69200630 | |
| 69200631 | |
| 69200840 | |
| 69201134A | |
| 69201162 | |
| 69201163 | |
| 69201164 | |
| 69201168 | |
| 69201178 | |
| 69201240 | |
| 69201287 | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201308 | |
| 69201390 | |
| 69201391 | |
| 69201392 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201400 | |
| 69201401 | |
| 69201404 | |
| 69201405 | |
| 69201406 | |
| 69201407 | |
| 69201410 | |
| 69201411 | |
| 69201414 | |
| 69201416 | |
| 69201423 | |
| 69201441 | |
| 69201442 | |
| 69201459 | |
| 69201548 | |
| 69201596 | |
| 69201741 | |
| 69201765 | |
| 69201778 | |
| 69201779 | |
| 69201780 | |
| 69201781 | |
| 69201782 | |
| 69201783 | |
| 69201786 | |
| 69201789 | |
| 69201792 | |
| 69201811 | |
| 69201812 | |
| 69201814 | |
| 69201818 | |
| 69201820 | |
| 69201821 | |
| 69201822 | |
| 69201862A | |
| 69202219 | |
| 69202294 | |
| 69202295 | |
| 69202321 | |
| 69202375 | |
| 69202376 | |
| 69202377 | |
| 69202392 | |
| 69202393 | |
| 69202412 | |
| 69214-08 | |
| 69241-08 | |
| 69309-10 | |
| 69563-06 | |
| 6990 | |
| 70018-07 | |
| 70186-82 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70493-08 | |
| 70494-08 | |
| 70578-89 | |
| 70631-08 | |
| 7068 | |
| 70681-09 | |
| 7069 | |
| 70900138 | |
| 70900392ELY | |
| 70900392ELZ | |
| 70900773B | |
| 70900774 | |
| 70900775 | |
| 70900777B | |
| 70900778B | |
| 70901-09 | |
| 70999-09 | |
| 71294-08 | |
| 7130W | |
| 71400005 | |
| 71400006 | |
| 71400007 | |
| 71400031 | |
| 71400032 | |
| 71400033 | |
| 71400034 | |
| 71400035 | |
| 71400037 | |
| 71400112 | |
| 71400145 | |
| 71400146 | |
| 71400147 | |
| 71474-07 | |
| 71500045 | |
| 71500094 | |
| 71500166 | |
| 71500167 | |
| 71500169 | |
| 71500224 | |
| 71500225 | |
| 71500227 | |
| 71500339 | |
| 71500341 | |
| 71500344 | |
| 71500350 | |
| 71500484 | |
| 71500529 | |
| 71500533 | |
| 71500553 | |
| 71500554 | |
| 7155 | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72081-11 | |
| 72097-06 | |
| 72098-06 | |
| 72099-06 | |
| 72106-94BK | |
| 72110-06 | |
| 72111-06 | |
| 72113-94BK | |
| 72114-94BK | |
| 72124-94GY | |
| 72127-06 | |
| 72130-04 | |
| 72135-06 | |
| 72144-94 | |
| 72145-06 | |
| 72146-94 | |
| 72153-94 | |
| 72154-94 | |
| 72166-07BK | |
| 72167-07BK | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72189-04 | |
| 72190-94 | |
| 72191-94 | |
| 72194-94 | |
| 72195-94 | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72230-98 | |
| 72241-94A | |
| 72256-11 | |
| 72264-94 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72295-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72330-95 | |
| 72331-95 | |
| 72343-10 | |
| 72344-10 | |
| 72345-02 | |
| 72350-11 | |
| 72356-95 | |
| 72364-06 | |
| 72381-98 | |
| 72382-98BK | |
| 72397-98 | |
| 72405-98BK | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72427-00 | |
| 72444-07GY | |
| 72473-07 | |
| 72478-07BK | |
| 72484-08 | |
| 72485-07 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72489-07GY | |
| 72490-07GY | |
| 72491-07GY | |
| 72493-07 | |
| 72494-07 | |
| 72499-07 | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72533-06 | |
| 72543-07BK | |
| 72544-07 | |
| 72557-07 | |
| 72560-07 | |
| 72569-08 | |
| 72575-11 | |
| 72589-09 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72664-12A | |
| 72666-12 | |
| 72720-07 | |
| 72721-07 | |
| 72902-01BK | |
| 72905-11 | |
| 72906-11 | |
| 72907-11 | |
| 72908-11 | |
| 72909-11 | |
| 72910-11 | |
| 72912-01BK | |
| 72990-01 | |
| 72991-01 | |
| 73102-96BK | |
| 73103-96BK | |
| 73152-96BK | |
| 73152-96WE | |
| 73153-96BK | |
| 73154-96BK | |
| 73156-96BK | |
| 73190-96 | |
| 73191-96 | |
| 73213-07 | |
| 73301-04 | |
| 73303-04 | |
| 73304-04 | |
| 73305-04 | |
| 73307-10 | |
| 7331 | |
| 73333-10 | |
| 7340 | |
| 7358 | |
| 74102-98BK | |
| 74104-98BK | |
| 74112-98BK | |
| 74114-98BK | |
| 74142-98 | |
| 74144-98 | |
| 74152-98 | |
| 74154-98 | |
| 7415A | |
| 74190-98 | |
| 74191-98 | |
| 74194-98 | |
| 74195-98 | |
| 74196-04 | |
| 74197-04 | |
| 74402-05B | |
| 74700025 | |
| 74700038 | |
| 74700039 | |
| 7492 | |
| 7495 | |
| 75069-08D | |
| 75089-08 | |
| 75205-08A | |
| 75229-08 | |
| 75254-04A | |
| 75269-08 | |
| 7531 | |
| 75322-09 | |
| 7549A | |
| 7576 | |
| 7593 | |
| 76000107A | |
| 76000127 | |
| 76000164 | |
| 76000165 | |
| 76000166 | |
| 76000172 | |
| 76000173 | |
| 76000174 | |
| 76000177 | |
| 76000186 | |
| 76000188 | |
| 76000208 | |
| 76000234 | |
| 76000252 | |
| 76000268 | |
| 76000277B | |
| 76000330 | |
| 76000561ELY | |
| 76000561ELZ | |
| 76000771 | |
| 76000783A | |
| 76000784A | |
| 76000785A | |
| 76000789 | |
| 76000799 | |
| 76000800 | |
| 76000838 | |
| 76000875 | |
| 76000876 | |
| 76000877 | |
| 76000880 | |
| 76000923 | |
| 76000945 | |
| 7606 | |
| 76250-09 | |
| 76259-86 | |
| 76353-00 | |
| 765 | |
| 7667 | |
| 7683 | |
| 7686 | |
| 7716 | |
| 7739 | |
| 7763W | |
| 7768W | |
| 7783 | |
| 7792 | |
| 780 | |
| 7823 | |
| 7825 | |
| 786A | |
| 7880 | |
| 7900 | |
| 7904 | |
| 79179-08 | |
| 791A | |
| 7992 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8108 | |
| 8142 | |
| 8146 | |
| 8175 | |
| 8194 | |
| 83000014 | |
| 83000018A | |
| 83000026 | |
| 83000030A | |
| 83000053ELW | |
| 83000053ELZ | |
| 83000055ELW | |
| 83000055ELZ | |
| 83000105ELW | |
| 83000105ELZ | |
| 83000136 | |
| 83000137 | |
| 83000138 | |
| 83000139 | |
| 83000172EMN | |
| 83000172EMO | |
| 83000174ELW | |
| 83000174ELZ | |
| 8308 | |
| 8313 | |
| 8314 | |
| 8319 | |
| 8324 | |
| 8328 | |
| 83311-09 | |
| 83312-09 | |
| 83313-09 | |
| 83314-09 | |
| 83316-09 | |
| 83317-09 | |
| 83323-09 | |
| 83331-09A | |
| 83337-09A | |
| 83339-09A | |
| 83344-11 | |
| 8335 | |
| 83366-09 | |
| 83373-09A | |
| 83382-09 | |
| 83388-09B | |
| 83388-09C | |
| 83389-09A | |
| 8339 | |
| 83395-09A | |
| 83396-09A | |
| 83407-09 | |
| 83418-09 | |
| 83419-09 | |
| 83420-09 | |
| 83424-09 | |
| 83429-09 | |
| 83434-11 | |
| 83439-09 | |
| 83446-09 | |
| 83450-09 | |
| 83456-09 | |
| 83457-11 | |
| 83458-11 | |
| 83459-09 | |
| 83460-09 | |
| 83466-11BHP | |
| 83496-09 | |
| 8351 | |
| 8353 | |
| 83538-11 | |
| 8357 | |
| 8359 | |
| 83595-11 | |
| 8360 | |
| 8365 | |
| 8367 | |
| 8368 | |
| 8369 | |
| 8370 | |
| 83777-11 | |
| 83778-11 | |
| 83781-11 | |
| 83782-11 | |
| 83783-11 | |
| 83798-11 | |
| 83799-10 | |
| 83808-09A | |
| 83811-09 | |
| 83822-09 | |
| 83823-09 | |
| 83848-09 | |
| 83849-09A | |
| 83850-09 | |
| 83857-09 | |
| 83860-09 | |
| 83861-09 | |
| 83864-09 | |
| 83865-09 | |
| 83869-09 | |
| 83886-09 | |
| 83889-09 | |
| 83890-09A | |
| 83936-09A | |
| 83943-09 | |
| 83944-09 | |
| 83991-11 | |
| 84021-10 | |
| 84850-92 | |
| 856A | |
| 869 | |
| 882 | |
| 8861 | |
| 8873 | |
| 8885 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8972 | |
| 90300043 | |
| 90300081 | |
| 90300106 | |
| 90300107 | |
| 90300148 | |
| 90821-74C | |
| 90844-80 | |
| 90869-85A | |
| 90875-08 | |
| 91562-01 | |
| 91700025A | |
| 91700034 | |
| 91800039 | |
| 91800058 | |
| 91800064 | |
| 9208 | |
| 9215 | |
| 923 | |
| 9231 | |
| 92447-11 | |
| 92448-11 | |
| 9252A | |
| 926 | |
| 92600009 | |
| 9276B | |
| 93100061 | |
| 93300001 | |
| 93300035A | |
| 93300049 | |
| 93300050 | |
| 94000501 | |
| 94000634 | |
| 94000753 | |
| 942 | |
| 965M | |
| 9701A | |
| 9819 | |
| 9825 | |
| 9853 | |
| 9907 | |
| 9937 | |
| 99461-89 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7331 | Unknown |
| 7340 | Unknown |
| 7492 | 1993 |
| 7495 | 1994 |
| 7549A | Unknown |
| 7576 | 1990 |
| 7593 | 1991 |
| 76259-86 | 1986 |
| 7683 | Unknown |
| 7739 | Unknown |
| 7763W | 2018 |
| 7768W | Unknown |
| 7792 | 2012 |
| 7823 | 2018 |
| 7825 | Unknown |
| 7880 | 2018 |
| 7900 | Unknown |
| 7904 | 1998 |
| 7992 | 2010 |
| 8108 | Unknown |
| 8142 | Unknown |
| 83312-09 | 2009 |
| 83496-09 | 2009 |
| 84850-92 | 1992 |
| 90844-80 | 1980 |
| 10100006 | 2014 |
| 10100062 | 2017 |
| 10100071 | 2016 |
| 5210 | 1991 |
| 5211 | Unknown |
| 102A1 - Generic Screws | |
| 1009M | Unknown |
| 10200001 | 2011 |
| 10200004 | 2011 |
| 10200042 | 2014 |
| 10200052 | 2014 |
| 10200059 | 2014 |
| 10200060 | 2014 |
| 10200061 | 2014 |
| 10200062 | 2014 |
| 10200064 | 2014 |
| 10200105 | 2014 |
| 10200133 | 2014 |
| 10200134 | 2014 |
| 10200141 | 2014 |
| 10200142 | 2014 |
| 10200147 | 2014 |
| 10200154 | 2014 |
| 10200156 | 2014 |
| 10200205 | 2014 |
| 10200220 | 2014 |
| 10200225 | 2014 |
| 10200258 | 2014 |
| 10200303 | 2017 |
| 10200308 | 2017 |
| 10200343 | 2017 |
| 10200373 | 2017 |
| 10200384 | 2015 |
| 10200393 | 2017 |
| 10200408A | 2018 |
| 10200414 | 2017 |
| 10200422 | 2017 |
| 10200429 | 2017 |
| 10200442 | 2016 |
| 10200446 | 2017 |
| 10200463 | 2017 |
| 10200503 | 2017 |
| 10200546 | 2017 |
| 10200569 | 2017 |
| 10200798 | 2020 |
| 10201001 | 2020 |
| 1062 | Unknown |
| 1332 | 2010 |
| 1775 | Unknown |
| 2445 | Unknown |
| 2478 | 2007 |
| 2479 | Unknown |
| 2482 | Unknown |
| 2548 | Unknown |
| 2563 | 2009 |
| 2647B | Unknown |
| 2708A | Unknown |
| 2724 | Unknown |
| 2968 | Unknown |
| 2998 | Unknown |
| 3048 | 2016 |
| 3050 | Unknown |
| 3057 | Unknown |
| 3088 | Unknown |
| 3143 | Unknown |
| 3249 | Unknown |
| 3267 | 1999 |
| 3275 | 2002 |
| 3340 | Unknown |
| 3391 | 2018 |
| 3445 | Unknown |
| 3514 | Unknown |
| 35244-06 | 2014 |
| 35259-06 | 2006 |
| 3536 | Unknown |
| 3546 | 2013 |
| 3563 | 1999 |
| 3574 | 2018 |
| 3588 | 1990 |
| 3594 | 1992 |
| 3612 | 2012 |
| 3634 | Unknown |
| 3655A | Unknown |
| 3699D | 2006 |
| 3787 | Unknown |
| 3910 | 2014 |
| 3929 | 2009 |
| 3976 | 2004 |
| 3983 | 2005 |
| 4194 | Unknown |
| 42019-06 | 2006 |
| 4240 | Unknown |
| 42882-06 | 2006 |
| 4293 | Unknown |
| 4312C | Unknown |
| 4365 | Unknown |
| 4419 | Unknown |
| 4612 | Unknown |
| 4617 | Unknown |
| 4622 | Unknown |
| 4631 | Unknown |
| 4678 | Unknown |
| 4685 | 2007 |
| 4686 | 2006 |
| 4687 | 2006 |
| 4688 | Unknown |
| 4696 | Unknown |
| 4697 | Unknown |
| 4699 | Unknown |
| 4705 | 2005 |
| 4718A | 1994 |
| 4740A | 1994 |
| 4741A | 1994 |
| 4775 | 2000 |
| 4790 | Unknown |
| 4795 | 2006 |
| 4813A | 1990 |
| 4820A | Unknown |
| 4822A | 1994 |
| 4856 | Unknown |
| 4890 | Unknown |
| 4916 | Unknown |
| 4924 | Unknown |
| 4930 | 2008 |
| 4976 | Unknown |
| 4991 | 2009 |
| 67721-48 | 1948 |
| 68026-99 | 1999 |
| 68042-99 | 1999 |
| 68120-00 | 2000 |
| 703B | Unknown |
| 780 | Unknown |
| 786A | Unknown |
| 791A | 2007 |
| 8175 | 2004 |
| 8308 | 2009 |
| 8313 | 2009 |
| 8314 | 2009 |
| 8319 | 2009 |
| 83323-09 | 2009 |
| 8359 | 2011 |
| 8360 | 2011 |
| 8365 | 2011 |
| 8369 | 2011 |
| 856A | 1990 |
| 869 | Unknown |
| 882 | 2000 |
| 923 | Unknown |
| 926 | Unknown |
| 942 | 1992 |
| 965M | Unknown |
| 103A1 - Generic Washers | |
| 7038 | 1998 |
| 7041 | 1958 |
| 7068 | Unknown |
| 7130W | 2018 |
| 7155 | 2018 |
| 7415A | Unknown |
| 8328 | 2009 |
| 8335 | Unknown |
| 83886-09 | 2009 |
| 8972 | Unknown |
| 90875-08 | 2008 |
| 10300003 | 2014 |
| 10300036 | 2014 |
| 10300047 | 2014 |
| 10300222 | 2020 |
| 46509-01 | 2001 |
| 56159-73 | 1973 |
| 6019 | Unknown |
| 6026 | Unknown |
| 6036 | Unknown |
| 6099 | 2011 |
| 6109 | 1980 |
| 6113 | Unknown |
| 6116 | Unknown |
| 6127 | Unknown |
| 6150W | Unknown |
| 6220W | Unknown |
| 6235 | Unknown |
| 6294 | 2010 |
| 6334 | Unknown |
| 6383 | Unknown |
| 6408HB | 1970 |
| 6416 | Unknown |
| 6421 | 1996 |
| 6497HW | 2010 |
| 6532 | 2000 |
| 6549 | Unknown |
| 6590HW | Unknown |
| 6594 | Unknown |
| 6645 | Unknown |
| 6701 | Unknown |
| 6702 | Unknown |
| 6703 | 1970 |
| 6718 | Unknown |
| 6771A | Unknown |
| 67815-59A | 1959 |
| 104A1 - Custom Nuts | |
| 10400038 | 2019 |
| 7606 | 1983 |
| 8146 | Unknown |
| 105A1 - Custom Screws | |
| 10500015 | 2014 |
| 10500017 | 2014 |
| 10500022 | 2014 |
| 10500031 | 2014 |
| 10500034 | 2014 |
| 10500036 | 2014 |
| 10500053 | 2015 |
| 10500069 | 2017 |
| 10500108 | 2018 |
| 10500113 | 2019 |
| 10500114 | 2019 |
| 10500116 | 2019 |
| 108A1 - Hose Clamps | |
| 10344 | Unknown |
| 10800023 | 2013 |
| 10800025A | 2017 |
| 10800052 | 2014 |
| 10800078 | 2014 |
| 10800109 | 2017 |
| 10800111 | 2017 |
| 11608 | Unknown |
| 42119-08 | 2008 |
| 55918-08 | 2008 |
| 69563-06 | 2006 |
| 9955 | Unknown |
| 9956 | 1972 |
| 108B1 - P Clamps | |
| 10076 | 2010 |
| 10800028 | 2014 |
| 51009-02A | 2002 |
| 109A1 - Studs | |
| 10900005 | 2014 |
| 10900006 | 2014 |
| 10900015A | 2018 |
| 66290-06 | 2006 |
| 83311-09 | 2009 |
| 83822-09 | 2009 |
| 110A1 - Bearing Dust Seals | |
| 83848-09 | 2009 |
| 110B1 - Plain Bushings | |
| 83314-09 | 2009 |
| 83317-09 | 2009 |
| 8885 | Unknown |
| 8967A | 2017 |
| 9208 | Unknown |
| 9701A | 2011 |
| 11000050 | 2014 |
| 11000139 | 2017 |
| 11519 | Unknown |
| 12077 | Unknown |
| 57217-02A | 2013 |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 11000134 | 2017 |
| 12052A | 2003 |
| 12074 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 11000010 | 2011 |
| 24605-07 | 2007 |
| 8042A | 2018 |
| 8963 | Unknown |
| 8970A | 2012 |
| 9215 | Unknown |
| 9231 | Unknown |
| 9252A | 2017 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 72008-05 | 2005 |
| 72110-06 | 2006 |
| 72194-94 | 1994 |
| 72264-94 | 1994 |
| 72560-07 | 2007 |
| 72990-01 | 2001 |
| 73304-04 | 2004 |
| 74196-04 | 2004 |
| 9819 | Unknown |
| 9825 | Unknown |
| 9907 | Unknown |
| 111B1 - Tape | |
| 11100094 | 2014 |
| 111C1 - Insulating Tape | |
| 11100115 | 2014 |
| 83811-09 | 2009 |
| 111D1 - Isolating Tape | |
| 11100038 | 2014 |
| 11100050 | 2014 |
| 11100051 | 2014 |
| 11100057 | 2014 |
| 44430-04 | 2004 |
| 111E1 - Mounting Tape | |
| 11100089 | 2014 |
| 111F1 - Protective Tape | |
| 11100071 | 2014 |
| 11100105 | 2014 |
| 116A1 - Banjo Bolts | |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 42010-06B | 2015 |
| 50674-05 | 2005 |
| 117A1 - Coil Springs | |
| 51501-07 | 2018 |
| 119A1 - O-Rings | |
| 10968 | Unknown |
| 11105 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11145A | 2007 |
| 11201 | Unknown |
| 11289A | Unknown |
| 11293 | 1996 |
| 11323A | 2016 |
| 11364 | 2002 |
| 11686 | Unknown |
| 11900010 | 2013 |
| 11900021 | 2014 |
| 11900090 | 2017 |
| 11900092 | 2017 |
| 11900103 | 2017 |
| 11900116 | 2017 |
| 11900132 | 2019 |
| 11900155 | 2020 |
| 11900172 | 2020 |
| 27444-00Y | 2000 |
| 46508-01 | 2001 |
| 8367 | 2011 |
| 120A1 - Pins | |
| 8368 | 2011 |
| 16574-99A | 1999 |
| 16583-00A | 2000 |
| 16589-99A | 1999 |
| 221 | 2026 |
| 24754-75A | 1975 |
| 42460-80B | 1980 |
| 45041-01A | 2001 |
| 509 | Unknown |
| 50933-86A | 1986 |
| 515 | Unknown |
| 520W | 2010 |
| 601 | Unknown |
| 121A1 - Grommets | |
| 11445 | Unknown |
| 11650 | 2010 |
| 11692 | Unknown |
| 12100017 | 2014 |
| 12100020 | 2014 |
| 12100077 | 2017 |
| 12100119 | 2019 |
| 12100124 | 2019 |
| 57978-00 | 2000 |
| 83439-09 | 2009 |
| 83460-09 | 2009 |
| 121B1 - Press-Fit Plugs | |
| 72097-06 | 2006 |
| 765 | 1997 |
| 12100069 | 2017 |
| 122A1 - Retaining Rings | |
| 10103 | Unknown |
| 10108 | Unknown |
| 10147 | 2018 |
| 10395 | Unknown |
| 10396 | Unknown |
| 10991A | Unknown |
| 11012 | 2011 |
| 11081A | 2008 |
| 11082A | 2016 |
| 11143 | Unknown |
| 11150 | 1984 |
| 11161 | 1984 |
| 11177A | 1996 |
| 11304 | Unknown |
| 11389 | Unknown |
| 11575 | Unknown |
| 12200025 | 2014 |
| 12200064 | 2014 |
| 12200075 | 2014 |
| 12200144 | 2018 |
| 12200173 | 2019 |
| 12200177 | 2019 |
| 17945-36B | 1936 |
| 35087-99A | 1999 |
| 35114-02 | 2002 |
| 60678-85 | 1985 |
| 61012-04A | 2004 |
| 61213-04A | 2004 |
| 65325-83A | 1983 |
| 66078-06 | 2006 |
| 83313-09 | 2009 |
| 83316-09 | 2009 |
| 83331-09A | 2016 |
| 9853 | Unknown |
| 122A2 - Retaining Clips | |
| 10334 | 2014 |
| 12200147A | 2017 |
| 12200170 | 2018 |
| 12200172 | 2018 |
| 12200174 | 2019 |
| 12200175A | 2019 |
| 123A1 - Sealing Washers | |
| 12300002 | 2011 |
| 41751-06A | 2006 |
| 123B1 - Spring Washers | |
| 7069 | Unknown |
| 124A1 - Spacers | |
| 8324 | 2009 |
| 83864-09 | 2009 |
| 11599A | 2012 |
| 12400034 | 2014 |
| 12400099 | 2017 |
| 41900-08 | 2008 |
| 46515-01 | 2001 |
| 5837A | Unknown |
| 125A1 - Tie Straps | |
| 10006 | 1960 |
| 10039 | 1981 |
| 10065 | 1985 |
| 10177 | 1996 |
| 10270 | 2003 |
| 10287 | 2004 |
| 11321 | 2000 |
| 12500002 | 2012 |
| 12500014 | 2017 |
| 12500015 | 2017 |
| 12500018 | 2017 |
| 126A1 - Miscellaneous Hardware | |
| 12600032 | 2014 |
| 12600049 | 2014 |
| 12600070 | 2014 |
| 12600071 | 2014 |
| 12600073 | 2014 |
| 12600212 | 2019 |
| 56161-83A | 1983 |
| 57100187 | 2014 |
| 57638-08 | 2008 |
| 68331-02 | 2002 |
| 8041 | Unknown |
| 83337-09A | 2012 |
| 83339-09A | 2012 |
| 83459-09 | 2009 |
| 8861 | 2018 |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 11779 | 2008 |
| 12600067 | 2014 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 127A1 - Miscellaneous, Non-System-Specific Component | |
| 12700032 | 2014 |
| 127B1 - Generic Mounting Bracket | |
| 12700091 | 2017 |
| 51652-97A | 1997 |
| 70493-08 | 2008 |
| 140A1 - Battery Warning Label | |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14001773 | 2019 |
| 14002116 | 2020 |
| 14002197 | 2020 |
| 14148-86 | 1986 |
| 83890-09A | 2010 |
| 90821-74C | 1974 |
| 140A3 - Other Special Warning Label | |
| 83446-09 | 2009 |
| 15370-01A | 2001 |
| 140M2 - Shift Pattern Label | |
| 14272-06 | 2006 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 141A1 - Medallion | |
| 14101072 | 2018 |
| 14101119 | 2019 |
| 14101120 | 2019 |
| 14101125 | 2019 |
| 14101128 | 2019 |
| 14101133 | 2019 |
| 14101169 | 2019 |
| 14101170 | 2019 |
| 14101321 | 2020 |
| 14101322 | 2020 |
| 14101323 | 2020 |
| 42856-06 | 2006 |
| 61007-10 | 2010 |
| 162D1 - Engine Assembly | |
| 16200664 | 2020 |
| 162D3 - Engine Assembly Short Block | |
| 16200395 | 2018 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 163B1 - Engine Isolator Mount | |
| 83382-09 | 2009 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 164B1 - Engine Mount Bracket sub-component | |
| 16219-09 | 2009 |
| 7358 | Unknown |
| 7531 | 1980 |
| 7667 | Unknown |
| 7686 | Unknown |
| 7716 | 1990 |
| 7783 | Unknown |
| 8194 | Unknown |
| 164D1 - Tiebar Mount | |
| 16400046 | 2017 |
| 165A1 - Cylinder Head | |
| 16500499 | 2017 |
| 16500509 | 2017 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500332 | 2017 |
| 16500599 | 2018 |
| 17369-06 | 2006 |
| 167A1 - PT Assembly Miscellaneous Component | |
| 36731-91 | 1991 |
| 168A1 - Cylinder | |
| 16800121 | 2017 |
| 16800123 | 2017 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300053 | 2017 |
| 17300055 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059A | 2017 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17900030 | 2017 |
| 17900031 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900034 | 2017 |
| 17900035 | 2017 |
| 180A1 - Valves | |
| 18000016 | 2017 |
| 18000034 | 2017 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18100043 | 2017 |
| 18100045 | 2017 |
| 18100060 | 2017 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900082 | 2018 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 220Z1 - Kit,Piston Ring | |
| 22000079 | 2018 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100045A | 2019 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400187 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215 | 2017 |
| 244D1 - Crankcase sub-component | |
| 83456-09 | 2009 |
| 244F1 - Oil Pan | |
| 24400180 | 2017 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25400273 | 2018 |
| 25673-06 | 2006 |
| 25675-06 | 2006 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400133 | 2017 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 256A1 - Timer Cover | |
| 25600111 | 2019 |
| 257A1 - Cam Cover | |
| 25700367 | 2017 |
| 257B1 - Clutch Cover | |
| 25700178 | 2013 |
| 25701157 | 2020 |
| 257E1 - Cover Gaskets | |
| 11902 | Unknown |
| 11936 | Unknown |
| 25700362 | 2017 |
| 25700370 | 2017 |
| 25700372B | 2018 |
| 25700378 | 2017 |
| 25700425 | 2017 |
| 25700433 | 2017 |
| 25700452 | 2017 |
| 25700453 | 2017 |
| 25700679 | 2017 |
| 35654-06 | 2006 |
| 36805-06 | 2006 |
| 42857-06B | 2013 |
| 61109-85D | 1985 |
| 61402-08 | 2008 |
| 65324-83B | 2009 |
| 71294-08 | 2008 |
| 257L1 - Primary Cover | |
| 25700418 | 2017 |
| 25700650 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700409 | 2017 |
| 25701055 | 2019 |
| 257P1 - Tappet Cover | |
| 25700410 | 2017 |
| 25700411 | 2017 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700731 | 2017 |
| 25700746 | 2017 |
| 25700983 | 2018 |
| 25700984 | 2018 |
| 25701000 | 2018 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800054 | 2017 |
| 25800109 | 2017 |
| 25800110 | 2017 |
| 25800123 | 2019 |
| 25800124 | 2019 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 266B1 - Water Pump | |
| 26600048 | 2017 |
| 268B1 - Cooling Fan | |
| 26800007A | 2014 |
| 26800019A | 2014 |
| 268B2 - Cooling Fan Guard | |
| 26800008 | 2014 |
| 268C1 - Radiator | |
| 26800005 | 2014 |
| 26800006 | 2014 |
| 268E1 - Radiator sub-component | |
| 26800020A | 2014 |
| 268F1 - Radiator Pressure Cap | |
| 26800021 | 2014 |
| 268H1 - Radiator System Cover | |
| 26800009 | 2014 |
| 26800077 | 2017 |
| 269A1 - Cooling Line Fitting | |
| 26900117 | 2017 |
| 269A2 - Coolant Line | |
| 26900133 | 2017 |
| 269B1 - Radiator Hose | |
| 26900008 | 2014 |
| 26900009 | 2014 |
| 26900010 | 2014 |
| 26900016 | 2013 |
| 26900017 | 2013 |
| 26900018 | 2014 |
| 26900088 | 2017 |
| 26900114 | 2017 |
| 26900115 | 2017 |
| 26900144 | 2017 |
| 26900145 | 2017 |
| 269F1 - Radiator Overflow Tank Cap | |
| 26780-05A | 2006 |
| 269G1 - Radiator Overflow Tank | |
| 26900014 | 2014 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200025 | 2017 |
| 273A1 - Intake Manifold | |
| 27300121 | 2017 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300087 | 2017 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300086 | 2017 |
| 273G1 - Throttle Body | |
| 27300122 | 2017 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300082 | 2017 |
| 274B1 - Fuel Rail | |
| 27400019 | 2017 |
| 274C1 - Fuel Injector | |
| 27400015 | 2017 |
| 290A1 - Airbox Baseplate | |
| 29000148 | 2017 |
| 290D1 - Airbox Seal | |
| 29000149 | 2017 |
| 292A1 - Air Duct | |
| 29200088A | 2019 |
| 292B1 - Air Duct Bezel | |
| 29200087A | 2019 |
| 294A1 - Air Filter Element | |
| 29400267 | 2017 |
| 294B1 - Breather Bolt | |
| 29465-08B | 2017 |
| 294C1 - Breather Hose | |
| 29400336 | 2017 |
| 29400337 | 2017 |
| 294F1 - Engine Breather Valve | |
| 29400183 | 2017 |
| 29400210 | 2017 |
| 299B1 - Charging Rotor Assembly | |
| 29900038 | 2017 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900042A | 2017 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 27715-07 | 2007 |
| 31400139 | 2020 |
| 71474-07 | 2007 |
| 83857-09 | 2009 |
| 314M1 - Reverse Motor | |
| 83388-09B | 2018 |
| 83388-09C | 2020 |
| 31400129 | 2018 |
| 31400143 | 2020 |
| 316A1 - Ignition Coil | |
| 31600017 | 2017 |
| 316B1 - Spark Plug Cable | |
| 31600018B | 2018 |
| 31600023A | 2017 |
| 31600078A | 2017 |
| 31600079 | 2017 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 32495-98A | 2015 |
| 32700050A | 2018 |
| 32700101 | 2019 |
| 32700102 | 2019 |
| 327B1 - Chemical / Gas Sensor | |
| 27809-10 | 2010 |
| 32700046 | 2017 |
| 327C1 - Pressure Sensor | |
| 32700100 | 2019 |
| 327D1 - Proximity Sensor | |
| 32700011 | 2014 |
| 32700015 | 2014 |
| 32700048 | 2017 |
| 74402-05B | 2012 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32700054 | 2017 |
| 32700065 | 2017 |
| 32700066 | 2015 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600088 | 2017 |
| 33600091 | 2017 |
| 33814-98A | 1998 |
| 5817 | 2000 |
| 336D1 - Shift Pedal | |
| 33600060A | 2018 |
| 33600061A | 2018 |
| 336F1 - Toepeg | |
| 33600251 | 2019 |
| 339A1 - Shift Lever | |
| 33900180 | 2017 |
| 339D1 - Shifter Fork | |
| 35187-06 | 2006 |
| 35210-06 | 2006 |
| 35217-06 | 2006 |
| 35222-06 | 2014 |
| 35223-06 | 2014 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33389-07 | 2014 |
| 33409-06B | 2006 |
| 33900172 | 2017 |
| 34064-00C | 2000 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35081-06 | 2006 |
| 35082-07 | 2007 |
| 35186-06 | 2006 |
| 35243-06 | 2014 |
| 35249-06A | 2006 |
| 83389-09A | 2010 |
| 347B1 - Transmission Case | |
| 34700092 | 2017 |
| 348C1 - Transmission Top Cover | |
| 34800025 | 2017 |
| 350A1 - Transmission Output Sprocket | |
| 83595-11 | 2011 |
| 350C1 - Transmission Output Sprocket Compensator Driving Element | |
| 83850-09 | 2009 |
| 350E1 - Transmission Gear | |
| 35000179 | 2018 |
| 35122-06A | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 11207A | 2009 |
| 25729-06 | 2006 |
| 25731-06 | 2006 |
| 25734-06 | 2006 |
| 25736-06 | 2006 |
| 25737-06 | 2006 |
| 25738-06 | 2006 |
| 350S2 - Sub-Assembly,Transmission Mainshaft | |
| 35000199A | 2018 |
| 352A1 - Engine Balancer | |
| 35200057 | 2018 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35600094 | 2018 |
| 35600103 | 2017 |
| 35807-06 | 2006 |
| 35811-06 | 2006 |
| 35814-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35126-06 | 2006 |
| 35204-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35124-06 | 2006 |
| 35202-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 35260-06B | 2016 |
| 40901-05 | 2005 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075 | 2017 |
| 365E1 - Inner Primary Housing | |
| 36500092A | 2020 |
| 367A1 - Clutch Lever | |
| 36700172A | 2018 |
| 367B1 - Clutch Lever Master Cylinder | |
| 36700170A | 2018 |
| 367D1 - Clutch Lever Master Cylinder Reservoir | |
| 36700131 | 2017 |
| 36700132 | 2017 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000254A | 2019 |
| 37496-90A | 1990 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000217 | 2014 |
| 37000218 | 2014 |
| 37000219 | 2017 |
| 37000258 | 2017 |
| 37000295 | 2019 |
| 372G1 - Clutch Hose | |
| 37200129 | 2017 |
| 372P1 - Secondary Clutch Actuator | |
| 37200131C | 2019 |
| 372Z1 - Kit,Clutch Actuation | |
| 37200425 | 2020 |
| 400A1 - Drive-Belt | |
| 40040-05 | 2005 |
| 401A1 - Engine Sprocket | |
| 40100041 | 2014 |
| 40100064 | 2017 |
| 83936-09A | 2013 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076 | 2017 |
| 409A2 - Rear Wheel Assembly | |
| 40900663 | 2020 |
| 40900724 | 2020 |
| 410A1 - Body Control Module (BCM) | |
| 41000341F | 2020 |
| 41000342F | 2020 |
| 410D1 - Electronic Control Module (ECM) | |
| 41000599 | 2019 |
| 410K1 - Telematics Control Module (TCM) | |
| 41000645 | 2020 |
| 41000721 | 2020 |
| 411A1 - ABS Control Unit | |
| 40786-08 | 2008 |
| 411A3 - ABS Hydraulic Control Unit | |
| 41100093 | 2019 |
| 413A1 - Brake Caliper | |
| 41300212 | 2019 |
| 41300215 | 2019 |
| 42938-08 | 2008 |
| 42939-08 | 2008 |
| 44160-00 | 2000 |
| 46368-10 | 2010 |
| 46369-10 | 2010 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 413D1 - Brake Pad | |
| 41300214 | 2019 |
| 41854-08 | 2008 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 415B1 - Brake Rotor | |
| 41500017 | 2014 |
| 41500018 | 2014 |
| 41500019 | 2014 |
| 41500020 | 2014 |
| 41500151 | 2019 |
| 416A1 - Brakes Miscellaneous Component | |
| 41600267 | 2019 |
| 42852-06A | 2006 |
| 42860-06B | 2006 |
| 42934-08 | 2008 |
| 44935-06 | 2006 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600032 | 2014 |
| 41600091 | 2014 |
| 41600257 | 2019 |
| 41600258 | 2019 |
| 41600261 | 2019 |
| 41600263 | 2019 |
| 416Z1 - Kit,Brake Miscellaneous Component | |
| 41600352 | 2020 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700439 | 2017 |
| 41700561 | 2019 |
| 42102-08D | 2018 |
| 42123-08 | 2008 |
| 417B1 - Brake Master Cylinder | |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42861-06B | 2006 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700367 | 2015 |
| 42862-06B | 2010 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41700562 | 2019 |
| 41700581 | 2019 |
| 417G1 - Front Brake Lever | |
| 42105-06A | 2006 |
| 42271-06A | 2007 |
| 417H1 - Front Brake Master Cylinder Mount Clamp | |
| 45138-08A | 2008 |
| 417Z1 - Kit,Brake | |
| 41700469 | 2017 |
| 41700582 | 2019 |
| 418B1 - Brake Line | |
| 41800682 | 2019 |
| 41800683 | 2019 |
| 41800684 | 2019 |
| 41800685 | 2019 |
| 41800686 | 2019 |
| 41800687 | 2019 |
| 422B1 - Wheel Sprocket | |
| 83424-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-08 | 2008 |
| 423F1 - Tire Pressure Monitor | |
| 42300114 | 2020 |
| 42300115 | 2020 |
| 42300118 | 2020 |
| 42300119 | 2020 |
| 423G1 - Valve Stem | |
| 42300112 | 2020 |
| 423H1 - Valve Stem Cap | |
| 42300093 | 2018 |
| 423K1 - Wheel Weights | |
| 42300001 | 2011 |
| 424A1 - Wheels, Tires and Final Drive Miscellaneous Component | |
| 83849-09A | 2011 |
| 425A1 - Wheel sub-component | |
| 42500013 | 2020 |
| 42500016 | 2020 |
| 430C1 - Axle Nut | |
| 83889-09 | 2009 |
| 430E1 - Rear Axle | |
| 43000153 | 2019 |
| 43000154 | 2019 |
| 430F1 - Sidecar Axle | |
| 83450-09 | 2009 |
| 430Z1 - Kit,Axle | |
| 43000155 | 2019 |
| 43000156 | 2019 |
| 431A1 - Front Tire | |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200046 | 2020 |
| 433A2 - Front Wheel Assembly | |
| 43300703 | 2020 |
| 43300737 | 2020 |
| 433B1 - Front Wheel Bearing Spacer | |
| 44583-08 | 2008 |
| 48489-02 | 2002 |
| 56163-93 | 1993 |
| 454A1 - Front Telescopic Fork | |
| 45400254 | 2020 |
| 45400255 | 2020 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500201 | 2014 |
| 45500202 | 2014 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500396 | 2017 |
| 45500541 | 2019 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500117 | 2014 |
| 45500118 | 2014 |
| 45500132 | 2014 |
| 45500397 | 2017 |
| 45500398 | 2017 |
| 45500421 | 2001 |
| 45500424 | 2017 |
| 45500538 | 2019 |
| 45500540 | 2019 |
| 46513-01 | 2001 |
| 46514-01A | 2010 |
| 456A1 - Fork Protector | |
| 45600017 | 2014 |
| 45600018 | 2014 |
| 457B1 - Steering Damper | |
| 83808-09A | 2010 |
| 457D1 - Steering Stem | |
| 45700020 | 2014 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 46615-06 | 2006 |
| 459A1 - Upper Triple Clamp | |
| 45900027 | 2014 |
| 459B1 - Lower Triple Clamp | |
| 45900234 | 2019 |
| 470A1 - Frame | |
| 47000089BHP | 2017 |
| 83466-11BHP | 2011 |
| 472A1 - Frame sub-component | |
| 47200001B | 2015 |
| 472C2 - Fairing Lower Support Bracket | |
| 47200275 | 2014 |
| 472D1 - Chassis Structure Miscellaneous Component | |
| 51023-07 | 2007 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 47200302A | 2017 |
| 83407-09 | 2009 |
| 83429-09 | 2009 |
| 83860-09 | 2009 |
| 83861-09 | 2009 |
| 474C1 - Swingarm | |
| 83366-09 | 2009 |
| 474E1 - Swingarm Assembly sub-component | |
| 83373-09A | 2010 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47505-02 | 2002 |
| 490C1 - Engine Guard | |
| 49184-09A | 2014 |
| 500B1 - Sidestand Bracket | |
| 50000031 | 2014 |
| 505A1 - Footboard | |
| 50501154 | 2019 |
| 50501155 | 2019 |
| 50501181 | 2019 |
| 50501184 | 2019 |
| 50501210 | 2019 |
| 50501211 | 2019 |
| 50501218 | 2019 |
| 50501219 | 2019 |
| 50501220 | 2019 |
| 50501221 | 2019 |
| 50998-07 | 2007 |
| 51006-07A | 2020 |
| 51007-07 | 2007 |
| 505B1 - Footpeg Mount Bracket | |
| 50351-03 | 2009 |
| 50500397 | 2015 |
| 50501293 | 2019 |
| 50518-09 | 2009 |
| 505D1 - Passenger Footpeg | |
| 50501189 | 2019 |
| 50501191 | 2019 |
| 505K1 - Footpeg Wear Peg | |
| 33130-07A | 2007 |
| 506A1 - Brake Pedal | |
| 50600067 | 2014 |
| 50912-72 | 1972 |
| 506Z1 - Kit,Brake Pedal | |
| 50600340 | 2019 |
| 50600426 | 2020 |
| 520A1 - Rider Seat or Full Seat | |
| 52000441 | 2020 |
| 523C1 - Back Rest Support Structure | |
| 52300121 | 2014 |
| 52300122 | 2014 |
| 52300123 | 2014 |
| 52300127 | 2014 |
| 52300651 | 2020 |
| 52300652 | 2020 |
| 52567-93D | 2010 |
| 52585-09 | 2009 |
| 52589-09A | 2010 |
| 52590-09 | 2009 |
| 524A1 - Passenger Grab Handle | |
| 52400090 | 2014 |
| 530A1 - Tour Pak | |
| 53000758ELW | 2020 |
| 53000758ELZ | 2020 |
| 530B1 - Tour Pak sub-component | |
| 53000090 | 2014 |
| 53000091 | 2014 |
| 53000132 | 2014 |
| 53000141A | 2017 |
| 53000308 | 2014 |
| 53000346 | 2014 |
| 53000370 | 2014 |
| 53000634ELW | 2020 |
| 53000634ELZ | 2020 |
| 53000635ELW | 2020 |
| 53000635ELZ | 2020 |
| 53629-10 | 2010 |
| 90869-85A | 1985 |
| 530C2 - Case Latch | |
| 53000137 | 2014 |
| 53000633ELW | 2020 |
| 53000633ELZ | 2020 |
| 53000637ELW | 2020 |
| 53000637ELZ | 2020 |
| 53865-06 | 2006 |
| 530D1 - Trunk Pan sub-component | |
| 53000077 | 2011 |
| 53000753 | 2020 |
| 53000771 | 2020 |
| 53000772 | 2020 |
| 53000773 | 2020 |
| 83434-11 | 2011 |
| 83457-11 | 2011 |
| 83458-11 | 2011 |
| 83538-11 | 2011 |
| 83777-11 | 2011 |
| 83778-11 | 2011 |
| 83781-11 | 2011 |
| 83782-11 | 2011 |
| 83783-11 | 2011 |
| 83798-11 | 2011 |
| 83991-11 | 2011 |
| 530E1 - Tour-Pak Luggage Rack | |
| 79179-08 | 2008 |
| 53000431 | 2015 |
| 53665-87 | 1987 |
| 530Z1 - Kit,Tour Pak | |
| 53000429ELW | 2020 |
| 53000429ELZ | 2020 |
| 540B1 - Rear Shock | |
| 54000144 | 2019 |
| 540E1 - Rear Shock sub-component | |
| 54000145 | 2019 |
| 540H1 - Rear Suspension Miscellaneous Component | |
| 54000149 | 2019 |
| 83823-09 | 2009 |
| 540L1 - Shock-Mount Bracket | |
| 83865-09 | 2009 |
| 540L2 - Rear Suspension Mounting Bracket | |
| 54000148 | 2019 |
| 558A1 - Handlebar | |
| 55800214 | 2014 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 560A1 - Mirror | |
| 92447-11 | 2011 |
| 92448-11 | 2011 |
| 561B1 - Left Hand Grip | |
| 56100325 | 2019 |
| 561C1 - Throttle Assembly w/Grip | |
| 56100326 | 2019 |
| 561D1 - Throttle Assembly sub-component | |
| 56100329 | 2019 |
| 570A1 - Front Fairing | |
| 57000182 | 2014 |
| 57000383 | 2014 |
| 57001145ELZ | 2020 |
| 570C1 - Inner Fairing | |
| 57000169A | 2018 |
| 57000170 | 2014 |
| 57000172 | 2014 |
| 57000175 | 2014 |
| 57000186A | 2020 |
| 57000247 | 2014 |
| 57000299 | 2014 |
| 57001142ELY | 2020 |
| 57001142ELZ | 2020 |
| 570Z1 - Kit,Fairing | |
| 57000628EMN | 2020 |
| 57000628EMO | 2020 |
| 571A1 - Fairing Lower | |
| 57100111 | 2014 |
| 57100112 | 2014 |
| 57100113 | 2014 |
| 57100114 | 2014 |
| 571B1 - Fairing Lower sub-component | |
| 57100099 | 2014 |
| 57100107 | 2014 |
| 57100109 | 2014 |
| 57100147 | 2014 |
| 57100148 | 2014 |
| 57100151 | 2014 |
| 57100152 | 2014 |
| 57100153 | 2014 |
| 57100154 | 2014 |
| 57100155 | 2014 |
| 57100164 | 2014 |
| 57100165 | 2014 |
| 57100170 | 2014 |
| 57100171 | 2014 |
| 57100172 | 2014 |
| 57100200 | 2014 |
| 57100225 | 2014 |
| 57100256 | 2014 |
| 57100291ELW | 2020 |
| 57100291ELZ | 2020 |
| 57100292ELW | 2020 |
| 57100292ELZ | 2020 |
| 57100313ELW | 2020 |
| 57100313ELZ | 2020 |
| 57100314ELW | 2020 |
| 57100314ELZ | 2020 |
| 572C1 - Chin Spoiler Side | |
| 57200012 | 2014 |
| 57200017 | 2014 |
| 572D1 - Engine Shroud | |
| 57200243 | 2020 |
| 57200256 | 2020 |
| 572E1 - Side Cover | |
| 32306-08 | 2008 |
| 57200083ELW | 2020 |
| 57200083ELZ | 2020 |
| 57200281ELW | 2020 |
| 57200281ELZ | 2020 |
| 572Z1 - Kit,Shroud | |
| 57200245 | 2020 |
| 573A1 - Bodywork Miscellaneous Component | |
| 83344-11 | 2011 |
| 574B1 - Windscreen / Windshield | |
| 57400373 | 2018 |
| 57400377ELZ | 2020 |
| 589A1 - Front Fender | |
| 58900370 | 2020 |
| 58900371ELW | 2020 |
| 58900371ELZ | 2020 |
| 596B1 - Fender Tip | |
| 83419-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800006 | 2012 |
| 608B1 - Carbon Canister Hose | |
| 27291-09A | 2014 |
| 27297-09A | 2014 |
| 27298-09A | 2014 |
| 60800026 | 2017 |
| 609A1 - Fuel Miscellaneous Component | |
| 60900036 | 2018 |
| 61112-08 | 2008 |
| 62229-08B | 2011 |
| 70999-09 | 2009 |
| 75254-04A | 2004 |
| 75269-08 | 2008 |
| 609B1 - Fuel and Intake Mounting Bracket | |
| 70901-09 | 2009 |
| 610A1 - Fuel Tank | |
| 61000634EMN | 2020 |
| 61000634EMO | 2020 |
| 61356-08 | 2008 |
| 611A1 - Filler Neck Trim | |
| 75069-08D | 2018 |
| 611B1 - Fuel Cap | |
| 61274-92 | 1992 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 27440-09A | 2014 |
| 69241-08 | 2008 |
| 611Z1 - Kit,Fuel Filling | |
| 53919-04B | 2018 |
| 612A1 - Fuel Filter | |
| 61011-04A | 2004 |
| 612B1 - Fuel Level Sensor | |
| 75205-08A | 2012 |
| 612B2 - Fuel Valve | |
| 61015-04A | 2004 |
| 62228-08C | 2016 |
| 612C1 - Fuel Line | |
| 61200022 | 2017 |
| 612F1 - Fuel Pump | |
| 62908-08 | 2008 |
| 613A1 - Trim Panel | |
| 61300504ELW | 2020 |
| 61300504ELZ | 2020 |
| 61300926 | 2019 |
| 62775-08 | 2008 |
| 613B1 - Horn Cover | |
| 61300523A | 2017 |
| 613C1 - Intake / Fuel Tank Cover | |
| 61293-08A | 2016 |
| 613D1 - Intake / Fuel Tank Cover Trim | |
| 61313-88 | 1988 |
| 613K1 - Airbox Cover | |
| 61300721 | 2017 |
| 61300750 | 2017 |
| 613M1 - Headlight Cover | |
| 61300089 | 2014 |
| 614C1 - Trim | |
| 43475-08 | 2008 |
| 53734-06 | 2006 |
| 53735-06 | 2006 |
| 61400063 | 2014 |
| 61400064 | 2014 |
| 61400080 | 2014 |
| 61400081 | 2014 |
| 61400192 | 2014 |
| 61400224 | 2014 |
| 61400614 | 2019 |
| 61400622 | 2019 |
| 624A1 - Oil Pump Assembly | |
| 62400242 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 62400055 | 2017 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 62700150 | 2017 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 37065-06A | 2017 |
| 62700198 | 2017 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296 | 2020 |
| 627G1 - Oil Jet | |
| 62700089 | 2017 |
| 62700117 | 2017 |
| 627H1 - Oil Line | |
| 62372-09 | 2009 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800004 | 2014 |
| 62800013 | 2013 |
| 649A1 - Muffler | |
| 64900294 | 2017 |
| 64900295 | 2017 |
| 64900946 | 2020 |
| 84021-10 | 2010 |
| 651A1 - Muffler End-Cap / Outlet Finisher | |
| 65100190 | 2020 |
| 654A1 - Exhaust Shield | |
| 65400176 | 2017 |
| 65400177 | 2017 |
| 65400178 | 2017 |
| 65400179 | 2017 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 66861-09B | 2019 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65500042 | 2017 |
| 65500043 | 2017 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600176 | 2017 |
| 65600177 | 2017 |
| 65600179 | 2017 |
| 65600190 | 2017 |
| 659A1 - Exhaust Clamp | |
| 65900012 | 2014 |
| 65900015 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 660A1 - Battery | |
| 66010-97D | 2016 |
| 66373-06 | 2006 |
| 660C1 - Battery Pan | |
| 66000136 | 2019 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660E1 - Ground Strap | |
| 70186-82 | 1982 |
| 75322-09 | 2009 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 660H1 - Positive Battery Cable Boot | |
| 70018-07 | 2007 |
| 677A1 - Headlight | |
| 68725-62A | 1962 |
| 67700058 | 2014 |
| 67700077 | 2014 |
| 67700320A | 2020 |
| 67700339A | 2020 |
| 67716-60C | 2014 |
| 67726-08 | 2008 |
| 67778-60A | 1960 |
| 67780-60A | 1960 |
| 677B1 - Headlight sub-component | |
| 67700069 | 2014 |
| 67700070 | 2014 |
| 67700071 | 2014 |
| 67712-83B | 2014 |
| 69200109 | 2014 |
| 677C1 - Headlight Support Bracket | |
| 67700056 | 2014 |
| 67700057 | 2014 |
| 67700124 | 2014 |
| 67700204 | 2014 |
| 67700205 | 2014 |
| 67700239 | 2014 |
| 67700240 | 2014 |
| 678A1 - Taillight | |
| 54355-09 | 2009 |
| 67800086 | 2014 |
| 67800099 | 2014 |
| 67800165 | 2014 |
| 67800442 | 2014 |
| 67801116ELW | 2020 |
| 67801116ELZ | 2020 |
| 67801117ELW | 2020 |
| 67801117ELZ | 2020 |
| 67801156 | 2020 |
| 68066-99A | 2004 |
| 68296-99A | 2004 |
| 68830-99A | 1999 |
| 678B1 - Taillight Housing | |
| 54353-09 | 2009 |
| 67800109 | 2014 |
| 67800564ELW | 2020 |
| 67800564ELZ | 2020 |
| 67801155ELW | 2020 |
| 67801155ELZ | 2020 |
| 678D1 - Turnsignal | |
| 67800131 | 2014 |
| 67800257 | 2014 |
| 68821-00 | 2000 |
| 678E1 - Turnsignal Lens | |
| 67800251 | 2014 |
| 679B1 - Reflector | |
| 59481-00 | 2018 |
| 59482-00 | 2018 |
| 59988-72A | 1972 |
| 67900196A | 2019 |
| 67900205A | 2019 |
| 67900212A | 2019 |
| 67900265 | 2017 |
| 67900269 | 2017 |
| 679D1 - License Plate Bracket | |
| 67900306 | 2017 |
| 67900432 | 2018 |
| 67900433 | 2018 |
| 83395-09A | 2011 |
| 83396-09A | 2011 |
| 83420-09 | 2009 |
| 679E1 - License Plate Light | |
| 67900289 | 2017 |
| 67900325 | 2017 |
| 67900430 | 2018 |
| 83799-10 | 2010 |
| 67900170 | 2014 |
| 680A1 - Decorative Light | |
| 68000065 | 2014 |
| 680C1 - Incandescent Bulb | |
| 52441-95 | 1995 |
| 680D1 - Fog Light | |
| 68000021 | 2014 |
| 68000022 | 2014 |
| 68000102 | 2014 |
| 68000103 | 2014 |
| 68000203 | 2018 |
| 68000239 | 2018 |
| 68000264A | 2018 |
| 68000265A | 2018 |
| 690A1 - Emergency Siren | |
| 68958-07C | 2010 |
| 690B1 - Emergency Siren sub-component | |
| 69309-10 | 2010 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000083 | 2017 |
| 692B1 - Auxiliary Power Outlet | |
| 69200170 | 2014 |
| 69200171 | 2014 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200174 | 2014 |
| 69200175 | 2014 |
| 69200421 | 2014 |
| 69200840 | 2017 |
| 6990 | 2011 |
| 72189-04 | 2004 |
| 72299-95 | 1995 |
| 73333-10 | 2010 |
| 83869-09 | 2009 |
| 91562-01 | 2001 |
| 10289A | Unknown |
| 692C2 - Electrical Mounting Bracket | |
| 69062-91A | 1991 |
| 69120-91 | 1991 |
| 69123-92A | 1992 |
| 69200202A | 2017 |
| 69200203A | 2016 |
| 69200257 | 2014 |
| 69200258 | 2014 |
| 69201178 | 2017 |
| 69201287 | 2017 |
| 69201459 | 2016 |
| 69201786 | 2019 |
| 83943-09 | 2009 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 69200336 | 2014 |
| 72330-95 | 1995 |
| 72331-95 | 1995 |
| 72345-02 | 2002 |
| 692E1 - Fuse / Relay Block | |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 69200600 | 2014 |
| 31586-07 | 2007 |
| 692E2 - Fuse / Relay Block Cover | |
| 69201411 | 2017 |
| 692F1 - Wire Harness | |
| 69200031A | 2019 |
| 69200125 | 2014 |
| 69200135 | 2014 |
| 69200139 | 2013 |
| 69200211 | 2014 |
| 69200224 | 2014 |
| 69200247 | 2014 |
| 69200311 | 2014 |
| 69200391 | 2014 |
| 69200394 | 2014 |
| 69200410 | 2014 |
| 69200599 | 2014 |
| 69200601 | 2016 |
| 69201548 | 2017 |
| 69201741 | 2018 |
| 69201765 | 2018 |
| 69201780 | 2019 |
| 69201781 | 2019 |
| 69201782 | 2019 |
| 69201783 | 2019 |
| 69201862A | 2020 |
| 69202294 | 2020 |
| 69202295 | 2020 |
| 69202321 | 2020 |
| 69202377 | 2020 |
| 69202392 | 2020 |
| 69202393 | 2020 |
| 67800259 | 2016 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 692G2 - Wire Guide | |
| 69200215 | 2014 |
| 72298-95 | 1995 |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 69200193 | 2014 |
| 69200212 | 2014 |
| 69200225 | 2014 |
| 69200226 | 2014 |
| 69200254 | 2014 |
| 69200256 | 2014 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 69200305 | 2014 |
| 69200306 | 2014 |
| 69200337 | 2014 |
| 69200462 | 2014 |
| 69200529 | 2012 |
| 69201299 | 2017 |
| 69201302 | 2017 |
| 69201390 | 2017 |
| 69201393 | 2017 |
| 69201394 | 2017 |
| 69201395 | 2017 |
| 69201397 | 2017 |
| 69201400 | 2017 |
| 69201401 | 2017 |
| 69201405 | 2017 |
| 69201406 | 2017 |
| 69201410 | 2017 |
| 69201414 | 2017 |
| 69201441 | 2017 |
| 69201778 | 2019 |
| 69201779 | 2019 |
| 69201789 | 2019 |
| 69201792 | 2019 |
| 69202375 | 2020 |
| 69202412 | 2020 |
| 72009-05 | 2005 |
| 72063-06 | 2006 |
| 72064-06 | 2006 |
| 72081-11 | 2011 |
| 72098-06 | 2006 |
| 72111-06 | 2006 |
| 72113-94BK | 1994 |
| 72114-94BK | 1994 |
| 72124-94GY | 1994 |
| 72127-06 | 2006 |
| 72130-04 | 2004 |
| 72144-94 | 1994 |
| 72153-94 | 1994 |
| 72444-07GY | 2007 |
| 72518-01 | 2001 |
| 72519-09BK | 2009 |
| 72533-06 | 2006 |
| 72575-11 | 2011 |
| 72632-10 | 2010 |
| 72639-10 | 2010 |
| 72664-12A | 2013 |
| 72905-11 | 2011 |
| 72906-11 | 2011 |
| 72907-11 | 2011 |
| 72908-11 | 2011 |
| 73152-96BK | 1996 |
| 73301-04 | 2004 |
| 74104-98BK | 1998 |
| 74142-98 | 1998 |
| 692H2 - Terminal | |
| 69200187 | 2014 |
| 69200221 | 2014 |
| 69200307 | 2014 |
| 69200308 | 2014 |
| 69200536 | 2014 |
| 69201168 | 2016 |
| 69201240 | 2014 |
| 69201300 | 2017 |
| 69201596 | 2017 |
| 69201811 | 2019 |
| 69201814 | 2019 |
| 69201818 | 2019 |
| 69202376 | 2020 |
| 72168-07 | 2007 |
| 72169-07 | 2007 |
| 72213-94 | 1994 |
| 72222-11 | 2011 |
| 72226-11 | 2011 |
| 72227-11 | 2011 |
| 72241-94A | 1994 |
| 72256-11 | 2011 |
| 72272-07 | 2007 |
| 72283-09 | 2009 |
| 72290-94 | 1994 |
| 72291-94 | 1994 |
| 72294-94 | 1994 |
| 72296-95 | 1995 |
| 72308-97 | 1997 |
| 72343-10 | 2010 |
| 72344-10 | 2010 |
| 72356-95 | 1995 |
| 72364-06 | 2006 |
| 72381-98 | 1998 |
| 72427-00 | 2000 |
| 72484-08 | 2008 |
| 72493-07 | 2007 |
| 72569-08 | 2008 |
| 72608-08 | 2008 |
| 72666-12 | 2012 |
| 72721-07 | 2007 |
| 72909-11 | 2011 |
| 72910-11 | 2011 |
| 72991-01 | 2001 |
| 73307-10 | 2010 |
| 74190-98 | 1998 |
| 74194-98 | 1998 |
| 8370 | 2011 |
| 83944-09 | 2009 |
| 9937 | Unknown |
| 5118 | 2011 |
| 692K1 - Connector / Terminal Seal | |
| 69201162 | 2016 |
| 69201163 | 2016 |
| 69201164 | 2016 |
| 69201301 | 2017 |
| 69201391 | 2017 |
| 69201392 | 2017 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 69201404 | 2017 |
| 69201407 | 2017 |
| 69201416 | 2017 |
| 69201442 | 2017 |
| 72154-94 | 1994 |
| 72225-09 | 2009 |
| 72912-01BK | 2001 |
| 73303-04 | 2004 |
| 74144-98 | 1998 |
| 74197-04 | 2004 |
| 692L1 - Wire Harness sub-component | |
| 69200190 | 2014 |
| 69200199 | 2014 |
| 69200201 | 2014 |
| 69200205 | 2014 |
| 69200210 | 2014 |
| 69200214 | 2014 |
| 69200222 | 2014 |
| 69200461 | 2014 |
| 69200630 | 2014 |
| 69200631 | 2014 |
| 69201134A | 2019 |
| 69201307 | 2017 |
| 69201308 | 2017 |
| 69201423 | 2017 |
| 69201812 | 2019 |
| 69201820 | 2019 |
| 69201821 | 2019 |
| 69201822 | 2019 |
| 70494-08 | 2008 |
| 70578-89 | 1989 |
| 70631-08 | 2008 |
| 70681-09 | 2009 |
| 72010-05 | 2005 |
| 72053-92 | 1992 |
| 72065-06A | 2006 |
| 72066-06A | 2006 |
| 72099-06 | 2006 |
| 72106-94BK | 1994 |
| 72135-06 | 2006 |
| 72145-06 | 2006 |
| 72146-94 | 1994 |
| 72166-07BK | 2007 |
| 72167-07BK | 2007 |
| 72175-07BK | 2007 |
| 72177-07BK | 2007 |
| 72188-07BK | 2007 |
| 72190-94 | 1994 |
| 72191-94 | 1994 |
| 72195-94 | 1994 |
| 72209-11 | 2011 |
| 72230-98 | 1998 |
| 72295-94 | 1994 |
| 72382-98BK | 1998 |
| 72397-98 | 1998 |
| 72405-98BK | 1998 |
| 72414-07BK | 2007 |
| 72415-07GY | 2007 |
| 72473-07 | 2007 |
| 72478-07BK | 2007 |
| 72485-07 | 2007 |
| 72486-08 | 2008 |
| 72487-07BK | 2007 |
| 72488-07BK | 2007 |
| 72489-07GY | 2007 |
| 72490-07GY | 2007 |
| 72491-07GY | 2007 |
| 72494-07 | 2007 |
| 72499-07 | 2007 |
| 72511-07BK | 2007 |
| 72512-07BK | 2007 |
| 72543-07BK | 2007 |
| 72544-07 | 2007 |
| 72557-07 | 2007 |
| 72589-09 | 2009 |
| 72606-08 | 2008 |
| 72607-08 | 2008 |
| 72609-08 | 2008 |
| 72610-08 | 2008 |
| 72720-07 | 2007 |
| 72902-01BK | 2001 |
| 73102-96BK | 1996 |
| 73103-96BK | 1996 |
| 73152-96WE | 1996 |
| 73153-96BK | 1996 |
| 73154-96BK | 1996 |
| 73156-96BK | 1996 |
| 73190-96 | 1996 |
| 73191-96 | 1996 |
| 73213-07 | 2007 |
| 73305-04 | 2004 |
| 74102-98BK | 1998 |
| 74112-98BK | 1998 |
| 74114-98BK | 1998 |
| 74152-98 | 1998 |
| 74154-98 | 1998 |
| 74191-98 | 1998 |
| 74195-98 | 1998 |
| 75229-08 | 2008 |
| 8339 | 2009 |
| 10102 | Unknown |
| 709A1 - Dash Panel | |
| 70900138 | 2014 |
| 70900392ELY | 2020 |
| 70900392ELZ | 2020 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70900773B | 2020 |
| 70900777B | 2020 |
| 70900778B | 2020 |
| 709B2 - Fuel Gauge | |
| 70900774 | 2018 |
| 709B5 - Volt Gauge | |
| 70900775 | 2018 |
| 709E1 - Tank Console | |
| 69214-08 | 2008 |
| 714A1 - Ignition Switch | |
| 71400145 | 2020 |
| 71400146 | 2020 |
| 71400147 | 2020 |
| 714B1 - Mechanical Switch | |
| 71400005 | 2014 |
| 71400006 | 2014 |
| 71400007 | 2014 |
| 71400031 | 2014 |
| 71400032 | 2014 |
| 71400033 | 2014 |
| 71400034 | 2014 |
| 71400035 | 2014 |
| 71400037 | 2014 |
| 33926-06B | 2006 |
| 714C1 - Pressure Switch | |
| 71400112 | 2017 |
| 715A1 - Hand Control | |
| 71500045 | 2014 |
| 71500094 | 2014 |
| 71500166 | 2014 |
| 71500167 | 2014 |
| 71500169 | 2014 |
| 71500224 | 2014 |
| 71500225 | 2014 |
| 71500227 | 2014 |
| 71500339 | 2016 |
| 71500341 | 2016 |
| 71500344 | 2016 |
| 71500350 | 2016 |
| 71500484 | 2019 |
| 71500529 | 2020 |
| 71500533 | 2020 |
| 71500553 | 2020 |
| 71500554 | 2020 |
| 67493-08 | 2008 |
| 747A1 - Voltage Regulator | |
| 72350-11 | 2011 |
| 74700025 | 2017 |
| 74700038 | 2017 |
| 74700039 | 2017 |
| 760B1 - Antenna | |
| 68956-07 | 2007 |
| 76000164 | 2014 |
| 76000165 | 2014 |
| 76000166 | 2014 |
| 76000186 | 2014 |
| 76000208 | 2014 |
| 76000789 | 2019 |
| 76000799 | 2019 |
| 76250-09 | 2009 |
| 76353-00 | 2000 |
| 760C1 - Audio System Amplifier | |
| 76000277B | 2018 |
| 760C2 - Audio System Speaker | |
| 76000875 | 2020 |
| 76000876 | 2020 |
| 76000877 | 2020 |
| 76000880 | 2020 |
| 760C3 - Radio Receiver | |
| 76000783A | 2020 |
| 76000784A | 2020 |
| 76000785A | 2020 |
| 760C4 - Rider-Passenger Communication System | |
| 76000188 | 2014 |
| 76000771 | 2018 |
| 760C5 - Speaker Enclosure | |
| 76000268 | 2014 |
| 76000800 | 2018 |
| 760C6 - Media Storage Compartment | |
| 76000107A | 2019 |
| 76000127 | 2014 |
| 76000234 | 2014 |
| 76000561ELY | 2020 |
| 76000561ELZ | 2020 |
| 760C8 - Satellite Radio | |
| 76000252 | 2014 |
| 760D1 - Infotainment Mount | |
| 76000330 | 2014 |
| 76000923 | 2020 |
| 760D2 - Infotainment Mount sub-component | |
| 76000172 | 2014 |
| 76000173 | 2014 |
| 76000174 | 2014 |
| 76000177 | 2014 |
| 76000945 | 2020 |
| 760Z1 - Kit,Infotainment | |
| 76000838 | 2019 |
| 830A1 - Trike Body | |
| 83000053ELW | 2020 |
| 83000053ELZ | 2020 |
| 83000055ELW | 2020 |
| 83000055ELZ | 2020 |
| 83000105ELW | 2020 |
| 83000105ELZ | 2020 |
| 83000172EMN | 2020 |
| 83000172EMO | 2020 |
| 83000174ELW | 2020 |
| 83000174ELZ | 2020 |
| 830C1 - Parking Brake | |
| 83000014 | 2014 |
| 83000018A | 2018 |
| 83000026 | 2014 |
| 83000030A | 2017 |
| 83000136 | 2019 |
| 83000137 | 2019 |
| 83000138 | 2019 |
| 83000139 | 2019 |
| 8351 | 2011 |
| 8353 | 2011 |
| 8357 | 2011 |
| 902E1 - Saddlebag Bottom | |
| 75089-08 | 2008 |
| 903A1 - Lockset | |
| 90300081 | 2014 |
| 90300148 | 2020 |
| 61029-92A | 1992 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 90300106 | 2016 |
| 90300107 | 2016 |
| 917B1 - Service Program Kit | |
| 91700025A | 2014 |
| 91700034 | 2014 |
| 918B1 - Hardware Kit | |
| 91800039 | 2014 |
| 91800058 | 2017 |
| 91800064 | 2017 |
| 926A1 - Vehicle Completion Kit | |
| 92600009 | 2014 |
| 931A1 - Protective / Storage Cover | |
| 83418-09 | 2009 |
| 93100061 | 2020 |
| 933A1 - Soft Storage | |
| 93300001 | 2011 |
| 93300049 | 2014 |
| 93300050 | 2014 |
| 933B1 - Hard Storage | |
| 93300035A | 2018 |
| 940A1 - Owner's Kit | |
| 94000501 | 2018 |
| 940A2 - Owner's Manual | |
| 94000634 | 2019 |
| 94000753 | 2020 |
| 99461-89 | 1989 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | FENDERS, REAR: WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - (CANADA, DOMESTIC): WIRING HARNESS, TURN SIGNALS AND LIGHTS, REAR - (HDI): BODY ASSEMBLY AND SIDE COVERS: TRUNK DOOR - (1 OF 2): TOUR-PAK (BOTTOM) - (2 OF 2): TOUR-PAK (COVER): |
| 1062 | SCREW | PRIMARY HOUSING: |
| 11000101 | OIL SEAL | SHIFTER, GEAR: |
| 11105 | O-RING | TRANSMISSION HOUSING, COVER AND OIL PAN: PRIMARY HOUSING: |
| 11132A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11143 | RETAINING RING | CLUTCH: |
| 11145A | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 11150 | RETAINING RING | SHIFTER, GEAR: |
| 11293 | O-RING | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER: |
| 11304 | RETAINING RING | HIGHWAY PEGS: LOOSE PARTS: |
| 11900103 | O-RING | CAMSHAFT AND CAMSHAFT COVER: |
| 12052A | SEAL | PRIMARY HOUSING: |
| 12074 | SEAL | |
| 17369-06 | GASKET SERVICE KIT | PRIMARY HOUSING: |
| 2445 | SCREW | FAIRING, INNER - (1 OF 2): |
| 2563 | SCREW | INSTRUMENTS: FAIRING, INNER - (1 OF 2): |
| 25700362 | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 25700370 | GASKET | CAMSHAFT AND CAMSHAFT COVER: |
| 25700378 | GASKET | PRIMARY HOUSING: |
| 25700425 | GASKET | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 25700453 | GASKET | TRANSMISSION HOUSING, COVER AND OIL PAN: |
| 25700731 | GASKET KIT | ROCKER ARM ASSEMBLY AND PUSHRODS: CAMSHAFT AND CAMSHAFT COVER: |
| 25700746 | GASKET KIT | PRIMARY HOUSING: |
| 27300087 | SEAL | INDUCTION MODULE, FUEL: |
| 27444-00Y | O-RING | STARTER MOTOR: |
| 3050 | SCREW | ALTERNATOR AND REGULATOR: |
| 3275 | SCREW | INDUCTION MODULE, FUEL: SENSORS AND SWITCHES, ENGINE: SHIFTER, GEAR: |
| 34091-08 | BEARING | TRANSMISSION GEARS: |
| 35654-06 | GASKET | |
| 3655A | SCREW | FAIRING LOWERS - TWIN-COOLED™ - (1 OF 2): |
| 36805-06 | GASKET | |
| 41751-06A | GASKET | CLUTCH CONTROL: BRAKE CONTROL, FRONT: BRAKE LINES, FRONT - ABS: BRAKE LINES AND MODULE, REAR - ABS: BRAKE CALIPER, REAR: |
| 4740A | SCREW | CAMSHAFT AND CAMSHAFT COVER: |
| 5210 | WELL NUT | SOUND SYSTEM - (2 OF 2): LAMPS AND SPEAKER HOUSINGS, ULTRA TOUR-PAK - (1 OF 2): |
| 60678-85 | RETAINING RING | PRIMARY HOUSING: |
| 65324-83B | GASKET | EXHAUST SYSTEM: |
| 65325-83A | RETAINING RING | EXHAUST SYSTEM: |
| 6702 | WASHER | BODY ASSEMBLY AND SIDE COVERS: |
| 7041 | LOCKWASHER | AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT - (AUSTRALIA, CANADA, DOMESTIC): EXHAUST SYSTEM: |
| 7593 | NUT | EXHAUST SYSTEM: |
| 7716 | LOCKNUT | RADIATOR, COOLANT HOSES AND BOTTLE, TWIN-COOLED™: PARKING BRAKE: SEAT: FOOTBOARDS, RIDER: FAIRING LOWERS - TWIN-COOLED™ - (1 OF 2): TOUR-PAK (BOTTOM) - (1 OF 2): |
| 786A | BOLT | PRIMARY HOUSING: |
| 856A | SCREW | SHIFTER, GEAR: |
| 9955 | CLAMP | EXHAUST SYSTEM: |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41854-08 | BRAKE PAD KIT | BRAKE CALIPER, FRONT: |
| 46514-01A | OIL SEAL | FORK, FRONT: |
| 46615-06 | PACKING SEAL | FORK, FRONT: |
DECORATIVE & TRIM
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61274-92 | FUEL FILLER CAP | CONSOLE, FUEL TANK: |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | KIT, SWITCH | SWITCHES: |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - (8 OF 9): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | HYDRAULIC LIFTER | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400183 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 29400210 | BREATHER ASSEMBLY | ROCKER ARM ASSEMBLY AND PUSHRODS: |
| 33600091 | SHAFT | SHIFTER, GEAR: |
| 37000258 | CLUTCH DISKS KIT | CLUTCH: |
| 37909-90 | RING | CLUTCH: |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 61011-04A | FUEL FILTER KIT | FUEL PUMP : |
| 65900012 | CLAMP | EXHAUST SYSTEM: |
| 65900015 | CLAMP | EXHAUST SYSTEM: |
MAINTENANCE & TOOLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 66373-06 | BATTERY | CONSOLE, FUEL TANK: SWITCHES: |
SECURITY & STORAGE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 90300106 | REMOTE CONTROL FOB | CONSOLE, FUEL TANK: SWITCHES: LOOSE PARTS: |
