GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
About this Manual
This Parts Catalog has been prepared to make it easier for you to order parts for your motorcycles. The numbers shown in the illustrations correspond to the numbers in the "INDEX NO." column in the parts lists. Consult the illustrations when ordering parts to make sure that you receive all the required parts. The number in parentheses following the part description is the quantity needed for complete assembly. If there is no number in parentheses, only one is used. Prices of parts in this catalog are published separately.
When ordering parts, the following instructions should be followed carefully.
- Make sure to specify the correct part number for each item. The part numbers appear under the "PART NO." column in the parts lists.
- Orders may be placed via your computer for all parts. Review your system documentation on placing orders electronically. All non-warranty replacement crankcase orders require return of the complete left crankcase half with vehicle identification number (VIN). All non-warranty replacement frame orders require return of the steering neck with vehicle identification number (VIN). Non-compliance will result in a fine. See non-warranty frame and crankcase policy or contact Dealer Services.
- The sale or use of these parts or accessories does not grant the purchaser a license or other right under any Harley-Davidson patent.
- For all 2008 and later painted parts, refer to the Service Section of h-dnet.com which features a listing of painted part numbers, except CVO (Custom Vehicle Operations) models which are located in their own respective catalogs.
- All parts that were added for the new model year will have the entire line shaded on the parts list page. This can be used to identify any new parts that are unique to a specific model, and help distinguish new and previous model year parts.
- Parts marked "RESTRICTED SALE PART" are limited edition items and can only be ordered as direct replacements.
- Orientation symbols are used when the illustration is not in the standard "Right-Front" orientation. The symbol is a motorcycle with an arrow in the front indicating the direction of view. The symbol is at the bottom left or right side of the illustration page.
- To request a missing or loose part, simply submit a Return Material Authorization (RMA) claim on h-dnet.com with code "T-part not included with vehicle" for all vehicle missing parts claims. Then place an order for the missing item on your next Parts and Accessories order. Upon filing the RMA claim, your dealership will be credited for the dealer net cost of the part. The Vehicle Identification Number must be included on the RMA claim in order for you to receive credit. This process is to be used for vehicles manufactured at all plants.
To the best knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
©2024 H-D.
GENERAL INFORMATION
LOOSE PARTS
The Loose Parts section is located at the back of this parts catalog. This section lists the parts which are shipped unfastened with the vehicles covered in this catalog.
HARDWARE LIST
The Hardware List is located at the back of this parts catalog. This section contains the information for each piece of hardware found in each parts list.
NEW PARTS LIST
The New Parts List is located at the back of this parts catalog. This list serves as a summary of new parts.
NUMERICAL INDEX
The Numerical Index is located at the back of this parts catalog. This index includes all part numbers used in this catalog and the page numbers of where they can be found.
COMPONENT TYPES AND INTRODUCTION DATES
The Component Types and Introduction Dates section is located at the back of this parts catalog. This section contains a list of component part numbers and year of introduction.
COMMON SERVICE PARTS
The Common Service Parts section is located at the back of this parts catalog. This section contains the most commonly ordered parts for service on vehicles covered in this catalog. These parts are ordered through the normal ordering process.
SIP (SERVICE INFORMATION PORTAL)
For the latest updates to these manuals, see the Service Information Portal.
VEHICLE IDENTIFICATION NUMBER
See Figure 4. A unique 17-digit serial, or vehicle identification number (VIN), is assigned to each motorcycle. For a description of each digit in the vehicle identification number (VIN), refer to Table 2.
The full 17-digit serial, or vehicle identification number (VIN), is stamped on the right side of the frame backbone at the rear of the steering head. The vehicle identification number (VIN) is also printed on a label on the right front downtube. An abbreviated vehicle identification number (VIN) is stamped on the left side crankcase between the front and rear cylinders.
Always give the full 17-digit vehicle identification number (VIN) when ordering parts or making any inquiry about your motorcycle.
2024 FLHX/FLTRX TOURING MODELS
VIN Model Codes
Figure 4. Typical Harley-Davidson VIN
Table 2. Harley-Davidson VIN Breakdown: Touring Models
POSITION | DESCRIPTION | POSSIBLE VALUES | |
|---|---|---|---|
1 | World manufacturer identifier | 1HD=Originally manufactured in the United States 5HD=Originally manufactured in the United States or Thailand for sale outside of the United States 932=Originally manufactured in Brazil MLY=Originally manufactured in Thailand | |
2 | Motorcycle type | 1=Heavyweight motorcycle (901 cm3 or larger) | |
3 | Model | See VIN model table | |
4 | Engine type | 7=Milwaukee-Eight™ 117 Engine, 1923 cm3 | |
5 | Calibration/configuration, introduction | 1=Domestic (DOM) 2=California (CAL) 3=Canada (CAN) 4=ENG/EN2/HDI/HD2/HD4 5=Japan (JPN) 6=Australia (AUS/AU2) 7=Brazil (BRZ) 8=Asia Pacific (APC) 9=IN2 0=ASEAN (AZN) A=China (CHN) G=HD3 | |
6 | VIN check digit | Can be 0-9 or X | |
7 | Model year | R=2024 | |
8 | Assembly plant | B=York, PA U.S.A. D=H-D Brazil-Manaus, Brazil (CKD) S=Tasit, Pluagdang, Rayong, Thailand | |
9 | Sequential number | Varies | |
Table 3. VIN Model Codes: Touring Models
CODE | MODEL | CODE | MODEL |
|---|---|---|---|
KH | Road Glide® (FLTRX) | KB | Street Glide® (FLHX) |
NOTES
ENGINE ASSEMBLY - Milwaukee-eight™ 117
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200896 | ENGINE ASSEMBLY, complete (Milwaukee-eight™ 117) (black/chrome) | FLHX, FLTRX |
| 1 | 16200898 | ENGINE ASSEMBLY, complete (Milwaukee-eight™ 117) (black/black) | FLHX, FLTRX |
| 2 | 16200582 | ENGINE ASSEMBLY, shortblock, with 91800075, crankcase, flywheel assembly, camshaft support plate assembly, balancer and cylinder studs (See Note) | FLHX, FLTRX |
| 3 | 91800075 | KIT, shortblock installation, with 25700983 top end gasket kit, 25700830 inner primary gasket kit, camshaft sprocket, camshaft drive chain and camshaft tensioner | FLHX, FLTRX |
| Note: These Engine Assembly part numbers will update to include cylinder heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information.Note: Cylinders, cylinder heads, camshaft, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil pump, oil filter adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from the original engine and installed on the replacement shortblock assembly. | |||
CYLINDERS, HEADS AND VALVES
| Index No. | Part No. | Description | Model(s) |
| 1 | 16589-99B | DOWEL PIN (4) | FLHX, FLTRX |
| 2 | 10200303 | FLANGE NUT (dull silver) (8) | FLHX, FLTRX |
| 3 | 10900015A | STUD, exhaust port (4) | FLHX, FLTRX |
| 4 | 16501116A | GASKET, cylinder head (2) | FLHX, FLTRX |
| 5 | 16500332A | GASKET, cylinder base (2) | FLHX, FLTRX |
| 6 | 16500983 | CYLINDER HEAD, rear, with 3, 9, 10, 11, 12, 13, 14, 15 and 65324-83B (black) | FLHX, FLTRX |
| 6 | 16500987 | CYLINDER HEAD, front, with 3, 9, 10, 11, 12, 13, 14, 15 and 65324-83B (black) | FLHX, FLTRX |
| 7 | 16800063 | STUD, cylinder (8) | FLHX, FLTRX |
| 8 | 16800387 | CYLINDER ASSEMBLY, front, with 16589-99B (black) | FLHX, FLTRX |
| 8 | 16800390 | CYLINDER ASSEMBLY, rear, with 16589-99B (black) | FLHX, FLTRX |
| 9 | 18000016 | INTAKE VALVE (4) | FLHX, FLTRX |
| 10 | 18000034A | EXHAUST VALVE (4) | FLHX, FLTRX |
| 11 | 18100140 | VALVE SPRING (8) | FLHX, FLTRX |
| 12 | 18100044 | SEAL, valve (8) | FLHX, FLTRX |
| 13 | 18100045 | COLLAR, valve spring (8) | FLHX, FLTRX |
| 14 | 18100060 | KEEPER, valve (16) | FLHX, FLTRX |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLHX, FLTRX |
| 16 | 62800067 | FITTING, includes O-ring (4) | FLHX, FLTRX |
| 17 | 11900197 | O-RING (4) | FLHX, FLTRX |
| 18 | 26900305 | HOSE, head to head (1) | FLHX, FLTRX |
| 19 | 10800212 | CLAMP (2) | FLHX, FLTRX |
| 20 | 25701945 | GASKET KIT, top end | FLHX, FLTRX |
| 20 | 25701944 | GASKET KIT, engine overhaul | FLHX, FLTRX |
| Note: These Cylinder Head Assembly part numbers will update to include cylinder heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information. | |||
ROCKER ARM ASSEMBLY AND PUSHRODS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3976 | SCREW (2) | FLHX, FLTRX |
| 2 | 4741A | SCREW (8) | FLHX, FLTRX |
| 3 | 11132A | O-RING, pushrod cover (4) | FLHX, FLTRX |
| 4 | 11145A | O-RING, pushrod cover (4) | FLHX, FLTRX |
| 5 | 11293 | O-RING (4) | FLHX, FLTRX |
| 6 | 17945-36B | CAP, cover spring (chrome) (4) | FLHX, FLTRX |
| 7 | 17947-36 | SPRING, pushrod cover (4) | FLHX, FLTRX |
| 8 | 17948-99A | COVER, pushrod (upper) (4) | FLHX, FLTRX |
| 9 | 17968-99 | RETAINER, spring cap (4) | FLHX, FLTRX |
| 10 | 18538-99C | HYDRAULIC LIFTER (4) | FLHX, FLTRX |
| 11 | 10200308 | SCREW (20) | FLHX, FLTRX |
| 12 | 10200446 | SCREW (8) | FLHX, FLTRX |
| 13 | 10200503 | SCREW (8) | FLHX, FLTRX |
| 14 | 10500069 | SPACER, rocker cover (2) | FLHX, FLTRX |
| 15 | 17300053 | ROCKER ARM, rear intake, front exhaust (2) | FLHX, FLTRX |
| 16 | 17300055 | ROCKER ARM, front intake, rear exhaust (2) | FLHX, FLTRX |
| 17 | 17300059B | SHAFT, rocker arm (4) | FLHX, FLTRX |
| 18 | 17900030 | PUSHROD, intake, 10.301 in long (light blue stripes) (2) | FLHX, FLTRX |
| 19 | 17900031 | PUSHROD, exhaust, 10.531 in long (yellow stripes) (2) | FLHX, FLTRX |
| 20 | 17900034 | ANTI-ROTATION DEVICE, rear cylinder | FLHX, FLTRX |
| 20 | 17900035 | ANTI-ROTATION DEVICE, front cylinder | FLHX, FLTRX |
| 21 | 25700362A | GASKET, lifter cover (2) | FLHX, FLTRX |
| 22 | 25700372B | GASKET, rocker arm cover (2) | FLHX, FLTRX |
| 23 | 25700409 | ROCKER COVER, upper (chrome) (2) | FLHX, FLTRX |
| 23 | 25700520 | ROCKER COVER, upper (black) (2) | FLHX, FLTRX |
| 24 | 25700410 | LIFTER COVER, front (chrome) | FLHX, FLTRX |
| 24 | 25700411 | LIFTER COVER, rear (chrome) | FLHX, FLTRX |
| 25 | 25700425A | GASKET, rocker housing, lower (2) | FLHX, FLTRX |
| 26 | 25700488A | COVER, pushrod (lower) (chrome) (4) | FLHX, FLTRX |
| 27 | 25701495 | ROCKER COVER, lower, with 25700425A (chrome) (2) | FLHX, FLTRX |
| 28 | 25700731 | GASKET KIT, camshaft service | FLHX, FLTRX |
COOLING SYSTEM, ENGINE, CENTER-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 10800201 | CLAMP | FLHX, FLTRX |
| 2 | 10800212 | CLAMP, oetiker (7 early, 5 late) | FLHX, FLTRX |
| 3 | 26900326 | HOSE, pump outlet (early) | FLHX, FLTRX |
| 4 | 62800073 | FITTING, barbed hose union (early) | FLHX, FLTRX |
| 5 | 26900327 | HOSE, rear head inlet (early) | FLHX, FLTRX |
| 5 | 26900301 | HOSE, rear head inlet (late) | FLHX, FLTRX |
| 6 | 26900305 | HOSE, head to head | FLHX, FLTRX |
| 7 | 26900303 | HOSE, front head to radiator | FLHX, FLTRX |
| 8 | 12600362 | HOSE GUIDE | FLHX, FLTRX |
| 9 | 12600360 | HOSE GUIDE | FLHX, FLTRX |
| NOTE: starting on April 30, 2024, all Center-Cooled touring vehicles will be assembled with new components, (indicated as "LATE" in this manual) engineered to help improve a service bleed of the cooling system.Before March 12, 2024 all vehicles were built with the EARLY system design.From March 12, 2024 to April 30, 2024 vehicles were built with either EARLY or LATE system designs.After April 30, 2024 all vehicles were built with the LATE system design.See graphic for visual cues (if any) to determine which parts to order.See Service Bulletin M-1640 and CFITMENT COMMENTS for additional information. If early style parts become unavailable, replacement with later style parts may be required. | |||
COOLANT DISTRIBUTION, CENTER-COOLED
| Index No. | Part No. | Description | Model(s) |
| 1 | 882 | SCREW (2) | FLHX, FLTRX |
| 2 | 923 | SCREW (2) | FLHX, FLTRX |
| 3 | 2478 | SCREW (2) | FLHX, FLTRX |
| 4 | 10100178 | CLIP NUT (2) | FLHX, FLTRX |
| 5 | 10200422 | SCREW | FLHX, FLTRX |
| 6 | 12100212 | GROMMET, cover mount (4) | FLHX, FLTRX |
| 7 | 10800212 | CLAMP (3) | FLHX, FLTRX |
| 8 | 10800201 | CLAMP (1) | FLHX, FLTRX |
| 9 | 12200271 | CLIP, retaining, coolant reservoir | FLHX, FLTRX |
| 10 | 10200414 | SCREW (2) | FLHX, FLTRX |
| 11 | 12100208 | GROMMET, coolant reservoir mount | FLHX, FLTRX |
| 12 | 12700182 | BRACKET, regulator, coolant system mount | FLHX, FLTRX |
| 13 | 12700183 | BRACKET, coolant pump (early) | FLHX, FLTRX |
| 13 | 12700198 | BRACKET, coolant pump (late) | FLHX, FLTRX |
| 14 | 26600061 | PUMP, coolant | FLHX, FLTRX |
| 15 | 26800227 | RADIATOR (early) | FLHX, FLTRX |
| 15 | 26800266 | RADIATOR (late) | FLHX, FLTRX |
| 16 | 26800228 | FAN, cooling, includes 12100212 | FLHX, FLTRX |
| 17 | 26800232 | RESERVOIR, assembly, includes 7, 11, 20 | FLHX, FLTRX |
| 18 | 26800086 | PRESSURE CAP, coolant, 20 psi | FLHX, FLTRX |
| 18 | 26800212 | PRESSURE CAP, coolant, 1.4 bar (CHN) | FLHX, FLTRX |
| 19 | 26900304 | HOSE, coolant, radiator outlet (early) | FLHX, FLTRX |
| 19 | 26900350 | HOSE, coolant, radiator outlet (late) | FLHX, FLTRX |
| 20 | 26900302 | HOSE, coolant, reservoir to radiator | FLHX, FLTRX |
| 21 | 26900308 | HOSE, coolant, reservoir vent | FLHX, FLTRX |
| 22 | 32700066 | SENSOR, coolant temperature | FLHX, FLTRX |
| 23 | 57100444 | DEFLECTOR, radiator screen | FLHX, FLTRX |
| 24 | 57200405 | COVER, radiator shroud | FLHX, FLTRX |
| NOTE: starting on April 30, 2024, all Center-Cooled touring vehicles will be assembled with new components, (indicated as "LATE" in this manual) engineered to help improve a service bleed of the cooling system.Before March 12, 2024 all vehicles were built with the EARLY system design.From March 12, 2024 to April 30, 2024 vehicles were built with either EARLY or LATE system designs.After April 30, 2024 all vehicles were built with the LATE system design.See graphic for visual cues (if any) to determine which parts to order.See Service Bulletin M1640 for additional information. | |||
PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™ 117
| Index No. | Part No. | Description | Model(s) |
| 1 | 11177A | RETAINING RING | FLHX, FLTRX |
| 2 | 22097-99 | LOCK RING, piston pin (4) | FLHX, FLTRX |
| 3 | 21900082 | PISTON AND RINGS ASSEMBLY, with 22097-99, 22000079 and 22100006 (4.075 in) (2) | FLHX, FLTRX |
| 4 | 22000079 | PISTON RING SET (4.075 in) (2) | FLHX, FLTRX |
| 5 | 22100006 | PISTON PIN (2) | FLHX, FLTRX |
| 6 | 24100182 | FLYWHEEL ASSEMBLY KIT, with 11177A | FLHX, FLTRX |
| 7 | 35200150 | BALANCER ASSEMBLY | FLHX, FLTRX |
CRANKCASE
| Index No. | Part No. | Description | Model(s) |
| 1 | 703B | SCREW (2) | FLHX, FLTRX |
| 2 | 765 | PLUG (5) | FLHX, FLTRX |
| 3 | 8973 | WASHER | FLHX, FLTRX |
| 4 | 9298B | NEEDLE BEARING, left side, camshaft | FLHX, FLTRX |
| 5 | 16574-99A | DOWEL PIN (2) | FLHX, FLTRX |
| 6 | 16589-99B | DOWEL PIN (4) | FLHX, FLTRX |
| 7 | 24605-07 | BEARING, main (2) | FLHX, FLTRX |
| 8 | 26352-95A | ADAPTER | FLHX, FLTRX |
| 9 | 35114-02 | RING, retaining, internal | FLHX, FLTRX |
| 10 | 62700296 | OIL FILTER (black) | FLHX, FLTRX |
| 11 | 68042-99 | SCREW (4) | FLHX, FLTRX |
| 12 | 10200343 | SCREW (12) | FLHX, FLTRX |
| 13 | 11000134 | SEAL, oil | FLHX, FLTRX |
| 14 | 12400099 | SPACER, front mount (2) | FLHX, FLTRX |
| 15 | 24100080 | BEARING KIT, with 8973, 24605-07, 35114-02 and inner race | FLHX, FLTRX |
| 16 | 24400120 | CRANKCASE SET, with 1, 2, 4, 5, 6, 7, 9, 11, 12, 14, 17, 19, 20 and 21 (black) | FLHX, FLTRX |
| 17 | 25700433A | GASKET, piston jet (2) | FLHX, FLTRX |
| 18 | 29900041 | SPACER, sprocket shaft | FLHX, FLTRX |
| 19 | 35200021 | BEARING, balancer (2) | FLHX, FLTRX |
| 20 | 62700089A | PISTON JET ASSEMBLY, front, with 25700433A | FLHX, FLTRX |
| 21 | 62700117A | PISTON JET ASSEMBLY, rear, with 25700433A | FLHX, FLTRX |
| 22 | 62800013 | PLUG, with 11900010 | FLHX, FLTRX |
| 23 | 11900010 | o-ring | FLHX, FLTRX |
CAMSHAFTS AND CAMSHAFT COVER (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 601 | ROLL PIN | FLHX, FLTRX |
| 2 | 942 | SCREW (2) | FLHX, FLTRX |
| 3 | 4740A | SCREW (15) | FLHX, FLTRX |
| 4 | 4822A | SCREW (4) | FLHX, FLTRX |
| 5 | 8873 | BALL (7) | FLHX, FLTRX |
| 6 | 9298B | NEEDLE BEARING, camshaft | FLHX, FLTRX |
| 7 | 11293 | O-RING | FLHX, FLTRX |
| 8 | 16589-99B | DOWEL PIN | FLHX, FLTRX |
| 9 | 25566-06 | CAMSHAFT DRIVE SPROCKET RETENTION KIT, with screws and washers | FLHX, FLTRX |
| 10 | 25673-06 | SPROCKET, camshaft drive on crankshaft, 17 T | FLHX, FLTRX |
| 11 | 25675-06 | CHAIN, primary camshaft drive | FLHX, FLTRX |
| 12 | 25729-06 | SPACER, camshaft drive sprocket alignment 0.100 in thick (use as required) | FLHX, FLTRX |
| 12 | 25731-06 | SPACER, camshaft drive sprocket alignment 0.110 in thick (use as required) | FLHX, FLTRX |
| 12 | 25734-06 | SPACER, camshaft drive sprocket alignment 0.120 in thick (use as required) | FLHX, FLTRX |
| 12 | 25736-06 | SPACER, camshaft drive sprocket alignment 0.130 in thick (use as required) | FLHX, FLTRX |
| 12 | 25737-06 | SPACER, camshaft drive sprocket alignment 0.140 in thick (use as required) | FLHX, FLTRX |
| 12 | 25738-06 | SPACER, camshaft drive sprocket alignment 0.150 in thick (use as required) | FLHX, FLTRX |
| 13 | 26210-99 | SPRING, relief valve | FLHX, FLTRX |
| 14 | 26400-82B | RELIEF VALVE, oil pump bypass | FLHX, FLTRX |
| 15 | 11900103 | O-RING | FLHX, FLTRX |
| 16 | 25400103 | SPROCKET, camshaft drive, 34 teeth | FLHX, FLTRX |
| 17 | 25400452 | CAMSHAFT SUPPORT PLATE, with 8873 and 16589-99B | FLHX, FLTRX |
| 18 | 25400273 | CAMSHAFT | FLHX, FLTRX |
| 19 | 25400257 | CAMSHAFT CHAIN AND FASTENER KIT, with 25566-06, 25673-06, 25675-06 and 25400103 | FLHX, FLTRX |
| 20 | 25500013 | CHAIN TENSIONER, camshaft drive chain | FLHX, FLTRX |
CAMSHAFTS AND CAMSHAFT COVER (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 21 | 25700731 | GASKET KIT, camshaft service | FLHX, FLTRX |
| 22 | 62400233 | GEROTOR ASSEMBLY | FLHX, FLTRX |
| 23 | 62400245 | COVER, oil pump assembly, with 62400205 | FLHX, FLTRX |
| 24 | 62400055 | GEROTOR ASSEMBLY, feed | FLHX, FLTRX |
| 25 | 62400242 | OIL PUMP ASSEMBLY, with 601, 8873, 26210-99, 26400-82B, 62400233 and body, also order 62400055 | FLHX, FLTRX |
| 26 | 62400205 | OIL SEAL | FLHX, FLTRX |
| 27 | 25701513 | COVER, cam sensor | FLHX, FLTRX |
| 28 | 25701511 | COVER, cam timer (black) without insert | FLHX, FLTRX |
| 28 | 25701664 | COVER, cam timer (chrome) without insert | FLHX, FLTRX |
| 28 | 14101990 | INSERT, cam timer cover (black/silver) (not shown) | FLHX, FLTRX |
| 29 | 4015 | SCREW (3) | FLHX, FLTRX |
| 30 | 32700162 | SENSOR, camshaft proximity, includes 11289A | FLHX, FLTRX |
| 31 | 69203403 | HARNESS, cam sensor, includes 33, 34, 35, 36, 37, 38 | FLHX, FLTRX |
| 32 | 11289A | O-RING, camshaft proximity sensor (not shown) | FLHX, FLTRX |
| 33 | 72414-07BK | HOUSING, 6 way socket | FLHX, FLTRX |
| 34 | 72168-07 | TERMINAL, socket (3) | FLHX, FLTRX |
| 35 | 69203106 | SEAL PIN (3) | FLHX, FLTRX |
| 36 | 69201301 | WIRE SEAL (3) | FLHX, FLTRX |
| 37 | 69201406 | HOUSING, 3 way socket | FLHX, FLTRX |
| 38 | 69201407 | TERMINAL, socket (3) | FLHX, FLTRX |
| 39 | 25700370A | GASKET, camshaft cover | FLHX, FLTRX |
| 40 | 25701666 | CAMSHAFT COVER (gloss black) | FLHX, FLTRX |
| 40 | 25701668 | CAMSHAFT COVER (chrome) | FLHX, FLTRX |
| 41 | 18400117 | ROTOR CUP, cam position | FLHX, FLTRX |
ENGINE MOUNTS AND STABILIZER LINK
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (3) | FLHX, FLTRX |
| 2 | 6139 | WASHER | FLHX, FLTRX |
| 3 | 16219-09 | STABLIZER LINK | FLHX, FLTRX |
| 4 | 10100062 | LOCKNUT | FLHX, FLTRX |
| 5 | 10200393 | SCREW | FLHX, FLTRX |
| 6 | 10200408A | SCREW (2) | FLHX, FLTRX |
| 7 | 10200463 | SCREW (2) | FLHX, FLTRX |
| 8 | 16300005 | ENGINE MOUNT, front (2) | FLHX, FLTRX |
| 9 | 16400041 | BRACKET, tie link | FLHX, FLTRX |
| 10 | 16400042 | END CAP, front mount | FLHX, FLTRX |
INDUCTION MODULE, FUEL
| Index No. | Part No. | Description | Model(s) |
| 1 | 3275 | SCREW (4) | FLHX, FLTRX |
| 2 | 10200373 | SCREW (3) | FLHX, FLTRX |
| 3 | 12100069 | PLUG, purge tube cap | FLHX, FLTRX |
| 4 | 10500071 | SCREW, fuel rail (2) | FLHX, FLTRX |
| 5 | 27300198 | GASKET, throttle body to manifold | FLHX, FLTRX |
| 6 | 27300199 | FLANGE, intake (front) | FLHX, FLTRX |
| 7 | 27300201 | FLANGE, intake (rear) | FLHX, FLTRX |
| 8 | 27300200 | SEAL, intake (2) | FLHX, FLTRX |
| 9 | 27300196 | INTAKE MANIFOLD ASSEMBLY, with 12100069 | FLHX, FLTRX |
| 10 | 27300197 | THROTTLE BODY ASSEMBLY | FLHX, FLTRX |
| 11 | 27200094 | THROTTLE BODY MANIFOLD KIT, with 27300197, 27400071 and 91800058 | FLHX, FLTRX |
| 12 | 27400065 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLHX, FLTRX |
| 13 | 27400071 | FUEL RAIL KIT | FLHX, FLTRX |
| 14 | 32700065 | SENSOR, temperature manifold absolute pressure, with O-ring | FLHX, FLTRX |
| 15 | 61200096 | FUEL LINE, with 11900130, 10200544 and 60900061 | FLHX, FLTRX |
| 16 | 91800058 | HARDWARE KIT, induction module | FLHX, FLTRX |
| 17 | 10200544 | SCREW, fuel line to fuel rail | FLHX, FLTRX |
| 18 | 11900130 | O-RING, fuel line | FLHX, FLTRX |
| 19 | 60900061 | CAP, fuel line | FLHX, FLTRX |
AIR CLEANER - FLHX, FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 29000364 | SEAL, airbox to throttlebody | FLHX, FLTRX |
| 2 | 29000363A | SEAL, airbox cover | FLHX, FLTRX |
| 3 | 29000373 | AIRBOX ASSEMBLY | FLHX, FLTRX |
| 4 | 29400444A | FILTER, air intake | FLHX, FLTRX |
| 5 | 10201361 | SCREW, throttle body (3) | FLHX, FLTRX |
| 6 | 4685 | SCREW, airbox to cylinder head (2) | FLHX, FLTRX |
| 7 | 61301285 | TRIM, air inlet | FLHX, FLTRX |
| 8 | 10200846 | SCREW, air inlet trim (2) | FLHX, FLTRX |
| 9 | 10201377 | SCREW, airbox cover | FLHX, FLTRX |
| 10 | 61400705 | TRIM, insert | FLHX, FLTRX |
| 11 | 62700324 | TUBE, breather | FLHX, FLTRX |
| 12 | 14001624 | LABEL (Domestic, for black cover) | FLHX, FLTRX |
| 12 | 29108-08 | LABEL (Domestic, for chrome cover) | FLHX, FLTRX |
| 12 | 14001734 | LABEL (Brazil) | FLHX, FLTRX |
| 12 | 14001799A | LABEL (China) | FLHX, FLTRX |
| 13 | 61301353 | COVER, airbox, includes 29108-08 (chrome) | FLHX, FLTRX |
| 13 | 61301354 | COVER, airbox, includes 29108-08 (black) | FLHX, FLTRX |
ALTERNATOR AND REGULATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3050 | SCREW (3) | FLHX, FLTRX |
| 2 | 10006 | CABLE STRAP | FLHX, FLTRX |
| 3 | 10177 | CABLE STRAP, anchored | FLHX, FLTRX |
| 4 | 10200422 | SCREW (4) | FLHX, FLTRX |
| 5 | 29900038A | ROTOR ASSEMBLY | FLHX, FLTRX |
| 6 | 29900041 | SPACER, sprocket shaft | FLHX, FLTRX |
| 7 | 29900114 | STATOR ASSEMBLY, 3-phase, 56 A | FLHX, FLTRX |
| 8 | 74700048 | VOLTAGE REGULATOR ASSEMBLY | FLHX, FLTRX |
ELECTRONIC CONTROL MODULE (ECM) AND COIL
| Index No. | Part No. | Description | Model(s) |
| 1 | 945 | SCREW | FLHX, FLTRX |
| 2 | 4816A | SCREW (2) | FLHX, FLTRX |
| 3 | 32001-08A | SPARK PLUG CABLE, outer, front and rear cylinders (2) | FLHX, FLTRX |
| 4 | 12200154 | RETENTION CLIP (2) | FLHX, FLTRX |
| 5 | 16400087B | BRACKET, engine mount, mid | FLHX, FLTRX |
| 6 | 31600081 | SPARK PLUG CABLE, inner, front cylinder, with 10177 | FLHX, FLTRX |
| 7 | 31600194 | IGNITION COIL | FLHX, FLTRX |
| 8 | 31600195 | SPARK PLUG CABLE, inner, rear cylinder, with 10177 | FLHX, FLTRX |
| 9 | 41001351 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHX, FLTRX |
| 10 | 10177 | CABLE STRAP, anchored | FLHX, FLTRX |
| 11 | 31600012 | SPARK PLUG, M10 (4) | FLHX, FLTRX |
| 12 | 16400109 | BRACKET, engine mount, mid, includes sensor spacer (1) | FLHX, FLTRX |
| 13 | 29900147 | KIT, double stud service kit, includes bracket, studs and nuts (1) | FLHX, FLTRX |
| Note: The following parts are to be used when the engine or cylinder heads have been replaced with later style heads with 3/8" threaded holes for the coil mount. See Service Bulletin M-1651 and CFITMENT COMMENTS for additional information. | |||
SENSORS AND SWITCHES, ENGINE
| Index No. | Part No. | Description | Model(s) |
| 1 | 4015 | SCREW | FLHX, FLTRX |
| 2 | 4705 | SCREW | FLHX, FLTRX |
| 3 | 10177 | CABLE STRAP, anchored | FLHX, FLTRX |
| 4 | 74194-98 | TERMINAL, pin, 20-24 AWG (2) | FLHX, FLTRX |
| 5 | 11900180 | O-RING, crankshaft position sensor | FLHX, FLTRX |
| 6 | 32700144 | SENSOR, crankshaft position, with 74194-98, 11900180 and 69201302 | FLHX, FLTRX |
| 7 | 32700054 | SENSOR, engine temperature, with 10177, 69201299, 69201300 and 69201301 | FLHX, FLTRX |
| 8 | 32700065 | SENSOR, temperature manifold absolute pressure (TMAP), with O-ring | FLHX, FLTRX |
| 9 | 69201299 | HOUSING, socket, two-way, key B | FLHX, FLTRX |
| 10 | 69201300 | TERMINAL, socket, 20 AWG (2) | FLHX, FLTRX |
| 11 | 69201301 | WIRE SEAL, 22 AWG (green) (2) | FLHX, FLTRX |
| 12 | 69201302 | CONNECTOR ANCHOR | FLHX, FLTRX |
| 13 | 71400112A | OIL PRESSURE SWITCH, includes 11900172 | FLHX, FLTRX |
| 14 | 11900172 | O-RING | FLHX, FLTRX |
| 15 | 18400073B | SOLENOID, auto compression release (ACR) (2) | FLHX, FLTRX |
| 16 | 32700162 | SENSOR, cam position, includes 11289A | FLHX, FLTRX |
| 17 | 11289A | O-RING, cam position sensor | FLHX, FLTRX |
| 18 | 32700113 | SENSOR, knock (secured by coil mount bracket screws) (2) | FLHX, FLTRX |
STARTER MOTOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4419 | SCREW (2) | FLHX, FLTRX |
| 2 | 27444-00Y | O-RING, starter-to-case | FLHX, FLTRX |
| 3 | 31694-90 | NUT | FLHX, FLTRX |
| 4 | 31400053 | STARTER ASSEMBLY COMPLETE (black) | FLHX, FLTRX |
SHIFTER, GEAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 780 | SCREW | FLHX, FLTRX |
| 2 | 856A | SCREW | FLHX, FLTRX |
| 3 | 33600304 | SPACER | FLHX, FLTRX |
| 4 | 6497HW | WASHER | FLHX, FLTRX |
| 5 | 6702 | WASHER | FLHX, FLTRX |
| 6 | 7330 | ACORN NUT | FLHX, FLTRX |
| 7 | 7686 | LOCKNUT | FLHX, FLTRX |
| 8 | 11150 | RETAINING RING | FLHX, FLTRX |
| 9 | 11389 | RING, shift camshaft retaining | FLHX, FLTRX |
| 10 | 11575 | RING, shift camshaft retaining | FLHX, FLTRX |
| 11 | 33389-07 | SPRING, detent | FLHX, FLTRX |
| 12 | 33409-06B | DETENT ARM ASSEMBLY, with 33389-07 | FLHX, FLTRX |
| 13 | 33719-79B | SHIFTER ROD | FLHX, FLTRX |
| 14 | 33895-82E | SHIFT LEVER KIT, with 7686, 10200350 and shifter lever (chrome) | FLHX, FLTRX |
| 14 | 33600243 | SHIFT LEVER KIT, with 7686, 10200350 and shifter lever (gloss black) | FLHX, FLTRX |
| 15 | 34064-00C | SPRING, shift lever centering | FLHX, FLTRX |
| 16 | 34611-65A | TOE SHIFTER PEG KIT | FLHX, FLTRX |
| 17 | 34987-06 | SPRING, ratchet lever | FLHX, FLTRX |
| 18 | 35081-06 | SHIFT MECHANISM, with 34064-00C and 34987-06 | FLHX, FLTRX |
| 19 | 35082-07 | CENTERING SCREW, shift lever | FLHX, FLTRX |
| 20 | 35186-06A | SLEEVE | FLHX, FLTRX |
| 21 | 35187-06 | FORK, shift 1 - 2 | FLHX, FLTRX |
| 22 | 35210-06 | FORK, shift 3 - 4 | FLHX, FLTRX |
| 23 | 35217-06 | FORK, shift 5 - 6 | FLHX, FLTRX |
| 24 | 35222-06A | SHAFT, 5 - 6 shift fork | FLHX, FLTRX |
| 25 | 35223-06A | SHAFT, 1 - 2 and 3 - 4 shift fork | FLHX, FLTRX |
| 26 | 35243-06A | SLEEVE | FLHX, FLTRX |
| 27 | 35244-06 | SCREW | FLHX, FLTRX |
| 28 | 35249-06A | LOCK PLATE, shift camshaft | FLHX, FLTRX |
| 29 | 35259-06 | SCREW (2) | FLHX, FLTRX |
| 30 | 10200350 | SCREW | FLHX, FLTRX |
| 31 | 11000101 | OIL SEAL | FLHX, FLTRX |
| 32 | 33600088 | LEVER, gear shifter (chrome) | FLHX, FLTRX |
| 32 | 33600188 | LEVER, gear shifter (gloss black) | FLHX, FLTRX |
| 33 | 33600091 | SHAFT | FLHX, FLTRX |
| 34 | 33900265 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHX, FLTRX |
| 35 | 33900175 | LEVER, shifter rod | FLHX, FLTRX |
TRANSMISSION BEARINGS AND COVERS
| Index No. | Part No. | Description | Model(s) |
| 1 | 221 | PIN (2) | FLHX, FLTRX |
| 2 | 3249 | SCREW (8) | FLHX, FLTRX |
| 3 | 4705 | SCREW | FLHX, FLTRX |
| 4 | 4718A | SCREW (6) | FLHX, FLTRX |
| 5 | 11900192 | ORING, gear position sensor | FLHX, FLTRX |
| 6 | 8873 | BALL | FLHX, FLTRX |
| 7 | 7340 | NUT, mainshaft and countershaft (2) | FLHX, FLTRX |
| 8 | 8963 | BEARING, needle | FLHX, FLTRX |
| 9 | 8967A | BEARING | FLHX, FLTRX |
| 10 | 8970A | BEARING | FLHX, FLTRX |
| 11 | 9701A | BUSHING | FLHX, FLTRX |
| 12 | 10998 | RETAINING RING | FLHX, FLTRX |
| 13 | 11161 | RETAINING RING | FLHX, FLTRX |
| 14 | 12074 | SEAL | FLHX, FLTRX |
| 15 | 16583-00B | BUSHING, dowel (2) | FLHX, FLTRX |
| 16 | 35082-07 | CENTERING SCREW, shift lever | FLHX, FLTRX |
| 17 | 35087-99A | RETAINING RING (2) | FLHX, FLTRX |
| 18 | 35186-06A | SLEEVE | FLHX, FLTRX |
| 19 | 24400378 | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black) | FLHX, FLTRX |
| 20 | 35654-06A | GASKET, bearing housing | FLHX, FLTRX |
| 21 | 25701479 | GASKET, cover | FLHX, FLTRX |
| 22 | 34920-86A | COUPLING | FLHX, FLTRX |
| 23 | 11000010 | BEARING | FLHX, FLTRX |
| 24 | 11000101 | OIL SEAL | FLHX, FLTRX |
| 25 | 11900092 | O-RING | FLHX, FLTRX |
| 26 | 24400215 | GASKET | FLHX, FLTRX |
| 27 | 62700291 | DIPSTICK (black) | FLHX, FLTRX |
| 28 | 32700166 | SENSOR, gear position, includes 11900192 | FLHX, FLTRX |
| 29 | 37000376 | KIT, CLUTCH SERVICE, with 34920-86A, 8873 | FLHX, FLTRX |
| 30 | 25800168 | COVER (chrome) | FLHX, FLTRX |
| 30 | 25800165 | COVER (black) | FLHX, FLTRX |
| 31 | 62700150 | PLUG, transmission, with 11900092 | FLHX, FLTRX |
| 32 | 25800170 | COVER, gear position sensor | FLHX, FLTRX |
| 33 | 11179 | O-RING | FLHX, FLTRX |
| 34 | 11900179 | O-RING, composite dipstick | FLHX, FLTRX |
| 35 | 4015 | SCREW (2) | FLHX, FLTRX |
| 36 | 69203188 | HARNESS, gear position sensor, includes 37, 38, 39, 40, 41 | FLHX, FLTRX |
| 37 | 69201441 | HOUSING, socket, 4 way | FLHX, FLTRX |
| 38 | 69201407 | TERMINAL, socket (6) | FLHX, FLTRX |
| 39 | 69201427 | SEAL PIN | FLHX, FLTRX |
| 40 | 69201301 | WIRE SEAL | FLHX, FLTRX |
| 41 | 69201406 | HOUSING, 3 way socket | FLHX, FLTRX |
TRANSMISSION HOUSING, COVER AND OIL PAN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3699D | SCREW (2) | FLHX, FLTRX |
| 2 | 3983 | SCREW (2) | FLHX, FLTRX |
| 3 | 62700136 | DIPSTICK ASSEMBLY, with 11120 | FLHX, FLTRX |
| 4 | 4741A | SCREW (4) | FLHX, FLTRX |
| 5 | 7792 | NUT | FLHX, FLTRX |
| 6 | 11105 | O-RING (2) | FLHX, FLTRX |
| 7 | 11120 | O-RING | FLHX, FLTRX |
| 8 | 29400448 | TRANSMISSION COVER, top, with 34800071 and 34800043 (black) | FLHX, FLTRX |
| 9 | 16574-99A | DOWEL PIN (2) | FLHX, FLTRX |
| 10 | 12100203 | PLUG | FLHX, FLTRX |
| 11 | 60328-98B | PLUG, magnetic, with 11105 (2) | FLHX, FLTRX |
| 12 | 34800043 | VENT HOSE, transmission | FLHX, FLTRX |
| 13 | 66290-06 | STUD, ground | FLHX, FLTRX |
| 14 | 34700372 | TRANSMISSION CASE SUBASSEMBLY, with 11000101, 11161, 16574-99A, 35000152, 35082-07, 35122-06A, 35186-06A, 35241-06, 35242-06, 3594, 66290-06, 8963, 8967A, 9701A (black) | FLHX, FLTRX |
| 15 | 24400180 | OIL PAN ASSEMBLY, with 60328-98B (black) | FLHX, FLTRX |
| 16 | 25700452A | GASKET, oil pan | FLHX, FLTRX |
| 17 | 34800071 | GASKET, upper cover | FLHX, FLTRX |
| 18 | 12600369 | SCREW (12) | FLHX, FLTRX |
TRANSMISSION GEARS
| Index No. | Part No. | Description | Model(s) |
| 1 | 5837B | SPACER | FLHX, FLTRX |
| 2 | 7340 | NUT (2) | FLHX, FLTRX |
| 3 | 8026K | BEARING, needle (4) | FLHX, FLTRX |
| 4 | 8041 | BEARING, needle | FLHX, FLTRX |
| 5 | 8042A | BEARING, needle (2) | FLHX, FLTRX |
| 6 | 10991A | RETAINING RING (2) | FLHX, FLTRX |
| 7 | 12200144 | RETAINING RING | FLHX, FLTRX |
| 8 | 11081A | RING, lock (3) | FLHX, FLTRX |
| 9 | 11082A | SECURING SEGMENT (6) | FLHX, FLTRX |
| 10 | 11201 | O-RING | FLHX, FLTRX |
| 11 | 11207A | WASHER, internal spline | FLHX, FLTRX |
| 12 | 11599A | SPACER, bearing | FLHX, FLTRX |
| 13 | 12077 | OIL SEAL | FLHX, FLTRX |
| 14 | 34091-08 | BEARING, inner race | FLHX, FLTRX |
| 15 | 35122-06A | GEAR ASSEMBLY, driven output, with 8042A, 10991A, 11201, 11599A and 12077 | FLHX, FLTRX |
| 16 | 35124-06 | GUIDE HUB, dog ring | FLHX, FLTRX |
| 17 | 35126-06 | DOG RING, lugged (2) | FLHX, FLTRX |
| 18 | 35000178 | GUIDE HUB, dog ring | FLHX, FLTRX |
| 19 | 35202-06 | GUIDE HUB, dog ring | FLHX, FLTRX |
| 20 | 35204-06 | DOG RING, pocketed | FLHX, FLTRX |
| 21 | 35467-06C | INPUT SHAFT KIT, with 12200144, 34091-08 and 35000178 | FLHX, FLTRX |
| 22 | 35600094 | COUNTERSHAFT ASSEMBLY | FLHX, FLTRX |
| 23 | 35000179 | GEAR, fifth input | FLHX, FLTRX |
| 24 | 35807-06 | GEAR, countershaft-second | FLHX, FLTRX |
| 25 | 35811-06 | GEAR, countershaft-third | FLHX, FLTRX |
| 26 | 35814-06 | GEAR, countershaft-fourth | FLHX, FLTRX |
| 27 | 35600103 | GEAR ASSEMBLY, countershaft-first | FLHX, FLTRX |
| 28 | 24400409 | GEAR PACK SUBASSEMBLY, with input shaft and gears, countershaft and gears (black) | FLHX, FLTRX |
CLUTCH
| Index No. | Part No. | Description | Model(s) |
| 1 | 7848W | JAMNUT | FLHX, FLTRX |
| 2 | 11096 | RETAINING RING, external | FLHX, FLTRX |
| 3 | 36706-01K | BOLT (3) | FLHX, FLTRX |
| 4 | 37069-90A | OIL SLINGER | FLHX, FLTRX |
| 5 | 37090-98A | SCREW, adjuster | FLHX, FLTRX |
| 6 | 37092-06 | PUSHROD, clutch release | FLHX, FLTRX |
| 7 | 37312-75 | BEARING, thrust | FLHX, FLTRX |
| 8 | 37313-80 | BEARING, thrust race (2) | FLHX, FLTRX |
| 9 | 37496-90A | NUT, mainshaft | FLHX, FLTRX |
| 10 | 37903-90 | RELEASE PLATE | FLHX, FLTRX |
| 11 | 37904-90 | RETAINING RING, external | FLHX, FLTRX |
| 12 | 37909-90 | RING, retaining, internal | FLHX, FLTRX |
| 13 | 37000032A | PRESSURE PLATE, clutch | FLHX, FLTRX |
| 14 | 37000033 | STOPPER PLATE | FLHX, FLTRX |
| 15 | 37000034 | SPRING, damper | FLHX, FLTRX |
| 16 | 37000295 | SEAT, damper-spring | FLHX, FLTRX |
| 17 | 37000083 | HUB ASSEMBLY | FLHX, FLTRX |
| 18 | 37000168 | BEARING, ball, double-row | FLHX, FLTRX |
| 19 | 37000169 | RETAINING RING, internal | FLHX, FLTRX |
| 20 | 37000219 | SEAT (3) | FLHX, FLTRX |
| 21 | 37000377 | CLUTCH ASSEMBLY, complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23 | FLHX, FLTRX |
| 22 | 37000382 | CLUTCH DISC KIT | FLHX, FLTRX |
| 23 | 37000270A | COIL SPRING (3) | FLHX, FLTRX |
PRIMARY HOUSING
| Index No. | Part No. | Description | Model(s) |
| 1 | 786A | BOLT (5) | FLHX, FLTRX |
| 2 | 791A | SCREW (2) | FLHX, FLTRX |
| 3 | 1062 | SCREW (5) | FLHX, FLTRX |
| 4 | 1775 | SCREW (4) | FLHX, FLTRX |
| 5 | 4813A | SCREW (9) | FLHX, FLTRX |
| 6 | 4820A | SCREW | FLHX, FLTRX |
| 7 | 9231 | BEARING | FLHX, FLTRX |
| 8 | 11105 | O-RING | FLHX, FLTRX |
| 9 | 12052A | SEAL | FLHX, FLTRX |
| 10 | 16583-00B | BUSHING, dowel (2) | FLHX, FLTRX |
| 11 | 17369-06 | GASKET SERVICE KIT, 1000 mi (1600 km), 5000 mi (8000 km), 10,000 mi (16,000 km), with 11105 and clutch cover seal | FLHX, FLTRX |
| 12 | 24754-75A | DOWEL BUSHING (4) | FLHX, FLTRX |
| 13 | 60328-98B | PLUG, magnetic drain, with 11105 | FLHX, FLTRX |
| 14 | 60678-85 | RETAINING RING | FLHX, FLTRX |
| 15 | 11000139 | BUSHING | FLHX, FLTRX |
| 16 | 25700746 | GASKET KIT, inner primary with 11105, 12052A, 25700378, 25700455, 37909-90, 786A and clutch cover gasket | FLHX, FLTRX |
| 17 | 25700378 | GASKET, primary cover | FLHX, FLTRX |
| 18 | 25701556 | COVER, clutch 117 (black) | FLHX, FLTRX |
| 18 | 25701561 | COVER, clutch 117 (chrome) | FLHX, FLTRX |
| 19 | 25700491 | COVER, primary (gloss black) | FLHX, FLTRX |
| 19 | 25700418 | COVER, primary (chrome) | FLHX, FLTRX |
| 20 | 25700455 | GASKET, primary housing to case (silver) | FLHX, FLTRX |
| 21 | 25700650 | SLEEVE, damper | FLHX, FLTRX |
| 22 | 36500052A | INNER PRIMARY HOUSING, with 9231, 12052A, 16583-00A, 60328-98B, 60678-85, 11000139 26500026 (black) | FLHX, FLTRX |
| 23 | 36500075A | CHAIN TENSIONER ASSEMBLY | FLHX, FLTRX |
| 24 | 26500026 | HOSE, vent | FLHX, FLTRX |
| 25 | 26500027 | KIT, VENT, primary with 11105, 25700378, 26500026 and clutch cover seal | FLHX, FLTRX |
BELT, CHAIN AND SPROCKETS
| Index No. | Part No. | Description | Model(s) |
| 1 | 3594 | SCREW (2) | FLHX, FLTRX |
| 2 | 3892 | SCREW (3) | FLHX, FLTRX |
| 3 | 9276B | BALL BEARING (2) | FLHX, FLTRX |
| 4 | 11843 | SPACER, compensator | FLHX, FLTRX |
| 5 | 35241-06 | NUT | FLHX, FLTRX |
| 6 | 35242-06 | LOCKPLATE | FLHX, FLTRX |
| 7 | 40024-09A | REAR BELT, 140 teeth, 24 mm | FLHX, FLTRX |
| 8 | 40037-07 | PRIMARY CHAIN | FLHX, FLTRX |
| 9 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLHX, FLTRX |
| 10 | 40278-09 | ISOLATOR, rubber | FLHX, FLTRX |
| 11 | 60386-09 | DEBRIS DEFLECTOR | FLHX, FLTRX |
| 12 | 83936-09A | SPRING PACK | FLHX, FLTRX |
| 13 | 10500031 | SCREW, compensator | FLHX, FLTRX |
| 14 | 35000152A | SPROCKET, transmission, 32 teeth | FLHX, FLTRX |
| 15 | 40100041 | RETAINER, sprocket | FLHX, FLTRX |
| 16 | 40100064 | THRUST WASHER | FLHX, FLTRX |
| 17 | 40100076 | ENGINE SPROCKET KIT, compensator assembly | FLHX, FLTRX |
CLUTCH CONTROL - FLHX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLHX |
| 2 | 6101 | WASHER (black) (2) | FLHX |
| 3 | 10039 | CABLE STRAP | FLHX |
| 4 | 10264 | CLIP, clutch line | FLHX |
| 5 | 11615 | RETAINING RING, clutch lever pin | FLHX |
| 6 | 42860-06B | PIVOT PIN, with 11615 (black) | FLHX |
| 7 | 41600382 | BRACKET, mounting, clutch and brake lines | FLHX |
| 8 | 10201173 | SCREW | FLHX |
| 9 | 10201376 | SCREW | FLHX |
| 10 | 12200271 | CLIP, clutch and coolant reservoir | FLHX |
| 11 | 36700286 | CLUTCH LEVER ASSEMBLY (satin black) | FLHX |
| 11 | 36700296 | CLUTCH LEVER ASSEMBLY (polished) | FLHX |
| 12 | 36700288 | BRACKET, hand lever (satin black) | FLHX |
| 13 | 10076 | CLAMP | FLHX |
| 14 | 36700291 | COVER, switch | FLHX |
| 15 | 37200395A | ADJUSTER BUTTON, clutch cable | FLHX |
| 16 | 37200396 | CONNECTOR BODY, clutch cable | FLHX |
| 17 | 37200437 | CLUTCH CABLE, lower | FLHX |
| 18 | 37200545 | CLIP | FLHX |
| 19 | 37200574A | CABLE, clutch control, with 37200395A and 37200396 | FLHX |
| 20 | 71400141 | SWITCH, clutch lever position sensor | FLHX |
| 21 | 10201368 | SCREW | FLHX |
| Note: For front clamp/switch cover refer to "SWITCHES, HANDLEBAR" section. | |||
CLUTCH CONTROL - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLTRX |
| 2 | 6101 | WASHER (black) (2) | FLTRX |
| 3 | 10039 | CABLE STRAP | FLTRX |
| 4 | 10264 | CLIP, clutch line | FLTRX |
| 5 | 11615 | RETAINING RING, clutch lever pin | FLTRX |
| 6 | 42860-06B | PIVOT PIN, with 11615 (black) | FLTRX |
| 7 | 10201173 | SCREW | FLTRX |
| 8 | 10201376 | SCREW | FLTRX |
| 9 | 12200271 | CLIP, clutch and coolant reservoir | FLTRX |
| 10 | 36700286 | CLUTCH LEVER ASSEMBLY (satin black) | FLTRX |
| 10 | 36700296 | CLUTCH LEVER ASSEMBLY (polished) | FLTRX |
| 11 | 36700288 | BRACKET, hand lever (satin black) | FLTRX |
| 12 | 41600382 | BRACKET, mounting, clutch and brake lines | FLTRX |
| 13 | 36700291 | COVER, switch | FLTRX |
| 14 | 37200395A | ADJUSTER BUTTON, clutch cable | FLTRX |
| 15 | 37200396 | CONNECTOR BODY, clutch cable | FLTRX |
| 16 | 37200437 | CLUTCH CABLE, lower | FLTRX |
| 17 | 37200545 | CLIP | FLTRX |
| 18 | 37200592 | CABLE, clutch control, upper, with 37200395A and 37200396 | FLTRX |
| 19 | 71400141 | SWITCH, clutch lever position sensor | FLTRX |
| 20 | 10201368 | SCREW | FLTRX |
| Note: For front clamp/switch cover refer to "SWITCHES, HANDLEBAR" section. | |||
BRAKE CONTROL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (black) (2) | FLHX, FLTRX |
| 2 | 6101 | WASHER (black) (2) | FLHX, FLTRX |
| 3 | 41700367 | BUTTON, anti-bubble | FLHX, FLTRX |
| 4 | 41700625 | SCREW, brake master cylinder | FLHX, FLTRX |
| 5 | 41701089 | MASTER CYLINDER ASSEMBLY, front brake (black lever) | FLHX, FLTRX |
| 5 | 41701067 | MASTER CYLINDER ASSEMBLY, front brake (polished lever) | FLHX, FLTRX |
| 6 | 41701406 | LEVER KIT, front brake (black) | FLHX, FLTRX |
| 6 | 41701407 | LEVER KIT, front brake (polished) | FLHX, FLTRX |
| 7 | 41701125 | COVER KIT, master cylinder (black) | FLHX, FLTRX |
| 8 | 41701131 | PIVOT PIN KIT, with retaining ring (black) | FLHX, FLTRX |
| 9 | 71400196 | SWITCH, brake lever | FLHX, FLTRX |
| Note: For front clamp/switch cover refer to "SWITCHES, HANDLEBAR" section. | |||
BRAKE LINES, FRONT - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4890 | BLEEDER SCREW (2) | FLHX, FLTRX |
| 2 | 41750-06B | BOLT, BANJO (black) | FLHX, FLTRX |
| 3 | 41751-06A | GASKET (10) | FLHX, FLTRX |
| 4 | 41783-08 | BOLT, BANJO, bleeder assembly, with 4890 (2) | FLHX, FLTRX |
| 5 | 42853-06 | CAP (2) | FLHX, FLTRX |
| 6 | 10200223 | SCREW (3) | FLHX, FLTRX |
| 7 | 10600007 | GASKET (2) | FLHX, FLTRX |
| 8 | 11600001 | BOLT, BANJO (2) | FLHX, FLTRX |
| 9 | 11600009 | BOLT, BANJO | FLHX, FLTRX |
| 10 | 41600378 | BRACKET, brake line | FLHX, FLTRX |
| 11 | 41600382 | BRACKET, brake line | FLHX, FLTRX |
| 12 | 41600383 | BRACKET, brake line | FLHX, FLTRX |
| 13 | 41800897 | BRAKE LINE, ABS (right) | FLHX |
| 13 | 41800898 | BRAKE LINE, ABS (right) | FLTRX |
| 14 | 41800896 | BRAKE LINE, ABS (left) | FLHX |
| 14 | 41800899 | BRAKE LINE, ABS (left) | FLTRX |
| 15 | 41800888 | BRAKE LINE, ABS (upper) | FLHX |
| 15 | 41800887 | BRAKE LINE, ABS (upper) | FLTRX |
| 16 | 10800227 | CLAMP | FLHX, FLTRX |
| 17 | 10201368 | SCREW | FLHX, FLTRX |
| 18 | 10065 | CABLE STRAP | FLHX, FLTRX |
| 19 | 10200686 | SCREW, caddy closure | FLHX, FLTRX |
BRAKE CONTROL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 515 | COTTER PIN | FLHX, FLTRX |
| 2 | 2479 | SCREW (2) | FLHX, FLTRX |
| 3 | 7549A | NUT, acorn | FLHX, FLTRX |
| 4 | 6220W | WASHER | FLHX, FLTRX |
| 5 | 6421 | WASHER | FLHX, FLTRX |
| 6 | 6416 | WASHER | FLHX, FLTRX |
| 7 | 7825 | LOCKNUT | FLHX, FLTRX |
| 8 | 42444-04 | PAD, brake pedal | FLHX, FLTRX |
| 9 | 11902 | GASKET, master cylinder reservoir cover | FLHX, FLTRX |
| 10 | 12102 | DUST BOOT | FLHX, FLTRX |
| 11 | 42460-80B | CLEVIS PIN | FLHX, FLTRX |
| 12 | 42854-06 | KIT, SIGHT GLASS | FLHX, FLTRX |
| 13 | 42856-06 | DECAL, reservoir cover | FLHX, FLTRX |
| 14 | 42858-06A | SCREW KIT | FLHX, FLTRX |
| 15 | 42889-06 | PUSHROD SPRING E-CLIP KIT, master cylinder | FLHX, FLTRX |
| 16 | 42932-08A | REBUILD KIT, master cylinder | FLHX, FLTRX |
| 17 | 42934-08 | SPRING, pedal return | FLHX, FLTRX |
| 18 | 42937-08C | MASTER CYLINDER COVER KIT, with 11902, 42858-06A (black) | FLHX, FLTRX |
| 19 | 11000050 | BUSHING, brake lever (2) | FLHX, FLTRX |
| 20 | 11900021 | O-RING (2) | FLHX, FLTRX |
| 21 | 41700028A | MASTER CYLINDER ASSEMBLY (black) | FLHX, FLTRX |
| 22 | 41700195 | PUSHROD KIT, master cylinder | FLHX, FLTRX |
| 23 | 42410-04 | COVER, brake pedal (chrome) | FLHX, FLTRX |
| 23 | 50600245 | COVER, brake pedal (black) | FLHX, FLTRX |
| 24 | 50600244 | LEVER ASSEMBLY, foot-brake, with 11000050 (black) | FLHX, FLTRX |
| 24 | 50600067 | LEVER ASSEMBLY, foot-brake, with 11000050 (chrome) | FLHX, FLTRX |
BRAKE LINES AND MODULE, REAR - ABS
| Index No. | Part No. | Description | Model(s) |
| 1 | 1009M | SCREW (2) | FLHX, FLTRX |
| 2 | 1062 | SCREW | FLHX, FLTRX |
| 3 | 3563 | SCREW | FLHX, FLTRX |
| 4 | 10065 | CABLE STRAP (2) | FLHX, FLTRX |
| 5 | 10800227 | CLAMP | FLHX, FLTRX |
| 6 | 10340B | CLAMP, brake hose (2) | FLHX, FLTRX |
| 7 | 41750-06B | BOLT, BANJO, brake line (ABS) (2) | FLHX, FLTRX |
| 8 | 41751-06A | GASKET (6) | FLHX, FLTRX |
| 9 | 70631-08 | CLIP, conduit | FLHX, FLTRX |
| 10 | 10600007 | GASKET (2) | FLHX, FLTRX |
| 11 | 41600385 | TUBE CLIP (lower) | FLHX, FLTRX |
| 12 | 11600001 | BOLT, BANJO, brake line | FLHX, FLTRX |
| 13 | 11600009 | BOLT, BANJO, brake line | FLHX, FLTRX |
| 14 | 12100007 | GROMMET, mounting (ABS) | FLHX, FLTRX |
| 15 | 32700101 | SENSOR, IMU | FLHX, FLTRX |
| 16 | 41100122 | ABS MODULE (EHCU) | FLHX, FLTRX |
| 17 | 41600386 | BRACKET, ABS brake line alignment | FLHX, FLTRX |
| 18 | 41600384 | TUBE CLIP (upper) | FLHX, FLTRX |
| 19 | 41800890 | BRAKE LINE, ABS module to master cylinder, with 10065, 416000384, 41600385 | FLHX, FLTRX |
| 20 | 41800891 | BRAKE LINE, ABS module to caliper | FLHX, FLTRX |
| 21 | 69201924 | CADDY, ABS module | FLHX, FLTRX |
| 22 | 72023-51E | SWITCH KIT, stop lamp | FLHX, FLTRX |
BRAKE CALIPER, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 41854-08 | PAD AND PIN KIT, with 42849-08 (2) | FLHX, FLTRX |
| 2 | 42849-08 | PAD PIN KIT (2) | FLHX, FLTRX |
| 3 | 42851-06 | COVER, caliper (2) | FLHX, FLTRX |
| 4 | 42852-06A | PAD SPRING, anti-rattle (2) | FLHX, FLTRX |
| 5 | 43027-08 | CALIPER ASSEMBLY (left) (black) | FLHX, FLTRX |
| 5 | 44023-08 | CALIPER ASSEMBLY (right) (black) | FLHX, FLTRX |
| 6 | 44160-00 | BOLT, caliper mounting (lower) (4) | FLHX, FLTRX |
| 7 | 44341-08 | MEDALLION, brake caliper (2) | FLHX, FLTRX |
BRAKE CALIPER, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4597M | SCREW (2) | FLHX, FLTRX |
| 2 | 4890 | BLEEDER SCREW | FLHX, FLTRX |
| 3 | 41852-08B | PAD AND PIN KIT | FLHX, FLTRX |
| 4 | 42853-06 | CAP, bleeder screw | FLHX, FLTRX |
| 5 | 42863-06 | BUMPER | FLHX, FLTRX |
| 6 | 42865-06B | PAD PIN KIT | FLHX, FLTRX |
| 7 | 42867-06A | SPRING KIT, anti-rattle | FLHX, FLTRX |
| 8 | 44080-08C | CALIPER ASSEMBLY, rear, with 4890, 41852-08B, 42853-06, 42865-06B and 42867-06A (black) | FLHX, FLTRX |
| 9 | 44089-08 | BRACKET, reaction, rear brake, with 42863-06 | FLHX, FLTRX |
WHEEL, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 9252A | BALL BEARING, with encoder | FLHX, FLTRX |
| 2 | 9276B | BALL BEARING | FLHX, FLTRX |
| 3 | 41123-79 | VALVE CAP | FLHX, FLTRX |
| 4 | 43000300A | AXLE | FLHX, FLTRX |
| 5 | 41900-08 | SLEEVE, bearing spacer | FLHX, FLTRX |
| 6 | 41901-08 | SPACER | FLHX, FLTRX |
| 7 | 43100045 | TIRE, black wall, 19 in | FLHX, FLTRX |
| 8 | 70493-08 | BRACKET, wheel speed sensor | FLHX, FLTRX |
| 9 | 70494-08 | CLIP, wheel speed sensor | FLHX, FLTRX |
| 10 | 70631-08 | CLIP, conduit (3) | FLHX, FLTRX |
| 11 | 72607-08 | HOUSING, two-way pin (black) | FLHX, FLTRX |
| 12 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHX, FLTRX |
| 13 | 72639-10 | SECONDARY LOCK, two-way socket | FLHX, FLTRX |
| 14 | 42300001A | WEIGHT, 1/2 oz (black) (3) | FLHX, FLTRX |
| 15 | 10201167 | SCREW | FLHX, FLTRX |
| 16 | 11900155 | O-RING | FLHX, FLTRX |
| 17 | 32700015 | SENSOR, wheel speed, with 72607-08, 72608-08 and 72639-10 | FLHX, FLTRX |
| 18 | 41500158A | BRAKE DISC (2) | FLHX, FLTRX |
| 19 | 41500196 | ROTOR BOLT ASSEMBLY, shoulder, with wave washer (10) | FLHX, FLTRX |
| 20 | 42300141 | VALVE STEM | FLHX, FLTRX |
| 21 | 42300139 | MONITOR, TIRE PRESSURE (except Japan) | FLHX, FLTRX |
| 21 | 42300140 | MONITOR, TIRE PRESSURE (Japan only) | FLHX, FLTRX |
| 22 | 42300142 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300141, 42300139 (except Japan) | FLHX, FLTRX |
| 22 | 42300143 | MONITOR, TIRE PRESSURE ASSEMBLY, includes 10201167, 11900155, 42300141, 42300140 (Japan only) | FLHX, FLTRX |
| 23 | 43300926 | WHEEL, front, cast, without bearings and sleeve, 5 spoke, 19 inch (black/machined) | FLHX, FLTRX |
WHEEL, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 8020 | NUT, slotted | FLHX, FLTRX |
| 2 | 9252A | BALL BEARING, with encoder | FLHX, FLTRX |
| 3 | 9276B | BALL BEARING (3) | FLHX, FLTRX |
| 4 | 10147 | CLIP, connector | FLHX, FLTRX |
| 5 | 11843 | SPACER, compensator | FLHX, FLTRX |
| 6 | 11848 | SPACER | FLHX, FLTRX |
| 7 | 40217-09 | SPROCKET AND BEARING ASSEMBLY, rear, 68 teeth, with 9276B and 11843 (black) | FLHX, FLTRX |
| 8 | 40278-09 | ISOLATOR, rubber | FLHX, FLTRX |
| 9 | 40615-08 | SENSOR, wheel speed, with 10147, 72607-08, 72608-08 and 72639-10 | FLHX, FLTRX |
| 10 | 41123-79 | VALVE CAP | FLHX, FLTRX |
| 11 | 41229-08 | E-CLIP | FLHX, FLTRX |
| 12 | 41349-07 | SLEEVE, bearing spacer | FLHX, FLTRX |
| 13 | 41810-08B | BRAKE DISC | FLHX, FLTRX |
| 14 | 43567-92 | SCREW (5) | FLHX, FLTRX |
| 15 | 72607-08 | HOUSING, two-way pin (black) | FLHX, FLTRX |
| 16 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHX, FLTRX |
| 17 | 72639-10 | SECONDARY LOCK, two-way socket | FLHX, FLTRX |
| 18 | 10201167 | SCREW | FLHX, FLTRX |
| 19 | 11900155 | O-RING | FLHX, FLTRX |
| 20 | 40900905 | WHEEL, cast, without bearings and sleeve, 5 spoke, 18 in (black/machined) | FLHX, FLTRX |
| 21 | 42300001A | WEIGHT, 1/2 oz (black) (3) | FLHX, FLTRX |
| 22 | 42300141 | VALVE STEM | FLHX, FLTRX |
| 23 | 42300139 | MONITOR, sensor (except Japan) | FLHX, FLTRX |
| 23 | 42300140 | MONITOR, sensor (Japan) | FLHX, FLTRX |
| 24 | 42300142 | SENSOR, tire pressure, with 10201167, 11900155, 42300139, 42300141 (except Japan) | FLHX, FLTRX |
| 24 | 42300143 | SENSOR, tire pressure, with 10201167, 11900155, 42300140, 42300141 (Japan) | FLHX, FLTRX |
| 25 | 43000203 | AXLE CAM | FLHX, FLTRX |
| 26 | 43000207 | REAR AXLE | FLHX, FLTRX |
| 27 | 43200045 | TIRE, 18 in black wall | FLHX, FLTRX |

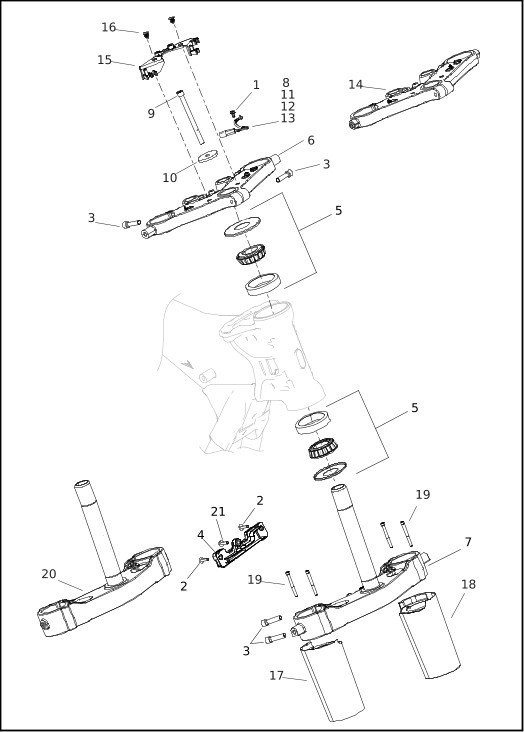

FORK BRACKETS, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 4240 | SCREW (2) | FLHX, FLTRX |
| 2 | 10200223 | SCREW (2) | FLHX, FLTRX |
| 3 | 10201326 | SCREW (7) | FLHX, FLTRX |
| 4 | 41600390 | BRACKET, brakeline | FLHX, FLTRX |
| 5 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHX, FLTRX |
| 6 | 45900318A | BRACKET, upper fork stem | FLHX |
| 7 | 45900317 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHX |
| 8 | 69200224 | WIRE HARNESS, triple clamp, ground jumper | FLHX, FLTRX |
| 9 | 881A | SCREW | FLHX, FLTRX |
| 10 | 45700070 | WASHER, stem | FLHX, FLTRX |
| 11 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHX, FLTRX |
| 12 | 72053-92 | HOUSING, one-way pin (black) | FLHX, FLTRX |
| 13 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHX, FLTRX |
| 14 | 45900334A | BRACKET, upper fork stem | FLTRX |
| 15 | 69203096A | BRACKET, electrical mount | FLTRX |
| 16 | 11785 | CLIP, push in | FLTRX |
| 17 | 45800023 | COVER ASSEMBLY, fork tube (right) (chrome) | FLHX, FLTRX |
| 17 | 45600055 | COVER ASSEMBLY, fork tube (right) (black) | FLHX, FLTRX |
| 18 | 45600003 | COVER ASSEMBLY, fork tube (left) (chrome) | FLHX, FLTRX |
| 18 | 45600054 | COVER ASSEMBLY, fork tube (left) (black) | FLHX, FLTRX |
| 19 | 10200344 | SCREW (4) | FLHX, FLTRX |
| 20 | 45900335 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLTRX |
| 21 | 10200686 | SCREW, caddy closure | FLHX, FLTRX |
FORK, FRONT
| Index No. | Part No. | Description | Model(s) |
| 1 | 46508-01 | O-RING (2) | FLHX, FLTRX |
| 2 | 46509-01 | WASHER (2) | FLHX, FLTRX |
| 3 | 46513-01 | RING, stopper (2) | FLHX, FLTRX |
| 4 | 46514-01A | OIL SEAL (2) | FLHX, FLTRX |
| 5 | 46515-01 | SPACER, seal (2) | FLHX, FLTRX |
| 6 | 46615-06 | PACKING SEAL (2) | FLHX, FLTRX |
| 7 | 59481-00 | REFLECTOR (right) (amber) | FLHX, FLTRX |
| 7 | 69861-07 | REFLECTOR, with black base (right) (amber) | FLHX, FLTRX |
| 8 | 59482-00 | REFLECTOR (left) (amber) | FLHX, FLTRX |
| 8 | 69862-07 | REFLECTOR, with black base (left) (amber) | FLHX, FLTRX |
| 9 | 22000031 | PISTON RING (2) | FLHX, FLTRX |
| 10 | 45400335 | FORK ASSEMBLY, complete, (left) (polished) | FLHX, FLTRX |
| 10 | 45400337 | FORK ASSEMBLY, complete (left) (black) | FLHX, FLTRX |
| 11 | 45400336 | FORK ASSEMBLY, complete (right) (polished) | FLHX, FLTRX |
| 11 | 45400338 | FORK ASSEMBLY, complete (right) (black) | FLHX, FLTRX |
| 12 | 45500839 | SLIDER, fork (left) (polished) | FLHX, FLTRX |
| 12 | 45500841 | SLIDER, fork (left) (black) | FLHX, FLTRX |
| 13 | 45500840 | SLIDER, fork (right) (polished) | FLHX, FLTRX |
| 13 | 45500842 | SLIDER, fork (right) (black) | FLHX, FLTRX |
| 14 | 45500117 | BOLT, fork (2) | FLHX, FLTRX |
| 15 | 45500118 | SCREW (2) | FLHX, FLTRX |
| 16 | 45500132 | SCREW (right) | FLHX, FLTRX |
| 17 | 45500856 | SPRING, fork (2) | FLHX, FLTRX |
| 18 | 45500849 | DAMPER TUBE, with 22000031 (2) | FLHX, FLTRX |
| 19 | 45500341 | FORK PIPE ASSEMBLY, with 45500424 (2) | FLHX, FLTRX |
| 20 | 45500396 | SPRING, rebound (2) | FLHX, FLTRX |
| 21 | 45500397 | OIL LOCK PIECE (2) | FLHX, FLTRX |
| 22 | 45500398 | COLLAR, spring (2) | FLHX, FLTRX |
| 23 | 45500421 | BUSHING GUIDE (2) | FLHX, FLTRX |
| 24 | 45500424 | BUSHING, slider (2) | FLHX, FLTRX |
| 25 | 91700025A | FORK REBUILD KIT, with 1, 3, 4, 5, 6, 9, 15, 23 and 24 (2) | FLHX, FLTRX |
SHOCK ABSORBERS, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3607 | BOLT (4) | FLHX, FLTRX |
| 2 | 6590HW | WASHER (4) | FLHX, FLTRX |
| 3 | 90820-93D | LABEL, saddlebag load limits, inside right saddlebag | FLHX, FLTRX |
| 4 | 54000305 | REAR SHOCK ABSORBER (right) | FLHX, FLTRX |
| 5 | 54000304 | REAR SHOCK ABSORBER, with 54000141 (left) | FLHX, FLTRX |
| 6 | 54000141 | KNOB SERVICE KIT | FLHX, FLTRX |
FRAME AND JIFFY STAND - FLHX, FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 45700009 | BEARING KIT, steering head, with bearing cups, bearing cones and dirt guards | FLHX, FLTRX |
| 2 | 3445 | BOLT | FLHX, FLTRX |
| 3 | 3594 | SCREW (BRZ, ENG, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 4 | 4688 | SCREW (2) | FLHX, FLTRX |
| 5 | 4924 | SCREW (2) | FLHX, FLTRX |
| 6 | 14000827 | CLEAR OVERLAY, VIN label | FLHX, FLTRX |
| 7 | 12200271 | CLIP | FLHX, FLTRX |
| 8 | 6116 | WASHER | FLHX, FLTRX |
| 9 | 7495 | NUT (2) | FLHX, FLTRX |
| 10 | 10177 | CABLE STRAP, anchored, jiffy stand | FLHX, FLTRX |
| 11 | 10039 | CABLE STRAP (6) | FLHX, FLTRX |
| 12 | 10264 | CLIP, clutch line (2) | FLHX, FLTRX |
| 13 | 47000344 | FRAME, main, with bearing cups (also order 45700009) | FLHX, FLTRX |
| 14 | 49000239 | ENGINE GUARD (chrome) | FLHX, FLTRX |
| 14 | 49000240 | ENGINE GUARD (black) | FLHX, FLTRX |
| 15 | 49725-07A | SPRING, jiffy stand | FLHX, FLTRX |
| 16 | 50015-74A | LEG STOP | FLHX, FLTRX |
| 17 | 50075-07A | LEG, jiffy stand (chrome) | FLHX, FLTRX |
| 17 | 50000149 | LEG, jiffy stand (black) | FLHX, FLTRX |
| 18 | 50000097 | BRACKET, jiffy stand (chrome) | FLHX, FLTRX |
| 18 | 50000143 | BRACKET, jiffy stand (black) | FLHX, FLTRX |
| 19 | 50126-08B | SENSOR, jiffy stand, with 72169-07, 72511-07BK and 73213-07 (BRZ, ENG, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 20 | 50245-07 | BUMPER, jiffy stand | FLHX, FLTRX |
| 21 | 72169-07 | TERMINAL, pin, 16-20 AWG (BRZ, ENG, EN2, HDI, HD4, IN2) (3) | FLHX, FLTRX |
| 22 | 72511-07BK | HOUSING, three-way pin (black) (BRZ, ENG, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 23 | 73213-07 | RETAINER, anchored (BRZ, ENG, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 24 | 90520-07 | HOLE PLUG, jiffy stand (all except BRZ, ENG, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 25 | 10200546 | SCREW | FLHX, FLTRX |
| 26 | 10800025A | CLIP, conduit, rosebud (2) | FLHX, FLTRX |
| 27 | 12200221 | CLIP, retaining | FLHX, FLTRX |
| 28 | 12600067 | FASTENER, plastic (2) | FLHX, FLTRX |
| 29 | 12600197 | FASTENER, plastic (2) | FLHX, FLTRX |
COVERS AND AIR DEFLECTORS
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3787 | BOLT (BRZ) (4) | FLHX, FLTRX |
| 2 | 6036 | WASHER (BRZ) (4) | FLHX, FLTRX |
| 3 | 10039 | TIE WRAP (brake lines to harness trough/cover) (2) | FLHX, FLTRX |
| 4 | 8194 | NUT, special (BRZ) (2) | FLHX, FLTRX |
| 5 | 11650 | GROMMET, side cover (6) | FLHX, FLTRX |
| 6 | 61301292 | TRIM, side cover (right) | FLHX, FLTRX |
| 7 | 61301291 | TRIM, side cover (left) | FLHX, FLTRX |
| 8 | 57200391 | DEFLECTOR, air (left) (BRZ) | FLHX, FLTRX |
| 9 | 57200392 | DEFLECTOR, air (right) (BRZ) | FLHX, FLTRX |
| 10 | 69202720A | WIRE TROUGH, with 69202637 (main harness) | FLHX, FLTRX |
| 11 | 69202636A | COVER, wire trough (main harness) | FLHX, FLTRX |
| 12 | 69202637 | CLIP (ABS) (2) | FLHX, FLTRX |
| 13 | 57200417 | KIT, AIR DEFLECTOR,, mid frame, with 3787, 6036, 8194, 57200391, 57200392 (BRZ) | FLHX, FLTRX |
FRAME AND FORK, REAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 3057 | SCREW (4) | FLHX, FLTRX |
| 2 | 3536 | BOLT (6) | FLHX, FLTRX |
| 3 | 6532 | WASHER (6) | FLHX, FLTRX |
| 4 | 6982 | WASHER, hex cup (2) | FLHX, FLTRX |
| 5 | 9208 | BEARING (2) | FLHX, FLTRX |
| 6 | 11779 | FASTENER, push-in (black) | FLHX, FLTRX |
| 7 | 47540-11 | SHAFT, rear fork | FLHX, FLTRX |
| 8 | 47549-09A | REAR FORK, with 9208, 11779 and 48489-02 | FLHX, FLTRX |
| 9 | 47584-09 | RUBBER MOUNT (2) | FLHX, FLTRX |
| 10 | 48079-09BHP | FRAME, rear | FLHX, FLTRX |
| 11 | 48487-02 | SPACER, outer (2) | FLHX, FLTRX |
| 12 | 48489-02 | SPACER, inner (2) | FLHX, FLTRX |
| 13 | 67875-11 | CAP (2) | FLHX, FLTRX |
| 14 | 16400005 | BRACKET, rear fork (left) | FLHX, FLTRX |
SEAT
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200004 | SCREW, button head SEMS (3) | FLHX, FLTRX |
| 2 | 3901 | SCREW (2) | FLHX, FLTRX |
| 3 | 4879M | SCREW (2) | FLHX, FLTRX |
| 4 | 52000631 | SEAT | FLHX, FLTRX |
| 5 | 59768-97 | SEAT NUT KIT, with nut and retention washer | FLHX, FLTRX |
| 6 | 52400313 | PASSENGER STRAP | FLHX, FLTRX |
| 7 | 52400016 | BRACKET, passenger strap (right) | FLHX, FLTRX |
| 8 | 52400021 | BRACKET, passenger strap, (left) | FLHX, FLTRX |
| 9 | 52000646 | BRACKET, seat mount, rear | FLHX, FLTRX |
FOOTBOARDS, OPERATOR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4688 | SCREW (2) | FLHX, FLTRX |
| 2 | 7038 | LOCKWASHER (2) | FLHX, FLTRX |
| 3 | 7716 | LOCKNUT (4) | FLHX, FLTRX |
| 4 | 50518-09 | BRACKET, right rear | FLHX, FLTRX |
| 5 | 50622-09A | BRACKET, left rear | FLHX, FLTRX |
| 6 | 50674-05 | SHOULDER BOLT, footboard (4) | FLHX, FLTRX |
| 7 | 50683-04 | FOOTBOARD BOTTOM ASSEMBLY (right) (chrome) | FLHX, FLTRX |
| 7 | 51068-08 | FOOTBOARD BOTTOM ASSEMBLY (right) (gloss black) | FLHX, FLTRX |
| 8 | 50684-11 | RUBBER PAD, footboard (right) | FLHX, FLTRX |
| 9 | 50688-04 | FOOTBOARD BOTTOM ASSEMBLY (left) (chrome) | FLHX, FLTRX |
| 9 | 51070-08 | FOOTBOARD BOTTOM ASSEMBLY (left) (gloss black) | FLHX, FLTRX |
| 10 | 50689-11 | RUBBER PAD, footboard (left) | FLHX, FLTRX |
| 11 | 10200429 | SCREW (2) | FLHX, FLTRX |
| 12 | 47200302A | BRACKET, front footboard (2) | FLHX, FLTRX |
FOOTPEGS, PASSENGER
| Index No. | Part No. | Description | Model(s) |
| 1 | 2708A | SCREW (2) | FLHX, FLTRX |
| 2 | 3143 | SCREW (2) | FLHX, FLTRX |
| 3 | 4916 | SCREW (2) | FLHX, FLTRX |
| 4 | 7038 | LOCKWASHER (2) | FLHX, FLTRX |
| 5 | 11304 | RING, retaining, passenger footpeg support (2) | FLHX, FLTRX |
| 6 | 45041-01A | CLEVIS PIN, passenger footpeg support (2) | FLHX, FLTRX |
| 7 | 50208-04 | MOUNT, passenger footpeg (2) | FLHX, FLTRX |
| 8 | 50345-04 | FOOTPEG, passenger (chrome) (2) | FLHX, FLTRX |
| 8 | 50500876 | FOOTPEG, passenger (gloss black) (2) | FLHX, FLTRX |
| 9 | 50350-04 | PAD, passenger footpeg (2) | FLHX, FLTRX |
| 10 | 50912-72 | SPRING WASHER, passenger footpeg (2) | FLHX, FLTRX |
| 11 | 50500460A | SUPPORT, left passenger footpeg (chrome) | FLHX, FLTRX |
| 11 | 50500334A | SUPPORT, left passenger footpeg (gloss black) | FLHX, FLTRX |
| 12 | 50500462A | SUPPORT, right passenger footpeg (chrome) | FLHX, FLTRX |
| 12 | 50500332A | SUPPORT, right passenger footpeg (gloss black) | FLHX, FLTRX |
FENDER, FRONT
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 58900582 | FENDER (prime) | FLHX, FLTRX |
| 2 | 10500015 | SCREW (4) | FLHX, FLTRX |
FENDER, REAR
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3684 | SCREW (6) | FLHX, FLTRX |
| 2 | 6703 | WASHER | FLHX, FLTRX |
| 3 | 7434 | WASHER (2) | FLHX, FLTRX |
| 4 | 3612 | SCREW (6) | FLHX, FLTRX |
| 5 | 7531 | LOCKNUT (2) | FLHX, FLTRX |
| 6 | 7686 | LOCKNUT | FLHX, FLTRX |
| 7 | 7880 | NUT (4) | FLHX, FLTRX |
| 8 | 10102 | CLIP (2) | FLHX, FLTRX |
| 9 | 11891 | SPACER (2) | FLHX, FLTRX |
| 10 | 59500519 | STUD PLATE | FLHX, FLTRX |
| 11 | 59768-97 | FENDER SEAT NUT KIT | FLHX, FLTRX |
| 12 | 59786-01 | BOSS, fender mounting, inner (4) | FLHX, FLTRX |
| 13 | 59788-01 | WASHER (4) | FLHX, FLTRX |
| 14 | 67801341 | STUD PLATE (2) | FLHX, FLTRX |
| 15 | 60463-09B | FENDER, rear (prime) | FLHX, FLTRX |
| 16 | 91140-09 | BRACKET, fender to saddlebag support | FLHX, FLTRX |
| 17 | 67801344 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, bracket and amber turnsignal (right) | FLHX, FLTRX |
| 18 | 67801345 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, bracket, and amber turnsignal (left) | FLHX, FLTRX |
| 19 | 10200628 | SCREW (6) | FLHX, FLTRX |
| 20 | 7499 | NUT (8) | FLHX, FLTRX |
LICENSE PLATE BRACKET
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (2) | FLHX, FLTRX |
| 2 | 6119 | WASHER (2) | FLHX, FLTRX |
| 3 | 69203119 | BRACKET, electrical mount, license plate | FLHX, FLTRX |
| 4 | 60916-09 | COVER | FLHX, FLTRX |
| 5 | 67900655 | LAMP ASSEMBLY, with 72905-11 | FLHX, FLTRX |
| 6 | 67900648 | COVER, license plate lamp (black) | FLHX, FLTRX |
| 7 | 69490-07 | REFLECTOR | FLHX, FLTRX |
| 8 | 72905-11 | HOUSING, two-way pin | FLHX, FLTRX |
| 9 | 67900649 | GASKET, license plate holder | FLHX, FLTRX |
| 10 | 67900640 | BRACKET, license plate | FLHX, FLTRX |
| 11 | 67900243 | BRACKET | FLHX, FLTRX |
| 12 | 10201386 | SCREW (2) | FLHX, FLTRX |
| 13 | 10201279 | SCREW (2) | FLHX, FLTRX |
FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 10201381 | SCREW (4) | FLHX, FLTRX |
| 2 | 61400716 | BOOT, tank bracket (right) | FLHX, FLTRX |
| 3 | 61400717 | BOOT, tank bracket (left) | FLHX, FLTRX |
| 4 | 14101841 | MEDALLION (left) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLHX |
| 4 | 14101942 | MEDALLION (left) (with black trim) (billiard gray, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLHX |
| 4 | 14101841 | MEDALLION (left) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLTRX |
| 4 | 14101942 | MEDALLION (left) (with black trim) (billiard gray, vivid black, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLTRX |
| 5 | 14101842 | MEDALLION (right) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLHX |
| 5 | 14101943 | MEDALLION (right) (with black trim) (billiard gray, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLHX |
| 5 | 14101842 | MEDALLION (right) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLTRX |
| 5 | 14101943 | MEDALLION (right) (with black trim) (billiard gray, vivid black, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLTRX |
| 6 | 10201318 | SCREW, filler neck (6) | FLHX, FLTRX |
| 7 | 61000997 | FILLER NECK (black) includes 61100207 | FLHX, FLTRX |
| 8 | 61100207 | GASKET, filler neck | FLHX, FLTRX |
| 9 | 61000986 | FUEL TANK, prime | FLHX, FLTRX |
| 10 | 10500167 | PLUG, drain, fuel tank, includes O-ring | FLHX, FLTRX |
FUEL TANK VENT HOSES (AUS, AU2, CAN, DOM)
| Index No. | Part No. | Description | Model(s) |
| 1 | 70681-09 | RETAINER (2) | FLHX, FLTRX |
| 2 | 10039 | CABLE STRAP (2) | FLHX, FLTRX |
| 3 | 10800182 | CLAMP, hose (2) | FLHX, FLTRX |
| 4 | 60800120 | HOSE, vapor vent to mid-point | FLHX, FLTRX |
| 5 | 61100204 | LINE, vapor vent, mid-point to atmosphere | FLHX, FLTRX |
| 6 | 61100202 | HOSE, overfill, upper | FLHX, FLTRX |
| 7 | 61100206 | LINE, overfill, lower | FLHX, FLTRX |
CONSOLE, FUEL TANK
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200032 | SCREW | FLHX, FLTRX |
| 2 | 8142 | NUT, speed | FLHX, FLTRX |
| 3 | 4856 | SCREW | FLHX, FLTRX |
| 4 | 70900948 | GASKET, fuel filler housing | FLHX, FLTRX |
| 5 | 14101851 | CONSOLE INSERT | FLHX |
| 5 | 14101919 | CONSOLE INSERT | FLTRX |
| 6 | 70901170 | TRIM, console (sold as 1 part to be split to service both sides of console) | FLHX, FLTRX |
| 7 | 70901163 | CONSOLE ASSEMBLY (chrome), includes 14101851, 70900948, 70901170 | FLHX |
| 7 | 70901087 | CONSOLE ASSEMBLY (black) includes 14101851, 70900948, 70901170) | FLHX |
| 7 | 70901165 | CONSOLE ASSEMBLY (chrome), includes 14101919, 70900948, 70901170 | FLTRX |
| 7 | 70901164 | CONSOLE ASSEMBLY (black) includes 14101919, 70900948, 70901170) | FLTRX |
FUEL PUMP -
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201216 | SCREW (5) | FLHX, FLTRX |
| 2 | 61200091A | PUMP ASSEMBLY, fuel, complete, includes 61200097 | FLHX, FLTRX |
| 3 | 61200097 | GASKET, fuel pump | FLHX, FLTRX |
| 4 | 61200100 | PRESSURE REGULATOR KIT, fuel | FLHX, FLTRX |
| 5 | 61200101 | LEVEL SENDER, fuel | FLHX, FLTRX |
| 6 | 61200102 | FILTER KIT, fuel | FLHX, FLTRX |
| 7 | 61200110 | FITTING, fuel outlet check valve, includes o-ring | FLHX, FLTRX |
EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Model(s) |
| 1 | 4612 | SCREW (2) | FLHX, FLTRX |
| 2 | 10800182 | CLAMP, hose (12) | FLHX, FLTRX |
| 3 | 12200278 | CLIP, evap lines (2) | FLHX, FLTRX |
| 4 | 70681-09 | RETAINER (2) | FLHX, FLTRX |
| 5 | 31400137 | SOLENOID, purge valve | FLHX, FLTRX |
| 6 | 60800109 | HOSE, mid-point to canister | FLHX, FLTRX |
| 7 | 60800110 | HOSE, canister to purge solenoid | FLHX, FLTRX |
| 8 | 60800111 | HOSE, purge solenoid to induction module | FLHX, FLTRX |
| 9 | 60800116 | CARBON CANISTER | FLHX, FLTRX |
| 10 | 60800120 | HOSE, fuel tank vapor valve to mid-point | FLHX, FLTRX |
| 11 | 61100202 | HOSE, overfill, upper | FLHX, FLTRX |
| 12 | 61100206 | HOSE, overfill, lower | FLHX, FLTRX |
| NOTE: These parts are required for configurations: BRZ, CAL, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN. | |||
WINDSHIELD, FAIRING AND FRONT LIGHTING - FLHX (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 2563 | SCREW | FLHX |
| 2 | 10200059 | SCREW, fairing mount, short (2) | FLHX |
| 3 | 10200060 | SCREW, fairing mount, long (4) | FLHX |
| 4 | 10200721 | SCREW, plastite (2) | FLHX |
| 5 | 10200846 | SCREW (2) | FLHX |
| 6 | 10201368 | SCREW (6) | FLHX |
| 7 | 10201389 | SCREW (4) | FLHX |
| 8 | 10201425 | HARDWARE KIT, windshield, includes 4 screws and 4 washers | FLHX |
| 9 | 12200025 | CLIP, panel (2) | FLHX |
| 10 | 29200163 | AIR DUCT, cover, molded | FLHX |
| 11 | 29200166 | AIR DUCT, upper | FLHX |
| 12 | 29200185 | BEZEL ASSEMBLY, air duct, includes 10200721, 12200025, 29200193 | FLHX |
| 13 | 29200193 | END CAP, air duct button | FLHX |
| 14 | 57001670 | TRIM, fairing chin | FLHX |
| 15 | 57001941 | OUTER FAIRING, unpainted, includes 7900 | FLHX |
| 16 | 57400521 | WINDSHIELD, smoked, short | FLHX |
| 17 | 57400530 | BRACKET, windshield, right | FLHX |
| 18 | 57400531 | BRACKET, windshield, left | FLHX |
| 19 | 57400656 | MOUNT, windshield (2) | FLHX |
WINDSHIELD, FAIRING AND FRONT LIGHTING - FLHX (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2478 | SCREW (2) | FLHX |
| 2 | 4856 | SCREW (2) | FLHX |
| 3 | 7900 | CLIP NUT (16) | FLHX |
| 4 | 10201368 | SCREW (10) | FLHX |
| 5 | 10201385 | SCREW (2) | FLHX |
| 6 | 10600091 | WASHER, wave spring (2) | FLHX |
| 7 | 67700673 | HEADLAMP ASSEMBLY, LED, includes 1, 2, 5, 6, 8, 9, 10, 11 | FLHX |
| 8 | 67700669 | BRACKET, headlamp, mounting | FLHX |
| 9 | 67700670 | BRACKET, adjuster, headlamp | FLHX |
| 10 | 67700671 | SCREW, ball end adjuster, headlamp | FLHX |
| 11 | 67700672 | RETAINER, adjuster screw, headlamp | FLHX |
| 12 | 67801330 | TURN SIGNAL ASSEMBLY, LED, front, right | FLHX |
| 13 | 67801331 | TURN SIGNAL ASSEMBLY, LED, front, left | FLHX |
NACELLE - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 2933 | SCREW (2) | FLTRX |
| 2 | 4871 | SCREW (2) | FLTRX |
| 3 | 12200025 | CLIP (3) | FLTRX |
| 4 | 14101830 | MEDALLION, lock, with 12200025 | FLTRX |
| 5 | 70901099 | NACELLE, cover, left | FLTRX |
| 6 | 70901106 | NACELLE, cover, with 12200025 (right) | FLTRX |
| 7 | 12600358 | FASTENER, push pin | FLTRX |
WINDSHIELD, FAIRING AND FRONT LIGHTING - FLTRX (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 10200721 | SCREW (2) | FLTRX |
| 2 | 10200890 | SCREW (4) | FLTRX |
| 3 | 10201350 | SCREW (6) | FLTRX |
| 4 | 10201389 | SCREW (4) | FLTRX |
| 5 | 12100141 | GROMMET, rubber (4) | FLTRX |
| 6 | 12200025 | CLIP, panel (2) | FLTRX |
| 7 | 29200178 | OUTER COVER, air duct, includes 57400658 | FLTRX |
| 8 | 29200180 | OUTLET, air duct, includes 12200025 | FLTRX |
| 9 | 29200181 | VANE, air duct | FLTRX |
| 10 | 29200182 | TOP FLOOR, air duct, includes 10200721, 29200181, 29200189, 29200193 | FLTRX |
| 11 | 29200189 | PILLOW BLOCK, air duct vane | FLTRX |
| 12 | 29200193 | END CAP, air duct button | FLTRX |
| 13 | 57300409 | BRACKET KIT, windshield, includes 10201350, and left and right brackets | FLTRX |
| 14 | 57400658 | MOUNT, windshield isolator (2) | FLTRX |
| 15 | 57400664 | WINDSHIELD, smoked | FLTRX |
WINDSHIELD, FAIRING AND FRONT LIGHTING - FLTRX (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 7900 | CLIP NUT (4) | FLTRX |
| 2 | 10200721 | SCREW (2) | FLTRX |
| 3 | 10201350 | SCREW (2) | FLTRX |
| 4 | 10201351 | SCREW (6) | FLTRX |
| 5 | 10201368 | SCREW (4) | FLTRX |
| 6 | 10201394 | SCREW (4) | FLTRX |
| 7 | 57001942 | FAIRING, outer, unpainted, includes 7900 | FLTRX |
| 8 | 57001986 | HINGE SERVICE KIT, wing spoiler, includes torque hinge, snap hinge, hinge plug and set screw (2) | FLTRX |
| 9 | 57200375B | WING ASSEMBLY, adjustable spoiler, left, complete | FLTRX |
| 10 | 57200376B | WING ASSEMBLY, adjustable spoiler, right, complete | FLTRX |
| 11 | 57300393 | PANEL, fairing filler | FLTRX |
| 12 | 67700660 | HEADLAMP, assembly, LED | FLTRX |
FAIRING, INNER - FLHX (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2933 | SCREW, fork lock to dash panel (2) | FLHX |
| 2 | 7687 | NUT, flange, serrated (2) | FLHX |
| 3 | 10200141 | SCREW (2) | FLHX |
| 4 | 10201340 | SCREW (2) | FLHX |
| 5 | 12200025 | CLIP, panel mount | FLHX |
| 6 | 12600067 | FASTENER , plastic, inner fairing (2) | FLHX |
| 7 | 14101830 | MEDALLION , fork lock, includes 12200025 | FLHX |
| 8 | 29200080 | CLIP, panel mount (2) | FLHX |
| 9 | 29200203 | BUMPER, air duct (2) | FLHX |
| 10 | 56000319 | MIRROR, fairing mounted, left, includes 56000338, 56000327 (NOT SHOWN) | FLHX |
| 10 | 56000322 | MIRROR, fairing mounted, right, includes 56000338, 56000328 | FLHX |
| 11 | 56000337 | WASHER, mirror mount (2) | FLHX |
| 12 | 56000338 | GASKET, mirror base (2) | FLHX |
| 13 | 56000327 | BASE, mirror, left (NOT SHOWN) | FLHX |
| 13 | 56000328 | BASE, mirror, right | FLHX |
| 14 | 57000779 | CLIP NUT | FLHX |
| 15 | 57001899 | FAIRING, inner, unpainted | FLHX |
| 16 | 57001688BYM | DASH, fairing, denim black | FLHX |
| 17 | 57001704 | DEFLECTOR, air, wing, right | FLHX |
| 18 | 57001705 | DEFLECTOR, air, wing, left | FLHX |
| 19 | 57001707A | DEFLECTOR, air, fairing skirt, assembly, std fork | FLHX |
| 20 | 57001774 | DEFLECTOR, air, cap (2) | FLHX |
| 21 | 57001986 | HINGE KIT, includes one friction hinge, one snap hinge, one hinge plug (2) | FLHX |
| 22 | 57300420 | CUSHION, clutch cable | FLHX |
FAIRING, INNER - FLHX (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 58888-98A | BUMPER, media door (2) | FLHX |
| 2 | 10200059 | SCREW (2) | FLHX |
| 3 | 10200721 | SCREW, plastite, speaker volumes (26) | FLHX |
| 4 | 10201339 | SCREW (6) speaker volumes to inner fairing, (2) media compartment to fairing supports (8) | FLHX |
| 5 | 10201340 | SCREW (2) | FLHX |
| 6 | 10201351 | SCREW, speaker enclosure mount (8) | FLHX |
| 7 | 10300268 | WASHER, retaining (2) | FLHX |
| 8 | 12200282 | CLIP, wire, USB-C | FLHX |
| 9 | 47200947 | BRACKET, fairing support (right) | FLHX |
| 10 | 47200948 | BRACKET, fairing support (left) | FLHX |
| 11 | 69203055 | HARNESS, wire, USB-C | FLHX |
| 12 | 76001155A | SPEAKER ENCLOSURE ASSEMBLY (left), includes 10200721 | FLHX |
| 13 | 76001156A | SPEAKER ENCLOSURE ASSEMBLY (right), includes 10200721 | FLHX |
| 14 | 76001162BYM | DOOR, media compartment (denim black) | FLHX |
| 15 | 76001190 | DRAWER, media compartment | FLHX |
| 16 | 76001214 | DAMPER, media compartment drawer (2) | FLHX |
| 17 | 76001215 | LATCH, media compartment drawer | FLHX |
| 18 | 76001260 | LINER, media compartment drawer | FLHX |
| 19 | 76001279 | SPRING AND SPOOL, media compartment drawer (2) | FLHX |
| 20 | 76001293 | COMPARTMENT, media storage, includes 12200282 | FLHX |
FAIRING, INNER - FLTRX (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 940 | SCREW (10) | FLTRX |
| 2 | 7900 | SCREW (2) | FLTRX |
| 3 | 11668 | FOAM PAD (6) | FLTRX |
| 4 | 10200721 | SCREW, plastite (not all illustrated) (38) | FLTRX |
| 5 | 10201339 | SCREW (14) | FLTRX |
| 6 | 69203090 | USB-C CABLE ASSEMBLY | FLTRX |
| 7 | 76000127 | LATCH, media compartment door (2) | FLTRX |
| 8 | 76001153 | ENCLOSURE, speaker, right, includes 10200721, 11668 | FLTRX |
| 9 | 76001154 | ENCLOSURE, speaker, left, includes 10200721, 11668 | FLTRX |
| 10 | 76001202 | HINGE, media compartment door, right | FLTRX |
| 11 | 76001203 | HINGE, media compartment door, left | FLTRX |
| 12 | 76001206 | COMPARTMENT, media storage, right | FLTRX |
| 13 | 76001207 | COMPARTMENT, media storage, left | FLTRX |
| 14 | 76001316 | LINER, rubber, media compartment, right (not shown) | FLTRX |
| 15 | 76001317 | LINER, rubber, media compartment, left (not shown) | FLTRX |
| 16 | 57001885 | INNER FAIRING (unpainted) | FLTRX |
| 16 | 57001665BYM | INNER FAIRING (denim black) | FLTRX |
| 17 | 76001233BYM | MEDIA DOOR ASSEMBLY (left) (denim black) | FLTRX |
| 18 | 76001234BYM | MEDIA DOOR ASSEMBLY (right) (denim black) | FLTRX |
| 19 | 10177 | CABLE STRAP | FLTRX |
| 20 | 29200169 | AIR DUCT (left) | FLTRX |
| 21 | 29200168 | AIR DUCT (right) | FLTRX |
FAIRING, INNER - FLTRX (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 2479 | SCREW (2) | FLTRX |
| 2 | 3787 | SCREW (2) | FLTRX |
| 3 | 6703 | WASHER (2) | FLTRX |
| 4 | 7601 | NUT, flange, locking (2) | FLTRX |
| 5 | 8144 | CLIP NUT (2) | FLTRX |
| 6 | 10200120 | SCREW (4) | FLTRX |
| 7 | 10201339 | SCREW (4) | FLTRX |
| 8 | 47200266 | BRACKET, fairing mount | FLTRX |
| 9 | 47200945 | BRACKET, inner fairing support, main | FLTRX |
| 10 | 47200952 | BRACKET, fairing support, lower (black) | FLTRX |
| 11 | 57300388 | SCREW, hex (2) | FLTRX |
| 12 | 69200702 | GUIDE, main wire harness, left | FLTRX |
| 13 | 69202786 | GUIDE, main wire harness, right | FLTRX |
| 14 | 10177 | CABLE STRAP | FLTRX |
INFOTAINMENT CONTROL UNIT (IFCU)
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201339 | SCREW (4) | FLHX, FLTRX |
| 2 | 10201370 | SCREW (4) | FLHX, FLTRX |
| 3 | 61400718 | TRIM, infotainment control unit | FLHX |
| 3 | 61400719 | TRIM, infotainment control unit | FLTRX |
| 4 | 70901090A | INFOTAINMENT CONTROL UNIT, HD, option code 939 (California, Canada, Domestic, HDI) | FLHX, FLTRX |
| 4 | 70901092A | INFOTAINMENT CONTROL UNIT, DAB, option code 940 (Australia, England, HDI) | FLHX, FLTRX |
| 4 | 70901093A | INFOTAINMENT CONTROL UNIT, option code 941 (Brazil, HDI, Japan, China) | FLHX, FLTRX |
SWITCHES, HANDLEBAR
| Index No. | Part No. | Description | Model(s) |
| 1 | 4132 | SCREW (4) | FLHX, FLTRX |
| 2 | 6101 | WASHER (4) | FLHX, FLTRX |
| 3 | 32700167 | SENSOR, TWIST GRIP | FLHX, FLTRX |
| 4 | 72908-11 | HOUSING, four-way socket, clutch and brake switch connectors (2) | FLHX, FLTRX |
| 5 | 69200308 | TERMINAL, socket, clutch and brake switch connectors (6) | FLHX, FLTRX |
| 6 | 5118 | SEAL PIN, clutch and brake switch connectors (2) | FLHX, FLTRX |
| 7 | 69200306 | HOUSING, four-way socket (white) (2) | FLHX, FLTRX |
| 8 | 69200307 | TERMINAL, socket (38) | FLHX, FLTRX |
| 9 | 69201162 | CONNECTOR, six-way socket | FLHX, FLTRX |
| 10 | 69201712 | CONNECTOR, eight-way socket (3) | FLHX, FLTRX |
| 11 | 69203017 | WIRING HARNESS, JUMPER (left) | FLHX, FLTRX |
| 12 | 69203018 | WIRING HARNESS, JUMPER (right) | FLHX, FLTRX |
| 13 | 69203192 | CONNECTOR BOOT (2) | FLHX, FLTRX |
| 14 | 71500715 | HAND CONTROL, includes 3, 18, cover and switchpack (right) (gloss black) | FLHX, FLTRX |
| 15 | 71500713 | HAND CONTROL, includes cover and switchpack (left) (gloss black) | FLHX, FLTRX |
| 16 | 71500611A | HAND CONTROL COVER, rear (right) (gloss black) | FLHX, FLTRX |
| 17 | 71500612 | HAND CONTROL COVER, rear (left) (gloss black) | FLHX, FLTRX |
| 18 | 71500660 | BRIDGE, WIRE (right) | FLHX, FLTRX |
MIRRORS - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 7155 | LOCKWASHER, internal tooth (black) (2) | FLTRX |
| 2 | 7331 | ACORN NUT (chrome) (2) | FLTRX |
| 2 | 7352 | ACORN NUT (black) (2) | FLTRX |
| 3 | 92076-03 | MIRROR, long, convex, (left) (chrome) | FLTRX |
| 3 | 92073-03 | MIRROR, long, convex, (right) (chrome) | FLTRX |
| 3 | 92082-03 | MIRROR, long, convex, (left) (black) | FLTRX |
| 3 | 92078-03 | MIRROR, long, convex, (right) (black) | FLTRX |
HANDLEBAR - FLHX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FLHX |
| 2 | 4240 | SCREW (2) | FLHX |
| 3 | 9853 | TAB, fastening | FLHX |
| 4 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69200536 | FLHX |
| 5 | 56159-73 | CUP WASHER (4) | FLHX |
| 6 | 56161-83A | BUSHING, rubber (4) | FLHX |
| 7 | 56163-93 | SPACER (2) | FLHX |
| 8 | 69200536 | TERMINAL, ring, 12-14 AWG | FLHX |
| 9 | 72053-92 | HOUSING, one-way pin (black) | FLHX |
| 10 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLHX |
| 11 | 55900361 | CLAMP (upper) | FLHX |
| 12 | 57450-14 | RISER (lower) (left) | FLHX |
| 13 | 57451-14 | RISER (lower) (right) | FLHX |
| 14 | 12600032 | SCREW (2) | FLHX |
| 15 | 55801445 | HANDLEBAR (black) | FLHX |
| 15 | 55801446 | HANDLEBAR (chrome) | FLHX |
| 16 | 56100586 | HAND GRIP, left (black) | FLHX |
| 17 | 56100587 | HAND GRIP, right (black) | FLHX |
HANDLEBAR - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 3153 | SCREW (black) (4) | FLTRX |
| 1 | 3210A | SCREW (bright) (4) | FLTRX |
| 2 | 4240 | SCREW (2) | FLTRX |
| 3 | 9853 | TAB, fastening | FLTRX |
| 4 | 56159-73 | CUP WASHER (4) | FLTRX |
| 5 | 56161-83A | BUSHING, rubber (4) | FLTRX |
| 6 | 56163-93 | SPACER (2) | FLTRX |
| 7 | 72053-92 | HOUSING, one-way pin (black) | FLTRX |
| 8 | 72241-94A | TERMINAL, 10 ring, 14-18 AWG | FLTRX |
| 9 | 12600032 | SCREW (2) | FLTRX |
| 10 | 55801336 | HANDLEBAR (black) | FLTRX |
| 10 | 55801459 | HANDLEBAR (chrome) | FLTRX |
| 11 | 55900302 | CLAMP, upper (black) | FLTRX |
| 11 | 55900301 | CLAMP, upper (chrome) | FLTRX |
| 12 | 55900300 | RISER, handlebar (black) | FLTRX |
| 12 | 55900299 | RISER, handlebar (chrome) | FLTRX |
| 13 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69203195 | FLTRX |
| 14 | 69203195 | TERMINAL, ring | FLTRX |
| 15 | 56100586 | HAND GRIP, left (black) | FLTRX |
| 16 | 56100587 | HAND GRIP, right (black) | FLTRX |
EXHAUST SYSTEM (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 1 | 3929 | SCREW (4) | FLHX, FLTRX |
| 2 | 4705 | SCREW (2) | FLHX, FLTRX |
| 3 | 7041 | LOCKWASHER (4) | FLHX, FLTRX |
| 4 | 7593 | NUT (5) | FLHX, FLTRX |
| 5 | 9955 | CLAMP, worm drive #24 (6) | FLHX, FLTRX |
| 6 | 9956 | CLAMP, worm drive #40 (2) | FLHX, FLTRX |
| 7 | 10039 | CABLE STRAP | FLHX, FLTRX |
| 8 | 10177 | CABLE STRAP, anchored | FLHX, FLTRX |
| 9 | 11936 | GASKET, oxygen (O2) sensor (2) | FLHX, FLTRX |
| 10 | 32700116 | SENSOR, oxygen (O2), rear, with 11936, 72177-07BK, 72344-10 and 73307-10 | FLHX, FLTRX |
| 11 | 65324-83B | GASKET, exhaust port (2) | FLHX, FLTRX |
| 12 | 65325-83A | RETAINING RING, exhaust gasket (2) | FLHX, FLTRX |
| 13 | 65328-83A | CLAMP, exhaust manifold (2) | FLHX, FLTRX |
| 14 | 65723-85 | MOUNTING BRACKET (2) | FLHX, FLTRX |
| 15 | 65724-85A | MOUNT, rubber (2) | FLHX, FLTRX |
| 16 | 66861-09B | CLAMP, exhaust pipe, hinged | FLHX, FLTRX |
| 17 | 66881-09 | BRACKET, exhaust pipe hanger | FLHX, FLTRX |
| 18 | 72177-07BK | HOUSING, four-way socket (black) | FLHX, FLTRX |
| 19 | 72344-10 | TERMINAL, socket, 22 AWG (gold) (4) | FLHX, FLTRX |
| 20 | 72444-07GY | HOUSING, four-way, socket (gray) | FLHX, FLTRX |
| 21 | 73307-10 | TERMINAL, socket, 22 AWG (4) | FLHX, FLTRX |
| 22 | 10200569 | SCREW | FLHX, FLTRX |
| 23 | 10900015A | STUD, exhaust | FLHX, FLTRX |
| 24 | 32700130 | SENSOR, oxygen (O2), front, with 10177, 11936, 72344-10, 72444-07GY and 73307-10 | FLHX, FLTRX |
EXHAUST SYSTEM (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| 25 | 64901310 | MUFFLER (left) (chrome) (CAL, CAN, DOM) | FLHX, FLTRX |
| 25 | 64900953 | MUFFLER (left) (chrome) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 25 | 64901314 | MUFFLER (left) (black) (CAL, CAN, DOM) | FLHX, FLTRX |
| 25 | 64900955 | MUFFLER (left) (black) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 26 | 64901311 | MUFFLER (right) (chrome) (CAL, CAN, DOM) | FLHX, FLTRX |
| 26 | 64900952 | MUFFLER (right) (chrome) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 26 | 64901315 | MUFFLER (right) (black) (CAL, CAN, DOM) | FLHX, FLTRX |
| 26 | 64900954 | MUFFLER (right) (black) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 27 | 65400176A | SHIELD, exhaust pipe, front (chrome) | FLHX, FLTRX |
| 27 | 65400483A | SHIELD, exhaust pipe, front (black) | FLHX, FLTRX |
| 28 | 65400177 | EXHAUST SHIELD ASSEMBLY, rear header pipe (chrome) | FLHX, FLTRX |
| 28 | 65400484 | EXHAUST SHIELD ASSEMBLY, rear header pipe (black) | FLHX, FLTRX |
| 29 | 65400178 | EXHAUST SHIELD ASSEMBLY, catalytic converter (chrome) | FLHX, FLTRX |
| 29 | 65400485 | EXHAUST SHIELD ASSEMBLY, catalytic converter (black) | FLHX, FLTRX |
| 30 | 65400179 | SHIELD, left exhaust pipe, rear (chrome) | FLHX, FLTRX |
| 30 | 65400486 | SHIELD, left exhaust pipe, rear (black) | FLHX, FLTRX |
| 31 | 65500042 | BRACKET, muffler strap, male | FLHX, FLTRX |
| 32 | 65500043B | BRACKET, muffler strap, female | FLHX, FLTRX |
| 33 | 65600451 | HEADER ASSEMBLY, catalytic (CAL, CAN, DOM) (chrome) | FLHX, FLTRX |
| 33 | 65600377 | HEADER ASSEMBLY, catalytic (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) (chrome) | FLHX, FLTRX |
| 34 | 65600178A | CROSSOVER PIPE ASSEMBLY (chrome) (CAL, CAN, DOM) | FLHX, FLTRX |
| 34 | 65600379 | CROSSOVER PIPE ASSEMBLY (chrome) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 35 | 65296-95B | CLAMP, muffler (2) | FLHX, FLTRX |
| 36 | 65900015 | CLAMP, muffler | FLHX, FLTRX |
| 37 | 32700124 | SENSOR, oxygen (O2), with 9, 18, 19, 21 (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 38 | 65900017 | GASKET, left (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) (2) | FLHX, FLTRX |
| 39 | 65900056 | GASKET, right (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
WIRING HARNESS, MAIN - FLHX (1 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 72169-07 | TERMINAL, pin, 16-20 AWG (6) | FLHX |
| 2 | 72188-07BK | HOUSING, six-way pin (black) | FLHX |
| 3 | 72364-06 | TERMINAL, socket, 10-14 AWG | FLHX |
| 4 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHX |
| 5 | 12500016 | CABLE STRAP, 2-PIECE | FLHX |
| 6 | 32700010 | SENSOR, temperature | FLHX |
| 7 | 69200201 | HOUSING, two-way socket, key B | FLHX |
| 8 | 69201652 | CONNECTOR, four-way pin | FLHX |
| 9 | 69201164 | TERMINAL, pin, 22 AWG | FLHX |
WIRING HARNESS, MAIN - FLHX (2 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 6, 8, 9 (7) | FLHX |
| 2 | 72177-07BK | HOUSING, four-way socket (black) | FLHX |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHX |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 7, 10, 11, 12 (5) | FLHX |
| 5 | 72487-07BK | HOUSING, 12-way socket (black) (2) | FLHX |
| 6 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHX |
| 7 | 72609-08 | SECONDARY LOCK, two-way socket | FLHX |
| 8 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHX |
| 9 | 12500016 | CABLE STRAP, 2-PIECE (2) | FLHX |
| 10 | 69201164 | TERMINAL, pin, 22 AWG (4) | FLHX |
| 11 | 69201652 | CONNECTOR, four-way pin | FLHX |
| 12 | 69201164 | HOUSING, four-way pin | FLHX |
WIRING HARNESS, MAIN - FLHX (3 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHX |
| 2 | 10177 | CABLE STRAP, anchored | FLHX |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLHX |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLHX |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLHX |
| 6 | 72066-06A | HOUSING, four-way socket (black) | FLHX |
| 7 | 72098-06 | HOUSING, two-way socket (gray) | FLHX |
| 8 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) (2) | FLHX |
| 9 | 72110-06 | TERMINAL, socket, 16-18 AWG, terminal location A (2) | FLHX |
| 10 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHX |
| 11 | 72175-07BK | HOUSING, four-way pin | FLHX |
| 12 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLHX |
| 13 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLHX |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLHX |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLHX |
| 16 | 72499-07 | WIRE SEAL, 20-22 AWG (green) (8) | FLHX |
| 17 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location B (2) | FLHX |
| 18 | 69201299 | HOUSING, socket, two-way, key B (2) | FLHX |
| 19 | 69201300 | TERMINAL, socket, 20 AWG (6) | FLHX |
| 20 | 69201301 | WIRE SEAL, 22 AWG (green) (6) | FLHX |
| 21 | 69201393 | HOUSING, two-way socket (black) | FLHX |
| 22 | 69201397 | HOUSING, two-way pin (gray) | FLHX |
| 23 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHX |
| 24 | 69201407 | TERMINAL, socket, 20 AWG (2) | FLHX |
| 25 | 69201441 | HOUSING, four-way socket | FLHX |
| 26 | 69201394 | HOUSING, six-way socket (black) | FLHX |
| 27 | 69201395 | SECONDARY LOCK, six-way socket | FLHX |
| 28 | 69201396 | TERMINAL, socket, 20 AWG, terminal location B, C, D, E (4) | FLHX |
| 29 | 69201416 | SECONDARY LOCK, six-way socket | FLHX |
| 30 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location A, F (2) | FLHX |
WIRING HARNESS, MAIN - FLHX (4 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHX |
| 2 | 72064-06 | HOUSING, three-way socket (black) | FLHX |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLHX |
| 4 | 72175-07BK | HOUSING, four-way pin | FLHX |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHX |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG (26) | FLHX |
| 7 | 72227-11 | TERMINAL, socket, 18-20 AWG (5) | FLHX |
| 8 | 72229-11 | SEAL PIN (7) | FLHX |
| 9 | 72256-11 | SEAL PIN (24) | FLHX |
| 10 | 72296-95 | TERMINAL, socket, 14-16 AWG, terminal location 12, 20, 21, 22, 23, 24 (6) | FLHX |
| 11 | 72299-95 | PLUG, cavity, terminal location 17, 18 (2) | FLHX |
| 12 | 72308-97 | TERMINAL, socket, 12-14 AWG, terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLHX |
| 13 | 72356-95 | TERMINAL, socket, 18-20 AWG, terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLHX |
| 14 | 72473-07 | SEAL PIN, 20 A (yellow) (6) | FLHX |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLHX |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLHX |
| 17 | 69201962 | COVER, connector | FLHX |
| 18 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLHX |
| 19 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHX |
| 20 | 72632-10 | PLUG, weather, four-way pin (2) | FLHX |
| 21 | 69200194 | HOUSING, 24-way socket | FLHX |
| 22 | 69200212 | CONNECTOR, battery tender, over-mold | FLHX |
| 23 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLHX |
| 24 | 69201890 | TERMINAL, socket, terminal location 1, 2, 3, 4, 5 (5) | FLHX |
| 25 | 69201931 | HOUSING, two-way | FLHX |
| 26 | 69201933 | HOUSING, 32-way | FLHX |
| 27 | 69202028 | TERMINAL, pin plug, terminal location 9, 10, 12, 13, 15, 18, 19, 22, 33, 35, 40, 50, 51, 54, 56, 57, 58, 59, 60, 61, 62, 63, 64, 68, 69, 73, 75, 76, 79, 81 (30) | FLHX |
| 28 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) terminal location 1, 2, 3, 4, 5 (5) | FLHX |
| 29 | 69202032 | SECONDARY LOCK | FLHX |
| 30 | 69202098 | HOUSING, six-way socket (red) | FLHX |
| 31 | 69202106 | WIRE SEAL, 1.6-1.7 mm (red/violet) | FLHX |
| 32 | 69202107 | SEAL PIN (light gray | FLHX |
| 33 | 69202109 | CONNECTOR, terminal | FLHX |
| 34 | 69202183 | TERMINAL, socket | FLHX |
| 35 | 69202184 | SEAL PIN, 4.1-5.0 mm | FLHX |
| 36 | 69202322 | HOUSING, 81-way socket | FLHX |
| 37 | 69202350 | HOUSING, heated gear | FLHX |
| 38 | 69202453 | TERMINAL, socket, terminal location 6, 7, 8, 11, 14, 16, 17, 20, 21, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 36, 37, 38, 39, 41, 42, 43, 44, 45, 46, 47, 48, 49, 52, 53, 55, 65, 66, 67, 70, 71, 72, 74, 77, 78, 80 (46) | FLHX |
| 39 | 69203057 | CONNECTOR, COVER, 81-way housing | FLHX |
| 40 | 72518-01 | HOUSING, two-way socket (red) | FLHX |
| 41 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLHX |
| 42 | 69200199 | WIRE SEAL, 18-20 AWG (purple) terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLHX |
| 43 | 72298-95 | WIRE SEAL, 14-18 AWG (green) terminal location 12, 20, 21, 22, 23, 24 (6) | FLHX |
| 44 | 69202104 | TERMINAL, socket, 22AWG (2) | FLHX |
WIRING HARNESS, MAIN - FLHX (5 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLHX |
| 2 | 10177 | CABLE STRAP, anchored | FLHX |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 9, 10, 11 (7) | FLHX |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 4, 7, 9 (6) | FLHX |
| 5 | 72209-11 | COVER, wire dress | FLHX |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23 (16) | FLHX |
| 7 | 72226-11 | TERMINAL, socket, 14-16 AWG, terminal location 28 | FLHX |
| 8 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 6, 11, 12 (4) | FLHX |
| 9 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 6, 7, 8, 12 (5) | FLHX |
| 10 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location 24, 25, 26, 27 (4) | FLHX |
| 11 | 72256-11 | SEAL PIN, white | FLHX |
| 12 | 72473-07 | SEAL PIN, terminal location 8, 10 (2) | FLHX |
| 13 | 72488-07BK | HOUSING, 12-way pin (black) | FLHX |
| 14 | 72720-07 | HOUSING, two-way socket (black) | FLHX |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLHX |
| 16 | 69200205 | PLUG, weather, 12-way pin | FLHX |
| 17 | 69201932 | HOUSING, 28-way | FLHX |
| 18 | 69202170 | TERMINAL, socket, 14-16 AWG, terminal location 1 | FLHX |
| 19 | 69202171 | WIRE SEAL, 2.1-2.8 mm, terminal location 1 | FLHX |
| 20 | 69202172 | TERMINAL, socket, 18-20 AWG, terminal location 2, 3, 4, 5 (4) | FLHX |
| 21 | 69202173 | WIRE SEAL, 1.4-2.15 mm, terminal location 2, 3, 4, 5 (4) | FLHX |
| 22 | 69202489 | TERMINAL, socket, 22 AWG, terminal position 20 | FLHX |
| 23 | 76000925 | ANTENNA | FLHX |
| 24 | 72487-07BK | HOUSING, 12-way socket (black) | FLHX |
| 25 | 69201596 | TERMINAL, ring, 8-10 AWG | FLHX |
| 26 | 69202219 | CONDUIT, shrink tube (black) | FLHX |
| 27 | 9819 | TERMINAL, ring, 12 AWG (2) | FLHX |
WIRING HARNESS, MAIN - FLHX (6 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 9937 | TERMINAL, socket, 14-18 AWG, terminal location 3, 5 | FLHX |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2 (6) | FLHX |
| 3 | 72175-07BK | HOUSING, four-way pin | FLHX |
| 4 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLHX |
| 5 | 72291-94 | TERMINAL, socket 14-16 AWG (2) | FLHX |
| 6 | 69203487 | CONNECTOR, starter housing | FLHX |
| 7 | 72343-10 | TERMINAL, pin, 16-20 AWG, terminal location 3, 4 (2) | FLHX |
| 8 | 72415-07GY | HOUSING, four-way pin (gray) | FLHX |
| 9 | 72427-00 | TERMINAL, socket, 16-22 AWG, terminal location 1, 2, 4 (6) | FLHX |
| 10 | 72606-08 | HOUSING, two-way socket (black) (2) | FLHX |
| 11 | 72609-08 | SECONDARY LOCK, two-way socket | FLHX |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHX |
| 13 | 72632-10 | PLUG, weather, four-way pin | FLHX |
| 14 | 73213-07 | RETAINER, anchored | FLHX |
| 15 | 10065 | CABLE STRAP (5) | FLHX |
| 16 | 69200183 | HOUSING, 26-way socket | FLHX |
| 17 | 69200184 | COVER, 26-way socket | FLHX |
| 18 | 69200185 | TERMINAL, socket, 20 AWG, terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLHX |
| 19 | 69200186 | TERMINAL, socket, 14-16 AWG, terminal location 17, 26 (2) | FLHX |
| 20 | 69200187 | TERMINAL, socket, 12 AWG, terminal location 1, 9 (2) | FLHX |
| 21 | 69200188 | WIRE SEAL, 20 AWG (gray) terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLHX |
| 22 | 69200189 | WIRE SEAL, 14-16 AWG (brown) terminal location 17, 26 (2) | FLHX |
| 23 | 69200190 | WIRE SEAL, 12 AWG (blue) terminal location 1, 9 (2) | FLHX |
| 24 | 69200191 | SEAL PIN (15) | FLHX |
| 25 | 69200600 | FUSE BLOCK, five-way socket relay (2) | FLHX |
| 26 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLHX |
| 27 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLHX |
| 28 | 69202285 | HOUSING, four-way pin | FLHX |
| 29 | 69201427 | SEAL PIN | FLHX |
| 30 | 69201722 | CONNECTOR, clip | FLHX |
| 31 | 69201779 | HOUSING, four-way (black) | FLHX |
| 32 | 69201814 | TERMINAL, socket (4) | FLHX |
| 33 | 69202491 | TERMINAL, pin, 20 AWG (2) | FLHX |
| 34 | 69202492 | SEAL PIN (green) (2) | FLHX |
| 35 | 69202958 | RESISTOR PACK | FLHX |
| 36 | 69202959 | HOUSING, two-way pin (black) | FLHX |
| 37 | 9819 | TERMINAL, ring, 12 AWG | FLHX |
| 38 | 69203209 | TERMINAL, ring | FLHX |
| 39 | 69202219 | HEAT SHRINK | FLHX |
WIRING HARNESS, MAIN - FLHX (7 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10147 | CLIP, connector | FLHX |
| 2 | 10177 | CABLE STRAP, anchored (3) | FLHX |
| 3 | 69201301 | WIRE SEAL, 18-22 AWG (green) (3) | FLHX |
| 4 | 69201300 | TERMINAL, socket, 20 AWG (3) | FLHX |
| 5 | 72063-06 | HOUSING, two-way socket (black) | FLHX |
| 6 | 72065-06A | HOUSING, three-way socket (black) | FLHX |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLHX |
| 8 | 69201722 | CONNECTOR, clip | FLHX |
| 9 | 72127-06 | SECONDARY LOCK, three-way socket (gray) | FLHX |
| 10 | 74152-98 | SECONDARY LOCK, two-way socket | FLHX |
| 11 | 72168-07 | TERMINAL, socket, 18-20 AWG (3) | FLHX |
| 12 | 74191-98 | TERMINAL, socket, 16-20 AWG | FLHX |
| 13 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLHX |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (5) | FLHX |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (5) | FLHX |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLHX |
| 17 | 73213-07 | RETAINER, anchored (3) | FLHX |
| 18 | 74112-98BK | HOUSING, two-way socket (black) | FLHX |
| 19 | 69203203 | PLUG, weather, 6-way | FLHX |
| 20 | 69202285 | HOUSING, four-way pin, key A | FLHX |
| 21 | 12500014 | CABLE STRAP | FLHX |
| 22 | 12500016 | CABLE STRAP, anchored, two-piece | FLHX |
| 23 | 69200238 | TERMINAL, insulated (2) | FLHX |
| 24 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLHX |
| 25 | 69201301 | WIRE SEAL, 18-22 AWG (green) (4) | FLHX |
| 26 | 69201398 | TERMINAL, pin, 20 AWG (4) | FLHX |
| 27 | 69201441 | HOUSING, four-way socket | FLHX |
| 28 | 69201406 | HOUSING, three-way socket | FLHX |
| 29 | 69203028 | HOUSING, two-way socket | FLHX |
| 30 | 69203120 | TERMINAL, socket, 8-10 AWG (2) | FLHX |
| 31 | 69203121 | SEAL, 8 AWG (2) | FLHX |
| 32 | 72607-08 | HOUSING, two-way pin (black) | FLHX |
| 33 | 72608-08 | TERMINAL, pin, 16-20 AWG (2) | FLHX |
| 34 | 72609-08 | SECONDARY LOCK, three-way socket | FLHX |
| 35 | 72169-07 | TERMINAL, pin, 16-20 AWG (5) | FLHX |
| 36 | 72473-07 | SEAL PIN, natural | FLHX |
| 37 | 72188-07BK | HOUSING, six-way pin (black) | FLHX |
WIRING HARNESS, MAIN - FLHX (8 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 69201307 | BOOT, pos cable assembly | FLHX |
| 2 | 69203052 | FUSE HOLDER, two-way | FLHX |
| 3 | 69203123 | BATTERY CABLE ASSEMBLY | FLHX |
WIRING HARNESS, MAIN - FLHX (9 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLHX |
| 2 | 10177 | CABLE STRAP, anchored | FLHX |
| 3 | 69201287A | HARNESS CADDY, main, powertrain | FLHX |
| 4 | 69202720A | HARNESS TROUGH, main, backbone, includes 69202637 | FLHX |
| 5 | 69202636A | HARNESS COVER, main, trough | FLHX |
| 6 | 69203046 | HARNESS CADDY, main, BCM | FLHX |
| 7 | 69203096A | HARNESS CADDY, main, upper triple clamp | FLHX |
| 8 | 69203010A | HARNESS CADDY, main, ECM/fuse block | FLHX |
| 9 | 69200214A | HARNESS CADDY, main, LH steering head | FLHX |
| 10 | 69203026 | HARNESS CADDY, main, RH steering head | FLHX |
| 11 | 69202637 | CLIP (ABS) (2) | FLHX |
| 12 | 10039 | CABLE STRAP (2) | FLHX |
| 13 | 69202720A | FASTENER, plastic (2) | FLHX |
| 14 | 12200181 | CABLE STRAP, wire clip | FLHX |
WIRING HARNESS, MAIN - FLHX (10 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLHX |
| 2 | 31586-07 | RELAY (2) | FLHX |
| 3 | 72330-95 | FUSE, 15 A (blue) | FLHX |
| 4 | 72462-00 | FUSE, 10 A mini | FLHX |
| 5 | 72539-06 | FUSE, 30 A (green) (3) | FLHX |
| 6 | 69200194 | HOUSING, 24-way socket | FLHX |
| 7 | 69200293 | FUSE, 7.5 A (brown) (2) | FLHX |
| 8 | 69203010A | BRACKET, ECM/fuse block caddy | FLHX |
WIRING HARNESS, MAIN - FLHX (11 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| NOTE: Includes the following parts. | |||
| 1 | 3018A | SCREW (2) | FLHX |
| 2 | 6150W | WASHER (2) | FLHX |
| 3 | 10065 | CABLE STRAP | FLHX |
| 4 | 12200181 | CABLE STRAP | FLHX |
| 5 | 12600116 | CLIP, push-in (3) | FLHX |
| 6 | 69200611 | BRACKET, relay | FLHX |
| 7 | 69201287A | BRACKET, mounting | FLHX |
| 8 | 69203519 | COVER, fuse box | FLHX |
| 9 | 71400100 | RELAY (2) | FLHX |
WIRING HARNESS, MAIN - FLTRX (1 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG | FLTRX |
| 2 | 72364-06 | TERMINAL, socket, 10-14 AWG | FLTRX |
| 3 | 72414-07BK | HOUSING, six-way socket (black) | FLTRX |
| 4 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLTRX |
| 5 | 32700010 | SENSOR, temperature | FLTRX |
| 6 | 69200201 | HOUSING, two-way socket, key B | FLTRX |
| 7 | 69201164 | TERMINAL, pin, 22 AWG | FLTRX |
| 8 | 69201652 | CONNECTOR, four-way pin | FLTRX |
WIRING HARNESS, MAIN - FLTRX (2 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 6, 8, 9 (7) | FLTRX |
| 2 | 72177-07BK | HOUSING, four-way socket (black) | FLTRX |
| 3 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRX |
| 4 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 7, 10, 11, 12 (5) | FLTRX |
| 5 | 72487-07BK | HOUSING, 12-way socket (black) (2) | FLTRX |
| 6 | 72606-08 | HOUSING, two-way socket (black) | FLTRX |
| 7 | 72609-08 | SECONDARY LOCK, two-way socket | FLTRX |
| 8 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRX |
| 9 | 69201164 | TERMINAL, pin, 22 AWG (12) | FLTRX |
| 10 | 69201652 | CONNECTOR, four-way pin | FLTRX |
| 11 | 69201711 | HOUSING, eight-way pin | FLTRX |
| 12 | 69201722 | CONNECTOR, clip | FLTRX |
| 13 | 69202491 | TERMINAL, pin, 20 AWG (2) | FLTRX |
| 14 | 69202492 | SEAL PIN (green) (2) | FLTRX |
| 15 | 69202959 | HOUSING, two-way pin (black) | FLTRX |
| 16 | 10177 | CABLE STRAP, anchored (2) | FLTRX |
| 17 | 72272-07 | TERMINAL, socket, 14-16 AWG (4) | FLTRX |
WIRING HARNESS, MAIN - FLTRX (3 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10081 | CABLE STRAP, double loop | FLTRX |
| 2 | 10177 | CABLE STRAP, anchored | FLTRX |
| 3 | 72008-05 | TERMINAL, pin, 20-22 AWG (4) | FLTRX |
| 4 | 72009-05 | HOUSING, two-way pin (black) (2) | FLTRX |
| 5 | 72010-05 | WIRE SEAL, 22-26 AWG (green) (4) | FLTRX |
| 6 | 72066-06A | HOUSING, four-way socket (black) | FLTRX |
| 7 | 72098-06 | HOUSING, two-way socket (gray) | FLTRX |
| 8 | 72099-06 | WIRE SEAL, 16-18 AWG (blue) terminal location A (2) | FLTRX |
| 9 | 72110-06 | TERMINAL, socket, 16-18 AWG, terminal location A (2) | FLTRX |
| 10 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLTRX |
| 11 | 72175-07BK | HOUSING, four-way pin | FLTRX |
| 12 | 72135-06 | SECONDARY LOCK, four-way socket (gray) | FLTRX |
| 13 | 72145-06 | SECONDARY LOCK, two-way socket (2) | FLTRX |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLTRX |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLTRX |
| 16 | 72499-07 | WIRE SEAL, 20-22 AWG (green) terminal location B (8) | FLTRX |
| 17 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location B (4) | FLTRX |
| 18 | 69201299 | HOUSING, socket, two-way, key B (2) | FLTRX |
| 19 | 69201300 | TERMINAL, socket, 20 AWG (6) | FLTRX |
| 20 | 69201301 | WIRE SEAL, 22 AWG (green) (10) | FLTRX |
| 21 | 69201393 | HOUSING, two-way socket (black) | FLTRX |
| 22 | 69201397 | HOUSING, two-way pin (gray) | FLTRX |
| 23 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRX |
| 24 | 69201407 | TERMINAL, socket, 20 AWG (4) | FLTRX |
| 25 | 69201441 | HOUSING, four-way socket | FLTRX |
| 26 | 69201394 | HOUSING, six-way socket (black) | FLTRX |
| 27 | 69201395 | SECONDARY LOCK, six-way socket | FLTRX |
| 28 | 69201396 | TERMINAL, socket, 20 AWG, terminal location B, C, D, E (4) | FLTRX |
| 29 | 69201416 | SECONDARY LOCK, six-way socket (4) | FLTRX |
| 30 | 10065 | CABLE STRAP | FLTRX |
| 31 | 72569-08 | TERMINAL, socket, 20-22 AWG, terminal location A, F (2) | FLTRX |
WIRING HARNESS, MAIN - FLTRX (4 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLTRX |
| 2 | 72064-06 | HOUSING, three-way socket (black) | FLTRX |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (12) | FLTRX |
| 4 | 72175-07BK | HOUSING, four-way pin | FLTRX |
| 5 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRX |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location B1 | FLTRX |
| 7 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location H4 | FLTRX |
| 8 | 72229-11 | SEAL PIN, orange, terminal location G1, G2, G3, G4, H1, H2, H3 (7) | FLTRX |
| 9 | 72256-11 | SEAL PIN, white, terminal location A1, A2, A3, A4, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, F4 (23) | FLTRX |
| 10 | 72296-95 | TERMINAL, socket, 14-16 AWG, terminal location 12, 20, 21, 22, 23, 24 (6) | FLTRX |
| 11 | 72299-95 | PLUG, cavity (2) | FLTRX |
| 12 | 72308-97 | TERMINAL, socket, 12-14 AWG, terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLTRX |
| 13 | 72356-95 | TERMINAL, socket, 18-20 AWG, terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLTRX |
| 14 | 72473-07 | SEAL PIN, 20 A (yellow) (6) | FLTRX |
| 15 | 72484-08 | TERMINAL, socket, 20 AWG (4) | FLTRX |
| 16 | 72486-08 | WIRE SEAL, 20 AWG (green) (4) | FLTRX |
| 17 | 69201962 | COVER, connector | FLTRX |
| 18 | 72609-08 | SECONDARY LOCK, two-way socket (black) | FLTRX |
| 19 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRX |
| 20 | 72632-10 | PLUG, weather, four-way pin (2) | FLTRX |
| 21 | 69200194 | HOUSING, 24-way socket | FLTRX |
| 22 | 69200212 | CONNECTOR, battery tender, over-mold | FLTRX |
| 23 | 69200312 | SECONDARY LOCK, 24-way socket (3) | FLTRX |
| 24 | 69201890 | TERMINAL, socket, terminal location 1, 2, 3, 4, 5 (5) | FLTRX |
| 25 | 69202453 | TERMINAL, socket, terminal location 6, 7, 8, 14, 16, 17, 20, 21, 23, 24, 25, 28, 31, 43, 44, 49, 53, 67, 71, 77, 78, 80 (21) | FLTRX |
| 26 | 69201931 | HOUSING, two-way | FLTRX |
| 27 | 69201933 | HOUSING, 32-way | FLTRX |
| 28 | 69202028 | TERMINAL, pin plug (29) | FLTRX |
| 29 | 69202031 | WIRE SEAL, 2.0-2.7 mm (red/brown) terminal location 1, 2, 3, 4, 5 (5) | FLTRX |
| 30 | 69202032 | SECONDARY LOCK | FLTRX |
| 31 | 69202098 | HOUSING, six-way socket (red) | FLTRX |
| 32 | 69202106 | WIRE SEAL, 1.6-1.7 mm (red/violet) | FLTRX |
| 33 | 69202107 | SEAL PIN (light gray) | FLTRX |
| 34 | 69202109 | SECONDARY LOCK | FLTRX |
| 35 | 69202183 | TERMINAL, socket | FLTRX |
| 36 | 69202184 | SEAL PIN, 4.1-5.0 mm | FLTRX |
| 37 | 69202322 | HOUSING, 81-way socket | FLTRX |
| 38 | 69202996 | HOUSING, heated gear | FLTRX |
| 39 | 69202453 | TERMINAL, socket, terminal location 11, 26, 27, 29, 30, 32, 34, 36, 37, 38, 39, 41, 42, 47, 48, 52, 55, 65, 66, 70, 72, 74 (24) | FLTRX |
| 40 | 69203057 | CONNECTOR, COVER, 81-way housing | FLTRX |
| 41 | 72518-01 | HOUSING, two-way socket (red) | FLTRX |
| 42 | 72412-97 | WIRE SEAL, 12-14 AWG (gray) terminal location 1, 3, 4, 5, 7, 8, 9, 11 (8) | FLTRX |
| 43 | 69200199 | WIRE SEAL, 18-20 AWG (purple) terminal location 2, 6, 10, 13, 14, 15, 16, 19 (8) | FLTRX |
| 44 | 72298-95 | WIRE SEAL, 14-18 AWG (green) terminal location 12, 20, 21, 22, 23, 24 (6) | FLTRX |
| 45 | 69202104 | TERMINAL, socket, 22AWG (2) | FLTRX |
WIRING HARNESS, MAIN - FLTRX (5 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (3) | FLTRX |
| 2 | 10177 | CABLE STRAP, anchored | FLTRX |
| 3 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4, 9, 10, 11 (7) | FLTRX |
| 4 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 4, 7, 9 (6) | FLTRX |
| 5 | 72209-11 | COVER, wire dress | FLTRX |
| 6 | 72222-11 | TERMINAL, socket, 18-20 AWG, terminal location 6, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23 (16) | FLTRX |
| 7 | 72226-11 | TERMINAL, socket, 14-16 AWG (28) | FLTRX |
| 8 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 6, 11, 12 (4) | FLTRX |
| 9 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 6, 7, 8, 12 (5) | FLTRX |
| 10 | 72227-11 | TERMINAL, socket, 18-20 AWG, terminal location 24, 25, 26, 27 (4) | FLTRX |
| 11 | 72256-11 | SEAL PIN, terminal location 10 | FLTRX |
| 12 | 72473-07 | SEAL PIN, terminal location 8, 10 (2) | FLTRX |
| 13 | 72488-07BK | HOUSING, 12-way pin (black) | FLTRX |
| 14 | 72720-07 | HOUSING, two-way socket (black) | FLTRX |
| 15 | 72721-07 | TERMINAL, socket, 18-20 AWG (2) | FLTRX |
| 16 | 69200205 | PLUG, weather, 12-way pin | FLTRX |
| 17 | 69201932 | HOUSING, 28-way | FLTRX |
| 18 | 69202170 | TERMINAL, socket, 14-16 AWG, terminal location 1 | FLTRX |
| 19 | 69202171 | WIRE SEAL, 2.1-2.8 mm, terminal location 1 | FLTRX |
| 20 | 69202172 | TERMINAL, socket, 18-20 AWG, terminal location 2, 3, 4, 5 (4) | FLTRX |
| 21 | 69202173 | WIRE SEAL, 1.4-2.15 mm, terminal location 2, 3, 4, 5 (4) | FLTRX |
| 22 | 69202489 | TERMINAL, socket, 22 AWG, terminal location 20 | FLTRX |
| 23 | 76000925 | ANTENNA | FLTRX |
| 24 | 72487-07BK | HOUSING, 12-way socket (black) | FLTRX |
| 25 | 69201596 | TERMINAL, ring, 8-10 AWG | FLTRX |
| 26 | 69202219 | CONDUIT, shrink tube (black) | FLTRX |
| 27 | 9819 | TERMINAL, ring, 12 AWG (2) | FLTRX |
WIRING HARNESS, MAIN - FLTRX (6 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 9937 | TERMINAL, socket, 14-18 AWG, terminal location 3, 5 | FLTRX |
| 2 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2 (6) | FLTRX |
| 3 | 72175-07BK | HOUSING, four-way pin | FLTRX |
| 4 | 72213-94 | TERMINAL, socket, 16-20 AWG (2) | FLTRX |
| 5 | 72291-94 | TERMINAL, socket 14-16 AWG (2) | FLTRX |
| 6 | 69203487 | CONNECTOR, starter housing | FLTRX |
| 7 | 72343-10 | TERMINAL, pin, 16-20 AWG, terminal location 3, 4 (2) | FLTRX |
| 8 | 72415-07GY | HOUSING, four-way pin (gray) | FLTRX |
| 9 | 72427-00 | TERMINAL, socket, 16-22 AWG, terminal location 1, 2, 4 (6) | FLTRX |
| 10 | 72606-08 | HOUSING, two-way socket (black) (2) | FLTRX |
| 11 | 72609-08 | SECONDARY LOCK, two-way socket | FLTRX |
| 12 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRX |
| 13 | 72632-10 | PLUG, weather, four-way pin | FLTRX |
| 14 | 73213-07 | RETAINER, anchored | FLTRX |
| 15 | 10065 | CABLE STRAP (5) | FLTRX |
| 16 | 69200183 | HOUSING, 26-way socket | FLTRX |
| 17 | 69200184 | COVER, 26-way socket | FLTRX |
| 18 | 69200185 | TERMINAL, socket, 20 AWG, terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLTRX |
| 19 | 69200186 | TERMINAL, socket, 14-16 AWG, terminal location 17, 26 (2) | FLTRX |
| 20 | 69200187 | TERMINAL, socket, 12 AWG, terminal location 1, 9 (2) | FLTRX |
| 21 | 69200188 | WIRE SEAL, 20 AWG (gray) terminal location 10, 14, 15, 18, 20, 23, 24 (7) | FLTRX |
| 22 | 69200189 | WIRE SEAL, 14-16 AWG (brown) terminal location 17, 26 (2) | FLTRX |
| 23 | 69200190 | WIRE SEAL, 12 AWG (blue) terminal location 1, 9 (2) | FLTRX |
| 24 | 69200191 | SEAL PIN (15) | FLTRX |
| 25 | 69200600 | FUSE BLOCK, five-way socket relay (2) | FLTRX |
| 26 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLTRX |
| 27 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRX |
| 28 | 69202285 | HOUSING, four-way pin | FLTRX |
| 29 | 69201427 | SEAL PIN | FLTRX |
| 30 | 69201722 | CONNECTOR, clip | FLTRX |
| 31 | 69201779 | HOUSING, four-way (black) | FLTRX |
| 32 | 69201814 | TERMINAL, socket (4) | FLTRX |
| 33 | 69202491 | TERMINAL, pin, 20 AWG (2) | FLTRX |
| 34 | 69202492 | SEAL PIN (green) (2) | FLTRX |
| 35 | 69202958 | RESISTOR PACK | FLTRX |
| 36 | 69202959 | HOUSING, two-way pin (black) | FLTRX |
| 37 | 9819 | TERMINAL, ring, 12 AWG | FLTRX |
| 38 | 69203209 | TERMINAL, ring | FLTRX |
| 39 | 69202219 | HEAT SHRINK | FLTRX |
WIRING HARNESS, MAIN - FLTRX (7 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10147 | CLIP, connector | FLTRX |
| 2 | 10177 | CABLE STRAP, anchored (3) | FLTRX |
| 3 | 69201301 | WIRE SEAL, 18-22 AWG (green) (3) | FLTRX |
| 4 | 69201300 | TERMINAL, socket, 18-22 AWG (3) | FLTRX |
| 5 | 72063-06 | HOUSING, two-way socket (black) | FLTRX |
| 6 | 72065-06A | HOUSING, three-way socket (black) | FLTRX |
| 7 | 72111-06 | SECONDARY LOCK, two-way socket (gray) | FLTRX |
| 8 | 69201722 | CONNECTOR, clip | FLTRX |
| 9 | 72127-06 | SECONDARY LOCK, three-way socket (gray) | FLTRX |
| 10 | 74152-98 | SECONDARY LOCK, two-way socket | FLTRX |
| 11 | 72168-07 | TERMINAL, socket, 18-20 AWG | FLTRX |
| 12 | 74191-98 | TERMINAL, socket, 16-20 AWG | FLTRX |
| 13 | 72283-09 | TERMINAL, socket, 14-16 AWG, 90 degree (2) | FLTRX |
| 14 | 72484-08 | TERMINAL, socket, 20 AWG (5) | FLTRX |
| 15 | 72486-08 | WIRE SEAL, 20 AWG (green) (5) | FLTRX |
| 16 | 72512-07BK | HOUSING, three-way socket (black) | FLTRX |
| 17 | 73213-07 | RETAINER, anchored (3) | FLTRX |
| 18 | 74112-98BK | HOUSING, two-way socket (black) | FLTRX |
| 19 | 69202285 | HOUSING, four-way pin, key A | FLTRX |
| 20 | 12500014 | CABLE STRAP | FLTRX |
| 21 | 12500016 | CABLE STRAP, anchored, two-piece | FLTRX |
| 22 | 69200238 | TERMINAL, insulated (2) | FLTRX |
| 23 | 72610-08 | WIRE SEAL, 18-20 AWG (white) (2) | FLTRX |
| 24 | 69201301 | WIRE SEAL, 20-22 AWG (green) (4) | FLTRX |
| 25 | 69201398 | TERMINAL, pin, 20 AWG (2) | FLTRX |
| 26 | 69201427 | SEAL PIN | FLTRX |
| 27 | 69201406 | HOUSING, three-way socket | FLTRX |
| 28 | 69203028 | HOUSING, two-way socket | FLTRX |
| 29 | 69203120 | TERMINAL, socket, 8-10 AWG (2) | FLTRX |
| 30 | 69203121 | SEAL, 8 AWG (2) | FLTRX |
| 31 | 72607-08 | HOUSING, two-way pin (black) | FLTRX |
| 32 | 72608-08 | TERMINAL, pin, 16-20 AWG | FLTRX |
| 33 | 72188-07BK | HOUSING, six-way pin | FLTRX |
| 34 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 5, 6 (5) | FLTRX |
| 35 | 72473-07 | SEAL PIN, natural | FLTRX |
| 36 | 72609-08 | SECONDARY LOCK, two-way pin | FLTRX |
| 37 | 72519-09BK | DUST CAP, three-way socket | FLTRX |
| 38 | 69201441 | HOUSING, four-way socket | FLTRX |
WIRING HARNESS, MAIN - FLTRX (8 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 69201307 | BOOT, pos cable assembly | FLTRX |
| 2 | 69203052 | FUSE HOLDER, two-way | FLTRX |
| 3 | 69203123 | HARNESS, wire, positive battery | FLTRX |
WIRING HARNESS, MAIN - FLTRX (9 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP | FLTRX |
| 2 | 10177 | CABLE STRAP, anchored (2) | FLTRX |
| 3 | 69201287A | BRACKET, mounting | FLTRX |
| 4 | 69202720A | BRACKET, wire trough | FLTRX |
| 5 | 69202636A | COVER, bracket, wire trough | FLTRX |
| 6 | 69203046 | BRACKET, BCM caddy | FLTRX |
| 7 | 69203096 | BRACKET, upper triple clamp caddy | FLTRX |
WIRING HARNESS, MAIN - FLTRX (10 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 10065 | CABLE STRAP (2) | FLTRX |
| 2 | 31586-07 | RELAY (2) | FLTRX |
| 3 | 72330-95 | FUSE, 15 A (blue) | FLTRX |
| 4 | 72462-00 | FUSE, 10 A mini | FLTRX |
| 5 | 72539-06 | FUSE, 30 A (green) (3) | FLTRX |
| 6 | 69200194 | HOUSING, 24-way socket | FLTRX |
| 7 | 69200293 | FUSE, 7.5 A (brown) (2) | FLTRX |
| 8 | 69203010 | BRACKET, ECM/fuse block caddy | FLTRX |
WIRING HARNESS, MAIN - FLTRX (11 OF 11)
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| NOTE: Includes the following parts. | |||
| 1 | 3018A | SCREW (2) | FLTRX |
| 2 | 6150W | WASHER (2) | FLTRX |
| 3 | 10065 | CABLE STRAP | FLTRX |
| 4 | 12200181 | CABLE STRAP | FLTRX |
| 5 | 12600116 | CLIP, push-in (3) | FLTRX |
| 6 | 69200611 | BRACKET, relay | FLTRX |
| 7 | 69201287A | BRACKET, mounting | FLTRX |
| 8 | 69203519 | COVER, fuse box | FLTRX |
| 9 | 71400100 | RELAY (2) | FLTRX |
WIRING HARNESS, INNER FAIRING - FLHX
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202988 | WIRING HARNESS, inner fairing | FLHX |
| NOTE: Includes the following parts. | |||
| 2 | 10081 | CABLE STRAP, double loop (2) | FLHX |
| 3 | 12500015 | CABLE STRAP, two piece, tree mount, NOT SHOWN | FLHX |
| 4 | 12500016 | CABLE STRAP, two piece, tree mount (3) | FLHX |
| 5 | 69200271 | HOUSING, two way, socket (2) | FLHX |
| 6 | 69201301 | SEAL, wire, 20-22AWG, green, terminal location 3 | FLHX |
| 7 | 69201377 | SEAL, wire, 20-22AWG, gray, terminal location 2, 3, 17, 18 (4) | FLHX |
| 8 | 69201379 | SEAL PIN, plug (white) (10) | FLHX |
| 9 | 69201385 | TERMINAL, socket, 18-20AWG, silver, terminal location 1, 2, 3, 4, 10, 11, 17, 18 (8) | FLHX |
| 10 | 69201407 | TERMINAL, socket, 20AWG, terminal location 3 | FLHX |
| 11 | 69201412 | SEAL, wire, 16-18AWG, yellow, terminal location 1, 4, 10, 11 (4) | FLHX |
| 12 | 69201427 | SEAL PIN, NOT SHOWN (2) | FLHX |
| 13 | 69201442 | TERMINAL, socket, 18AWG, terminal location 1, 2 (2) | FLHX |
| 14 | 69201575 | HOUSING, eighteen-way socket | FLHX |
| 15 | 69201722 | CLIP, wire harness | FLHX |
| 16 | 69202491 | TERMINAL, pin, 0.3-0.5mm wire (2) | FLHX |
| 17 | 69202492 | SEAL, connector (2) | FLHX |
| 18 | 69202958 | CONNECTOR, resistor pack, black | FLHX |
| 19 | 69202959 | CONNECTOR, two way, pin, black | FLHX |
| 20 | 69203042 | CONNECTOR, five way, socket | FLHX |
| 21 | 69203105 | CONNECTOR, five way, pin, NOT SHOWN | FLHX |
| 22 | 69203106 | SEAL PIN, plug (4) | FLHX |
| 23 | 72168-07 | TERMINAL, socket, 18-20 AWG, terminal location 1, 2, 3, 4 (4) | FLHX |
| 24 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 4, 6, 8, 10 (7) | FLHX |
| 25 | 72175-07BK | HOUSING, four way, pin, black | FLHX |
| 26 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 7, 11, 12 (4) | FLHX |
| 27 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20 (12) | FLHX |
| 28 | 72473-07 | SEAL PIN | FLHX |
| 29 | 72488-07BK | HOUSING, 12-way pin (black) | FLHX |
| 30 | 72500-07ABK | HOUSING, 12-way socket (black) | FLHX |
| 31 | 73213-07 | CLIP, retainer tree | FLHX |
| 32 | 72272-07 | TERMINAL, socket, 14-16 AWG, terminal location 1, 2 (4) | FLHX |
| 33 | 72169-07 | TERMINAL, pin, 16-20 AWG, terminal location 1, 2, 3, 4 (4) | FLHX |
| 34 | 69201412 | SEAL, wire, 16-18AWG, yellow, terminal location 1, 2 (2) | FLHX |
| 35 | 69201427 | SEAL PIN, NOT SHOWN (5) | FLHX |
WIRING HARNESS, OUTER FAIRING - FLHX
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202986 | WIRING HARNESS, outer fairing (all except China) | FLHX |
| 1 | 69203191 | WIRING HARNESS, outer fairing (China) | FLHX |
| NOTE: Includes the following parts. | |||
| 2 | 10177 | CABLE STRAP, double loop (3) | FLHX |
| 3 | 5118 | SEAL PIN (quantity 4 for harness 69203191 China only) (2) | FLHX |
| 4 | 69200254 | CONNECTOR, four way, socket | FLHX |
| 5 | 69200256 | LOCK, secondary, four way | FLHX |
| 6 | 69201179 | HOUSING, four way, socket (gray) | FLHX |
| 7 | 72168-07 | TERMINAL, socket, 18-20 AWG (6) | FLHX |
| 8 | 72213-94 | TERMINAL, socket, 16-20 AWG (4) | FLHX |
| 9 | 72414-07BK | HOUSING, six way, socket (black) | FLHX |
| 10 | 72610-08 | SEAL, 18- 20 AWG, white (4) | FLHX |
| 11 | 72908-11 | HOUSING, four way, socket | FLHX |
| 12 | 72910-11 | TERMINAL, socket, 20-22 AWG, (quantity (4) for harness 69203191 China only) (6) | FLHX |
REAR LIGHTING HARNESS
| Index No. | Part No. | Description | Model(s) |
| 1 | 10006 | CABLE STRAP (2) | FLHX, FLTRX |
| 2 | 10177 | CABLE STRAP | FLHX, FLTRX |
| 3 | 72169-07 | TERMINAL, pin, 16-20 AWG (5) | FLHX, FLTRX |
| 4 | 72906-11 | HOUSING, two-way socket (black) | FLHX, FLTRX |
| 5 | 72908-11 | HOUSING, four-way socket (black) | FLHX, FLTRX |
| 6 | 70717-10 | CONDUIT, wiring harness, self-adhesive | FLHX, FLTRX |
| 7 | 72910-11 | TERMINAL, socket, 20-22 AWG (10) | FLHX, FLTRX |
| 8 | 72473-07 | SEAL PIN (7) | FLHX, FLTRX |
| 9 | 72488-07BK | HOUSING, 12-way pin (black) | FLHX, FLTRX |
| 10 | 73213-07 | RETAINER, anchored | FLHX, FLTRX |
| 11 | 69203058 | WIRING HARNESS, rear lighting | FLHX, FLTRX |
| 12 | 69201179 | HOUSING, four-way socket (gray) | FLHX, FLTRX |
WIRING HARNESS, FAIRING - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202989 | WIRING HARNESS, fairing | FLTRX |
| NOTE: Includes the following parts. | |||
| 2 | 10081 | CABLE STRAP (3) | FLTRX |
| 3 | 10177 | CABLE STRAP (6) | FLTRX |
| 4 | 69200271 | HOUSING, two-way socket (black) (2) | FLTRX |
| 5 | 69201301 | WIRE SEAL, 20- 22 AWG (green) terminal location 3 | FLTRX |
| 6 | 69201377 | WIRE SEAL, 20- 22 AWG (gray) terminal location 2, 3, 17, 18 (4) | FLTRX |
| 7 | 69201379 | SEAL PIN, 1.5mm plug (10) | FLTRX |
| 8 | 69201385 | TERMINAL, socket, 18-20 AWG, silver, terminal location 1, 2, 3, 4, 10, 11, 17, 18 (8) | FLTRX |
| 9 | 69201407 | TERMINAL, socket, 20 AWG, terminal location 3 | FLTRX |
| 10 | 69201412 | SEAL PIN, 16- 18 AWG (yellow) terminal location 1, 4, 10, 11 (4) | FLTRX |
| 11 | 69201427 | SEAL PIN (7) | FLTRX |
| 12 | 69201442 | TERMINAL, socket, 18 AWG, terminal location 1, 2 (2) | FLTRX |
| 13 | 69201575 | HOUSING, 18-way socket | FLTRX |
| 14 | 69203042 | HOUSING, 5-way socket | FLTRX |
| 15 | 69203105 | HOUSING, 5-way pin | FLTRX |
| 16 | 69203106 | SEAL PIN (4) | FLTRX |
| 17 | 72168-07 | TERMINAL, socket, 18 - 20 AWG, terminal location 1, 2, 3, 4 (4) | FLTRX |
| 18 | 72169-07 | TERMINAL, pin, 16 - 20 AWG (4) | FLTRX |
| 19 | 72175-07BK | HOUSING, 4-way pin (black) | FLTRX |
| 20 | 72225-09 | TERMINAL, pin, 14 AWG, terminal location 5, 7, 11, 12 (4) | FLTRX |
| 21 | 72272-07 | TERMINAL, socket, 14 - 16 AWG (4) | FLTRX |
| 22 | 72473-07 | SEAL PIN | FLTRX |
| 23 | 72488-07BK | HOUSING, 12-way pin (black) | FLTRX |
| 24 | 72500-07ABK | HOUSING, 20-way socket (black) | FLTRX |
| 25 | 73213-07 | RETAINER, tree clip (2) | FLTRX |
| 26 | 72272-07 | TERMINAL, socket, 14 - 16 AWG, terminal location 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20 (12) | FLTRX |
| 27 | 69201412 | SEAL PIN, 16- 18 AWG (yellow) terminal location 1, 2 (2) | FLTRX |
| 28 | 72169-07 | TERMINAL, pin, 16 - 20 AWG, terminal location 1, 2, 3, 4, 6, 8, 10 (7) | FLTRX |
BATTERY
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLHX, FLTRX |
| 2 | 2445 | SCREW | FLHX, FLTRX |
| 3 | 4312C | SCREW (2) | FLHX, FLTRX |
| 4 | 7792 | NUT | FLHX, FLTRX |
| 5 | 15368-01A | LABEL BATTERY WARNING | FLHX, FLTRX |
| 6 | 66010-97E | BATTERY | FLHX, FLTRX |
| 6 | 66000066A | BATTERY (BRZ only) | FLHX, FLTRX |
| 7 | 66051-08 | STRAP, battery removal | FLHX, FLTRX |
| 8 | 9819 | TERMINAL, ring, 10-12 AWG | FLHX, FLTRX |
| 9 | 66000339 | BATTERY TRAY, includes 66051-08 | FLHX, FLTRX |
| 10 | 66000116 | CABLE ASSEMBLY, starter to ground, with 9819 | FLHX, FLTRX |
| 11 | 69203052 | FUSE HOLDER, two-way | FLHX, FLTRX |
| 12 | 69203123 | WIRE HARNESS, battery positive to starter, with 69203052 | FLHX, FLTRX |
| 13 | 69201307 | BOOT, battery positive | FLHX, FLTRX |
| 14 | 69203011 | BRACKET, BCM | FLHX, FLTRX |
| 15 | 69203624 | BRACKET, harness support (late change) | FLHX, FLTRX |
HORN
| Index No. | Part No. | Description | Model(s) |
| 1 | 3061 | SCREW (2) | FLHX, FLTRX |
| 2 | 7495 | NUT | FLHX, FLTRX |
| 3 | 69060-90H | HORN KIT | FLHX, FLTRX |
| 4 | 69000125B | BRACKET, horn | FLHX, FLTRX |
SWITCHES
| Index No. | Part No. | Description | Model(s) |
| 1 | 2934 | SCREW (2) | FLHX, FLTRX |
| 2 | 6150W | WASHER (2) | FLHX, FLTRX |
| 3 | 76000925 | ANTENNA MODULE, security system | FLHX, FLTRX |
| 4 | 72023-51E | KIT, SWITCH, rear stop lamp | FLHX, FLTRX |
| 5 | 32700010 | SENSOR, ambient temperature | FLHX, FLTRX |
| 6 | 41001501 | BODY CONTROL MODULE (BCM) (except Japan) | FLHX, FLTRX |
| 6 | 41001502 | BODY CONTROL MODULE (BCM) (Japan) | FLHX, FLTRX |
| 7 | 71540-94B | FORK LOCK (specify key number) | FLHX, FLTRX |
| 8 | 45600135 | LOCKSET, complete, with key, fork lock and saddlebag lock | FLHX, FLTRX |
| 9 | 90300043 | KEY, with 61081-92 (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHX, FLTRX |
| 10 | 61081-92 | COVER, key head (set of 2) | FLHX, FLTRX |
| 11 | 66000107 | BATTERY, 3V, CR2032 (2) | FLHX, FLTRX |
| 12 | 90300146A | REMOTE CONTROL FOB, 434MHZ (except JPN) | FLHX, FLTRX |
| 12 | 90300145A | REMOTE CONTROL FOB, 315MHZ (JPN) | FLHX, FLTRX |
SOUND SYSTEM - FLHX
| Index No. | Part No. | Description | Model(s) |
| 1 | 10065 | CABLE STRAP (2) | FLHX |
| 2 | 10201096 | SCREW (8) | FLHX |
| 3 | 10201351 | SCREW (4) | FLHX |
| 4 | 10201402 | SCREW (2) | FLHX |
| 5 | 10201426 | SCREW | FLHX |
| 6 | 12200025 | CLIP, panel mount (4) | FLHX |
| 7 | 69200247 | WIRE HARNESS, speaker jumper, with 10065, 72169-07, 72290-94, 72294-94, 73213-07, 69200272 (2) | FLHX |
| 8 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLHX |
| 9 | 72290-94 | TERMINAL, insulated, female, black (2) | FLHX |
| 10 | 72294-94 | TERMINAL, insulated, female, white (2) | FLHX |
| 11 | 73213-07 | RETAINER, anchored (2) | FLHX |
| 12 | 69200272 | HOUSING, two-way pin (black) (2) | FLHX |
| 13 | 76000789 | ANTENNA, gps | FLHX |
| 14 | 76000819A | SPEAKER, front (2) | FLHX |
| 15 | 76001484 | AMPLIFIER, four channel | FLHX |
| 16 | 76001327 | SPEAKER GRILLE, left, includes 12200025, 76001252 | FLHX |
| 17 | 76001328 | SPEAKER GRILLE, right, includes 12200025, 76001253 | FLHX |
| 18 | 76001235 | ANTENNA, AM/FM/DAB, for option code 940 (AUS, AU2, ENG, EN2, HDI, HD4) | FLHX |
| 18 | 76001251 | ANTENNA, AM/FM, for option codes 939, 941 (BRZ, CAL, CAN, DOM, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX |
| 19 | 76001252 | GASKET, speaker grill, left | FLHX |
| 20 | 76001253 | GASKET, speaker grill, right | FLHX |
| Dealer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please refer to the latest Warranty Bulletin revision of the Harley-Davidson Audio Powered by Rockford Fosgate Audio System Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please contact your Harley-Davidson dealership. | |||
SOUND SYSTEM - FLTRX
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201096 | SCREW (8) | FLTRX |
| 2 | 10201351 | SCREW (4) | FLTRX |
| 3 | 10201426 | SCREW | FLTRX |
| 4 | 12200025 | CLIP, panel (4) | FLTRX |
| 5 | 69200272 | HOUSING, two-way pin (black) (2) | FLTRX |
| 6 | 69200752 | WIRE HARNESS, speaker jumper, with 72169-07, 72290-94, 72294-94, 73213-07, 69200272 (2) | FLTRX |
| 7 | 76000789 | ANTENNA, GPS | FLTRX |
| 8 | 76000819A | SPEAKER, front (2) | FLTRX |
| 9 | 76001484 | AMPLIFIER, four channel | FLTRX |
| 10 | 76001323 | SPEAKER GRILLE, includes 12200025, 76001254 (left) | FLTRX |
| 11 | 76001324 | SPEAKER GRILLE, includes 12200025, 76001255 (right) | FLTRX |
| 12 | 76001235 | ANTENNA, am/fm/dab (Australia, England, HDI) | FLTRX |
| 12 | 76001251 | ANTENNA, am/fm (California, Canada, China, Domestic, HDI, Japan) | FLTRX |
| 13 | 76001254 | GASKET, speaker grille (left) | FLTRX |
| 14 | 76001255 | GASKET, speaker grille (right) | FLTRX |
| 15 | 72169-07 | TERMINAL, pin, 16-20 AWG (4) | FLTRX |
| 16 | 72290-94 | TERMINAL, insulated, female (black) (2) | FLTRX |
| 17 | 72294-94 | TERMINAL, insulated, female (white) (2) | FLTRX |
| 18 | 73213-07 | RETAINER, tree clip (2) | FLTRX |
| Dealer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please refer to the latest Warranty Bulletin revision of the Harley-Davidson Audio Powered by Rockford Fosgate Audio System Warranty Procedures located on h-dnet.com.Customer: For all service and warranty claims on Harley-Davidson Audio Powered by Rockford Fosgate Audio System components please contact your Harley-Davidson dealership. | |||
SADDLEBAGS (1 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 1 | 3656 | SCREW (4) | FLHX, FLTRX |
| 2 | 90202461 | FACEPLATE (left) (chrome) | FLHX, FLTRX |
| 2 | 90202463DH | FACEPLATE (left) (black) | FLHX, FLTRX |
| 2 | 90202460 | FACEPLATE (right) (chrome) | FLHX, FLTRX |
| 2 | 90202462DH | FACEPLATE (right) (black) | FLHX, FLTRX |
| 3 | 57000779 | CLIP (6) | FLHX, FLTRX |
| 4 | 10200147 | SCREW (6) | FLHX, FLTRX |
| 5 | 7586 | NUT (2) | FLHX, FLTRX |
| 6 | 10200557 | SCREW (6) | FLHX, FLTRX |
| 7 | 10200063 | SCREW (4) | FLHX, FLTRX |
| 8 | 10200065 | SCREW (8) | FLHX, FLTRX |
| 9 | 10200103 | SCREW (16) | FLHX, FLTRX |
| 10 | 90300024 | LOCK (specify key number) (2) | FLHX, FLTRX |
| 11 | 10200220 | SCREW (4) | FLHX, FLTRX |
| 12 | 10200064 | SCREW (2) | FLHX, FLTRX |
| 13 | 10200533 | SCREW, single sided lever (4) | FLHX, FLTRX |
| 14 | 45600135 | LOCKSET, complete, with key, fork lock and saddlebag lock | FLHX, FLTRX |
| 15 | 10400034 | NUT, clip (4) | FLHX, FLTRX |
| 16 | 90200903 | HANDLE KIT, saddlebag, with grommet includes 10200064 (left) (chrome) | FLHX, FLTRX |
| 16 | 90200902 | HANDLE KIT, saddlebag, with grommet includes 10200064 (right) (chrome) | FLHX, FLTRX |
| 17 | 67900065 | REFLECTOR (left) (red) (Canada, Domestic) | FLHX, FLTRX |
| 17 | 67900066 | REFLECTOR (left) (amber) (all except Canada, Domestic) | FLHX, FLTRX |
| 17 | 67900067 | REFLECTOR (right) (red) (Canada, Domestic only) | FLHX, FLTRX |
| 17 | 67900068 | REFLECTOR (right) (amber) (all except Canada, Domestic) | FLHX, FLTRX |
SADDLEBAGS (2 OF 2)
| Index No. | Part No. | Description | Model(s) |
| NOTE: Refer to Painted Parts Book for painted part numbers. | |||
| 18 | 90202454 | SADDLEBAG COVER (right) (unpainted) | FLHX, FLTRX |
| 18 | 90202455 | SADDLEBAG COVER (left) (unpainted) | FLHX, FLTRX |
| 19 | 90202509 | GASKET, cover (2) | FLHX, FLTRX |
| 20 | 90200467 | CUSHION, saddlebag support (4) | FLHX, FLTRX |
| 21 | 90200519 | STRIKE, saddlebag (4) | FLHX, FLTRX |
| 22 | 90202466 | LATCH ASSEMBLY, with 10200220, 90200899 and 90200901 (right) | FLHX, FLTRX |
| 22 | 90202467 | LATCH ASSEMBLY, with 10200220, 90200900 and 90200901 (left) | FLHX, FLTRX |
| 23 | 90200522 | TETHER, saddlebag (2) | FLHX, FLTRX |
| 24 | 90200611 | ISOLATOR, saddlebag (4) | FLHX, FLTRX |
| 25 | 90201540 | KIT, SADDLEBAG MOUNT, with 10200533 and 10400034 (set of 4) | FLHX, FLTRX |
| 26 | 90202889 | SADDLEBAG BOTTOM (right) (unpainted) | FLHX, FLTRX |
| 26 | 90202890 | SADDLEBAG BOTTOM (left) (unpainted) | FLHX, FLTRX |
| 27 | 90200899 | HINGE ASSEMBLY (right) | FLHX, FLTRX |
| 27 | 90200900 | HINGE ASSEMBLY (left) | FLHX, FLTRX |
| 28 | 90200901 | SEAL (2) | FLHX, FLTRX |
GUARDS, SADDLEBAG
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200217 | SCREW (2) | FLHX, FLTRX |
| 2 | 6532 | WASHER (2) | FLHX, FLTRX |
| 3 | 3536 | SCREW (2) | FLHX, FLTRX |
| 4 | 7531 | LOCKNUT (2) | FLHX, FLTRX |
| 5 | 7601 | LOCKNUT (4) | FLHX, FLTRX |
| 6 | 10400034 | NUT, clip (4) | FLHX, FLTRX |
| 7 | 11100068 | CUSHION (2) | FLHX, FLTRX |
| 8 | 90201319 | SUPPORT, saddlebag, with 11100068 (right) (black) | FLHX, FLTRX |
| 8 | 90201320 | SUPPORT, saddlebag, with 11100068 (left) (black) | FLHX, FLTRX |
| 8 | 90200501 | SUPPORT, saddlebag, with 11100068 (left) (chrome) | FLHX, FLTRX |
| 8 | 90200499 | SUPPORT, saddlebag, with 11100068 (right) (chrome) | FLHX, FLTRX |
| 9 | 10201187 | SCREW (2) | FLHX, FLTRX |
| 10 | 90202108 | INSERT ASSEMBLY, saddlebag support (2) | FLHX, FLTRX |
| 11 | 90200549 | SUPPORT (left) (black) | FLHX, FLTRX |
| 11 | 90200550 | SUPPORT (right) (black) | FLHX, FLTRX |
| 12 | 10201188 | SCREW (2) | FLHX, FLTRX |
LABELS
| Index No. | Part No. | Description | Model(s) |
| 1 | 14003552 | LABEL, year of manufacturing prior to 1/1/2024 (BRZ) | FLHX, FLTRX |
| 2 | 14003856 | LABEL, year of manufacturing on or after 1/1/2024 (BRZ) | FLHX, FLTRX |
| 3 | 15342-06A | LABEL, mirror warning | FLHX |
| 3 | 15370-01A | LABEL, mirror warning | FLTRX |
| 3 | 15385-08 | LABEL, mirror warning (BRZ) (not shown) | FLHX, FLTRX |
| 3 | 14002626 | LABEL, mirror warning (China) (not shown) | FLHX, FLTRX |
| 4 | 15368-01A | LABEL, battery warning | FLHX, FLTRX |
| 4 | 14002622 | LABEL, battery warning (China) (not shown) | FLHX, FLTRX |
| 5 | 29108-08 | LABEL, air cleaner warning (Domestic) | FLHX, FLTRX |
| 5 | 14001624 | LABEL, air cleaner warning (Domestic)(not shown) | FLHX, FLTRX |
| 5 | 14001734 | LABEL, air cleaner warning (BRZ) (not shown) | FLHX, FLTRX |
| 5 | 14001799A | LABEL, air cleaner warning (CHN) (not shown) | FLHX, FLTRX |
| 6 | 90820-93D | LABEL, saddlebag load limits (2) | FLHX, FLTRX |
| 6 | 14001738 | LABEL, saddlebag load limits (BRZ) (not shown) (2) | FLHX, FLTRX |
| 6 | 14002629 | LABEL, saddlebag load limits (China) (not shown) (2) | FLHX, FLTRX |
| 7 | 14000827 | CLEAR OVERLAY, VIN label | FLHX, FLTRX |
| 8 | 14001773 | LABEL, fuel (England, EN2, HDI, HD4, IN2) | FLHX, FLTRX |
| 9 | 14001800 | LABEL, fuel tank (ASEAN) (not shown) | FLHX, FLTRX |
| 9 | 14002624 | LABEL, brake fluid warning (CHN) (not shown) | FLHX, FLTRX |
| 9 | 14002625 | LABEL, brake fluid warning (CHN) (not shown) | FLHX, FLTRX |
| 9 | 14002628 | LABEL, rear shock warning (China) (not shown) | FLHX, FLTRX |
| NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N. number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels can only be ordered for warranty purposes through h-dnet Service eForm. | |||
LOOSE PARTS
| Index No. | Part No. | Description | Model(s) |
| 1 | SIDE COVER (left) (unpainted) (See NOTE 1) | FLHX, FLTRX | |
| 1 | 94000986 | OWNER'S MANUAL (Domestic) | FLHX, FLTRX |
| 1 | 69203053 | MAIN FUSE, 60 A (yellow) | FLHX, FLTRX |
| 1 | 90300043 | KEY (set of 2) (specify key number) (Note: when ordering a key see P&A Bulletin PAB1064 for key codes) | FLHX, FLTRX |
| 1 | 90300146A | REMOTE CONTROL FOB (except Japan) | FLHX, FLTRX |
| 1 | 90300145A | REMOTE CONTROL FOB (Japan) | FLHX, FLTRX |
| 1 | 94000326 | OWNER'S KIT CONTENT (Domestic) | FLHX, FLTRX |
| 1 | 12500024 | CABLE STRAP, attaches keys to brake lever | FLHX, FLTRX |
| 1 | 57200417 | AIR DEFLECTOR KIT, MID-FRAME (See NOTE 2)(BRZ) | FLHX, FLTRX |
| 1 | 14900135 | WRENCH, shock spanner | FLHX, FLTRX |
| 1 | 10201425 | SCREW KIT, windshield | FLHX |
| 1 | 57400521 | WINDSHIELD, short (smoked) | FLHX |
| 1 | 10200890 | SCREW, windshield (4) | FLTRX |
| 1 | 12100141 | GROMMET, windshield, rubber (4) | FLTRX |
| 1 | 57300409 | BRACKET KIT, windshield | FLTRX |
| 1 | 57400664 | WINDSHIELD KIT (black) | FLTRX |
| FLHX AND FLTRXFLHXFLTRXNOTE 1: Left side cover is shipped loose. Refer to the Service Section of h-dnet.com for painted part numbers.NOTE 2: Order 57200417 only if missing complete kit. Otherwise order individual components as needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual. | |||
| Part No. | Description |
| 1009M | SCREW M6 X 1.0 X 20 socket head |
| 10100062 | LOCKNUT 7/16-20 flange (Grade F) (zinc) |
| 10200004 | SCREW 1/4-20 X 1/2 TORX SEMS socket button head |
| 10200032 | SCREW 1/4-20 X 1/2 TORX, button hd with lockpatch, (Grade 8) (bright zinc) |
| 10200059 | SCREW 1/4-20 X 1-11/16 TORX socket button head matpoint (Grade 5) (black) |
| 10200060 | SCREW 1/4-20 X 2-5/8 TORX socket button head matpoint (Grade 5) (black) |
| 10200063 | SCREW No. 8 X 1/2 TORX SEMS pan head (stainless) |
| 10200064 | SCREW No. 8-32 X 1 TORX pan head (zinc) |
| 10200065 | SCREW No. 8-32 X 5/8 TORX SEMS pan head, with lockpatch (stainless) |
| 10200103 | SCREW No. 8-32 X 1/2 TORX SEMS pan head, with lockpatch (stainless) |
| 10200120 | SCREW 5/16 X 18 X 1.00 hex cap |
| 10200141 | SCREW 1/4-20 X 1/2 hex socket button head (zinc) |
| 10200217 | SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch (zinc) |
| 10200220 | SCREW No. 8-16 X 1/2 TORX pan head T-20 (zinc) |
| 10200223 | SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc) |
| 10200343 | SCREW 5/16-18 X 3-1/4 flange (zinc) |
| 10200344 | SCREW No. 3/16-24 X 2 socket head (stainless) |
| 10200350 | SCREW 1/4-20 X 1-1/8 SEMS hex socket head (Grade 8) (zinc) |
| 10200373 | SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc) |
| 10200408A | SCREW 3/8-16 X 2 hex head, with washer (Grade 8) (zinc) |
| 10200422 | SCREW 1/4-20 X 5/8 button head SEMS TORX T-27, with lockpatch (zinc) |
| 10200429 | SCREW 3/8-16 X 2-1/2 hex socket head with scotch grip (Grade 8) (zinc) |
| 10200446 | SCREW 1/4-20 X 1 hex flange, with adhesive |
| 10200463 | SCREW 3/8-16 X 1-3/8 hex head with lockpatch (Grade 8) (zinc) |
| 10200503 | SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8) |
| 10200544 | SCREW M5 X 12 torx pan head T-25 |
| 10200546 | SCREW No. 10-24 X 5/8 hex serrated flange, with scotch grip (zinc-nickel plate and seal) |
| 10200569 | SCREW 5/16-18 x 1/2 hex flange head, serrated |
| 10200628 | SCREW 1/4-20 X 7/16 TORX, button hd, (Grade 8) (zinc) |
| 10200686 | SCREW 10-24 X 1/2 button head with lockpatch, T-25 (Grade 5) |
| 10200721 | SCREW PT30 X 1.12 X 11.5 T-10 Torx Delta washer |
| 10200846 | SCREW 50 X 1.8 X 16 TORX button head T-25 |
| 10200890 | SCREW M5 X 0.8 X 10 button head, T-25 TORX |
| 10201096 | SCREW #10 x 5/8 hi-lo self tapping button head |
| 10201187 | SCREW .375-16 X 2.750 TORX button head T-45 |
| 10201188 | SCREW .312-18 X 1.30 TORX pan head T-40 |
| 10201216 | SCREW 10-24 X 875 TORX Pan Head with washer and lock patch (Grade 5) |
| 10201279 | SCREW M14 X 12 delta point button head, T-20 TORX |
| 10201318 | SCREW 10-24 X 1.25 TORX socket head cap T-27 |
| 10201326 | SCREW 5/16 -18 X 1.25 socket head cap |
| 10201339 | SCREW 1/4 -20 X 11/16 socket head cap SEMS |
| 10201340 | SCREW 3/8-18 X 1 hex head SEMS, T-40 TORX |
| 10201350 | SCREW 1/4-20 X 5/8 button head SEMS, T-25 TORX |
| 10201351 | SCREW 1/4-20 X 1 3/32 TORX T-30 cap SEMS |
| 10201361 | SCREW 1/4-20 X 3/4 button head, T-27 TORX |
| 10201368 | SCREW 1/4-20 socket head cap SEMS, TORX T-27, w/dog point |
| 10201370 | SCREW 40 X1.46 X 14 delta point pan head, TORX T-20 |
| 10201377 | SCREW 1/4-20 X 3.738 button head |
| 10201381 | SCREW 5/16-18 X 1.0 self tapping TORX T-40 |
| 10201385 | SCREW shoulder, 1/4-20 |
| 10201386 | SCREW #2-32 X 3/8 pan head |
| 10201389 | SCREW 50 X 1.8 X 19 delta point button head SEMS, T-25 TORX |
| 10201394 | SCREW 1/4-20 X 1 button head, T-27 TORX |
| 10201402 | SCREW #10-24 X 1 button head TORX T-27 |
| 10201426 | SCREW delta point, M5 X 18 TORX T-15 |
| 10500015 | SCREW 5/16-18 X 1-7/8 SEMS hex socket head |
| 10500071 | SCREW M6 X 1 X 25 button head, T-30 TORX |
| 1062 | SCREW 1/4-20 X 5/8 TORX head (Grade 8) |
| 12600032 | SCREW 1/2-13 X 2 hex head cap lock patch (Grade 5) |
| 12600369 | SCREW 1/4-20 X 1 flange head, 3/8 hex / T-30 TORX |
| 1775 | SCREW 1/4-20 X 4 hex socket head (Grade 8) |
| 2445 | SCREW 1/4-20 X 9/16 button head |
| 2478 | SCREW No. 10-24 X 1/2 TORX button head |
| 2479 | SCREW 5/16-18 X 1-1/8 SEMS socket head |
| 2563 | SCREW No. 10-24 X 5/8 TORX button head |
| 2708A | SCREW 5/16-18 X 1 socket head |
| 2933 | SCREW No. 10-24 X 1/2 |
| 2934 | SCREW No. 10-24 X 3/4 socket head |
| 3018A | SCREW 10-24 X 3/8 TORX head |
| 3050 | SCREW No. 10-24 X 1-3/8 TORX head |
| 3057 | SCREW 7/16-14 X 1-1/4 hex head with washer, with lock patch |
| 3061 | SCREW 1/4-20 X 5/8 SEMS hex head |
| 3143 | SCREW 3/8-16 X 1 hex socket head, with lock patch |
| 3153 | SCREW 5/16-18 X 1 1/8 socket head, 1/4 internal hex |
| 3210A | SCREW 5/16-18 X 1-1/4 knurled head |
| 3249 | SCREW 5/16-18 X 1-3/16 socket head (Grade 8) |
| 3275 | SCREW 5/16-18 X 3/4 socket head (Grade 8) |
| 3445 | BOLT 5/16-18 X 9/16 hex head, with lockpatch (Grade 5) |
| 35241-06 | NUT 1-3/4-20 X .350 X 2-1/4 hex head |
| 35244-06 | SCREW 5/16-18 X 1-1/4 hex flange head |
| 35259-06 | SCREW No. 10-24 X 1/2 hex head (Grade 8) |
| 3536 | BOLT 3/8-16 X 1-1/4 hex head (Grade 8) |
| 3563 | SCREW 1/4-20 X 3/8 hex flange head (Grade 5) |
| 3594 | SCREW 1/4-20 X 5/8 knurled head (Grade 8) |
| 3607 | BOLT 1/2-13 X 2 hex head (Grade 5) |
| 3612 | SCREW No. 10-16 X 1/2 TORX pan head, self-tapping |
| 3656 | SCREW No. 8-32 X 3/8 TORX pan head (Grade 5) |
| 36706-01K | BOLT M6 X 1.0 X 30 hex flange head |
| 3684 | SCREW 5/16-18 X 1 TORX pan head |
| 3699D | SCREW 3/8-16 X 2.0 hex flange head (Grade 8) |
| 3787 | BOLT 1/4-20 X 3/4 hex head (Grade 5) |
| 3892 | SCREW 1/4 X 5/8 self-tapping |
| 3901 | SCREW 1/4-20 X 1.0 hex flange head (Grade 5) |
| 3929 | SCREW 5/16-18 X 1/2 hex head |
| 3976 | SCREW 1/4-20 X 1 hex flange head (Grade 5) |
| 3983 | SCREW 3/8-16 X 1-5/8 hex flange head, with washer (Grade 8) |
| 4015 | SCREW 1/4-20 X 7/8 socket button head (Grade 8) |
| 4132 | SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5) (black) |
| 4240 | SCREW No. 10-24 X 3/16 hex head, with washer |
| 4312C | SCREW M6 X 1.0 X 14mm, SEMS flange head (stainless) |
| 43567-92 | SCREW 3/8-16 X 1 TORX pan head, with lockpatch |
| 4419 | SCREW 5/16-18 X 1-3/4 SEMS hex head |
| 45500118 | SCREW M14 X 1.25 X 25 hex socket cap (zinc) |
| 45500132 | SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8) |
| 4597M | SCREW M10 X 1.5 X 30 hex socket head |
| 4612 | SCREW 10-24 X 3/4 TORX pan head |
| 46509-01 | WASHER 30 X 43 X 2.3 |
| 4685 | SCREW 3/8-16 X 1 hex flange |
| 4688 | SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with lock patch |
| 4705 | SCREW 1/4-20 X 11/16 SEMS socket head, with lockpatch |
| 4718A | SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch |
| 4740A | SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch (Grade 8) |
| 4741A | SCREW 1/4-20 X 1 socket head, with lockpatch |
| 4813A | SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch |
| 4816A | SCREW 5/16-18 X 1-1/2 socket head |
| 4820A | SCREW 1/4-20 X 2 socket head |
| 4822A | SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch |
| 4856 | SCREW No. 10-24 X 1/2 socket head (stainless) |
| 4871 | SCREW 1/4-20 X 29/64 flange head |
| 4879M | SCREW M6 X 1.0 X 16 button head 4mm hex |
| 4916 | SCREW 5/16-18 X 1.0 hex socket head shoulder |
| 4924 | SCREW 3/8-16 X 7/8 TORX button head (zinc plate) (Grade 5) |
| 57300388 | SCREW 3/8-16 X 4.5 hex head (Grade 5) |
| 6036 | WASHER 17/64 X 1 X 1/16 |
| 6101 | WASHER 17/64 X 27/64 X 1/16 |
| 6116 | WASHER 5/16 X 16/16 X 1/8 |
| 6119 | WASHER 1/4 X 9/16 X 1/16 |
| 6139 | WASHER 3/8 X 7/8 X 1/16 |
| 6150W | WASHER 3/16 X 3/8 X 1/16 |
| 6220W | WASHER 1/4 X 7/16 X 1/32 |
| 6416 | WASHER 3/8 X 1 X 5/64 |
| 6421 | WASHER 21/64 X 1-1/2 X 1/16 offset 7/32 |
| 6497HW | WASHER 29/64 X 1-1/8 X 1/16 |
| 6532 | WASHER 3/8 X 3/4 X 1/8 |
| 6590HW | WASHER 1/2 X 1-1/8 X 3/32 |
| 6702 | WASHER 5/16 X 11/16 X 1/16 |
| 6703 | WASHER 1/4 X 5/8 X 1/16 |
| 68042-99 | SCREW No. 8-32 X 3/8 TORX head |
| 7038 | LOCKWASHER 3/8 |
| 703B | SCREW 1/4-20 X 7/16 TORX socket button head |
| 7041 | LOCKWASHER 5/16 |
| 7155 | LOCKWASHER 5/16 internal tooth (black) |
| 7330 | ACORN NUT 5/16-24 (chrome) |
| 7331 | ACORN NUT 5/16-24 |
| 7352 | ACORN NUT 5/16-24 (black) |
| 7434 | WASHER 1/4 X 1-29/64 X 1/16 nylon |
| 7495 | NUT M6 X 1.0 flange lock |
| 7499 | NUT 1/4-20 large flange |
| 7531 | LOCKNUT 5/16-18 X 9/32 X 1/2 flange |
| 7549A | ACORN NUT 5/16-18 X 9/16 X 1/2 |
| 7586 | JAMNUT 9/32-28 X 1/4 |
| 7593 | NUT 5/16-24 flange |
| 7601 | LOCKNUT 3/8-16 flange |
| 7686 | LOCKNUT 1/4-20 X 5/16 X 7/16 |
| 7687 | NUT 3/8-16 X 25/64 (Grade 2) |
| 7716 | LOCKNUT 1/4-20 X 7/16 flange |
| 7792 | NUT 1/4-20 X 1/4 (Grade 2) |
| 780 | SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8) |
| 7825 | LOCKNUT 7/16-20 X 7/16 X 5/8 |
| 786A | BOLT 5/16-18 X 2-1/4 hex head (Grade 5) |
| 7880 | NUT 1/2-13 X 7/16 X 3/4 (Grade 2) |
| 7900 | CLIP NUT 1/4-20 |
| 791A | SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5) |
| 8020 | NUT M24 X 2.0 X 15 |
| 8144 | NUT CLIP 5/16-18 |
| 856A | SCREW 5/16-24 X 1 socket head (Grade 8) |
| 8973 | WASHER 1-1/4 X 1-53/64 X 9/64 |
| 940 | SCREW 1/4-20 X 3/4 TORX button head |
| 942 | SCREW 1/4-20 X 3/4 TORX button head, with lockpatch (Grade 8) |
| 945 | SCREW 1/4-20 X 2-1/2 TORX button head (Grade 8) |
| Index No. | Part No. | Description | Model(s) |
| 1 | 16200896 | ENGINE ASSEMBLY, complete (Milwaukee-eight™ 117) (black/chrome) | FLHX, FLTRX |
| 1 | 16200898 | ENGINE ASSEMBLY, complete (Milwaukee-eight™ 117) (black/black) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 16501116A | GASKET, cylinder head (2) | FLHX, FLTRX |
| 5 | 16500332A | GASKET, cylinder base (2) | FLHX, FLTRX |
| 6 | 16500983 | CYLINDER HEAD, rear, with 3, 9, 10, 11, 12, 13, 14, 15 and 65324-83B (black) | FLHX, FLTRX |
| 6 | 16500987 | CYLINDER HEAD, front, with 3, 9, 10, 11, 12, 13, 14, 15 and 65324-83B (black) | FLHX, FLTRX |
| 8 | 16800387 | CYLINDER ASSEMBLY, front, with 16589-99B (black) | FLHX, FLTRX |
| 8 | 16800390 | CYLINDER ASSEMBLY, rear, with 16589-99B (black) | FLHX, FLTRX |
| 10 | 18000034A | EXHAUST VALVE (4) | FLHX, FLTRX |
| 11 | 18100140 | VALVE SPRING (8) | FLHX, FLTRX |
| 16 | 62800067 | FITTING, includes O-ring (4) | FLHX, FLTRX |
| 17 | 11900197 | O-RING (4) | FLHX, FLTRX |
| 18 | 26900305 | HOSE, head to head (1) | FLHX, FLTRX |
| 19 | 10800212 | CLAMP (2) | FLHX, FLTRX |
| 20 | 25701945 | GASKET KIT, top end | FLHX, FLTRX |
| 20 | 25701944 | GASKET KIT, engine overhaul | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 5 | 26900301 | HOSE, rear head inlet (late) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 13 | 12700198 | BRACKET, coolant pump (late) | FLHX, FLTRX |
| 15 | 26800266 | RADIATOR (late) | FLHX, FLTRX |
| 19 | 26900350 | HOSE, coolant, radiator outlet (late) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 27 | 25701513 | COVER, cam sensor | FLHX, FLTRX |
| 28 | 25701511 | COVER, cam timer (black) without insert | FLHX, FLTRX |
| 28 | 25701664 | COVER, cam timer (chrome) without insert | FLHX, FLTRX |
| 28 | 14101990 | INSERT, cam timer cover (black/silver) (not shown) | FLHX, FLTRX |
| 29 | 4015 | SCREW (3) | FLHX, FLTRX |
| 30 | 32700162 | SENSOR, camshaft proximity, includes 11289A | FLHX, FLTRX |
| 31 | 69203403 | HARNESS, cam sensor, includes 33, 34, 35, 36, 37, 38 | FLHX, FLTRX |
| 35 | 69203106 | SEAL PIN (3) | FLHX, FLTRX |
| 36 | 69201301 | WIRE SEAL (3) | FLHX, FLTRX |
| 37 | 69201406 | HOUSING, 3 way socket | FLHX, FLTRX |
| 38 | 69201407 | TERMINAL, socket (3) | FLHX, FLTRX |
| 39 | 25700370A | GASKET, camshaft cover | FLHX, FLTRX |
| 40 | 25701666 | CAMSHAFT COVER (gloss black) | FLHX, FLTRX |
| 40 | 25701668 | CAMSHAFT COVER (chrome) | FLHX, FLTRX |
| 41 | 18400117 | ROTOR CUP, cam position | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 10500071 | SCREW, fuel rail (2) | FLHX, FLTRX |
| 5 | 27300198 | GASKET, throttle body to manifold | FLHX, FLTRX |
| 6 | 27300199 | FLANGE, intake (front) | FLHX, FLTRX |
| 7 | 27300201 | FLANGE, intake (rear) | FLHX, FLTRX |
| 8 | 27300200 | SEAL, intake (2) | FLHX, FLTRX |
| 9 | 27300196 | INTAKE MANIFOLD ASSEMBLY, with 12100069 | FLHX, FLTRX |
| 10 | 27300197 | THROTTLE BODY ASSEMBLY | FLHX, FLTRX |
| 11 | 27200094 | THROTTLE BODY MANIFOLD KIT, with 27300197, 27400071 and 91800058 | FLHX, FLTRX |
| 12 | 27400065 | FUEL INJECTOR ASSEMBLY, with O-rings (2) | FLHX, FLTRX |
| 15 | 61200096 | FUEL LINE, with 11900130, 10200544 and 60900061 | FLHX, FLTRX |
| 16 | 91800058 | HARDWARE KIT, induction module | FLHX, FLTRX |
| 17 | 10200544 | SCREW, fuel line to fuel rail | FLHX, FLTRX |
| 18 | 11900130 | O-RING, fuel line | FLHX, FLTRX |
| 19 | 60900061 | CAP, fuel line | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 29000364 | SEAL, airbox to throttlebody | FLHX, FLTRX |
| 2 | 29000363A | SEAL, airbox cover | FLHX, FLTRX |
| 3 | 29000373 | AIRBOX ASSEMBLY | FLHX, FLTRX |
| 4 | 29400444A | FILTER, air intake | FLHX, FLTRX |
| 5 | 10201361 | SCREW, throttle body (3) | FLHX, FLTRX |
| 6 | 4685 | SCREW, airbox to cylinder head (2) | FLHX, FLTRX |
| 7 | 61301285 | TRIM, air inlet | FLHX, FLTRX |
| 8 | 10200846 | SCREW, air inlet trim (2) | FLHX, FLTRX |
| 9 | 10201377 | SCREW, airbox cover | FLHX, FLTRX |
| 10 | 61400705 | TRIM, insert | FLHX, FLTRX |
| 11 | 62700324 | TUBE, breather | FLHX, FLTRX |
| 13 | 61301353 | COVER, airbox, includes 29108-08 (chrome) | FLHX, FLTRX |
| 13 | 61301354 | COVER, airbox, includes 29108-08 (black) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 29900114 | STATOR ASSEMBLY, 3-phase, 56 A | FLHX, FLTRX |
| 8 | 74700048 | VOLTAGE REGULATOR ASSEMBLY | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 945 | SCREW | FLHX, FLTRX |
| 3 | 32001-08A | SPARK PLUG CABLE, outer, front and rear cylinders (2) | FLHX, FLTRX |
| 4 | 12200154 | RETENTION CLIP (2) | FLHX, FLTRX |
| 5 | 16400087B | BRACKET, engine mount, mid | FLHX, FLTRX |
| 6 | 31600081 | SPARK PLUG CABLE, inner, front cylinder, with 10177 | FLHX, FLTRX |
| 7 | 31600194 | IGNITION COIL | FLHX, FLTRX |
| 8 | 31600195 | SPARK PLUG CABLE, inner, rear cylinder, with 10177 | FLHX, FLTRX |
| 9 | 41001351 | ELECTRONIC CONTROL MODULE (ECM), Requires Digital Technician II programming. | FLHX, FLTRX |
| 12 | 16400109 | BRACKET, engine mount, mid, includes sensor spacer (1) | FLHX, FLTRX |
| 13 | 29900147 | KIT, double stud service kit, includes bracket, studs and nuts (1) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 4015 | SCREW | FLHX, FLTRX |
| 2 | 4705 | SCREW | FLHX, FLTRX |
| 16 | 32700162 | SENSOR, cam position, includes 11289A | FLHX, FLTRX |
| 17 | 11289A | O-RING, cam position sensor | FLHX, FLTRX |
| 18 | 32700113 | SENSOR, knock (secured by coil mount bracket screws) (2) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 34 | 33900265 | SHIFTER CAMSHAFT ASSEMBLY, with 11389, 11575 and bearing | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 5 | 11900192 | ORING, gear position sensor | FLHX, FLTRX |
| 19 | 24400378 | BEARING HOUSING ASSEMBLY, with 221, 8970A, 16583-00B, 35087-99A and 11000010 (black) | FLHX, FLTRX |
| 20 | 35654-06A | GASKET, bearing housing | FLHX, FLTRX |
| 21 | 25701479 | GASKET, cover | FLHX, FLTRX |
| 28 | 32700166 | SENSOR, gear position, includes 11900192 | FLHX, FLTRX |
| 30 | 25800168 | COVER (chrome) | FLHX, FLTRX |
| 30 | 25800165 | COVER (black) | FLHX, FLTRX |
| 31 | 62700150 | PLUG, transmission, with 11900092 | FLHX, FLTRX |
| 32 | 25800170 | COVER, gear position sensor | FLHX, FLTRX |
| 36 | 69203188 | HARNESS, gear position sensor, includes 37, 38, 39, 40, 41 | FLHX, FLTRX |
| 37 | 69201441 | HOUSING, socket, 4 way | FLHX, FLTRX |
| 38 | 69201407 | TERMINAL, socket (6) | FLHX, FLTRX |
| 39 | 69201427 | SEAL PIN | FLHX, FLTRX |
| 40 | 69201301 | WIRE SEAL | FLHX, FLTRX |
| 41 | 69201406 | HOUSING, 3 way socket | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 62700136 | DIPSTICK ASSEMBLY, with 11120 | FLHX, FLTRX |
| 8 | 29400448 | TRANSMISSION COVER, top, with 34800071 and 34800043 (black) | FLHX, FLTRX |
| 10 | 12100203 | PLUG | FLHX, FLTRX |
| 16 | 25700452A | GASKET, oil pan | FLHX, FLTRX |
| 17 | 34800071 | GASKET, upper cover | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 28 | 24400409 | GEAR PACK SUBASSEMBLY, with input shaft and gears, countershaft and gears (black) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 21 | 37000377 | CLUTCH ASSEMBLY, complete, with 3, 11, 13, 14, 15, 16, 17, 18, 19, 20, 22 and 23 | FLHX, FLTRX |
| 22 | 37000382 | CLUTCH DISC KIT | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 16 | 25700746 | GASKET KIT, inner primary with 11105, 12052A, 25700378, 25700455, 37909-90, 786A and clutch cover gasket | FLHX, FLTRX |
| 18 | 25701556 | COVER, clutch 117 (black) | FLHX, FLTRX |
| 18 | 25701561 | COVER, clutch 117 (chrome) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 41600382 | BRACKET, mounting, clutch and brake lines | FLHX |
| 8 | 10201173 | SCREW | FLHX |
| 9 | 10201376 | SCREW | FLHX |
| 10 | 12200271 | CLIP, clutch and coolant reservoir | FLHX |
| 11 | 36700286 | CLUTCH LEVER ASSEMBLY (satin black) | FLHX |
| 11 | 36700296 | CLUTCH LEVER ASSEMBLY (polished) | FLHX |
| 12 | 36700288 | BRACKET, hand lever (satin black) | FLHX |
| 13 | 10076 | CLAMP | FLHX |
| 14 | 36700291 | COVER, switch | FLHX |
| 15 | 37200395A | ADJUSTER BUTTON, clutch cable | FLHX |
| 16 | 37200396 | CONNECTOR BODY, clutch cable | FLHX |
| 17 | 37200437 | CLUTCH CABLE, lower | FLHX |
| 19 | 37200574A | CABLE, clutch control, with 37200395A and 37200396 | FLHX |
| 20 | 71400141 | SWITCH, clutch lever position sensor | FLHX |
| 21 | 10201368 | SCREW | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 10201173 | SCREW | FLTRX |
| 8 | 10201376 | SCREW | FLTRX |
| 9 | 12200271 | CLIP, clutch and coolant reservoir | FLTRX |
| 10 | 36700286 | CLUTCH LEVER ASSEMBLY (satin black) | FLTRX |
| 10 | 36700296 | CLUTCH LEVER ASSEMBLY (polished) | FLTRX |
| 11 | 36700288 | BRACKET, hand lever (satin black) | FLTRX |
| 12 | 41600382 | BRACKET, mounting, clutch and brake lines | FLTRX |
| 13 | 36700291 | COVER, switch | FLTRX |
| 14 | 37200395A | ADJUSTER BUTTON, clutch cable | FLTRX |
| 15 | 37200396 | CONNECTOR BODY, clutch cable | FLTRX |
| 16 | 37200437 | CLUTCH CABLE, lower | FLTRX |
| 18 | 37200592 | CABLE, clutch control, upper, with 37200395A and 37200396 | FLTRX |
| 19 | 71400141 | SWITCH, clutch lever position sensor | FLTRX |
| 20 | 10201368 | SCREW | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 41700367 | BUTTON, anti-bubble | FLHX, FLTRX |
| 4 | 41700625 | SCREW, brake master cylinder | FLHX, FLTRX |
| 5 | 41701089 | MASTER CYLINDER ASSEMBLY, front brake (black lever) | FLHX, FLTRX |
| 5 | 41701067 | MASTER CYLINDER ASSEMBLY, front brake (polished lever) | FLHX, FLTRX |
| 6 | 41701406 | LEVER KIT, front brake (black) | FLHX, FLTRX |
| 6 | 41701407 | LEVER KIT, front brake (polished) | FLHX, FLTRX |
| 7 | 41701125 | COVER KIT, master cylinder (black) | FLHX, FLTRX |
| 8 | 41701131 | PIVOT PIN KIT, with retaining ring (black) | FLHX, FLTRX |
| 9 | 71400196 | SWITCH, brake lever | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 10 | 41600378 | BRACKET, brake line | FLHX, FLTRX |
| 12 | 41600383 | BRACKET, brake line | FLHX, FLTRX |
| 13 | 41800897 | BRAKE LINE, ABS (right) | FLHX |
| 13 | 41800898 | BRAKE LINE, ABS (right) | FLTRX |
| 14 | 41800896 | BRAKE LINE, ABS (left) | FLHX |
| 14 | 41800899 | BRAKE LINE, ABS (left) | FLTRX |
| 15 | 41800888 | BRAKE LINE, ABS (upper) | FLHX |
| 15 | 41800887 | BRAKE LINE, ABS (upper) | FLTRX |
| 16 | 10800227 | CLAMP | FLHX, FLTRX |
| 17 | 10201368 | SCREW | FLHX, FLTRX |
| 19 | 10200686 | SCREW, caddy closure | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 7549A | NUT, acorn | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 5 | 10800227 | CLAMP | FLHX, FLTRX |
| 16 | 41100122 | ABS MODULE (EHCU) | FLHX, FLTRX |
| 17 | 41600386 | BRACKET, ABS brake line alignment | FLHX, FLTRX |
| 18 | 41600384 | TUBE CLIP (upper) | FLHX, FLTRX |
| 19 | 41800890 | BRAKE LINE, ABS module to master cylinder, with 10065, 416000384, 41600385 | FLHX, FLTRX |
| 20 | 41800891 | BRAKE LINE, ABS module to caliper | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 43000300A | AXLE | FLHX, FLTRX |
| 18 | 41500158A | BRAKE DISC (2) | FLHX, FLTRX |
| 19 | 41500196 | ROTOR BOLT ASSEMBLY, shoulder, with wave washer (10) | FLHX, FLTRX |
| 23 | 43300926 | WHEEL, front, cast, without bearings and sleeve, 5 spoke, 19 inch (black/machined) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 20 | 40900905 | WHEEL, cast, without bearings and sleeve, 5 spoke, 18 in (black/machined) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 10201326 | SCREW (7) | FLHX, FLTRX |
| 4 | 41600390 | BRACKET, brakeline | FLHX, FLTRX |
| 6 | 45900318A | BRACKET, upper fork stem | FLHX |
| 7 | 45900317 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLHX |
| 9 | 881A | SCREW | FLHX, FLTRX |
| 10 | 45700070 | WASHER, stem | FLHX, FLTRX |
| 14 | 45900334A | BRACKET, upper fork stem | FLTRX |
| 15 | 69203096A | BRACKET, electrical mount | FLTRX |
| 16 | 11785 | CLIP, push in | FLTRX |
| 20 | 45900335 | BRACKET ASSEMBLY, lower fork, with bearing cone and dirt guard | FLTRX |
| 21 | 10200686 | SCREW, caddy closure | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 10 | 45400335 | FORK ASSEMBLY, complete, (left) (polished) | FLHX, FLTRX |
| 10 | 45400337 | FORK ASSEMBLY, complete (left) (black) | FLHX, FLTRX |
| 11 | 45400336 | FORK ASSEMBLY, complete (right) (polished) | FLHX, FLTRX |
| 11 | 45400338 | FORK ASSEMBLY, complete (right) (black) | FLHX, FLTRX |
| 12 | 45500839 | SLIDER, fork (left) (polished) | FLHX, FLTRX |
| 12 | 45500841 | SLIDER, fork (left) (black) | FLHX, FLTRX |
| 13 | 45500840 | SLIDER, fork (right) (polished) | FLHX, FLTRX |
| 13 | 45500842 | SLIDER, fork (right) (black) | FLHX, FLTRX |
| 17 | 45500856 | SPRING, fork (2) | FLHX, FLTRX |
| 18 | 45500849 | DAMPER TUBE, with 22000031 (2) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 54000305 | REAR SHOCK ABSORBER (right) | FLHX, FLTRX |
| 5 | 54000304 | REAR SHOCK ABSORBER, with 54000141 (left) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 12200271 | CLIP | FLHX, FLTRX |
| 13 | 47000344 | FRAME, main, with bearing cups (also order 45700009) | FLHX, FLTRX |
| 14 | 49000239 | ENGINE GUARD (chrome) | FLHX, FLTRX |
| 14 | 49000240 | ENGINE GUARD (black) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 6 | 61301292 | TRIM, side cover (right) | FLHX, FLTRX |
| 7 | 61301291 | TRIM, side cover (left) | FLHX, FLTRX |
| 8 | 57200391 | DEFLECTOR, air (left) (BRZ) | FLHX, FLTRX |
| 9 | 57200392 | DEFLECTOR, air (right) (BRZ) | FLHX, FLTRX |
| 10 | 69202720A | WIRE TROUGH, with 69202637 (main harness) | FLHX, FLTRX |
| 11 | 69202636A | COVER, wire trough (main harness) | FLHX, FLTRX |
| 13 | 57200417 | KIT, AIR DEFLECTOR,, mid frame, with 3787, 6036, 8194, 57200391, 57200392 (BRZ) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200004 | SCREW, button head SEMS (3) | FLHX, FLTRX |
| 3 | 4879M | SCREW (2) | FLHX, FLTRX |
| 4 | 52000631 | SEAT | FLHX, FLTRX |
| 9 | 52000646 | BRACKET, seat mount, rear | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 3612 | SCREW (6) | FLHX, FLTRX |
| 10 | 59500519 | STUD PLATE | FLHX, FLTRX |
| 14 | 67801341 | STUD PLATE (2) | FLHX, FLTRX |
| 15 | 60463-09B | FENDER, rear (prime) | FLHX, FLTRX |
| 17 | 67801344 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, bracket and amber turnsignal (right) | FLHX, FLTRX |
| 18 | 67801345 | TAIL LAMP/TURN SIGNAL ASSEMBLY, with 10200628, bracket, and amber turnsignal (left) | FLHX, FLTRX |
| 19 | 10200628 | SCREW (6) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 69203119 | BRACKET, electrical mount, license plate | FLHX, FLTRX |
| 5 | 67900655 | LAMP ASSEMBLY, with 72905-11 | FLHX, FLTRX |
| 6 | 67900648 | COVER, license plate lamp (black) | FLHX, FLTRX |
| 8 | 72905-11 | HOUSING, two-way pin | FLHX, FLTRX |
| 9 | 67900649 | GASKET, license plate holder | FLHX, FLTRX |
| 10 | 67900640 | BRACKET, license plate | FLHX, FLTRX |
| 12 | 10201386 | SCREW (2) | FLHX, FLTRX |
| 13 | 10201279 | SCREW (2) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLHX, FLTRX |
| 2 | 61400716 | BOOT, tank bracket (right) | FLHX, FLTRX |
| 3 | 61400717 | BOOT, tank bracket (left) | FLHX, FLTRX |
| 4 | 14101841 | MEDALLION (left) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLHX |
| 4 | 14101942 | MEDALLION (left) (with black trim) (billiard gray, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLHX |
| 4 | 14101841 | MEDALLION (left) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLTRX |
| 4 | 14101942 | MEDALLION (left) (with black trim) (billiard gray, vivid black, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLTRX |
| 5 | 14101842 | MEDALLION (right) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLHX |
| 5 | 14101943 | MEDALLION (right) (with black trim) (billiard gray, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLHX |
| 5 | 14101842 | MEDALLION (right) (with chrome trim) (billiard gray, vivid black, white onyx pearl, whiskey fire, blue burst, alpine green) | FLTRX |
| 5 | 14101943 | MEDALLION (right) (with black trim) (billiard gray, vivid black, atlas silver metallic, white onyx pearl, whiskey fire, sharkskin blue, blue burst) | FLTRX |
| 6 | 10201318 | SCREW, filler neck (6) | FLHX, FLTRX |
| 7 | 61000997 | FILLER NECK (black) includes 61100207 | FLHX, FLTRX |
| 8 | 61100207 | GASKET, filler neck | FLHX, FLTRX |
| 9 | 61000986 | FUEL TANK, prime | FLHX, FLTRX |
| 10 | 10500167 | PLUG, drain, fuel tank, includes O-ring | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 60800120 | HOSE, vapor vent to mid-point | FLHX, FLTRX |
| 5 | 61100204 | LINE, vapor vent, mid-point to atmosphere | FLHX, FLTRX |
| 6 | 61100202 | HOSE, overfill, upper | FLHX, FLTRX |
| 7 | 61100206 | LINE, overfill, lower | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10200032 | SCREW | FLHX, FLTRX |
| 4 | 70900948 | GASKET, fuel filler housing | FLHX, FLTRX |
| 5 | 14101851 | CONSOLE INSERT | FLHX |
| 5 | 14101919 | CONSOLE INSERT | FLTRX |
| 6 | 70901170 | TRIM, console (sold as 1 part to be split to service both sides of console) | FLHX, FLTRX |
| 7 | 70901163 | CONSOLE ASSEMBLY (chrome), includes 14101851, 70900948, 70901170 | FLHX |
| 7 | 70901087 | CONSOLE ASSEMBLY (black) includes 14101851, 70900948, 70901170) | FLHX |
| 7 | 70901165 | CONSOLE ASSEMBLY (chrome), includes 14101919, 70900948, 70901170 | FLTRX |
| 7 | 70901164 | CONSOLE ASSEMBLY (black) includes 14101919, 70900948, 70901170) | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201216 | SCREW (5) | FLHX, FLTRX |
| 2 | 61200091A | PUMP ASSEMBLY, fuel, complete, includes 61200097 | FLHX, FLTRX |
| 3 | 61200097 | GASKET, fuel pump | FLHX, FLTRX |
| 4 | 61200100 | PRESSURE REGULATOR KIT, fuel | FLHX, FLTRX |
| 5 | 61200101 | LEVEL SENDER, fuel | FLHX, FLTRX |
| 6 | 61200102 | FILTER KIT, fuel | FLHX, FLTRX |
| 7 | 61200110 | FITTING, fuel outlet check valve, includes o-ring | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 12200278 | CLIP, evap lines (2) | FLHX, FLTRX |
| 6 | 60800109 | HOSE, mid-point to canister | FLHX, FLTRX |
| 7 | 60800110 | HOSE, canister to purge solenoid | FLHX, FLTRX |
| 8 | 60800111 | HOSE, purge solenoid to induction module | FLHX, FLTRX |
| 10 | 60800120 | HOSE, fuel tank vapor valve to mid-point | FLHX, FLTRX |
| 11 | 61100202 | HOSE, overfill, upper | FLHX, FLTRX |
| 12 | 61100206 | HOSE, overfill, lower | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 8 | 10201425 | HARDWARE KIT, windshield, includes 4 screws and 4 washers | FLHX |
| 10 | 29200163 | AIR DUCT, cover, molded | FLHX |
| 11 | 29200166 | AIR DUCT, upper | FLHX |
| 12 | 29200185 | BEZEL ASSEMBLY, air duct, includes 10200721, 12200025, 29200193 | FLHX |
| 13 | 29200193 | END CAP, air duct button | FLHX |
| 14 | 57001670 | TRIM, fairing chin | FLHX |
| 15 | 57001941 | OUTER FAIRING, unpainted, includes 7900 | FLHX |
| 16 | 57400521 | WINDSHIELD, smoked, short | FLHX |
| 17 | 57400530 | BRACKET, windshield, right | FLHX |
| 18 | 57400531 | BRACKET, windshield, left | FLHX |
| 19 | 57400656 | MOUNT, windshield (2) | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 67700673 | HEADLAMP ASSEMBLY, LED, includes 1, 2, 5, 6, 8, 9, 10, 11 | FLHX |
| 8 | 67700669 | BRACKET, headlamp, mounting | FLHX |
| 9 | 67700670 | BRACKET, adjuster, headlamp | FLHX |
| 10 | 67700671 | SCREW, ball end adjuster, headlamp | FLHX |
| 11 | 67700672 | RETAINER, adjuster screw, headlamp | FLHX |
| 12 | 67801330 | TURN SIGNAL ASSEMBLY, LED, front, right | FLHX |
| 13 | 67801331 | TURN SIGNAL ASSEMBLY, LED, front, left | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 2933 | SCREW (2) | FLTRX |
| 2 | 4871 | SCREW (2) | FLTRX |
| 3 | 12200025 | CLIP (3) | FLTRX |
| 4 | 14101830 | MEDALLION, lock, with 12200025 | FLTRX |
| 5 | 70901099 | NACELLE, cover, left | FLTRX |
| 6 | 70901106 | NACELLE, cover, with 12200025 (right) | FLTRX |
| 7 | 12600358 | FASTENER, push pin | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 5 | 12100141 | GROMMET, rubber (4) | FLTRX |
| 7 | 29200178 | OUTER COVER, air duct, includes 57400658 | FLTRX |
| 8 | 29200180 | OUTLET, air duct, includes 12200025 | FLTRX |
| 9 | 29200181 | VANE, air duct | FLTRX |
| 10 | 29200182 | TOP FLOOR, air duct, includes 10200721, 29200181, 29200189, 29200193 | FLTRX |
| 11 | 29200189 | PILLOW BLOCK, air duct vane | FLTRX |
| 12 | 29200193 | END CAP, air duct button | FLTRX |
| 13 | 57300409 | BRACKET KIT, windshield, includes 10201350, and left and right brackets | FLTRX |
| 14 | 57400658 | MOUNT, windshield isolator (2) | FLTRX |
| 15 | 57400664 | WINDSHIELD, smoked | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 57001942 | FAIRING, outer, unpainted, includes 7900 | FLTRX |
| 8 | 57001986 | HINGE SERVICE KIT, wing spoiler, includes torque hinge, snap hinge, hinge plug and set screw (2) | FLTRX |
| 9 | 57200375B | WING ASSEMBLY, adjustable spoiler, left, complete | FLTRX |
| 10 | 57200376B | WING ASSEMBLY, adjustable spoiler, right, complete | FLTRX |
| 11 | 57300393 | PANEL, fairing filler | FLTRX |
| 12 | 67700660 | HEADLAMP, assembly, LED | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 5 | 12200025 | CLIP, panel mount | FLHX |
| 6 | 12600067 | FASTENER , plastic, inner fairing (2) | FLHX |
| 7 | 14101830 | MEDALLION , fork lock, includes 12200025 | FLHX |
| 8 | 29200080 | CLIP, panel mount (2) | FLHX |
| 9 | 29200203 | BUMPER, air duct (2) | FLHX |
| 10 | 56000319 | MIRROR, fairing mounted, left, includes 56000338, 56000327 (NOT SHOWN) | FLHX |
| 10 | 56000322 | MIRROR, fairing mounted, right, includes 56000338, 56000328 | FLHX |
| 11 | 56000337 | WASHER, mirror mount (2) | FLHX |
| 12 | 56000338 | GASKET, mirror base (2) | FLHX |
| 13 | 56000327 | BASE, mirror, left (NOT SHOWN) | FLHX |
| 13 | 56000328 | BASE, mirror, right | FLHX |
| 15 | 57001899 | FAIRING, inner, unpainted | FLHX |
| 16 | 57001688BYM | DASH, fairing, denim black | FLHX |
| 17 | 57001704 | DEFLECTOR, air, wing, right | FLHX |
| 18 | 57001705 | DEFLECTOR, air, wing, left | FLHX |
| 19 | 57001707A | DEFLECTOR, air, fairing skirt, assembly, std fork | FLHX |
| 20 | 57001774 | DEFLECTOR, air, cap (2) | FLHX |
| 21 | 57001986 | HINGE KIT, includes one friction hinge, one snap hinge, one hinge plug (2) | FLHX |
| 22 | 57300420 | CUSHION, clutch cable | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 58888-98A | BUMPER, media door (2) | FLHX |
| 2 | 10200059 | SCREW (2) | FLHX |
| 3 | 10200721 | SCREW, plastite, speaker volumes (26) | FLHX |
| 4 | 10201339 | SCREW (6) speaker volumes to inner fairing, (2) media compartment to fairing supports (8) | FLHX |
| 5 | 10201340 | SCREW (2) | FLHX |
| 6 | 10201351 | SCREW, speaker enclosure mount (8) | FLHX |
| 7 | 10300268 | WASHER, retaining (2) | FLHX |
| 8 | 12200282 | CLIP, wire, USB-C | FLHX |
| 9 | 47200947 | BRACKET, fairing support (right) | FLHX |
| 10 | 47200948 | BRACKET, fairing support (left) | FLHX |
| 11 | 69203055 | HARNESS, wire, USB-C | FLHX |
| 12 | 76001155A | SPEAKER ENCLOSURE ASSEMBLY (left), includes 10200721 | FLHX |
| 13 | 76001156A | SPEAKER ENCLOSURE ASSEMBLY (right), includes 10200721 | FLHX |
| 14 | 76001162BYM | DOOR, media compartment (denim black) | FLHX |
| 15 | 76001190 | DRAWER, media compartment | FLHX |
| 16 | 76001214 | DAMPER, media compartment drawer (2) | FLHX |
| 17 | 76001215 | LATCH, media compartment drawer | FLHX |
| 18 | 76001260 | LINER, media compartment drawer | FLHX |
| 19 | 76001279 | SPRING AND SPOOL, media compartment drawer (2) | FLHX |
| 20 | 76001293 | COMPARTMENT, media storage, includes 12200282 | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 6 | 69203090 | USB-C CABLE ASSEMBLY | FLTRX |
| 8 | 76001153 | ENCLOSURE, speaker, right, includes 10200721, 11668 | FLTRX |
| 9 | 76001154 | ENCLOSURE, speaker, left, includes 10200721, 11668 | FLTRX |
| 10 | 76001202 | HINGE, media compartment door, right | FLTRX |
| 11 | 76001203 | HINGE, media compartment door, left | FLTRX |
| 12 | 76001206 | COMPARTMENT, media storage, right | FLTRX |
| 13 | 76001207 | COMPARTMENT, media storage, left | FLTRX |
| 14 | 76001316 | LINER, rubber, media compartment, right (not shown) | FLTRX |
| 15 | 76001317 | LINER, rubber, media compartment, left (not shown) | FLTRX |
| 16 | 57001885 | INNER FAIRING (unpainted) | FLTRX |
| 16 | 57001665BYM | INNER FAIRING (denim black) | FLTRX |
| 17 | 76001233BYM | MEDIA DOOR ASSEMBLY (left) (denim black) | FLTRX |
| 18 | 76001234BYM | MEDIA DOOR ASSEMBLY (right) (denim black) | FLTRX |
| 20 | 29200169 | AIR DUCT (left) | FLTRX |
| 21 | 29200168 | AIR DUCT (right) | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 8 | 47200266 | BRACKET, fairing mount | FLTRX |
| 9 | 47200945 | BRACKET, inner fairing support, main | FLTRX |
| 10 | 47200952 | BRACKET, fairing support, lower (black) | FLTRX |
| 12 | 69200702 | GUIDE, main wire harness, left | FLTRX |
| 13 | 69202786 | GUIDE, main wire harness, right | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 4 | 70901090A | INFOTAINMENT CONTROL UNIT, HD, option code 939 (California, Canada, Domestic, HDI) | FLHX, FLTRX |
| 4 | 70901092A | INFOTAINMENT CONTROL UNIT, DAB, option code 940 (Australia, England, HDI) | FLHX, FLTRX |
| 4 | 70901093A | INFOTAINMENT CONTROL UNIT, option code 941 (Brazil, HDI, Japan, China) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 32700167 | SENSOR, TWIST GRIP | FLHX, FLTRX |
| 7 | 69200306 | HOUSING, four-way socket (white) (2) | FLHX, FLTRX |
| 8 | 69200307 | TERMINAL, socket (38) | FLHX, FLTRX |
| 9 | 69201162 | CONNECTOR, six-way socket | FLHX, FLTRX |
| 10 | 69201712 | CONNECTOR, eight-way socket (3) | FLHX, FLTRX |
| 11 | 69203017 | WIRING HARNESS, JUMPER (left) | FLHX, FLTRX |
| 12 | 69203018 | WIRING HARNESS, JUMPER (right) | FLHX, FLTRX |
| 13 | 69203192 | CONNECTOR BOOT (2) | FLHX, FLTRX |
| 14 | 71500715 | HAND CONTROL, includes 3, 18, cover and switchpack (right) (gloss black) | FLHX, FLTRX |
| 15 | 71500713 | HAND CONTROL, includes cover and switchpack (left) (gloss black) | FLHX, FLTRX |
| 16 | 71500611A | HAND CONTROL COVER, rear (right) (gloss black) | FLHX, FLTRX |
| 17 | 71500612 | HAND CONTROL COVER, rear (left) (gloss black) | FLHX, FLTRX |
| 18 | 71500660 | BRIDGE, WIRE (right) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3210A | SCREW (4) | FLHX |
| 11 | 55900361 | CLAMP (upper) | FLHX |
| 15 | 55801445 | HANDLEBAR (black) | FLHX |
| 15 | 55801446 | HANDLEBAR (chrome) | FLHX |
| 16 | 56100586 | HAND GRIP, left (black) | FLHX |
| 17 | 56100587 | HAND GRIP, right (black) | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 3153 | SCREW (black) (4) | FLTRX |
| 1 | 3210A | SCREW (bright) (4) | FLTRX |
| 10 | 55801336 | HANDLEBAR (black) | FLTRX |
| 10 | 55801459 | HANDLEBAR (chrome) | FLTRX |
| 11 | 55900302 | CLAMP, upper (black) | FLTRX |
| 11 | 55900301 | CLAMP, upper (chrome) | FLTRX |
| 12 | 55900300 | RISER, handlebar (black) | FLTRX |
| 12 | 55900299 | RISER, handlebar (chrome) | FLTRX |
| 13 | 69200224 | WIRE HARNESS, triple clamp, ground jumper, with 9853, 72053-92, 72241-94A and 69203195 | FLTRX |
| 14 | 69203195 | TERMINAL, ring | FLTRX |
| 15 | 56100586 | HAND GRIP, left (black) | FLTRX |
| 16 | 56100587 | HAND GRIP, right (black) | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 25 | 64901310 | MUFFLER (left) (chrome) (CAL, CAN, DOM) | FLHX, FLTRX |
| 25 | 64900953 | MUFFLER (left) (chrome) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 25 | 64901314 | MUFFLER (left) (black) (CAL, CAN, DOM) | FLHX, FLTRX |
| 25 | 64900955 | MUFFLER (left) (black) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 26 | 64901311 | MUFFLER (right) (chrome) (CAL, CAN, DOM) | FLHX, FLTRX |
| 26 | 64900952 | MUFFLER (right) (chrome) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 26 | 64901315 | MUFFLER (right) (black) (CAL, CAN, DOM) | FLHX, FLTRX |
| 26 | 64900954 | MUFFLER (right) (black) (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX, FLTRX |
| 33 | 65600451 | HEADER ASSEMBLY, catalytic (CAL, CAN, DOM) (chrome) | FLHX, FLTRX |
| 38 | 65900017 | GASKET, left (AUS, AU2, BRZ, ENG, EN2, HDI, HD4, JPN, JP2, IN2, AZN, CHN) (2) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| 8 | 69201652 | CONNECTOR, four-way pin | FLHX |
| 9 | 69201164 | TERMINAL, pin, 22 AWG | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| 11 | 69201652 | CONNECTOR, four-way pin | FLHX |
| 12 | 69201164 | HOUSING, four-way pin | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| 17 | 69201962 | COVER, connector | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| 8 | 69203010A | BRACKET, ECM/fuse block caddy | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202979A | MAIN WIRING HARNESS | FLHX | |
| 8 | 69203519 | COVER, fuse box | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| 3 | 69201287A | BRACKET, mounting | FLTRX |
| 4 | 69202720A | BRACKET, wire trough | FLTRX |
| 5 | 69202636A | COVER, bracket, wire trough | FLTRX |
| 6 | 69203046 | BRACKET, BCM caddy | FLTRX |
| 7 | 69203096 | BRACKET, upper triple clamp caddy | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 69202980A | MAIN WIRING HARNESS | FLTRX | |
| 8 | 69203519 | COVER, fuse box | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202988 | WIRING HARNESS, inner fairing | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 69202986 | WIRING HARNESS, outer fairing (all except China) | FLHX |
| 1 | 69203191 | WIRING HARNESS, outer fairing (China) | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 11 | 69203058 | WIRING HARNESS, rear lighting | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 10201381 | SCREW (4) | FLHX, FLTRX |
| 2 | 2445 | SCREW | FLHX, FLTRX |
| 9 | 66000339 | BATTERY TRAY, includes 66051-08 | FLHX, FLTRX |
| 11 | 69203052 | FUSE HOLDER, two-way | FLHX, FLTRX |
| 12 | 69203123 | WIRE HARNESS, battery positive to starter, with 69203052 | FLHX, FLTRX |
| 14 | 69203011 | BRACKET, BCM | FLHX, FLTRX |
| 15 | 69203624 | BRACKET, harness support (late change) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 69060-90H | HORN KIT | FLHX, FLTRX |
| 4 | 69000125B | BRACKET, horn | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 3 | 76000925 | ANTENNA MODULE, security system | FLHX, FLTRX |
| 6 | 41001501 | BODY CONTROL MODULE (BCM) (except Japan) | FLHX, FLTRX |
| 6 | 41001502 | BODY CONTROL MODULE (BCM) (Japan) | FLHX, FLTRX |
| 8 | 45600135 | LOCKSET, complete, with key, fork lock and saddlebag lock | FLHX, FLTRX |
| 12 | 90300146A | REMOTE CONTROL FOB, 434MHZ (except JPN) | FLHX, FLTRX |
| 12 | 90300145A | REMOTE CONTROL FOB, 315MHZ (JPN) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 15 | 76001484 | AMPLIFIER, four channel | FLHX |
| 16 | 76001327 | SPEAKER GRILLE, left, includes 12200025, 76001252 | FLHX |
| 17 | 76001328 | SPEAKER GRILLE, right, includes 12200025, 76001253 | FLHX |
| 18 | 76001235 | ANTENNA, AM/FM/DAB, for option code 940 (AUS, AU2, ENG, EN2, HDI, HD4) | FLHX |
| 18 | 76001251 | ANTENNA, AM/FM, for option codes 939, 941 (BRZ, CAL, CAN, DOM, HDI, HD4, JPN, JP2, IN2, AZN, CHN) | FLHX |
| 19 | 76001252 | GASKET, speaker grill, left | FLHX |
| 20 | 76001253 | GASKET, speaker grill, right | FLHX |
| Index No. | Part No. | Description | Model(s) |
| 7 | 76000789 | ANTENNA, GPS | FLTRX |
| 9 | 76001484 | AMPLIFIER, four channel | FLTRX |
| 10 | 76001323 | SPEAKER GRILLE, includes 12200025, 76001254 (left) | FLTRX |
| 11 | 76001324 | SPEAKER GRILLE, includes 12200025, 76001255 (right) | FLTRX |
| 12 | 76001235 | ANTENNA, am/fm/dab (Australia, England, HDI) | FLTRX |
| 12 | 76001251 | ANTENNA, am/fm (California, Canada, China, Domestic, HDI, Japan) | FLTRX |
| 13 | 76001254 | GASKET, speaker grille (left) | FLTRX |
| 14 | 76001255 | GASKET, speaker grille (right) | FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 2 | 90202461 | FACEPLATE (left) (chrome) | FLHX, FLTRX |
| 2 | 90202463DH | FACEPLATE (left) (black) | FLHX, FLTRX |
| 2 | 90202460 | FACEPLATE (right) (chrome) | FLHX, FLTRX |
| 2 | 90202462DH | FACEPLATE (right) (black) | FLHX, FLTRX |
| 3 | 57000779 | CLIP (6) | FLHX, FLTRX |
| 4 | 10200147 | SCREW (6) | FLHX, FLTRX |
| 6 | 10200557 | SCREW (6) | FLHX, FLTRX |
| 14 | 45600135 | LOCKSET, complete, with key, fork lock and saddlebag lock | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 18 | 90202454 | SADDLEBAG COVER (right) (unpainted) | FLHX, FLTRX |
| 18 | 90202455 | SADDLEBAG COVER (left) (unpainted) | FLHX, FLTRX |
| 19 | 90202509 | GASKET, cover (2) | FLHX, FLTRX |
| 22 | 90202466 | LATCH ASSEMBLY, with 10200220, 90200899 and 90200901 (right) | FLHX, FLTRX |
| 22 | 90202467 | LATCH ASSEMBLY, with 10200220, 90200900 and 90200901 (left) | FLHX, FLTRX |
| 23 | 90200522 | TETHER, saddlebag (2) | FLHX, FLTRX |
| 26 | 90202889 | SADDLEBAG BOTTOM (right) (unpainted) | FLHX, FLTRX |
| 26 | 90202890 | SADDLEBAG BOTTOM (left) (unpainted) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 2 | 6532 | WASHER (2) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 2 | 14003856 | LABEL, year of manufacturing on or after 1/1/2024 (BRZ) | FLHX, FLTRX |
| Index No. | Part No. | Description | Model(s) |
| 1 | 94000986 | OWNER'S MANUAL (Domestic) | FLHX, FLTRX |
| 1 | 90300146A | REMOTE CONTROL FOB (except Japan) | FLHX, FLTRX |
| 1 | 90300145A | REMOTE CONTROL FOB (Japan) | FLHX, FLTRX |
| 1 | 57200417 | AIR DEFLECTOR KIT, MID-FRAME (See NOTE 2)(BRZ) | FLHX, FLTRX |
| 1 | 14900135 | WRENCH, shock spanner | FLHX, FLTRX |
| 1 | 10201425 | SCREW KIT, windshield | FLHX |
| 1 | 57400521 | WINDSHIELD, short (smoked) | FLHX |
| 1 | 12100141 | GROMMET, windshield, rubber (4) | FLTRX |
| 1 | 57300409 | BRACKET KIT, windshield | FLTRX |
| 1 | 57400664 | WINDSHIELD KIT (black) | FLTRX |
| Part No. | Description |
| 10006 | |
| 10039 | |
| 10065 | |
| 10076 | |
| 10081 | |
| 1009M | |
| 10100062 | |
| 10100178 | |
| 10102 | |
| 10147 | |
| 10177 | |
| 10200004 | |
| 10200032 | |
| 10200059 | |
| 10200060 | |
| 10200063 | |
| 10200064 | |
| 10200065 | |
| 10200103 | |
| 10200120 | |
| 10200141 | |
| 10200147 | |
| 10200217 | |
| 10200220 | |
| 10200223 | |
| 10200303 | |
| 10200308 | |
| 10200343 | |
| 10200344 | |
| 10200350 | |
| 10200373 | |
| 10200393 | |
| 10200408A | |
| 10200414 | |
| 10200422 | |
| 10200429 | |
| 10200446 | |
| 10200463 | |
| 10200503 | |
| 10200533 | |
| 10200544 | |
| 10200546 | |
| 10200557 | |
| 10200569 | |
| 10200628 | |
| 10200686 | |
| 10200721 | |
| 10200846 | |
| 10200890 | |
| 10201096 | |
| 10201167 | |
| 10201173 | |
| 10201187 | |
| 10201188 | |
| 10201216 | |
| 10201279 | |
| 10201318 | |
| 10201326 | |
| 10201339 | |
| 10201340 | |
| 10201350 | |
| 10201351 | |
| 10201361 | |
| 10201368 | |
| 10201370 | |
| 10201376 | |
| 10201377 | |
| 10201381 | |
| 10201385 | |
| 10201386 | |
| 10201389 | |
| 10201394 | |
| 10201402 | |
| 10201425 | |
| 10201426 | |
| 10264 | |
| 10300268 | |
| 10340B | |
| 10400034 | |
| 10500015 | |
| 10500031 | |
| 10500069 | |
| 10500071 | |
| 10500167 | |
| 10600007 | |
| 10600091 | |
| 1062 | |
| 10800025A | |
| 10800182 | |
| 10800201 | |
| 10800212 | |
| 10800227 | |
| 10900015A | |
| 10991A | |
| 10998 | |
| 11000010 | |
| 11000050 | |
| 11000101 | |
| 11000134 | |
| 11000139 | |
| 11081A | |
| 11082A | |
| 11096 | |
| 11100068 | |
| 11105 | |
| 11120 | |
| 11132A | |
| 11145A | |
| 11150 | |
| 11161 | |
| 11177A | |
| 11179 | |
| 11201 | |
| 11207A | |
| 11289A | |
| 11293 | |
| 11304 | |
| 11389 | |
| 11575 | |
| 11599A | |
| 11600001 | |
| 11600009 | |
| 11615 | |
| 11650 | |
| 11668 | |
| 11779 | |
| 11785 | |
| 11843 | |
| 11848 | |
| 11891 | |
| 11900010 | |
| 11900021 | |
| 11900092 | |
| 11900103 | |
| 11900130 | |
| 11900155 | |
| 11900172 | |
| 11900179 | |
| 11900180 | |
| 11900192 | |
| 11900197 | |
| 11902 | |
| 11936 | |
| 12052A | |
| 12074 | |
| 12077 | |
| 12100007 | |
| 12100069 | |
| 12100141 | |
| 12100203 | |
| 12100208 | |
| 12100212 | |
| 12102 | |
| 12200025 | |
| 12200144 | |
| 12200154 | |
| 12200181 | |
| 12200221 | |
| 12200271 | |
| 12200278 | |
| 12200282 | |
| 12400099 | |
| 12500014 | |
| 12500015 | |
| 12500016 | |
| 12500024 | |
| 12600032 | |
| 12600067 | |
| 12600116 | |
| 12600197 | |
| 12600358 | |
| 12600360 | |
| 12600362 | |
| 12600369 | |
| 12700182 | |
| 12700183 | |
| 12700198 | |
| 14000827 | |
| 14001624 | |
| 14001734 | |
| 14001738 | |
| 14001773 | |
| 14001799A | |
| 14001800 | |
| 14002622 | |
| 14002624 | |
| 14002625 | |
| 14002626 | |
| 14002628 | |
| 14002629 | |
| 14003552 | |
| 14003856 | |
| 14101830 | |
| 14101841 | |
| 14101842 | |
| 14101851 | |
| 14101919 | |
| 14101942 | |
| 14101943 | |
| 14101990 | |
| 14900135 | |
| 15342-06A | |
| 15368-01A | |
| 15370-01A | |
| 15385-08 | |
| 16200582 | |
| 16200896 | |
| 16200898 | |
| 16219-09 | |
| 16300005 | |
| 16400005 | |
| 16400041 | |
| 16400042 | |
| 16400087B | |
| 16400109 | |
| 16500332A | |
| 16500983 | |
| 16500987 | |
| 16501116A | |
| 16574-99A | |
| 16583-00B | |
| 16589-99B | |
| 16800063 | |
| 16800387 | |
| 16800390 | |
| 17300053 | |
| 17300055 | |
| 17300059B | |
| 17369-06 | |
| 1775 | |
| 17900030 | |
| 17900031 | |
| 17900034 | |
| 17900035 | |
| 17945-36B | |
| 17947-36 | |
| 17948-99A | |
| 17968-99 | |
| 18000016 | |
| 18000034A | |
| 18100044 | |
| 18100045 | |
| 18100060 | |
| 18100140 | |
| 18400073B | |
| 18400117 | |
| 18538-99C | |
| 21900082 | |
| 22000031 | |
| 22000079 | |
| 22097-99 | |
| 221 | |
| 22100006 | |
| 24100080 | |
| 24100182 | |
| 24400120 | |
| 24400180 | |
| 24400215 | |
| 24400378 | |
| 24400409 | |
| 2445 | |
| 24605-07 | |
| 24754-75A | |
| 2478 | |
| 2479 | |
| 25400103 | |
| 25400257 | |
| 25400273 | |
| 25400452 | |
| 25500013 | |
| 25566-06 | |
| 2563 | |
| 25673-06 | |
| 25675-06 | |
| 25700362A | |
| 25700370A | |
| 25700372B | |
| 25700378 | |
| 25700409 | |
| 25700410 | |
| 25700411 | |
| 25700418 | |
| 25700425A | |
| 25700433A | |
| 25700452A | |
| 25700455 | |
| 25700488A | |
| 25700491 | |
| 25700520 | |
| 25700650 | |
| 25700731 | |
| 25700746 | |
| 25701479 | |
| 25701495 | |
| 25701511 | |
| 25701513 | |
| 25701556 | |
| 25701561 | |
| 25701664 | |
| 25701666 | |
| 25701668 | |
| 25701944 | |
| 25701945 | |
| 25729-06 | |
| 25731-06 | |
| 25734-06 | |
| 25736-06 | |
| 25737-06 | |
| 25738-06 | |
| 25800165 | |
| 25800168 | |
| 25800170 | |
| 26210-99 | |
| 26352-95A | |
| 26400-82B | |
| 26500026 | |
| 26500027 | |
| 26600061 | |
| 26800086 | |
| 26800212 | |
| 26800227 | |
| 26800228 | |
| 26800232 | |
| 26800266 | |
| 26900301 | |
| 26900302 | |
| 26900303 | |
| 26900304 | |
| 26900305 | |
| 26900308 | |
| 26900326 | |
| 26900327 | |
| 26900350 | |
| 2708A | |
| 27200094 | |
| 27300196 | |
| 27300197 | |
| 27300198 | |
| 27300199 | |
| 27300200 | |
| 27300201 | |
| 27400065 | |
| 27400071 | |
| 27444-00Y | |
| 29000363A | |
| 29000364 | |
| 29000373 | |
| 29108-08 | |
| 29200080 | |
| 29200163 | |
| 29200166 | |
| 29200168 | |
| 29200169 | |
| 29200178 | |
| 29200180 | |
| 29200181 | |
| 29200182 | |
| 29200185 | |
| 29200189 | |
| 29200193 | |
| 29200203 | |
| 2933 | |
| 2934 | |
| 29400444A | |
| 29400448 | |
| 29900038A | |
| 29900041 | |
| 29900114 | |
| 29900147 | |
| 3018A | |
| 3050 | |
| 3057 | |
| 3061 | |
| 31400053 | |
| 31400137 | |
| 3143 | |
| 3153 | |
| 31586-07 | |
| 31600012 | |
| 31600081 | |
| 31600194 | |
| 31600195 | |
| 31694-90 | |
| 32001-08A | |
| 3210A | |
| 3249 | |
| 32700010 | |
| 32700015 | |
| 32700054 | |
| 32700065 | |
| 32700066 | |
| 32700101 | |
| 32700113 | |
| 32700116 | |
| 32700124 | |
| 32700130 | |
| 32700144 | |
| 32700162 | |
| 32700166 | |
| 32700167 | |
| 3275 | |
| 33389-07 | |
| 33409-06B | |
| 33600088 | |
| 33600091 | |
| 33600188 | |
| 33600243 | |
| 33600304 | |
| 33719-79B | |
| 33895-82E | |
| 33900175 | |
| 33900265 | |
| 34064-00C | |
| 34091-08 | |
| 3445 | |
| 34611-65A | |
| 34700372 | |
| 34800043 | |
| 34800071 | |
| 34920-86A | |
| 34987-06 | |
| 35000152A | |
| 35000178 | |
| 35000179 | |
| 35081-06 | |
| 35082-07 | |
| 35087-99A | |
| 35114-02 | |
| 35122-06A | |
| 35124-06 | |
| 35126-06 | |
| 35186-06A | |
| 35187-06 | |
| 35200021 | |
| 35200150 | |
| 35202-06 | |
| 35204-06 | |
| 35210-06 | |
| 35217-06 | |
| 35222-06A | |
| 35223-06A | |
| 35241-06 | |
| 35242-06 | |
| 35243-06A | |
| 35244-06 | |
| 35249-06A | |
| 35259-06 | |
| 3536 | |
| 35467-06C | |
| 35600094 | |
| 35600103 | |
| 3563 | |
| 35654-06A | |
| 35807-06 | |
| 35811-06 | |
| 35814-06 | |
| 3594 | |
| 3607 | |
| 3612 | |
| 36500052A | |
| 36500075A | |
| 3656 | |
| 36700286 | |
| 36700288 | |
| 36700291 | |
| 36700296 | |
| 36706-01K | |
| 3684 | |
| 3699D | |
| 37000032A | |
| 37000033 | |
| 37000034 | |
| 37000083 | |
| 37000168 | |
| 37000169 | |
| 37000219 | |
| 37000270A | |
| 37000295 | |
| 37000376 | |
| 37000377 | |
| 37000382 | |
| 37069-90A | |
| 37090-98A | |
| 37092-06 | |
| 37200395A | |
| 37200396 | |
| 37200437 | |
| 37200545 | |
| 37200574A | |
| 37200592 | |
| 37312-75 | |
| 37313-80 | |
| 37496-90A | |
| 3787 | |
| 37903-90 | |
| 37904-90 | |
| 37909-90 | |
| 3892 | |
| 3901 | |
| 3929 | |
| 3976 | |
| 3983 | |
| 40024-09A | |
| 40037-07 | |
| 40100041 | |
| 40100064 | |
| 40100076 | |
| 4015 | |
| 40217-09 | |
| 40278-09 | |
| 40615-08 | |
| 40900905 | |
| 41001351 | |
| 41001501 | |
| 41001502 | |
| 41100122 | |
| 41123-79 | |
| 41229-08 | |
| 4132 | |
| 41349-07 | |
| 41500158A | |
| 41500196 | |
| 41600378 | |
| 41600382 | |
| 41600383 | |
| 41600384 | |
| 41600385 | |
| 41600386 | |
| 41600390 | |
| 41700028A | |
| 41700195 | |
| 41700367 | |
| 41700625 | |
| 41701067 | |
| 41701089 | |
| 41701125 | |
| 41701131 | |
| 41701406 | |
| 41701407 | |
| 41750-06B | |
| 41751-06A | |
| 41783-08 | |
| 41800887 | |
| 41800888 | |
| 41800890 | |
| 41800891 | |
| 41800896 | |
| 41800897 | |
| 41800898 | |
| 41800899 | |
| 41810-08B | |
| 41852-08B | |
| 41854-08 | |
| 41900-08 | |
| 41901-08 | |
| 42300001A | |
| 42300139 | |
| 42300140 | |
| 42300141 | |
| 42300142 | |
| 42300143 | |
| 4240 | |
| 42410-04 | |
| 42444-04 | |
| 42460-80B | |
| 42849-08 | |
| 42851-06 | |
| 42852-06A | |
| 42853-06 | |
| 42854-06 | |
| 42856-06 | |
| 42858-06A | |
| 42860-06B | |
| 42863-06 | |
| 42865-06B | |
| 42867-06A | |
| 42889-06 | |
| 42932-08A | |
| 42934-08 | |
| 42937-08C | |
| 43000203 | |
| 43000207 | |
| 43000300A | |
| 43027-08 | |
| 43100045 | |
| 4312C | |
| 43200045 | |
| 43300926 | |
| 43567-92 | |
| 44023-08 | |
| 44080-08C | |
| 44089-08 | |
| 44160-00 | |
| 4419 | |
| 44341-08 | |
| 45041-01A | |
| 45400335 | |
| 45400336 | |
| 45400337 | |
| 45400338 | |
| 45500117 | |
| 45500118 | |
| 45500132 | |
| 45500341 | |
| 45500396 | |
| 45500397 | |
| 45500398 | |
| 45500421 | |
| 45500424 | |
| 45500839 | |
| 45500840 | |
| 45500841 | |
| 45500842 | |
| 45500849 | |
| 45500856 | |
| 45600003 | |
| 45600054 | |
| 45600055 | |
| 45600135 | |
| 45700009 | |
| 45700070 | |
| 45800023 | |
| 45900317 | |
| 45900318A | |
| 45900334A | |
| 45900335 | |
| 4597M | |
| 4612 | |
| 46508-01 | |
| 46509-01 | |
| 46513-01 | |
| 46514-01A | |
| 46515-01 | |
| 46615-06 | |
| 4685 | |
| 4688 | |
| 47000344 | |
| 4705 | |
| 4718A | |
| 47200266 | |
| 47200302A | |
| 47200945 | |
| 47200947 | |
| 47200948 | |
| 47200952 | |
| 4740A | |
| 4741A | |
| 47540-11 | |
| 47549-09A | |
| 47584-09 | |
| 48079-09BHP | |
| 4813A | |
| 4816A | |
| 4820A | |
| 4822A | |
| 48487-02 | |
| 48489-02 | |
| 4856 | |
| 4871 | |
| 4879M | |
| 4890 | |
| 49000239 | |
| 49000240 | |
| 4916 | |
| 4924 | |
| 49725-07A | |
| 50000097 | |
| 50000143 | |
| 50000149 | |
| 50015-74A | |
| 50075-07A | |
| 50126-08B | |
| 50208-04 | |
| 50245-07 | |
| 50345-04 | |
| 50350-04 | |
| 50500332A | |
| 50500334A | |
| 50500460A | |
| 50500462A | |
| 50500876 | |
| 50518-09 | |
| 50600067 | |
| 50600244 | |
| 50600245 | |
| 50622-09A | |
| 50674-05 | |
| 50683-04 | |
| 50684-11 | |
| 50688-04 | |
| 50689-11 | |
| 50912-72 | |
| 51068-08 | |
| 51070-08 | |
| 5118 | |
| 515 | |
| 52000631 | |
| 52000646 | |
| 52400016 | |
| 52400021 | |
| 52400313 | |
| 54000141 | |
| 54000304 | |
| 54000305 | |
| 55801336 | |
| 55801445 | |
| 55801446 | |
| 55801459 | |
| 55900299 | |
| 55900300 | |
| 55900301 | |
| 55900302 | |
| 55900361 | |
| 56000319 | |
| 56000322 | |
| 56000327 | |
| 56000328 | |
| 56000337 | |
| 56000338 | |
| 56100586 | |
| 56100587 | |
| 56159-73 | |
| 56161-83A | |
| 56163-93 | |
| 57000779 | |
| 57001665BYM | |
| 57001670 | |
| 57001688BYM | |
| 57001704 | |
| 57001705 | |
| 57001707A | |
| 57001774 | |
| 57001885 | |
| 57001899 | |
| 57001941 | |
| 57001942 | |
| 57001986 | |
| 57100444 | |
| 57200375B | |
| 57200376B | |
| 57200391 | |
| 57200392 | |
| 57200405 | |
| 57200417 | |
| 57300388 | |
| 57300393 | |
| 57300409 | |
| 57300420 | |
| 57400521 | |
| 57400530 | |
| 57400531 | |
| 57400656 | |
| 57400658 | |
| 57400664 | |
| 57450-14 | |
| 57451-14 | |
| 5837B | |
| 58888-98A | |
| 58900582 | |
| 59481-00 | |
| 59482-00 | |
| 59500519 | |
| 59768-97 | |
| 59786-01 | |
| 59788-01 | |
| 601 | |
| 60328-98B | |
| 6036 | |
| 60386-09 | |
| 60463-09B | |
| 60678-85 | |
| 60800109 | |
| 60800110 | |
| 60800111 | |
| 60800116 | |
| 60800120 | |
| 60900061 | |
| 60916-09 | |
| 61000986 | |
| 61000997 | |
| 6101 | |
| 61081-92 | |
| 61100202 | |
| 61100204 | |
| 61100206 | |
| 61100207 | |
| 6116 | |
| 6119 | |
| 61200091A | |
| 61200096 | |
| 61200097 | |
| 61200100 | |
| 61200101 | |
| 61200102 | |
| 61200110 | |
| 61301285 | |
| 61301291 | |
| 61301292 | |
| 61301353 | |
| 61301354 | |
| 6139 | |
| 61400705 | |
| 61400716 | |
| 61400717 | |
| 61400718 | |
| 61400719 | |
| 6150W | |
| 6220W | |
| 62400055 | |
| 62400205 | |
| 62400233 | |
| 62400242 | |
| 62400245 | |
| 62700089A | |
| 62700117A | |
| 62700136 | |
| 62700150 | |
| 62700291 | |
| 62700296 | |
| 62700324 | |
| 62800013 | |
| 62800067 | |
| 62800073 | |
| 6416 | |
| 6421 | |
| 64900952 | |
| 64900953 | |
| 64900954 | |
| 64900955 | |
| 64901310 | |
| 64901311 | |
| 64901314 | |
| 64901315 | |
| 6497HW | |
| 65296-95B | |
| 6532 | |
| 65324-83B | |
| 65325-83A | |
| 65328-83A | |
| 65400176A | |
| 65400177 | |
| 65400178 | |
| 65400179 | |
| 65400483A | |
| 65400484 | |
| 65400485 | |
| 65400486 | |
| 65500042 | |
| 65500043B | |
| 65600178A | |
| 65600377 | |
| 65600379 | |
| 65600451 | |
| 65723-85 | |
| 65724-85A | |
| 65900015 | |
| 65900017 | |
| 65900056 | |
| 6590HW | |
| 66000066A | |
| 66000107 | |
| 66000116 | |
| 66000339 | |
| 66010-97E | |
| 66051-08 | |
| 66290-06 | |
| 66861-09B | |
| 66881-09 | |
| 6702 | |
| 6703 | |
| 67700660 | |
| 67700669 | |
| 67700670 | |
| 67700671 | |
| 67700672 | |
| 67700673 | |
| 67801330 | |
| 67801331 | |
| 67801341 | |
| 67801344 | |
| 67801345 | |
| 67875-11 | |
| 67900065 | |
| 67900066 | |
| 67900067 | |
| 67900068 | |
| 67900243 | |
| 67900640 | |
| 67900648 | |
| 67900649 | |
| 67900655 | |
| 68042-99 | |
| 69000125B | |
| 69060-90H | |
| 69200183 | |
| 69200184 | |
| 69200185 | |
| 69200186 | |
| 69200187 | |
| 69200188 | |
| 69200189 | |
| 69200190 | |
| 69200191 | |
| 69200194 | |
| 69200199 | |
| 69200201 | |
| 69200205 | |
| 69200212 | |
| 69200214A | |
| 69200224 | |
| 69200238 | |
| 69200247 | |
| 69200254 | |
| 69200256 | |
| 69200271 | |
| 69200272 | |
| 69200293 | |
| 69200306 | |
| 69200307 | |
| 69200308 | |
| 69200312 | |
| 69200536 | |
| 69200600 | |
| 69200611 | |
| 69200702 | |
| 69200752 | |
| 69201162 | |
| 69201164 | |
| 69201179 | |
| 69201287A | |
| 69201299 | |
| 69201300 | |
| 69201301 | |
| 69201302 | |
| 69201307 | |
| 69201377 | |
| 69201379 | |
| 69201385 | |
| 69201393 | |
| 69201394 | |
| 69201395 | |
| 69201396 | |
| 69201397 | |
| 69201398 | |
| 69201406 | |
| 69201407 | |
| 69201412 | |
| 69201416 | |
| 69201427 | |
| 69201441 | |
| 69201442 | |
| 69201575 | |
| 69201596 | |
| 69201652 | |
| 69201711 | |
| 69201712 | |
| 69201722 | |
| 69201779 | |
| 69201814 | |
| 69201890 | |
| 69201924 | |
| 69201931 | |
| 69201932 | |
| 69201933 | |
| 69201962 | |
| 69202028 | |
| 69202031 | |
| 69202032 | |
| 69202098 | |
| 69202104 | |
| 69202106 | |
| 69202107 | |
| 69202109 | |
| 69202170 | |
| 69202171 | |
| 69202172 | |
| 69202173 | |
| 69202183 | |
| 69202184 | |
| 69202219 | |
| 69202285 | |
| 69202322 | |
| 69202350 | |
| 69202453 | |
| 69202489 | |
| 69202491 | |
| 69202492 | |
| 69202636A | |
| 69202637 | |
| 69202720A | |
| 69202786 | |
| 69202958 | |
| 69202959 | |
| 69202979A | |
| 69202980A | |
| 69202986 | |
| 69202988 | |
| 69202989 | |
| 69202996 | |
| 69203010 | |
| 69203010A | |
| 69203011 | |
| 69203017 | |
| 69203018 | |
| 69203026 | |
| 69203028 | |
| 69203042 | |
| 69203046 | |
| 69203052 | |
| 69203053 | |
| 69203055 | |
| 69203057 | |
| 69203058 | |
| 69203090 | |
| 69203096 | |
| 69203096A | |
| 69203105 | |
| 69203106 | |
| 69203119 | |
| 69203120 | |
| 69203121 | |
| 69203123 | |
| 69203188 | |
| 69203191 | |
| 69203192 | |
| 69203195 | |
| 69203203 | |
| 69203209 | |
| 69203403 | |
| 69203487 | |
| 69203519 | |
| 69203624 | |
| 69490-07 | |
| 6982 | |
| 69861-07 | |
| 69862-07 | |
| 7038 | |
| 703B | |
| 7041 | |
| 70493-08 | |
| 70494-08 | |
| 70631-08 | |
| 70681-09 | |
| 70717-10 | |
| 70900948 | |
| 70901087 | |
| 70901090A | |
| 70901092A | |
| 70901093A | |
| 70901099 | |
| 70901106 | |
| 70901163 | |
| 70901164 | |
| 70901165 | |
| 70901170 | |
| 71400100 | |
| 71400112A | |
| 71400141 | |
| 71400196 | |
| 71500611A | |
| 71500612 | |
| 71500660 | |
| 71500713 | |
| 71500715 | |
| 71540-94B | |
| 7155 | |
| 72008-05 | |
| 72009-05 | |
| 72010-05 | |
| 72023-51E | |
| 72053-92 | |
| 72063-06 | |
| 72064-06 | |
| 72065-06A | |
| 72066-06A | |
| 72098-06 | |
| 72099-06 | |
| 72110-06 | |
| 72111-06 | |
| 72127-06 | |
| 72135-06 | |
| 72145-06 | |
| 72168-07 | |
| 72169-07 | |
| 72175-07BK | |
| 72177-07BK | |
| 72188-07BK | |
| 72209-11 | |
| 72213-94 | |
| 72222-11 | |
| 72225-09 | |
| 72226-11 | |
| 72227-11 | |
| 72229-11 | |
| 72241-94A | |
| 72256-11 | |
| 72272-07 | |
| 72283-09 | |
| 72290-94 | |
| 72291-94 | |
| 72294-94 | |
| 72296-95 | |
| 72298-95 | |
| 72299-95 | |
| 72308-97 | |
| 72330-95 | |
| 72343-10 | |
| 72344-10 | |
| 72356-95 | |
| 72364-06 | |
| 72412-97 | |
| 72414-07BK | |
| 72415-07GY | |
| 72427-00 | |
| 72444-07GY | |
| 72462-00 | |
| 72473-07 | |
| 72484-08 | |
| 72486-08 | |
| 72487-07BK | |
| 72488-07BK | |
| 72499-07 | |
| 72500-07ABK | |
| 72511-07BK | |
| 72512-07BK | |
| 72518-01 | |
| 72519-09BK | |
| 72539-06 | |
| 72569-08 | |
| 72606-08 | |
| 72607-08 | |
| 72608-08 | |
| 72609-08 | |
| 72610-08 | |
| 72632-10 | |
| 72639-10 | |
| 72720-07 | |
| 72721-07 | |
| 72905-11 | |
| 72906-11 | |
| 72908-11 | |
| 72910-11 | |
| 73213-07 | |
| 7330 | |
| 73307-10 | |
| 7331 | |
| 7340 | |
| 7352 | |
| 74112-98BK | |
| 74152-98 | |
| 74191-98 | |
| 74194-98 | |
| 7434 | |
| 74700048 | |
| 7495 | |
| 7499 | |
| 7531 | |
| 7549A | |
| 7586 | |
| 7593 | |
| 76000127 | |
| 76000789 | |
| 76000819A | |
| 76000925 | |
| 76001153 | |
| 76001154 | |
| 76001155A | |
| 76001156A | |
| 76001162BYM | |
| 76001190 | |
| 76001202 | |
| 76001203 | |
| 76001206 | |
| 76001207 | |
| 76001214 | |
| 76001215 | |
| 76001233BYM | |
| 76001234BYM | |
| 76001235 | |
| 76001251 | |
| 76001252 | |
| 76001253 | |
| 76001254 | |
| 76001255 | |
| 76001260 | |
| 76001279 | |
| 76001293 | |
| 76001316 | |
| 76001317 | |
| 76001323 | |
| 76001324 | |
| 76001327 | |
| 76001328 | |
| 76001484 | |
| 7601 | |
| 765 | |
| 7686 | |
| 7687 | |
| 7716 | |
| 7792 | |
| 780 | |
| 7825 | |
| 7848W | |
| 786A | |
| 7880 | |
| 7900 | |
| 791A | |
| 8020 | |
| 8026K | |
| 8041 | |
| 8042A | |
| 8142 | |
| 8144 | |
| 8194 | |
| 83936-09A | |
| 856A | |
| 881A | |
| 882 | |
| 8873 | |
| 8963 | |
| 8967A | |
| 8970A | |
| 8973 | |
| 90200467 | |
| 90200499 | |
| 90200501 | |
| 90200519 | |
| 90200522 | |
| 90200549 | |
| 90200550 | |
| 90200611 | |
| 90200899 | |
| 90200900 | |
| 90200901 | |
| 90200902 | |
| 90200903 | |
| 90201319 | |
| 90201320 | |
| 90201540 | |
| 90202108 | |
| 90202454 | |
| 90202455 | |
| 90202460 | |
| 90202461 | |
| 90202462DH | |
| 90202463DH | |
| 90202466 | |
| 90202467 | |
| 90202509 | |
| 90202889 | |
| 90202890 | |
| 90300024 | |
| 90300043 | |
| 90300145A | |
| 90300146A | |
| 90520-07 | |
| 90820-93D | |
| 91140-09 | |
| 91700025A | |
| 91800058 | |
| 91800075 | |
| 92073-03 | |
| 92076-03 | |
| 92078-03 | |
| 9208 | |
| 92082-03 | |
| 923 | |
| 9231 | |
| 9252A | |
| 9276B | |
| 9298B | |
| 940 | |
| 94000326 | |
| 94000986 | |
| 942 | |
| 945 | |
| 9701A | |
| 9819 | |
| 9853 | |
| 9937 | |
| 9955 | |
| 9956 |
| Part No. | Description |
| 101A1 - Generic Nuts | |
| 7330 | Unknown |
| 7331 | Unknown |
| 7340 | Unknown |
| 7495 | 1994 |
| 7499 | Unknown |
| 7549A | Unknown |
| 7586 | 2018 |
| 7593 | 1991 |
| 7601 | 1990 |
| 7687 | 2009 |
| 7792 | 2012 |
| 7825 | Unknown |
| 7880 | 2018 |
| 7900 | Unknown |
| 8020 | 2002 |
| 8142 | Unknown |
| 8144 | Unknown |
| 10100062 | 2017 |
| 10100178 | 2023 |
| 31694-90 | 1990 |
| 102A1 - Generic Screws | |
| 1009M | Unknown |
| 10200004 | 2011 |
| 10200032 | 2012 |
| 10200059 | 2014 |
| 10200060 | 2014 |
| 10200063 | 2014 |
| 10200064 | 2014 |
| 10200065 | 2014 |
| 10200103 | 2014 |
| 10200120 | 2011 |
| 10200141 | 2014 |
| 10200147 | 2014 |
| 10200217 | 2014 |
| 10200220 | 2014 |
| 10200223 | 2014 |
| 10200303 | 2017 |
| 10200308 | 2017 |
| 10200343 | 2017 |
| 10200344 | 2015 |
| 10200350 | 2015 |
| 10200373 | 2017 |
| 10200393 | 2017 |
| 10200408A | 2018 |
| 10200414 | 2017 |
| 10200422 | 2017 |
| 10200429 | 2017 |
| 10200446 | 2017 |
| 10200463 | 2017 |
| 10200503 | 2017 |
| 10200533 | 2016 |
| 10200544 | 2018 |
| 10200546 | 2017 |
| 10200557 | 2018 |
| 10200569 | 2017 |
| 10200628 | 2018 |
| 10200686 | 2019 |
| 10200721 | 2020 |
| 10200846 | 2021 |
| 10200890 | 2021 |
| 10201096 | 2021 |
| 10201167 | 2021 |
| 10201173 | 2021 |
| 10201187 | 2021 |
| 10201188 | 2021 |
| 10201216 | 2021 |
| 10201279 | 2024 |
| 10201318 | 2021 |
| 10201326 | 2023 |
| 10201339 | 2023 |
| 10201340 | 2023 |
| 10201350 | 2023 |
| 10201351 | 2023 |
| 10201361 | 2023 |
| 10201368 | 2023 |
| 10201370 | 2023 |
| 10201376 | 2023 |
| 10201377 | 2024 |
| 10201381 | 2021 |
| 10201385 | 2023 |
| 10201386 | 2023 |
| 10201389 | 2023 |
| 10201394 | 2023 |
| 10201402 | 2023 |
| 10201426 | 2023 |
| 1062 | Unknown |
| 1775 | Unknown |
| 2445 | Unknown |
| 2478 | 2007 |
| 2479 | Unknown |
| 2563 | 2009 |
| 2708A | Unknown |
| 2933 | Unknown |
| 2934 | 1995 |
| 3018A | 2010 |
| 3050 | Unknown |
| 3057 | Unknown |
| 3061 | Unknown |
| 3143 | Unknown |
| 3153 | Unknown |
| 3210A | Unknown |
| 3249 | Unknown |
| 3275 | 2002 |
| 3445 | Unknown |
| 35244-06 | 2014 |
| 35259-06 | 2006 |
| 3536 | Unknown |
| 3563 | 1999 |
| 3594 | 1992 |
| 3607 | 2009 |
| 3612 | 2012 |
| 3656 | Unknown |
| 3684 | Unknown |
| 3699D | 2006 |
| 3787 | Unknown |
| 3892 | Unknown |
| 3901 | Unknown |
| 3929 | 2009 |
| 3976 | 2004 |
| 3983 | 2005 |
| 4015 | Unknown |
| 4132 | Unknown |
| 4240 | Unknown |
| 42858-06A | 2006 |
| 4312C | Unknown |
| 43567-92 | 1992 |
| 4419 | Unknown |
| 4597M | Unknown |
| 4612 | Unknown |
| 4685 | 2007 |
| 4688 | Unknown |
| 4705 | 2005 |
| 4718A | 1994 |
| 4740A | 1994 |
| 4741A | 1994 |
| 4813A | 1990 |
| 4816A | Unknown |
| 4820A | Unknown |
| 4822A | 1994 |
| 4856 | Unknown |
| 4871 | Unknown |
| 4879M | 2009 |
| 4890 | Unknown |
| 4916 | Unknown |
| 4924 | Unknown |
| 68042-99 | 1999 |
| 703B | Unknown |
| 780 | Unknown |
| 786A | Unknown |
| 791A | 2007 |
| 856A | 1990 |
| 881A | 2018 |
| 882 | 2000 |
| 923 | Unknown |
| 940 | Unknown |
| 942 | 1992 |
| 945 | Unknown |
| 102Z1 - Kit,Screw | |
| 10201425 | 2023 |
| 103A1 - Generic Washers | |
| 10300268 | 2023 |
| 11891 | Unknown |
| 46509-01 | 2001 |
| 56159-73 | 1973 |
| 59788-01 | 2001 |
| 6036 | Unknown |
| 6101 | 2011 |
| 6116 | Unknown |
| 6139 | Unknown |
| 6150W | Unknown |
| 6220W | Unknown |
| 6416 | Unknown |
| 6421 | 1996 |
| 6497HW | 2010 |
| 6532 | 2000 |
| 6590HW | Unknown |
| 6702 | Unknown |
| 6703 | 1970 |
| 7038 | 1998 |
| 7041 | 1958 |
| 7155 | 2018 |
| 7434 | 1999 |
| 8973 | 2001 |
| 104A1 - Custom Nuts | |
| 7352 | 2010 |
| 10400034 | 2016 |
| 105A1 - Custom Screws | |
| 10500015 | 2014 |
| 10500031 | 2014 |
| 10500069 | 2017 |
| 10500071 | 2017 |
| 10500167 | 2020 |
| 37090-98A | 1998 |
| 106A1 - Custom Washers | |
| 10600007 | 2014 |
| 10600091 | 2023 |
| 108A1 - Hose Clamps | |
| 10340B | 2015 |
| 10800025A | 2017 |
| 10800182 | 2021 |
| 10800201 | 2022 |
| 10800212 | 2023 |
| 9955 | Unknown |
| 9956 | 1972 |
| 108B1 - P Clamps | |
| 10076 | 2010 |
| 10800227 | 2023 |
| 109A1 - Studs | |
| 10900015A | 2018 |
| 66290-06 | 2006 |
| 110B1 - Plain Bushings | |
| 11000050 | 2014 |
| 11000139 | 2017 |
| 12077 | Unknown |
| 8967A | 2017 |
| 9208 | Unknown |
| 9701A | 2011 |
| 110C1 - Radial Shaft Seals | |
| 11000101 | 2013 |
| 11000134 | 2017 |
| 12052A | 2003 |
| 12074 | Unknown |
| 110D1 - Rolling Element Bearings | |
| 11000010 | 2011 |
| 24605-07 | 2007 |
| 8042A | 2018 |
| 8963 | Unknown |
| 8970A | 2012 |
| 9231 | Unknown |
| 9252A | 2017 |
| 9276B | 2017 |
| 111A1 - Adhesive | |
| 72008-05 | 2005 |
| 72110-06 | 2006 |
| 9819 | Unknown |
| 111C1 - Insulating Tape | |
| 11668 | Unknown |
| 111F1 - Protective Tape | |
| 11100068 | 2014 |
| 116A1 - Banjo Bolts | |
| 11600001 | 2012 |
| 11600009 | 2014 |
| 41750-06B | 2006 |
| 41783-08 | 2008 |
| 50674-05 | 2005 |
| 119A1 - O-Rings | |
| 11105 | Unknown |
| 11120 | Unknown |
| 11132A | 2007 |
| 11145A | 2007 |
| 11179 | 1986 |
| 11201 | Unknown |
| 11289A | Unknown |
| 11293 | 1996 |
| 11900010 | 2013 |
| 11900021 | 2014 |
| 11900092 | 2017 |
| 11900103 | 2017 |
| 11900130 | 2018 |
| 11900155 | 2020 |
| 11900172 | 2020 |
| 11900179 | 2021 |
| 11900180 | 2020 |
| 11900192 | 2021 |
| 11900197 | 2023 |
| 27444-00Y | 2000 |
| 46508-01 | 2001 |
| 120A1 - Pins | |
| 16574-99A | 1999 |
| 16583-00B | 2021 |
| 16589-99B | 2020 |
| 221 | 2026 |
| 24754-75A | 1975 |
| 42460-80B | 1980 |
| 45041-01A | 2001 |
| 515 | Unknown |
| 601 | Unknown |
| 121A1 - Grommets | |
| 11650 | 2010 |
| 12100007 | 2014 |
| 12100141 | 2021 |
| 12100208 | 2023 |
| 12100212 | 2023 |
| 121B1 - Press-Fit Plugs | |
| 12100069 | 2017 |
| 765 | 1997 |
| 90520-07 | 2007 |
| 121C1 - Threaded Plugs | |
| 12100203 | 2023 |
| 122A1 - Retaining Rings | |
| 10147 | 2018 |
| 10264 | Unknown |
| 10991A | Unknown |
| 10998 | 1985 |
| 11081A | 2008 |
| 11082A | 2016 |
| 11096 | 2010 |
| 11150 | 1984 |
| 11161 | 1984 |
| 11177A | 1996 |
| 11304 | Unknown |
| 11389 | Unknown |
| 11575 | Unknown |
| 11615 | Unknown |
| 12200025 | 2014 |
| 12200144 | 2018 |
| 17945-36B | 1936 |
| 35087-99A | 1999 |
| 35114-02 | 2002 |
| 41229-08 | 2008 |
| 60678-85 | 1985 |
| 65325-83A | 1983 |
| 9853 | Unknown |
| 122A2 - Retaining Clips | |
| 12200154 | 2018 |
| 12200181 | 2018 |
| 12200221 | 2021 |
| 12200271 | 2023 |
| 12200278 | 2023 |
| 12200282 | 2023 |
| 123A1 - Sealing Washers | |
| 41751-06A | 2006 |
| 124A1 - Spacers | |
| 11599A | 2012 |
| 11848 | Unknown |
| 12400099 | 2017 |
| 41900-08 | 2008 |
| 46515-01 | 2001 |
| 5837B | 2020 |
| 125A1 - Tie Straps | |
| 10006 | 1960 |
| 10039 | 1981 |
| 10065 | 1985 |
| 10081 | 1984 |
| 10177 | 1996 |
| 12500014 | 2017 |
| 12500015 | 2017 |
| 12500016 | 2017 |
| 12500024 | 2018 |
| 126A1 - Miscellaneous Hardware | |
| 12600032 | 2014 |
| 12600360 | 2023 |
| 12600362 | 2023 |
| 12600369 | 2024 |
| 56161-83A | 1983 |
| 8041 | Unknown |
| 8873 | 1984 |
| 126B1 - Rivets Fasteners | |
| 11779 | 2008 |
| 11785 | Unknown |
| 12600067 | 2014 |
| 12600116 | 2014 |
| 12600358 | 2022 |
| 126B2 - Tree Fasteners | |
| 12600197 | 2017 |
| 127B1 - Generic Mounting Bracket | |
| 12700182 | 2023 |
| 12700183 | 2023 |
| 12700198 | 2024 |
| 70493-08 | 2008 |
| 140A1 - Battery Warning Label | |
| 14002622 | 2021 |
| 15368-01A | 2001 |
| 140A2 - General Warning Label | |
| 14001624 | 2019 |
| 14001734 | 2019 |
| 14001738 | 2019 |
| 14001773 | 2019 |
| 14001799A | 2021 |
| 14002626 | 2021 |
| 15385-08 | 2008 |
| 140A3 - Other Special Warning Label | |
| 14001800 | 2019 |
| 14002624 | 2021 |
| 14002625 | 2021 |
| 14002628 | 2021 |
| 14002629 | 2021 |
| 15342-06A | 2006 |
| 15370-01A | 2001 |
| 90820-93D | 1993 |
| 140G2 - EPA Label | |
| 29108-08 | 2008 |
| 140P2 - General Label | |
| 14000827 | 2013 |
| 14003552 | 2023 |
| 14003856 | 2024 |
| 141A1 - Medallion | |
| 14101830 | 2024 |
| 14101841 | 2024 |
| 14101842 | 2024 |
| 14101851 | 2024 |
| 14101919 | 2024 |
| 14101942 | 2024 |
| 14101943 | 2024 |
| 14101990 | 2024 |
| 42856-06 | 2006 |
| 44341-08 | 2008 |
| 149A1 - Tool | |
| 14900135 | 2022 |
| 162D1 - Engine Assembly | |
| 16200896 | 2024 |
| 16200898 | 2024 |
| 162D3 - Engine Assembly Short Block | |
| 16200582 | 2019 |
| 163A1 - Engine Isolator | |
| 16300005 | 2017 |
| 164A1 - Engine Mount Bracket | |
| 16400005 | 2014 |
| 16400042 | 2017 |
| 16400087B | 2023 |
| 16400109 | 2024 |
| 164B1 - Engine Mount Bracket sub-component | |
| 16219-09 | 2009 |
| 7531 | 1980 |
| 7686 | Unknown |
| 7716 | 1990 |
| 7848W | 2018 |
| 8194 | Unknown |
| 164D1 - Tiebar Mount | |
| 16400041 | 2017 |
| 165A1 - Cylinder Head | |
| 16500983 | 2024 |
| 16500987 | 2024 |
| 165B1 - Cylinder Head and Base Gaskets | |
| 16500332A | 2023 |
| 16501116A | 2025 |
| 17369-06 | 2006 |
| 168A1 - Cylinder | |
| 16800387 | 2024 |
| 16800390 | 2024 |
| 168C1 - Cylinder Stud | |
| 16800063 | 2017 |
| 173A1 - Rocker Arm | |
| 17300053 | 2017 |
| 17300055 | 2017 |
| 173B1 - Rocker Arm Shaft | |
| 17300059B | 2020 |
| 179A1 - Lifters | |
| 18538-99C | 2011 |
| 179B1 - Push Rod | |
| 17900030 | 2017 |
| 17900031 | 2017 |
| 179C1 - Lifter Anti-Rotation Device | |
| 17900034 | 2017 |
| 17900035 | 2017 |
| 180A1 - Valves | |
| 18000016 | 2017 |
| 18000034A | 2022 |
| 181B1 - Valve Seals | |
| 18100044 | 2017 |
| 181C1 - Valve Collars | |
| 17947-36 | 1936 |
| 17968-99 | 1999 |
| 18100045 | 2017 |
| 18100060 | 2017 |
| 181C3 - Valve Springs | |
| 18100140 | 2023 |
| 184A1 - PT Camdrive and Valvetrain Miscellaneous Component | |
| 18400073B | 2018 |
| 18400117 | 2024 |
| 9298B | 2018 |
| 219Z1 - Kit,Piston | |
| 21900082 | 2018 |
| 220A1 - Piston Ring | |
| 22000031 | 2014 |
| 220Z1 - Kit,Piston Ring | |
| 22000079 | 2018 |
| 221A1 - Piston Pin | |
| 22097-99 | 1999 |
| 22100006 | 2017 |
| 239A1 - PT Lower End Miscellaneous Component | |
| 8026K | Unknown |
| 241A1 - Flywheel | |
| 24100182 | 2024 |
| 241Z1 - Kit,Flywheel | |
| 24100080 | 2017 |
| 244A1 - Crankcase | |
| 24400120 | 2017 |
| 244B1 - Crankcase Gasket | |
| 24400215 | 2017 |
| 244E1 - Transmission Access Door | |
| 24400378 | 2024 |
| 24400409 | 2024 |
| 244F1 - Oil Pan | |
| 24400180 | 2017 |
| 254A1 - Camdrive Gear | |
| 25566-06 | 2006 |
| 254B1 - Camshaft | |
| 25400273 | 2018 |
| 25673-06 | 2006 |
| 25675-06 | 2006 |
| 254C1 - Camshaft Sprocket | |
| 25400103 | 2017 |
| 254D1 - Camshaft Support | |
| 25400452 | 2023 |
| 254Z1 - Kit,Camdrive | |
| 25400257 | 2017 |
| 255C1 - Camdrive Chain Tensioner | |
| 25500013 | 2017 |
| 257A1 - Cam Cover | |
| 25701511 | 2023 |
| 25701513 | 2023 |
| 25701664 | 2024 |
| 25701666 | 2024 |
| 25701668 | 2024 |
| 257B1 - Clutch Cover | |
| 25701556 | 2024 |
| 25701561 | 2024 |
| 257E1 - Cover Gaskets | |
| 11902 | Unknown |
| 11936 | Unknown |
| 25700362A | 2022 |
| 25700370A | 2022 |
| 25700372B | 2018 |
| 25700378 | 2017 |
| 25700425A | 2023 |
| 25700433A | 2022 |
| 25700452A | 2023 |
| 25700455 | 2017 |
| 25701479 | 2023 |
| 35654-06A | 2023 |
| 65324-83B | 2009 |
| 257L1 - Primary Cover | |
| 25700418 | 2017 |
| 25700491 | 2017 |
| 25700650 | 2017 |
| 257M1 - Push Rod Cover | |
| 17948-99A | 2018 |
| 25700488A | 2018 |
| 257N1 - Rocker-Arm / Valve Cover | |
| 25700409 | 2017 |
| 25700520 | 2017 |
| 25701495 | 2023 |
| 257P1 - Tappet Cover | |
| 25700410 | 2017 |
| 25700411 | 2017 |
| 257Z1 - Kit,Cover/Sealing | |
| 25700731 | 2017 |
| 25700746 | 2017 |
| 25701944 | 2025 |
| 25701945 | 2025 |
| 258A1 - PT Covers Miscellaneous Component | |
| 25800165 | 2023 |
| 25800168 | 2023 |
| 25800170 | 2023 |
| 265A1 - Vent / Breather Line | |
| 26500026 | 2020 |
| 265Z1 - Kit,Vent/Breather | |
| 26500027 | 2020 |
| 266B1 - Water Pump | |
| 26600061 | 2023 |
| 268B1 - Cooling Fan | |
| 26800228 | 2023 |
| 268C1 - Radiator | |
| 26800227 | 2023 |
| 26800266 | 2024 |
| 268E1 - Radiator sub-component | |
| 26800232 | 2023 |
| 268F1 - Radiator Pressure Cap | |
| 26800086 | 2021 |
| 26800212 | 2021 |
| 269B1 - Radiator Hose | |
| 26900301 | 2026 |
| 26900302 | 2023 |
| 26900303 | 2023 |
| 26900304 | 2023 |
| 26900305 | 2023 |
| 26900308 | 2023 |
| 26900326 | 2023 |
| 26900327 | 2023 |
| 26900350 | 2024 |
| 272B1 - Throttle Body / Intake Manifold | |
| 27200094 | 2023 |
| 273A1 - Intake Manifold | |
| 27300196 | 2023 |
| 273A2 - Intake Manifold to Cylinder Head Seal | |
| 27300200 | 2023 |
| 273C1 - Throttle Body/Intake Manifold sub-component | |
| 27300199 | 2023 |
| 27300201 | 2023 |
| 273G1 - Throttle Body | |
| 27300197 | 2023 |
| 273K1 - Throttle Body to Manifold Seal | |
| 27300198 | 2023 |
| 274B1 - Fuel Rail | |
| 27400071 | 2023 |
| 274C1 - Fuel Injector | |
| 27400065 | 2023 |
| 275A1 - PT Upper End Miscellaneous Component | |
| 37313-80 | 1980 |
| 290A1 - Airbox Baseplate | |
| 29000373 | 2024 |
| 290D1 - Airbox Seal | |
| 29000363A | 2024 |
| 29000364 | 2023 |
| 292A1 - Air Duct | |
| 29200080 | 2015 |
| 29200163 | 2023 |
| 29200166 | 2023 |
| 29200168 | 2023 |
| 29200169 | 2023 |
| 29200178 | 2023 |
| 29200180 | 2023 |
| 29200181 | 2023 |
| 29200185 | 2023 |
| 29200189 | 2023 |
| 29200193 | 2023 |
| 29200203 | 2023 |
| 292S2 - Sub-Assembly,Air Duct | |
| 29200182 | 2023 |
| 294A1 - Air Filter Element | |
| 29400444A | 2024 |
| 294F1 - Engine Breather Valve | |
| 29400448 | 2023 |
| 299B1 - Charging Rotor Assembly | |
| 29900038A | 2020 |
| 299C1 - Charging Rotor | |
| 29900041 | 2017 |
| 299F1 - Stator Assembly | |
| 29900114 | 2023 |
| 299Z1 - Kit,Charging | |
| 29900147 | 2025 |
| 314F1 - Starter Motor | |
| 31400053 | 2017 |
| 314H1 - Starter Solenoid | |
| 31400137 | 2021 |
| 316A1 - Ignition Coil | |
| 31600194 | 2023 |
| 316B1 - Spark Plug Cable | |
| 31600081 | 2018 |
| 31600195 | 2023 |
| 32001-08A | 2008 |
| 316C1 - Spark Plug | |
| 31600012 | 2015 |
| 327A1 - Sensor | |
| 32700101 | 2019 |
| 32700113 | 2021 |
| 32700144 | 2020 |
| 32700166 | 2023 |
| 32700167 | 2023 |
| 50126-08B | 2018 |
| 327B1 - Chemical / Gas Sensor | |
| 32700116 | 2021 |
| 32700124 | 2021 |
| 32700130 | 2021 |
| 327C1 - Pressure Sensor | |
| 40615-08 | 2008 |
| 327D1 - Proximity Sensor | |
| 32700015 | 2014 |
| 32700162 | 2023 |
| 327E1 - Temperature Sensor | |
| 32700010 | 2014 |
| 32700054 | 2017 |
| 32700065 | 2017 |
| 32700066 | 2015 |
| 336A1 - Shift Linkage Rod Assembly | |
| 33600088 | 2017 |
| 33600091 | 2017 |
| 33600188 | 2017 |
| 33600304 | 2019 |
| 336C1 - Shift Linkage Rod End | |
| 33719-79B | 1979 |
| 336D1 - Shift Pedal | |
| 33895-82E | 2017 |
| 336F1 - Toepeg | |
| 34611-65A | 1965 |
| 336Z1 - Kit,Shift Lever | |
| 33600243 | 2017 |
| 339A1 - Shift Lever | |
| 33900175 | 2017 |
| 339C1 - Shifter Drum | |
| 33900265 | 2023 |
| 339D1 - Shifter Fork | |
| 35187-06 | 2006 |
| 35210-06 | 2006 |
| 35217-06 | 2006 |
| 35222-06A | 2020 |
| 35223-06A | 2020 |
| 339H1 - Shifter Mechanism Components (internal) | |
| 33389-07 | 2014 |
| 33409-06B | 2006 |
| 34064-00C | 2000 |
| 34091-08 | 2008 |
| 34987-06 | 2006 |
| 35081-06 | 2006 |
| 35082-07 | 2007 |
| 35186-06A | 2020 |
| 35243-06A | 2020 |
| 35249-06A | 2006 |
| 347B1 - Transmission Case | |
| 34700372 | 2021 |
| 348C1 - Transmission Top Cover | |
| 34800043 | 2018 |
| 34800071 | 2023 |
| 350A1 - Transmission Output Sprocket | |
| 35000152A | 2023 |
| 350E1 - Transmission Gear | |
| 35000179 | 2018 |
| 35122-06A | 2018 |
| 350F1 - Transmission Mainshaft | |
| 35000178 | 2018 |
| 35467-06C | 2017 |
| 350G1 - Transmission Shim / Spacer | |
| 11207A | 2009 |
| 25729-06 | 2006 |
| 25731-06 | 2006 |
| 25734-06 | 2006 |
| 25736-06 | 2006 |
| 25737-06 | 2006 |
| 25738-06 | 2006 |
| 352A1 - Engine Balancer | |
| 35200150 | 2023 |
| 352B1 - Engine Balancer sub-component | |
| 35200021 | 2017 |
| 356A1 - Transmission Countershaft | |
| 35600094 | 2018 |
| 35600103 | 2017 |
| 35807-06 | 2006 |
| 35811-06 | 2006 |
| 35814-06 | 2006 |
| 356B1 - Transmission Dog Ring | |
| 35126-06 | 2006 |
| 35204-06 | 2006 |
| 356C1 - Transmission Dog Ring Guide Hub | |
| 35124-06 | 2006 |
| 35202-06 | 2006 |
| 363A1 - PT Driveline Miscellaneous Component | |
| 35241-06 | 2006 |
| 35242-06 | 2006 |
| 37069-90A | 2010 |
| 365A1 - Primary Chain | |
| 40037-07 | 2007 |
| 365B1 - Primary Chain Tensioner | |
| 36500075A | 2021 |
| 365E1 - Inner Primary Housing | |
| 36500052A | 2020 |
| 367A1 - Clutch Lever | |
| 36700286 | 2023 |
| 36700296 | 2024 |
| 367F1 - Clutch Lever Perch | |
| 36700288 | 2023 |
| 367G1 - Clutch Lever Pivot Bolt | |
| 36706-01K | 2001 |
| 367H1 - Clutch Lever sub-component | |
| 34920-86A | 1986 |
| 36700291 | 2023 |
| 37312-75 | 1975 |
| 37904-90 | 1990 |
| 37909-90 | 1990 |
| 370A1 - Clutch Assembly | |
| 37000168 | 2017 |
| 37000169 | 2017 |
| 37000377 | 2023 |
| 37496-90A | 1990 |
| 370C1 - Clutch Hub | |
| 37000083 | 2013 |
| 370E1 - Clutch Metal Plate | |
| 37092-06 | 2006 |
| 37903-90 | 1990 |
| 370F1 - Clutch Pressure Plate | |
| 37000032A | 2017 |
| 370F2 - Clutch Spring Pressure Plate | |
| 37000270A | 2018 |
| 370J1 - Miscellaneous Clutch Sub-Component | |
| 37000033 | 2013 |
| 37000034 | 2013 |
| 37000219 | 2017 |
| 37000295 | 2019 |
| 37000382 | 2023 |
| 370Z1 - Kit,Clutch | |
| 37000376 | 2021 |
| 372D1 - Clutch Cable | |
| 37200395A | 2018 |
| 37200396 | 2018 |
| 37200437 | 2021 |
| 37200545 | 2021 |
| 37200574A | 2023 |
| 37200592 | 2023 |
| 400A1 - Drive-Belt | |
| 40024-09A | 2015 |
| 401A1 - Engine Sprocket | |
| 40100041 | 2014 |
| 40100064 | 2017 |
| 83936-09A | 2013 |
| 401Z1 - Kit,Engine Sprocket | |
| 40100076 | 2017 |
| 409A1 - Rear Wheel | |
| 40900905 | 2024 |
| 410A1 - Body Control Module (BCM) | |
| 41001501 | 2024 |
| 41001502 | 2024 |
| 410D1 - Electronic Control Module (ECM) | |
| 41001351 | 2024 |
| 411A1 - ABS Control Unit | |
| 41100122 | 2023 |
| 413A1 - Brake Caliper | |
| 43027-08 | 2008 |
| 44023-08 | 2008 |
| 44080-08C | 2012 |
| 44160-00 | 2000 |
| 413B1 - Brake Bleeder Screw | |
| 42853-06 | 2006 |
| 413C1 - Brake Caliper sub-component | |
| 12102 | Unknown |
| 42851-06 | 2006 |
| 413D1 - Brake Pad | |
| 41852-08B | 2012 |
| 41854-08 | 2008 |
| 42867-06A | 2006 |
| 413E1 - Brake Pad Pin | |
| 42849-08 | 2008 |
| 42865-06B | 2006 |
| 415B1 - Brake Rotor | |
| 41500158A | 2024 |
| 41500196 | 2021 |
| 41810-08B | 2012 |
| 416A1 - Brakes Miscellaneous Component | |
| 42852-06A | 2006 |
| 42860-06B | 2006 |
| 42863-06 | 2006 |
| 42934-08 | 2008 |
| 44089-08 | 2008 |
| 72023-51E | 2012 |
| 416B1 - Brake Mounting Bracket | |
| 41600378 | 2023 |
| 41600382 | 2023 |
| 41600383 | 2023 |
| 41600384 | 2023 |
| 41600385 | 2023 |
| 41600386 | 2023 |
| 41600390 | 2023 |
| 417A1 - Brake Master Cylinder Assembly | |
| 41700028A | 2018 |
| 41701067 | 2024 |
| 41701089 | 2023 |
| 417B1 - Brake Master Cylinder | |
| 41700625 | 2021 |
| 42889-06 | 2006 |
| 417C1 - Brake Master Cylinder Piston Set | |
| 41700195 | 2014 |
| 42932-08A | 2013 |
| 417D1 - Brake Master Cylinder sub-Component | |
| 41700367 | 2015 |
| 42937-08C | 2018 |
| 417F1 - Brake Master Cylinder Reservoir | |
| 41701125 | 2023 |
| 417G1 - Front Brake Lever | |
| 41701131 | 2023 |
| 41701406 | 2024 |
| 41701407 | 2024 |
| 418B1 - Brake Line | |
| 41800887 | 2023 |
| 41800888 | 2024 |
| 41800890 | 2023 |
| 41800891 | 2023 |
| 41800896 | 2024 |
| 41800897 | 2024 |
| 41800898 | 2024 |
| 41800899 | 2024 |
| 422B1 - Wheel Sprocket | |
| 40217-09 | 2009 |
| 422C1 - Wheel Sprocket Compensating Cushion | |
| 40278-09 | 2009 |
| 423F1 - Tire Pressure Monitor | |
| 42300139 | 2021 |
| 42300140 | 2021 |
| 42300142 | 2021 |
| 42300143 | 2021 |
| 423G1 - Valve Stem | |
| 42300141 | 2021 |
| 423H1 - Valve Stem Cap | |
| 41123-79 | 1979 |
| 423K1 - Wheel Weights | |
| 42300001A | 2021 |
| 430D1 - Front Axle | |
| 43000300A | 2023 |
| 430E1 - Rear Axle | |
| 43000203 | 2020 |
| 43000207 | 2020 |
| 431A1 - Front Tire | |
| 43100045 | 2020 |
| 432A1 - Rear Tire | |
| 43200045 | 2020 |
| 433A1 - Front Wheel | |
| 43300926 | 2024 |
| 433B1 - Front Wheel Bearing Spacer | |
| 11843 | 2009 |
| 41349-07 | 2007 |
| 41901-08 | 2008 |
| 48489-02 | 2002 |
| 56163-93 | 1993 |
| 454A1 - Front Telescopic Fork | |
| 45400335 | 2024 |
| 45400336 | 2024 |
| 45400337 | 2024 |
| 45400338 | 2024 |
| 455A1 - Front Telescopic Fork Slider | |
| 45500839 | 2024 |
| 45500840 | 2024 |
| 45500841 | 2024 |
| 45500842 | 2024 |
| 455B1 - Front Telescopic Fork Spring | |
| 45500396 | 2017 |
| 455C1 - Front Telescopic Fork sub-component | |
| 45500117 | 2014 |
| 45500118 | 2014 |
| 45500132 | 2014 |
| 45500341 | 2017 |
| 45500397 | 2017 |
| 45500398 | 2017 |
| 45500421 | 2001 |
| 45500424 | 2017 |
| 45500849 | 2024 |
| 45500856 | 2024 |
| 46513-01 | 2001 |
| 46514-01A | 2010 |
| 456A1 - Fork Protector | |
| 45600003 | 2014 |
| 45600054 | 2017 |
| 45600055 | 2017 |
| 456C1 - Fork Lock | |
| 71540-94B | 2016 |
| 456Z3 - Kit,Fork Lock | |
| 45600135 | 2024 |
| 457D1 - Steering Stem | |
| 45700070 | 2023 |
| 457E1 - Steering Stem Bearing Insert Cup | |
| 45700009 | 2014 |
| 458A1 - Front Suspension and Steering Miscellaneous Component | |
| 45800023 | 2014 |
| 46615-06 | 2006 |
| 459A1 - Upper Triple Clamp | |
| 45900318A | 2024 |
| 45900334A | 2024 |
| 459B1 - Lower Triple Clamp | |
| 45900317 | 2024 |
| 45900335 | 2024 |
| 470A1 - Frame | |
| 47000344 | 2023 |
| 48079-09BHP | 2009 |
| 472A1 - Frame sub-component | |
| 6982 | Unknown |
| 472C1 - Front Fairing Support Bracket | |
| 47200266 | 2015 |
| 47200945 | 2023 |
| 47200947 | 2023 |
| 47200948 | 2023 |
| 47200952 | 2024 |
| 58888-98A | 1998 |
| 472D2 - Chassis Structure Mounting Bracket | |
| 47200302A | 2017 |
| 91140-09 | 2009 |
| 474C1 - Swingarm | |
| 47549-09A | 2017 |
| 474E1 - Swingarm Assembly sub-component | |
| 47584-09 | 2009 |
| 67875-11 | 2011 |
| 474F1 - Swingarm Bearing Spacer | |
| 48487-02 | 2002 |
| 475B1 - Swingarm Pivot Shaft | |
| 47540-11 | 2011 |
| 490C1 - Engine Guard | |
| 49000239 | 2024 |
| 49000240 | 2023 |
| 500B1 - Sidestand Bracket | |
| 50000097 | 2017 |
| 50000143 | 2018 |
| 500C1 - Sidestand Bracket sub-component | |
| 49725-07A | 2007 |
| 500D1 - Sidestand Leg | |
| 50000149 | 2018 |
| 50075-07A | 2011 |
| 500E1 - Sidestand Leg sub-component | |
| 50015-74A | 1974 |
| 50245-07 | 2007 |
| 505A1 - Footboard | |
| 50683-04 | 2004 |
| 50684-11 | 2011 |
| 50688-04 | 2004 |
| 50689-11 | 2011 |
| 51068-08 | 2008 |
| 51070-08 | 2008 |
| 505B1 - Footpeg Mount Bracket | |
| 50208-04 | 2004 |
| 50500332A | 2016 |
| 50500334A | 2016 |
| 50500460A | 2016 |
| 50500462A | 2016 |
| 50518-09 | 2009 |
| 50622-09A | 2015 |
| 505D1 - Passenger Footpeg | |
| 50345-04 | 2004 |
| 50500876 | 2017 |
| 505K1 - Footpeg Wear Peg | |
| 50350-04 | 2004 |
| 506A1 - Brake Pedal | |
| 42410-04 | 2004 |
| 42444-04 | 2004 |
| 50600067 | 2014 |
| 50600244 | 2017 |
| 50600245 | 2017 |
| 50912-72 | 1972 |
| 520A1 - Rider Seat or Full Seat | |
| 52000631 | 2024 |
| 520B1 - Rider/Full Seat Assembly sub-component | |
| 52000646 | 2023 |
| 524A1 - Passenger Grab Handle | |
| 52400016 | 2014 |
| 52400021 | 2014 |
| 52400313 | 2024 |
| 540B1 - Rear Shock | |
| 54000304 | 2024 |
| 54000305 | 2024 |
| 540E1 - Rear Shock sub-component | |
| 54000141 | 2017 |
| 558A1 - Handlebar | |
| 55801336 | 2023 |
| 55801445 | 2023 |
| 55801446 | 2024 |
| 55801459 | 2024 |
| 559D1 - Lower Handlebar Clamp | |
| 57450-14 | 2014 |
| 57451-14 | 2014 |
| 559D2 - Lower Handlebar Riser | |
| 55900299 | 2024 |
| 55900300 | 2023 |
| 559E1 - Upper Handlebar Clamp | |
| 55900301 | 2024 |
| 55900302 | 2023 |
| 55900361 | 2024 |
| 560A1 - Mirror | |
| 56000319 | 2024 |
| 56000322 | 2024 |
| 56000327 | 2024 |
| 56000328 | 2024 |
| 56000337 | 2023 |
| 56000338 | 2023 |
| 92073-03 | 2003 |
| 92076-03 | 2003 |
| 92078-03 | 2003 |
| 92082-03 | 2003 |
| 561B1 - Left Hand Grip | |
| 56100586 | 2024 |
| 561C1 - Throttle Assembly w/Grip | |
| 56100587 | 2024 |
| 570A1 - Front Fairing | |
| 57000779 | 2018 |
| 57001670 | 2023 |
| 570C1 - Inner Fairing | |
| 57001665BYM | 2024 |
| 57001688BYM | 2024 |
| 57001899 | 2023 |
| 570D1 - Air Deflector | |
| 57001704 | 2023 |
| 57001705 | 2023 |
| 57001707A | 2024 |
| 57001774 | 2025 |
| 57001986 | 2023 |
| 570S2 - Sub-Assembly,Fairing | |
| 57001885 | 2023 |
| 570Z1 - Kit,Fairing | |
| 57001941 | 2023 |
| 57001942 | 2023 |
| 571D1 - Debris Deflector | |
| 57100444 | 2023 |
| 572A1 - Chin Spoiler | |
| 57200405 | 2023 |
| 572D1 - Engine Shroud | |
| 57200391 | 2024 |
| 57200392 | 2024 |
| 572S3 - Sub-Assembly,Spoiler | |
| 57200375B | 2023 |
| 57200376B | 2023 |
| 572Z1 - Kit,Shroud | |
| 57200417 | 2024 |
| 573A1 - Bodywork Miscellaneous Component | |
| 57300388 | 2021 |
| 57300393 | 2023 |
| 57300420 | 2023 |
| 573B1 - Bodywork Mounting Bracket | |
| 59786-01 | 2001 |
| 573Z1 - Kit,Bodywork Miscellaneous Component | |
| 57300409 | 2023 |
| 574B1 - Windscreen / Windshield | |
| 57400521 | 2023 |
| 57400530 | 2023 |
| 57400531 | 2023 |
| 57400656 | 2023 |
| 57400658 | 2023 |
| 57400664 | 2023 |
| 589A1 - Front Fender | |
| 58900582 | 2023 |
| 595D1 - Rear Fender | |
| 59500519 | 2018 |
| 59768-97 | 1997 |
| 60463-09B | 2023 |
| 603B1 - Belt / Chain Guard | |
| 60386-09 | 2009 |
| 608A1 - Carbon Canister | |
| 60800116 | 2022 |
| 608B1 - Carbon Canister Hose | |
| 60800109 | 2023 |
| 60800110 | 2023 |
| 60800111 | 2023 |
| 60800120 | 2023 |
| 609A1 - Fuel Miscellaneous Component | |
| 60900061 | 2018 |
| 6119 | 2016 |
| 610A1 - Fuel Tank | |
| 61000986 | 2023 |
| 61000997 | 2023 |
| 611B1 - Fuel Cap | |
| 61100207 | 2023 |
| 611F1 - Fuel Tank Vapor Vent Hose | |
| 61100202 | 2023 |
| 61100204 | 2023 |
| 61100206 | 2023 |
| 612B2 - Fuel Valve | |
| 61200110 | 2024 |
| 612F1 - Fuel Pump | |
| 61200091A | 2024 |
| 612K1 - Fuel Pump sub-component | |
| 61200097 | 2023 |
| 61200100 | 2023 |
| 612Z1 - Kit,Fuel Pump | |
| 61200101 | 2023 |
| 61200102 | 2023 |
| 612Z2 - Kit,Fuel Line | |
| 61200096 | 2023 |
| 613A1 - Trim Panel | |
| 61301291 | 2023 |
| 61301292 | 2023 |
| 613K1 - Airbox Cover | |
| 61301285 | 2024 |
| 61301353 | 2024 |
| 61301354 | 2024 |
| 614C1 - Trim | |
| 61400705 | 2024 |
| 61400716 | 2023 |
| 61400717 | 2023 |
| 61400718 | 2023 |
| 61400719 | 2023 |
| 624A1 - Oil Pump Assembly | |
| 62400242 | 2020 |
| 62400245 | 2020 |
| 624B1 - Oil Pump Assembly sub-component | |
| 26210-99 | 1999 |
| 26400-82B | 1982 |
| 62400055 | 2017 |
| 62400233 | 2020 |
| 624F1 - Oil Pump Seal | |
| 62400205 | 2019 |
| 627B1 - Oil Drain Plug | |
| 60328-98B | 1998 |
| 62700150 | 2017 |
| 627E1 - Oil Filler Plug / Dipstick | |
| 62700136 | 2017 |
| 62700291 | 2021 |
| 627E2 - Sight Glass | |
| 42854-06 | 2006 |
| 627F1 - Oil Filter | |
| 62700296 | 2020 |
| 627G1 - Oil Jet | |
| 62700089A | 2022 |
| 62700117A | 2022 |
| 627H1 - Oil Line | |
| 62700324 | 2023 |
| 627K1 - Oil Line Fitting | |
| 26352-95A | 1995 |
| 628A1 - PT Lubrication and Cooling Miscellaneous Component | |
| 62800013 | 2013 |
| 62800067 | 2023 |
| 62800073 | 2023 |
| 649A1 - Muffler | |
| 64900952 | 2021 |
| 64900953 | 2021 |
| 64900954 | 2021 |
| 64900955 | 2021 |
| 64901310 | 2024 |
| 64901311 | 2024 |
| 64901314 | 2024 |
| 64901315 | 2024 |
| 654A1 - Exhaust Shield | |
| 65400176A | 2020 |
| 65400177 | 2017 |
| 65400178 | 2017 |
| 65400179 | 2017 |
| 65400483A | 2020 |
| 65400484 | 2018 |
| 65400485 | 2018 |
| 65400486 | 2018 |
| 655A1 - Muffler Mount | |
| 65723-85 | 1985 |
| 65724-85A | 2016 |
| 66861-09B | 2019 |
| 655B1 - Exhaust Mount Strap / Clamp | |
| 65296-95B | 2021 |
| 65500042 | 2017 |
| 65500043B | 2021 |
| 655C1 - Exhaust Mounting Bracket | |
| 66881-09 | 2009 |
| 656E1 - Header Pipe | |
| 65600178A | 2021 |
| 65600377 | 2021 |
| 65600379 | 2021 |
| 65600451 | 2023 |
| 659A1 - Exhaust Clamp | |
| 65900015 | 2017 |
| 659B1 - Exhaust Flange | |
| 65328-83A | 2010 |
| 659C1 - Exhaust Gasket | |
| 65900017 | 2017 |
| 65900056 | 2021 |
| 660A1 - Battery | |
| 66000066A | 2021 |
| 66000107 | 2015 |
| 66010-97E | 2021 |
| 660C1 - Battery Pan | |
| 66000339 | 2023 |
| 660D1 - Battery Strap | |
| 66051-08 | 2008 |
| 660F1 - Negative Battery Cable | |
| 66000116 | 2017 |
| 677A1 - Headlight | |
| 67700660 | 2023 |
| 677B1 - Headlight sub-component | |
| 67700670 | 2023 |
| 67700671 | 2023 |
| 67700672 | 2023 |
| 677C1 - Headlight Support Bracket | |
| 67700669 | 2023 |
| 677S2 - Sub-Assembly,Headlight | |
| 67700673 | 2023 |
| 678A1 - Taillight | |
| 67801341 | 2023 |
| 67801344 | 2023 |
| 67801345 | 2023 |
| 678D1 - Turnsignal | |
| 67801330 | 2023 |
| 67801331 | 2023 |
| 679A1 - License Plate Tray / Holder | |
| 67900640 | 2023 |
| 67900648 | 2024 |
| 67900649 | 2023 |
| 679B1 - Reflector | |
| 59481-00 | 2018 |
| 59482-00 | 2018 |
| 67900065 | 2014 |
| 67900066 | 2014 |
| 67900067 | 2014 |
| 67900068 | 2014 |
| 69490-07 | 2007 |
| 69861-07 | 2018 |
| 69862-07 | 2018 |
| 679C1 - Reflector Mount Bracket / Holder | |
| 67900243 | 2015 |
| 679D1 - License Plate Bracket | |
| 60916-09 | 2009 |
| 679E1 - License Plate Light | |
| 67900655 | 2023 |
| 690C1 - Horn | |
| 69060-90H | 2014 |
| 690D1 - Horn Bracket | |
| 69000125B | 2023 |
| 692C1 - Electrical Miscellaneous Component | |
| 69200611 | 2014 |
| 72299-95 | 1995 |
| 692C2 - Electrical Mounting Bracket | |
| 69202636A | 2023 |
| 69202637 | 2021 |
| 69202720A | 2022 |
| 69203010 | 2023 |
| 69203010A | 2024 |
| 69203011 | 2023 |
| 69203046 | 2023 |
| 69203096 | 2023 |
| 69203096A | 2023 |
| 69203119 | 2023 |
| 69203624 | 2024 |
| 69201287A | 2023 |
| 69201924 | 2020 |
| 692D1 - Fuse | |
| 69200293 | 2014 |
| 69203053 | 2023 |
| 72330-95 | 1995 |
| 72462-00 | 2000 |
| 72539-06 | 2006 |
| 692E1 - Fuse / Relay Block | |
| 31586-07 | 2007 |
| 69200194 | 2014 |
| 69200312 | 2014 |
| 69200600 | 2014 |
| 692E2 - Fuse / Relay Block Cover | |
| 69203519 | 2024 |
| 692F1 - Wire Harness | |
| 69202979A | 2023 |
| 69202980A | 2023 |
| 69202986 | 2023 |
| 69202988 | 2024 |
| 69202989 | 2023 |
| 69203017 | 2023 |
| 69203018 | 2023 |
| 69203055 | 2023 |
| 69203058 | 2024 |
| 69203090 | 2023 |
| 69203123 | 2023 |
| 69203188 | 2023 |
| 69203191 | 2023 |
| 69203403 | 2024 |
| 69200224 | 2014 |
| 69200247 | 2014 |
| 69200752 | 2015 |
| 692G1 - Conduit / Sheathing / Sleeving | |
| 69202219 | 2019 |
| 692G2 - Wire Guide | |
| 69200702 | 2015 |
| 69202786 | 2021 |
| 69203026 | 2021 |
| 72298-95 | 1995 |
| 72412-97 | 1997 |
| 692H1 - Connector | |
| 69202958 | 2021 |
| 69202959 | 2021 |
| 69202996 | 2021 |
| 69203028 | 2023 |
| 69203042 | 2023 |
| 69203057 | 2023 |
| 69203105 | 2023 |
| 72009-05 | 2005 |
| 72063-06 | 2006 |
| 72064-06 | 2006 |
| 72098-06 | 2006 |
| 72111-06 | 2006 |
| 72127-06 | 2006 |
| 72444-07GY | 2007 |
| 72518-01 | 2001 |
| 72519-09BK | 2009 |
| 72632-10 | 2010 |
| 72639-10 | 2010 |
| 72905-11 | 2011 |
| 72906-11 | 2011 |
| 72908-11 | 2011 |
| 69200183 | 2014 |
| 69200184 | 2014 |
| 69200212 | 2014 |
| 69200254 | 2014 |
| 69200256 | 2014 |
| 69200271 | 2014 |
| 69200272 | 2014 |
| 69200306 | 2014 |
| 69201179 | 2016 |
| 69201299 | 2017 |
| 69201302 | 2017 |
| 69201393 | 2017 |
| 69201394 | 2017 |
| 69201395 | 2017 |
| 69201397 | 2017 |
| 69201406 | 2017 |
| 69201427 | 2017 |
| 69201441 | 2017 |
| 69201575 | 2017 |
| 69201652 | 2018 |
| 69201711 | 2018 |
| 69201712 | 2018 |
| 69201779 | 2019 |
| 69201931 | 2021 |
| 69201932 | 2021 |
| 69201933 | 2021 |
| 69202028 | 2021 |
| 69202032 | 2021 |
| 69202098 | 2019 |
| 69202109 | 2019 |
| 69202285 | 2023 |
| 69202322 | 2021 |
| 69202350 | 2021 |
| 692H2 - Terminal | |
| 5118 | 2011 |
| 69200185 | 2014 |
| 69200186 | 2014 |
| 69200187 | 2014 |
| 69200238 | 2011 |
| 69200307 | 2014 |
| 69200308 | 2014 |
| 69200536 | 2014 |
| 69201300 | 2017 |
| 69201385 | 2016 |
| 69201596 | 2017 |
| 69201814 | 2019 |
| 69201890 | 2021 |
| 69202104 | 2019 |
| 69202170 | 2021 |
| 69202172 | 2021 |
| 69202183 | 2021 |
| 69202453 | 2021 |
| 69202489 | 2021 |
| 69202491 | 2021 |
| 69203120 | 2023 |
| 69203195 | 2022 |
| 69203209 | 2022 |
| 72168-07 | 2007 |
| 72169-07 | 2007 |
| 72213-94 | 1994 |
| 72222-11 | 2011 |
| 72226-11 | 2011 |
| 72227-11 | 2011 |
| 72229-11 | 2011 |
| 72241-94A | 1994 |
| 72256-11 | 2011 |
| 72272-07 | 2007 |
| 72283-09 | 2009 |
| 72290-94 | 1994 |
| 72291-94 | 1994 |
| 72294-94 | 1994 |
| 72296-95 | 1995 |
| 72308-97 | 1997 |
| 72343-10 | 2010 |
| 72344-10 | 2010 |
| 72356-95 | 1995 |
| 72364-06 | 2006 |
| 72427-00 | 2000 |
| 72484-08 | 2008 |
| 72569-08 | 2008 |
| 72608-08 | 2008 |
| 72721-07 | 2007 |
| 72910-11 | 2011 |
| 73307-10 | 2010 |
| 74194-98 | 1998 |
| 9937 | Unknown |
| 692K1 - Connector / Terminal Seal | |
| 69202492 | 2021 |
| 69203121 | 2023 |
| 72225-09 | 2009 |
| 69201162 | 2016 |
| 69201164 | 2016 |
| 69201301 | 2017 |
| 69201377 | 2016 |
| 69201379 | 2016 |
| 69201396 | 2017 |
| 69201398 | 2017 |
| 69201407 | 2017 |
| 69201412 | 2017 |
| 69201416 | 2017 |
| 69201442 | 2017 |
| 69202031 | 2021 |
| 69202106 | 2019 |
| 69202107 | 2019 |
| 69202171 | 2021 |
| 69202173 | 2021 |
| 69202184 | 2021 |
| 692L1 - Wire Harness sub-component | |
| 10102 | Unknown |
| 69200188 | 2014 |
| 69200189 | 2014 |
| 69200190 | 2014 |
| 69200191 | 2014 |
| 69200199 | 2014 |
| 69200201 | 2014 |
| 69200205 | 2014 |
| 69200214A | 2023 |
| 69201307 | 2017 |
| 69201722 | 2018 |
| 69201962 | 2021 |
| 69203052 | 2023 |
| 69203106 | 2023 |
| 69203192 | 2023 |
| 69203203 | 2023 |
| 69203487 | 2024 |
| 70494-08 | 2008 |
| 70631-08 | 2008 |
| 70681-09 | 2009 |
| 70717-10 | 2010 |
| 72010-05 | 2005 |
| 72053-92 | 1992 |
| 72065-06A | 2006 |
| 72066-06A | 2006 |
| 72099-06 | 2006 |
| 72135-06 | 2006 |
| 72145-06 | 2006 |
| 72175-07BK | 2007 |
| 72177-07BK | 2007 |
| 72188-07BK | 2007 |
| 72209-11 | 2011 |
| 72414-07BK | 2007 |
| 72415-07GY | 2007 |
| 72473-07 | 2007 |
| 72486-08 | 2008 |
| 72487-07BK | 2007 |
| 72488-07BK | 2007 |
| 72499-07 | 2007 |
| 72500-07ABK | 2007 |
| 72511-07BK | 2007 |
| 72512-07BK | 2007 |
| 72606-08 | 2008 |
| 72607-08 | 2008 |
| 72609-08 | 2008 |
| 72610-08 | 2008 |
| 72720-07 | 2007 |
| 73213-07 | 2007 |
| 74112-98BK | 1998 |
| 74152-98 | 1998 |
| 74191-98 | 1998 |
| 709A1 - Dash Panel | |
| 70901099 | 2024 |
| 709B1 - Instrument Cluster or Speedometer | |
| 70901090A | 2024 |
| 70901092A | 2024 |
| 70901093A | 2024 |
| 709E1 - Tank Console | |
| 70900948 | 2021 |
| 70901087 | 2024 |
| 70901163 | 2024 |
| 70901164 | 2024 |
| 70901165 | 2024 |
| 70901170 | 2023 |
| 709S2 - Sub-Assembly,Console | |
| 70901106 | 2024 |
| 714B1 - Mechanical Switch | |
| 71400141 | 2021 |
| 71400196 | 2023 |
| 714C1 - Pressure Switch | |
| 71400112A | 2021 |
| 714D1 - Relay | |
| 71400100 | 2014 |
| 715A1 - Hand Control | |
| 71500611A | 2023 |
| 71500612 | 2023 |
| 71500660 | 2024 |
| 71500713 | 2024 |
| 71500715 | 2024 |
| 747A1 - Voltage Regulator | |
| 74700048 | 2023 |
| 760B1 - Antenna | |
| 76000789 | 2019 |
| 76000925 | 2021 |
| 76001235 | 2023 |
| 76001251 | 2023 |
| 760C1 - Audio System Amplifier | |
| 76001484 | 2025 |
| 760C2 - Audio System Speaker | |
| 76000819A | 2023 |
| 76001252 | 2023 |
| 76001253 | 2023 |
| 76001254 | 2023 |
| 76001255 | 2023 |
| 76001323 | 2024 |
| 76001324 | 2024 |
| 76001327 | 2024 |
| 76001328 | 2024 |
| 760C5 - Speaker Enclosure | |
| 76001153 | 2023 |
| 76001154 | 2023 |
| 76001155A | 2023 |
| 76001156A | 2023 |
| 760C6 - Media Storage Compartment | |
| 76000127 | 2014 |
| 76001162BYM | 2024 |
| 76001190 | 2023 |
| 76001202 | 2023 |
| 76001203 | 2023 |
| 76001206 | 2023 |
| 76001207 | 2023 |
| 76001214 | 2023 |
| 76001215 | 2023 |
| 76001233BYM | 2024 |
| 76001234BYM | 2024 |
| 76001260 | 2024 |
| 76001279 | 2023 |
| 76001293 | 2023 |
| 76001316 | 2024 |
| 76001317 | 2024 |
| 902A1 - Saddlebag | |
| 90202460 | 2024 |
| 90202461 | 2024 |
| 90202462DH | 2024 |
| 90202463DH | 2024 |
| 90202509 | 2023 |
| 902B1 - Saddlebag Cover | |
| 90202454 | 2024 |
| 90202455 | 2024 |
| 902E1 - Saddlebag Bottom | |
| 90200467 | 2014 |
| 90200499 | 2014 |
| 90200501 | 2014 |
| 90200519 | 2014 |
| 90200522 | 2014 |
| 90200549 | 2014 |
| 90200550 | 2014 |
| 90200611 | 2014 |
| 90200899 | 2014 |
| 90200900 | 2014 |
| 90200901 | 2014 |
| 90200902 | 2014 |
| 90200903 | 2014 |
| 90201319 | 2015 |
| 90201320 | 2015 |
| 90202108 | 2020 |
| 90202889 | 2024 |
| 90202890 | 2024 |
| 902J1 - Saddlebag Latch | |
| 90202466 | 2024 |
| 90202467 | 2024 |
| 902Z1 - Kit,Saddlebag | |
| 90201540 | 2017 |
| 903A1 - Lockset | |
| 90300024 | 2014 |
| 903B1 - Key or Key-set | |
| 61081-92 | 1992 |
| 903C1 - Key Transponder | |
| 90300145A | 2024 |
| 90300146A | 2024 |
| 917B1 - Service Program Kit | |
| 91700025A | 2014 |
| 918B1 - Hardware Kit | |
| 91800058 | 2017 |
| 91800075 | 2019 |
| 940A1 - Owner's Kit | |
| 94000326 | 2016 |
| 940A2 - Owner's Manual | |
| 94000986 | 2024 |
BEARINGS, SEALS & HARDWARE
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 10102 | CLIP | |
| 1062 | SCREW | |
| 11000101 | OIL SEAL | |
| 11105 | O-RING | |
| 11132A | O-RING | |
| 11145A | O-RING | |
| 11150 | RETAINING RING | |
| 11293 | O-RING | |
| 11304 | RING | |
| 11900103 | O-RING | |
| 12052A | SEAL | |
| 12074 | SEAL | |
| 17369-06 | GASKET SERVICE KIT | |
| 2445 | SCREW | |
| 2563 | SCREW | WINDSHIELD, FAIRING AND FRONT LIGHTING - FLHX (1 OF 2): |
| 25700378 | GASKET | |
| 25700455 | GASKET | |
| 25700731 | GASKET KIT | |
| 25700746 | GASKET KIT | |
| 27444-00Y | O-RING | |
| 3050 | SCREW | |
| 3275 | SCREW | |
| 34091-08 | BEARING | |
| 3656 | SCREW | |
| 4132 | SCREW | CLUTCH CONTROL - FLHX: CLUTCH CONTROL - FLTRX: |
| 41751-06A | GASKET | |
| 43567-92 | SCREW | |
| 4740A | SCREW | |
| 59768-97 | SEAT NUT KIT | |
| 60678-85 | RETAINING RING | |
| 65324-83B | GASKET | |
| 65325-83A | RETAINING RING | |
| 6702 | WASHER | |
| 7041 | LOCKWASHER | |
| 7586 | NUT | |
| 7593 | NUT | |
| 7716 | LOCKNUT | |
| 786A | BOLT | |
| 856A | SCREW | |
| 9955 | CLAMP |
BRAKING & SUSPENSION
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 41852-08B | PAD AND PIN KIT | |
| 41854-08 | PAD AND PIN KIT | |
| 46514-01A | OIL SEAL | |
| 46615-06 | PACKING SEAL |
CHASSIS & COMPONENTS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 49725-07A | SPRING | |
| 50245-07 | BUMPER |
ELECTRICAL
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 72023-51E | SWITCH KIT | |
| 72330-95 | FUSE | WIRING HARNESS, MAIN - FLHX (10 OF 11): WIRING HARNESS, MAIN - FLTRX (10 OF 11): |
ENGINE, TRANSMISSION & PRIMARY
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 18538-99C | HYDRAULIC LIFTER | |
| 33600091 | SHAFT | |
| 37909-90 | RING |
FOOT CONTROLS
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 34611-65A | TOE SHIFTER PEG KIT |
INTAKE, EXHAUST & FUEL MGMT
| Part No. | Description | Part and Model(s) |
|---|---|---|
| 65900015 | CLAMP |
