| 1. | Figure 1 Install front fork tube assemblies. a. Insert each fork tube assembly (3) through lower fork bracket (4) and upper fork bracket (2). b. Figure 2 Measure (2) 218–221 mm (8.6–8.7 in) from the fork tube cap (1) to the top of the lower fork bracket (3) to set fork height. c. Figure 1 Tighten lower fork bracket pinch screws (5) alternately until specification is maintained. Torque: 20–24 N·m (15–18 ft-lbs) Fork bracket, lower, pinch
screw d. Tighten upper fork bracket pinch screws (1). Torque: 20–24 N·m (15–18 ft-lbs) Fork bracket, upper, pinch screw |
| 1 | Upper pinch screw (2) |
| 2 | Upper fork bracket |
| 3 | Fork tube assembly (2) |
| 4 | Lower fork bracket |
| 5 | Lower pinch screw (4) |
Figure 1. Front Fork Mount

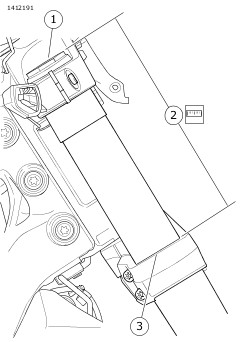

| 1 | Fork tube cap |
| 2 | 218–221 mm (8.6–8.7 in) |
| 3 | Lower fork bracket |
Figure 2. Fork Height
