Prepare
1. Remove top cover. See Chassis → TOP COVER.
2. Remove rear cover. See Chassis → REAR COVER.
3. Deactivate electrical system. See Electrical → POWER DISCONNECT.
4. Remove tail section. See Chassis → TAIL SECTION.
5. Remove rear shock absorber upper mounting bolt. Move shock out of the way. See Chassis → REAR SHOCK ABSORBER.
Remove
1. See Figure 1. Remove ABS module cover.
a. Remove cover screw (2).
b. Remove ABS module cover (1).
Install
1. See Figure 1. Install ABS module cover.
a. Install ABS module cover (1).
b. Install cover screw (2). Tighten.
Torque: 6–8 N·m (53–71 in-lbs) ABS module cover screw
1ABS module cover
2Cover screw

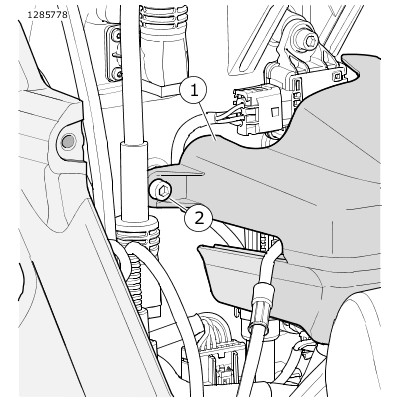

Figure 1. ABS Module Cover
Complete
1. Install rear shock absorber. See Chassis → REAR SHOCK ABSORBER.
2. Install tail section. See Chassis → TAIL SECTION.
3. Activate electrical system. See Electrical → POWER DISCONNECT.
4. Install rear cover. See Chassis → REAR COVER.
5. Install top cover. See Chassis → TOP COVER.
