Familiarize yourself with the location of all the controls and service components on your motorcycle.

NOTE

Illustrations are for general reference only. Controls and service components shown are general locations and representations that do not show a specific model of motorcycle.

Harley-Davidson reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.

See Figure 1 for rider controls and service components accessible when seated.

See Figure 2 for rider controls and service components accessible from the right.

See Figure 3 for rider controls and service components accessible from the left.

See Figure 4 for a toolkit located under the seat. These tools help with small repairs, adjustments and part replacement.

1	Clutch hand lever
2	Rear view mirror
3	Left hand control module
4	Ignition switch
5	Instrument module
6	Front brake fluid reservoir
7	Right hand control module
8	Front brake lever
9	Throttle twist grip
10	Fuel filler door

Figure 1. Controls and Service Components (Typical)

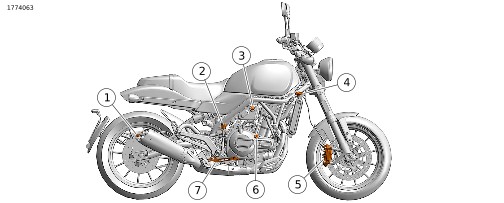

1	Rear brake caliper
2	Rear brake fluid reservoir
3	Coolant fill cap
4	Radiator cap
5	Front brake caliper (right)
6	Oil fill
7	Rear brake pedal

Figure 2. Controls and Service Components (Typical)

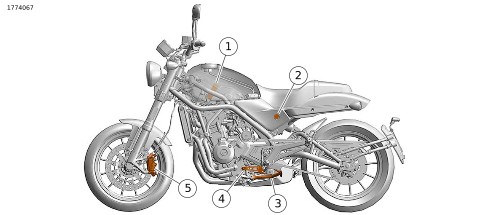

1	Air filter (above engine)
2	Seat lock keyhole
3	Jiffy stand
4	Gear shift lever
5	Front brake caliper (left)

Figure 3. Controls and Service Components (Typical)

Figure 4. Tool Kit
