This section provides left and right side views of your 2005 Touring motorcycle. Please refer to the CONTROLS AND INDICATORS and OPERATION sections for specific details about each component.
NOTE
Specifications in this publication may not match those of official certification in some markets due to timing of publication printing, variance in testing methods, and/or vehicle differences. Customers seeking officially recognized regulatory specifications for their vehicle should refer to certification documents and/or contact their respective dealer or distributor.

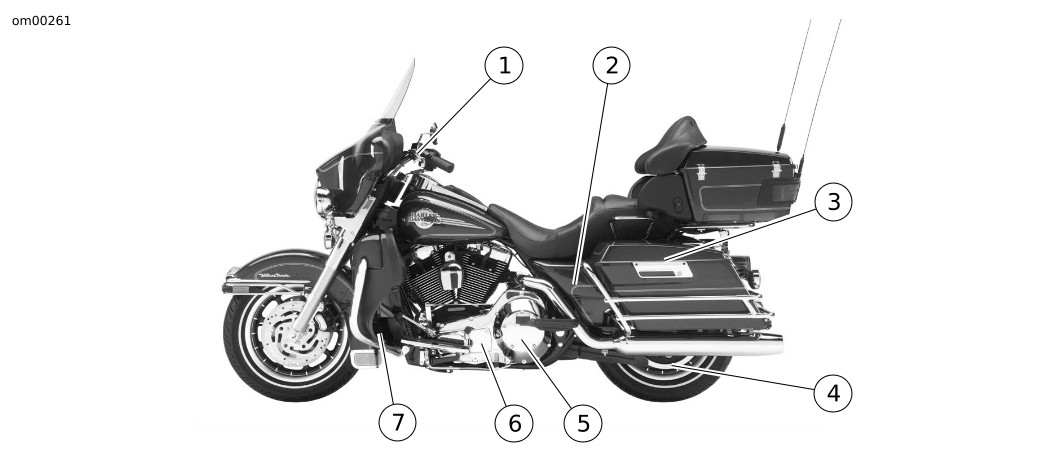

| 1 | Ignition/headlamp key switch/fork lock |
| 2 | Fuses |
| 3 | Rear suspension air valve |
| 4 | Rear sprocket and drive |
| 5 | Clutch inspection cover |
| 6 | Primary chain inspection cover |
| 7 | Engine oil filter |
Figure 1. 2005 Ultra Classic Electra Glide (FLHTCU) – Left
Side View

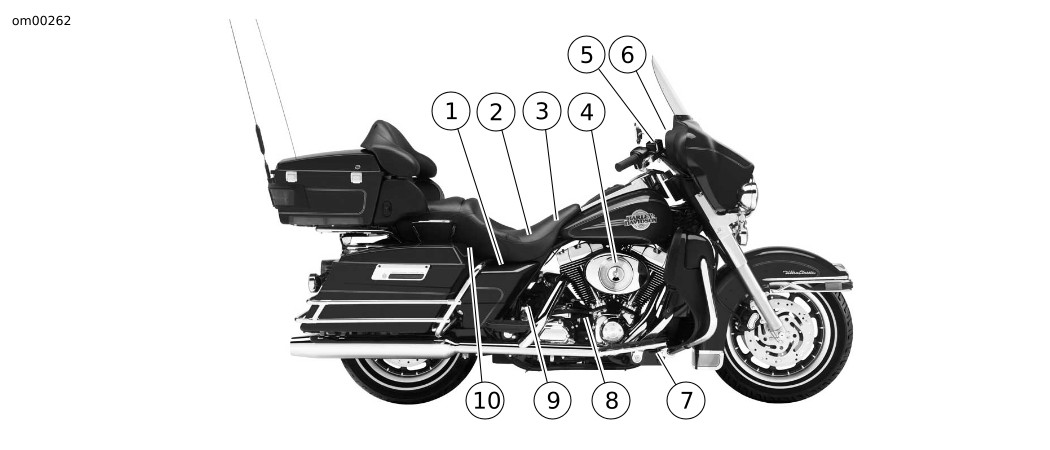

| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Front brake master cylinder and reservoir |
| 6 | Speedometer and tachometer |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |
Figure 2. 2005 Ultra Classic Electra Glide (FLHTCU) – Right
Side View
| 1 | Ignition/headlamp key switch/fork lock |
| 2 | Fuses |
| 3 | Rear suspension air valve |
| 4 | Rear sprocket and drive |
| 5 | Clutch inspection cover |
| 6 | Primary chain inspection cover |
| 7 | Engine oil filter |
Figure 3. 2005 Electra Glide Classic (FLHTC) – Left Side View
| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Front brake master cylinder and reservoir |
| 6 | Speedometer and tachometer |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |

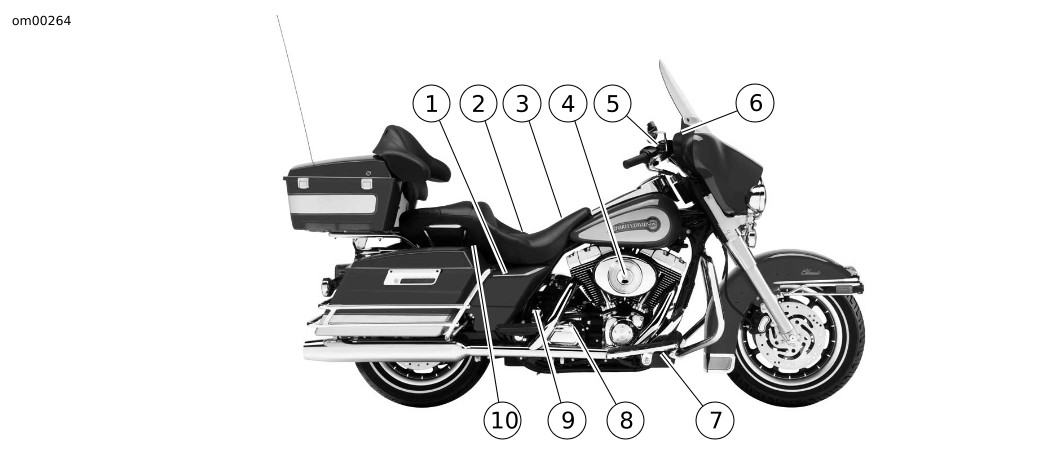

Figure 4. 2005 Electra Glide Classic (FLHTC) – Right Side View
| 1 | Ignition/headlamp key switch/fork lock |
| 2 | Fuses |
| 3 | Rear suspension air valve |
| 4 | Rear sprocket and drive |
| 5 | Clutch inspection cover |
| 6 | Primary chain inspection cover |
| 7 | Engine oil filter |
Figure 5. 2005 Electra Glide Standard (FLHT) – Left Side View
| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Front brake master cylinder and reservoir |
| 6 | Speedometer and tachometer |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |

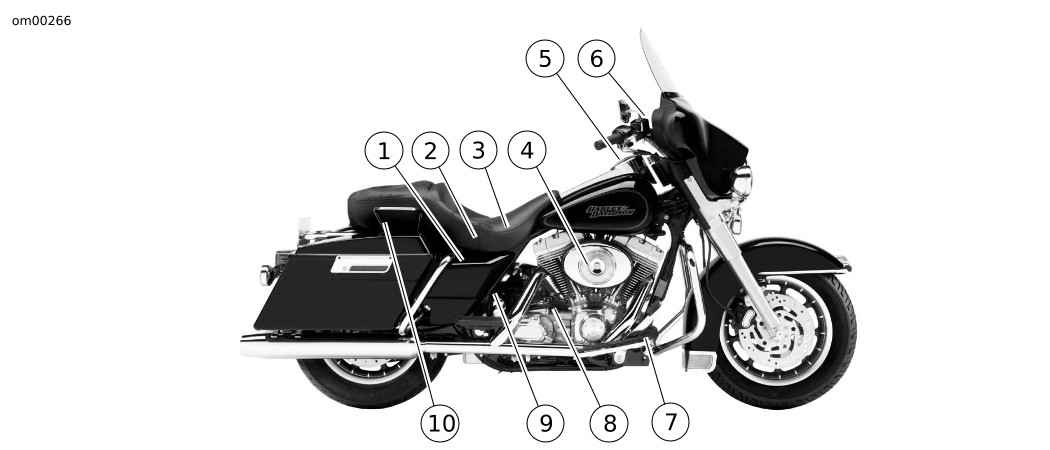

Figure 6. 2005 Electra Glide Standard (FLHT) – Right Side View

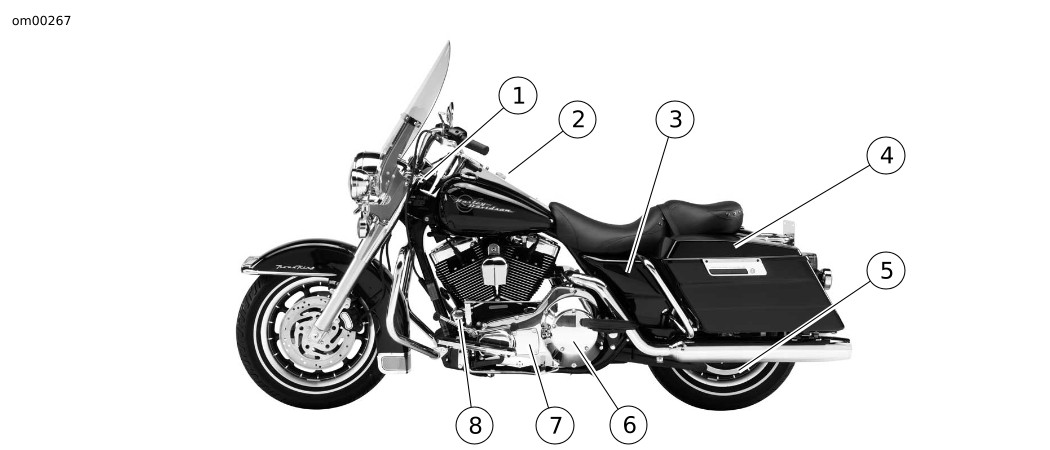

| 1 | Fork lock |
| 2 | Ignition/headlamp key switch |
| 3 | Fuses |
| 4 | Rear suspension air valve |
| 5 | Rear sprocket and drive |
| 6 | Clutch inspection cover |
| 7 | Primary chain inspection cover |
| 8 | Engine oil filter |
Figure 7. 2005 Road King (FLHR) – Left Side View
| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Speedometer |
| 6 | Front brake master cylinder and reservoir |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |
Figure 8. 2005 Road King (FLHR) – Right Side View

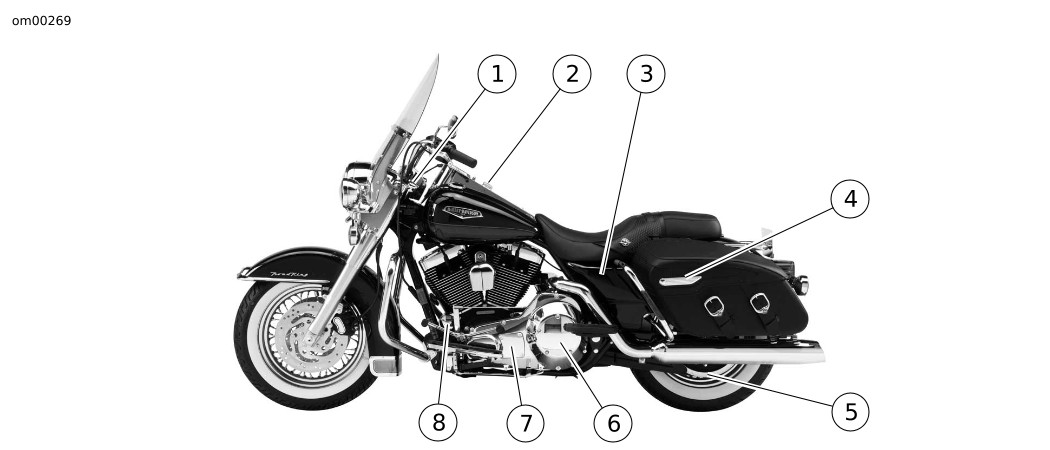

| 1 | Fork lock |
| 2 | Ignition/headlamp key switch |
| 3 | Fuses |
| 4 | Rear suspension air valve |
| 5 | Rear sprocket and drive |
| 6 | Clutch inspection cover |
| 7 | Primary chain inspection cover |
| 8 | Engine oil filter |
Figure 9. 2005 Road King Classic (FLHRC) – Left Side View
| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Speedometer |
| 6 | Front brake master cylinder and reservoir |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |

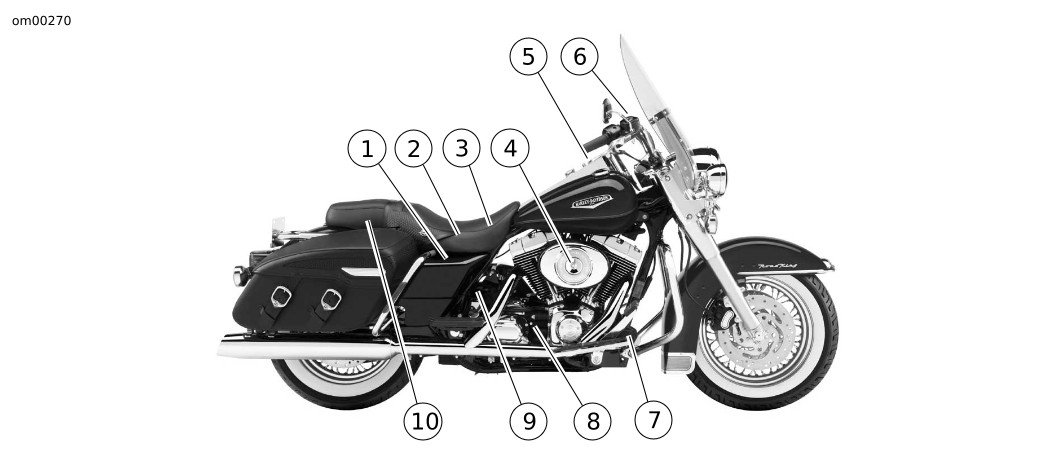

Figure 10. 2005 Road King Classic (FLHRC) – Right Side View
| 1 | Fork lock |
| 2 | Ignition/headlamp key switch |
| 3 | Fuses |
| 4 | Saddlebag latch |
| 5 | Rear suspension air valve |
| 6 | Rear sprocket and drive |
| 7 | Clutch inspection cover |
| 8 | Primary chain inspection cover |
| 9 | Engine oil filter |

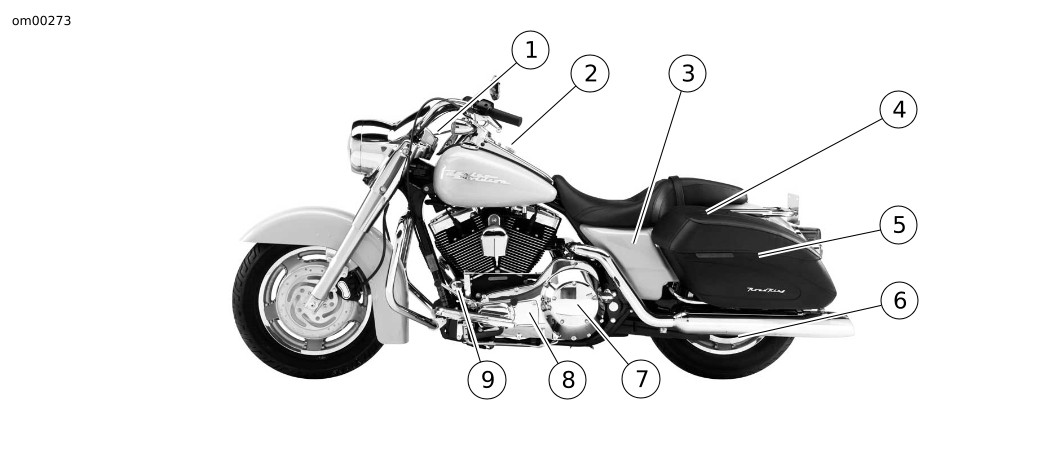

Figure 11. 2005 Road King Custom (FLHRS) – Left Side View
| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Front brake master cylinder and reservoir |
| 6 | Speedometer |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |

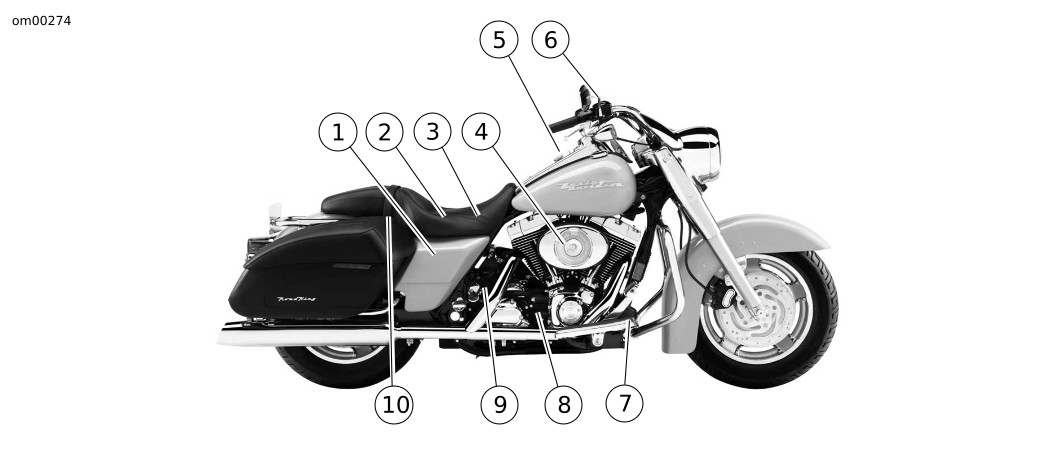

Figure 12. 2005 Road King Custom (FLHRS) – Right Side View
| 1 | Fork lock/ignition/headlamp key switch |
| 2 | Fuses |
| 3 | Rear suspension air valve |
| 4 | Rear sprocket and drive |
| 5 | Clutch inspection cover |
| 6 | Primary chain inspection cover |
| 7 | Engine oil filter |

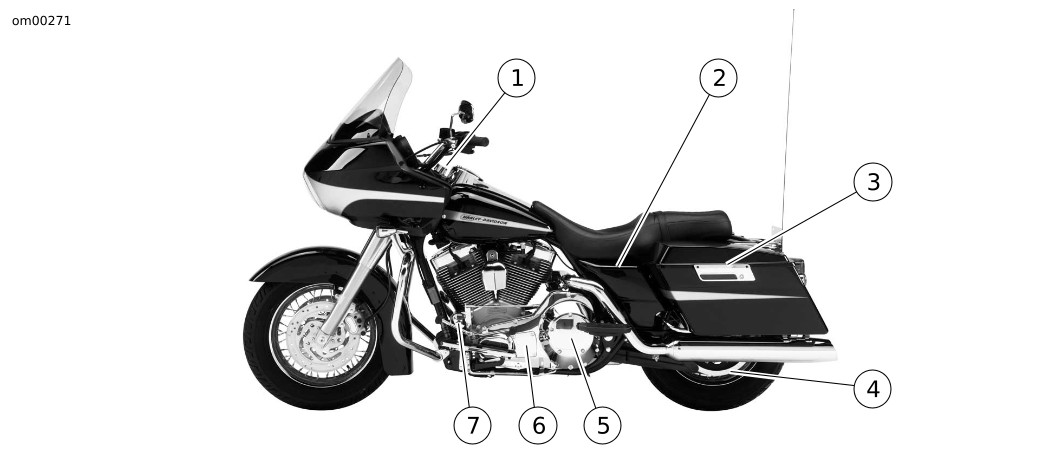

Figure 13. 2005 Road Glide (FLTRI) – Left Side View

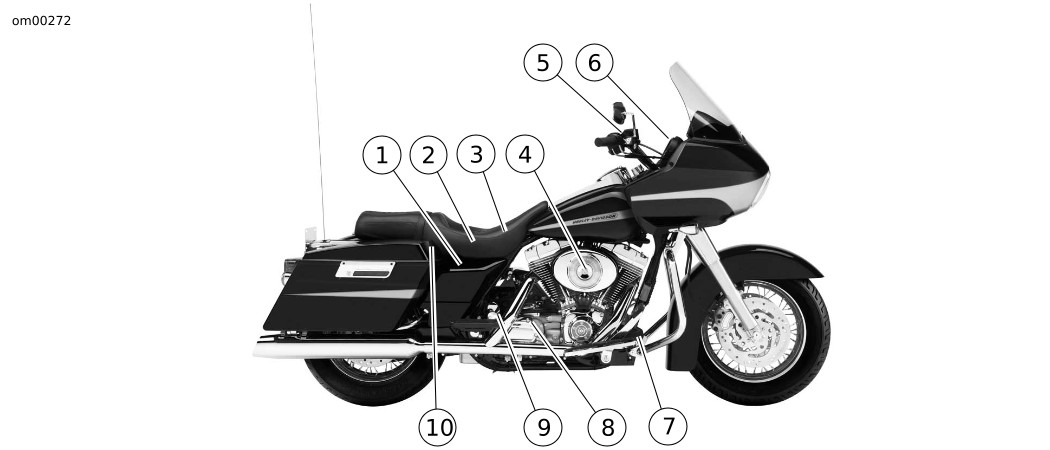

| 1 | Ignition module/ECM |
| 2 | Battery |
| 3 | ACC connector (under seat) |
| 4 | Air cleaner |
| 5 | Front brake master cylinder and reservoir |
| 6 | Speedometer and tachometer |
| 7 | Rear brake master cylinder |
| 8 | Transmission fill plug |
| 9 | Engine oil fill plug and dipstick |
| 10 | Turn signal/security module (under seat) |
Figure 14. 2005 Road Glide (FLTRI) – Right Side View
