Special Tools
| Description | Part Number | Qty. |
|---|---|---|
| SPANNER WRENCH | HD-94700-52C | 1 |
WARNINGAdjust both shock absorbers equally. Improper adjustment can adversely affect stability and handling, which could result in death or serious injury. (00036b)
The rear shock absorber springs can be adjusted to five positions to compensate for various loads.
- For heavy loads, the springs should be compressed.
- For lighter loads the springs should be extended.
See Figure 1. To adjust the rear shock absorber, turn spring adjusting cam to desired position with a SPANNER WRENCH (Part Number:HD-94700-52C). Both spring adjusting cams must be adjusted to the same position. When returning to off-cam position, cams should be backed off in opposite direction.

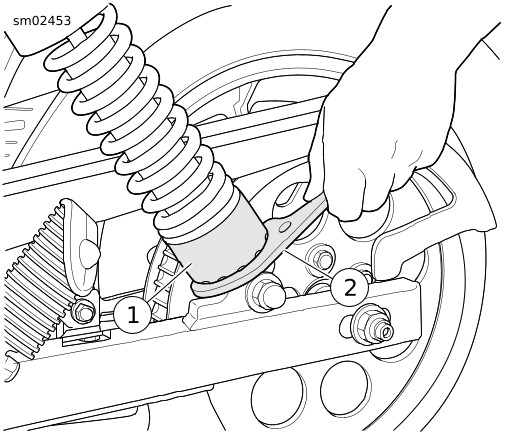

Figure 1. Rear Shock Absorber Spring Adjustment (Typical)

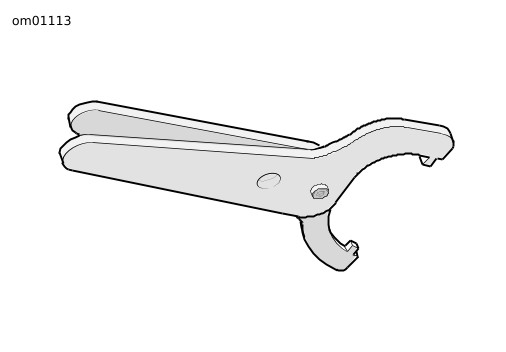

Figure 2. Spanner Wrench (HD-94700-52C)
