- See Figure 1. Rotate the hex adjusters (metric) located near the bottom edge of the inner fairing. Refer to Table 1 for adjuster rotation.
- Horizontal: Turn either the left or right adjuster to adjust the light beam left and right.
- Vertical: Turn both adjusters equally to adjust the light beam up and down.
- Adjust the light beam until it is centered as shown in Maintenance and Lubrication → Headlamp Alignment → Check Headlamp Alignment.
Table 1. Hex Adjuster Rotation
HEX ADJUSTER | ROTATION | BEAM MOVEMENT |
|---|---|---|
Left only | clockwise | to the right |
Right only | counterclockwise | |
Left only | counterclockwise | to the left |
Right only | clockwise | |
Left and right equally | clockwise | upward |
Left and right equally | counterclockwise | downward |
| 1 | Left |
| 2 | Right |

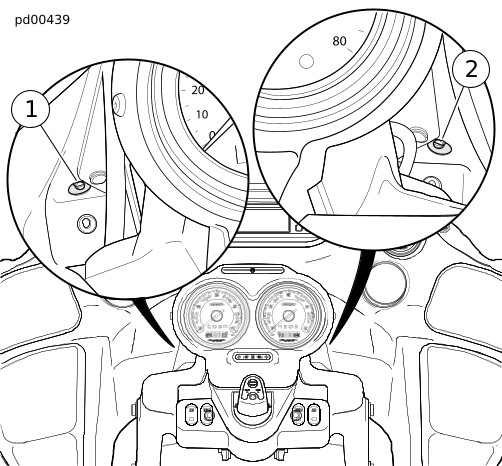

Figure 1. Headlamp Adjusters: Dual Headlamp Models
