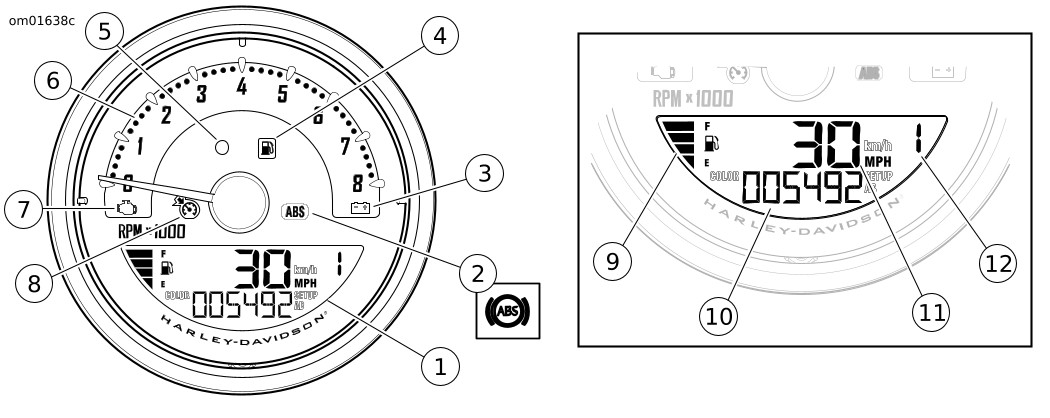

See Figure 1. The digital speedometer registers vehicle speed. See Controls and Indicators → Configuring Speedometer Units to adjust the speedometer units between miles per hour (mph) and kilometers per hour (km/h).

See Figure 1. The analog tachometer shows the engine speed in revolutions per minute (RPM x 1000).

See Figure 1. The fuel gauge displays four bars when the fuel tank is full. Each bar represents approximately one-fourth of the total fuel capacity.

See Figure 1. The digital gear indicator displays the currently selected gear (1-6). The gear indicator will remain blank when the transmission is in neutral, the clutch lever is pulled in, or the vehicle is not moving.

See Figure 2. The odometer shows the total accumulated mileage for the motorcycle. Pressing the TRIP switch will cycle through different odometer functions.

See Figure 2. The two trip odometers (A and B) display the total accumulated mileage since they were last reset. To check mileage, press and release the TRIP switch until the desired trip odometer (A or B) is displayed.

To reset a trip odometer, have desired (A or B) odometer in display window. Press and hold the TRIP switch until the selected trip odometer resets to zero.

See Figure 2. Press and release the TRIP switch until the time is displayed in the odometer window. See Controls and Indicators → Configuring Time to change the time settings.

See Figure 2. Press and release the TRIP switch repeatedly until the digital tachometer is displayed. The odometer window briefly displays an 'RPM' message, then displays the engine speed.

See Figure 2. The fuel range display shows the approximate mileage available with the amount of fuel left in the fuel tank.

With the OFF/RUN switch in the RUN position, press the TRIP switch until fuel range is displayed, as indicated by the letter "R" in the left side of the display. The calculated remaining distance (miles or kilometers) to empty is displayed, based on the amount of fuel in tank. Range can be accessed at any time using the TRIP switch.

The fuel range is automatically displayed when the low fuel lamp is lit. After the fuel range drops to 10 mi or 10 km remaining, the fuel range displays "LO RNG" to indicate that the motorcycle will shortly run out of fuel. Refuel as soon as possible.

The range display is only updated when the vehicle is moving.

Disable: To disable the automatic low fuel warning range function while riding, press and hold the TRIP switch while in the fuel range display mode. The automatic range pop-up feature will show that it is disabled by blinking twice.

Enable: To enable the automatic low fuel warning range display, press and hold the TRIP switch. The low fuel range will blink once when the automatic feature is enabled. The automatic fuel range display is also enabled after the OFF/RUN switch is turned to OFF then to RUN.

Reset: Resetting the low fuel warning lamp and range requires sufficient fuel in the tank and an ignition cycle change (OFF-RUN).

See Figure 2. If the motorcycle is ridden off without the fob, "NO FOB" will appear in the odometer window for 10 seconds after the motorcycle starts moving. With the motorcycle separated from its assigned fob, the motorcycle can only be restarted with a manual PIN entry to disarm the security system. See SECURITY SYSTEM → Arming and Disarming.

See Figure 2. If the motorcycle is tipped over, the word "tIP" will appear in the odometer window. The engine will not start until the tip condition is reset.

Reset: Bring the motorcycle to the upright position. Set the OFF/RUN switch to OFF then back to RUN.
