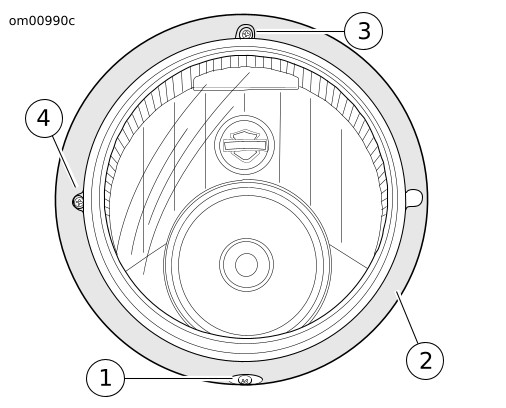

1. | See Figure 1. Remove screw (1) and headlamp trim ring (2). | |
2. | See Figure 2. Remove screws (1) and retaining ring (3). | |
3. | Disconnect wire harness connectors from the bulbs. | |
4. | Remove the bulb. a. US and Canada models: Turn bulb assembly 1/4 turn counterclockwise to remove from the reflector/lens. b. See Figure 3. All except US and Canada models: Remove the rubber boot from the back of the housing. Press down on the wireform loop (1) to release from the retainer (2). Swing wireform out of the way. | |
5. | Install new bulb assembly. a. US and Canada models: Insert bulb into reflector/lens and rotate 1/4 turn clockwise. b. All except US and Canada models: Align the tab on the bulb with the notch in the headlamp housing. Rotate the wireform into place and latch under lip of the retainer. Install rubber boot at back of housing. | |
6. | HDI models: Rotate position lamp bulb retainer 1/4 turn counterclockwise to remove. Replace bulb and install bulb retainer in lamp housing. | |
7. | Connect the wiring harness connectors to the bulbs. | |
8. | Hold headlamp assembly in place and install the retaining ring. Tighten to 1–2 N·m (9–18 in-lbs). | |
9. | Install the headlamp trim ring. Tighten to 1–2 N·m (9–18 in-lbs). |
1 | Fastener |
2 | Trim ring |
3 | Vertical adjustment |
4 | Horizontal adjustment |
1 | Retaining ring fastener |
2 | Headlamp adjusting screw |
1 | Wire retaining clip |
2 | Retainer |
