The front Wind deflectors improve air flow and reduce turbulence. They may be removed or installed depending on riding conditions or rider preference.
Removal
  1. See Figure 1. Remove upper clip (3) from fuel tank mount (4).
  2. Remove air deflector (1) from lower clip (2) on engine guard (5).
  3. Pull out wind deflector through opening between fuel tank and inner fairing.
  4. Repeat on other side.
Installation
NOTE
Install wind deflectors from top between fuel tank and inner fairing.
  1. See Figure 1. Snap wind deflector (1) lower clip (2) on engine guard (5).
  2. Snap upper clip (3) on fuel tank mount (4).
  3. Repeat on other side.
1Front wind deflector
2Lower clip
3Upper clip
4Fuel tank mount
5Engine guard

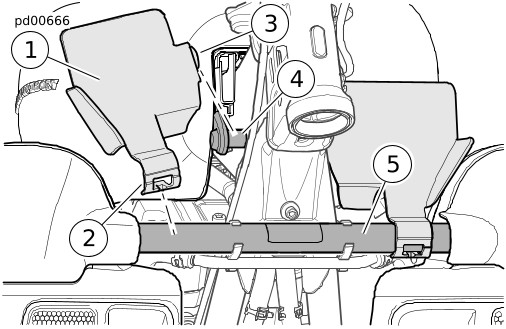

Figure 1. Front Wind Deflector: FLTRUSE
