Familiarize yourself with the location of all the operational and maintenance controls on your motorcycle.
NOTE
Harley-Davidson reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
See Figure 1 for rider controls and service components accessible when seated.
See Figure 3 for rider controls and service components accessible from the left.
See Figure 2 for rider controls and service components accessible from the right.
| 1 | Clutch hand lever |
| 2 | Left hand control module |
| 3 | Clutch fluid reservoir (hydraulic clutch) |
| 4 | Speedometer/odometer |
| 5 | Front brake fluid reservoir |
| 6 | Front brake lever |
| 7 | Throttle twist grip |
| 8 | Right hand control module |
| 9 | Fuel filler cap |
| 10 | Ignition switch |
| 11 | Indicator lamp bar |
| 12 | Fuel gauge |
Figure 1. Controls and Service Components (Typical)
| 1 | Air pressure valve |
| 2 | Gear shift lever |
| 3 | Spark plug |
| 4 | Seat retention screw |
| 5 | Air pressure valve |
| 6 | Clutch cover |
| 7 | Jiffy stand |
| 8 | Front brake caliper |
Figure 2. Controls and Service Components
| 1 | Rear brake caliper |
| 2 | Transmission filler plug |
| 3 | Oil filler cap/dipstick |
| 4 | Air cleaner |
| 5 | Rear brake pedal |
| 6 | Rear brake fluid reservoir |

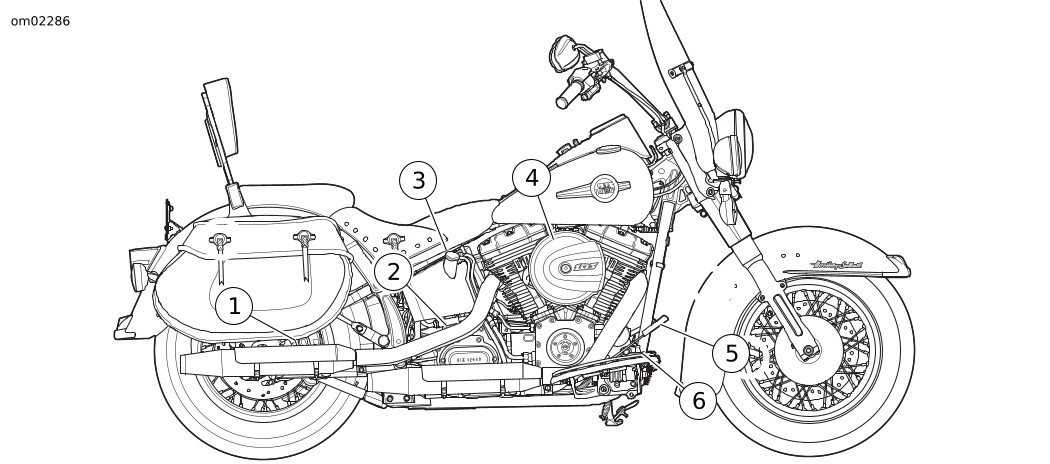

Figure 3. Controls and Service Components
