The heated gear connectors supply power to selected Harley-Davidson riding apparel.
Figure 1 The heated gear connectors (3) are stored under the seat in the under seat caddy (1). When in use, heated gear connectors must be routed properly to prevent damage.
| 1. | Remove seat. See Service Procedures → Seat. | |
| 2. | Figure 1 Remove the heated gear connectors (3) from storage location on under seat caddy (1). NOTE Do not route the heated gear harness between frame and the seat. Damage to the harness occurs. | |
| 3. | Figure 2 Route (4) the heated gear wiring harness toward the left side cover (2). | |
| 4. | Route the wiring harness behind and down the back side of the left side cover (2). a. In this position, the heated gear connectors can stay without damaging the wiring. |
NOTE
When the heated gear connectors are not in use, verify that dust caps are installed.
| 1 | Under seat caddy |
| 2 | Battery tender |
| 3 | Heated gear (2) |
Figure 1. Under Seat

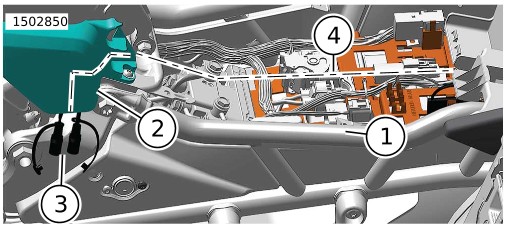

| 1 | Frame |
| 2 | Left side cover |
| 3 | Heated gear connector (2) |
| 4 | Heated gear wiring routing |
Figure 2. Heated Gear Connector Routing
