One Piece Skid Plate
Remove
1. Figure 1 Remove screws (2).
2. Remove skid plate (1).
Install
1. Figure 2 Verify that grommets (3) and limiters (2) are in place.
2. Figure 1 Position skid plate.
3. Install screws (2). Tighten.
Torque: 19.5–23.8 N·m (14–18 ft-lbs)

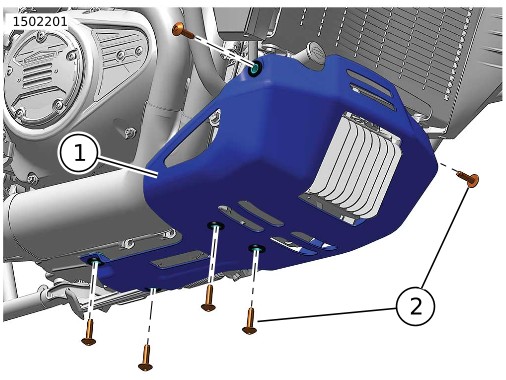

1Skid plate
2Screw (6)
Figure 1. One Piece Skid Plate

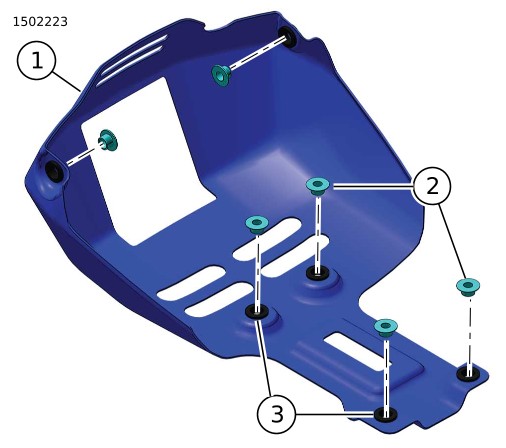

1Skid plate
2Limiter (6)
3Grommet (6)
Figure 2. Skid Plate Limiters
Two Piece Skid Plate
Remove Front Skid Plate
1. Figure 3 Remove screws (2)
2. Remove front skid plate (1).
Remove Rear Skid Plate
1. Figure 3 Remove screws (3).
2. Remove rear skid plate (4).
Install Rear Skid Plate
1. Figure 4 Verify that both long and medium limiters (3 & 4) are in place.
2. Figure 3 Position rear skid plate (4).
3. Install screws (3). Hand tighten.
Install Front Skid Plate
1. Figure 4 Verify that short limiters (2) are in place.
2. Figure 3 Position front skid plate (1).
3. Install screws (2). Tighten screws (2 & 3).
Torque: 19.5–23.8 N·m (14–18 ft-lbs)

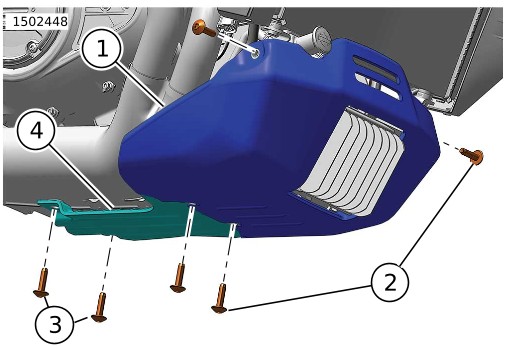

1Front skid plate
2Front plate screw (4)
3Rear plate screw (2)
4Rear skid plate
Figure 3. Two Piece Skid Plate

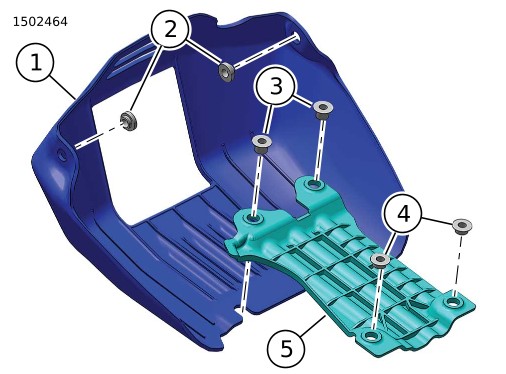

1Front skid plate
2Short limiter (2)
3Long limiter (2)
4Medium limiter (2)
5Rear skid plate
Figure 4. Two Piece Skid Plate - Front and Rear Limiters
