NOTICE
Polycarbonate windshields/wind deflectors require proper attention and care to maintain. Failure to maintain polycarbonate properly can result in damage to the windshield/wind deflector. (00483e)
NOTICE
Use only Harley-Davidson recommended products on Harley-Davidson windshields. Do not use harsh chemicals or rain sheeting products, which can cause windshield surface damage, such as dulling or hazing. (00231c)
Raise
1. See Figure 1. While holding lever (2) pull trigger (1) until lever can be moved down.
2. Carefully move lever down to raise windshield.
3. Release trigger to lock windshield in one of four available heights.
4. Verify trigger has moved forward to original position.
Lower
1. See Figure 1. While holding lever (2) pull trigger (1) until lever can be moved up.
2. Carefully lift lever up to lower windshield.
3. Release trigger to lock windshield in one of four available heights.
4. Verify trigger has moved forward to original position.

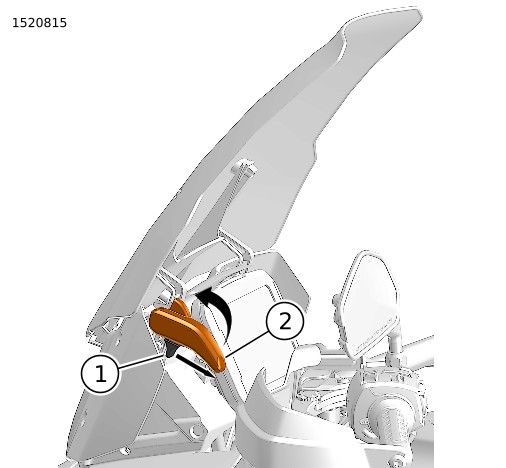

1Trigger
2Lever
Figure 1. Windshield Height Adjust
