Removal
  1. See Figure 1. Remove flange nuts (3) and washers (4).
  2. Remove front pivot bolt (5) and nut (6).
  3. Lift seat and bracket assembly.
  4. See Figure 2. If battery removal is necessary, remove two flange nuts (2) and washers (1) and remove seat fairing.
Installation
1. See Figure 2. If removed, install seat fairing. Tighten.
Torque: 6.8–10.8 N·m (60–96 in-lbs) Seat fairing flange nut
2. See Figure 1. Place seat and bracket assembly on motorcycle and install front pivot bolt. Tighten.
Torque: 5.4–9.5 N·m (48–84 in-lbs) Seat pivot bolt
3. Rotate top spring plate so upper studs (7) are offset to the rear.
4. Align bracket with studs and install washers and nuts. Tighten.
Torque: 6.8–9.5 N·m (60–84 in-lbs) Seat flange nut
1Washer
2Flange nut
3Flange nut
4Washer
5Pivot bolt
6Acorn nut
7Studs

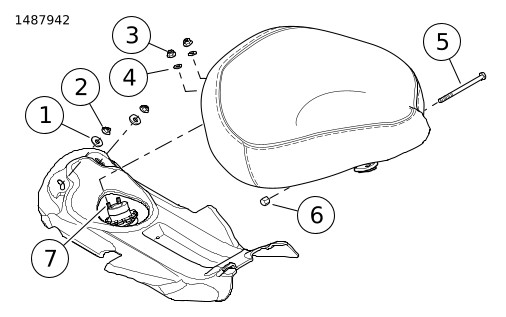

Figure 1. Seat Attachment
1Seat fairing
2Flange nut with washer (2)
Figure 2. Seat Fairing: Police Models
