Familiarize yourself with the location of all the controls and service components on your motorcycle.

NOTE

Illustrations are for general reference only. Controls and service components shown are general locations and representations that do not show a specific model of motorcycle.

Harley-Davidson reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.

See Figure 1 or Figure 4 for rider controls and service components accessible when seated.

See Figure 2 or Figure 5 for rider controls and service components accessible from the right.

See Figure 3 or Figure 6 for rider controls and service components accessible from the left.

1	Clutch hand lever
2	Left hand control module
3	Instrument Module (IM)
4	Front brake fluid reservoir
5	Front brake lever
6	Throttle twist grip
7	Right hand control module
8	Fuel filler door

Figure 1. Controls and Service Components (1250 Models Typical)

1	Air pressure valve
2	Rear brake pedal
3	Rear brake fluid reservoir
4	Rear brake caliper
5	Coolant filler cap/dipstick

Figure 2. Controls and Service Components (1250 Models Typical)

1	Front brake caliper
2	Gear shift lever
3	Oil filler cap/dipstick
4	Spark plug
5	Jiffy stand
6	Seat latch
7	Rear suspension adjuster

Figure 3. Controls and Service Components (1250 Models Typical)

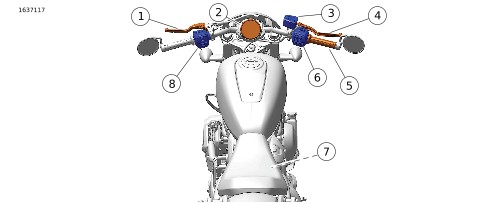

1	Clutch hand lever
2	Instrument module (IM)
3	Front brake fluid reservoir
4	Front brake lever
5	Throttle twist grip
6	Right hand control module
7	Fuel filler cap
8	Left hand control module

Figure 4. Controls and Service Components (975 Models Typical)

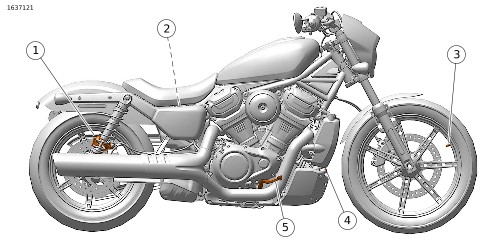

1	Rear brake caliper
2	Rear brake fluid reservoir (behind side cover)
3	Air pressure valve
4	Coolant filler cap/dipstick
5	Rear brake pedal

Figure 5. Controls and Service Components (975 Models Typical)

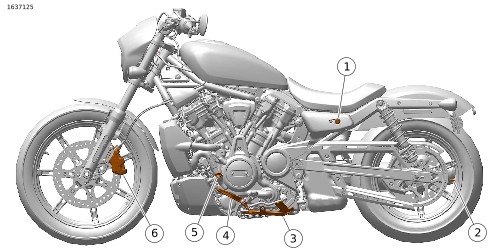

1	Seat latch
2	Air pressure valve
3	Jiffy stand
4	Gear shift lever
5	Oil filler cap/dipstick
6	Front brake caliper

Figure 6. Controls and Service Components (975 Models Typical)
