Familiarize yourself with the location of all the controls and service components on your motorcycle.
NOTE
Illustrations are for general reference only. Controls and service components shown are general locations and representations that do not show a specific model of motorcycle.
Harley-Davidson reserves the right to change specifications, equipment or designs at any time without notice and without incurring obligation.
See Figure 1 for rider controls and service components accessible when seated.
See Figure 2 for rider controls and service components accessible from the right.
See Figure 3 for rider controls and service components accessible from the left.
| 1 | Clutch hand lever |
| 2 | Left hand control module |
| 3 | Instrument Module (IM) |
| 4 | Front brake fluid reservoir |
| 5 | Front brake lever |
| 6 | Throttle twist grip |
| 7 | Right hand control module |
| 8 | Fuel filler door |
Figure 1. Controls and Service Components (Typical)

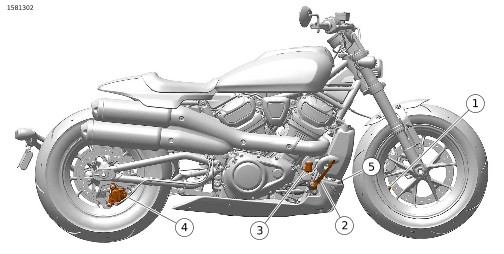

| 1 | Air pressure valve |
| 2 | Rear brake pedal |
| 3 | Rear brake fluid reservoir |
| 4 | Rear brake caliper |
| 5 | Coolant filler cap/dipstick |
Figure 2. Controls and Service Components (typical)
| 1 | Front brake caliper |
| 2 | Gear shift lever |
| 3 | Oil filler cap/dipstick |
| 4 | Spark plug |
| 5 | Jiffy stand |
| 6 | Seat latch |
| 7 | Rear suspension adjuster |
Figure 3. Controls and Service Components (typical)
