See Figure 1 for safety and maintenance labels which were on the vehicle when new. If removed, replacement labels may be purchased for your motorcycle. Refer to Table 1 for label descriptions.
Table 1. Labels: Sportster Models
LABEL | PART NUMBER | DESCRIPTION | LOCATION |
|---|---|---|---|
1 | 15368-01A | Battery warning | Top of belt guard (XR 1200) Front left of rear fork (XL models) |
2 | 29466-08 | General warnings (XR 1200) | Top of left side cover |
3 | 29127-95B | General warnings (XL models except 883R/1200N) | Top of air cleaner cover |
4 | 29404-01A | General warnings (XL 883R/1200N) | Top of air cleaner cover |
5 | 13699-08 | Fuse block label (XR 1200) | Inside left side cover |
6 | 13571-07 | Fuse block label (XL models) | Inside left side cover |
7 | 15376-06 | Battery removal/installation | Inside left side cover |

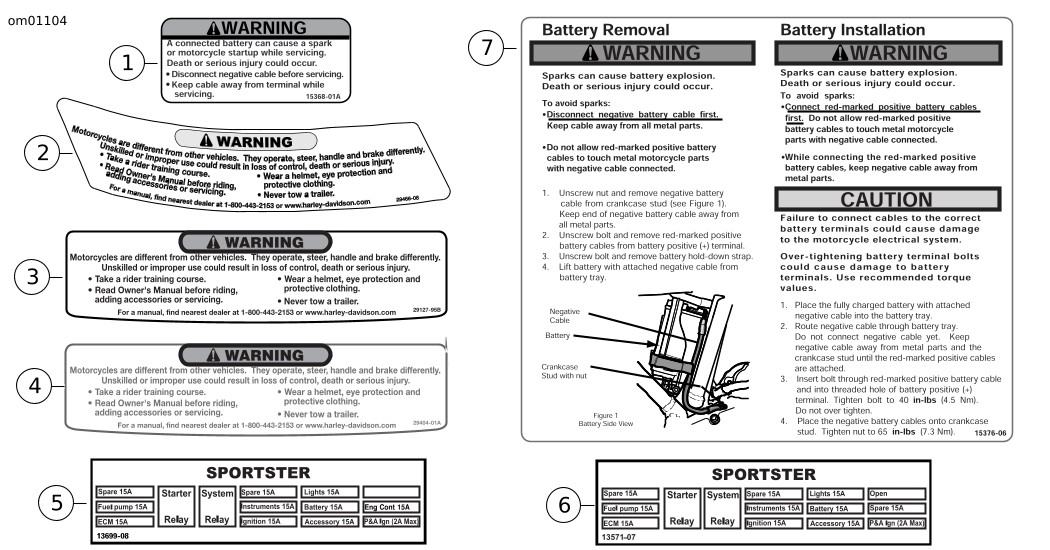

Figure 1. Labels: Sportster Models
