Special Tools
| Description | Part Number | Qty. |
|---|---|---|
| SPANNER WRENCH | C2050.1AM | 1 |
WARNINGAdjust both shock absorbers equally. Improper adjustment can adversely affect stability and handling, which could result in death or serious injury. (00036b)
NOTICE
Compression and rebound adjusting valves may be damaged if too much force is used at either end of the adjustment range. (00237a)
NOTE
Do not force adjusters beyond the mechanical stops.
Shock Absorber Preload Adjustment
See Figure 1 and Figure 3. Using SPANNER WRENCH (Part Number:C2050.1AM) (provided in the owner's tool kit), turn the spring adjusting cam to specification. Refer to Table 1.
Shock Absorber Rebound Damping Adjustment
Shock Absorber Compression Damping Adjustment
- See Figure 1. Using fingers, turn the compression adjuster clockwise (towards H) until it stops. This is the maximum compression damping setting.
- Turn the compression adjuster counterclockwise (H to S) the recommended number of clicks. Refer to Table 2.
| 1 | Preload adjusting cam |
| 2 | Compression damping adjuster |
| 3 | Spanner wrench |
| 4 | Pressurized gas valve (do not remove cover) |

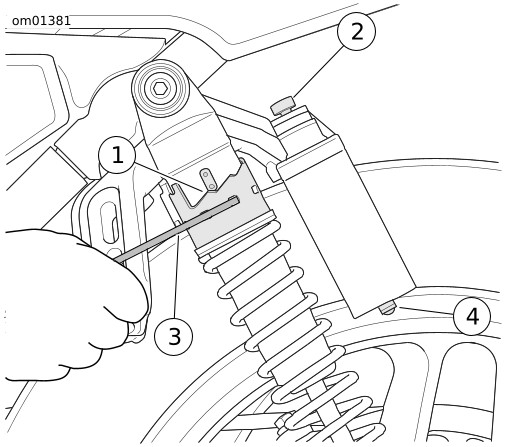

Figure 1. Shock Absorber Preload and Compression Damping Adjusters: XR 1200X
Figure 2. Shock Absorber Rebound Damping Adjuster: XR 1200X
| 1 | Minimum preload adjustment |
| 2 | Maximum preload adjustment |

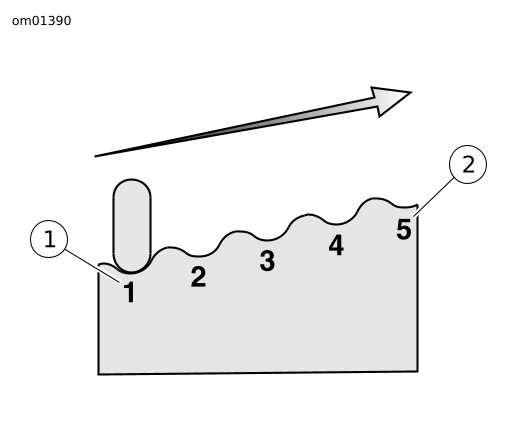

Figure 3. Shock Absorber Preload Adjustment: XR 1200X
Table 1. Recommended Shock Absorber Preload Adjustment: All Models
LOAD | PRELOAD |
|---|---|
Less than 75 kg (165 lb) | Position 1 |
75–89 kg (165–195 lb) | Position 2 |
89–102 kg (195–225 lb) | Position 3 |
102–116 kg (225–255 lb) | Position 4 |
Greater than 116 kg (255 lb) | Position 5 |
Load includes rider, passenger, cargo, accessories, and riding gear. | |
Table 2. Recommended Rear Shock Rebound and Compression Damping Adjustment: XR 1200X
DAMPING | NOMINAL (From Maximum) |
|---|---|
Compression (COM) | 7 clicks |
Rebound (REB) | 5 clicks |
